USER MANUAL TS-227S Brentwood

Brentwood® SELECT

© 2021 Brentwood Appliances, Inc.

2 & 4 SLICE STAINLESS STEEL TOASTERS

Two modern electric cooktop holders with black and silver shades, no visible text or symbols on the devices themselves.

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safe precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not immerse the Appliance, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.
• Do not touch hot surfaces. Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.
• Clean out the accumulated crumbs frequently to avoid the risk of fire or malfunction. Do not use foods that will drip coatings or fillings when heated as sugars may cause bread to quickly burn.
• Do not use attachments not recommended or sold by the product manufacturer.
• Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the product empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 6.

• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

• Oversized foods, foil packages, plastic packages, utensils must not be inserted in the toaster as they present a risk of fire or electric shock.

• Do not attempt to dislodge food when the toaster is plugged into an electrical outlet.

Never insert metal objects to remove toast.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

– The marked electrical rating must be at least as great as that of the product;
- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

WARNING: Do not place any part of the product in a dishwasher.

1. Check the toast slots for any remaining packaging. Be sure slots are completely clear before use.
2. Place toaster on a flat, stable and heat resistant surface away from the edge and at least 3 inches away from the wall or back of counter.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

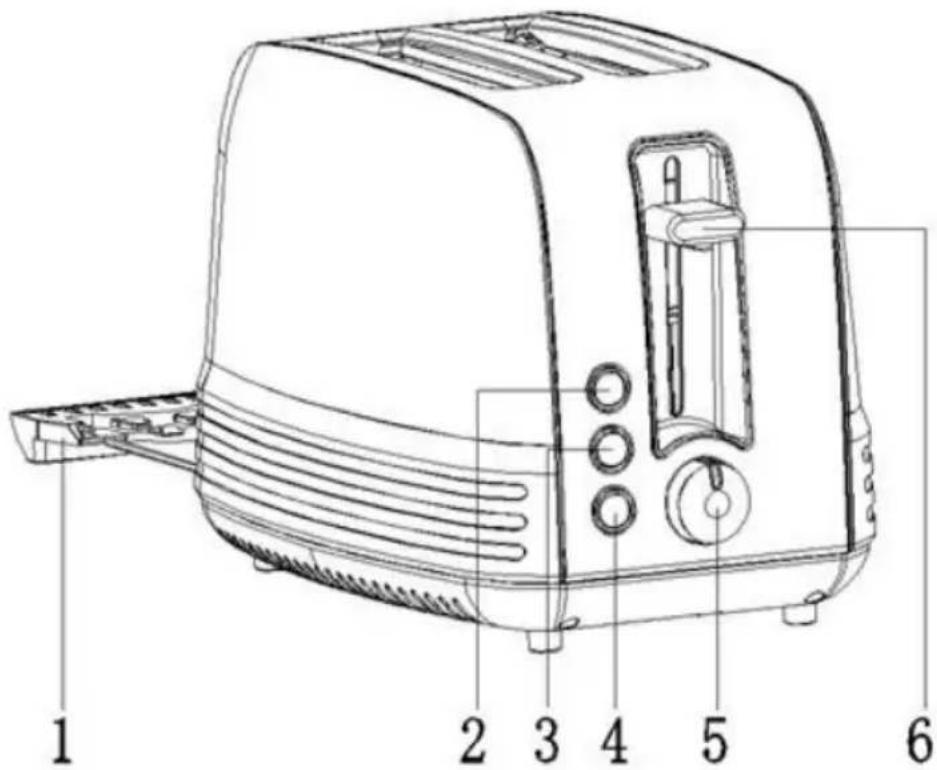

Parts:

1 2 3 4 5 6

1. REMOVABLE CRUMB TRAY
2. CANCEL
3. DEFROST
4. BAGEL
5. BROWNING CONTROL
6. BREAD CARRIAGE LEVER

Cancel Button:	Allows you to interrupt the Toasting Cycle.
Defrost Button:	Is ideal for frozen breads that should be thawed before toasting.
Bagel Button:	Larger slots for bagels

Before using your toaster

Set the browning level to maximum (7).

Operate the appliance empty, to cure the new elements.

This may smell a bit, but it is nothing to worry about. Ensure the room is well ventilated.

Using Your Toaster:

1. Make sure the bread carriage lever is in the up position.
2. Unwind the power cord and plug into the nearest electrical outlet.
3. With the bread carriage in the up position insert the slice(s) you would like to toast/defrost.

4. Turn the Browning Dial to the desired browning setting (1 = light, 7 = dark). The higher the number the darker the toast (Your toaster has 1-7 browning levels).
   Attention: Always use the CANCEL button if you see or smell burning.

5. Press the carriage lever down until it locks into position.

6. When the toaster cycle is completed the toast rises automatically.
7. When heating is complete, let the toaster cool then move or unplug the product from the electrical outlet.
8. Never wrap the power cord around the outside of the toaster. The power cord should be wrapped around the cord storage cavity underneath the toaster.

WARNING: Always unplug the product from the electrical outlet when it is not in use or will be left unattended.

TOASTING BREAD

Put the plug into the power socket.

Turn the browning control to the required setting (1 = light, 7 = dark).

Put bread into the toasting slots.

Press the lever down fully, cancel button will come on. NOTE: Slots will not lock down unless the toaster is connected to the electricity outlet.

When the bread has met the desired toasted level, the toast will pop up.

CANCEL FUNCTION

Press the Cancel button at any time to stop toasting.

DEFROST FUNCTION

Leave the browning level at your favorite setting, insert the frozen bread, lower the lever, then press the Defrost button. The defrost light will come on, and the toasting time will be altered automatically to give the same degree of browning you get with unfrozen bread.

EXTRA LIFT

When toasting is done, raise the lever further, to remove bread.

Toasting Tips:

Toasting times may vary on the moisture level of the bread you are toasting.

• For slightly DRY bread, use a lower setting (1-3) on the Browning Control Knob.
• FRESH bread or WHOLE WHEAT bread use a higher setting (4-6) on the browning control knob.
• ENGLISH MUFFINS will require a higher setting (4-6) on the browning control knob.
• Thick cuts of bread like BAGELS take longer to toast since more moisture must be evaporated from the bread before toasting occurs.

- Some very thick cuts of bread may require two toasting cycles.

- If you will toast bread with pieces of fruit, please remove all loose pieces before toasting. These can fall into the toaster or stick to the guard wires.

- Before toasting bagels, slice them into two equal halves; place them in the toaster with the cut sides facing each other.

- For Toasting a single slice, use a lower setting (1-3) on the browning control knob.

- Use caution when toasting pastries as their fillings can become very hot before the surface of the pastry becomes brown.

Cleaning Your Toaster:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

- Simply wipe the exterior of the toaster with a clean damp cloth and dry it thoroughly. If a cleaning solution is used, apply it to a clean cloth and not directly onto the toaster.

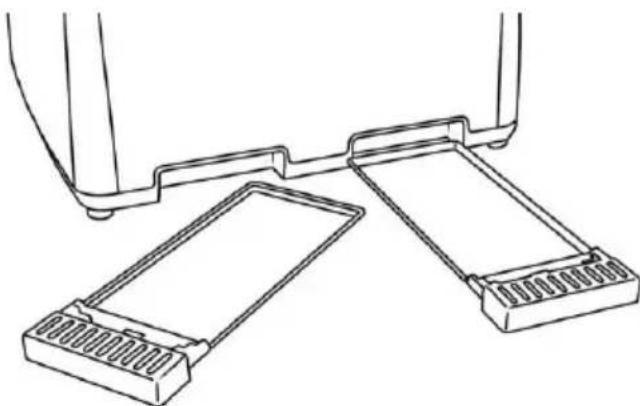

- This toaster is equipped with a Crumb Tray. Slide the Crumb Tray to open, wipe clean and replace. Never operate the toaster without the crumb holder in place

- To remove bread caught in toaster, unplug it from outlet, turn toaster upside down and shake gently. Never insert any hard or sharp object into the toaster.

Technical line drawing of a mechanical component with two flanged parts and a curved bracket (no text or symbols)

- Clean out the accumulated crumbs frequently to avoid the risk of fire or malfunction. Do not use foods that will drip coatings or fillings when heated as sugars may cause bread to quickly burn.

• DO NOT IMMERSE THIS TOASTER.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

Email at [e-mail]

Go online at www.brentwoodus.com

Technical line drawing of a mechanical component with two flanges and a base plate (no text or symbols)

Technical line drawing of a mechanical assembly with two flanged components (no text or symbols)
