USER MANUAL F-650MW Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

6" AIR CIRCULATOR FAN VENTILADOR DE CIRCULACIÓN DE AIRE DE 15 CM VENTILATEUR À CIRCULATION D'AIR DE 15 CM

ITEM NO.: F-650MW

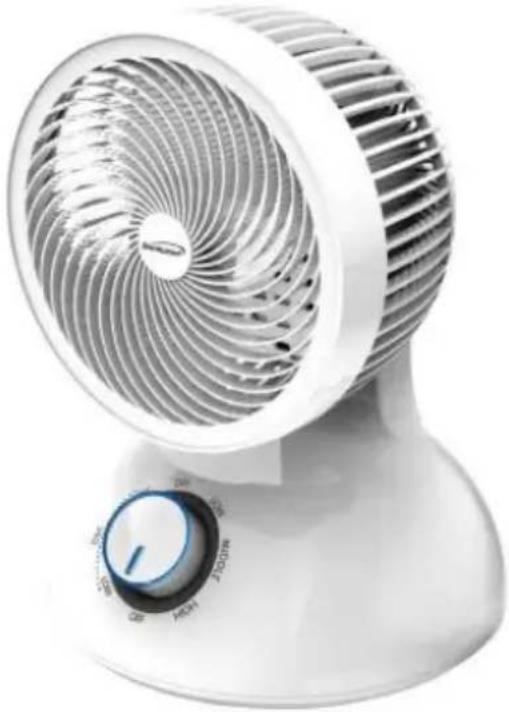

White electric fan with spiral blades and control knob (no visible text or symbols)

Operating and Safety Instructions FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safe precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• Never insert finger or any type of objects in the grill especially while in use.
• Do not use in areas with high levels of humidity such as restrooms.
• Do not install or position this fan in a window.
• Please discard or store all packing materials away from the reach of children.
• Make sure fan is in the OFF position before connecting to power supply.
• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not place on or near a hot gas or electric burner, or other heated surfaces.
• Use extreme caution when moving an appliance.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use on a flat surface.
• Keep the product away from curtains, wall coverings, clothing, dishtowels, or flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 5.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

— The marked electrical rating must be at least as great as that of the product.
- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the

plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

Fan Blade Size: 6 inches. 60Hz\~120V 28Watts.

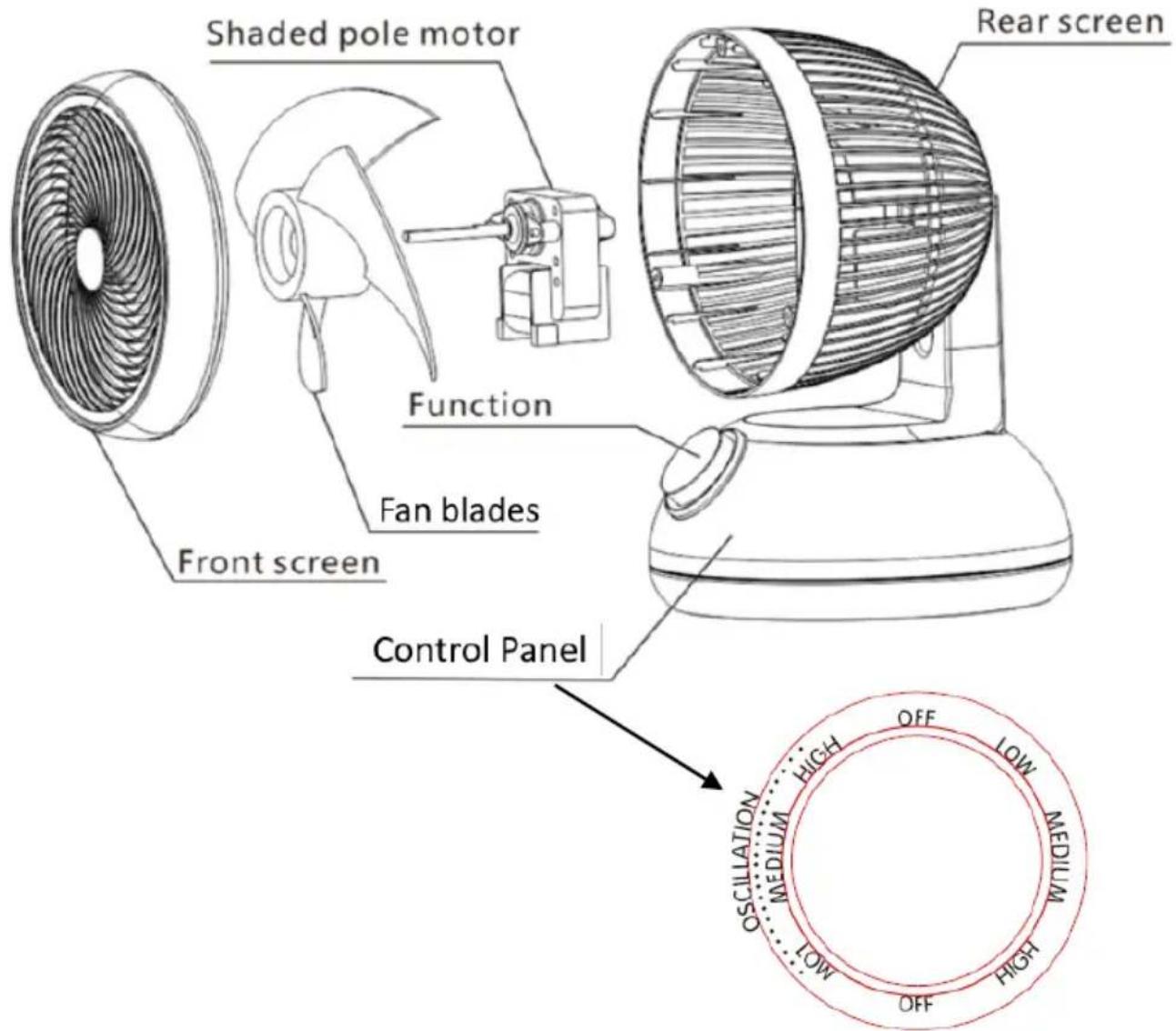

Parts:

Shaded pole motor Function Fan blades Front screen Control Panel Rear screen OSCILLATION HIGH OFF LOW MEDIUM MEDIUM LOW HIGH OFF

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

How to operate your fan:

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

• Take out the fan from the packing box.
- Make sure the fan is connected to a standard 120 Volt AC outlet.

1. Power: Manually turn on the fan by turning left or right on the control knob.
2. Fan Speed: Three fan speeds to choose from: 'Low', 'Medium', 'High'
3. Oscillation: To activate oscillation. Manually choose from 'Low', 'Medium', 'High' from the left side of the control panel options. Fan oscillates 75 degrees; left to right.
4. Manual Angle Function: Manually adjust fan head to your desire angle. Multi-angle adjustment is 90 degrees up or down.

NOTE: The knob can be adjusted 360 degrees.

Cleaning Your Fan:

WARNING: Make sure the blades have come to a complete stop before proceeding with cleaning.

NOTICE: Always unplug the product before cleaning or storing.

1 Press the power button on the control panel or remote control to shut it off and disconnect the power cord from the electrical outlet.
2 Allow the blades to come to a complete stop.
3 With a soft lightly damp cloth, carefully wipe the surface of the fan. Making sure water does not drip into the fan motor housing.
4 Do not immerse any part of the fan or power cord in water.
5 Make sure the fan is completely dry before reconnecting to the power supply.

NOTE: Do not use thinners, benzene or any other type of abrasive materials to clean the fan.

For stubborn spots use a small amount of mild soap to softly scrub the area. Wipe clean. Do not disassemble fan to clean blades. Read instructions.

FAN STORAGE:

Make sure to store it in a safe and dry location away from the reach of children. We recommend using a dust cover to protect the fan from dust, place it away from heat and keep in cool dry area to avoid damaging any parts of the fan.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

© 2021 Brentwood Appliances, Inc.
