USER MANUAL F-18360BK Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

18" 360° INDUSTRIAL OSCILLATION STAND FAN

VENTILADOR DE SOPORTE DE OSCILACIÓN INDUSTRIAL DE 45 CM 360°VENTILATEUR INDUSTRIEL À SOCLE OSCILLANT DE 45 CM À 360°

ITEM NO.: F-18360BK

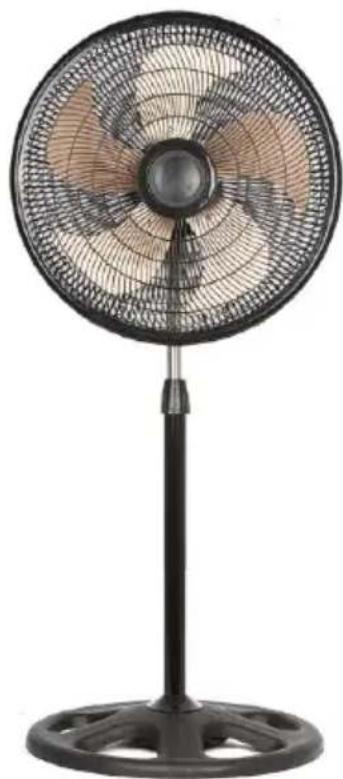

Black outdoor fan with visible blades and a stand (no text or symbols)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

ENGLISH

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- Never insert finger or any type of objects in the grill especially while in use.

- Do not use in areas with high levels of humidity such as restrooms.

- Do not install or position this fan in a window.

- Please discard or store all packing materials away from the reach of children.

- Make sure fan is in the OFF position before connecting to power supply.

- This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet before assembling, disassembling, relocating, or cleaning it.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not place on or near a hot gas or electric burner, or other heated surfaces.

- Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use on a flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or if the Motor Housing is dropped in or exposed to water.

- This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Only qualified service personnel should perform any servicing.

- Do not put any stress on the power cord, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used: The marked electrical rating must be at least as great as that of the product; Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

— The marked electrical rating must be at least as great as that of the product.

- If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.

- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug.

Close-up of a black electrical plug with metal contacts and a small screw (no visible text or symbols)

Assembly Instructions

Do Not plug in before properly assembling Fan.

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

Stand Fan

1. Using nut and bottom weight to secure the STAND to the BASE.
2. Assemble FRONT and BACK GRILLS with BLADES and secure with screws to the MOTOR HEAD.
3. Attached MOTOR HEAD to assembled STAND and tighten screw.

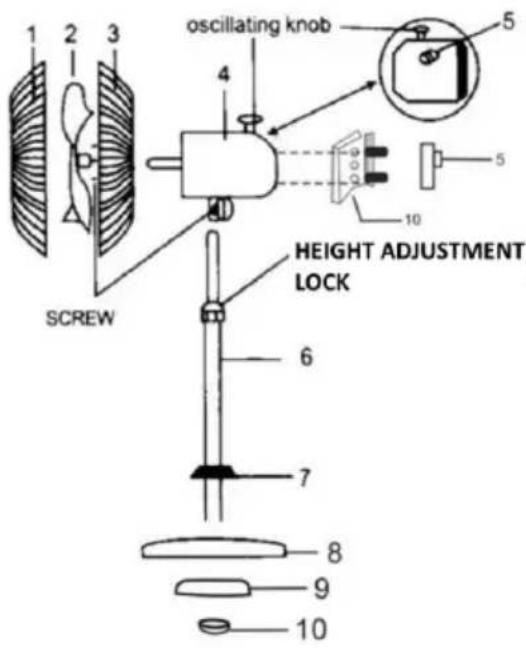

Parts and Assembly for Fan:

STAND FAN

1 2 3 SCREW OSCILLATING knob 4 5 5 10 HEIGHT ADJUSTMENT LOCK 6 7 8 9 10

1.	Front grill
2.	Blade
3.	Rear grill
4.	Motor
5.	Switch
6.	Stand
7.	Base cover
8.	Base
9.	Extra weight
10.	Cover of weight

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Cleaning Your Fan:

WARNING: Make sure the blades have come to a complete stop before proceeding with cleaning.

NOTICE: Always unplug the product before cleaning or storing it.

1. Turn the dial to "Off" and disconnect the power cord from the electrical outlet.
2. Allow the blades to come to a complete stop and remove the grill plate.
3. With a soft damp cloth carefully wipe the blades. Making sure water does not drip into the fan motor housing.

NOTE: Do not use thinners, benzene or any other type of abrasive materials to clean the fan.

For stubborn spots use a small amount of mild soap to scrub the area. Wipe clean.

1. Carefully wipe clean and replace the grill plate securing it in place.

FAN STORAGE:

• Your fan can be stored partially disassembled or assembled. Make sure to store it in a safe and dry location away from the reach of children.
• For disassembled storage we recommend using keeping the original box as it is appropriately sized.
• For assembled storage we recommend using a dust cover to protect the fan from dust, place it away from where parts can be damaged.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE U.S.

CONTINENTAL AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

Email at [e-mail]

Go online at www.brentwoodus.com
