F-1831B - Fan Brentwood - Free user manual and instructions

Brand	Brentwood
Model	F-1831B
Product Type	Versatile fan (pedestal, table/floor, wall)
Power Supply	120 V, 60 Hz, polarized plug
Oscillation Function	Yes, oscillation button
Blade Material	Plastic
Protective Grille	Removable front and rear grilles
Mounting	Assembly required: base, pole, motor head, grilles and blades
Dimensions (approximate)	Height approximately 90-120 cm (depending on configuration)
Weight (approximate)	Approximately 2-3 kg
Safety	Polarized plug, protection against electric shock, 10-15 cm clearance around
Maintenance and Cleaning	Disconnect before cleaning, wipe blades with a damp cloth, do not use solvents
Storage	Can be stored assembled or disassembled, in a dry place, out of reach of children
Spare Parts and Repairability	No user-serviceable parts, do not attempt to repair yourself
Use	For indoor household use only

Frequently Asked Questions - F-1831B Brentwood

How to assemble the Brentwood F-1831B fan?

Follow the assembly instructions according to the chosen type (pedestal, table/floor or wall). For the pedestal fan, secure the pole to the base with the nut and bottom weight, assemble the front and rear grilles with the blades on the motor head, then attach the head to the pole. Do not plug in until fully assembled.

The fan emits an odor or smoke during first use, is this normal?

Yes, this is normal during the first moments of operation. It is a chemical reaction from the heating element (if present) or packaging. It will disappear quickly.

How to clean the fan?

Before any cleaning, disconnect the fan and let the blades stop completely. Wipe the blades with a soft damp cloth. Do not use thinners, benzene or abrasives. For stubborn stains, use a little mild soap. Dry thoroughly before replacing the grille.

What are the important safety precautions?

Never insert fingers or objects into the grille. Do not use near water or with wet hands. Disconnect before assembly/disassembly/moving/cleaning. Do not leave unattended. Do not use if cord or plug is damaged. Keep out of reach of children.

Can I use an extension cord with this fan?

An extension cord is not recommended, but if necessary, use one rated at least as high as the product and ensure the plug fits fully. Arrange it to avoid tripping hazards.

How to store the fan out of season?

You can store it partially disassembled or assembled. Keep it in a dry and safe place, out of reach of children. Use a dust cover if stored assembled. The original box is ideal for disassembled storage.

Can the fan be mounted on the wall?

Yes, the F-1831B model can be mounted on the wall. Assemble the grilles, blades and motor head as for other configurations, attach the head to the bracket, then fix the hooks to the wall with screws and nuts and hang the fan.

What to do if the fan does not work?

First check that the fan is correctly assembled and plugged in. Make sure the outlet works. If the problem persists, do not attempt to repair yourself as there are no user-serviceable parts. Contact a qualified after-sales service.

How to make the fan oscillate?

The fan is equipped with an oscillation button. To activate oscillation, turn or push this button (depending on the model). To stop oscillation, return it to the initial position.

The fan makes noise, is this normal?

A slight hum from the motor is normal. If the noise is loud or abnormal, check that the blades are not hitting the grille and that all screws are tight. If the noise persists, disconnect and contact customer service.

USER MANUAL F-1831B Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

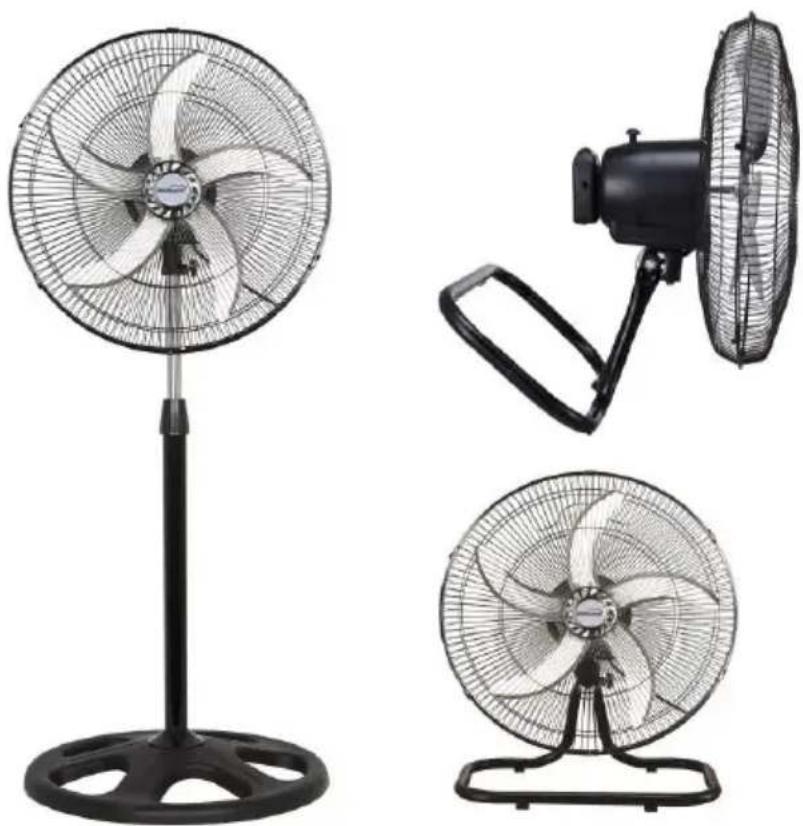

18" 3-IN-1 INDUSTRIAL STAND

VENTILADOR INDUSTRIAL 3 EN 1 DE 45 CM

VENTILATEUR INDUSTRIEL 3 EN 1 DE 45 CM

ITEM NO.: F-1831B

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• Never insert finger or any type of objects in the grill especially while in use.
• Do not use in areas with high levels of humidity such as restrooms.
• Do not install or position this fan in a window.
• Please discard or store all packing materials away from the reach of children.
• Make sure fan is in the OFF position before connecting to power supply.
• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not place on or near a hot gas or electric burner, or other heated surfaces.
• Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use on a flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or if the Motor Housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Only qualified service personnel should perform any servicing.
• Do not put any stress on the power cord, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used: The marked electrical rating must be at least as great as that of the product; Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

— The marked electrical rating must be at least as great as that of the product.
- If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
— Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug.

Assembly Instructions

Do Not plug in before properly assembling Fan.

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

Stand Fan (See Figure 1)

1. Using nut and bottom weight to secure the STAND to the BASE.
2. Assemble FRONT and BACK GRILLS with BLADES and secure with screws to the MOTOR HEAD.
3. Attached MOTOR HEAD to assembled STAND and tighten screw.

Floor / Table Fan (See Figure 2)

1. Using screws, assemble both BAR pieces together to form the floor stand (Detail B).
2. Assemble FRONT and BACK GRILLS with BLADES and secure with screws to the MOTOR HEAD.
3. Attached MOTOR HEAD to assembled STAND (Detail A).

Wall Fan (See Figure 3)

1. Assemble GRILLS with BLADES and MOTOR HEAD same as above.
2. Attach to floor stand same as above.
3. Secure HOOKS into wall with screws and nuts. Hang fan on HOOK

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Parts and Assembly for Fans:

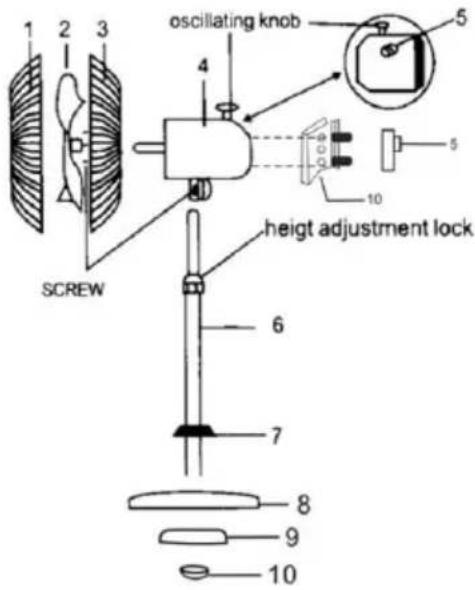

1.STAND FAN

(Fig. 1)

1.	Front grill
2.	Blade
3.	Rear grill
4.	Motor
5.	Switch
6.	Stand
7.	Base cover
8.	Base
9.	Extra weight
10.	Cover of weight

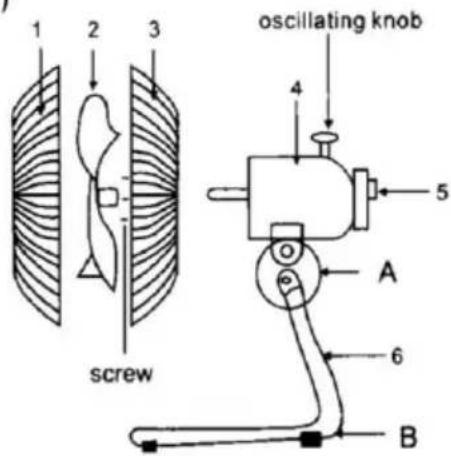

2. TABLE FAN

(Fig. 2)

1.	Front grill
2.	Blade
3.	Rear grill
4.	Motor
5.	Switch
6.	Bar
7.	Front Bar

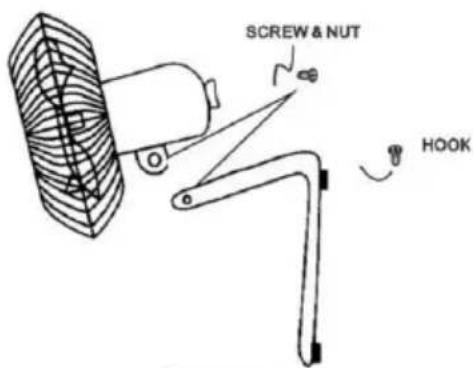

3.WALL FAN

(Fig. 3)

Cleaning Your Fan:

WARNING: Make sure the blades have come to a complete stop before proceeding with cleaning.

NOTICE: Always unplug the product before cleaning or storing it.

1. Turn the dial to "Off" and disconnect the power cord from the electrical outlet.
2. Allow the blades to come to a complete stop and remove the grill plate.
3. With a soft damp cloth carefully wipe the blades. Making sure water does not drip into the fan motor housing.

NOTE: Do not use thinners, benzene or any other type of abrasive materials to clean the fan.

For stubborn spots use a small amount of mild soap to scrub the area. Wipe clean.

1. Carefully wipe clean and replace the grill plate securing it in place.

FAN STORAGE:

Your fan can be stored partially disassembled or assembled. Make sure to store it in a safe and dry location away from the reach of children.

For disassembled storage we recommend using keeping the original box as it is appropriately sized.

For assembled storage we recommend using a dust cover to protect the fan from dust, place it away from where parts can be damaged.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE U.S.

CONTINENTAL AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

Email at [e-mail]

Go online at www.brentwoodus.com

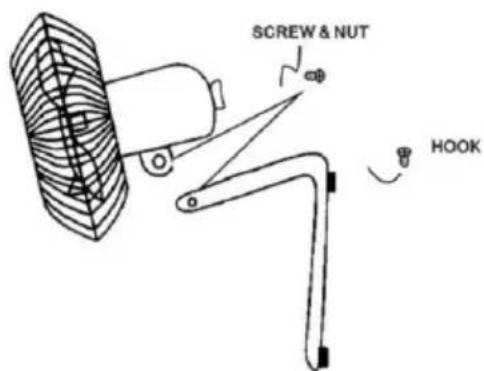

3.WALL FAN

(Fig. 3)

1.	Parilla Delantera
2.	Cuchilla
3.	Parilla Trasera
4.	Motor
5.	Interruptor
6.	Barra
7.	Barra delantera

A

B

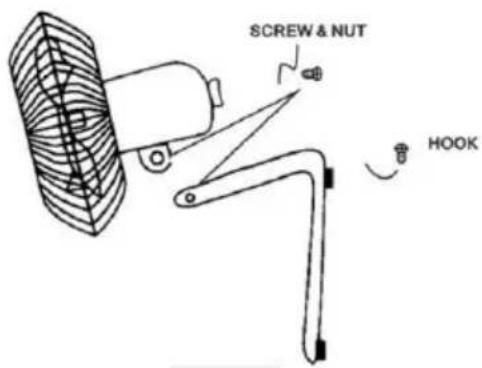

3.WALL FAN

(Fig. 3)

1.	Parilla Delantera
2.	Cuchilla
3.	Parilla Trasera
4.	Motor
5.	Interruptor
6.	Barra
7.	Barra delantera
