Product Type	Portable Bluetooth Speaker
Brand	Soundcore
Model	Rave Neo 2 SE
Audio Output Power	80 W
Bluetooth Version	5.3
Bluetooth Range	100 m
Battery Life	Up to 18 hours (varies by volume and content)
Charging Time	5.5 hours
Battery Capacity	4,900 mAh / 7.2 V
Input Power	DC 5 V / 3 A
USB Output	5 V / 2.1 A (for charging your devices)
Waterproof Rating	IPX7 (resists immersion up to 1 meter for 30 minutes)
USB Audio Formats	.mp3
Connectivity	Bluetooth, USB-A, AUX 3.5 mm
PartyCast Function	Up to 100 Rave Neo 2 SE speakers connected wirelessly
BassUp	Bass boost can be enabled/disabled via button or app
Lighting Effects	Multiple modes available via the Soundcore app
Dedicated App	Soundcore (equalizer, firmware update, volume control, etc.)
Auto Power Off	After 20 minutes without connection (configurable via app: 5/10/20/60 min)
Reset	Hold Bluetooth and Volume + buttons for 4 seconds
Box Contents	Speaker, USB-C cable (0.6 m), user guide

Frequently Asked Questions - Rave Neo 2 SE soundcore

How do I connect my phone via Bluetooth?

Turn on the speaker, press the Bluetooth button once to enter pairing mode (blue flashing indicator). Select 'Rave Neo 2 SE' in your phone's Bluetooth settings. Once connected, the indicator becomes solid blue.

How do I use PartyCast mode to connect multiple speakers?

Connect a first speaker to your phone (Speaker 1). Press the PartyCast button on Speaker 1 and the other speakers once. The connection is established when the PartyCast indicator becomes solid white. Up to 100 speakers can be connected.

What to do if the speaker stops responding?

Perform a reset by holding down the Bluetooth button and the volume up button simultaneously for at least 4 seconds. The speaker will restart.

How long does the battery last?

Battery life can reach up to 18 hours depending on volume and music content. Full charging time is 5.5 hours with a 5V/3A charger.

Can I use the speaker in the rain or near a pool?

The speaker is certified IPX7, meaning it resists immersion up to 1 meter of fresh water for 30 minutes. You can use it outdoors without worry.

How do I change the lighting mode?

Download the Soundcore app. You will find several lighting modes like 'Fire Passion', 'Colorful', 'Vibrant Youth', etc. You can also turn the lights on/off by holding the lighting button for 2 seconds.

Can I connect two phones at the same time?

Yes, the speaker can be paired with two Bluetooth devices in memory, but music playback is possible on only one device at a time. To switch, pause the first device and start playback on the second.

How do I play music via a USB drive?

Insert a USB drive containing .mp3 files into the USB-A port. Playback starts automatically. Use the speaker buttons to control playback (next/previous track, volume).

Is it possible to disable voice prompts?

Yes, via the Soundcore app, you can mute or reactivate the power on/off voice prompt.

What is the difference between AUX mode and Bluetooth mode?

In AUX mode (3.5 mm jack cable), audio is transmitted via wire: playback is controlled from the source device. In Bluetooth mode, the connection is wireless and you can use the speaker's controls (play/pause, volume).

USER MANUAL Rave Neo 2 SE soundcore

1. Light mode
2. BassUp
3. Power
4. Bluetooth
5. PartyCast
6. Volume down
7. Play/Pause
8. Volume up
9. USB-C for charging in
10. USB-A for USB playback and charging out
11. AUX

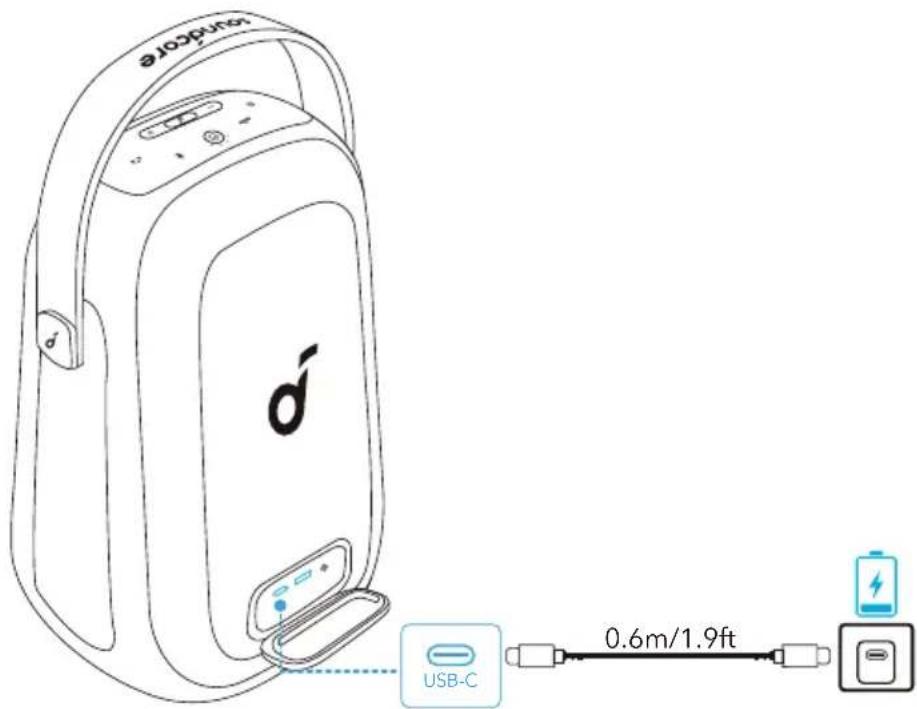

Charging

Charge your Speakers

Fully charge this speaker before the first use to prolong the lifespan of the built-in battery.

		Battery level <25%
		Battery level 25% - 50%
		Battery level 51% - 75%
		Battery level 76% - 99%
		Fully charged

Check Battery Level

		Battery level <10%
		Battery level 10% - 25%
		Battery level 26% - 50%
		Battery level 51% - 75%
		Battery level 76% - 100%

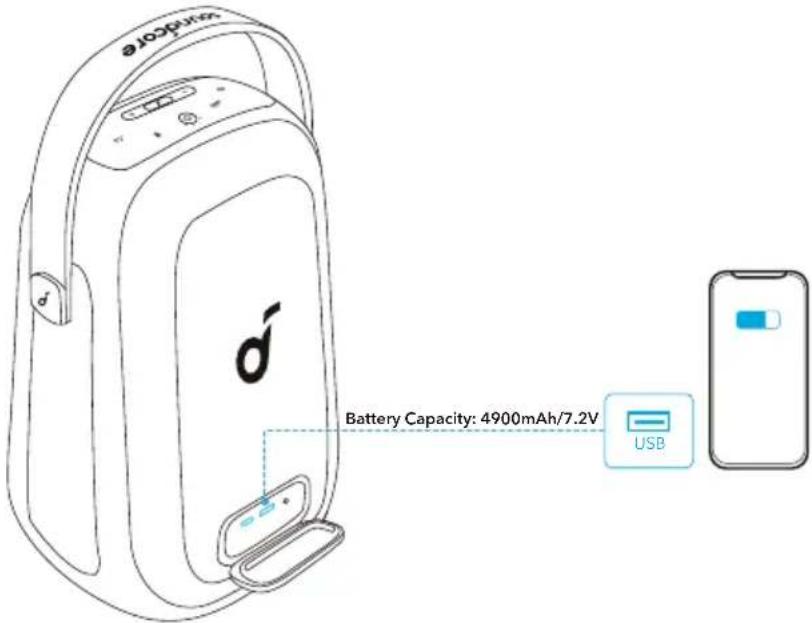

Charge your USB Devices

Charge your USB devices through the USB port.

Powering On/Off

	Press once	Power on
	Steady white
	Press and hold for 2 seconds	Power off
	Light off

This speaker will power off automatically after 20 minutes if no device is connected.

Using Your Speaker

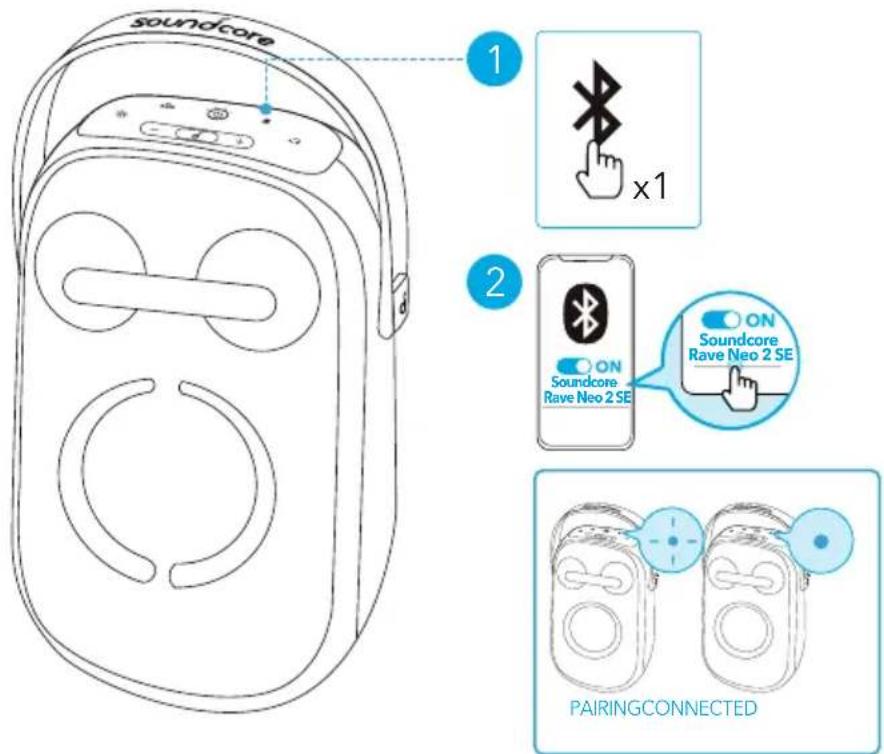

Bluetooth Mode

With this speaker, you can enjoy music through your Bluetooth-enabled devices.

	Press Enter Bluetooth pairing mode
	Flashing blue Bluetooth pairing
TMW40	Steady blue Bluetooth connected

• This speaker can pair with 2 mobile devices via Bluetooth. To pair with another Bluetooth device, press the Bluetooth button once to re-enter Bluetooth pairing mode.
• This speaker can only play music on one mobile device at a time. To play from another connected device, pause the device that's currently active first.
  • Each time you power on your speaker, it will automatically connect to your last connected device if available within the Bluetooth range. If not, press the Bluetooth button to enter Bluetooth pairing mode.

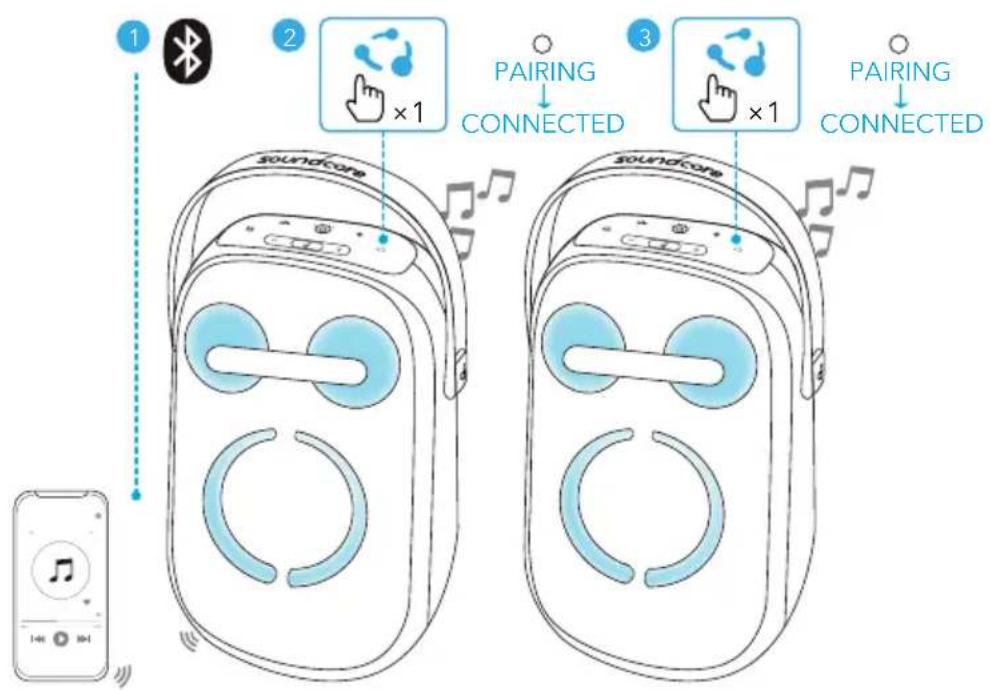

PartyCast Mode

You can wirelessly connect up to 100 identical Rave Neo 2 SE speakers together.

1. Connect a Rave Neo 2 SE speaker with your smartphone or tablet as Speaker 1.

2. Press the PartyCast button once on Speaker 1 and all the additional speakers to enter the pairing mode. When successfully connected, you will hear a prompt sound.

	Press once Enter PartyCast pairing mode
	Steady white	PartyCast pairing
		PartyCast connected

三

- PartyCast 2.0 technology can sync up stereo sound and is compatible with PartyCast 1.0. Any Rave Neo 2 SE speaker can connect with a speaker supporting PartyCast 1.0.

- To exit the PartyCast mode, press the PartyCast button once on any Rave Neo 2 SE speaker.

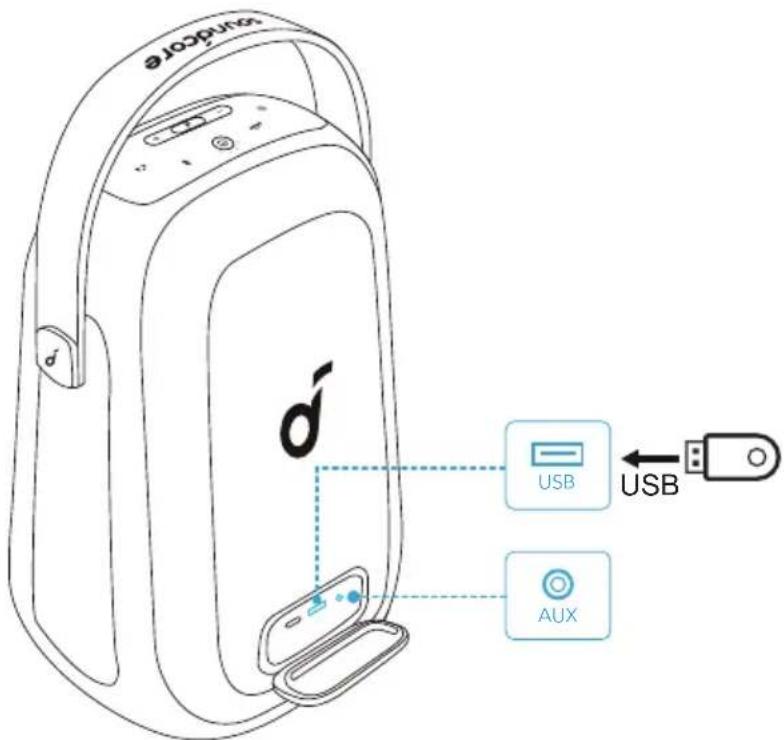

AUX/USB Mode

Plug in a 3.5 mm audio cable or insert a USB storage device.

When using AUX mode, control audio playback via the connected device.

Button Controls

(Z2WX)	Press once Play/Pause
	Press twice Next track
	Press three times Previous track
	Press or press and hold Adjust volume
	Press once Turn BassUp on/off

Reset

Press and hold the Bluetooth button and volume up button simultaneously for at least 4 seconds to reset the speaker.

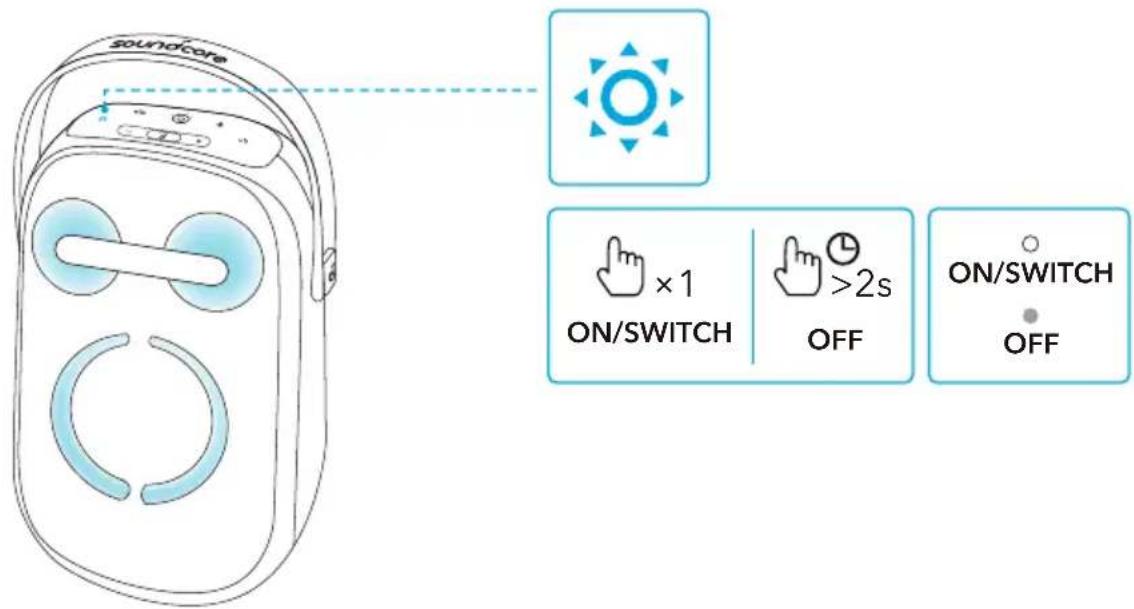

Light Effects

Download the Soundcore app to check all available light modes.

• Campfire Vibes
• Neon Night
• Spring Break

• Euphoric Dance

• Romantic Stroll

• Flow
• Party

Soundcore App

Download the Soundcore app to enhance your experience.

Product information: Check the product name and software version, or read the user manual.

Firmware update: You will be informed once a new version of firmware is detected when you connect the speaker with the app.

Battery status: Indicates the remaining battery level of your speaker.

Volume control: Adjust the volume level via the app without pressing the buttons on the speaker.

EQ settings: There are 6 EQ settings you can choose from in the app to optimize your experience while enjoying different music genres.

• Soundcore Signature: Normal EQ mode with well-balanced sound.
• Voice: Voices stand out more clearly from other ambient sounds.
• Treble Boost: High frequencies are enhanced.
• Balance: No enhancement for high-frequency and low-frequency sounds.
- Custom: Customize the EQ setting to suit you in the app.
- BassUp: Turn on BassUp to enhance the low-frequency sound.

Set auto-power off time: Set an auto-power off time (5/10/20/60 minutes, 20 minutes by default), the speaker will automatically power off when the time is up.

Voice prompt: Mute or restore the voice prompt while powering on/off.

Soundcore

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Specifications

Specifications are subject to change without notice.

DC power input 5 V 3 A	---
Battery capacity 4900 mAh/7.2 V
USB output 5 V	---2.1 A
Audio output power	80 W
Charging time 5.5 hours
Playtime (varies by volume level and music content)	Up to 18 hours
Waterproof level IPX7
Bluetooth version 5.3
Bluetooth range 100 m
USB audio format .mp3
