USER MANUAL V2 Switch SE Electronics

Black and red microphone with mesh grille and 'sE' logo, labeled V2 at bottom (no other text or symbols)

V2 SWITCH

User Manual

Thank you

Thank you for choosing an sE product! In addition to some basic safety precautions, this manual includes details and specifications to help you get the most out of your microphone. Please take a few minutes to read through it.

Capturing excellent audio is our passion. We sincerely hope you'll enjoy using this microphone as much as we've enjoyed designing and building it for you.

Happy Tracking,

The sE Team

Brief Description

The V2 SWITCH is a dynamic multi-purpose hand-held microphone with an on/off switch. Thanks to its high level of sound quality, it allows for not only vocals and speech to be captured but also a plethora of other things, ranging from electric guitar cabinets to brass instruments, all the way to drums and choirs.

The robust all-metal construction, stainless spring steel mesh grille and gold-plated XLR contacts ensure durability and reliability with no corrosion for many years. Tried and tested neodymium magnets, tight production tolerances, and high workmanship ensure excellent sensitivity, high-end sound quality and superb consistency. The internal windscreen efficiently reduces unwanted wind noise and plosive pops.

What's in the box

Your packaging should contain the follow items. If anything is missing, please contact your sE Electronics dealer and let them know.

• V2 SWITCH microphone
- microphone stand clip
- thread adapter
- pouch

Technical Specifications

Capsule	dynamic
Voice Coil	Copper
Magnet	Neodymium

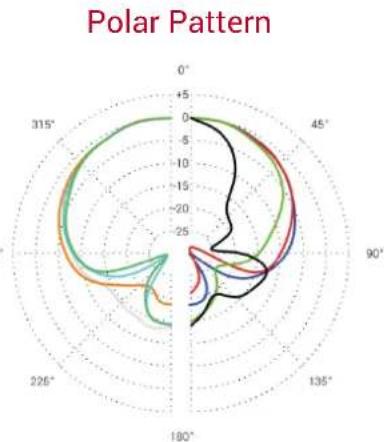

Polar Patterns	Supercardioid
Frequency range	50 - 16,000 Hz
Sensitivity	2.8 mV/Pa (-51 dBV)
Electrical Impedance	630 ohms
Recommended load impedance	>1k Ohms
Connectivity	3-pin male XLR connector
Dimensions	53 × 182 mm ( 2.07 × 7.17 in.)
Weight	307 g (10.83 oz.)

Frequency Response

Safety and maintenance

Warning sign with red triangle and black exclamation mark symbol

Warning

The product may contain small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts and keep them away from children under four years of age.

• This product is safe under normal and reasonably foreseeable operating conditions.
- Do not open or modify the product.
• The product must be returned to the manufacturer or destined vendors for any service or repair.
- Do not disassemble or attempt to service this product.
- This is not a children's product and is not intended to be used by children under 14 years old.

Warning sign with red triangle and black exclamation mark symbol

Risk of damage

Please make sure that any piece of equipment to which your sE product will be connected fulfills the safety regulations enforced in your country and is fitted with a ground lead.

Compliance

This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE).

For RoHS and WEEE information, go to http://www.seelectronics.com/compliance

Maintenance is not required for product compliance.

Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be separated and brought to an appropriate collection point to be recycled and to avoid potential impact on the environment and/or human health. For more information, contact your local authorities or place of purchase, or visit

http://www.seelectronics.com/recycling

Made in China

Warranty

sE Electronics warrants that its hardware product shall be free from defects in materials and workmanship beginning from the date of original retail purchase.

See http://www.seelectronics.com/warranty for specific warranty information about your product and procedures for a warranty claim.

sE Electronics' entire liability and your exclusive remedy for any breach of warranty shall entail, at sE Electronics' option, to repair or replace a functional equivalent of the product, or to refund the price paid, provided that the hardware is returned to the purchased location along with a receipt.

Warranty protections are in addition to rights provided under local consumer laws and may vary among countries. See the full warranty information to know your consumer rights and the additional protections provided by this product warranty.

Our headquarters:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Our R&D and manufacturing center:

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

Full Warranty Information:

https://www.seelectronics.com/warranty

Support

In case you have any questions about your new sE product, please do not hesitate to contact us directly:

http://www.seelectronics.com/contact-us

In the event that your new sE product is operating improperly, it must be returned to us as the manufacturer or to a destined vendor for any service or repair. For the fastest and most direct service, please contact your dealer first. If authorized service is required, it will be arranged by that dealer:

http://www.seelectronics.com/dealers

If you are experiencing difficulties with support or assistance, please do not hesitate to contact us directly:

http://www.seelectronics.com/contact-us

Lastly, please remember to register your new gear with sE to extend your warranty to a full three years:

http://www.seelectronics.com/registration

Contact

Feel free to contact us:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Our international distributors & sales representatives: http://www.seelectronics.com/contact-us

Danke

Warning sign with red triangle and exclamation mark symbol

Warnung

Warning sign with red triangle and black exclamation mark symbol

Beschädigungsgefahr

http://www.seelectronics.com/recycling

C€

Norgestellt in China

Garantie

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

https://www.seelectronics.com/warranty

Kundenservice

http://www.seelectronics.com/registration

Kontakt

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Unsere internationalen Händler & Vertriebsvertreter: http://www.seelectronics.com/contact-us

致谢

Warning sign with red triangle and black exclamation mark symbol

警告

Warning sign with red triangle and exclamation mark symbol

损坏风险

http://www.seelectronics.com/recycling

保修条款

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

我们的研发和制造中心:

http://www.seelectronics.com/registration

联系方式

请随时联系我们:

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Warning sign with red triangle and black exclamation mark symbol

Avvertenze

Warning sign with red triangle and black exclamation mark symbol

Rischio di danni

http://www.seelectronics.com/recycling

Garanzia

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949 USA

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, Cina

https://www.seelectronics.com/warranty

Assistenza

http://www.seelectronics.com/registration

Contatti

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949 USA

I nostri distributori e responsabili commerciali internazionali: http://www.seelectronics.com/contact-us

Remerciements

Warning sign with red triangle and exclamation mark symbol

Avertissement

Warning sign with red triangle and black exclamation mark symbol

Risque de dommages

Warning sign with red triangle and black exclamation mark symbol

http://www.seelectronics.com/recycling

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, Chine

https://www.seelectronics.com/warranty

Support

http://www.seelectronics.com/registration

Contact

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Warning sign with red triangle and exclamation mark symbol

Advertencia

Warning sign with red triangle and exclamation mark symbol

Riesgo de daños

http://www.seelectronics.com/recycling

Garantía

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China

https://www.seelectronics.com/warranty

Asistencia

http://www.seelectronics.com/registration

Contacto

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA

Warning sign with red triangle and exclamation mark symbol

Предупреждение

http://www.seelectronics.com/recycling

сделаны в Китае

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

Novato, CA 94949, USA (CIIA)

EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China (Китай)

https://www.seelectronics.com/warranty

Поддержка

http://www.seelectronics.com/registration

Обратная связь

sE Electronics International, Inc.

448 Ignacio Boulevard, STE 411

This page has been intentionally left blank.

This page has been intentionally left blank.

This page has been intentionally left blank.

IMPORTANT

WARRANTY REGISTRATION

Thank you for purchasing an sE product! You are automatically entitled to a two-year warranty but can extend this to a full three years with registration. To register your new equipment and to read the full warranty details, please go here:

http://www.seelectronics.com/registration

Sincerely, Your sE Team
