USER MANUAL SolarSaga 80 Jackery

Line drawing of a rectangular grid with rounded corners and a handle at the top (no text or symbols)

Image is for reference only

USER GUIDE

SolarSaga 80

CONTENTS

GB English 2-4
CN 中国 5-6
DE Deutsch 7-8
FR Français 9-10
IT Italiano 11-12
ES Español 13-14
K0 한국어 15-19
JP 日本語 20-24

TECHNICAL PARAMETERS

Product Name	SolarSaga 80
Model	JS-80A
Peak Power	80W
Power Voltage	22V
Power Current	3.64A
Open Circuit Voltage	28.5V
Short Circuit Current	3.71A
Operating Temperature Range	-10-65°C (14-149°F)
Dimensions	906x528x27mm
Product Weight	5.1kg

METHOD OF APPLICATION

① The product has two ports compatible with different types of outdoor power products:

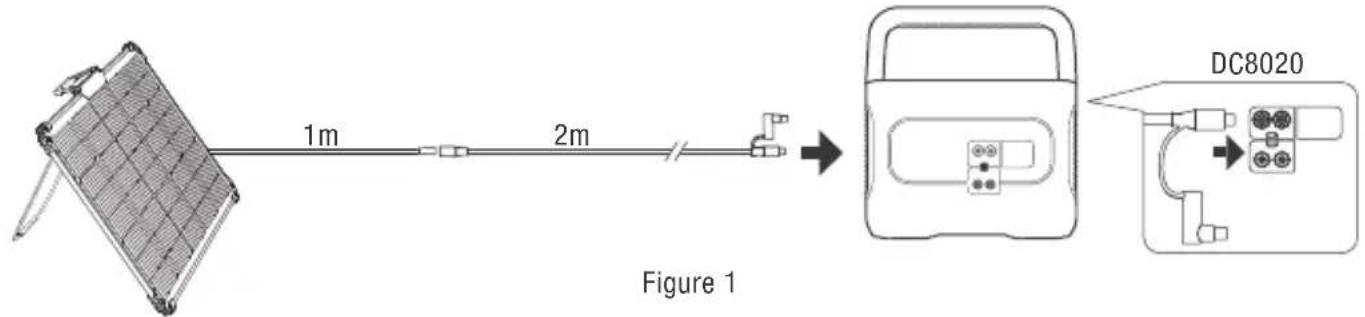

* DC8020 port applies to Jackery outdoor power supply E1000Pro/1500/2000Pro.

1m 2m Figure 1 DC8020

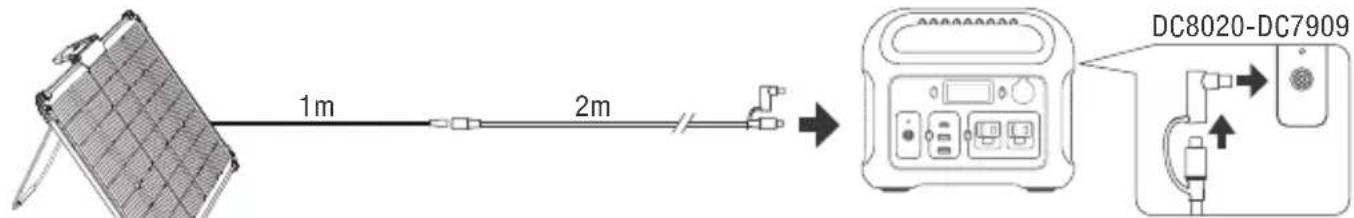

* DC8020-DC7909 port applies to Jackery outdoor power supply E160/240/300/500/1000.

1m 2m DC8020-DC7909

Figure 2

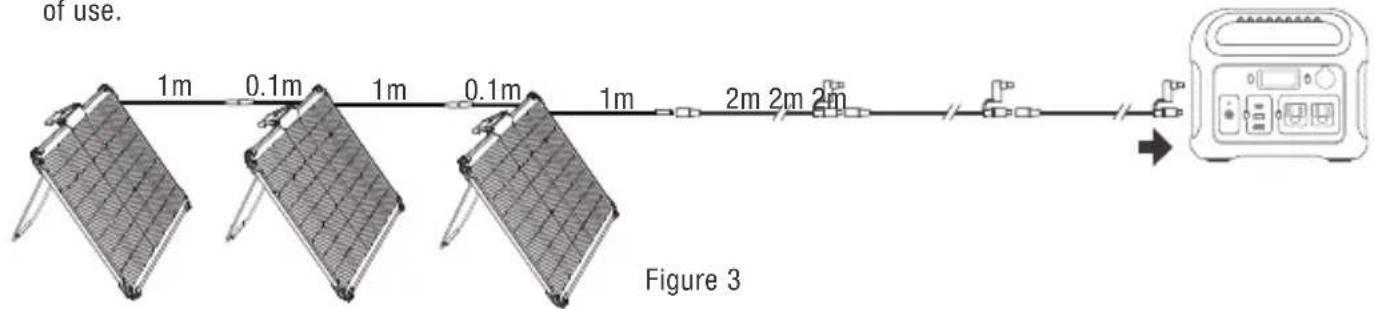

② The product supports parallel connection of up to 3 solar panels (Figure 3). Parallel connection of more than 3 solar panels may cause cable heating and product damage.

* Extension cord: A 2m extension cord is equipped. Several extension cords can be connected to extend the scope of use.

of use. 1m 0.1m 1m 0.1m 1m 2m 2m 2m Figure 3

TWO-SIDE POWER GENERATION TECHNOLOGY

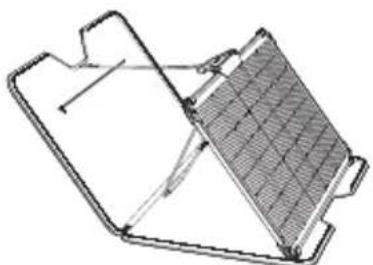

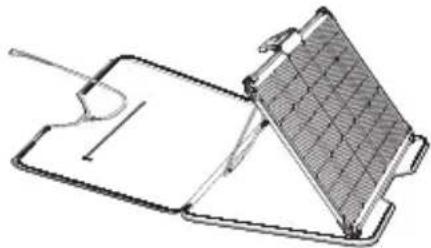

A reflective lined storage bag is provided for the product to improve power generation efficiency through reflecting light. Since the sun angle in a day changes, we recommend using the mode in Figure 4 in both morning and afternoon. (You can adjust the reflective angle by adjusting the position of the magic strap) and the mode in Figure 5 in the midday.

Technical line drawing of a mechanical component with a grid-patterned base (no text or symbols)

Figure 4

Line drawing of a flat-panel solar panel with a grid-patterned cover, no text or symbols present

Figure 5

SAFETY TIPS

* Do not flex or bend the folding solar panels.
* Do not place folding solar panels in shading places, while tree shades, buildings, and any other obstructions should be minimized.
* Do not soak the solar panels in water or other liquid.
* Do not clean the solar panel with water, please gently wipe it with a damp cloth.
* Do not use or store solar panels near open flames or flammable materials.
* Do not scratch the surface of solar panels with sharp objects.
* Prevent corrosive substances to damage solar panels.
* Do not step on or place heavy objects on the solar panels.
* Do not disassemble the solar panels.
* The output circuit of the solar panels must be correctly connected to the equipment. Please do not short-circuit the positive and negative poles. Ensure that there is no gap between the connector and the insulated connector. If there is a gap, sparks or electrical shocks will occur.
* Check the connection status of each component, including cables, wires and plugs.

WARRANTY

The product is covered by a limited warranty from Jackery for the original purchaser that covers the product from defects in workmanship and materials for 36 months from the date of purchase (damages from normal wear and tear, alteration, misuse, neglect, accident, service by anyone other than authorized service center, or act of God are not included).

During the warranty period and upon verification of defects, this product will be replaced when returned with proper proof of purchase.

FREQUENTLY ASKED QUESTIONS

Q: What kind of battery can be charged by these solar modules?

1, Jackery Explorer series
2, Sealed lead-acid battery
3, Colloidal lead-acid batteries
4, The open lead-acid batteries

Q: How to clean the solar surface?

Dust and dirt on the surface should first be removed using a soft brush. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

Q: Is this product waterproof?

This product can prevent daily water splashing. Please keep the product dry on a daily basis to ensure its service life.

CONTACT US

For any inquiries or comments concerning our products, please send an email to [e-mail], and we will respond to you as soon as possible. If there is any quality related issue with the product, you may request a replacement or refund by submitting a request form at www.jackery.com/support/.

CUSTOMER SERVICE

36 - month limited warranty

Lifetime technical support

[e-mail]

1-888-502-2236 | Mon-Fri 9:00-6:00 PST (US)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For class B digital device:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.
--Consult the dealer or an experienced radio/TV technician for help.

MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.

CN 中国 SolarSaga 80

技术参数

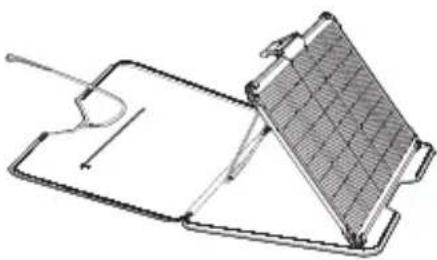

Technical line drawing of a mechanical component with grid pattern (no text or symbols)

图4 图5

Line drawing of a flatbed filing tray with a grid-patterned cover, no text or symbols present

注意事项

1m 2m figure 1 DC8020

1m 2m figure 2 DC8020-DC7909

Two technical line drawings of a mechanical component, labeled 'figure 4' and 'figure 5', with no visible text or symbols on the components themselves.

CONSEILS DE SÉCURITÉ

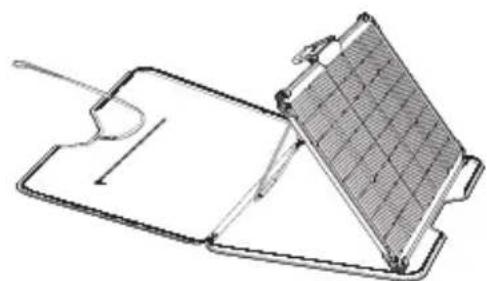

Technical line drawing of a mechanical component with grid pattern, labeled 'Figura 4' (no other text or symbols)

Technical line drawing of a solar panel installation with a handle and base plate (no text or symbols)

Figura 5

SUGGERIMENTI PER LA SICUREZZA

Two technical diagrams showing a grid-patterned device with mounting brackets, labeled Figura 4 and Figura 5 (no text or symbols on the devices themselves)

Technical line drawing of a mechanical component with grid-patterned structure (no text or symbols)

그림 4

Line drawing of a solar panel with grid pattern, shown in 3D perspective (no text or symbols)

그림 5

태양광 패널 특성 및 주의 사항

Technical line drawing of a mechanical component with grid-patterned structure (no text or symbols)

图4

Line drawing of a flat-panel solar panel with grid pattern (no text or symbols)

图5

ソーラーパネルの特性と注意
