DH 752 700 S - Cooker AMICA - Free user manual and instructions

Product type	Extractor hood
Model	DH 752 700 S
Brand	Amica
Dimensions (W x D x H) approx.	60 x 50 x 45 cm (depending on model)
Weight approx.	15 kg (depending on model)
Power supply	220-240 V ~ 50 Hz
Motor power	150 W (typical)
Lighting	LED (or halogen depending on model)
Number of speeds	3 or 4 speeds
Timer function	Delayed shutdown up to 90 minutes
Child Lock	Child lock
Operating mode	Extraction or recirculation (depending on installation)
Exhaust duct diameter	120 or 150 mm
Grease filter	Aluminum, dishwasher safe
Charcoal filter	Active, replaceable (for recirculation mode)
Cleaning frequency of the grease filter	At least once a month
Minimum mounting height above the hob	According to the instruction manual (generally 65-75 cm for electric, 75-85 cm for gas)
Energy efficiency class	Not specified (estimated B-C)
Noise level	Approximately 55-65 dB(A) depending on speed
Warranty	According to warranty card

Frequently Asked Questions - DH 752 700 S AMICA

What is the recommended mounting height for the hood above the hob?

The mounting height depends on the hob type. For an electric hob, refer to the technical data (generally 65-75 cm). For a gas hob, the minimum distance is often 75-85 cm. If the gas hob instructions specify a greater distance, this must be taken into account.

How to clean the grease filter?

The aluminum grease filter must be cleaned at least once a month. You can wash it in the dishwasher or manually with a mild detergent. After several washes in the dishwasher, its color may change, but this does not mean it is defective.

Can I use the hood without the grease filter?

No, it is forbidden to use the hood without the aluminum grease filter. The grease filter protects the motor and reduces fire risks.

How does the recirculation mode work?

In recirculation mode, the filtered air is returned to the room. To do this, you must install an activated charcoal filter. An air deflector may also be required depending on the model.

How to activate the delayed shutdown (Timer) function?

Press the Timer button while the hood is operating at any speed. Then use the + or - buttons to set the delay from 1 to 9 (each digit adds 10 minutes, e.g., 5 = 50 minutes). Press the Timer button again to confirm. The dot next to the digit will flash to indicate the function is active.

How to deactivate the child lock?

The instruction manual states that the hood has a child lock. To activate or deactivate it, refer to the specific instructions on the control panel. Generally, you need to hold down a button for a few seconds.

Can I use the hood at the same time as a combustion appliance (gas, wood)?

Yes, but adequate room ventilation must be provided to avoid excessive depression. A maximum negative pressure of 0.004 mbar is allowed. This instruction does not apply if the hood is used in recirculation mode.

What types of charcoal filters are compatible?

The activated charcoal filter must be specific to the hood model. It is usually available from the manufacturer or after-sales service. The filter must be replaced when saturated (every 3 to 6 months depending on use).

What to do if the power cable is damaged?

The power cable must be replaced by the manufacturer, its after-sales service, or similarly qualified persons to avoid any hazard. Do not use the hood with a damaged cable.

How to dispose of the hood at the end of its life?

Do not dispose of the hood with household waste. In accordance with Directive 2012/19/EU, you must take it to a collection point for used electrical and electronic equipment (recycling center, store, etc.).

USER MANUAL DH 752 700 S AMICA

Kitchen extractor hood / kaminhaube /

DH 752 700 S

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING 10

DISPOSAL OF OLD APPLIANCE 10

OPERATION 11

COOKER HOOD CONTROLS 11

CONTROL PANEL 11

OFF TIMER 11

CHILD LOCK 11

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 12

CLEANING AND MAINTENANCE 13

MAINTENANCE 13

GREASE FILTER 13

ACTIVATED CHARCOAL FILTER 13

WARRANTY AND AFTER SALES SERVICE 14

WARRANTY 14

GARANTIE, NACHVERKAUF-SERVICE 24

GARANTIE 24

CS- Obsah

BEZPEČNOSTNÍ POKYNY 26

VYBALENÍ 29

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 29

OBSLUHA 30

OVLÁDÁNÍ ODSAVAČE 30

OVLÁDACÍ PANEL 30

ČASOVAČ (OPOŽDĚNÉ VYPNUTÍ MOTORU ODSAVAČE) 30

CHILD LOCK (RODIČOVSKÁ POJISTKA) 30

JINÉ DŮLEŽITÉ INFORMACE O OBSLUZE ODSAVAČE 31

ČIŠTĚNÍ A ÚDRŽBA 32

ÚDRŽBA 32

PROTITUKOVÝ FILTR 32

UHLÍKOVÝ FILTR 32

ZÁRUKA, POPRODEJNÍ SERVIS 33

ZÁRUKA 33

SK- Obsah

BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 35

ROZBALENIE 39

LIKVIDÁCIA ZARIADENÍ 39

OBSLUHA 40

OVLÁDANIE ODSÁVAČA 40

OVLÁDACÍ PANEL 40

ČASOVAČ (ONESKORENÉ VYPNUTIE MOTORA ODSÁVAČA) 40

DETSKÁ ZÁMKA (ANGL. CHILD LOCK) 40

INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 41

ČISTENIE A ÚDRŽBA 42

KONZERVÁCIA 42

PROTITUKOVÝ FILTER 42

UHLÍKOVÝ FILTER 42

ZÁRUKA, POPREDAJNY SERVIS 43

ZÁRUKA

43

From now on, your daily housework will be easier than ever before. Your appliance Air exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- When cooking on fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, replacing the filter or repair work.

- Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the ap-

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

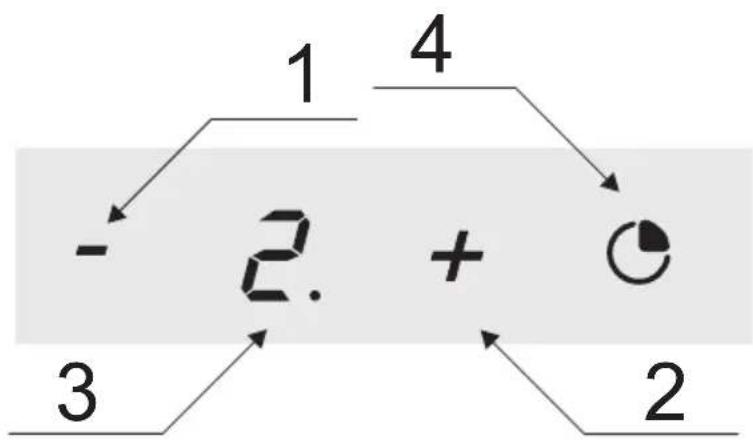

Control Panel is shown in Figure 4, for reference it is also shown below:

Control Panel

It is equipped with a touch controls. Touch one the sensors to enable the desired function:

1 — Reduce fan speed
2 — Increase fan speed
3 — Speed display 'The hood fan can run at 3 or 4 speeds (depending on the model).
4 — Off timer

Available fan speeds:

Low speed (1). Use this speed when cooking a little food with hardly any fumes.

Medium speeds (2 and 3*). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.

High speed (4 ^* ). Use this speed when frying or grilling, with large amount of fumes.

* Varies depending on the model

Off Timer

Use off timer to turn off the hood after a specified time. Use off timer to filter the fumes out of the air after cooking. Maximum delay time is 90 minutes. Touch to cancel the off-timer at any time. The number will flash on the display. Then use and to select the delay in the range 1–9 (multiply the number by ten to obtain delay in minutes, 1 – 10 minutes, 2 – 20 minutes ... 5 – 50 minutes). Touch again to activate the function. The off timer is set a dot will flash on by the digit on the display. Touch to cancel the off timer. Touch to reduce the delay time down to zero. Touch to confirm the off-timer has been cancelled. Cancelling the off-timer does not turn off the lighting.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

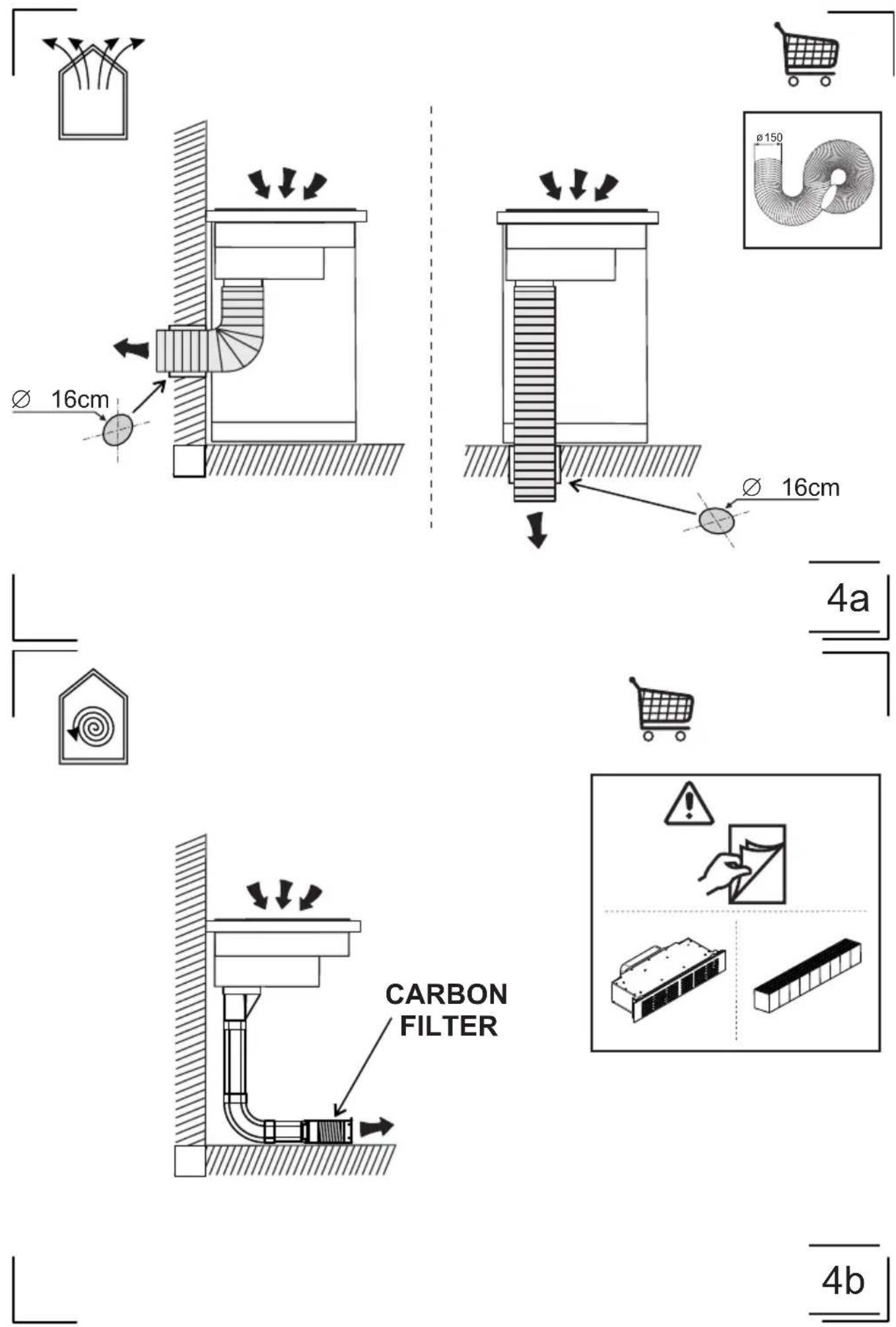

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

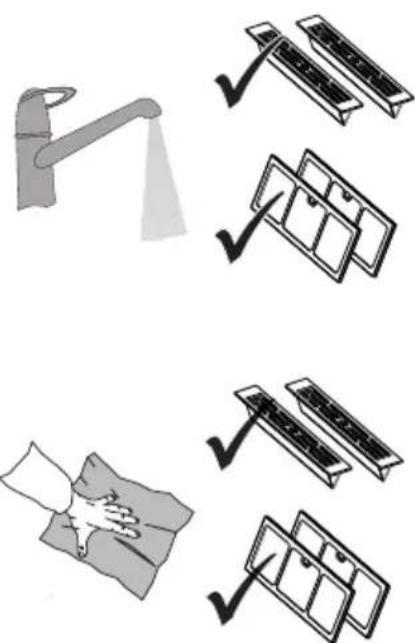

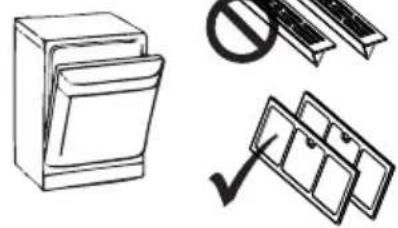

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

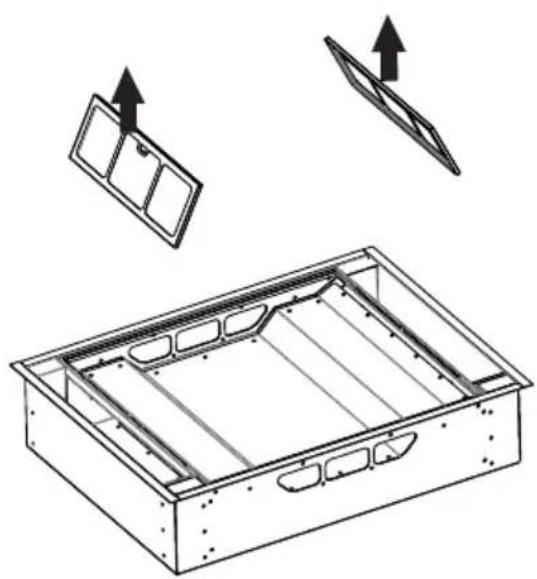

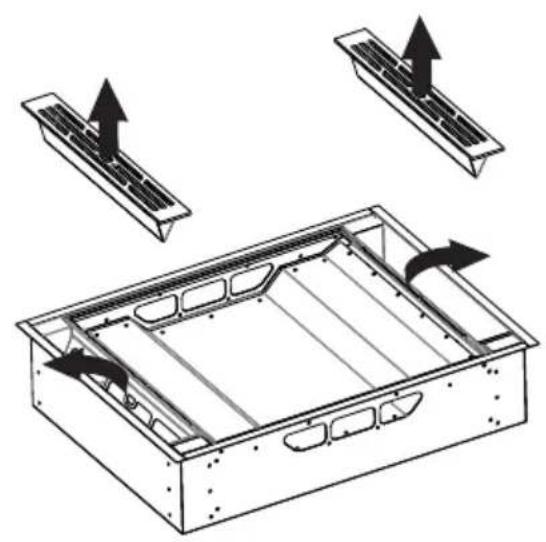

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated.

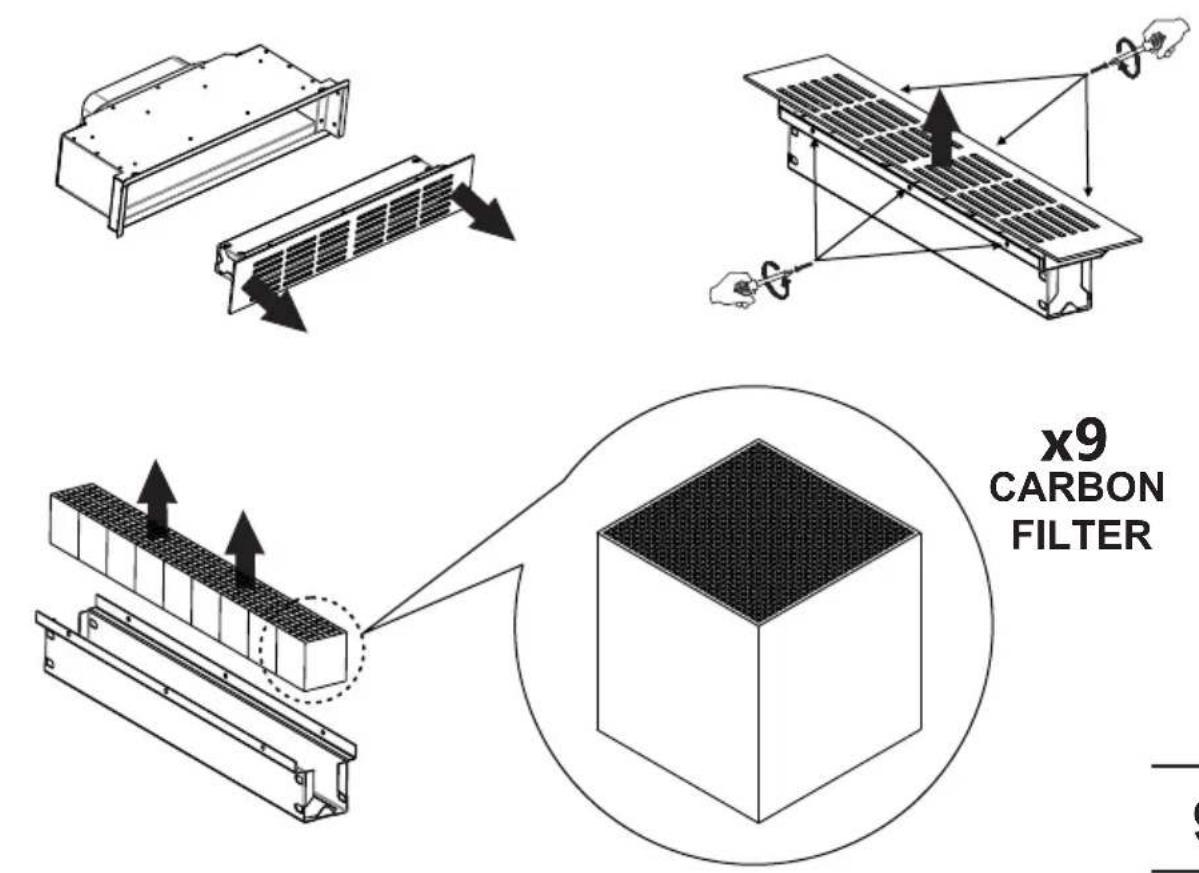

Dismantling of charcoal filter is shown on Figure 6.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the CE symbol and been issued with a declaration of compliance made available to market regulators.

GARANTIE, NACHVERKAUFSERVICE

Garantie

Uređaj je za vrijeme transporta za- štićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš.

Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala je prikladno za recikliranje, stoga su označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadići stiropora itd.) prilikom uklanjanja ambalaže držati daleko od djece.

ZBRINJAVANJE POTROŠENIH UREĐAJA

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU. Oznaka na proizvodu pokazuje da ovaj proizvod nakon njegovog životnog vijeką ne može biti tretiran kao obični kućanski otpad.

Korisnik ima obvezu ovaj proizvod predati na odgovarajuće sabirno mjesto za recikliranje potrošene električne i elektroničke opreme. Ustanove za prikupljanje ovakvog otpada, uključujući lokalne sabirne točke, kupovna mjesta, opcinske jedinice, stvaraju odgovarajući sustav koji omogućava zbrinjavanje ovakve opreme.

Pravilno odlaganje potrošene električne i elektroničke opreme sprećava potencijalne negativne posljedice za okoliš i ljudsko zdraylje, koje inace mogu biti uzrokovane neodgovarajućim odlaganjem i preradom ovog proizvoda.

UPORABA

Upravljanje napom

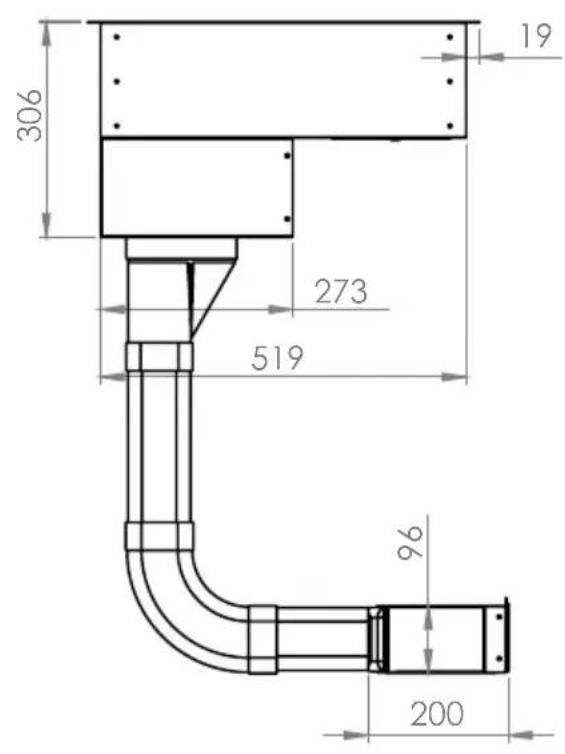

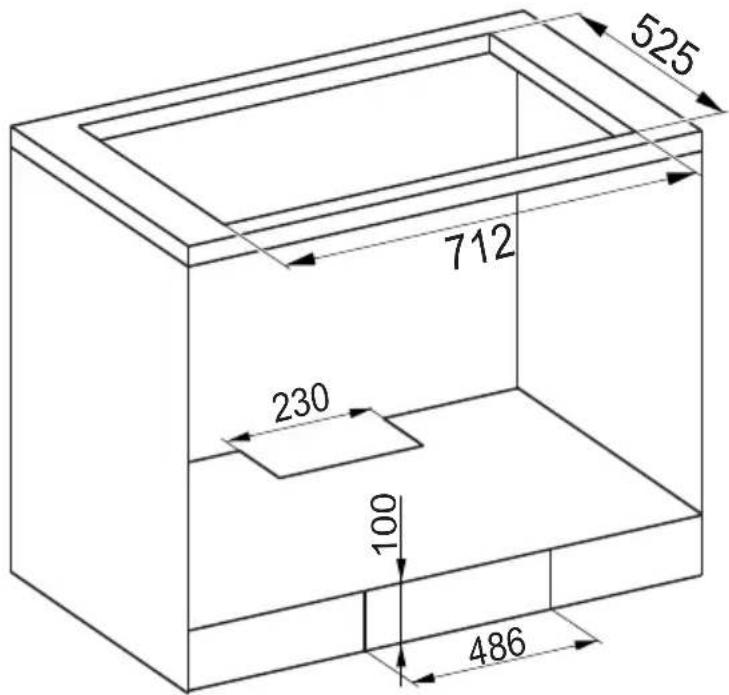

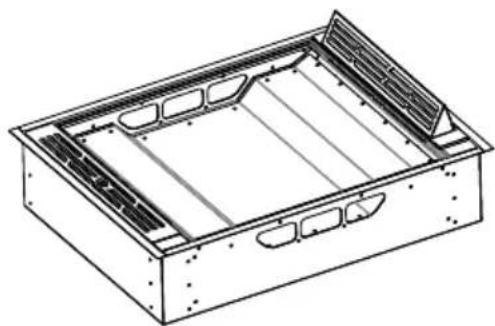

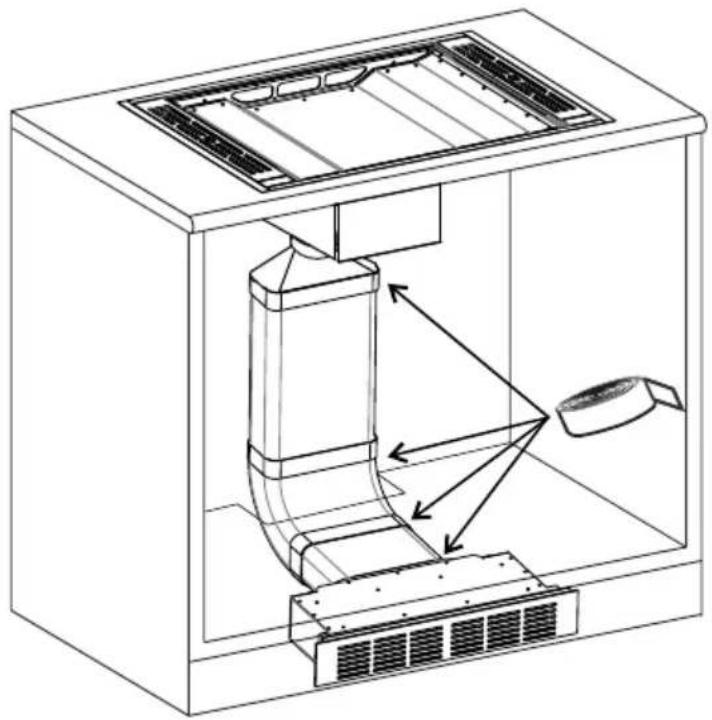

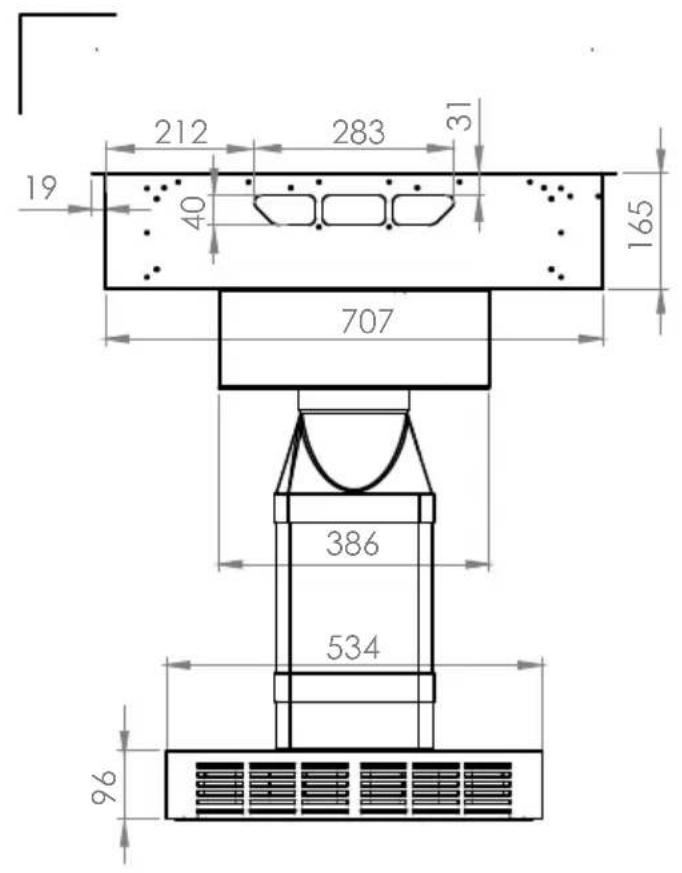

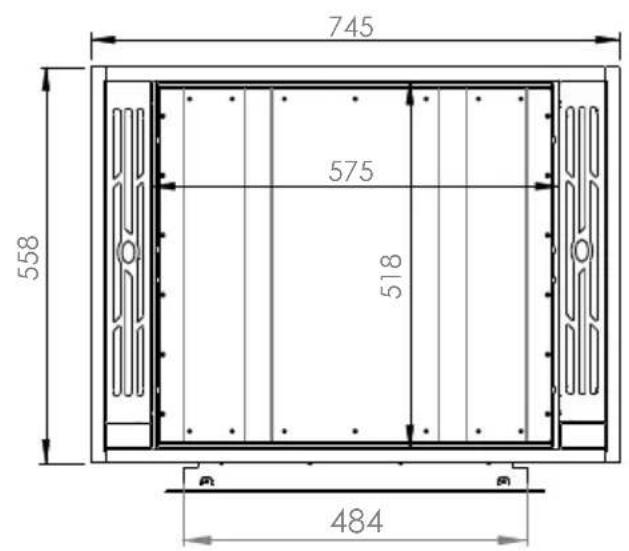

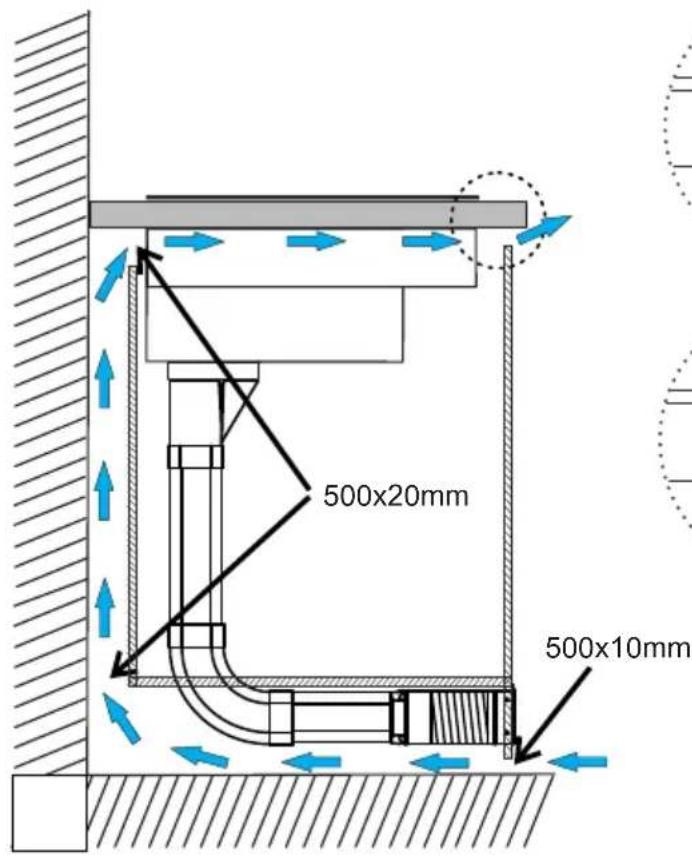

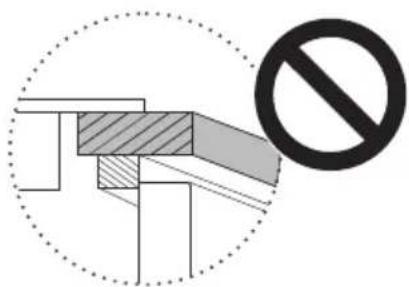

2

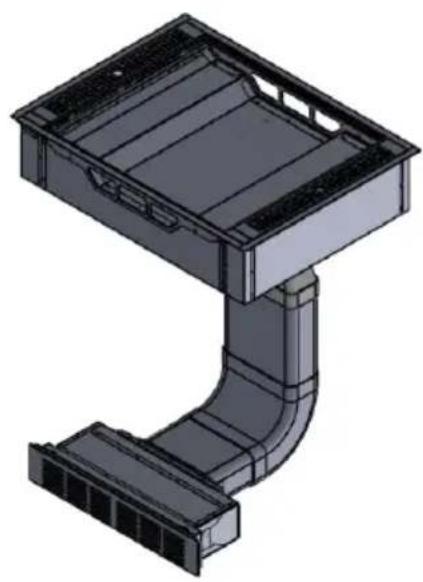

5

6

7

8

9

10
