WPKS5S - Kitchen scales Witt - Free user manual and instructions

USER MANUAL WPKS5S Witt

Three black industrial kitchen appliances: a hand mixer, a coiled-coated tool, and a pair of two metal tools (no text or symbols visible)

Brugsanvisning DK: 2-10

Bruksanvisning NO: 11-19

Bruksanvisning SE: 20-28

Diagram showing four stages of a hand mixer with labeled parts: mixing, mixing bowl, mixing cup, and no tool.

Dejkroge:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing four stages of a hand mixer with labeled parts: mixing, mixing bowl, mixing container, and no tool.

Deigkroker:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

INNEHÅLLSFÖRTECKNING

SÄKERHETSANVISNINGAR....21

ÖVERSIKT ÖVER ELVISPEN 23

SÅ HÄR ANVÄNDS ELVISPEN 25

RENGÖRING 26

REKLAMATIONSRÄTT OCH SERVICE 28

Diagram showing four stages of a hand mixer with labeled parts: mixing, mixing bowl, mixing container, and no tool.

Degkrok:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing four stages of a hand mixer with labeled parts: mixing, mixing bowl, mixing cup, and no tool.

Taikinakoukut:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Diagram showing four stages of a hand mixer with labeled parts: mixing, mixing bowl, mixing container, and no tool.

Deeghaken:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing four stages of a hand mixer with labeled parts: mixing, mixing bowl, mixing container, and no tool.

Crochets :

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

SAFETY INSTRUCTIONS....57

OVERVIEW OF THE HAND MIXER....59

HOW TO USE THE HAND MIXER....61

CLEANING....62

WARRANTY AND SERVICE 64

Safety instructions

• Please read the instructions before starting to use the hand mixer. This is for your own protection, and it also helps you to avoid damaging the device.
• Save these instructions so that you can find answers if you have questions later.
• If the hand mixer is given or sold to someone else, please ensure that you also pass along the instructions to the new owner.
• Before using the hand mixer, you need to carefully remove all packaging and inspect the hand mixer to see if it is damaged. If it is damaged or if you are not sure whether it might be, please contact the store that you bought it from.
• The hand mixer is only intended to be used with foods, including kneading dough, whipping fluids (for example, fruit juice) and cream and its only intended for household use or similar conditions. Using it for any other purpose is not permitted and may be dangerous. The manufacturer/importer cannot be held liable for damage that is caused due to incorrect operation or inappropriate use of the hand mixer.
• The device may be used by children above the age of eight if they are taught how to use the device properly and if at first they are supervised by someone who is responsible for their safety. Keep an eye on children to ensure that they do not play with the device. Children over the age of eight may clean or maintain the device, but only if they are being supervised. Keep the device and the power cord away from children under the age of eight.
• Individuals who, because of limited physical, sensory or mental capacity or who because of lack of experience or knowledge are incapable of using the device safely may only use the device when someone who is responsible for their safety has taught them how to properly use the device and follow the safety instructions.
• Remove the plug each time after using the device and before cleaning it so that the device is not turned on accidentally.
• Also unplug the device before changing any accessories.
• Never let the hand mixer run without supervision.
• If you leave the workplace, make sure that the device is unplugged.
• Always unplug the device by holding the plug - not the power cord - when you cut power to the device.
• Do not touch the parts when they are moving and always wait until they are completely still.
• If whisks or dough hooks are damaged, they have to be replaced. The device's safety features only work if the device is completely undamaged.
• Never operate the hand mixer if some parts are damaged or missing. If you do, you risk having a serious accident.
• Never attempt to repair the hand mixer yourself. Instead, contact the store that you bought the device from.
• The motor components may never under any circumstances be lowered into water or other fluids! You can get a fatal electric shock if remnants of fluid touch live parts when the device is in use.
• If plugs or cables are defective, have them replaced immediately by a professional to avoid dangerous situations occurring.

Danger of personal injury:

• Do not touch the whisks or dough hooks when the device is in use.
• Do not let long hair, scarfs or the like hang down into the accessory components.
• Never try to attach tools with different functions at the same time.
• Never try to attach kitchen utensils such as knives, spoons, etc. into the rotating equipment.
• Be careful when working with hot fluids. Spraying may occur.

Be careful to avoid electric shocks!

• The power cord must never come into contact with the hand mixer's warm components or other sources of heat.
• Never use an extension cord, and be careful about ensuring that the power cord never touches the rotating components.
• Never leave the power cord on edges or corners.
• Do not bend or squeeze the power cord.
• This device is intended for household use and similar applications, such as use by:
• kitchen staff at stores, offices or other working environments
• hotel and motel customers and for use in other types of residential environments, including:
• bed & breakfast

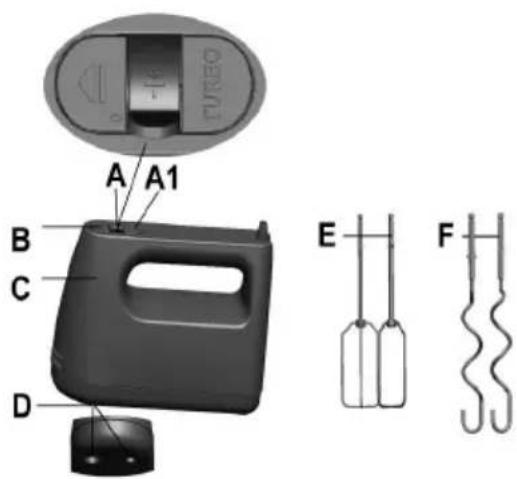

Overview of the hand mixer

A A1 B C D E F

A. Speed setting (0,1,2,3,4,5)
A1. TURBO button
B. Release button
C. Motor part
D. Accessory sockets
E. Whisks
F. Dough hooks

Attaching the whisks and dough hooks

Diagram showing four stages of a hand mixer with labeled parts: mixing, mixing bowl, mixing cup, and no tool.

Dough hooks:

1. Attach dough hook (a) to the largest socket.
2. Attach dough hook (b) to the smallest socket on the hand mixer. Make sure that dough hook (a) and (b) are clicked into place and locked (see the illustration above).

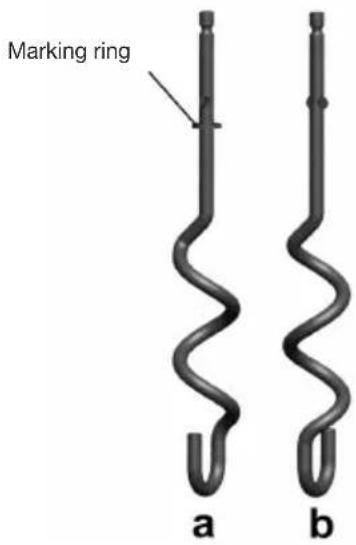

Caution:

- It is only dough hook (a) that is equipped with a marking ring. Do not switch the accessories around!

Marking ring a b

• The dough hooks can be used to knead dough - for example, dough for dumplings or noodles.
• Releasing the dough hooks: Make sure that the speed setting (A) is set to "0" Then press the release button.

Whisks:

1. Attach the whisks to the sockets.
2. Make sure that they click into place and are locked in position.

Caution:

• The whisks can be used to whip cream, eggs, mayonnaise, etc.
• Releasing the whisks: Make sure that the speed setting (A) is set to "0" and press the release button.

How the hand mixer is used

1. Attach the accessories (dough hooks or whisks).
2. Put the ingredients in a suitable bowl/container.
3. Plug the hand mixer into the socket.
4. Select an appropriate speed setting (1,2,3,4,5) to process the ingredients.
5. When the ingredients are properly blended, turn off the hand mixer by selecting "0" on the speed setting. Now remove the hand mixer from the container.
6. Remove the plug from the socket.
7. Remove the ingredients from the container.

Caution:

• The hand mixer needs to be unplugged when the accessory is attached/removed.
• If you select the TURBO function, the hand mixer will automatically be set to the highest speed (5).

Cleaning

1. Always unplug the device before cleaning it. Otherwise, you risk getting an electric shock!
2. Clean the device with a moist rag and, if you like, use a mild cleaning agent.
3. Never lower the motor parts into water or other fluids! You can get an electric shock if remnants of fluids touch the live parts of the device when in use.

Please note: food that contains natural colouring agents can result in staining the plastic components. These stains have no impact on the functionality of the device, however. For whisks and dough hooks that can be put into a dishwasher, we recommend rubbing them lightly with vegetable oils before washing them.

General guidelines

Accessories	Food Maksimum		Operating time	Speed Preparation
Dough hooks	Flour 1200g		2 min. 1-5 /
	Water 600g
Dough hooks (recipe of your choice)	Flour 500g		5 min. 1-5 /
	Water 260g
Whisks Egg	whites 8 5 min.	3-5 /

CE

This device is in compliance with the following EU directives: 2014/35/EU and 2009/125/EC.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

The symbol means that the product should not be thrown out together with regular household waste. Instead, it should be disposed of at an authorised recycling station which is suitable for this purpose or returned to a retailer that offers disposal services. Contact your local city council if you need more information.

WARRANTY AND SERVICE

There is a 2-year warranty period if your new product stops working due to manufacturing or material faults which begins from the documented date of purchase. The warranty covers materials and the cost of labour. When inquiring about service, please state the product name and serial number. You can find this information on the type plate. You can write down the information here in these instructions so that you have them at hand. This makes it easier for the service technician to find the correct spare parts.

The warranty does not cover:

• Faults and damage that are not due to manufacturing or material issues
• Damage caused by failure to properly maintain the device - including failing to clean it
• Fire and/or water damage or moisture damage on the product
• Damage caused during transport if the product was transported without proper packaging
• Damage caused by the use of unoriginal spare parts
• Damage resulting from failing to follow the instructions on how to use the device
• If the device has not been set up/assembled as specified in the instructions
• If non-professionals have installed or repaired the product
• Batteries or any other parts subject to normal wear and tear

Damage during transport

If the product is damaged during transport and this is discovered when the retailer delivers the product to the customer, this is exclusively a matter between the customer and the retailer. In cases where customers have handled the transport of the product themselves, the supplier shall not be liable for any potential damage during transport. Any damage caused during transport must be reported immediately and no later than 24 hours after the product has been delivered. If not, the customer's claim will be rejected.

Unnecessary service

If the product is sent in to be serviced and it turns out that the fault could have been fixed independently by following the product's instruction manual, the customer will need to pay the service fee.

Commercial purchases

Commercial purchases are all purchases of devices that are not intended to be used in private households but instead intended to be used for commercial purposes (in restaurants, cafés, canteens, etc.) or intended to be rented out or otherwise used by multiple users in turn. There is no warranty offered for commercial purchases, as this product is only intended for regular household use.

Service

For service and spare parts in England and Ireland please call below-mentioned number and you will be directed accordingly or send us an email.

Witt UK & Ireland Ltd.

(44) 148 351 6633 / [e-mail]

We accept no liability for printing errors.

The manufacturer/distributor cannot be held liable for damage to products or individuals if the safety instructions were not followed. The warranty shall not cover cases where the instructions have not been followed.
