Spektrum TM1500 Telemetry Module (SPM6742)

The Spektrum™ TM1500 Telemetry Module sends valuable data, such as RPM, temperature, and voltage straight to your telemetry compatible DSMR® Spektrum Radio System.

SPECIFICATIONS	00
Type DSMR Full Range Telemetry Module
Compatibility DX6R, DX5R and DX4R Pro
Dimensions (LxWxH) 37.6 x 27.4 x 16.9mm
Weight 9.7g
Voltage Range 3.5–9V
Internal Sensor Receiver pack voltage
Included Sensors Voltage and Temperature

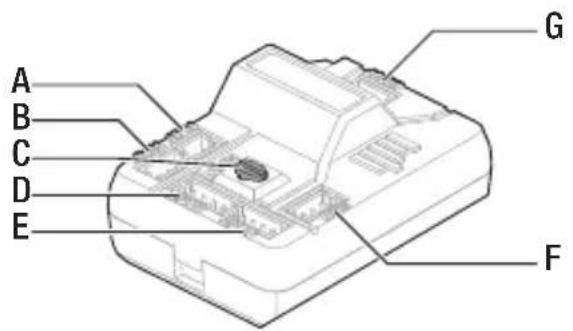

A: Voltage sensor port
B: Temperature sensor port
C: Bind Button
D: XBUS Port 1
E: XBUS Port 2
F: RPM sensor port
G: Input Port

A B C D E G F

Installation

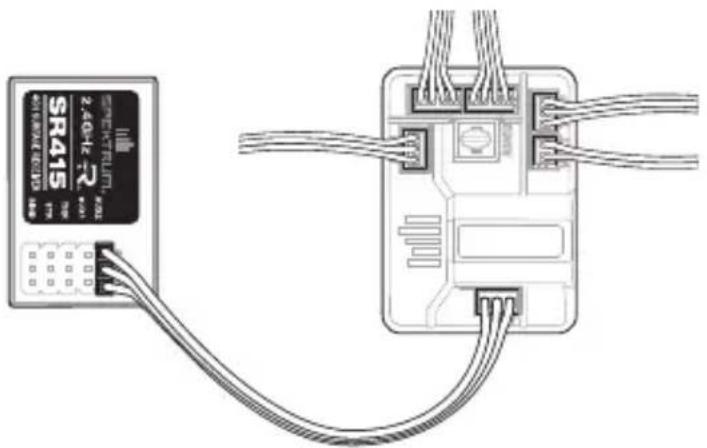

1. Use servo tape to mount the TM1500 Telemetry Module near the receiver in a position that allows the included 2.5-inch data lead to extend from the receiver to the INPUT port on the telemetry module.
2. Plug the Data lead into the TM1500 port marked INPUT and plug the other end into the BIND port on the receiver.
3. Install any telemetry sensors.

IMPORTANT: The TM1500 antenna's position significantly affects telemetry range. For improved telemetry range, mount the antenna as high as practical (an antenna tube works well) with the 31 mm exposed tip in a vertical position.

SPEKTRU 2.4GHz R-1 SR415 30V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V 40V AOS

Binding

1. Push and hold the bind button on the TM1500 Telemetry Module while powering on the receiver. Once the LEDs on the TM1500 and receiver start blinking, indicating the system is in BIND mode, release the BIND button.
2. Place the transmitter in BIND mode.
3. The LEDs stop blinking when the Bind is complete.
4. Telemetry is now available on the transmitter.

Refer to the Spektrum transmitter manual for telemetry settings.

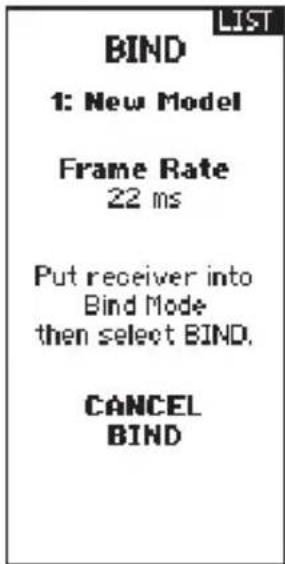

LIST BIND 1: New Model Frame Rate 22 ms Put receiver into Bind Mode then select BIND. CANCEL BIND

Telemetry

The Spektrum TM1500 Telemetry Module features internal telemetry sensors and 5 telemetry sensor ports.

Refer to the Spektrum transmitter manual for telemetry settings.

Internal Telemetry:

- Rx Voltage

Telemetry Sensor Ports:

• Voltage
• Temperature
• RPM
  • XBus Ports (Connect additional telemetry sensors)

The Spektrum TM1500 Telemetry Module includes the Voltage Sensor and the Temperature Sensors in the box.

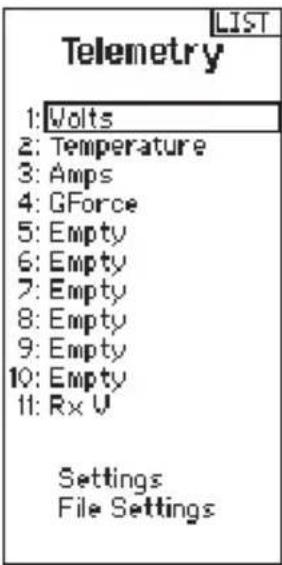

LIST Telemetry 1: Wolts 2: Temperature 3: Amps 4: GForce 5: Empty 6: Empty 7: Empty 8: Empty 9: Empty 10: Empty 11: Rx V Settings File Settings

Voltage Sensor

• Attach the black and red wires (stripped ends) to the (−) Negative (Black) and (+) Positive (Red) wires of the voltage source. Typically, you would solder the wires to the battery connector.
• Plug the voltage sensor (SPMA9570A) into the VOLT port on the TM1500.

Illustration of two coaxial cables with connectors and insulation shears (no text or symbols)

Temperature Sensor

• Plug the Temperature Sensor (SPMA9571) into the TEMP port on the TM1500.
• NITRO/GAS: Loop the wire around the head of the engine, snugging the plastic sleeve to secure the wire. The mounting position on nitro/gas engines will result in different temperature readings. Experiment with different positions on the engine head for best results.
• ELECTRIC: Loop the wire around a battery pack or electric motor and secure it with tape.

Mechanical assembly diagram showing piston and crankshaft components with a directional arrow (no text or labels)

For information on installing other Spektrum Telemetry Sensors visit www.spektrumrc.com.
