FROM THE DESK OF OUR PRESIDENT

Dear new owner of a Bertazzoni appliance,

I want to thank you for choosing one of our beautiful products for your home.

My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food.

Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners.

By making beautiful products we respond to our customers' flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure.

This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.

Enjoy!

Paolo Bertazzoni

President

Pedro Sectorzoumi

MANUAL VALIDITY

The following manual is valid for all the product codes mentioned below:

• RBM75S5FPNS
• RBM90S5FPNS
• RFD90S5FPNS/24

GENERAL INFORMATION 9

MANUAL INFORMATION 9

SAFETY INFORMATION 10

CARING FOR THE ENVIRONMENT 10

INSTALLATION 11

CUTOUT DIMENSIONS 11

PRODUCT DIMENSIONS 12

FOOD LOAD BEARING CAPACITY OF THE DOORS 17

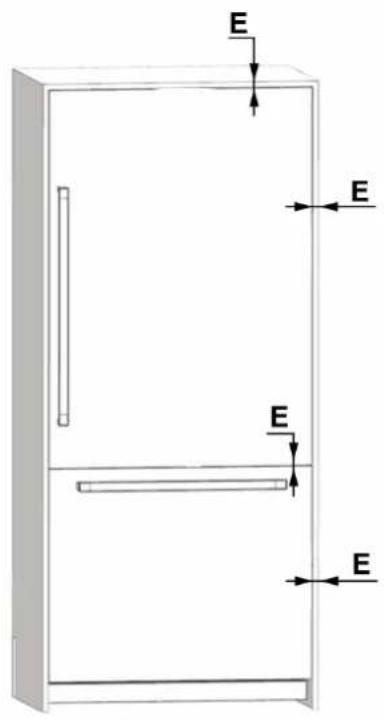

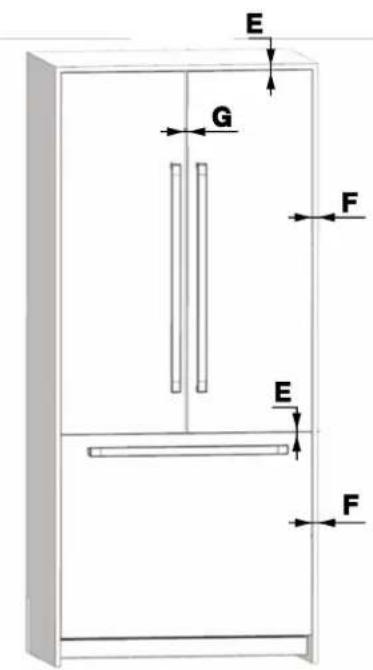

CUSTOM DOOR PANEL (FOR PANEL-READY MODELS) 18

ELECTRICAL REQUIREMENTS 20

PLUMBING REQUIREMENTS 21

INSTALLATION 23

TOOL LIST 24

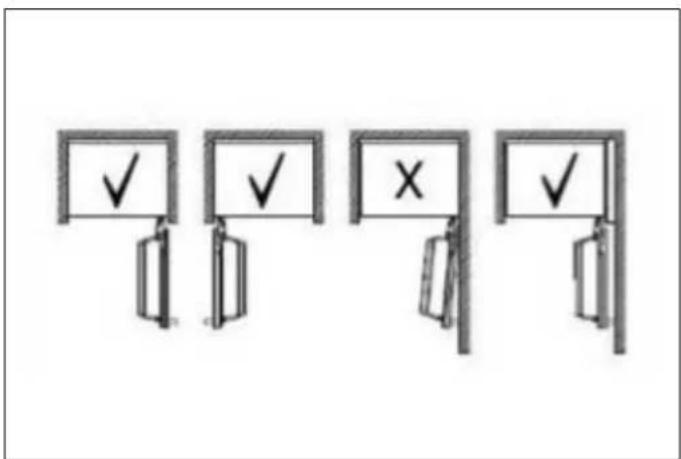

ALTERNATIVES FOR INSTALLATION 24

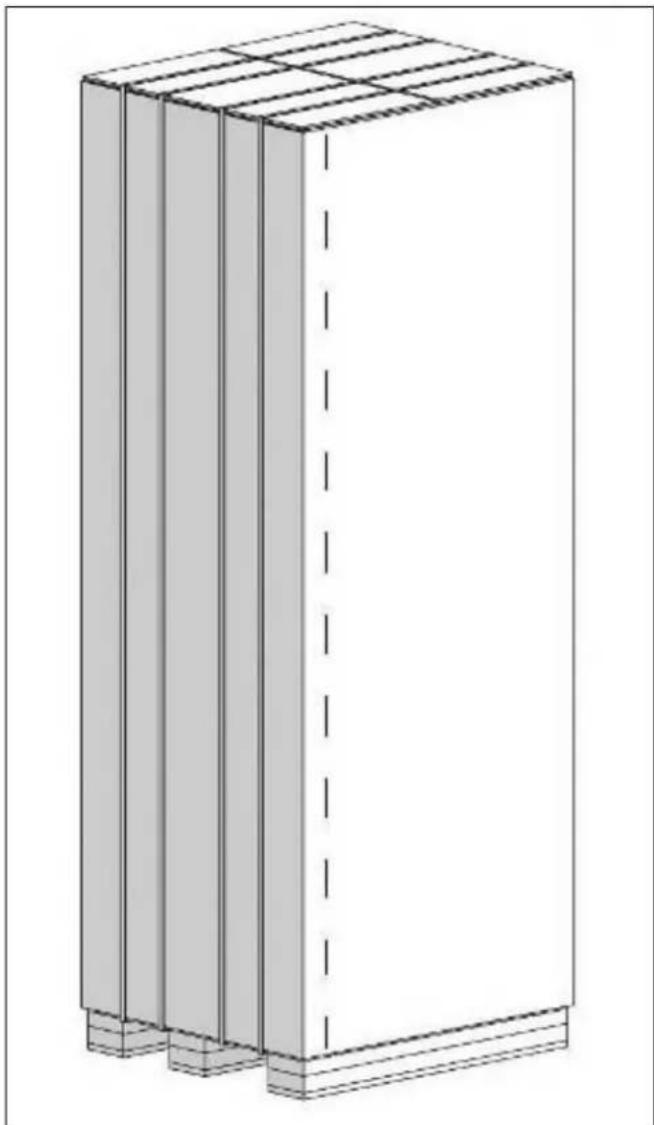

UNPACKING 25

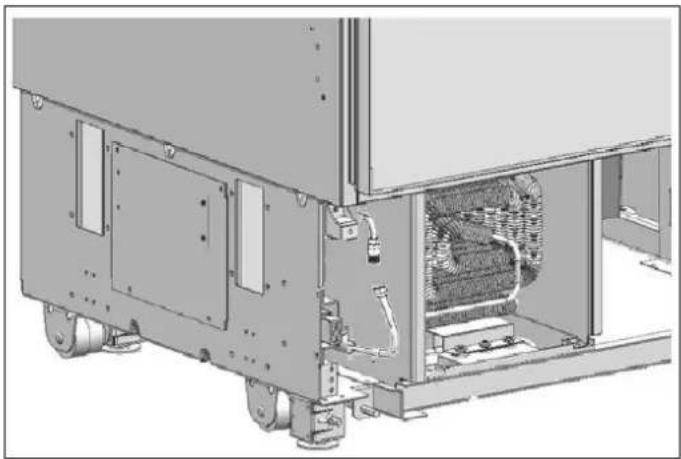

REMOVING THE CONNECTORS ON THE SIDE WALL OF THE UNIT 26

REMOVING THE INSTALLATION HARDWARE 27

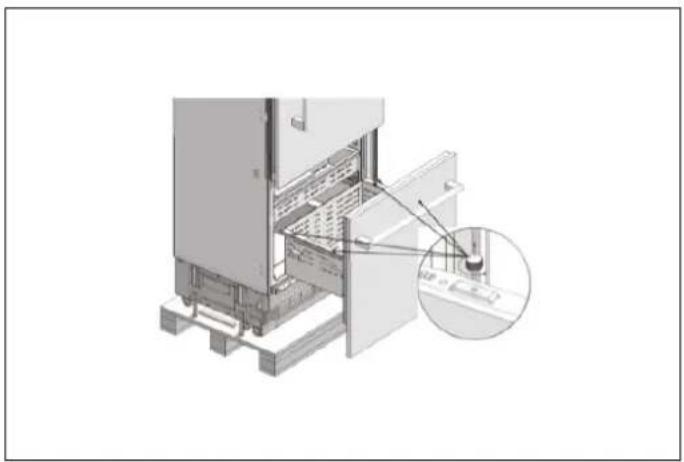

REMOVING THE FREEZER DRAWER 29

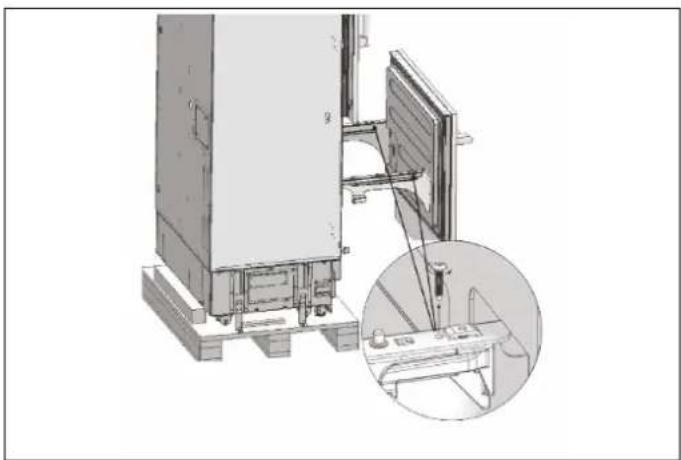

REMOVING THE FREEZER DOOR 29

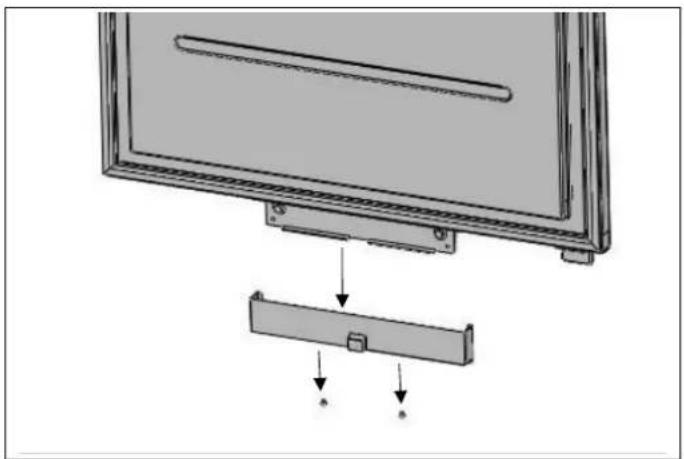

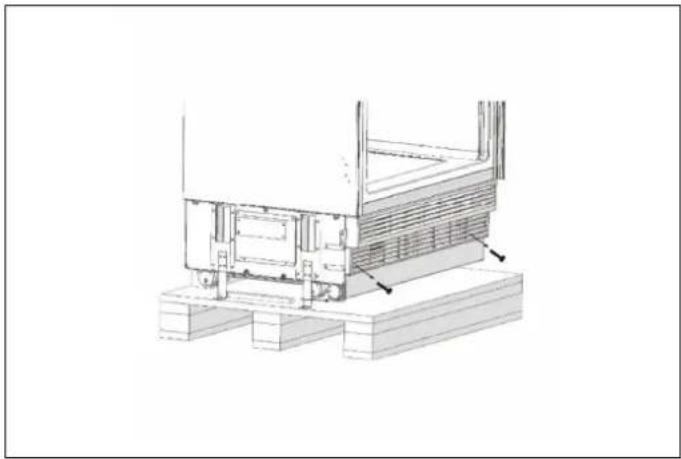

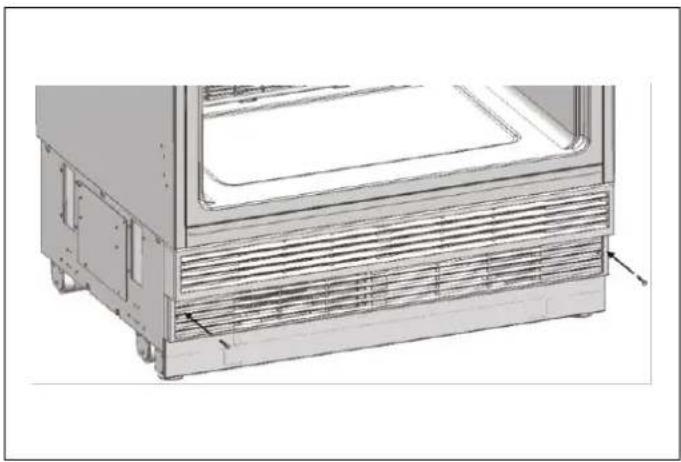

REMOVING THE LOWER AND UPPER VENTILATION GRILL COVERS 30

INSTALLATION INSTRUCTION 31

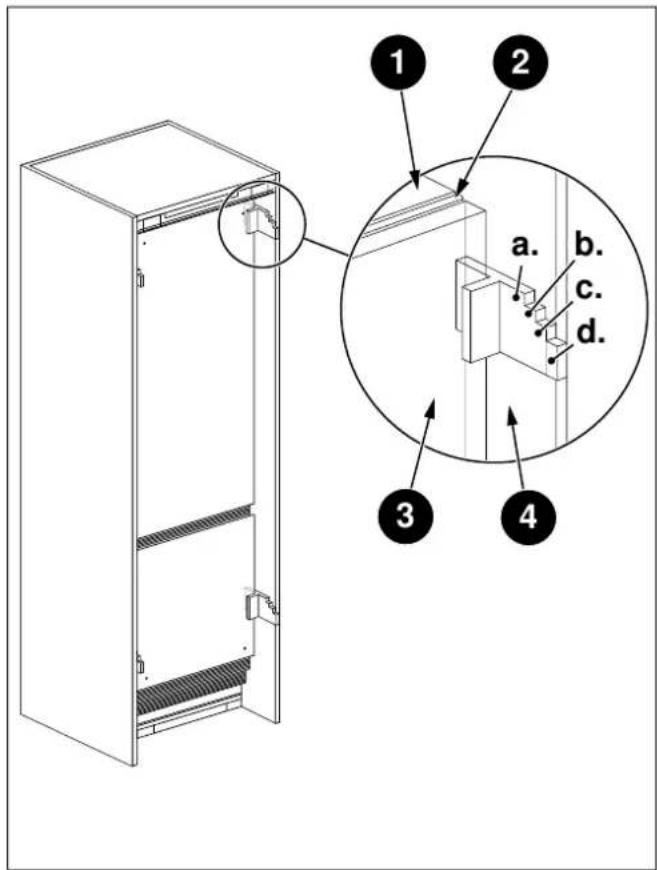

MOUNTING THE ANTI-TIP BRACKETS 31

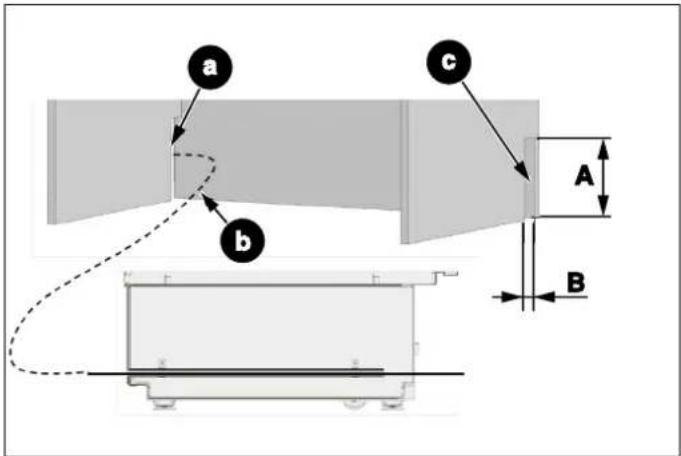

PREPARING THE WATER HOSE AND THE ELECTRICAL CONNECTION 34

INSTALLATION IN THE CABINET 35

SCREWING IN THE SIDE BRACKETS 41

SECURING THE UPPER BRACKET 42

INSTALLING THE BOTTOM CABINET 43

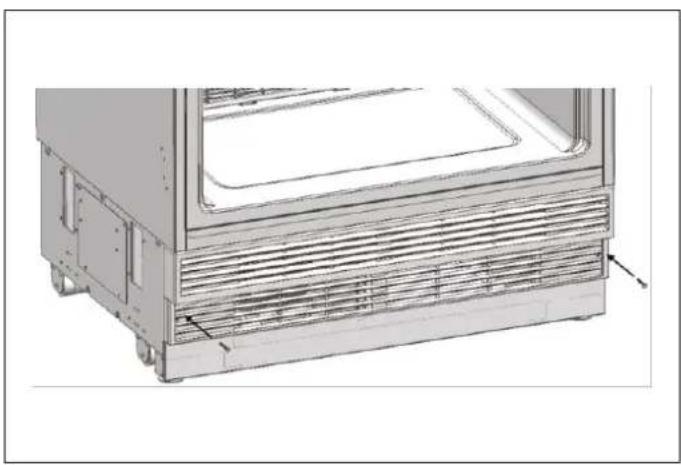

ATTACHING THE UPPER VENT APERTURE COMPONENT 43

ATTACHING THE LOWER VENT APERTURE ASSEMBLY 44

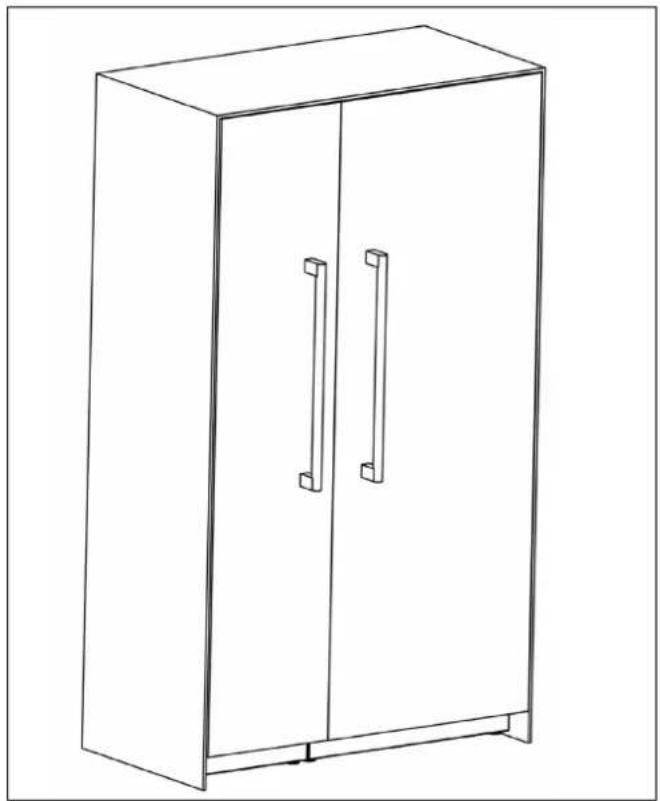

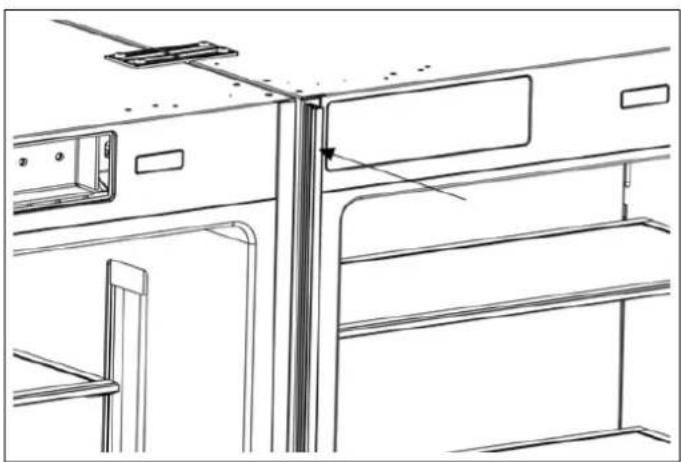

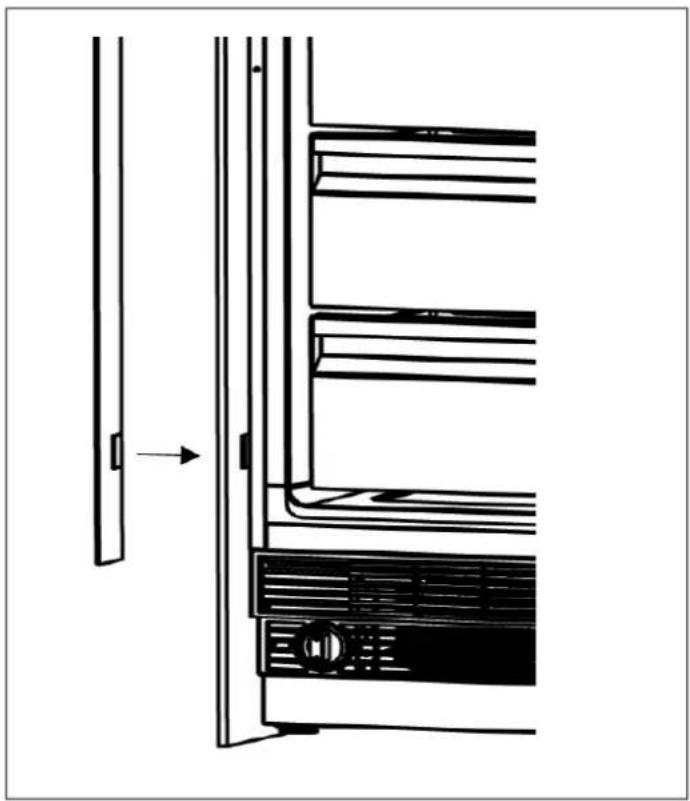

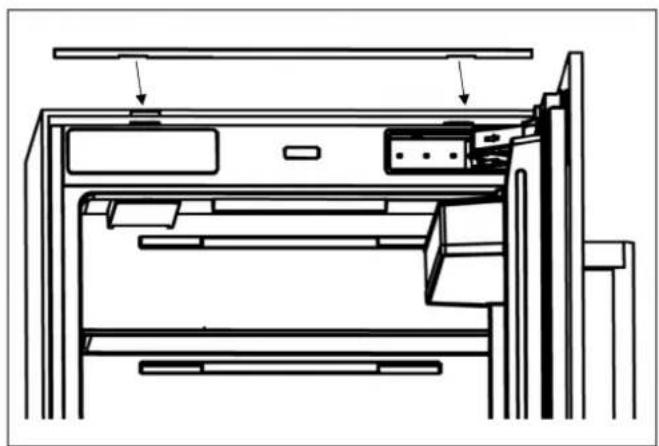

ATTACHING THE DECORATIVE TRIM COVERS 44

OVERLAY PANEL INSTALLATION AND PREPARATION 45

CHOOSING THE DOOR THICKNESS 46

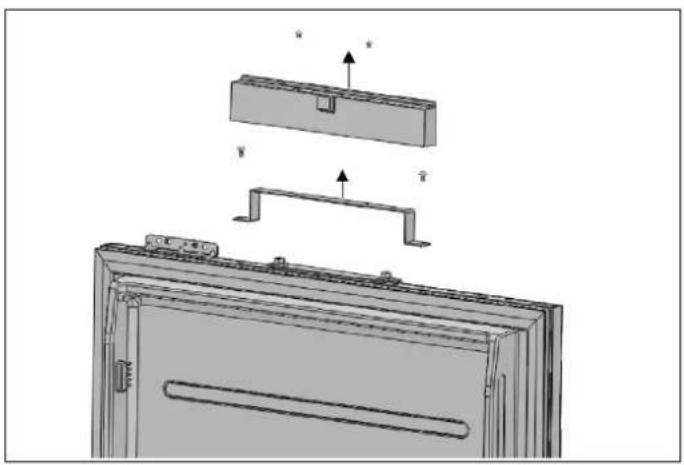

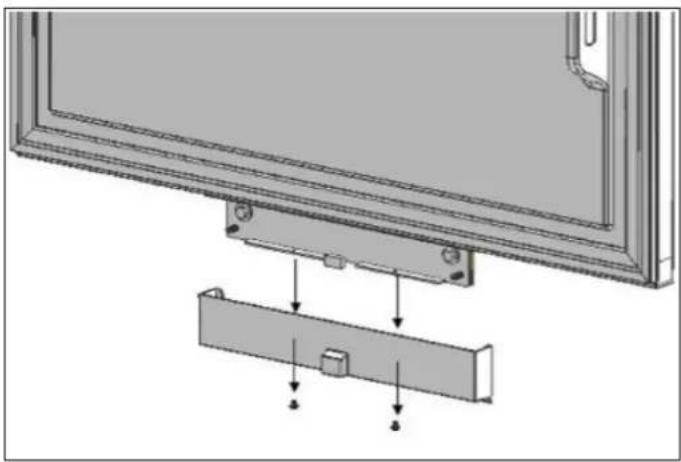

REMOVING THE OVERLAY PANEL MECHANISM COVERS 48

REMOVING THE PANEL BRACKETS 49

PREPARING THE OVERLAY PANELS 50

PREPARING THE FRIDGE DOOR PANEL 51

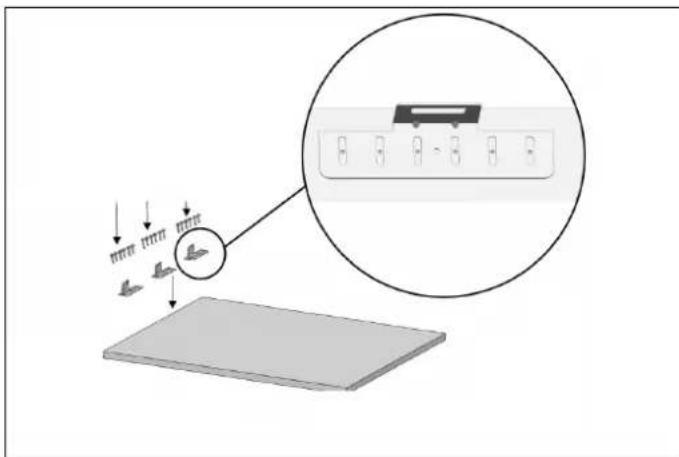

PREPARING THE FREEZER DRAWER PANEL 53

INSTALLING THE REFRIGERATOR CUSTOM DOOR PANEL 54

ALIGNING THE UPPER PART OF THE CUSTOM DOOR PANEL WITH BOLTS 55

ALIGNING THE LOWER PART OF THE CUSTOM DOOR PANEL WITH BOLTS. 55

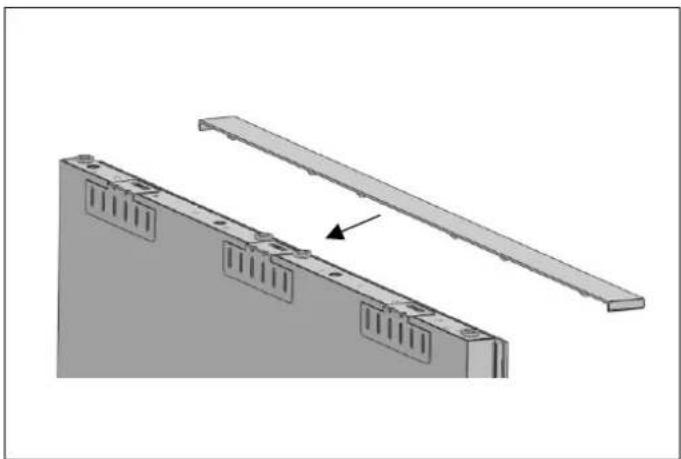

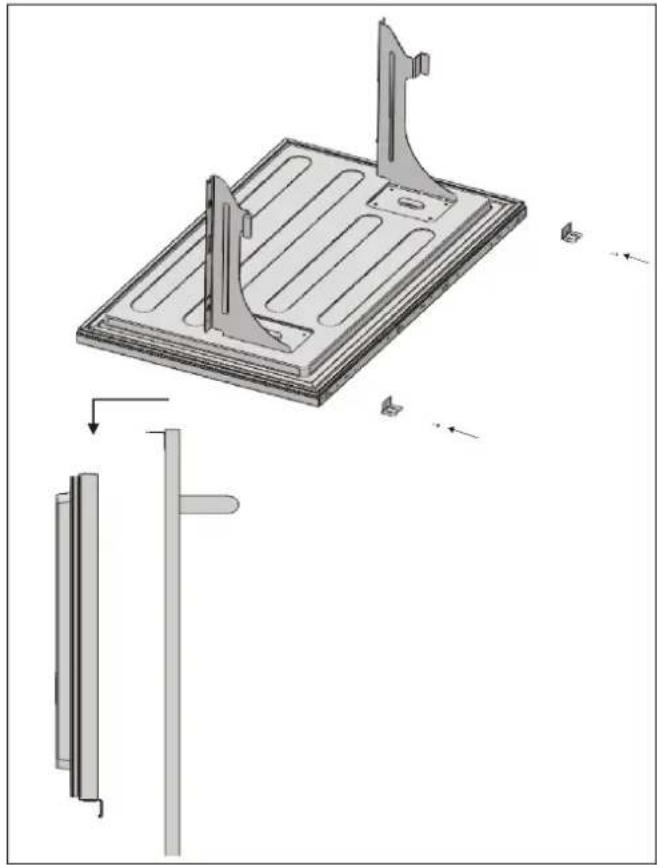

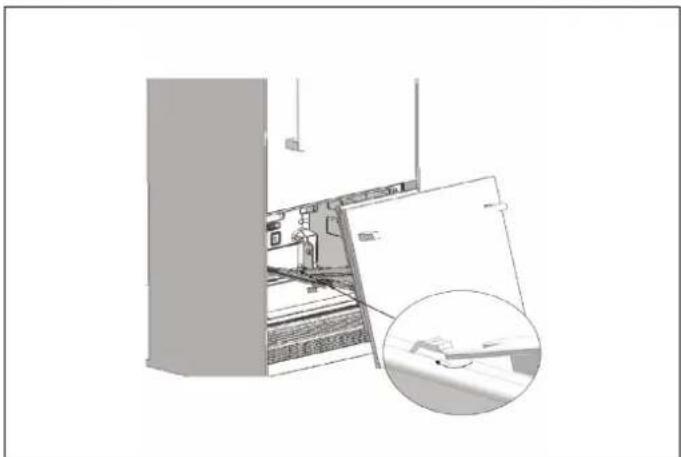

INSTALLING THE FREEZER CUSTOM DOOR PANEL 57

COMPLETING THE INSTALLATION 60

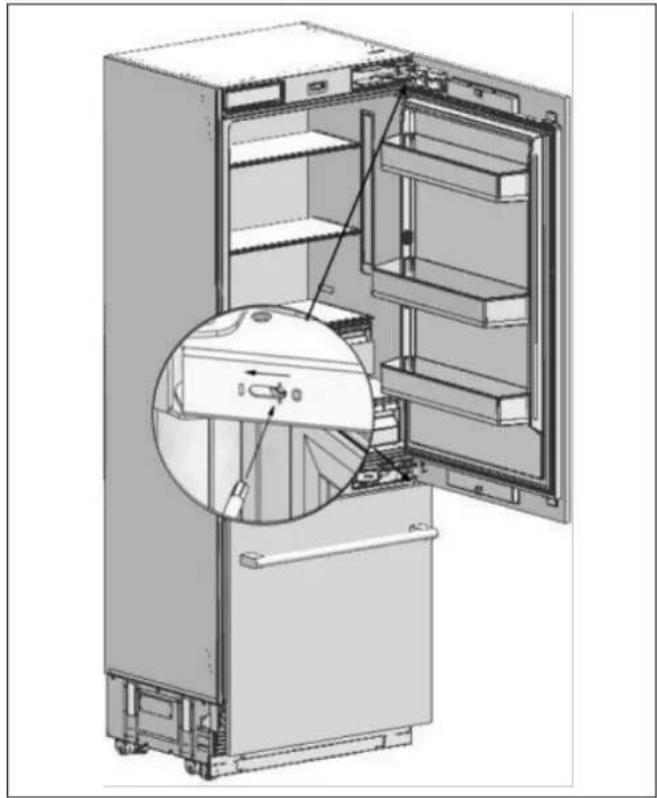

ADJUSTING THE SPRING TENSION OF THE HINGES 60

REVERSING THE DOOR SWING 61

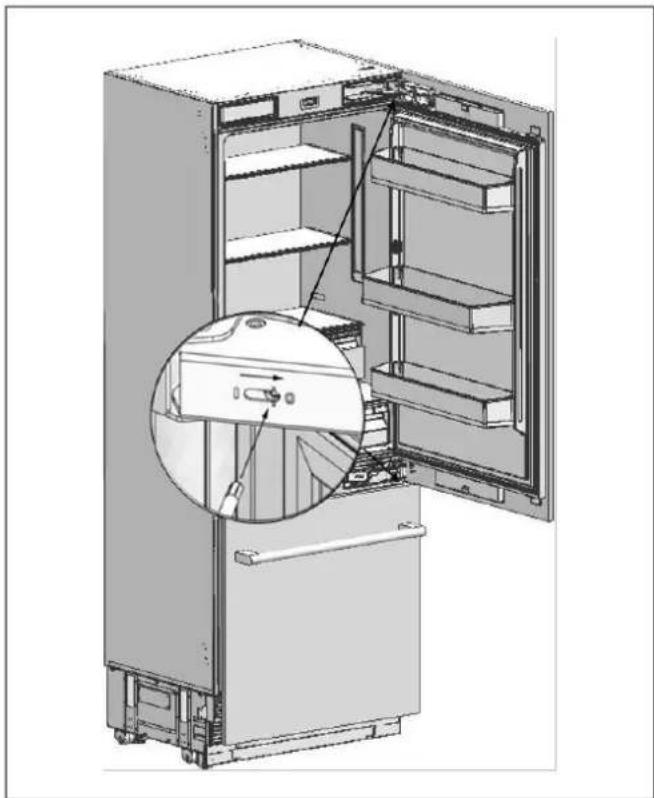

REMOVING THE DOOR PANEL 61

REMOVING AND PREPARING THE INNER DOOR 64

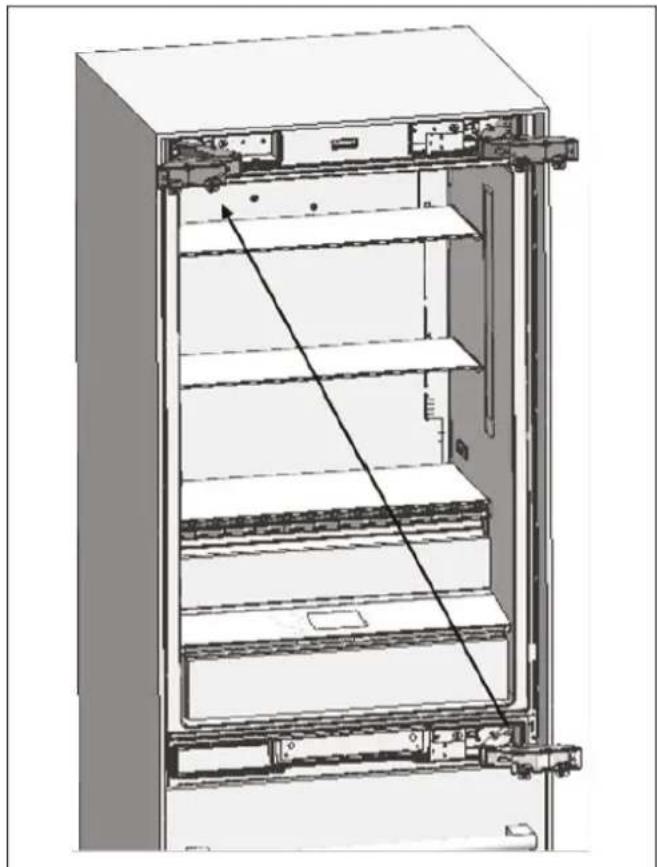

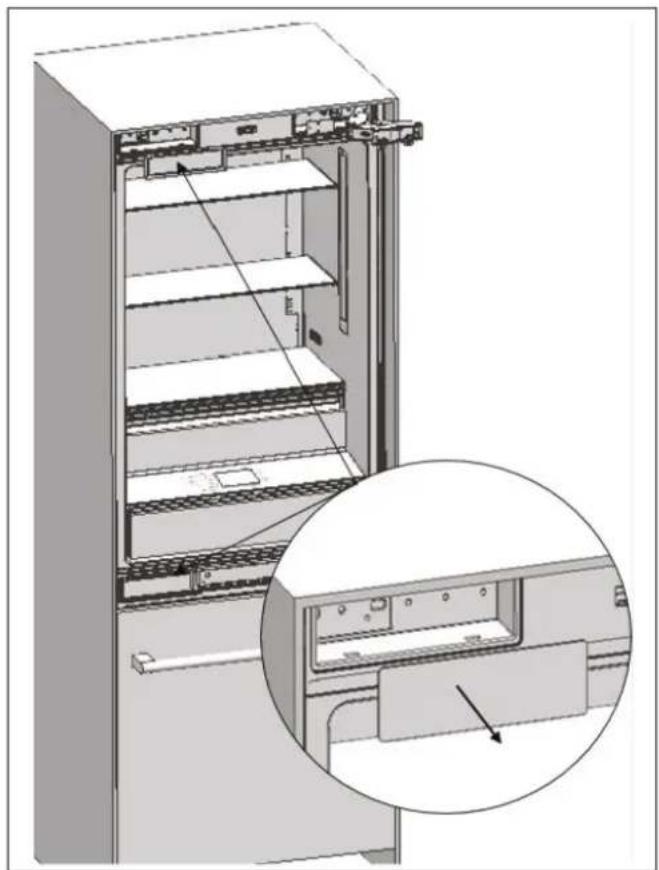

REPLACING THE HINGES 65

AIR VENT UPPER PART DIRECTION CHANGE 66

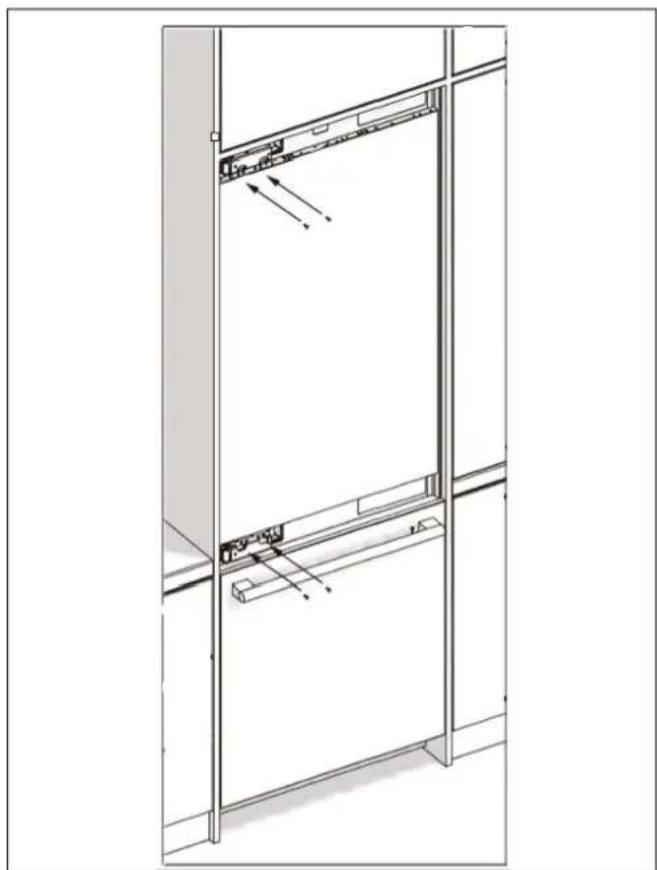

REINSTALLING THE DOOR 66

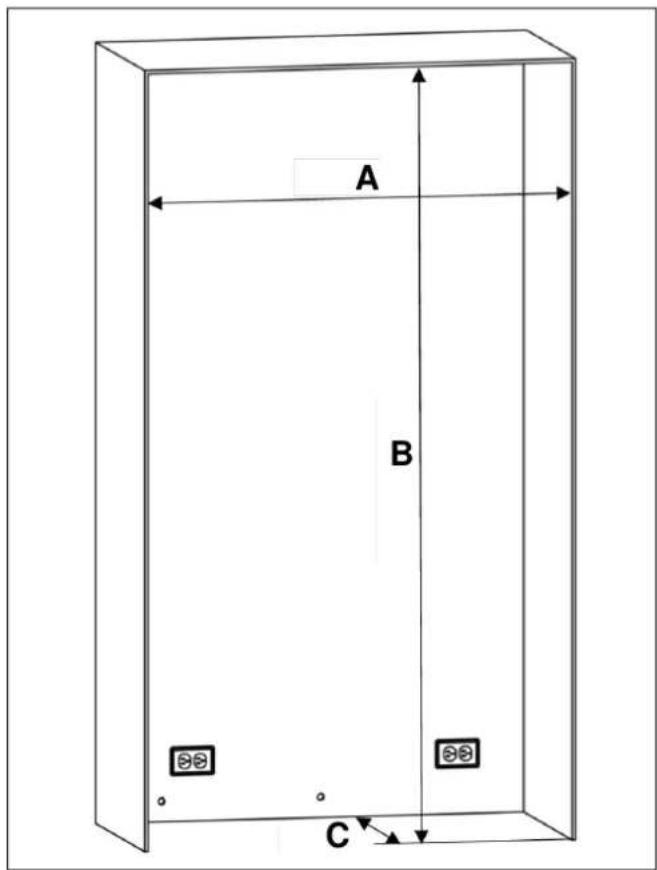

CABINET CUTOUT DIMENSIONS 67

LOCATION OF THE ELECTRICAL WIRING 68

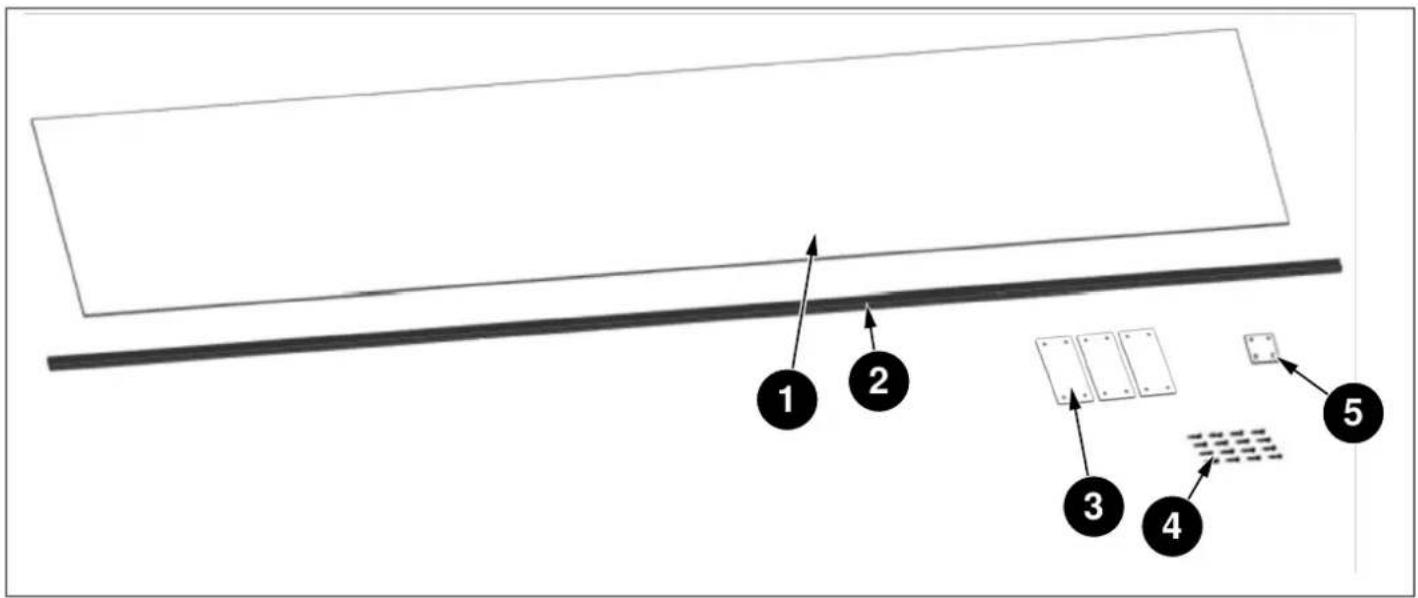

LOCATION OF THE WATER SYSTEM 69

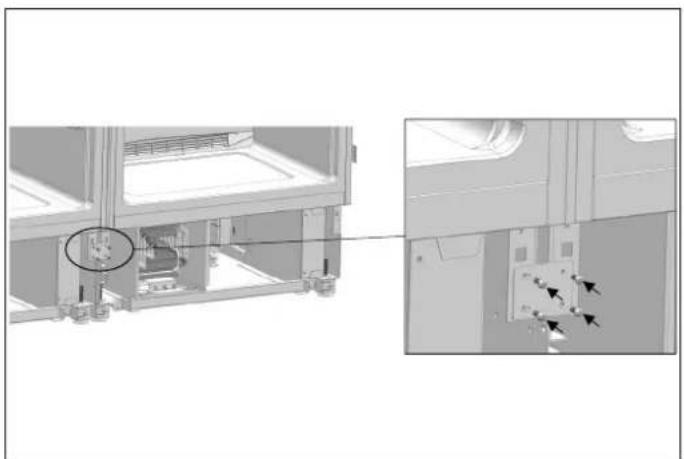

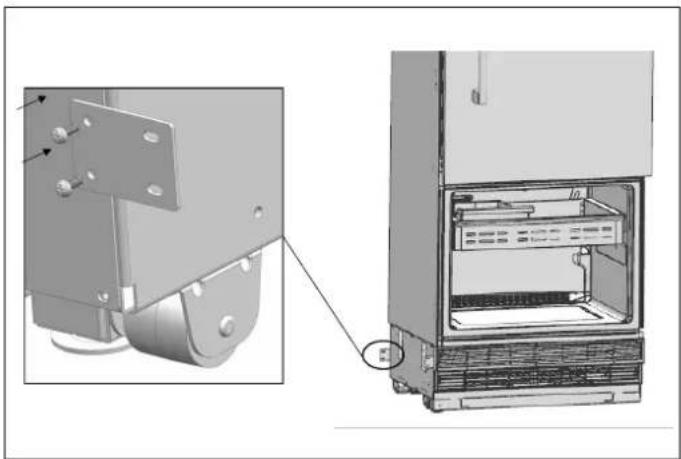

INSTALLING THE INSULATING FOAM 71

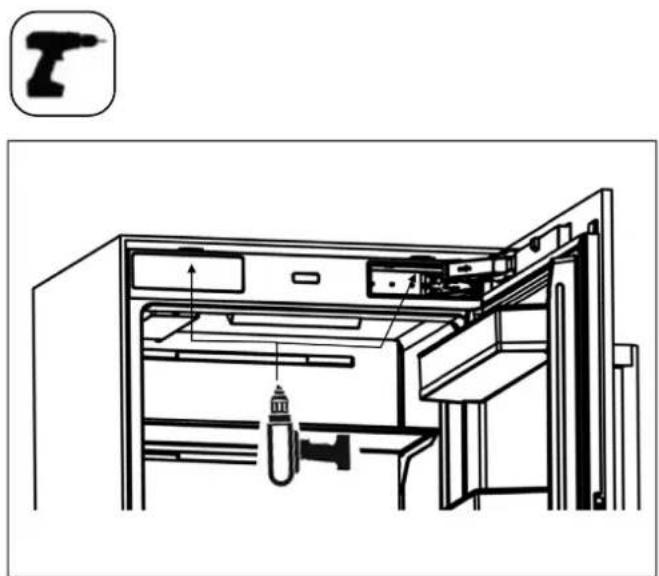

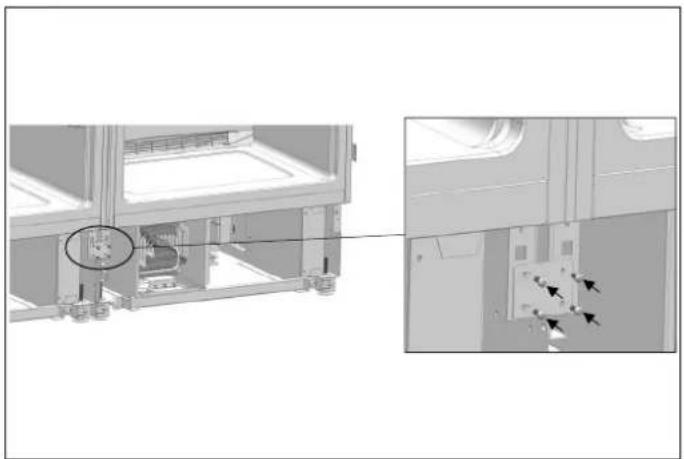

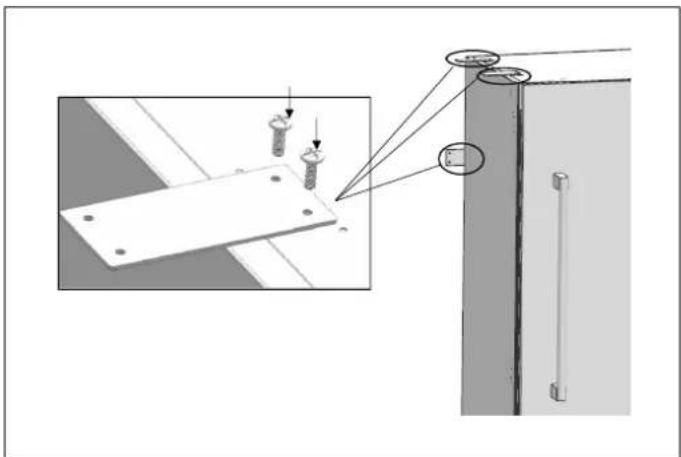

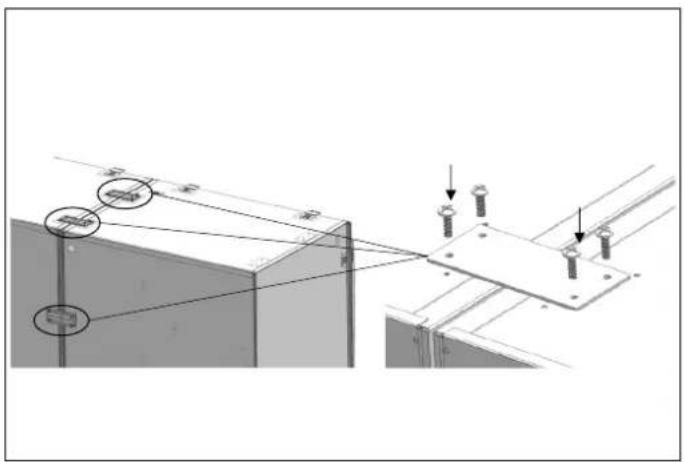

INSTALLING THE FASTENERS AND CONNECTING BRACKETS 71

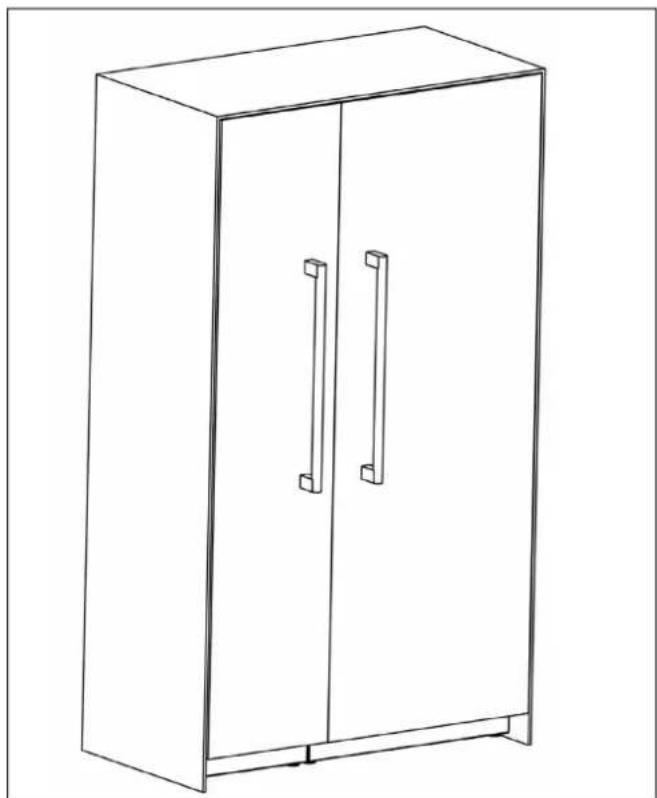

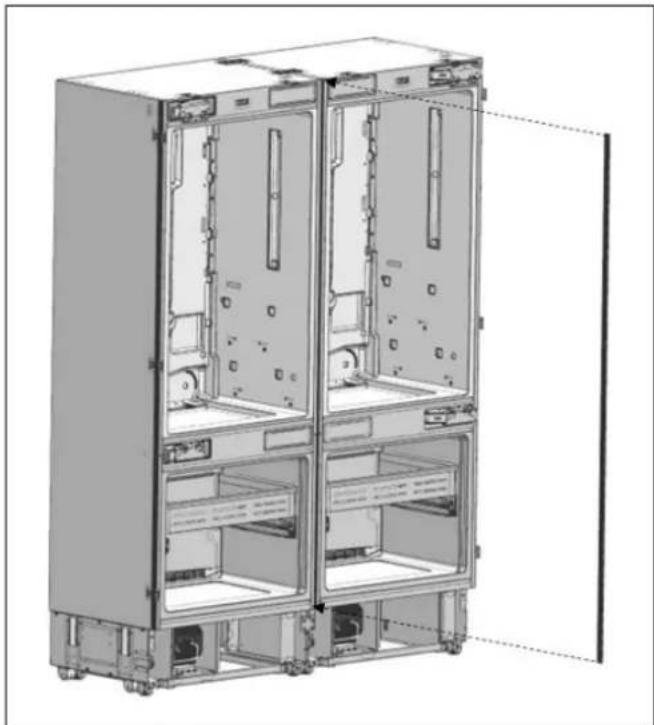

FIXING THE CENTER TRIM BETWEEN THE REFRIGERATORS 73

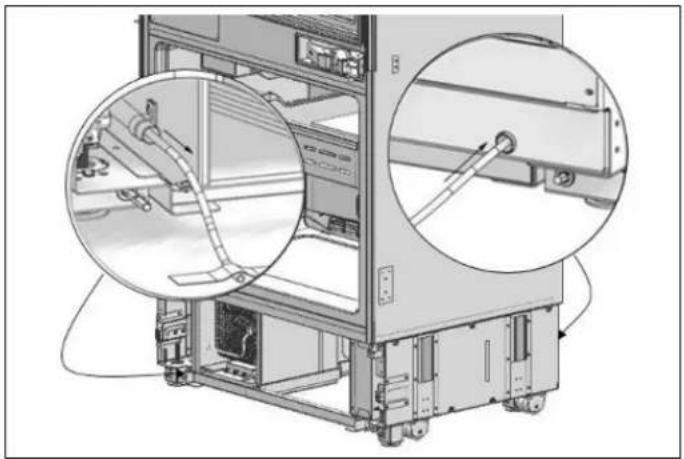

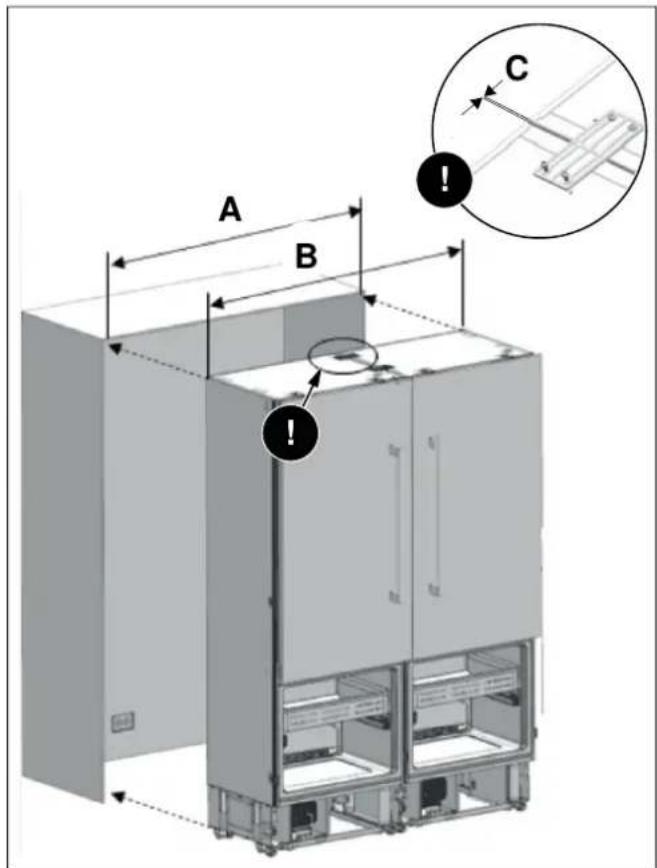

POSITIONING THE REFRIGERATORS IN THE CABINET CUTOUT 73

These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not include or support.

The images and illustrations in this document refer to various models and may differ slightly from the product purchased.

The manufacturer does not accept any liability for personal injury or damage to property arising from incorrect installation or misuse of the appliance.

The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force.

In the event of complaints, please contact customer service. Read the instructions provided in this manual thoroughly before installing and/or using the appliance. This will help you get to know your new appliance. Keep this document at hand so that you can consult it at any moment, and pass it on to any subsequent owners.

Read the safety messages provided in the introduction to this manual and give due consideration to the safety notes, such as: "Attention", "Warning" and "Danger" which appear in the text.

DANGER

This symbol indicates a situation that is a danger to you and others. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous or fatal accidents.

WARNING

This symbol indicates safety information. Read it carefully and make sure that you have perfectly understood the causes of potentially dangerous accidents.

CAUTION

This symbol indicates a procedure which could put the appliance's structure or components at risk. Take particular care over these procedures.

NOTE

This symbol highlights methods or procedures for correct use of the appliance.

The Model, Sales Code and Serial Number are printed on the nameplate. Refer to the Specifications section of this manual for nameplate location.

NOTE

You are advised to make a note of the appliance's data and serial numbers so they are immediately available if required.

NOTE

State the information provided on the nameplate to improve the efficiency of the after-sales and parts services. For warranty purposes, you will also need the date of installation and name of your authorized Bertazzoni dealer.

WARNING

When using your appliance, follow basic precautions. Read all instructions before using the appliance. Save these instructions and pass them on to any future user.

SAFETY INFORMATION

WARNING

This installation manual is intended to aid installation teams. The User Manual provided with the product must also be taken into account.

You may be seriously injured and your product damaged if you ignore the warnings provided in this manual. Please read the following carefully.

WARNING

R600a refrigerant

This product contains R600a isobutane refrigerant, which is a very eco-friendly natural gas. However, it is also flammable.

If the product has been transported horizontally, you must wait for a minimum of 4 hours before plugging it in.

The following instructions must be followed during installation:

• The dimensions of the installation area must be adequate.
• The dimensions, features and position of the object used to support and secure the product in said area must be suitable.
• Minimum clearances between product parts and surrounding structures must be adequate.
  • Minimum dimensions and proper positioning of ventilation holes must be heeded.
• The product must be able to be disconnected from the power supply after installation.
• The socket or fuse must be accessible, so as to be able to shut off power to the product.
• Extension cords and ungrounded adapters may not be used. The dimensions of the installation area must be adequate.

CAUTION

You must wear protective gloves and eye protection when installing the product. You must also wear hearing protection when using a drill or similar tools.

CAUTION

Make sure that the electrical circuit is suitable for the product.

CAUTION

The product must be installed by a qualified technician according to the installation instructions.

WARNING

The product may tip over, because it is quite heavy. Precautions must be taken to prevent this from occurring.

The product's doors must be kept closed until it reaches its destination; it must be transported in the manner described in the installation instructions.

CARING FOR THE ENVIRONMENT

The packing materials have been designed to protect the product during transport.

Our appliances are packaged in non-polluting and recyclable materials in accordance with National Environmental Regulations:

• Dispose of packaging in an environmentally friendly manner.
• Please ask your dealer to inquire at your local authority about current means of disposal.

All plastic packing materials, bags, etc. must be disposed of safely and kept out of the reach of children.

The instructions below refer to a built-in installation.

In a built-in installation, the appliance is installed in a cabinet niche or framed in with panels.

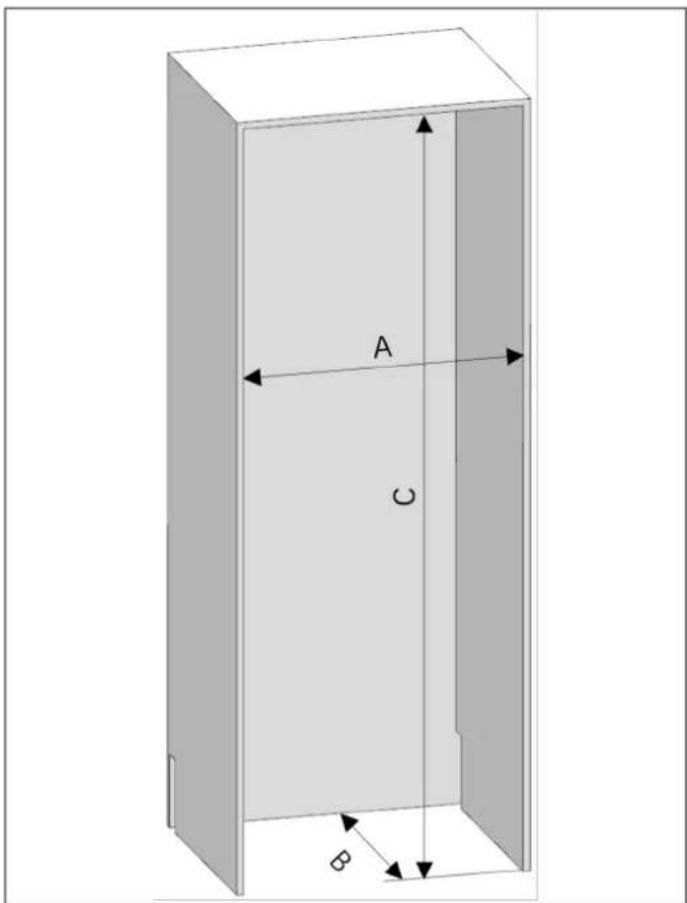

Niche Dimensions

- The niche dimensions below must be checked before beginning the installation.

A C B

Fig. 1

CATEGORY RFD90S5FPNS/24 RBM90S5FPNS RBM75S5FPNS

A width	914 mm (36") 914 mm (36") 762 mm (30")
B	depth 635 mm (25") 635 mm (25") 635 mm (25")
C	height 2134 mm (84") 2134 mm (84") 2134 mm (84")

Make sure that the cabinery inside which you will install the appliance has been securely mounted in your kitchen.

Your cabinet must be properly secured to the floor and to the wall using appropriate mounting hardware.

For the best installation, clearances between the cabinet and the appliance must be in compliance with the measurements specified in the installation instructions.

The side walls must be free of obstructions and their surfaces must be flat. The minimum thickness of the side walls must be 16 mm (5/8"). The minimum thickness of the door panels to be attached to the appliance must be 16 mm (5/8").

NOTE

There is a stainless steel door and stainless toe kick option. Please consult your Authorized Service Provider.

Ventilation openings where the air enters and exits the unit must never be obstructed. The user is responsible for periodically cleaning off the dust and debris that can accumulate on the grill over time.

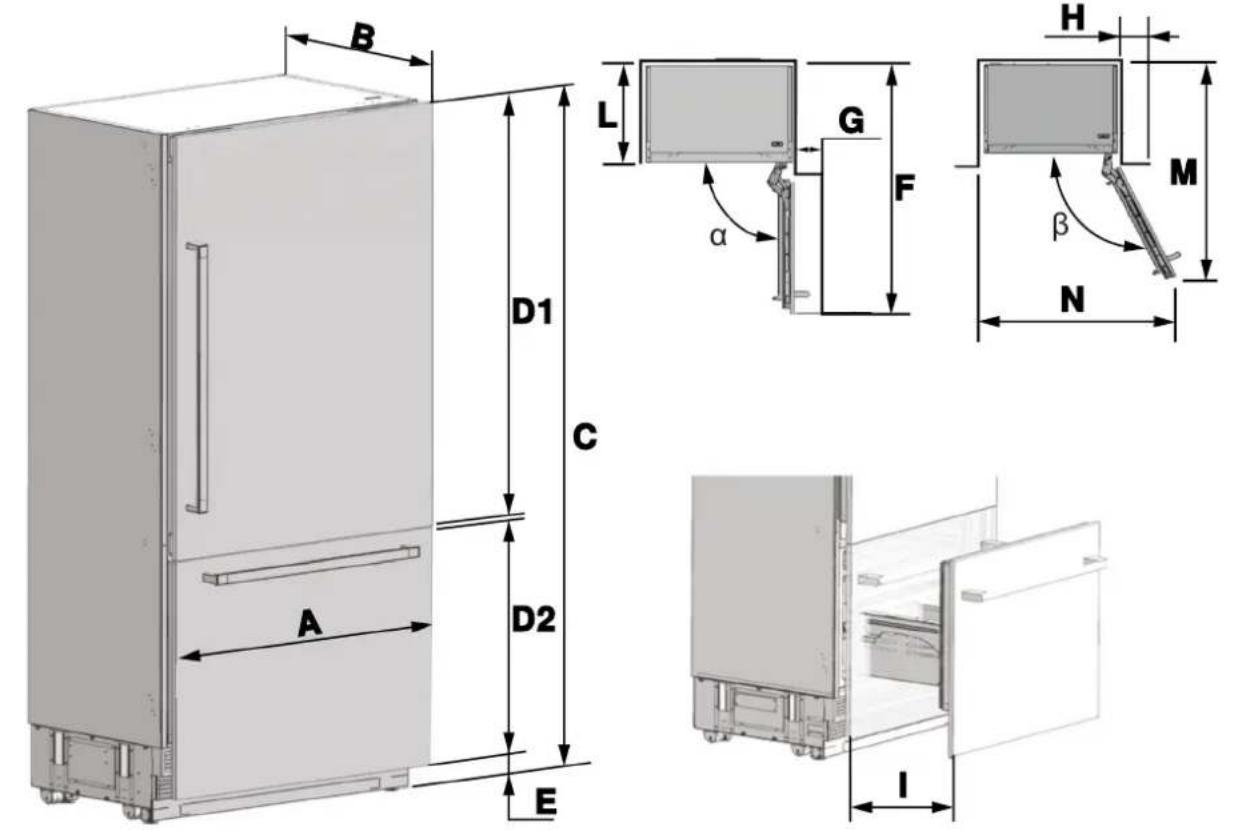

Fig. 2

CATEGORY	RBM90S5FPNS	RBM75S5FPNS	DESCRIPTION
A	908 mm (35 3/4")	756 mm (29 3/4")
B	without panel: 592 mm (23 5/16"), with panel: 616 mm (24 1/4")
C	2123 mm (83 9/16")	2123 mm (83 9/16")
D1	1297 mm (51 1/16")	1297 mm (51 1/16")
D2	729 mm (28 11/16")	729 mm (28 11/16")
E	94 mm (3 13/16")	94 mm (13 3/16")
F	1550 mm (61")	1398 mm (55 1/16")

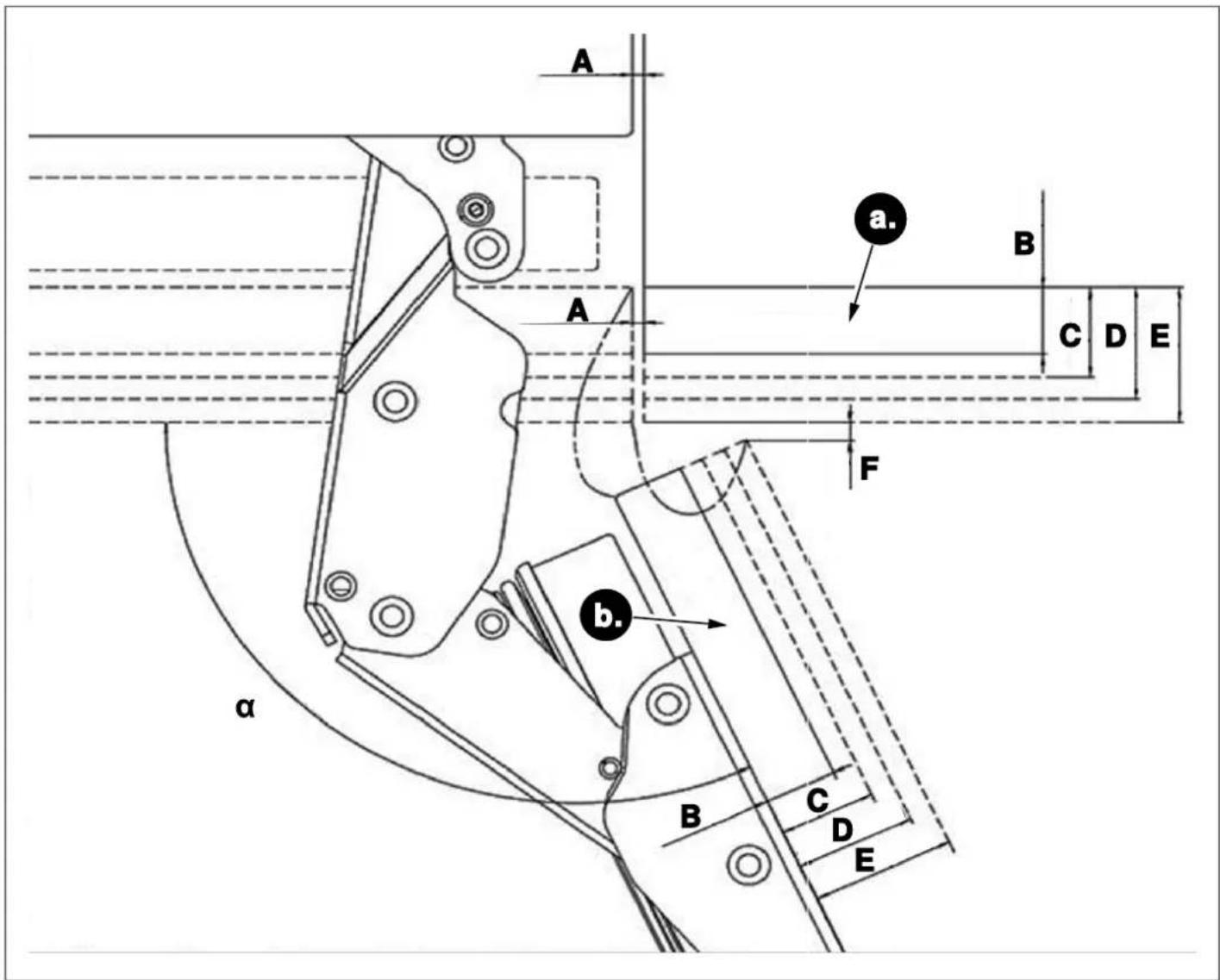

G	68 mm (2 11/16")		Minimum door clearance to adjacent wall (90°- reduced internal access)
H	483 mm (19")	371 mm (14 5/8")	Minimum door clearance to adjacent wall (115°- full internal access)
I	388 mm (15 1/4")	388 mm (15 1/4")
L	555 mm (21 7/8")	555 mm (21 7/8")
M	1466 mm (57 3/4")	1338 mm (52 11/16")
N	1391 mm (54 3/4")	1127 mm (44 3/8")
α	90°	90°
β	115°	115°

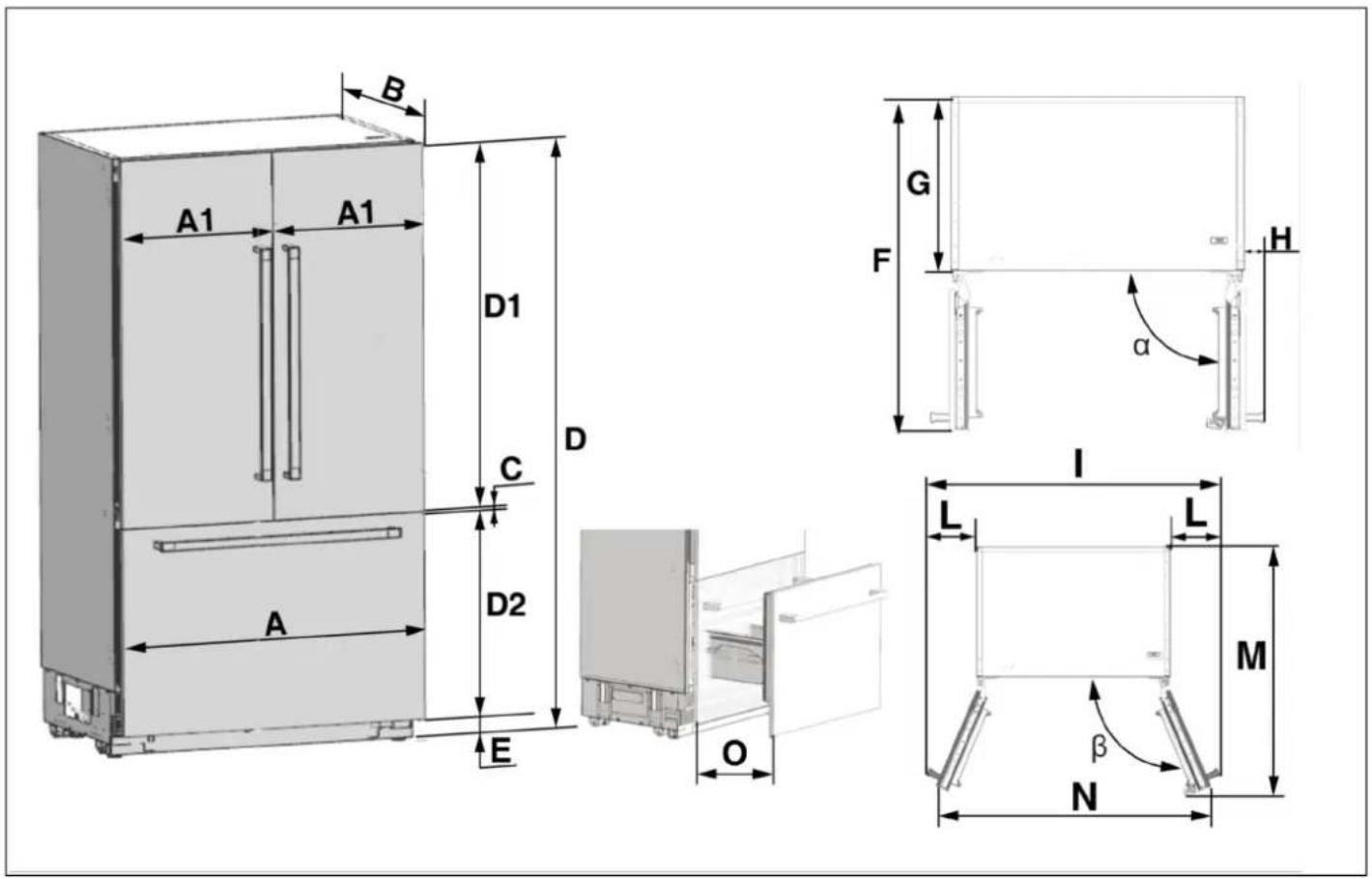

A1 A1 B D1 C D2 E A G F H α I L L M β N

Fig. 3

CATEGORY RFD90S5FPNS/24 CATEGORY RFD90S5FPNS/24

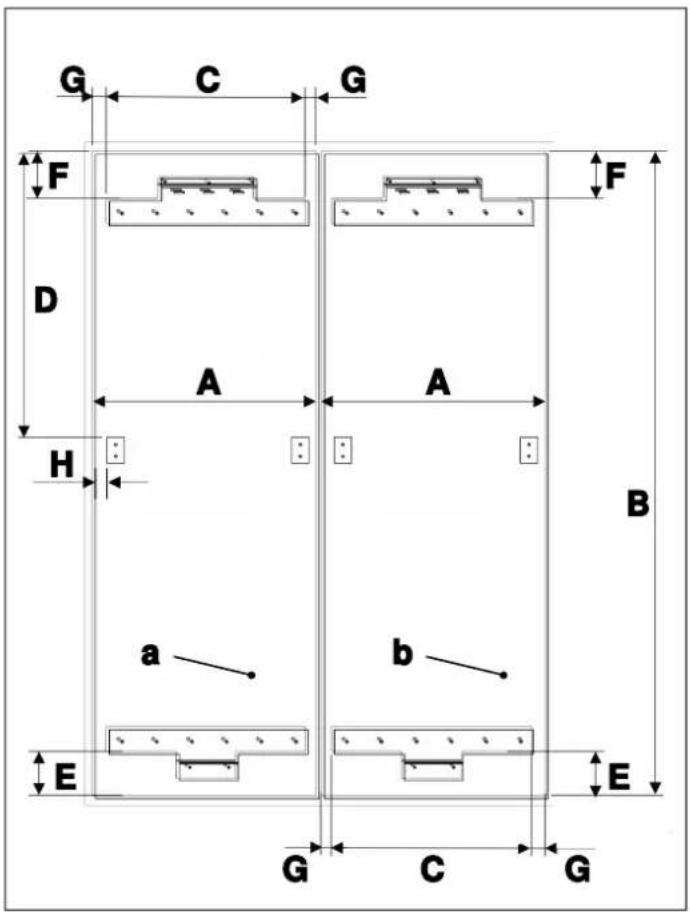

A	907 mm (13 11/16")	G	555 mm (21 7/8")
A1	451 mm (17 3/4")	H	56 mm (2 3/16")
B	without panel: 592 mm(23 5/ 16"),with panel: 611 mm (24 1/16")	I	1368 mm (53 7/8")
C	3 mm (1/8 ")	L	230 mm (9 1/16")Minimum distance to wall
D1	1297 mm (51 1/16")	N	1289 mm (50 3/4")
D2	729 mm (28 11/16")	O	388 mm (15 1/4")
E	94 mm (3 13/16") α		90°
F	1067 mm (42") β		115°

J l K

Technical diagram of a mechanical assembly with no visible text or symbols

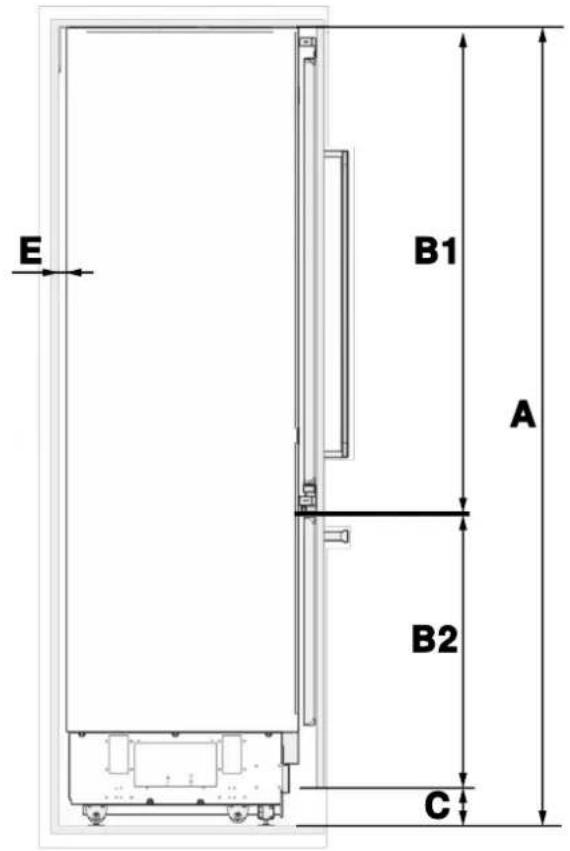

E B1 A B2 C

Fig. 4

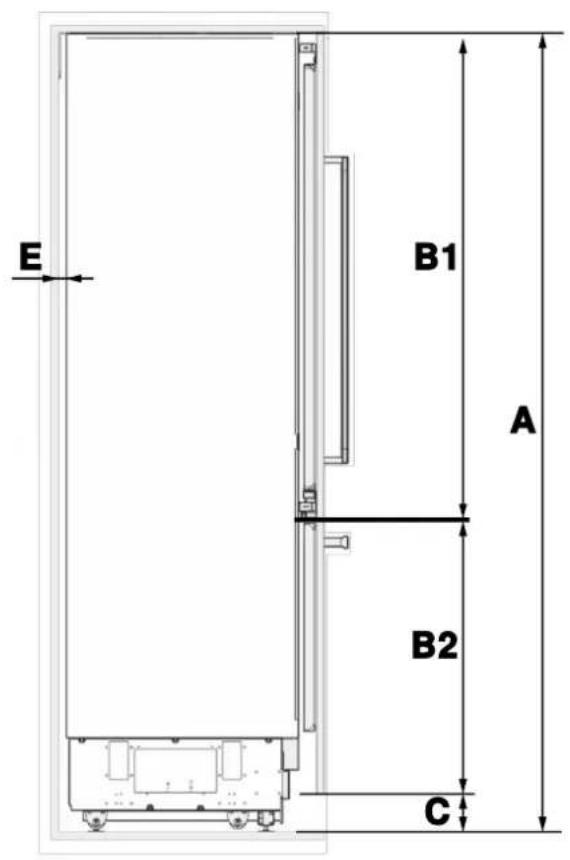

A B1 B2 C E

2134 mm (84") 1297 mm (51 1/16") 729 mm (28 11/16") 102 mm (4")

Remaining space after installation:

19 mm (3/4")

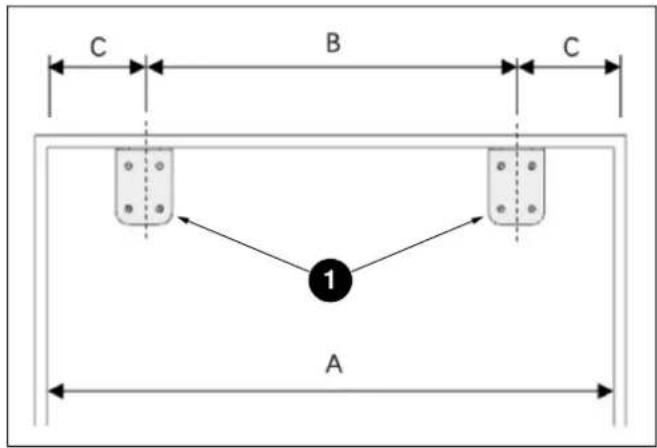

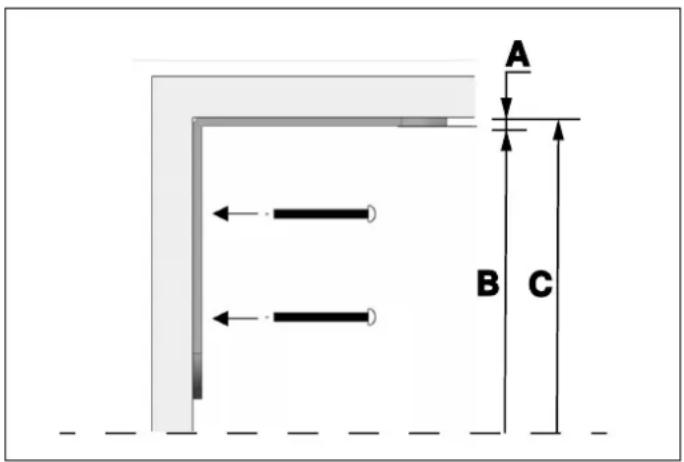

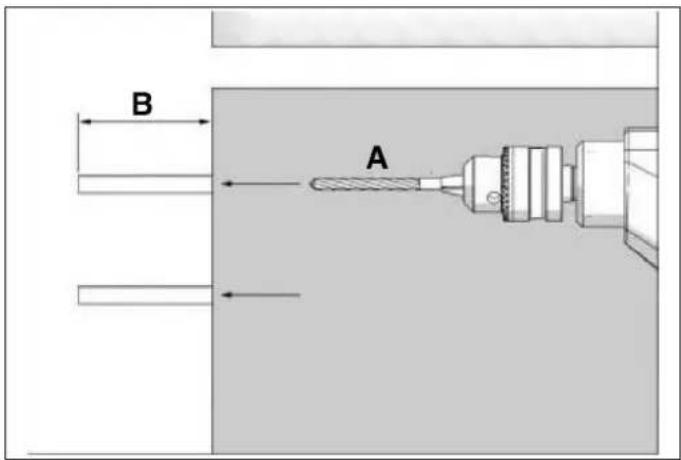

ANTI-TIP BRACKET LOCATION

IJK

2134 mm (84") 4 mm (5/32")

2130 mm (83 7 / 8")

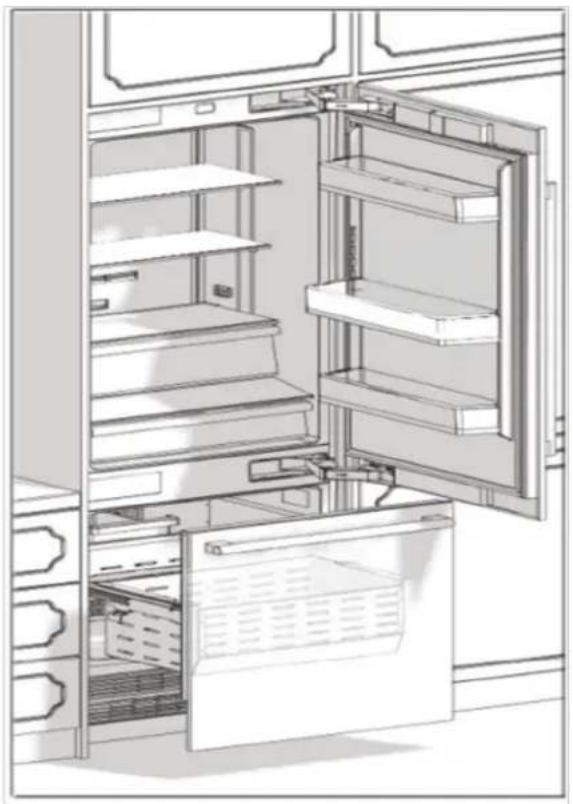

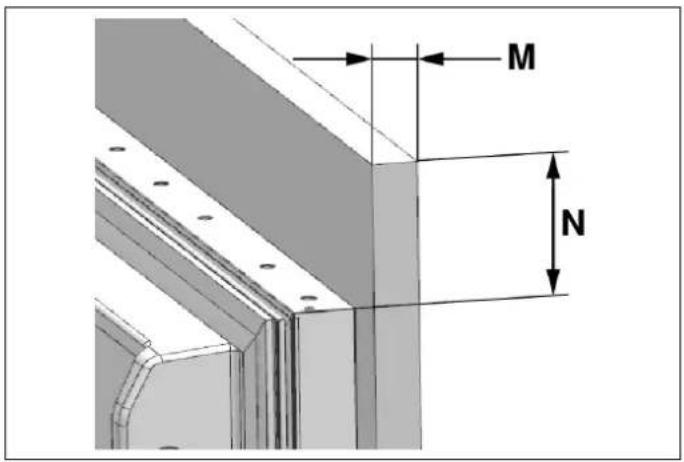

MINIMUM HEIGHT ADJUSTMENT FOR LEVELING

L

Front 8 mm (5/16")

Rear 7 mm (1/4")

M N

Fig. 5

Technical diagram of a mechanical bracket with labeled point O (no text or symbols beyond label)

Fig. 6

ASSEMBLY DIMENSION BETWEEN WOOD AND FRIDGE DOOR M N

min 16 mm (5/8") 83 mm (4")

ASSEMBLY DIMENSION BETWEEN WOOD PANEL AND FREEZER DOOR O

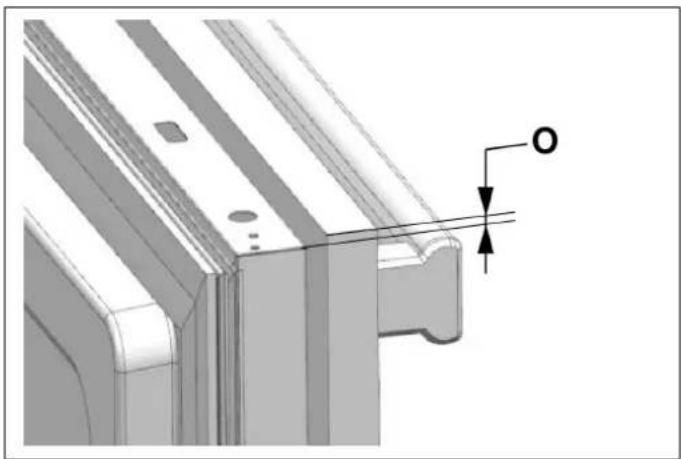

6 mm (1/4")

FOOD LOAD BEARING CAPACITY OF THE DOORS

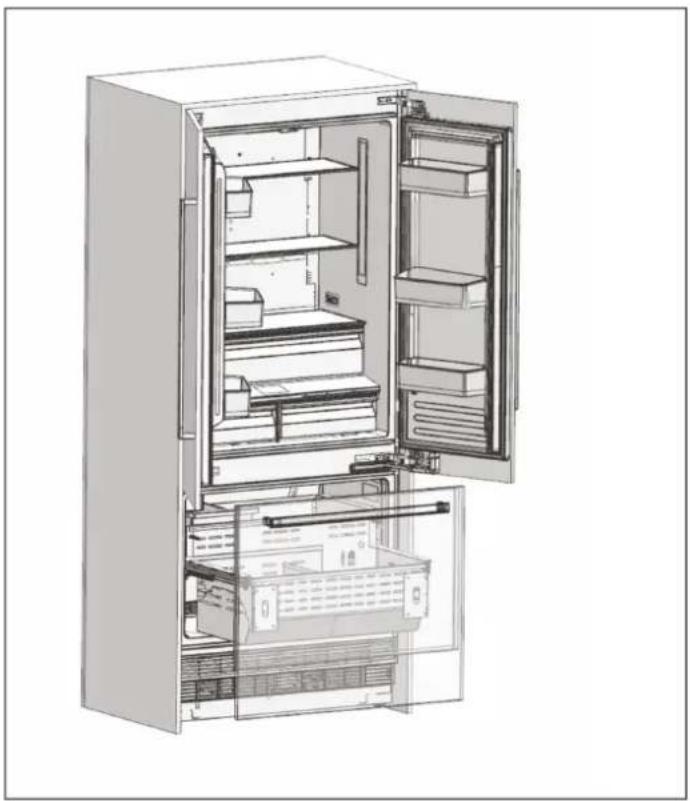

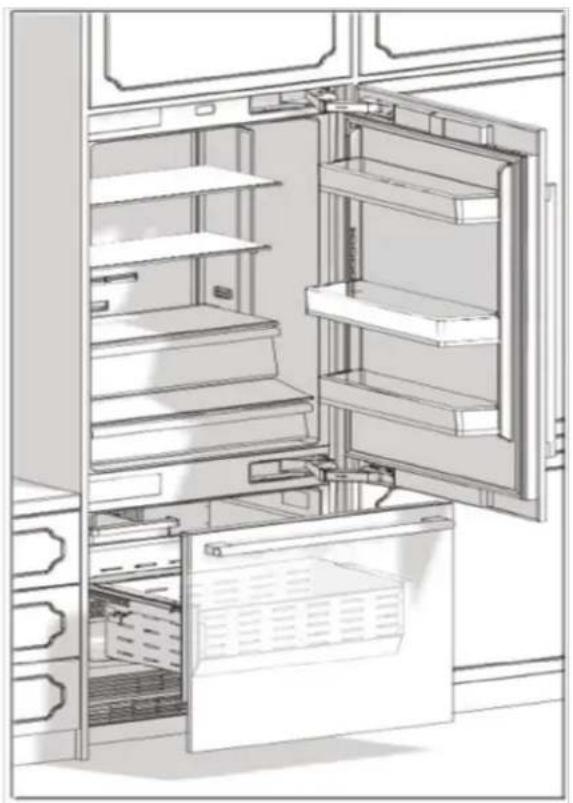

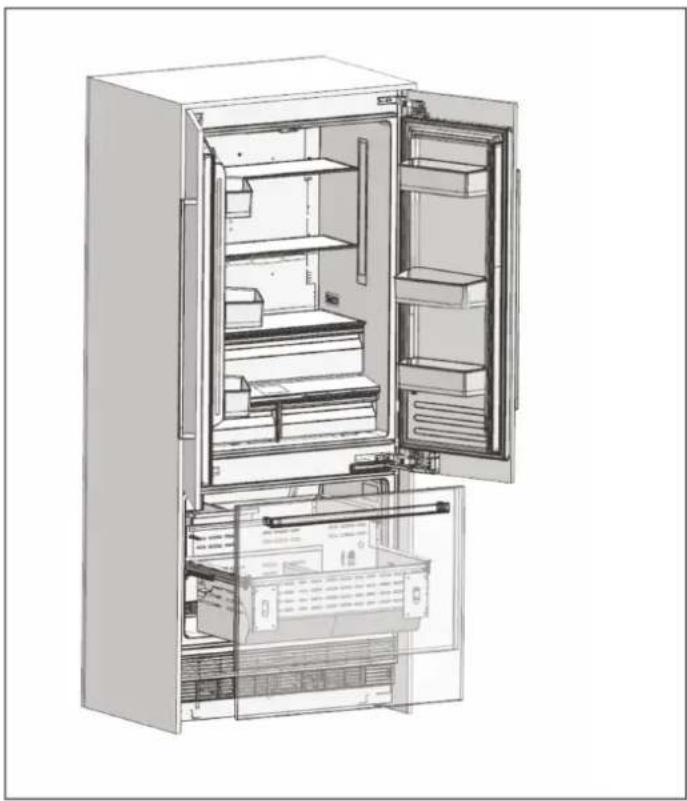

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

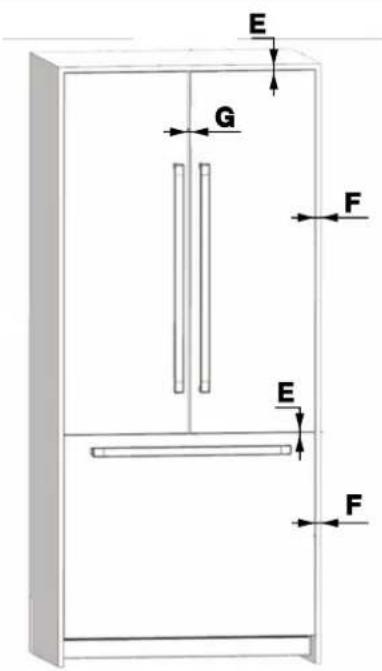

Fig. 8 RFD90S5FPNS/24

Fig. 7 RBM90S5FPNS RBM75S5FPNS

CATEGORY RFD90S5FPNS/24 RBM90S5FPNS RBM75S5FPNS
Fridge door	10 kg (22 lbs)	25 kg (55 lbs)	25 kg (55 lbs)
Freezer drawer	10 kg (22 lbs) 10 kg (22 lbs) 10 kg (22 lbs)

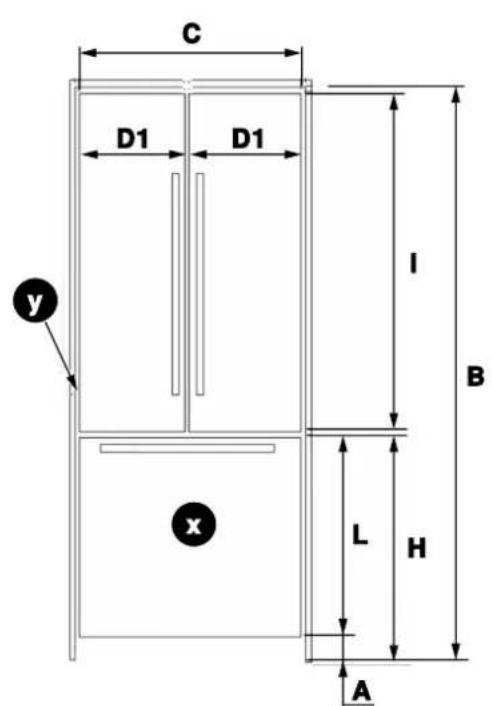

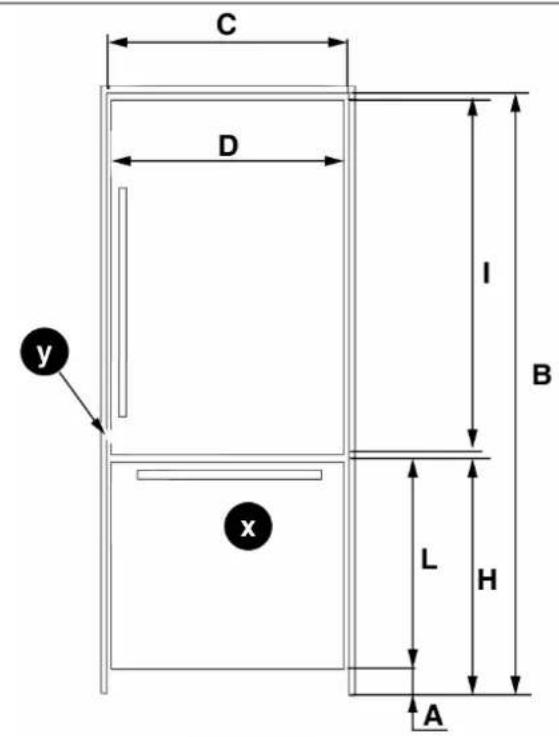

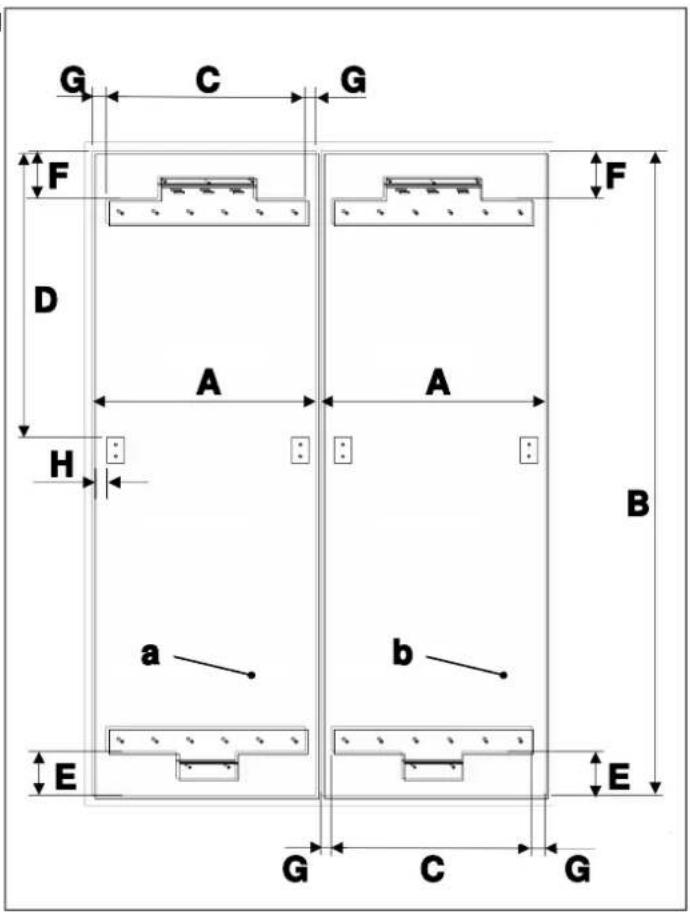

C D y x I B L H A

E E E E

Fig. 9 RBM90S5FPNS RBM75S5FPNS

C D1 D1 y x I B L H A

E G F E F

Fig. 10 RFD90S5FPNS/24

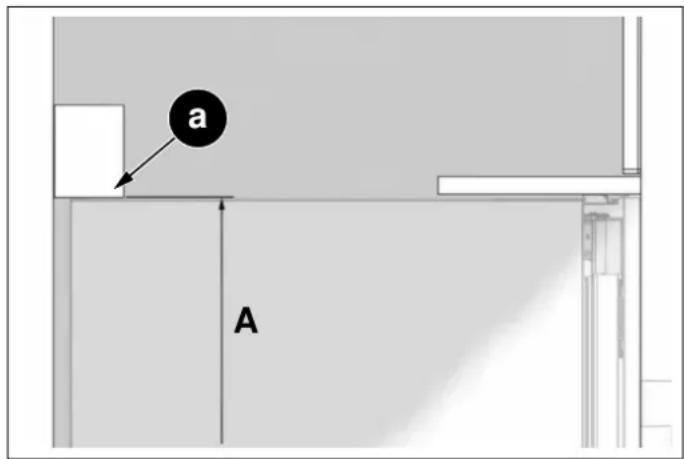

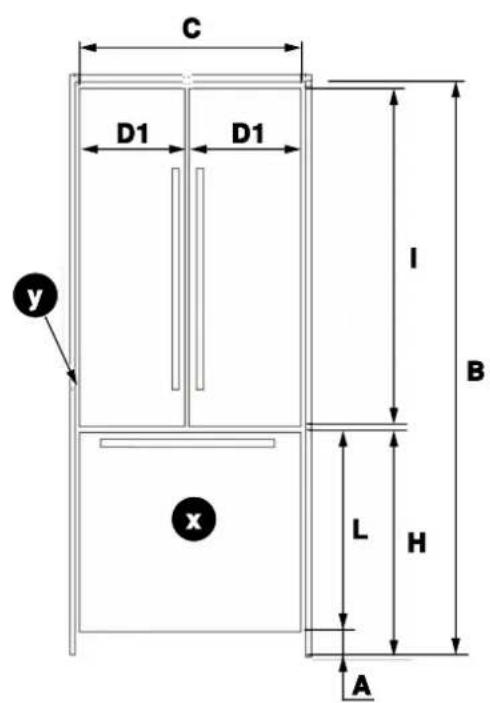

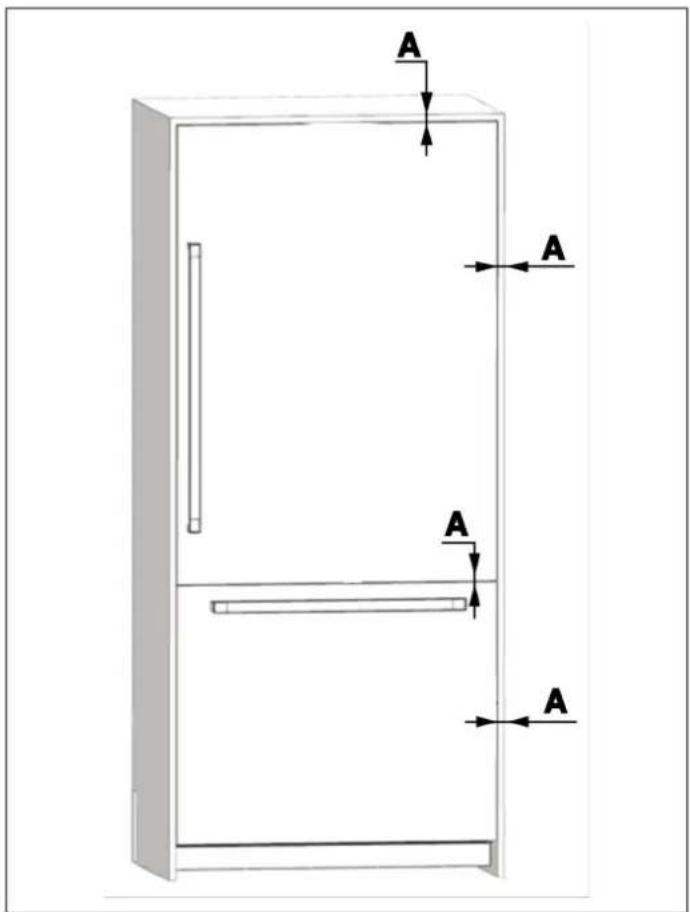

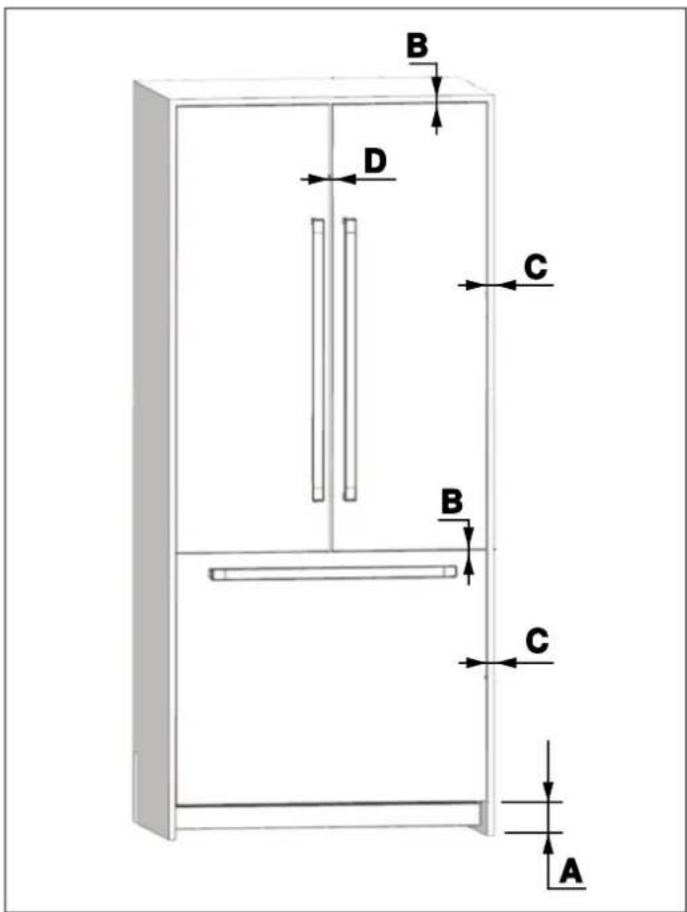

Based on the cabinet cutout height, the kitchen toe kick can be installed with following heights:

CATEGORY RFD90S5FPNS/24 RBM90S5FPNS RBM75S5FPNS

A	Space from the ground to the panel of the freezer cabinet door	standard. 102 mm (4")min. 97 mm (3 3/16")max. 137 mm (5 3/8")	standard. 102 mm (4")min. 97 mm (3 3/16")max. 137 mm (5 3/8")	standard. 102 mm (4")min. 97 mm (3 3/16")max. 137 mm (5 3/8")
B	Internal cabinet height	standard. 2134 mm (84")min. 2129 mm (83 13/ 16")max. 2169 mm ( 85 3/ 8" )	standard. 2134 mm (84")min. 2129 mm (83 13/ 16")max. 2169 mm ( 85 3/ 8" )	standard. 2134 mm (84")min. 2129 mm (83 13/ 16")max. 2169 mm (85 3/ 8")
C	Internal cabinet width	914 mm (36") 914 mm (36") 762 mm (30")
D	Fridge width 908 mm (35 3/4") 908 mm (35 3/4") 756 mm (29 3/4")
D1	French doors width	451 mm (17 3/4") - -
E	Gap	3 mm (1/8")	3 mm (1/8")	3 mm (1/8")
F	Gap	3.5 mm (1/8")	- -
G	Gap between the french doors	5 mm (3/16")	-	-

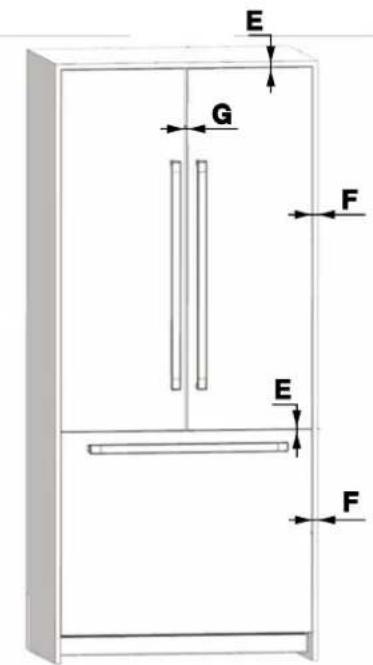

H	Wooden cabinet panel height from ground to freezer panel	831 mm (32 11/16")	831 mm (32 11/16")	831 mm (32 11/16")
I	Fridge panel height	1297 mm (51 1/16")	1297 mm (51 1/16")	1297 mm (51 1/16")
L	Freezer panel height	729 mm (28 11/16")	729 mm (28 11/16")	729 mm (28 11/16")
x	wood door panel
y	wood cabinet

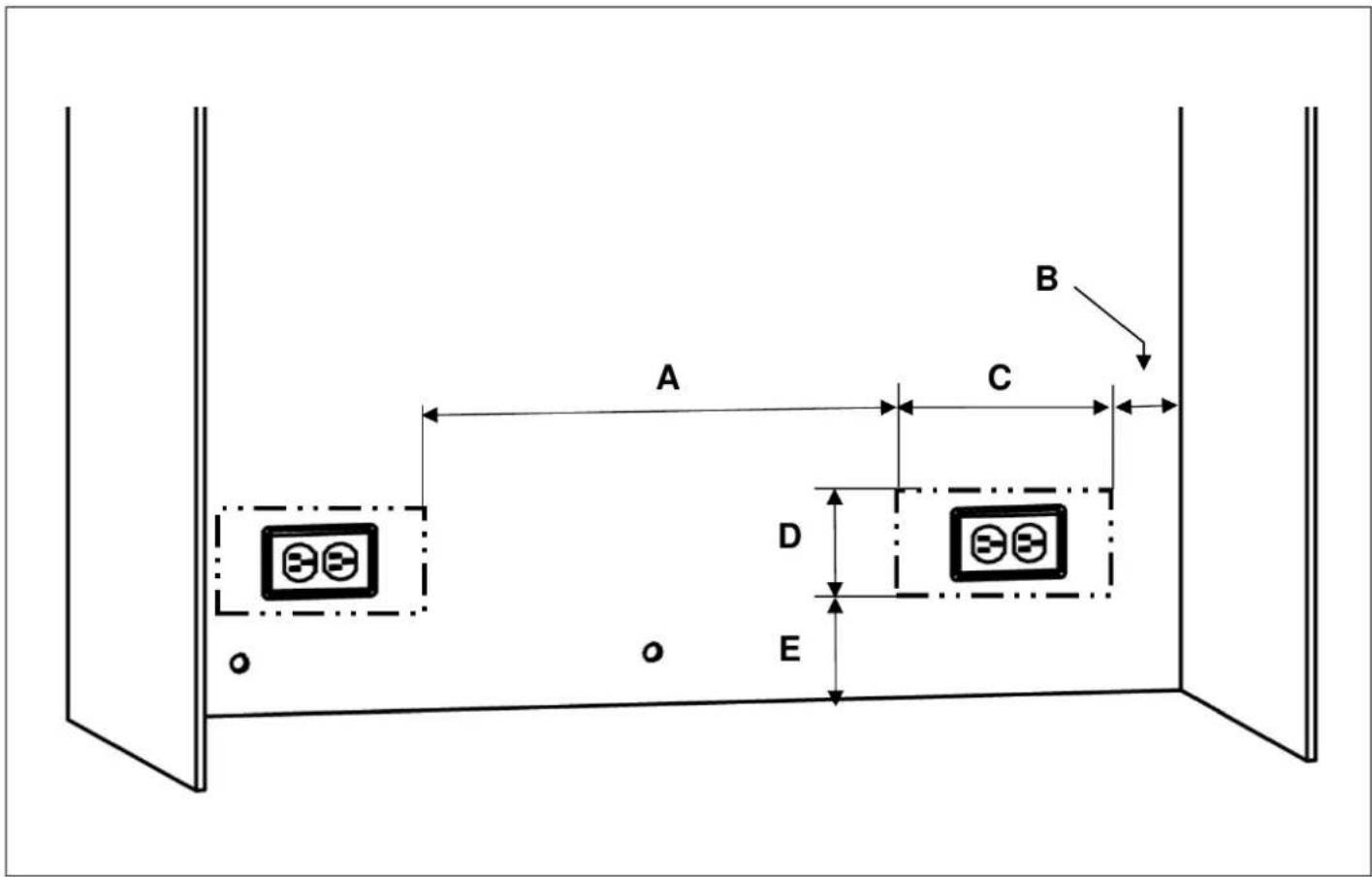

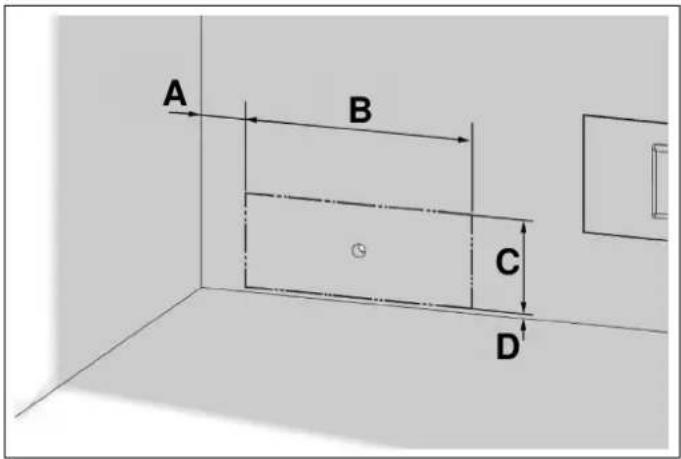

The location of the electrical outlet in the cabinet where the product is to be installed must be within the area shown in the figure.

CAUTION

Do not use extension cords or two prong adapters and do not remove the ground terminal of the grounding cable.

CAUTION

A qualified electrician must ensure that the poles of the socket are connected correctly.

Verify that the grounding of the socket is correct.

C D B A

Fig. 11

A 102 mm (4")
B 127 mm (5")
C 280 mm (11")
D 50.8 mm (2")

WARNING

Do not connect the appliance to electronic energy saver plugs.

The socket must comply with the following data:

ELECTRICAL REQUIREMENTS

Plug type	SCHUKO
Power cord 2-prong
Voltage 220 V – 240 V
Frequency 50 Hz
Fuse 15 A

After installation, wait at least 3 hours before connecting the appliance to the electrical power to avoid damaging the compressor.

IMPORTANT

Do not use extension cords and/or multiple adapters for the power supply connection.

If the electrical wiring or the electric power supply of the house requires alteration, the necessary procedures must be performed by a qualified electrician.

Please heed the following rules:

• The electrical outlet or panel must be easily accessible in case of an emergency.
  Neither the plug nor the cable may touch the back surface of the appliance. Otherwise, it may be damaged by the appliance's vibrations.
• Do not connect other equipment plugs behind this appliance. If the humidity level is high where the appliance is being used, its exterior surfaces may become corroded. To prevent corrosion, keep the installation room dry and well-cleaned.

To prevent the risk of electric shock:

Connect the plug to a grounded outlet.
Do not remove plug's grounding prong.
Do not use adapters.
Do not use extension cords.

CAUTION

Do not connect the grounding cable to the gas line. Please have the grounding checked by a qualified electrician if you are not sure about the grounding of the appliance. Do not install a fuse on the neutral line or on the grounding circuit.

CAUTION

Failure to follow these instructions may result in fire, electric shock or death. Connecting the appliance's grounding conductor in the wrong place may lead to electric shock. Please have the grounding checked by a qualified electrician or service technician if you have any doubt about the proper grounding of the appliance. Installation, repairs and other procedures performed by unqualified persons may give rise to hazards. Before installing the appliance, make sure that the voltage, load and circuit current parameters on the data plate are in compliance with the power supply in your house.

Models equipped with an Ice Maker and/or a Water Dispenser require a connection to the domestic water supply system.

NOTE

Take the necessary measures to prevent the risk of freezing of the hoses. The operating water temperature range is between a minimum of 1^ C ( 34^ F) and a maximum of 38^ C ( 100^ F).

The system pressure must be:

• Min. 0.17 Mpa (1.7 bar, 25 psi)
• Max. 0.55 Mpa (5.5 bar, 80 psi)

If the water pressure exceeds 0.55 Mpa (5.5 bar, 80 psi), install a pressure limiting device or water impact protector to the inlet valve.

Do not install or operate the appliance if the water pressure exceeds 0.83 Mpa (8.3 bar, 120 psi).

If you do not know how to check the water pressure, please consult a professional plumber.

WARNING

This appliance should only be connected to a drinking water system.

WARNING

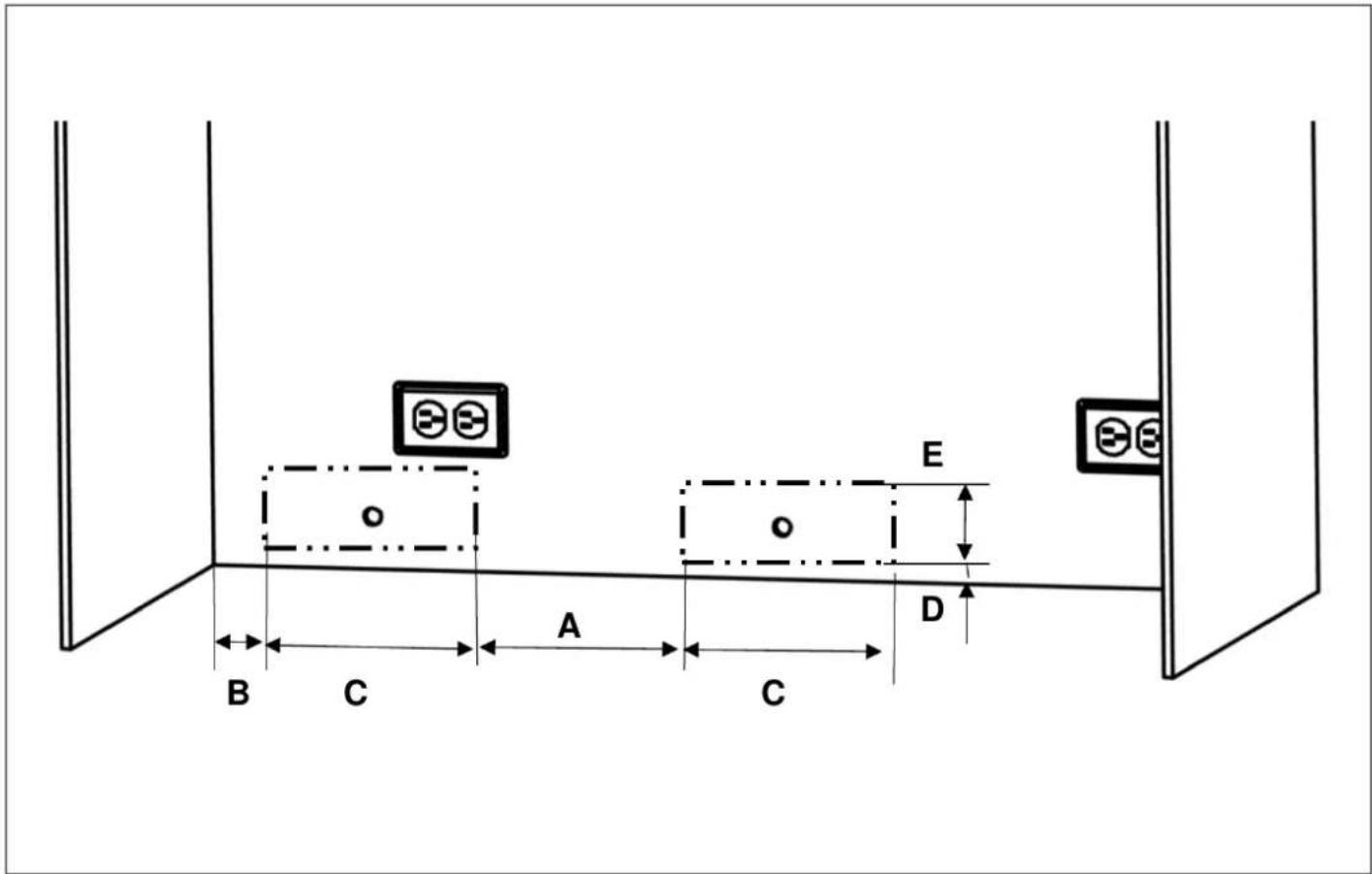

The location of the water line connection must be within the area shown in the figure below.

WARNING

The refrigerator's water system must be connected to the house's main water supply.

WARNING

The user must be able to switch it on/off using the valve when necessary.

WARNING

Make sure that installation is performed correctly and in accordance with all the instructions in the specific installation manual provided with the appliance.

WARNING

Do not attempt to use a locally sourced threaded garden hose adapter or braided supply line. It will strip the threads on the appliance's water connection solenoid.

NOTE

A bypass plug is recommended for the water filtering system if a reverse osmosis system is used.

WARNING

Make sure that there is no water leakage when establishing the water connections. Otherwise, water may damage the cabinetry. The water supply line must located in the cabinet where the appliance is to be installed. The user must be able to switch it on/off using the valve when necessary.

You will need a hose with a minimum length of 1.5 m (60") and a diameter of 6.4 mm ( 14 ") for the appliance's water connections during installation. A connector that has a thread with an external diameter of 6.4 mm ( 14 ") must be used to connect the end of the hose to the product.

You will need a hose with a minimum length of 60" (1.5 m) and a diameter of 14 " (6.4 mm) for the appliance's water connections during installation. A connector that has a thread with an external diameter of 14 " (6.4 mm) must be used to connect the end of the hose to the product.

Before completing the installation, make sure that water flows and that there is no water leakage.

A B C D

Fig. 12

A 50.8 mm (2")
B 254 mm (10")
C 102 mm (4")
D 6 mm (1/4")

3D technical line drawing of a cabinet or enclosure with no visible text, numbers, or symbols

Fig. 13

WARNING

• The level of the floor where the product is to be installed must be checked with a bubble level.
- The cabinet flanges must be checked with a bubble level to ensure that they are perfectly vertical.
- If the appliance is not perfectly level and vertical, problems may arise with the installation.

Make sure that the installation is performed correctly, in accordance with all the instructions in the specific installation manual provided with the appliance.

WARNING

Always connect the water before connecting the power.

For a correct installation, please follow the instructions below:

• The floor on which the product is to be installed must be capable of bearing 544 kg (1,200 lb) minimum.
• The kitchen floor and the bottom of the product must be equally level. Otherwise, problems may occur with the appliance's air flow.
• There must be no obstructions at the rear and on the side walls of the product's installation location that would prevent its installation.

• The electrical outlet must be in the correct place.

- The dimensions of the cabinet where the appliance is to be installed must be in strict conformity with the dimensions provided in the manual.

- Do not install the appliance adjacent to another fridge/freezer. Otherwise, condensation and damage may occur. For a side-by-side installation, use the proper connection kit.

- The level of the floor where the product is to be installed must be checked with a bubble level.

- The installation location must not be exposed to direct sunlight and must be away from heat sources (ovens, radiators, etc.).

- The ambient temperature must be between 10°C (50°F) and 43°C (110°F). Otherwise, malfunctions may occur when the appliance is running.

- If it is not possible to avoid installing the product near a heat source, the minimum clearances provided below must be maintained between the appliance and the given source:

• 32 mm (1 1/4") from electric ranges or ovens

- 305 mm (12") from gas or fuel-powered hobs or ovens.

- Position the appliance with the aid of a second person.

- Never use the open door to lever the appliance into place when fitting.

- Avoid exerting too much pressure on the door when open.

• Installation and servicing should be carried out by qualified personnel in accordance with current standards.

- Ensure that an authorized technician performs the electrical connection.

- If the power supply cable is damaged, ensure against hazards by contacting technical support immediately and they will replace it, so as to prevent any risk.

• Always put on the necessary/required Personal Protective Equipment (PPE) before performing any work on the appliance (installation, maintenance, positioning, or movement).
- Before performing any operation involving the appliance, switch off the power supply.
- This appliance can be used up to a maximum altitude of 4,000 metres above sea level.
- Do not try to repair the appliance yourself or without the assistance of a qualified technician.

• Do not install/use the appliance outdoors.

- To ensure the appliance is stable, install and secure it correctly as described in the instructions provided in this manual.

CAUTION

Make sure that the power supply cable does not become caught or damaged when positioning the appliance.

CAUTION

Do not install your refrigerator:

• in an outdoor space,
• in a location with dripping water,
- in a location where the temperature is lower than 10°C (50°F).

The permitted room temperature depends on the climate class:

CLIMATE CLASS	PERMITTED ROOM TEMPERATURE
SN (Sub Normal)	+ 10 °C to + 32 °C
N (Normal)	+ 16 °C to + 32 °C
ST (Sub Tropical)	+ 18 °C to + 38 °C
T (Tropical)	+ 18 °C to + 43 °C

Information on the climate class can be found on the rating plate.

TOOL LIST

The tools to be used when installing the product are as follows:

Cordless drill

Safety goggles

12.7 mm (1/2") spanner

Hammer

Ladder

∅ 2.4 mm drill bit

∅ 8.0 mm drill bit

Box cutter

Safety gloves Tap

Phillips-head bit

6.4 mm hex bit

Bubble level

Appliance trolley

Tape

T25 Torx Bits

ALTERNATIVES FOR INSTALLATION

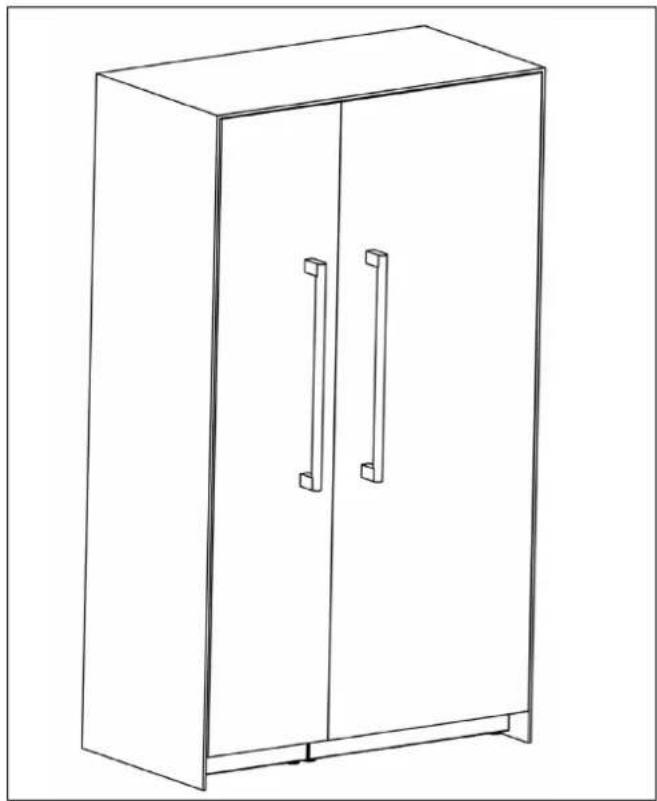

The appliance can be installed in a variety of ways depending on the kitchen design. It must be installed in a location where it is certain that the door can be opened and closed properly. If the doors cannot open up to at least 90 degrees the appliance drawers will not be able to be opened.

- Single-fridge cabinet placement methods

Four hand-drawn signs with checkmarks and a lock, likely indicating approval or rejection actions

Fig. 14

Dual-fridge cabinet placement methods.

Diagram showing six identical configurations of a lifting device with checkmarks and X marks, each paired with a vertical bar.

Fig. 15

UNPACKING

WARNING

At least two people must carry the refrigerator.

• Use a box cutter to remove the tape.
• Cut the cardboard packaging along the dotted lines using a box cutter and remove it.

3D architectural rendering of a rectangular building with vertical supports and horizontal beams (no text or symbols)

Fig. 16

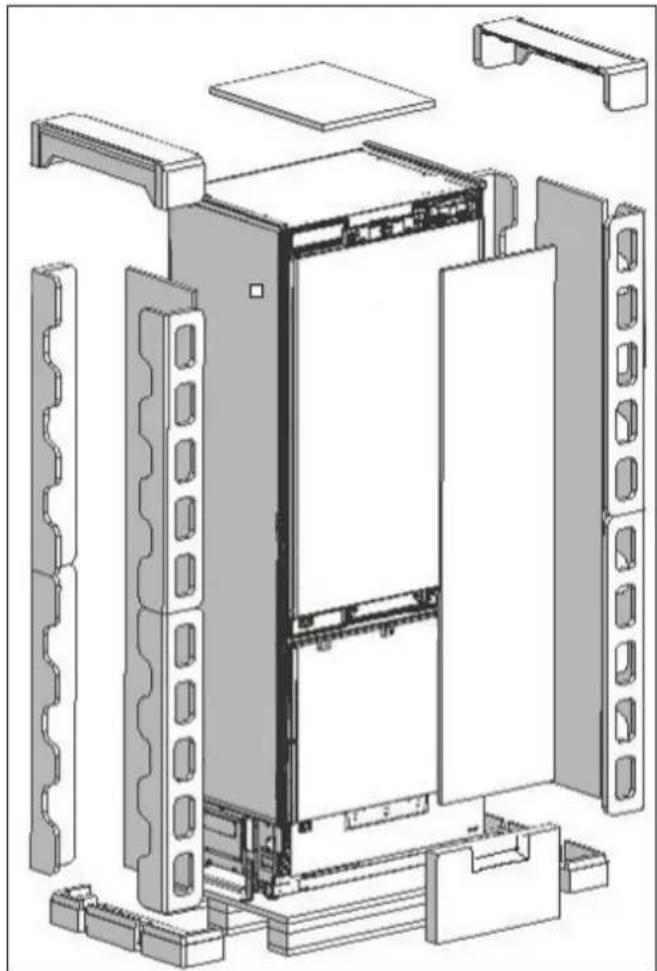

- Remove the polystyrene packing material.

Exploded view diagram of a server rack unit with internal components and mounting brackets (no text or labels)

Fig. 17

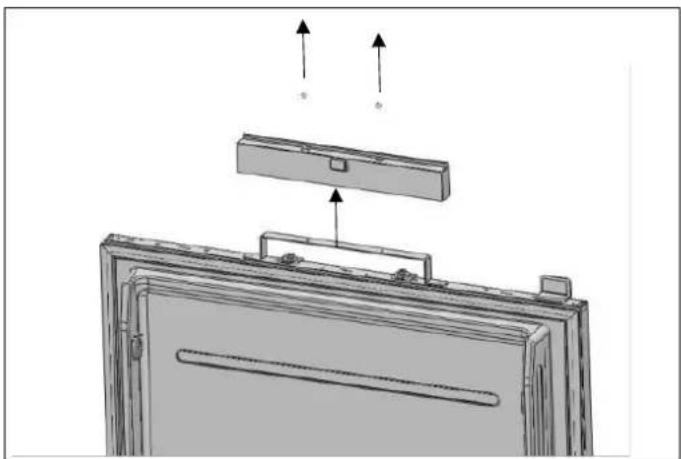

CAUTION

Do not remove the tape from the upper door of the appliance until the refrigerator is placed in the cabinet.

Tipping risk.

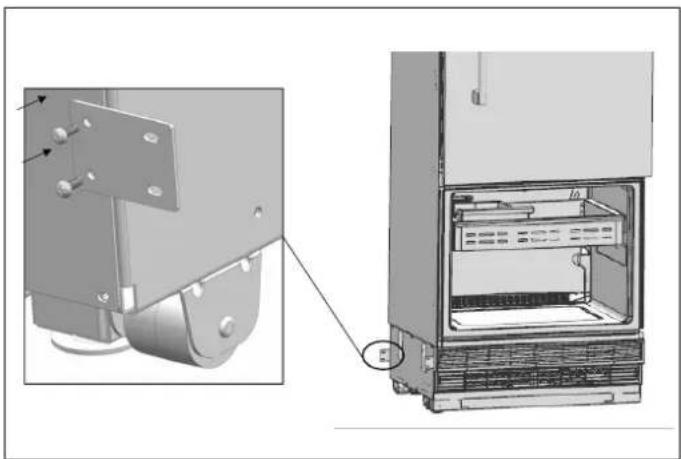

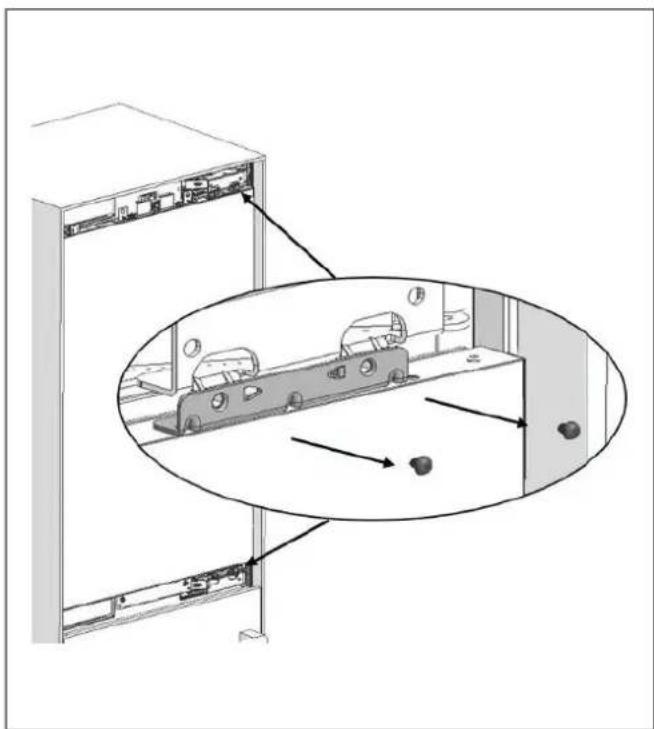

REMOVING THE CONNECTORS ON THE SIDE WALL OF THE UNIT

Fig. 18

NO.	PART NAME	SPECS RFD90S5FPNS/24		RBM90S5FPNSRBM75S5FPNS
1	Fridge trim,cabinet side	PVC extrusion, L=617 mm , L = 1,259 mm	4	4
2	Fridge trim, doorside	PVC extrusion, L =1,136 mm	4	2
3	Trim door side	PVC extrusion L =1.781 mm	2	2
4	Fridge trim, topof cabinet	PVC extrusion, L =762 mm , L = 914 mm	1	1
5	Cover for thefreezer door top	ABS 1 1

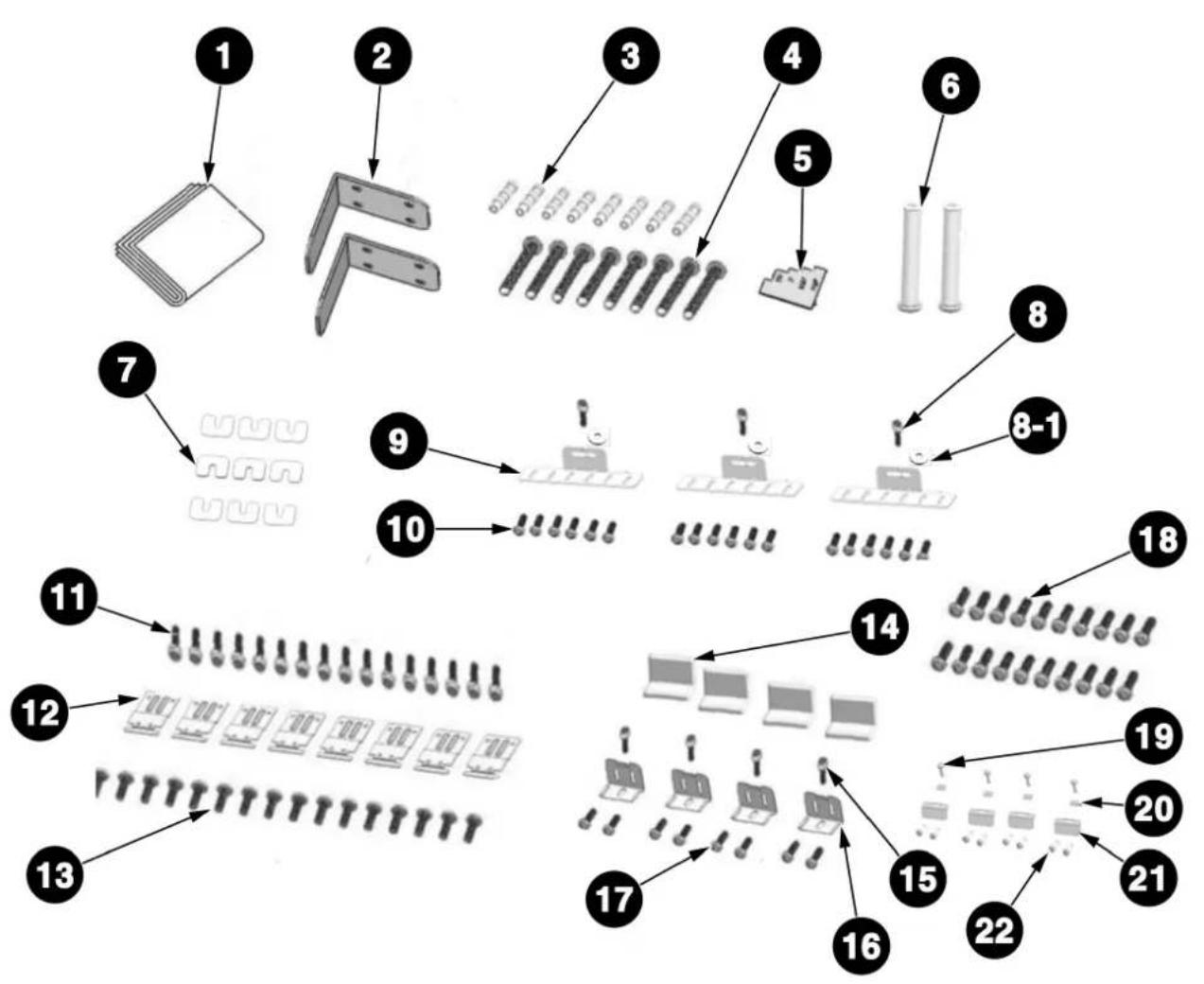

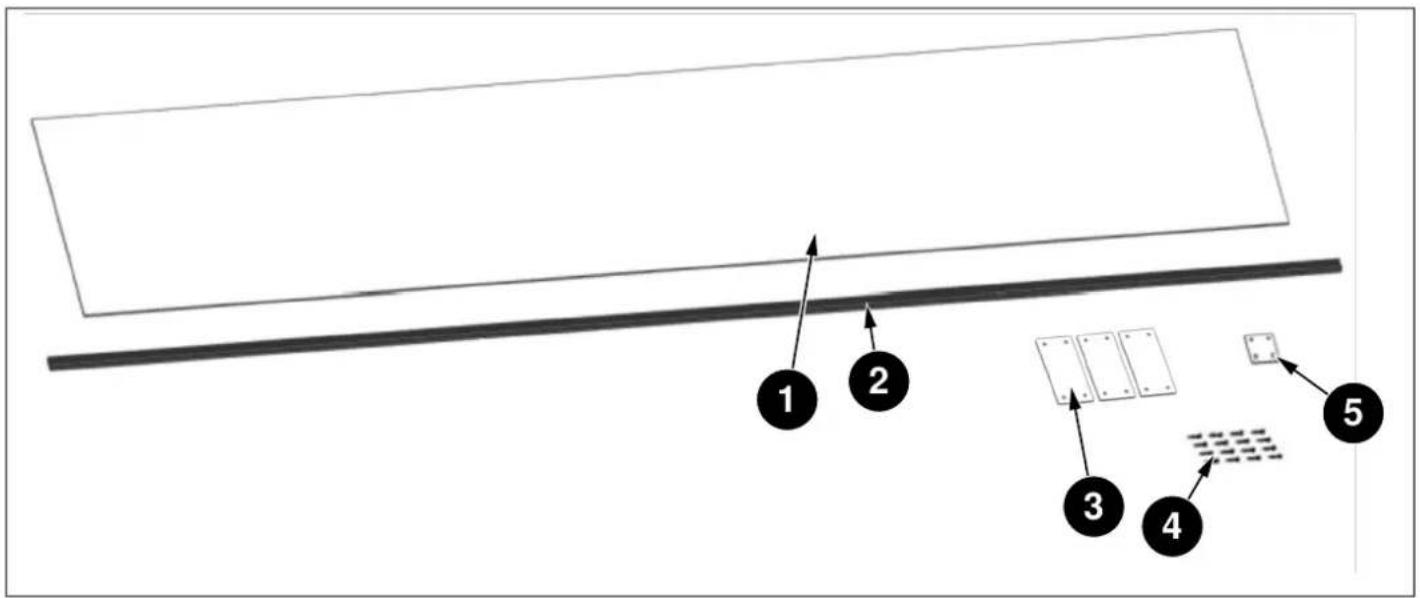

REMOVING THE INSTALLATION HARDWARE

Fig. 19

NO.	PART NAME	SPECS RFD90S5FPNS/24		RBM90S5FPNSRBM75S5FPNS
1	Furniture door preparation template	plastic	2	1
2	Anti-tip bracket T 4.0, Zn-coating		2	2
3	Dowel PS 8 8
4	Anti tip bracket screws	M8*L60 8 8
5	Position adjustment jig	PS 1 1
6	90° limiting pins sus		2	1
7	Freezer furniture door adjustment washer	abs 9 9
8	Screw freezer door hanger bracket	ST5*16, Crossed flat head tapping screws	3	3
8-1	Shim M5*12*1.2 3 3
9	Freezer door hanger bracket	T 1.0, Cr+zn-coating	3	3
10	Screw freezer furniture door hanger bracket	ST4x14, counter sunk head screw	18 18
11	Screw cabinet connecting bracket	M4*12, Crossed flat head tapping screws	16 16
12	Cabinet- cabin connecting bracket	T1.0, Zn-coating	8	8
13	Screw cabin connecting bracket	ST4x14, counter sunk head screw	16 16
14	Cover furniture door bracket	abs 2 4
15	Screw door fixing bracket	M4*12, Crossed flat head tapping screws	2	4
16	Door- door furniture connecting bracket	T1.0, Cr+zn-coating	2	4
17	Screw furniture door fixing bracket	ST4x14, counter sunk head screw	4	8
18	Screw furniture door hanger bracket	ST4x14, counter sunk head screw	24	20
19	Screws	M4*12, Crossed flat head tapping screws	4	0
20	Washer	T1.0, Zn-coating	4	0
21	Fixing iron T1.0, Zn-coating		4	0
22	Screws	ST4x14	8 0

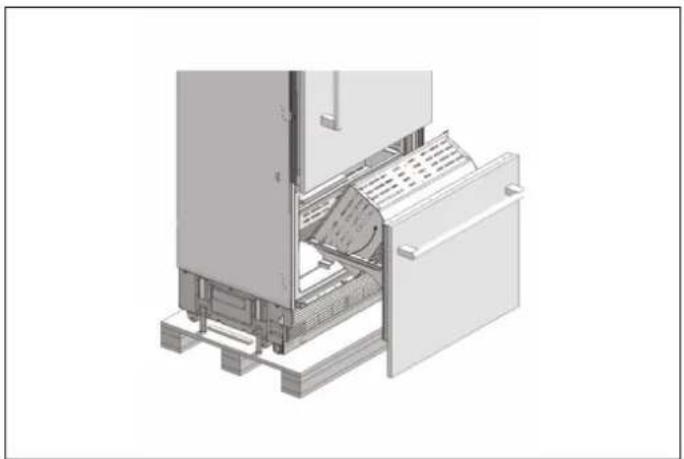

REMOVING THE FREEZER DRAWER

- Remove it manually by removing the 4 knurled screws.

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Fig. 20

- Remove the lower drawer.

3D technical illustration of a mechanical device with internal components and mounting base (no text or symbols)

Fig. 21

NOTE

Figures are illustrative. Panels and handles are not supplied already installed.

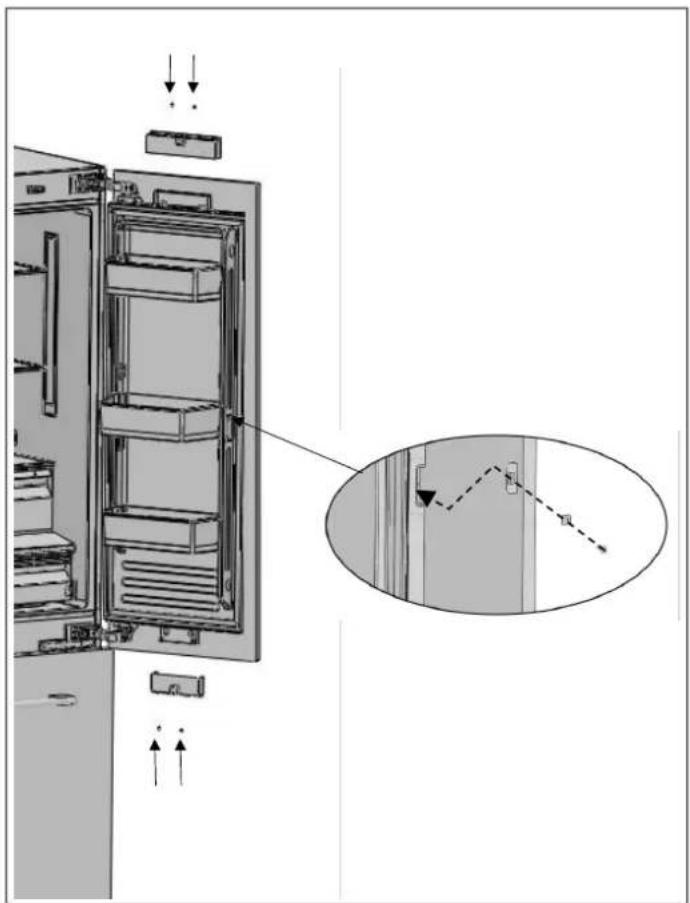

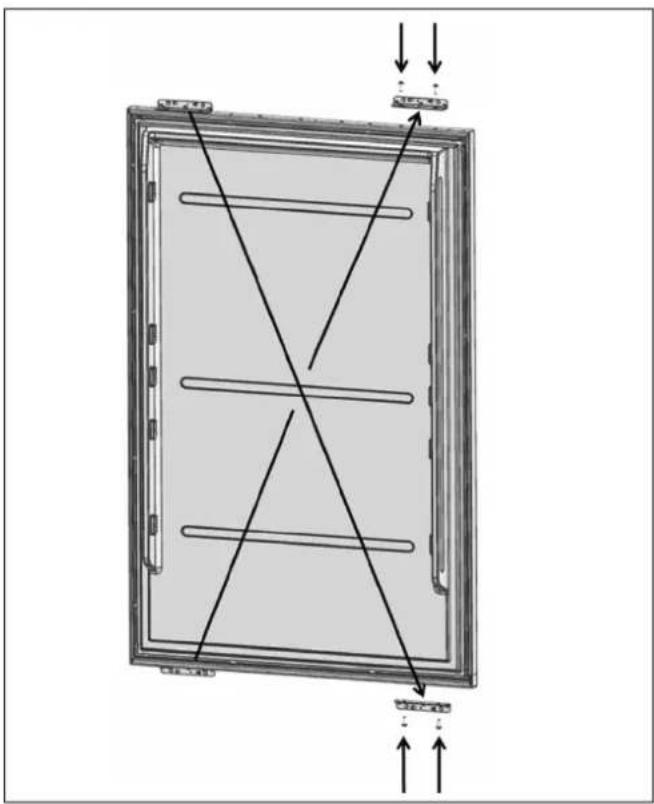

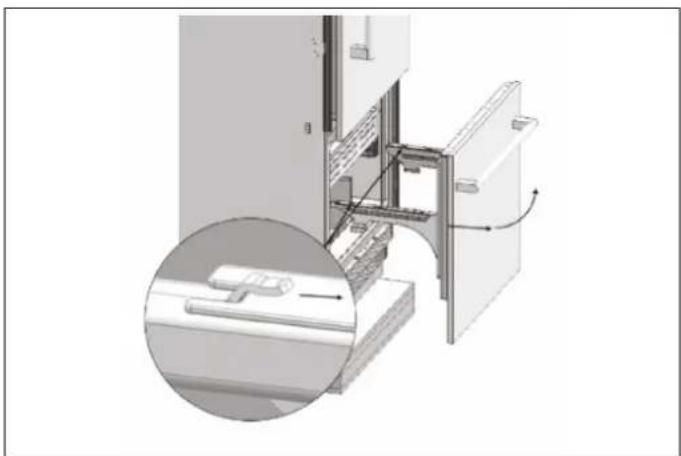

REMOVING THE FREEZER DOOR

- Remove 2 screws near the front section that connect the freezer the door to the rail.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Fig. 22

- Pull the door outward to free it from the tabs at the back and remove it.

Diagram of a refrigerator interior showing door, drawer, and drawer with an inset close-up of the drawer handle (no text or symbols)

Fig. 23

NOTE

Figures are illustrative. Panels and handles are not supplied already installed.

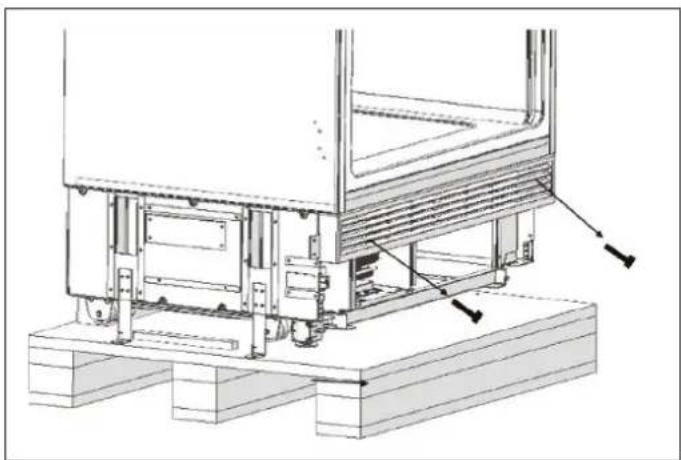

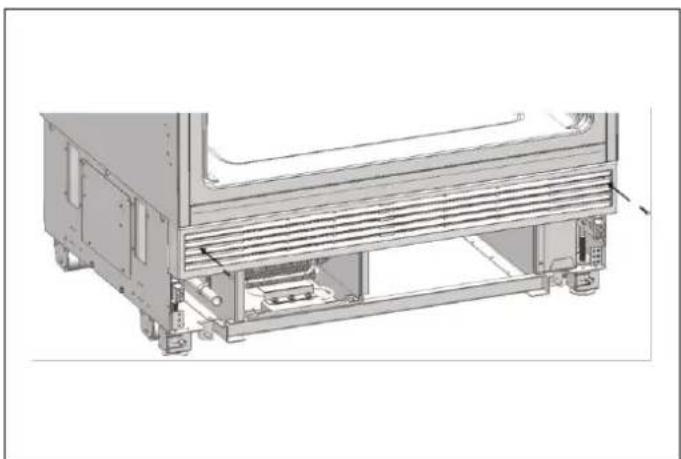

REMOVING THE LOWER AND UPPER VENTILATION GRILL COVERS

- Remove the 2 screws on the sides with a screwdriver in order to remove the lower ventilation grill cover.

Technical line drawing of a structural assembly with mounting base and support components (no text or symbols)

Fig. 24

- Remove the 2 screws on the sides with a screwdriver in order to remove the upper ventilation grill cover.

Technical diagram of a mechanical assembly with mounting base and structural components (no text or symbols)

Fig. 25

MOUNTING THE ANTI-TIP BRACKETS

WARNING

If the unit cannot be secured to the cabinetry (which in turn must be secured to wall) to prevent tipping, make sure to use the supplied anti-tip brackets in order to prevent the appliance from tipping over.

WARNING

Make sure that there is no electrical or water connection in the adjacent cabinets into which the mounting screws will be screwed to secure the refrigerator.

WARNING

Please remember to use the necessary protective equipment when drilling holes in the wall and performing the installation.

- Use a tape measure to mark the wall for installation of the anti-tip brackets.

C B C A 1

Fig. 26

• 1 Anti-tip bracket, on the wall

CATEGORY	RFD90S5FPNS/24	RBM90S5FPNS	RBM75S5FPNS
A	914 mm (36")		914 mm (36")	762 mm (30")
B	600 mm (23 5/8")		600 mm (23 5/8")	600 mm (23 5/8")
C	157 mm (6 3/16")		157 mm (6 3/16")	81 mm (3 3/16")

- For the most secure installation, use a stud-finder to secure the anti-tip brackets in wall studs. If no studs are present at the correct installation location, follow the instructions below.

WARNING

Always make sure that the area to be drilled into is free of any waterlines or electrical circuits, which could cause damage, injury, or death.

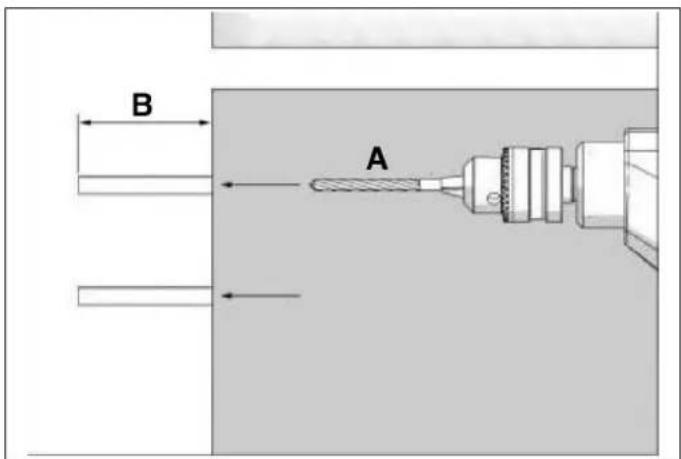

- Use a drill to create holes for wall anchors (#3) at the marked points 7.9 mm (5/16" ∅),∅8 mm).

B A

Fig. 27

A. ∅ 8 mm
B. >62 mm

- Use a hammer to install the wall anchors (#3) if no stud is present.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Fig. 28

• Install the brackets (#2) in place, using 4 screws (#4) for each.

- You must use both (two) brackets to ensure that the appliance is safely supported.

A B C

Fig. 29

A. 4 mm (3/16")
B. 2130 mm (83 7/8")
C. 2134 mm (4")

NOTE

If you are not confident that the supplied connectors and anti-tip brackets are mounted on the wall as securely as they should be, you can use alternative anti-tip methods.

If there is a cabinet panel behind the back wall of the refrigerator, make sure that it is securely fastened to the wall. For this, you need to be sure that the back wall of the cabinet panel is affixed to a wall stud.

Alternative anti-tip method:

If the anti-tip brackets cannot be mounted securely, you must use the alternative method below. For this method, you can use wooden boards to avoid the risk of tipping over.

They must be installed as illustrated in the figure below.

There must be no clearance between the appliance and the wooden support.

The minimum section dimensions of the wooden support must be 76 mm x 102 mm (3" x 4"). The width of the support must be equal to the clearance where it will be installed. This can be achieved using one 102 mm x 102 mm (4" x 4") or two 51 mm x 102 mm (2" x 4") pieces of framing lumber.

The calculation of blocking depth is based on a standard niche depth. If the depth of the niche is greater than 610 mm (24"), ensure the blocking overlaps the upper rear fridge body by 51 mm (2").

Position the wooden support, mark the location on the rear wall, select suitable screws and mount it securely.

WARNING

The quantity and type of screws or fasteners to be used for affixing wooden blocking must be suitable for ensuring a secure connection to the rear wall.

a A

Fig. 30

a 76 mm x 102 mm (3" x 4")
A 2130 mm (83 7/8")

PREPARING THE WATER HOSE AND THE ELECTRICAL CONNECTION

Inspect all water connections for leaks. Water leaks can cause significant damage over time. It is recommended to use a 6.4 mm (1/4") water line with a minimum length of 1.5 metres (60") with a threaded 6.4 mm (1/4") female connector end. Before finishing the installation, turn the water on to ensure that water is flowing and that there are no leaks.

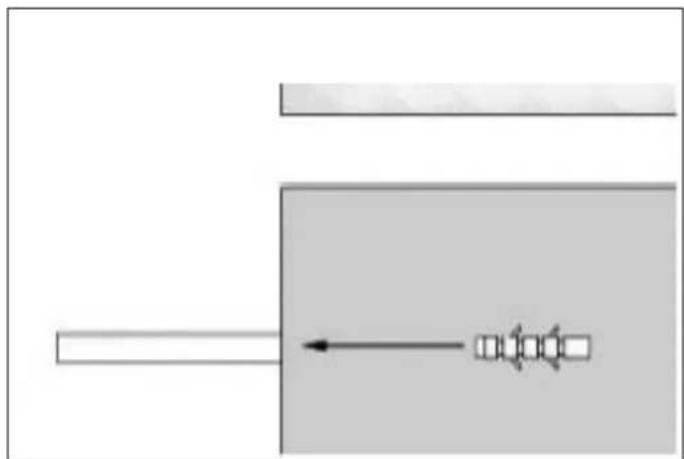

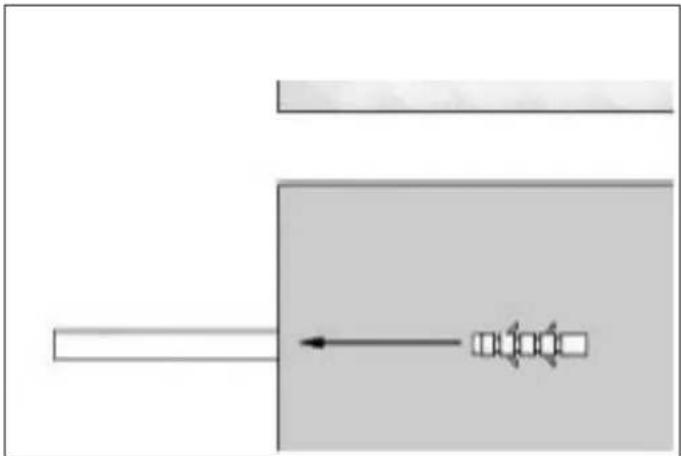

A connector that has a thread with an external diameter of 6.4 mm (1/4") must be used to connect the end of the hose to the product.

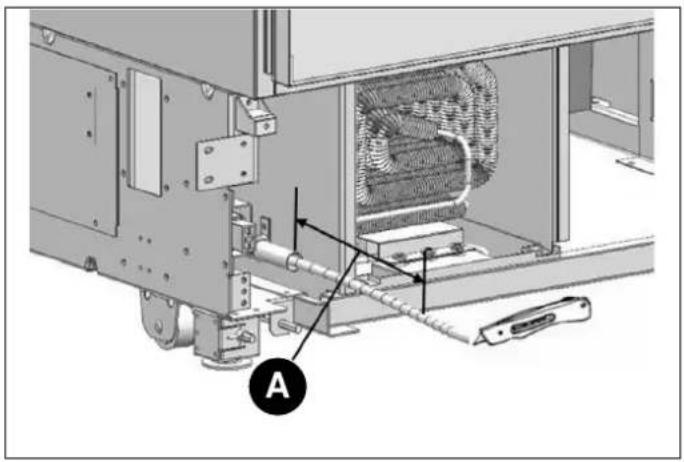

Allow for sufficient slack in the water supply line, providing a minimum of 254 mm (10") of length from the base of the unit once it is installed in the niche. This provides some allowance for connections and adjustments if needed.

The product must be connected to a 2-prong outlet on a dedicated 15 amp circuit; local electrical and building codes should be respected.

You can choose method A or method B below to prevent the power cord from getting wedged in.

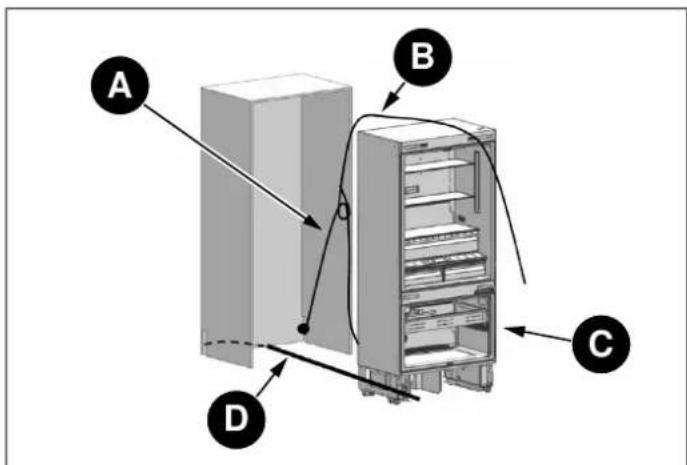

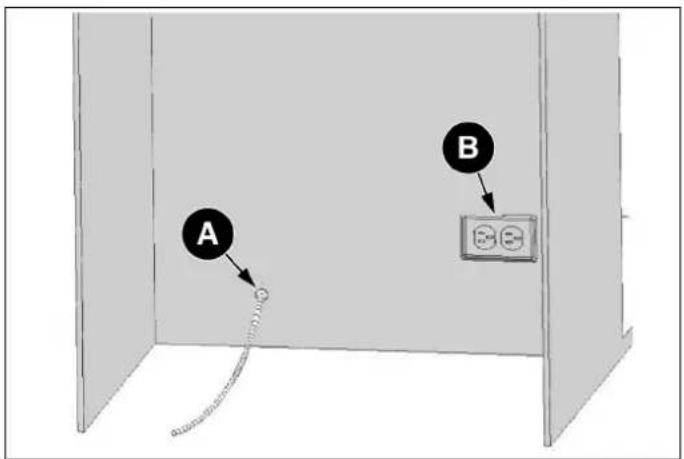

• Method A: Position the water hose and the mains power connections on the back of the refrigerator.

A B

Fig. 31

• A Water line location
• B Power cord location

Method B: Position the water hose and mains power connections on the sides of the cutout.

a b c A B

Fig. 32

a. Keep open for water line
b. Water hose
c. Keep open for power cord
A. 203 mm (8")
B. 51 mm (2")

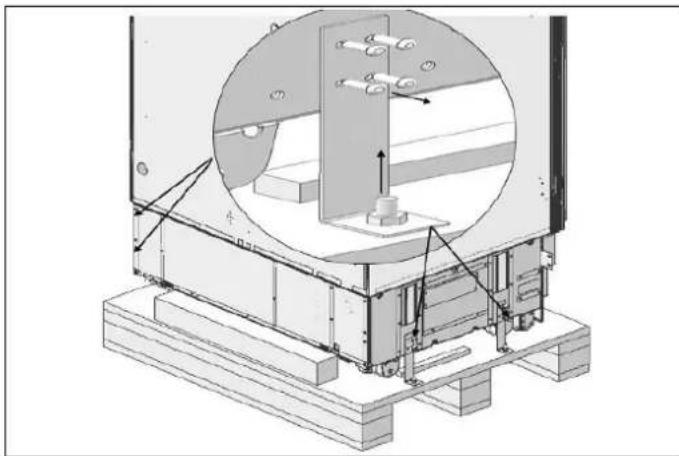

INSTALLATION IN THE CABINET

Taking the Refrigerator from the Wooden Pallet

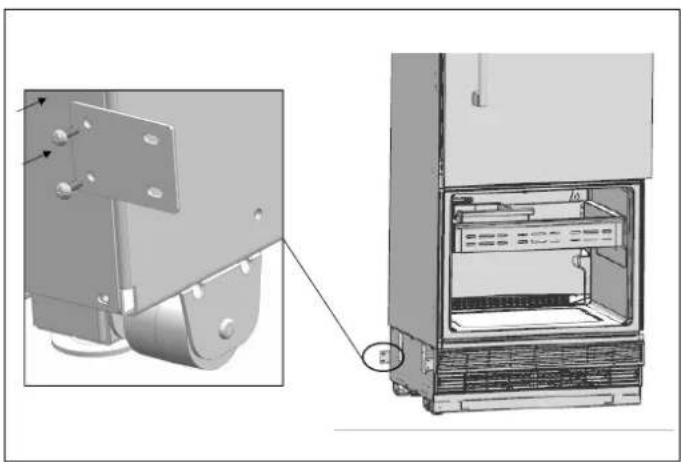

- Remove the brackets which secure the refrigerator to the wooden pallet as shown below.

Technical diagram of a mechanical assembly with circular component and mounting base (no visible text or symbols)

Fig. 33

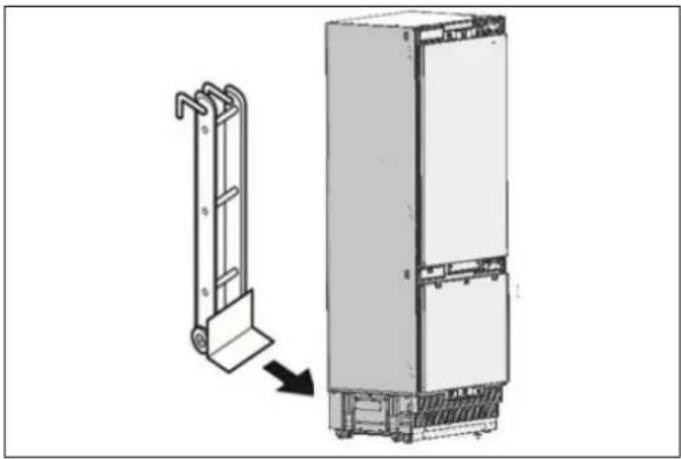

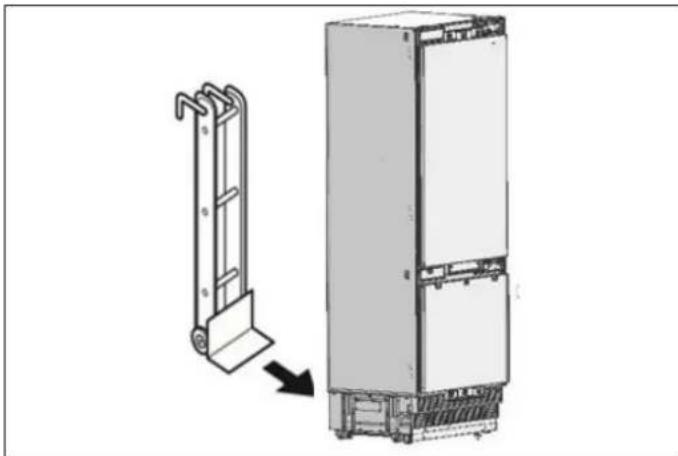

- Slowly tilt the refrigerator back and remove it from the pallet, taking care not to damage the underside of the unit. When transporting the unit, always carry it from the sides to ensure that the unit's feet remain on the base of the appliance dolly.

Diagram of a mechanical device with a lever mechanism and a vertical panel assembly (no text or symbols)

Fig. 34

NOTE

Exercise extreme caution when handling the unit, as the underside of the fridge has components vital to its proper operation; damage to these components could result in a malfunction or potential leakage of condensate and damage to floors.

CAUTION

The risk of tipping over is high from this point forward. You should not open the doors until the product is placed into the cabinet.

Placing the refrigerator into the cabinet niche

- Insert the water supply hose into the channel opening at the back of the unit and pull it through to the front of the unit to ensure that the water connection can be made once the unit is installed in the niche.

Technical diagram of a server rack with zoomed-in views showing internal components (no text or symbols)

Fig. 35

NOTE

Use the method below to prevent the cord from getting wedged in.

A B C D

Fig. 36

A Power cord
B Nylon cord
C Move to wall
D Water hose

Connect the electrical plug to the power outlet. Turn on the unit to ensure it has power. (To see if the product is operating, check if the lamps in the freezer compartment are on or off).

NOTE

Protect the front edges of the cabinet niche with masking tape; this will help protect them from damage when pushing the unit back into the niche. Use some packing tape to secure the excess electrical cord to the back of unit to prevent slack from catching under the unit during installation.

NOTE

The unit's plug must be accessible after installation. If the plug is not accessible after installation, the power must have a dedicated circuit breaker which can be accessed to cut power off using the main switch.

WARNING

• Make sure that the power cord does not get wedged in when placing the product.

- Push the product carefully towards the cabinet to position it; the unit should slide into the niche with relative ease. If you experience resistance while placing the product in the cabinet:

• The floor might be uneven.
- The adjustable feet might be loose (please see the relevant section to learn how to adjust the adjustable feet).

- You must attach the freezer door temporarily to align the product before placing it.

NOTE

Use the upper edges of the fridge and freezer doors to align the unit in the niche opening.

Adjustment of other edges is explained in the following pages.

A A A A

Fig. 37

B D C B C A

Fig. 38
A 3 mm (1/8")
A 102 mm (4")
B 3 mm (1/8")
C 3.5 mm (1/8")
D 5 mm (3/16")

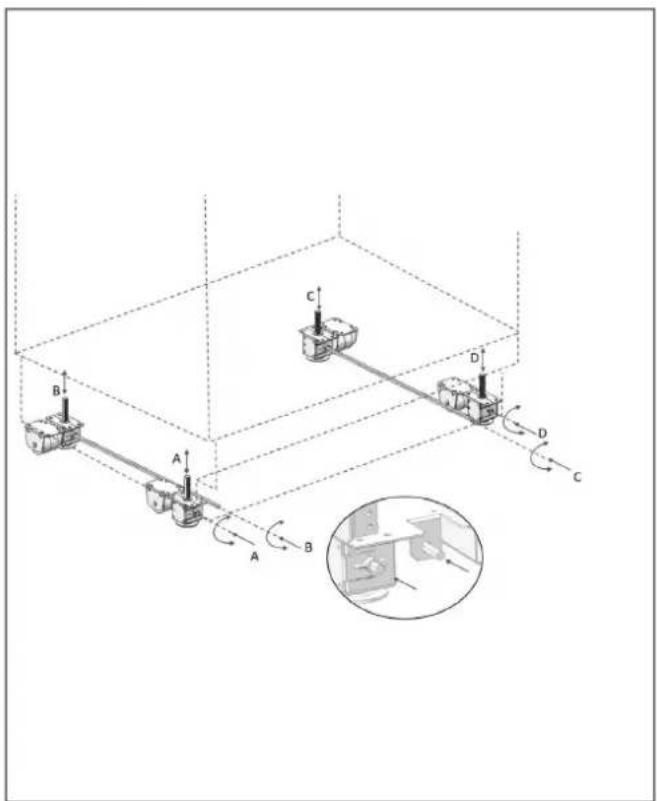

Adjusting the height of the refrigerator within the niche

- Use the adjustable leg mechanism to raise, lower and level the unit in the niche as per the diagram below.

WARNING

Once the unit is pushed into the niche, raise the front feet first; this will reduce the risk of the unit tipping forward during the height adjustment process.

The maximum height that the adjustable feet can reach is 40 mm (1 9/16").

Technical diagram showing mechanical assembly with labeled components A, B, C, D and directional arrows indicating motion or flow.

Fig. 39

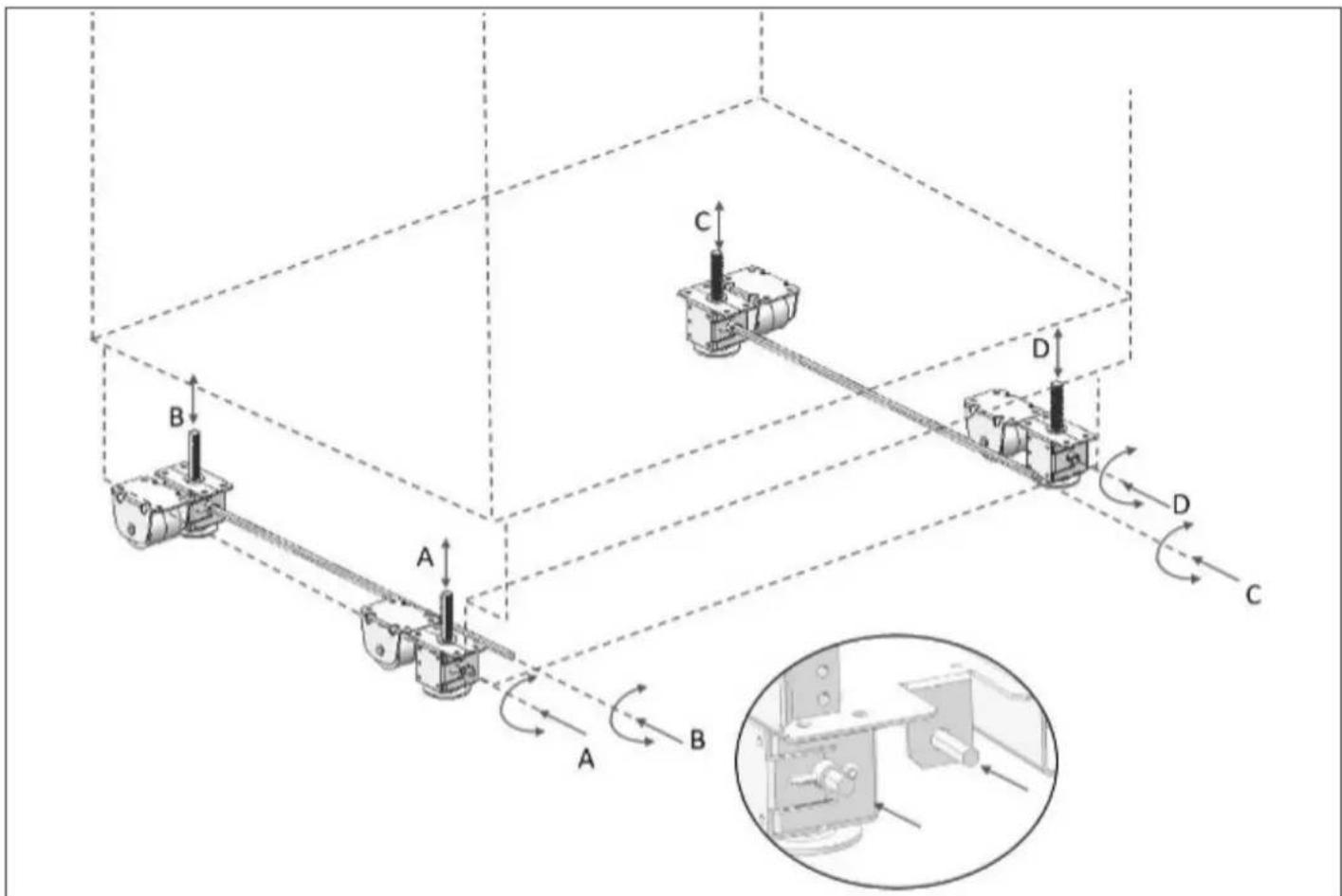

• A/D -Turn the adjusting rod clockwise to lift the front
  B/C –Turn the adjusting rod clockwise to lift the rear

For each 360 degree rotation, the legs are raised 1.5 mm (1/16").

We recommend raising the front legs by 8 mm (5/16") and the rear legs by 7 mm (9/32"): rotate the front feet 5.5 times and the rear feet 4.5 times.

Interior view of a server rack unit with visible internal components and mounting hardware (no text or symbols)

Fig. 40

• After adjusting the adjustable feet, check that the appliance is level both side-to-side and back-to-front by placing a level on the floor of the freezer compartment (the drawer should be removed for this).

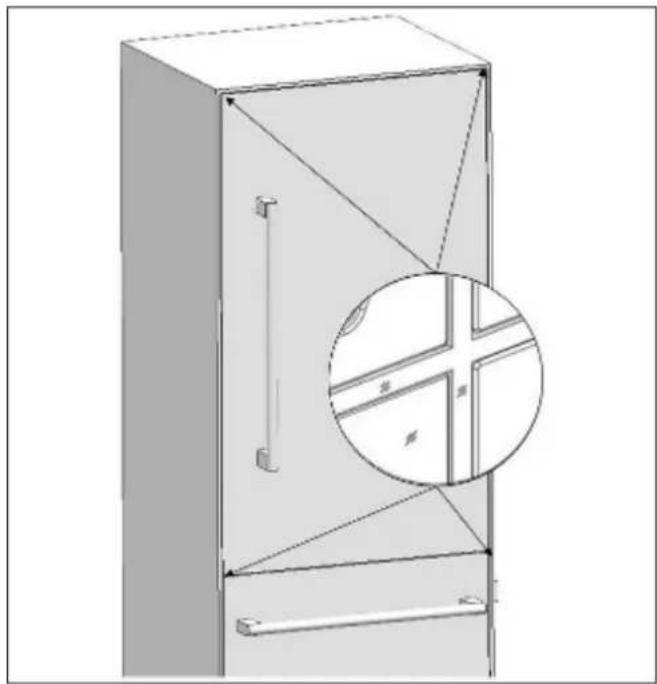

Adjusting the refrigerator based on the cabinet niche

For products with supplied stainless steel panel doors, the position of the unit is adjusted so that the door and the cabinet surface are flush and a min. 3.2 mm (1/8") distance from panels and gables is ensured.

Technical line drawing of a cabinet or enclosure with internal components and a magnified inset showing internal structure (no text or symbols)

Fig. 41

- For panel-ready units, the refrigerator should be installed at a depth that takes into consideration the custom overlay panel thickness, so as to ensure a flush installation, if desired.

NOTE

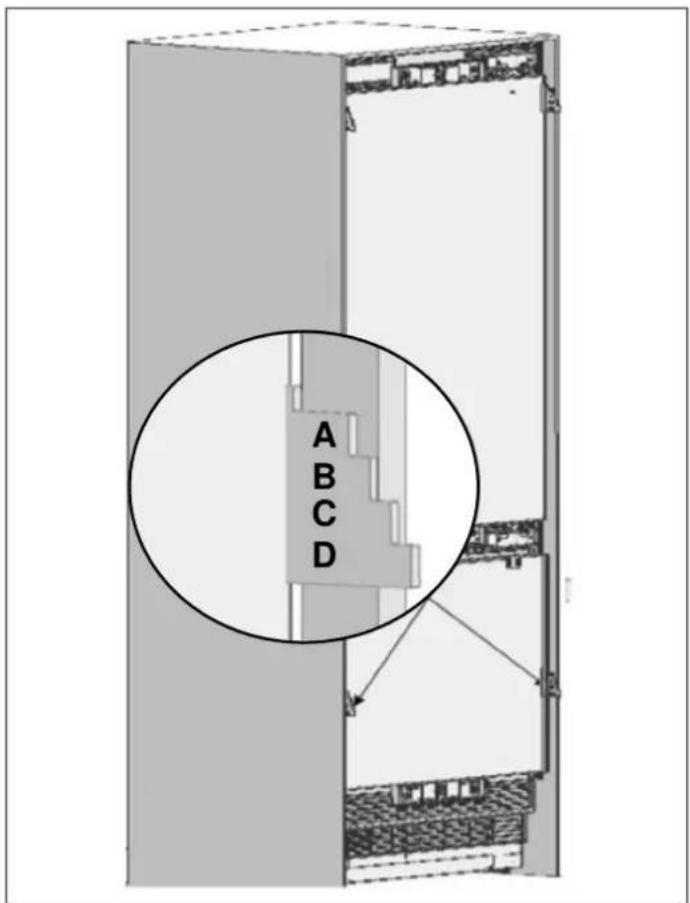

It is important to align the upper edge of the freezer drawer when aligning the unit, as its height and position are fixed. All of the other panels can be adjusted using the adjustment mechanisms built into the mounting hardware. As shown below, an installation depth template tool is provided for your convenience.

A B C D

Fig. 42

A 19 mm (3/4")
B 24 mm (15/16")
C 32 mm (1 1/4")
D 38 mm (1 1/2")

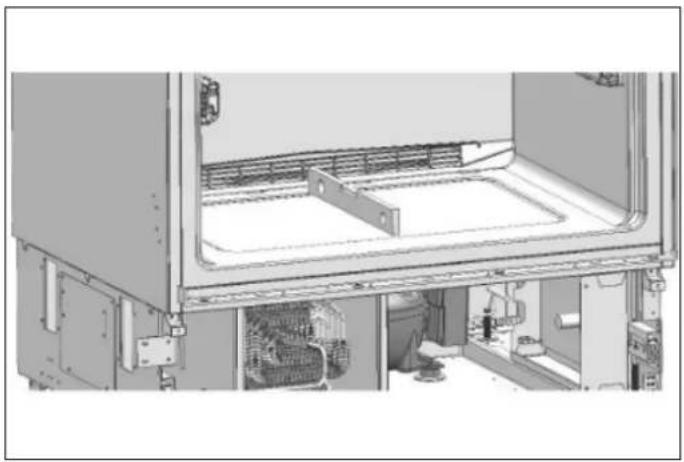

- The position of the level adjustment part (#5) must be adjusted based on the thickness of the door. It can adjust the level for 4 different door thicknesses.

Technical diagram of a refrigerator with labeled components and an inset view showing internal structure details.

Fig. 43

1 Refrigerator a. 19 mm (3/4")
· 2 Door seal · b. 24 mm (15/16")
· 3 Door · c. 32 mm (1 1/4")
4 Cabinet side panel d. 38 mm (1 1/2")

WARNING

On the French Door Bottom Mount RFD90S5FPNS/24 model can only be mounted panels with a thickness up to 19 mm (3/4").

NOTE

The niche must be designed to accommodate the minimum depth requirement plus the thicker door panel, if desired. Regardless of door thickness, the maximum panel weights must always be respected, or the product warranty will be void.

NOTE

The thickness of the accessory stainless steel panel is 19 mm (3/4").

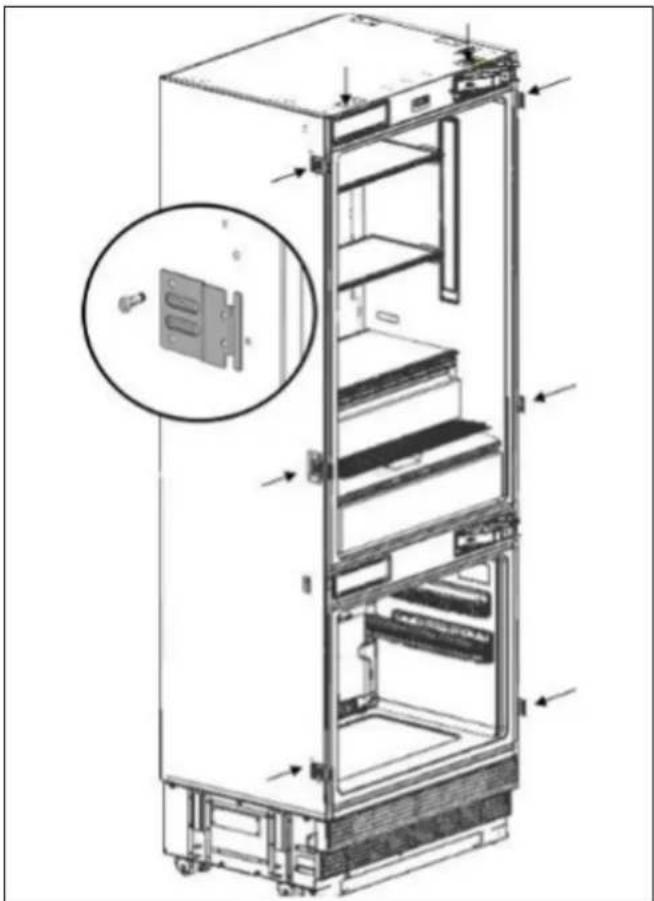

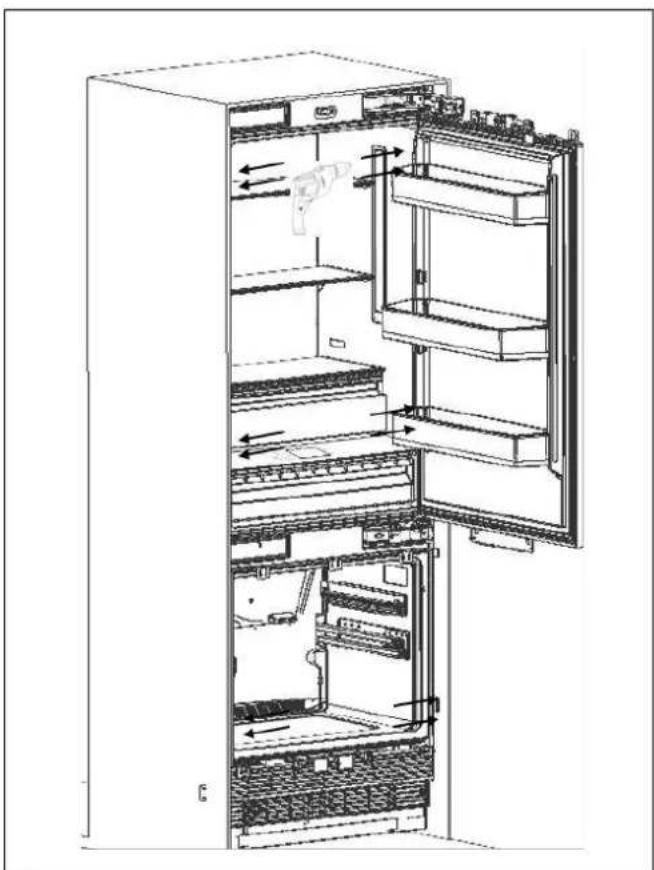

SCREWING IN THE SIDE BRACKETS

Mount the brackets (#12) on the unit, with 2 on the top and 3 on each side. Use screws (#11) to tighten them in place.

Use 16 long screws (#13) to join the unit to the cabinet.

WARNING

Before screwing the side brackets into the cabinet gables, ensure the screw is shorter than the gable thickness, otherwise the finished side may be damaged.

Before beginning to screw on the side and upper brackets, make sure that the unit is connected to power, that water (if applicable) is being supplied to the appliance and that the water connection has been tested for leaks.

Technical line drawing of a refrigerator internal structure with an inset showing a close-up of the door panel (no text or symbols present)

Fig. 44

NOTE

Drilling a pilot hole in the side gable for reference could make the mounting process easier.

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

SECURING THE UPPER BRACKET

- Attach the upper bracket to the cabinet using 4 screws (#13).

NOTE

Drilling a pilot hole in the side gable for reference could make the mounting process easier.

Line drawing of a cabinet interior showing front and rear compartments with no text or symbols

Fig. 46
Fig. 45

INSTALLING THE BOTTOM CABINET

Complete the water connection

- Use a cutter to cut of any excess waterline length, allowing sufficient slack of 254 mm (10") to ensure an easy bend and clear connection, with no tension or potential kinks in the supply line that runs to the connector.

Technical diagram of an industrial machine with labeled component A, showing internal components and wiring (no readable text or symbols)

Fig. 47

A 254 mm (10")
- Use 2 wrenches to firmly connect both the hose that runs from the mains and the connection to the valve on the refrigerator.

WARNING

The hose that runs from the mains connection must be one piece. Do not use extension hoses.

WARNING

Make sure that the power is cut off when establishing the appliance's water connection.

WARNING

The water valve must be closed when connecting the water hose.

WARNING

It is recommended to keep the water valve accessible after product installation.

WARNING

The pressure of the water system must be between 25-80 psi (1.7-5.5 bar).

NOTE

Once the connection is complete, you must open the water valve and make sure that there is no leakage.

NOTE

The appliance is equipped with a brass compression joint water connection.

Technical illustration of an industrial machine with visible internal components and mounting brackets (no text or symbols)

Fig. 48

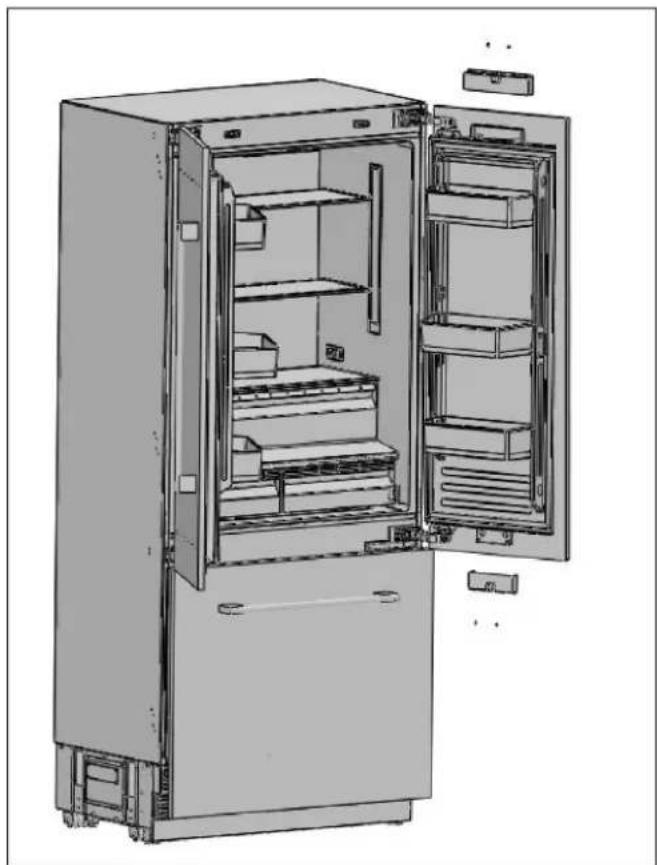

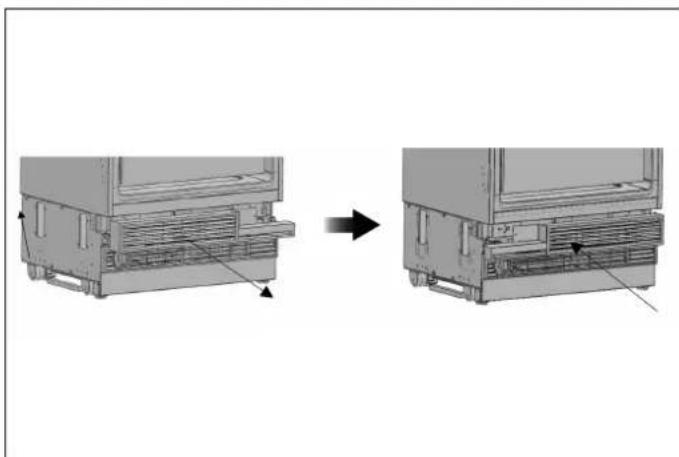

ATTACHING THE UPPER VENT APERTURE COMPONENT

- Use 2 screws to attach the upper vent aperture component.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 49

ATTACHING THE LOWER VENT APERTURE ASSEMBLY

Use 2 screws to attach the lower vent aperture component.

Technical line drawing of a server rack unit with ventilation grilles and mounting base (no text or symbols)

Fig. 50

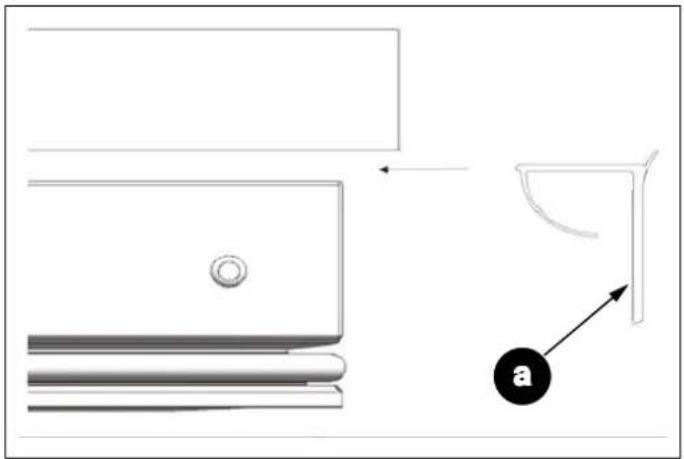

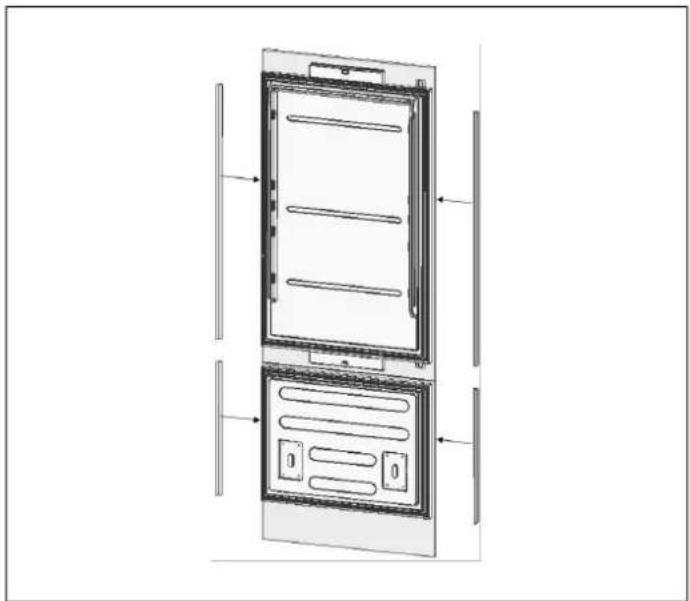

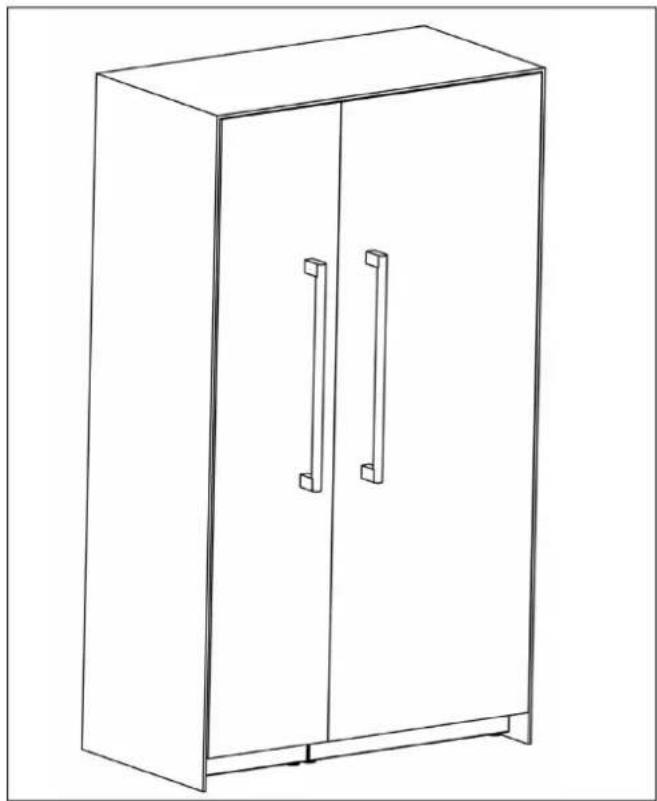

ATTACHING THE DECORATIVE TRIM COVERS

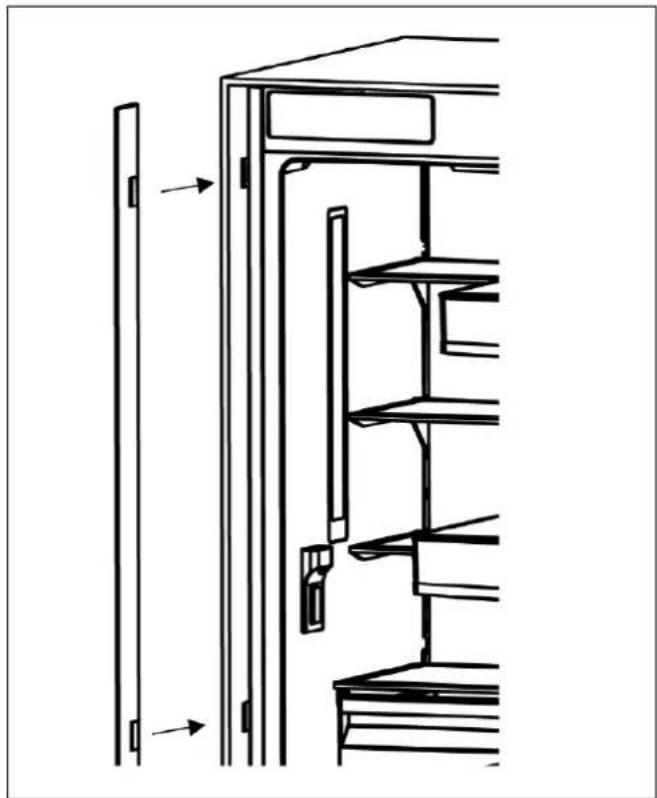

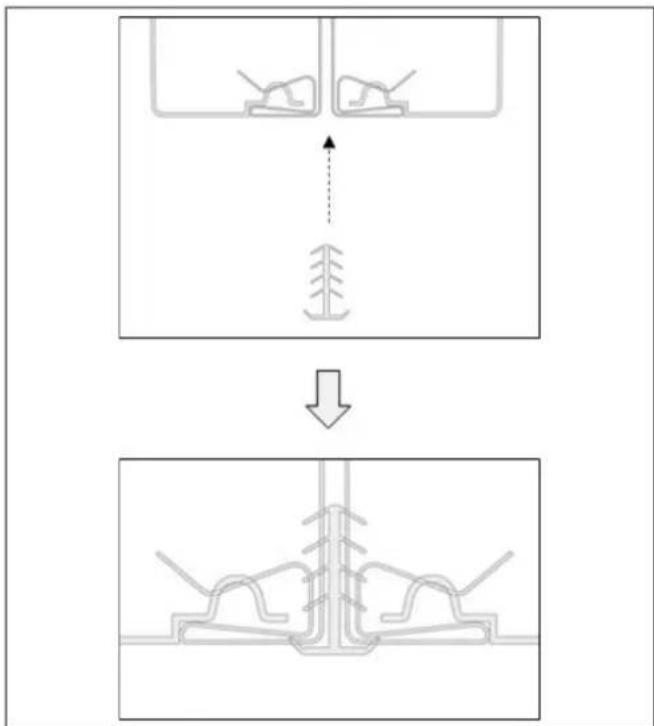

- The decorative side trim is a soft plastic material with a barbed end intended to be inserted between the cabinet gable and the appliance body (#1), onto the right/left connection brackets. Some trimming may be required to ensure the trim pieces can fit around the brackets; the thickness of the barbed end may also require trimming depending on the width of the gap between the side body and the cabinet gable.

Technical line drawing of a door frame and shelf rack assembly (no text or symbols)

Fig. 51

NOTE

The lower grill can be adjusted to accommodate the cabinet toe kick by moving it forward or backward a maximum of 23 mm (15/16"). Also, a piece of decorative cabinet toe kick material can be affixed to the lower grill to match the cabinets, provided there is no obstruction to vent grills and air flow.

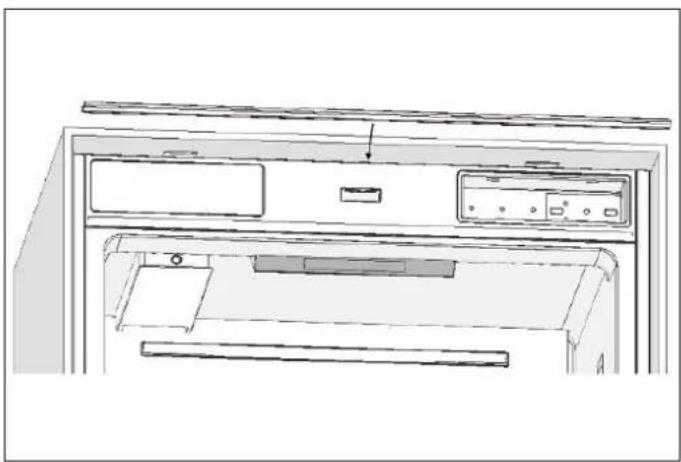

- Push in the finished trim (#4) on the upper connection bracket.

Line drawing of a computer front panel with control buttons and a door (no text or symbols)

Fig. 52

OVERLAY PANEL INSTALLATION AND PREPARATION

This section contains information about preparing the cabinet doors and mounting them on the product.

WARNING

Maximum weights of the panels to be mounted on the unit are as follows:

• Bottom Mount Fridge Door: 16 kg (35 lbs)
• French Door Fridge Doors: 16 kg (35 lbs)
  • Freezer Door: 9 kg (20 lbs)

A a. B C D E F b. B C D E α

Fig. 53

a. Cabinet front

b. Front panel

A. 3 mm (1/8")

B. 19 ~mm (3 / 4")

C. 24 mm (15/16")

D. 32 mm (1 1/4")

E. 38 mm (1 1/2")

F. 5 mm (3/16")

α 115°

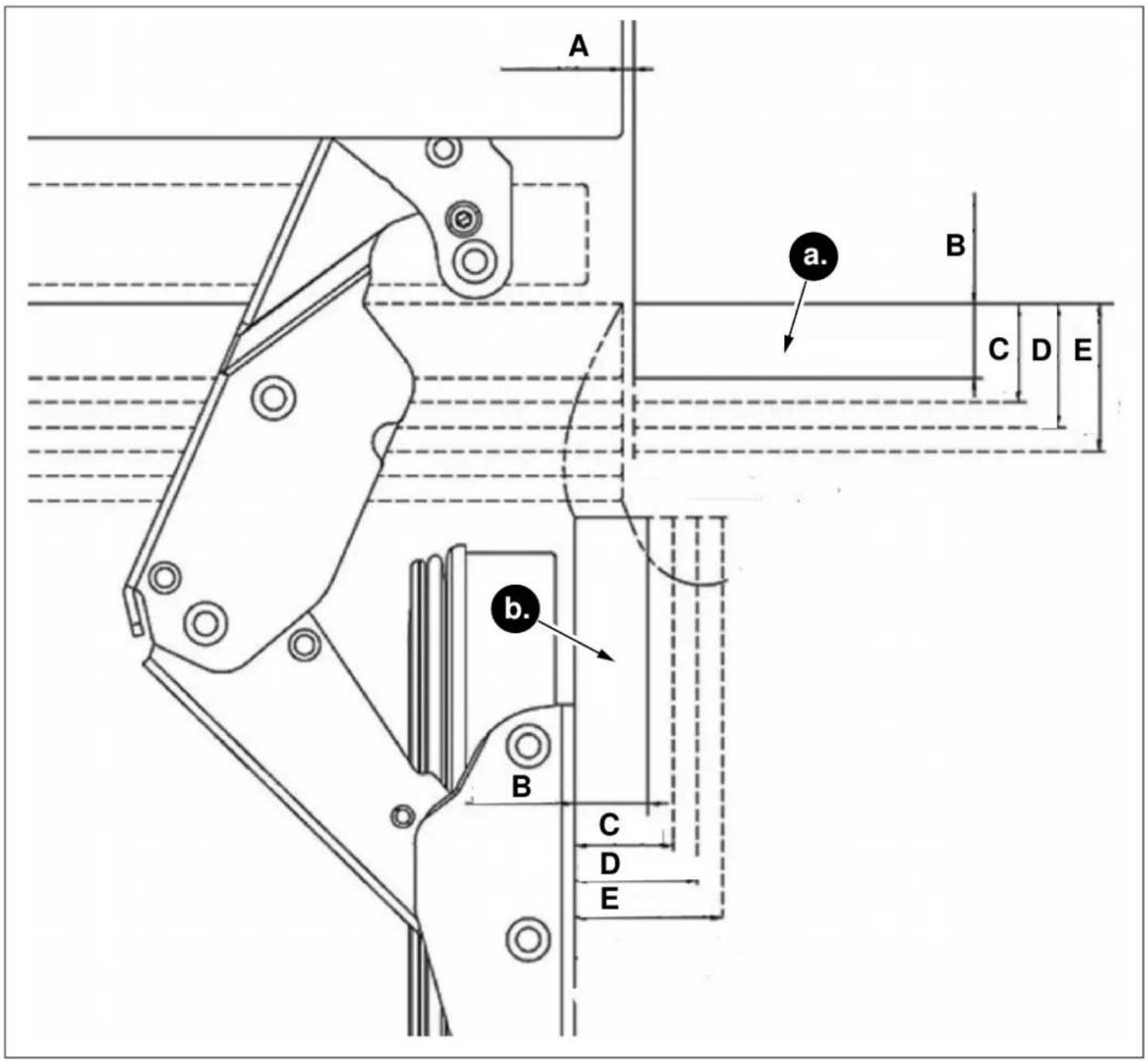

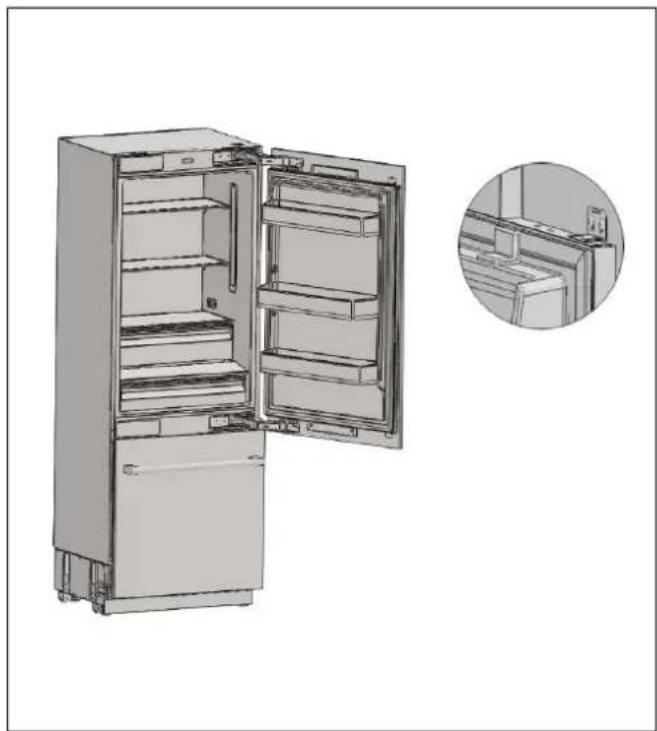

CHOOSING THE DOOR THICKNESS

The door of your refrigerator can open to 115° maximum. If you want the doors to open to this degree, you can choose from the thicknesses shown in the image above. For all 2-door Bottom Mount refrigerators. For the 3-door French Door Bottom Mount, the only thickness available is 19 mm (3/4").

WARNING

If the door thickness is more than 38 mm (1 1/2"), the door should not open more than 90°. You must use a limiting pin on the hinge.

A limiting pin (#6) is provided with the unit to prevent the door from opening beyond 90° if necessary; it can be installed on the hinge. Door thickness allowances when using the limiting pin are shown in the diagram below.

3D mechanical assembly diagram showing a bracket with mounting holes and a small pin (no text or symbols)

Fig. 54

A a. B C D E b. B C D E

Fig. 55

a. Cabinet front
b. Front panel
A. 3 mm (1/8")
B. 19 mm (3/4")
C. 24 mm (15/16")
D. 32 mm (1 1/4")
E. 38 mm (1 1/2")

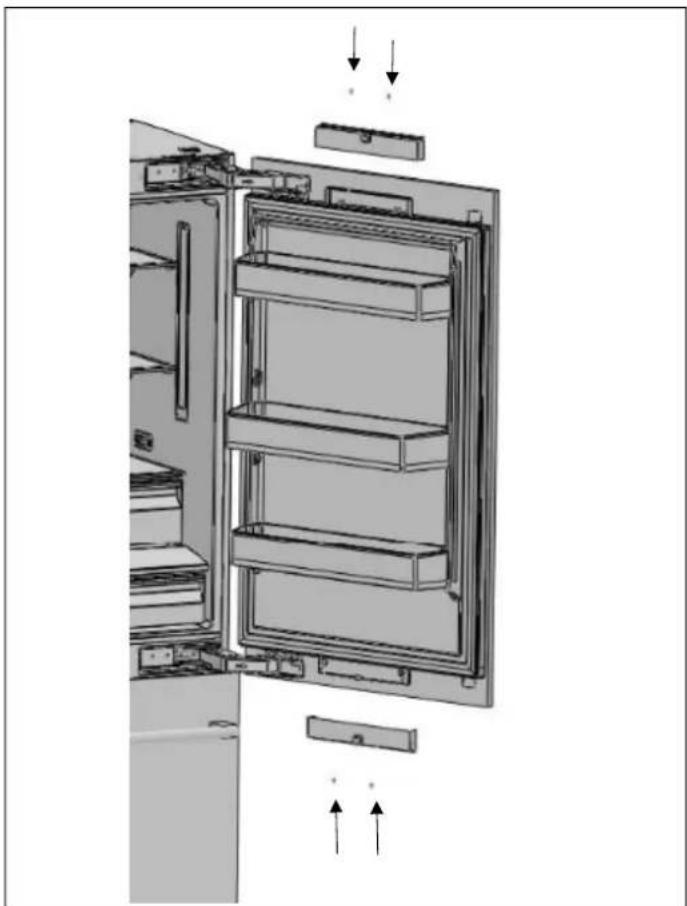

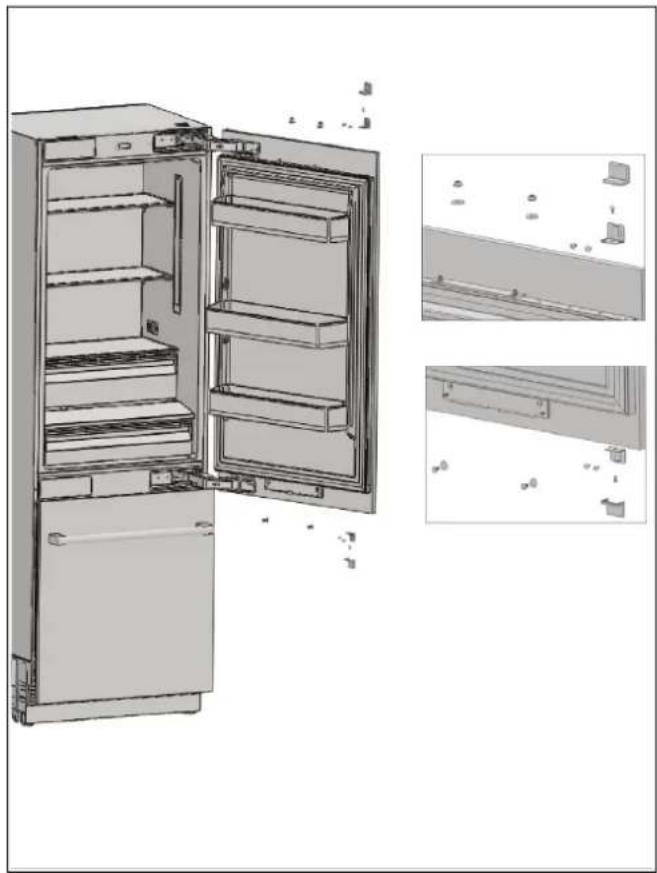

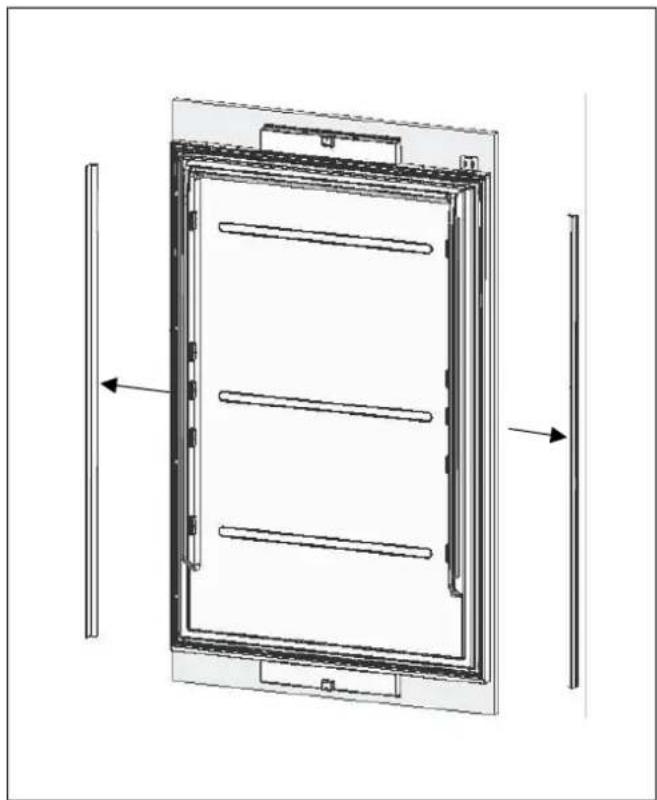

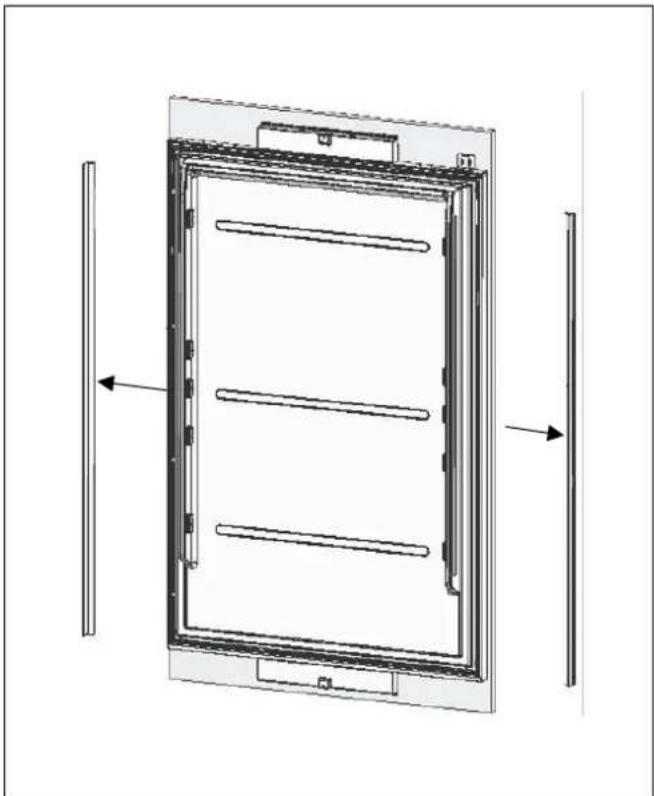

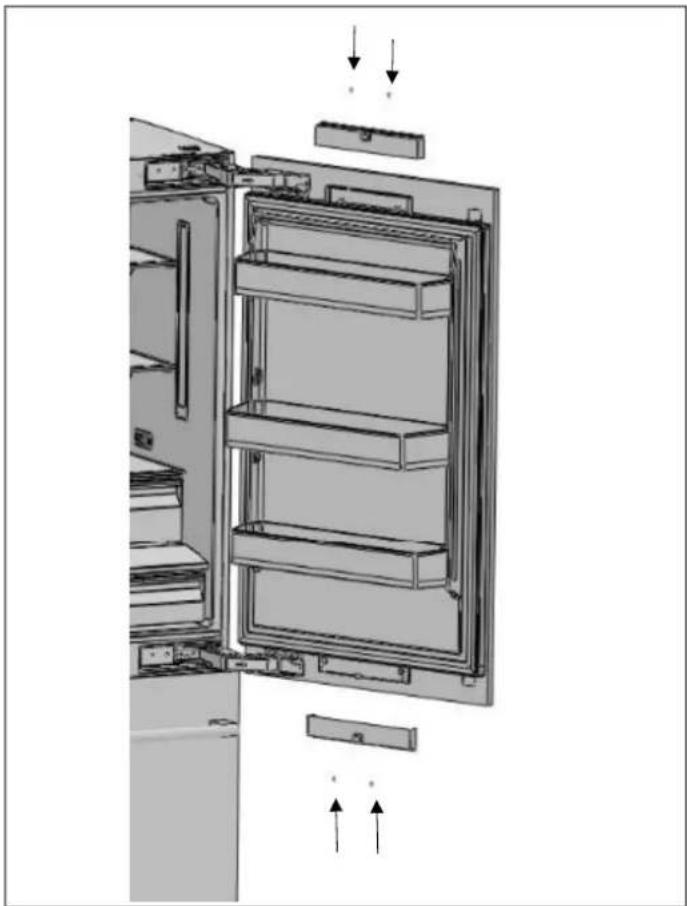

REMOVING THE OVERLAY PANEL MECHANISM COVERS

- Remove the upper screws to remove the upper cover.

Technical diagram of a door frame assembly with labeled components (no text or symbols present)

- Remove the two screws to remove the door hanger bracket for the lower mechanism cover.

Technical diagram showing a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Fig. 57
Fig. 56

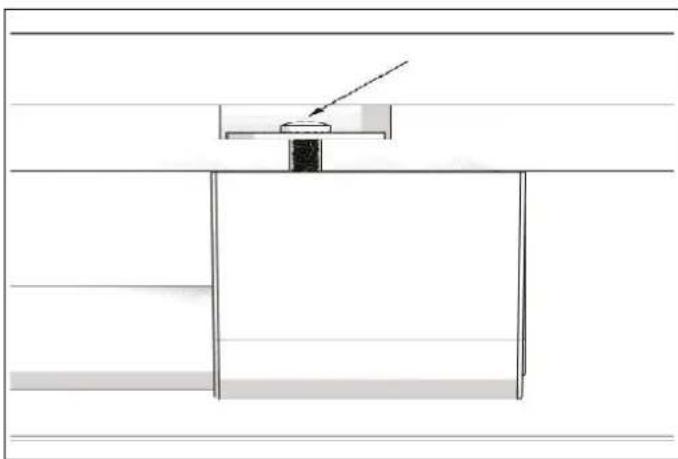

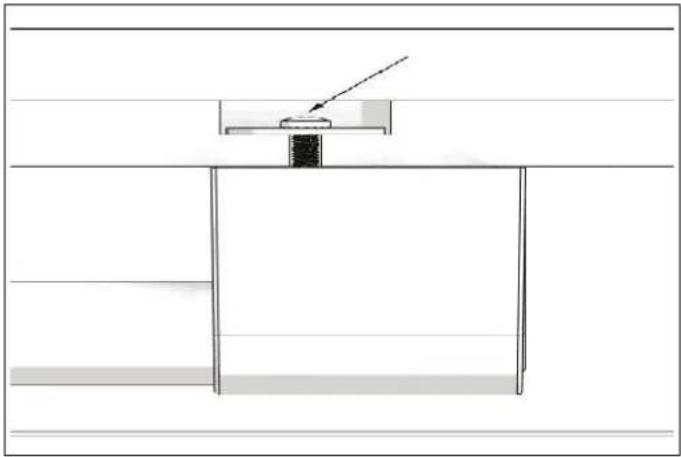

WARNING

There is a magnet on the cover door hanger bracket. This is a functional component for product operation, because it activates the door open reed switch. Please ensure the covers do not get switched; put each back on the same bracket it was removed from. The magnet should not be switched with the lower cover.

REMOVING THE PANEL BRACKETS

- Remove the upper and lower adjustable panel mounting brackets from the door panel adjustment mechanisms, as shown below.

Technical illustration of an open refrigerator with visible door, shelves, and cooling unit (no text or labels)

Fig. 58

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Fig. 59

- Remove the covers for the panel adjustment mechanisms from the lower part of the freezer door along with the panel mounting brackets.

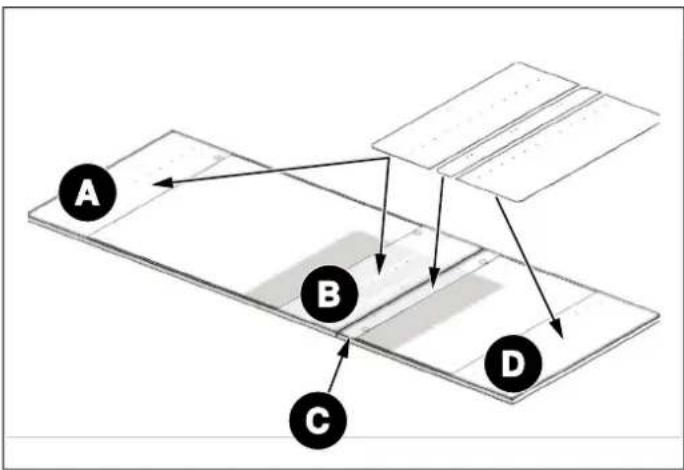

PREPARING THE OVERLAY PANELS

NOTE

When marking, you can use the door/ drawer panel preparation template provided with the product.

Fig. 60

A. Fresh food top
B. Fresh food bottom
C. Freezer top
D. Freezer bottom

Two technical line drawings of structural components or supports, shown in isometric view with no text or symbols.

Fig. 61

WARNING

The handle mounting holes will have to be adjusted based on the handles to be used in the kitchen design.

WARNING

The minimum door thickness must be 16 mm (5/8").

WARNING

On the French Door Bottom Mount RFD90S5FPNS/24 model can only be mounted panels with a thickness up to 19 mm (3/4.).

PREPARING THE FRIDGE DOOR PANEL

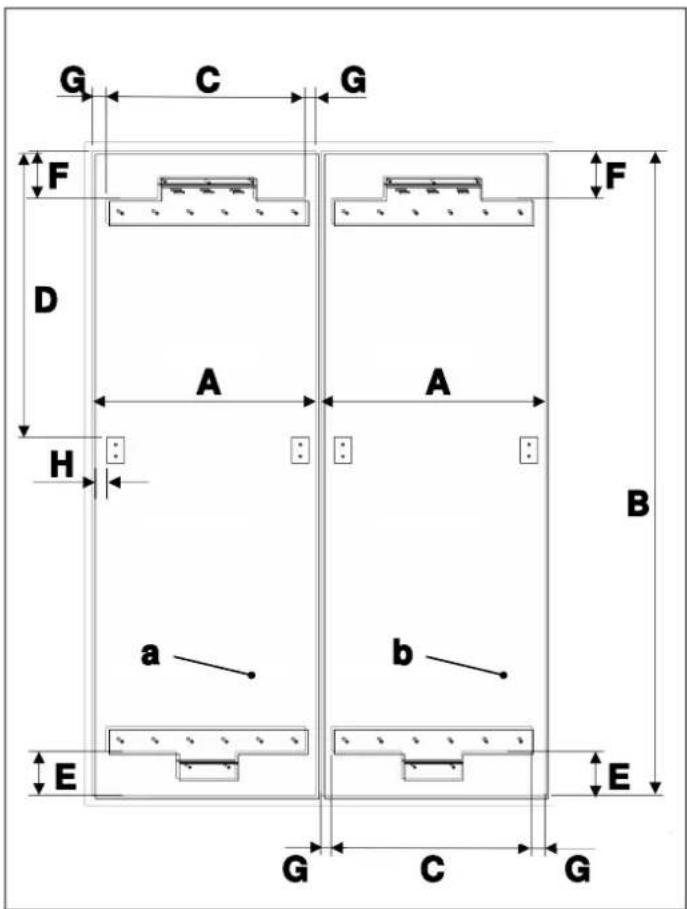

G C F A B E G C

G C G F F D A A B H a b E E G C G

Fig. 63 RFD90S5FPNS/24

• To prevent damage to the finished surface of the panel, use screws suitable for the door panel thickness.

• Install the hanger brackets using the screw furniture door hanger brackets (#18).

The furniture door preparation template (#1) provided can be used to align the door panel and the brackets.

Use 4 screws (#22) and 2 fixing irons (#21) to secure the sides of each RFD90S5FPNS/24 fridge door panel.

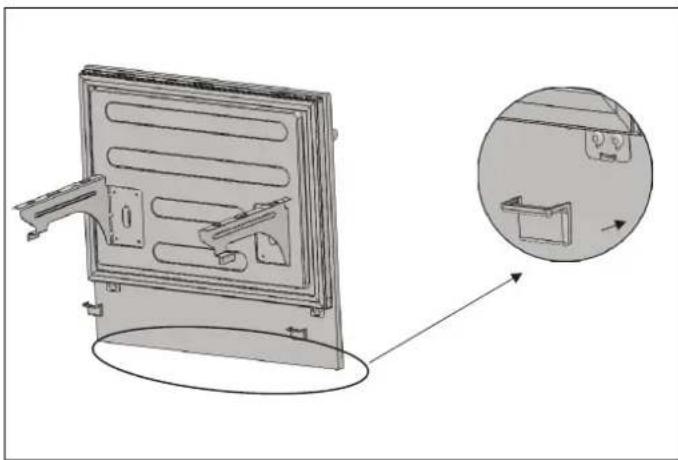

The fridge door hanger sheet and fridge door upper mechanism assembly must be on the upper part of the door.

Attach the door handle to the upper door panel prior to installing the panel on the fridge. Use handle hardware that will ensure a secure connection to the panel and that will lie flush against or, in any case, not protrude from the back of the overlay panel. This may require countersinking the handle hardware into the back of the panel, as shown below. The door handle mounting screws must not protrude either.

Diagram showing three mechanical components with downward arrows on a flat surface, no text or symbols present

Fig. 64 RFD90S5FPNS/24

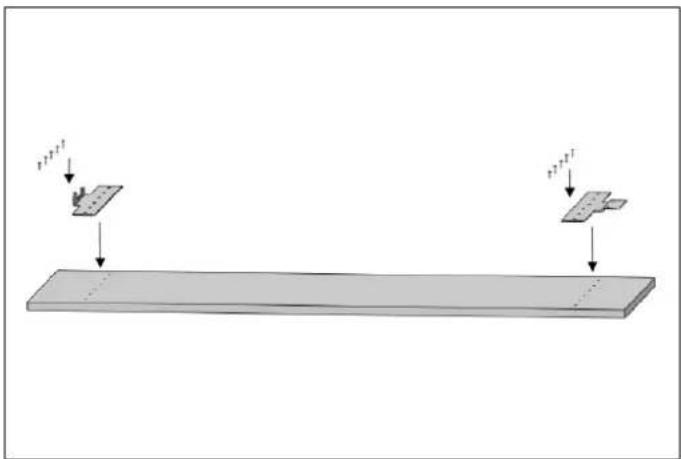

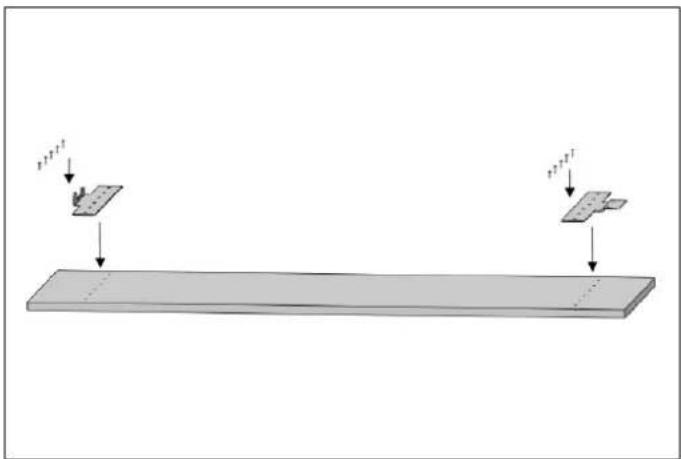

Diagram showing two floating objects on a flat surface with arrows indicating direction (no text or symbols)

Fig. 65 RBM90S5FPNS / RBM75S5FPNS

Attach the fridge door handle. Screws holding the door handle must not protrude.

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 66

WARNING

The handle mounting holes will have to be adjusted based on the handles to be used in the kitchen design.

WARNING

The minimum door thickness must be 16 mm (5/8").

WARNING

On the French Door Bottom Mount RFD90S5FPNS/24 model can only be mounted panels with a thickness up to 19 mm (3/4").

WARNING

To prevent damage to the finished surface of the panel, use screws suitable for the door thickness.

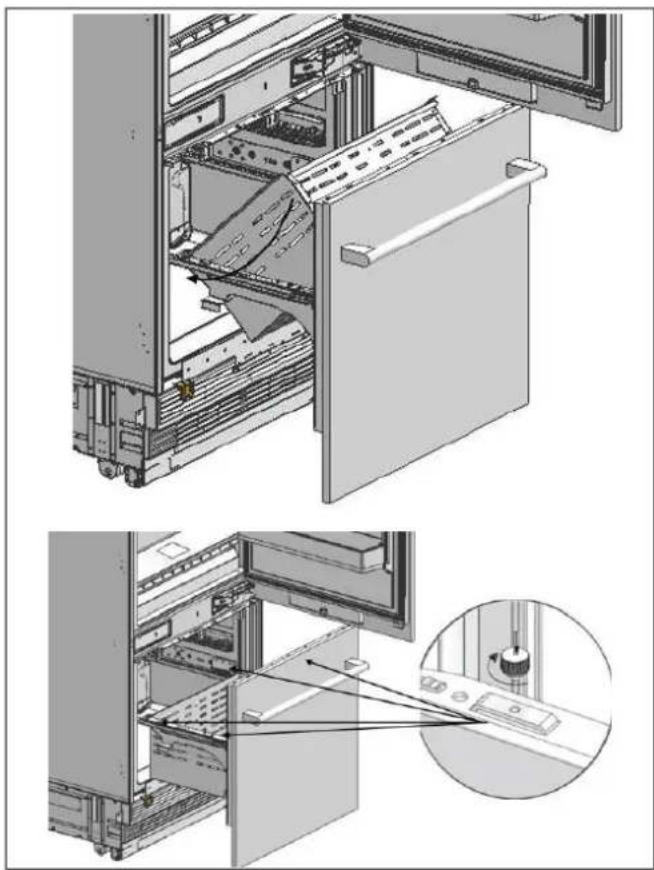

PREPARING THE FREEZER DRAWER PANEL

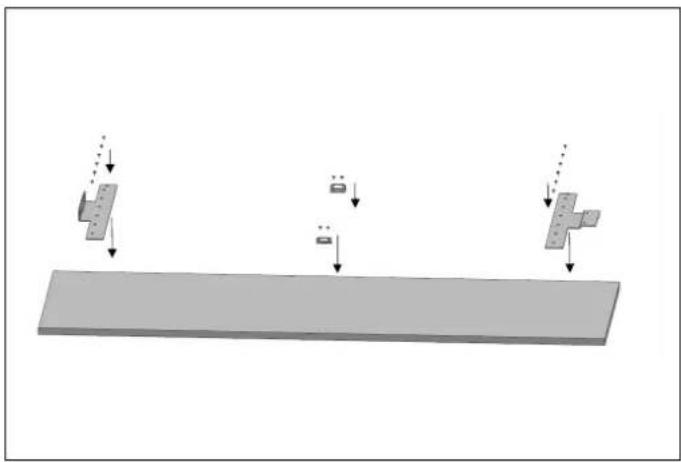

- Attach the 3 freezer door hanger metal "L" brackets (#9) using 6 screws (#10) and 1 screw (#8) for each.

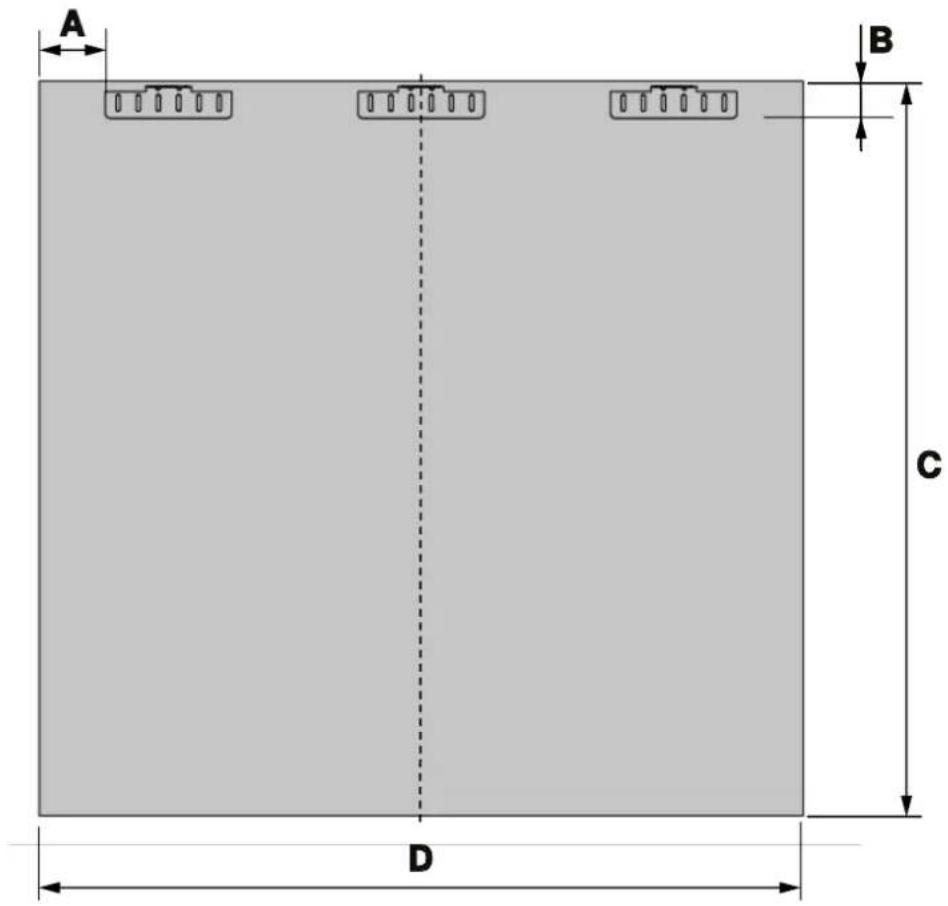

A B C D

Fig. 67

CATEGORY	REF36BMBZPNV	REF30BMBZPNVREF30BMBPNB	REF36FDBZPNV/24
A	65 mm (2 9/16") 65 mm (2 9/16") 65 mm (2 9/16")
B	37 mm (1 7/16") 37 mm (1 7/16") 37 mm (1 7/16")
C	729 mm (28 11/16") 729 mm (28 11/16") 729 mm (28 11/16")
D	907 mm (35 11/16") 756 mm (29 3/4") 908 mm (35 3/4")

The furniture door preparation template (#1) provided can be used to align the door panel and the brackets.

Diagram illustrating a device's internal structure with arrows pointing to components and a magnified inset showing a device layout.

Fig. 68

WARNING

You must use screws suitable for the door panel thickness.

Install the hanger brackets using the screw furniture door hanger brackets (#18).

You can also use the furniture door preparation template (#1) provided with the product to align these parts.

It is recommended to keep this template for future reference.

Attach freezer door hanger brackets (#9) using 6 screws (#18) for each.

- Attach the door handle to the panel prior to installing the panel on the freezer. Use handle hardware that will ensure a secure connection to the panel and that will lie flush against or, in any case, not protrude from the back of the overlay panel. This may require countersinking the handle hardware into the back of the panel.

The door handle mounting screws must not protrude either.

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 69

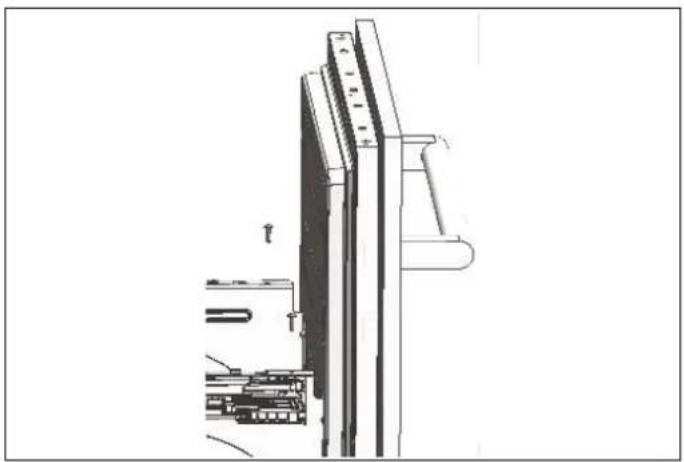

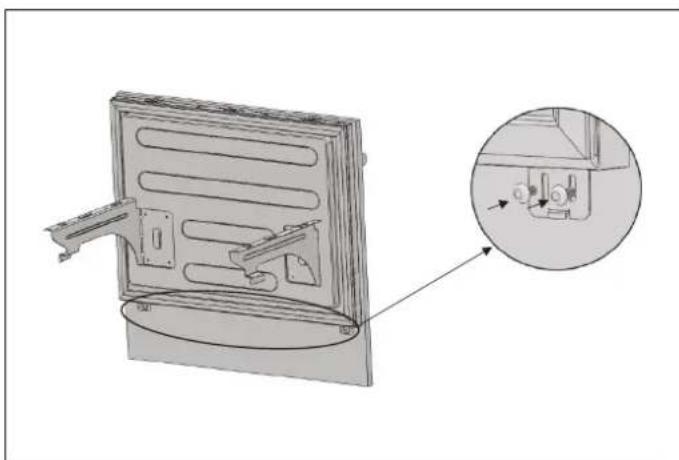

INSTALLING THE REFRIGERATOR CUSTOM DOOR PANEL

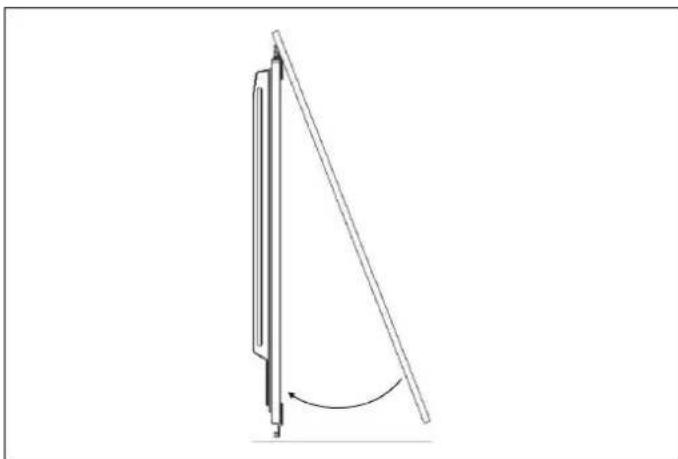

Attach the furniture door to the fridge door by slightly tilting it diagonally.

Simple line drawing of a vertical object with an arrow indicating rotation or motion, no text or symbols present.

Fig. 70

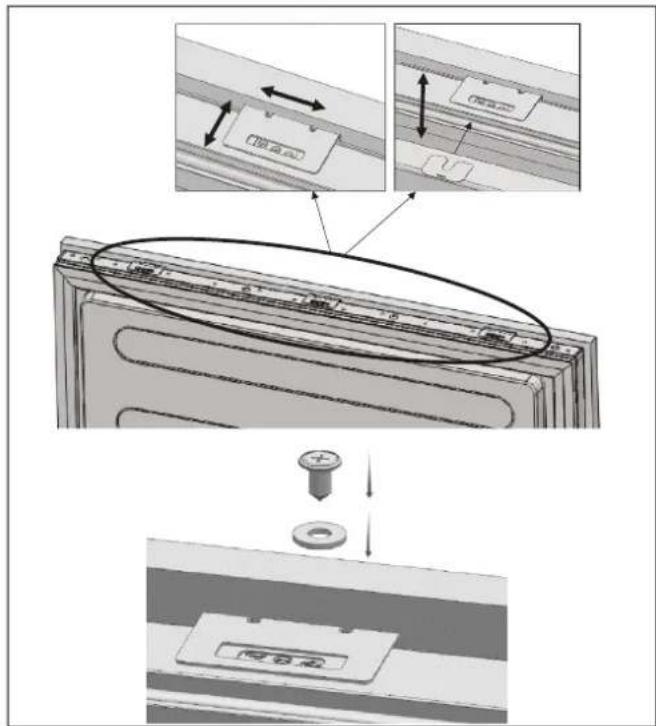

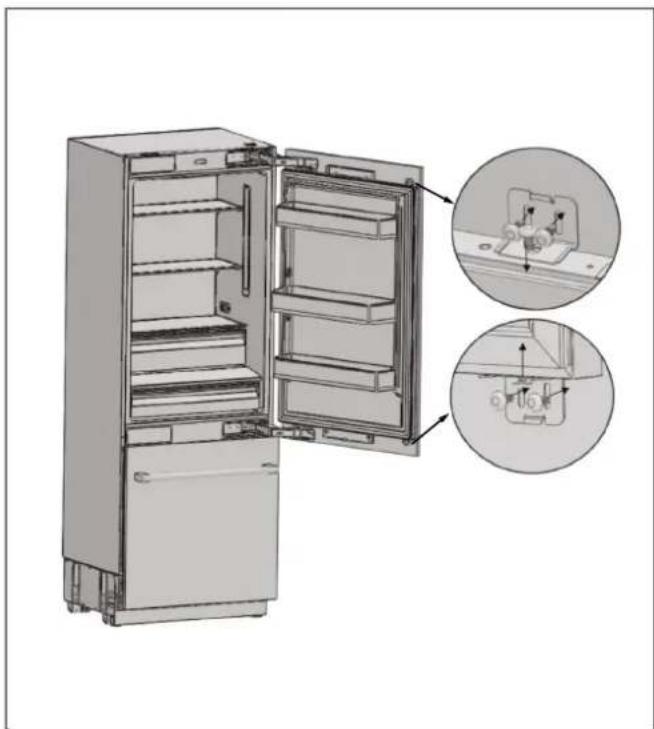

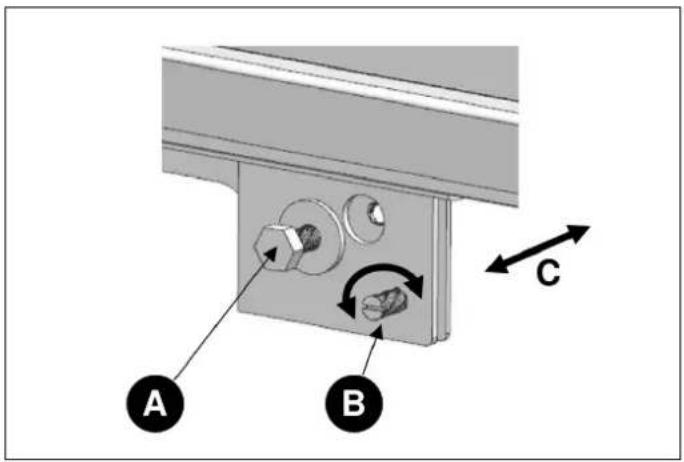

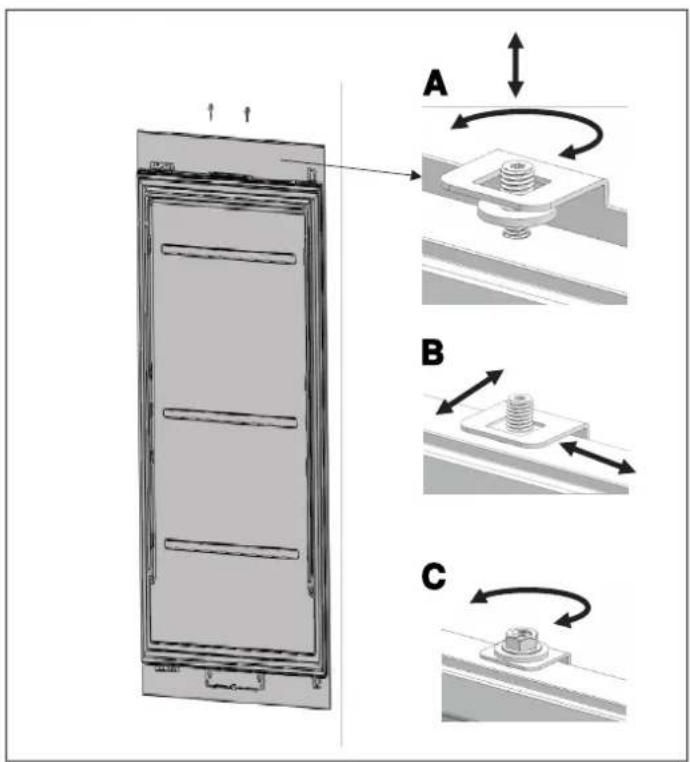

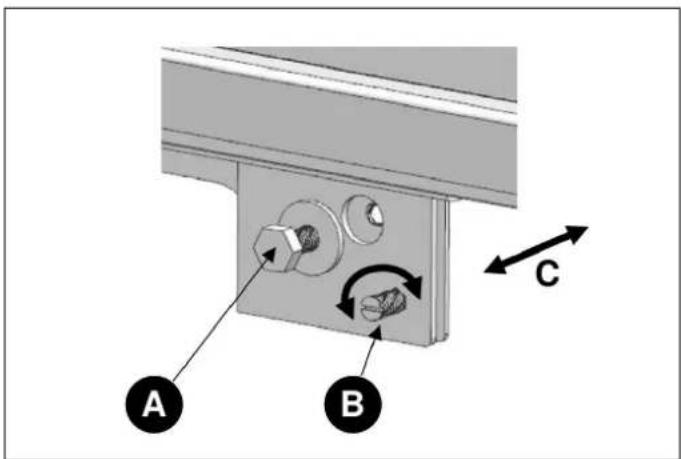

ALIGNING THE UPPER PART OF THE CUSTOM DOOR PANEL WITH BOLTS

- The custom panel for the refrigerator must be flush with the cabinet doors beside it.

To achieve this, it is necessary to adjust the 3D direction using two fixing bolts.

First, check the position of the refrigerator door in relation to the kitchen cabinets.

The distance between the door and the cabinets beside it should be 3 mm (1/8"), assuming that the door dimensions are correct.

You can now adjust the door according to this distance.

Technical diagram showing three labeled mechanical assembly steps (A, B, C) with directional arrows indicating motion or movement.

Fig. 71

A Up & Down
• B Front & back / Left & right
• C Fixing furniture door completely

ALIGNING THE LOWER PART OF THE CUSTOM DOOR PANEL WITH BOLTS.

Technical line drawing of a door frame with two horizontal bars and two circular annotations indicating measurement points (no text or symbols present)

Fig. 72

A B C

Fig. 73

A Up & Down
B Fixing furniture door completely
C Front & back

• Use the bracket furniture door (#16) to join the furniture door
• Use 1 screw door fixing bracket (Item #15) to fix on the door.
  • Use 2 screws (Item #17) to fix on the furniture door

Three tool icons: a pencil, a wrench, and a hammer, each labeled T25 (no additional text or symbols)

Illustration of an open refrigerator with internal compartments and a close-up inset showing the interior mechanism (no text or symbols present)

Fig. 74

WARNING

There is a magnet on the cover door hanger bracket upper.

WARNING

This is a functional part for the operation of the product.

WARNING

It should not be confused with the lower cover.

Clip the cover furniture door bracket (#14).

Illustration of an open refrigerator with a close-up inset showing the exterior view (no text or symbols)

Fig. 75

- Attach and screw the upper/lower decoration cover.

Diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

Fig. 76

Diagram of a refrigerator interior showing internal compartments and a close-up view of the door (no text or symbols present)

Fig. 77

Secure the fixing irons (#21) at the door side using screws (#19) and washers (#20).

INSTALLING THE FREEZER CUSTOM DOOR PANEL

- Attach door-door furniture connecting bracket (Item #16) on the door lower part with screw door fixing bracket (Item #15)

Technical illustration of a mechanical assembly with a base plate and support structure, showing alignment and assembly details (no text or symbols)

Fig. 78

Align the furniture door for the freezer drawer with the adjustment washer (#7).

- Fix the three freezer door hanger brackets (#9) with one screw (#8) and one shim (#8-1) each.

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or assembly steps.

Fig. 79

• Use 2 screws (Item #17) to fix on the furniture door.

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Fig. 80

Clip the cover furniture door bracket (Item #14).

Technical line drawing of a mechanical component with an inset view showing internal components (no text or symbols)

Fig. 81

- Install the Freezer Furniture door assembly onto the rails.

Technical line drawing of a mechanical assembly with a magnified inset showing a small circular detail (no text or symbols)

Fig. 82

- Fix the Freezer Furniture door assembly onto the rails with 2 screws.

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

Fig. 83

- Locate the drawer onto the rail and tighthen the screws

Technical illustration of an open refrigerator with internal compartments and a close-up view of the interior panel (no text or symbols)

Fig. 84

- Attach the cover freezing door top (Item #5) using the tabs.

3D mechanical assembly diagram showing a bracket with mounting holes and a separate panel (no text or symbols)

Fig. 85

COMPLETING THE INSTALLATION

Attach the side door trims (#2 and #3) to complete the installation.

Technical line drawing of a mechanical part with a base and side view, showing no text or symbols

Fig. 86

Remove the double-sided tape paper before attaching the parts.

Technical line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

Fig. 87

ADJUSTING THE SPRING TENSION OF THE HINGES

- Use a drill to adjust the tension of the upper and lower hinges of the fridge door. Set the hinge adjustment screw to position "I" from position "O".

Diagram of an open refrigerator showing internal shelves and door, with a magnified inset highlighting the interior portion (no text or symbols present)

Fig. 88

WARNING

The door must be fully open during this adjustment.

WARNING

The hinge tension adjustment must be performed only after the door panel has been adjusted.

REMOVING THE DOOR PANEL

- Set the tension level of the hinge to "0".

Diagram of an open refrigerator showing internal shelves and door, with a magnified inset highlighting the interior structure (no text or symbols present)

Fig. 89

- Remove the side closing seals.

Technical line drawing of a door frame with two vertical supports and horizontal bars, showing internal structure (no text or symbols)

Fig. 90

- Loosen the 2 screws in the upper cover of the fridge door and remove it.

CAUTION

Failure to set the hinge to "0" before continuing the installation may result in injury.

Diagram of a door frame with an attached rectangular component and two upward arrows indicating motion (no text or symbols)

Fig. 91

- Loosen the 2 screws in the lower cover of the fridge door and remove it.

Diagram of a monitor with a separate panel attachment, showing no text or symbols

Fig. 92

- Remove the lower and upper bracket screws from the fridge.

Illustration of an open refrigerator with internal shelves and door, shown with close-up details (no text or symbols)

Fig. 93 RBM90S5FPNS / RBM75S5FPNS

Technical illustration of an open refrigerator with internal compartments and mounting hardware (no text or symbols)

Fig. 94 RFD90S5FPNS/24

French doors are not reversible.

The steps below indicate the procedure to be followed should it be necessary to remove the panels

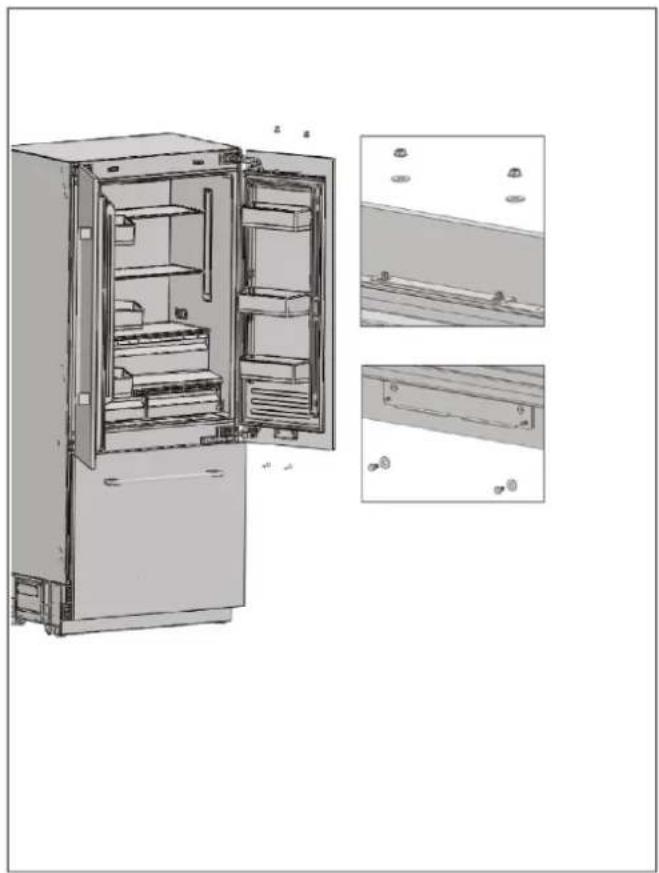

- Remove the screw from the upper and from the lower fridge mechanism.

WARNING

The fridge door panel will be released when these screws are removed. You must take measures to prevent the door from falling.

You can tape the cabinet door to the inner door or ask a second person to help.

• Take off the fridge cabinet door and lay it upside down on a table top.
- You must attach the cabinet door by rotating it 180° with respect to its current position.

REMOVING AND PREPARING THE INNER DOOR

- Remove the hinge connection screws from the hinge brackets.

CAUTION

The door will be released when these screws are removed. You must take measures to prevent the door from falling. You can tape the cabinet door to the inner door or ask a second person to help.

Diagram showing a server rack with internal components and a magnified view of the rack structure (no text or symbols present)

Fig. 95

Take off the fridge door and lay it on a table top, then remove the mounting components and screw them to the opposite side of the door.

- Use 2 screws to attach the hanger sheet.

Diagram of a rectangular panel with internal horizontal lines and directional arrows indicating force or movement (no text or symbols)

Fig. 96

NOTE

To successfully complete the reversibility of the door swing, the brackets must be diagonally changed.

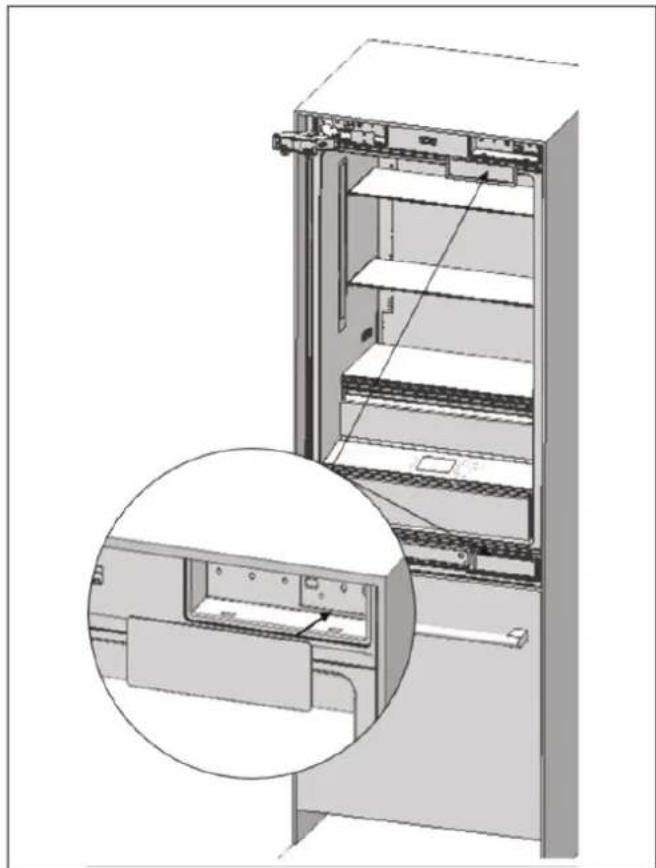

REPLACING THE HINGES

• Remove the Hinge Caps located at the other side where you will fix the hinges.
• Remove the screw cover and the screws securing the hinges.

Diagram of an open refrigerator showing internal compartments and a close-up view of the interior door (no text or labels present)

Fig. 97

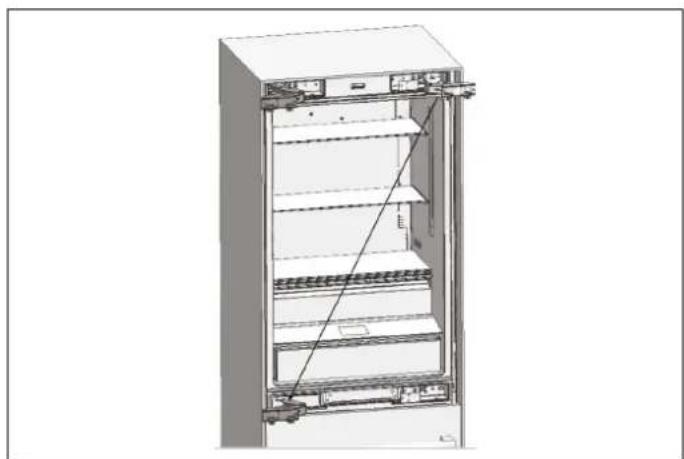

- Remove the lower right hinge by loosening its 2 screws and fix it to its slot at the upper left side.

Technical line drawing of an open refrigerator with visible door, shelves, and door joints (no text or symbols)

Fig. 98

- Remove the upper right hinge by loosening its 2 screws and mount it in its slot on the lower left side

3D line drawing of a refrigerator interior showing shelves and doors (no text or symbols)

Fig. 99

- Return the hinges' decorative screw caps to their places.

- Return the hinge pocket cover to the opposite side, where the hinges were removed.

Diagram of an open refrigerator with a close-up inset showing internal components (no text or labels)

Fig. 100

AIR VENT UPPER PART DIRECTION CHANGE

- Remove the air vent part and change direction as shown in the figure.

Diagram showing a device interior with labeled parts before and after assembly (no text or symbols present)

Fig. 101

REINSTALLING THE DOOR

Place the inner door on the refrigerator using the door seal to help hold the door in place and fasten it back onto the hinges using 4 screws.

Technical line drawing of a cabinet or shelf with internal compartments and mounting brackets (no text or symbols)

Fig. 102

CABINET CUTOUT DIMENSIONS

- Please check cabinet cutout dimensions below before starting the installation.

For combined installations of two or more bottom mount refrigerators, one or more accessory connection trim kits (CTXV) must be purchased.

A B C

Fig. 103

CONFIGURATION A B C
75+75 cm (30"+30")	1524 mm (60")	2134 mm (84")	635 mm (25")
75+90 cm (30"+36")	1676 mm (66")	2134 mm (84")	635 mm (25")
90+90 cm (36"+36")	1829 mm (72")	2134 mm (84")	635 mm (25")

LOCATION OF THE ELECTRICAL WIRING

- Location of the electrical wiring must be within the range given below.

WARNING

Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable.

WARNING

A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that the grounding of the socket is correct.

For technical aspects, refer to the ELECTRICAL REQUIREMENTS chapter.

A B C D E O

Fig. 104

CONFIGURATION A B C D		E
75+75 cm (30"+30")	485 mm (19 1/8")	50.8 mm (2")	280 mm (11")	127 mm (5")	102 mm (4")
75+90 cm (30"+36")	637 mm (25 1/16")	50.8 mm (2")	280 mm (11")	127 mm (5")	102 mm (4")
90+90 cm (36"+36")	637 mm (25 1/16")	50.8 mm (2")	280 mm (11")	127 mm (5")	102 mm (4")

LOCATION OF THE WATER SYSTEM

For technical aspects, refer to the PLUMBING REQUIREMENTS chapter.

Location of the water system should be as in the image below.

E o E A D B C C

Fig. 105

CONFIGURATION A B C D E

75+75 cm (30"+30") 508 mm (20") 50.8 mm (2") 254 mm (10") 21 mm (7/8") 102 mm (4")

75+90 cm (30"+36") 508 mm (20") 50.8 mm (2") 254 mm (10") 21 mm (7/8") 102 mm (4")

90+90 cm (36"+36") 660 mm (26") 50.8 mm (2") 254 mm (10") 21 mm (7/8") 102 mm (4")

Diagram showing a rectangular object with five numbered circular components and directional arrows, likely illustrating a geometric or structural concept.

Fig. 106

NO PART NAME SPEC		Q'TY
1 Insulation foam	Sponge, gray,T3.0*400*1750	1
2	Connecting bracket T2.0, Cr+zn-coating	2
3 Truss washer head M4*12 16
4 Fastener metal 3
5	Central trim PVC extrusion L = 1876 mm	1

INSTALLING THE INSULATING FOAM

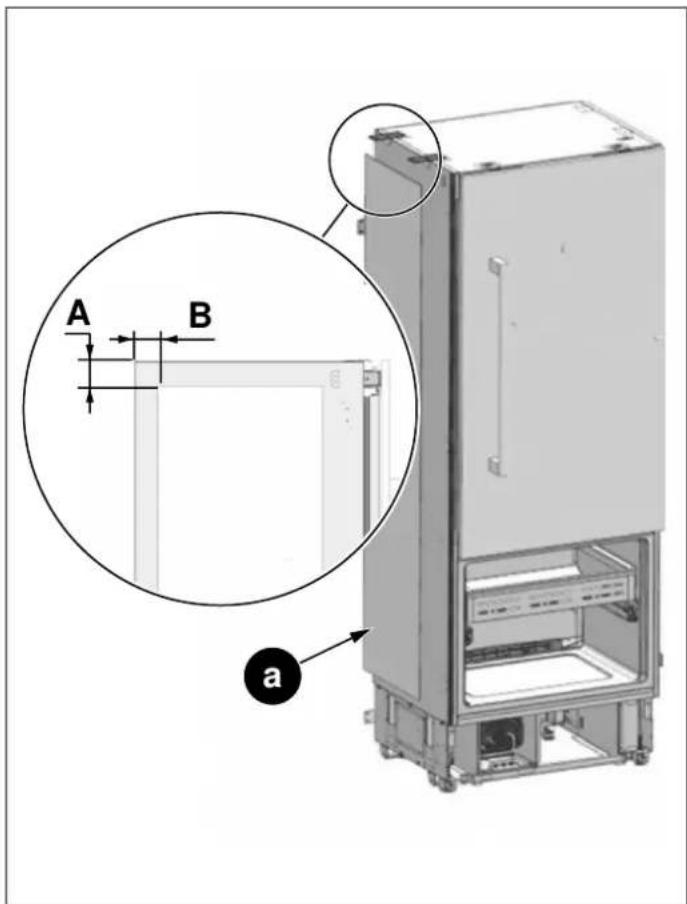

Attach the Insulating Foam centered to the side of one of the refrigerator units, as per the picture below:

A B a

Fig. 107

a. Insulating foam

A. 60 ~mm
B. 55 mm

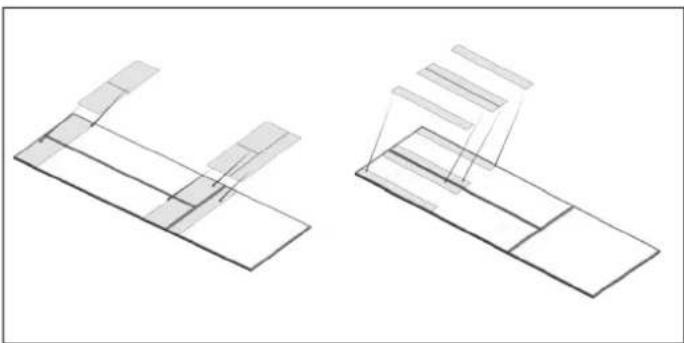

NOTE

The insulating foam must be attached to the side of the unit that will be placed next to the other appliance, fitting it securely between the two units. Failure to do so may lead to condensation buildup.

INSTALLING THE FASTENERS AND CONNECTING BRACKETS

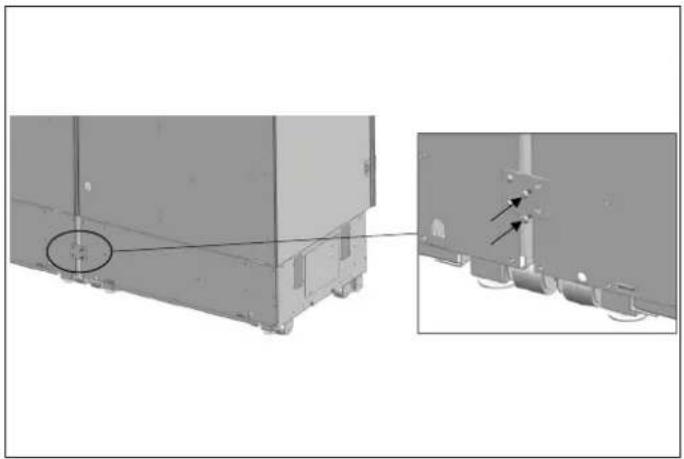

Screw the fasteners (Fig. 108) and connecting bracket (Fig. 109) on one refrigerator.

Technical diagram showing a metal bracket assembly with screws and a door handle, no text or symbols present

Fig. 108

Technical diagram of an appliance showing internal components and a close-up view of the exterior panel (no text or symbols visible)

Fig. 109

Make all power connection.

- Position the two refrigerators side-by-side, ensuring they are properly aligned.

- Once aligned, use screws to attach the fasteners (#4) to both refrigerators. Refer to the pictures below for guidance:

Technical diagram showing structural connection with labeled components and directional arrows indicating assembly or inspection.

Fig. 110

- Once the refrigerators are properly aligned, secure the connecting brackets at the back (Fig. 111) and the front (Fig. 112), joining the two refrigerators together.

Technical diagram showing a mechanical assembly with a close-up view of a component detail (no text or symbols present)

Fig. 111

Technical diagram showing internal components and a close-up of a device with directional arrows indicating movement or force (no text or symbols present)

Fig. 112

- Connect the power supply to the refrigerators.

• Install the water connections for the refrigerators, following the manufacturer's instructions.
• Gently push the refrigerators into their final position, making sure they are level and stable.

FIXING THE CENTER TRIM BETWEEN THE REFRIGERATORS

- Ensure that the refrigerators are properly aligned before inserting the Center Trim.

Technical line drawing of an internal refrigerator unit with open doors and internal compartments (no text or symbols)

Fig. 113

• Gently push the Center Trim between the refrigerators to securely fit it in place.

Fig. 114

POSITIONING THE REFRIGERATORS IN THE CABINET CUTOUT

• Connect the power supply to the refrigerators.
• Install the water connections for the refrigerators, following the manufacturer's instructions.
  Gently push the refrigerators into their final position, making sure they are level and stable.

A B C !

Fig. 115

A. Cabinet cutout
B. Refrigerators
C. 3 mm (1/8")

- Using a drill and the bit shown below, engage each of the refrigerator's adjuster shafts in turn and level the refrigerator.

Technical diagram showing a 3D mechanical setup with labeled components A, B, C, D and rotational directions A, B, C, D, including an inset image of a device.

Fig. 116

Raise the front feet to reduce any risk of the cabinet falling frontward.

A/D -Rotate the shaft clockwise to raise the front feet
B/C -Rotate the shaft clockwise to raise the rear feet.

INSTALLING THE CONNECTION BRACKETS ON THE REFRIGERATOR'S SIDE WALLS

- Install the connection brackets to the refrigerator using 12 screws.

Technical line drawing of an open refrigerator with internal compartments and doorways (no text or labels)

Fig. 117

INSTALLING THE CONNECTION BRACKETS ON THE REFRIGERATOR'S TOP WALL

- Attach the connection brackets to the refrigerator using 4 screws.

Technical line drawing of an open refrigerator with a drill bit and battery, no text or symbols present

Fig. 118

INSTALLING THE LATERAL AND UPPER TRIMS

- Install the lateral trims onto the right and left connection brackets.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Fig. 119

Diagram of a refrigerator interior showing front and side views with no text or symbols

Fig. 120

• Install the upper trim onto the upper connection brackets.

Technical line drawing of a refrigerator interior showing front and rear compartments with no text or symbols

Fig. 121

- Ensure that the refrigerators are properly aligned before inserting the Center Trim (part #5).

• Gently push the Center Trim between the refrigerators to securely fit it in place.

Technical line drawing of a cabinet or enclosure with structural components and mounting brackets (no text or symbols)

Fig. 122

Line drawing of a two-decker cabinet with two doors and two handles (no text or symbols)

Fig. 123

DALLA SCRIVANIA DEL PRESIDENTE

Gentile Cliente,

A1 A1 B D1 C D2 E A G F H α I L L M β N

Fig. 3

CATEGORIA RFD90S5FPNS/24 CATEGORIA RFD90S5FPNS/24
A	907 mm (13 11/16")	G	555 mm (21 7/8")
A1	451 mm (17 3/4")	H	56 mm (2 3/16")
B	senza pannello: 592 mm (23 5/16")con pannello: 611 mm (24 1/16")	I	1368 mm (53 7/8")
C	3 mm (1/8")	L	230 mm (9 1/16")Distanza minima dalla parete
D1	1297 mm (51 1/16")	N	1289 mm (50 3/4")
D2	729 mm (28 11/16")	O	388 mm (15 1/4")
E	94 mm (3 13/16") α		90°
F	1067 mm (42") β		115°

J K I

Technical diagram of a mechanical assembly with no visible text or symbols

E B1 A B2 C

Fig. 4

A B1 B2 C E

2134 mm (84") 1297 mm (51 1/16") 729 mm (28 11/16") 102 mm (4")

Spazio residuo dopo

l'installazione:

19 mm (3/4")

POSIZIONE DELLE STAFFE ANTIRIBALTAMENTO

IJK

2134 mm (84") 4 mm (5/32")

2130 mm (83 7 / 8")

REGOLAZIONE MINIMA DELL'ALTEZZA PER IL LIVELLAMENTO

L

Fronte

8 mm (5/16")

Retro

7 mm (1/4")

M N

Fig. 5

Technical diagram of a mechanical bracket with labeled point O (no text or symbols beyond label)

Fig. 6

DIMENSIONE DI MONTAGGIO TRA PORTA DEL MOBILE E DEL FRIGORIFERO M N

min 16 mm (5/8") 83 mm (4")

DIMENSIONE DI MONTAGGIO TRA PORTA DEL MOBILE E DEL FREEZER O

6 mm (1/4")

CAPACITÀ DI CARICO DELLE PORTE (ALIMENTI)

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

Fig. 8 RFD90S5FPNS/24

Fig. 7 RBM90S5FPNS RBM75S5FPNS

CATEGORIA RFD90S5FPNS/24 RBM90S5FPNS RBM75S5FPNS
Porta del frigo	10 kg (22 lb)	25 kg (55 lb)	25 kg (55 lb)
Cassetto del freezer	10 kg (22 lb) 10 kg (22 lb) 10 kg (22 lb)

PANNELLO PORTA PERSONALIZZATO (PER I MODELLI PREDISPOSTI PER IL PANNELLO)

C D y x I B L H A

E E E E

Fig. 9 RBM90S5FPNS RBM75S5FPNS

C D1 D1 y x I B L H A

E G F E F

Fig. 10 RFD90S5FPNS/24

PANNELLO PORTA PERSONALIZZATO (PER I MODELLI PREDISPOSTI PER IL PANNELLO)

3D line drawing of a cabinet with open door and internal compartments (no text or symbols)

Fig. 13

AVVERTENZA

Diagram showing four labeled boxes with checkmarks and a cross, likely indicating approval or rejection status.

Fig. 14

Diagram showing six identical configurations of a lifting device with checkmarks and X marks, each paired with a vertical bar.

Fig. 15

DISIMBALLAGGIO

AVVERTENZA

3D architectural rendering of a rectangular building with vertical supports and horizontal beams (no text or symbols)

Fig. 16

Exploded view diagram of a modular electronic device with internal components and mounting brackets (no text or symbols)

Fig. 17

ATTENZIONE

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

Fig. 20

3D technical illustration of a mechanical device with internal components and mounting base (no text or symbols)

Fig. 21

NOTA

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Fig. 22

Diagram of a refrigerator interior showing door, drawer, and drawer with an inset close-up of the drawer handle (no text or symbols)

Fig. 23

NOTA

Technical line drawing of a structural assembly with mounting base and support components (no text or symbols)

Fig. 24

Technical line drawing of a mechanical assembly with mounting base and structural components (no text or symbols)

Fig. 25

MONTAGGIO DELLE STAFFE ANTIRIBALTAMENTO

AVVERTENZA
    note right of A: "1"
    note left of C: "C"

Fig. 26

• 1Staffa antiribaltamento, a parete

CATEGORIA RFD90S5FPNS/24 RBM90S5FPNS		RBM75S5FPNS
A	914 mm (36")	914 mm (36")	762 mm (30")
B	600 mm (23 5/8")	600 mm (23 5/8")	600 mm (23 5/8")
C	157 mm (6 3/16")	157 mm (6 3/16")	81 mm (3 3/16")

Four black-and-white icons representing different types of tools or devices: a power tool, a pair of gloves, a pair of eyeglasses, and a pair of gloves (no text or symbols)

B A

Fig. 27

A. ∅ 8 mm
B. >62 mm

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Fig. 28

Technical diagram of a mechanical assembly with circular component and mounting base (no visible text or symbols)

Fig. 33

Diagram showing a mechanical device with a side-mounted frame and its side-mounted unit, no text or symbols present.

Fig. 34

NOTA

Technical illustration of a server rack with zoomed-in cable connections (no text or symbols)

Fig. 35

NOTA

Technical diagram showing mechanical assembly with labeled components A, B, C, D and directional arrows indicating motion or flow

Fig. 39

Interior view of a server rack unit with visible internal components and mounting hardware (no text or symbols)

Fig. 40

Technical line drawing of a cabinet or enclosure with internal components and a magnified inset showing internal structure (no text or symbols)

Fig. 41

Technical diagram of a refrigerator with labeled components and an inset view showing internal structure details.

Fig. 43

· 1 Frigorifero · a. 19 mm (3/4")
2 Guarnizione porta b. 24 mm (15/16")
3 Porta c. 32 mm (1 1/4")
4 Pannello laterale del mobile d. 38 mm (1 1/2")

AVVERTENZA

Technical line drawing of a refrigerator internal structure with an inset showing a close-up of the front panel (no text or symbols present)

Fig. 44

NOTA

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

FISSAGGIO DELLA STAFFA SUPERIORE

• Fissare la staffa superiore al mobile con 4 viti (#13).

NOTA

Line drawing of a cabinet interior showing front and rear panels with internal compartments (no text or symbols)

Fig. 46
Fig. 45

Technical diagram of an industrial machine with labeled component A, showing internal components and wiring (no readable text or symbols)

Fig. 47

Technical illustration of an industrial machine with internal components and wiring (no text or symbols visible)

Fig. 48

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 49

Technical line drawing of a refrigerated kitchen unit with ventilation grilles and doorways (no text or symbols)

Fig. 50

NOTA

Technical line drawing of a door panel and shelf assembly (no text or symbols)

Fig. 51

Line drawing of a computer front panel with control buttons and a door (no text or symbols)

Fig. 52

A. 3 mm (1/8")
B. 19 mm (3/4")
C. 24 mm (15/16")

D. 32 mm (1 1/4")
E. 38 mm (1 1/2")
F. 5 mm (3/16")
α 115°

SCELTA DELLO SPESSORE DELLA PORTA

3D mechanical assembly diagram showing a bracket with mounting holes and a small pin (no text or symbols)

Fig. 54

A a. B C D E b. B C D E

Fig. 55

a. Parte anteriore del mobiletto
b. Pannello frontale

A. 3 mm (1/8")
B. 19 mm (3/4")
C. 24 mm (15/16")
D. 32 mm (1 1/4")
E. 38 mm (1 1/2")

RIMOZIONE DELLE COPERTURE DEI MECCANISMI DEL PANNELLO DI RIVESTIMENTO

Technical diagram of a door frame assembly with mounting brackets and a central component (no text or symbols)

Fig. 56

Technical diagram showing a mounted device with mounting brackets and a separate panel assembly (no text or symbols)

Fig. 57

AVVERTENZA

Technical illustration of an open refrigerator with visible door, shelves, and cooling unit (no text or labels)

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Fig. 59

Two technical line drawings of structural components or panels, no text or symbols present

Fig. 61

AVVERTENZA

G C F A B E G C

Diagram showing three mechanical components with downward arrows on a gray surface, no text or symbols present

Fig. 64 RFD90S5FPNS/24

Diagram showing two floating objects on a flat surface with arrows indicating direction (no text or symbols)

Fig. 65 RBM90S5FPNS /RBM75S5FPNS

Simple line drawing of a mechanical setup with a central component and two horizontal supports (no text or symbols)

Fig. 66

AVVERTENZA

Diagram illustrating a device's internal structure with labeled components and an inset showing a display panel.

Fig. 68

AVVERTENZA

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 69

INSTALLAZIONE DEL PANNELLO PORTA PERSONALIZZATO DEL FRIGORIFERO

Simple line drawing of a vertical panel with a diagonal line and a curved arrow indicating rotation (no text or symbols)

Fig. 70

Technical diagram showing three labeled mechanical assembly steps (A, B, C) with directional arrows indicating rotation or movement.

Fig. 71

Technical line drawing of a door frame with two horizontal bars and two circular annotations indicating measurement points (no text or symbols present)

Fig. 72

A B C

Fig. 73

Three tool icons: a target, a wrench, and a hammer, displayed in separate rounded squares (no text or symbols)

Illustration of an open refrigerator with internal compartments and a close-up inset showing the interior mechanism (no text or symbols present)

Fig. 74

AVVERTENZA

Illustration of an open refrigerator with a close-up inset showing the exterior view (no text or symbols)

Fig. 75

Diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

Fig. 76

Diagram of a refrigerator interior showing internal compartments and a close-up view of the door (no text or symbols present)

Fig. 77

Technical illustration of a mechanical assembly with a base plate and support structure, showing alignment and assembly details (no text or symbols)

Fig. 78

Technical diagram illustrating the assembly of a device with labeled components and directional arrows indicating assembly steps.

Fig. 79

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Fig. 80

Technical line drawing of a mechanical component with an inset view showing internal components (no text or symbols)

Fig. 81

Technical line drawing of a mechanical assembly with an inset magnified view (no text or symbols)

Fig. 82

Technical line drawing of a mechanical assembly or structural component (no visible text or symbols)

Fig. 83

Technical illustration of a server rack with internal components and a close-up view of the interior panel (no text or symbols)

Fig. 84

Technical illustration of a mechanical assembly with two components, one showing internal slots and the other a flat plate (no text or symbols)

Fig. 85

Technical line drawing of a mechanical part with a base, side profile, and a labeled component 'a' (no text or symbols beyond labels)

Fig. 86

Technical line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

Fig. 87

Diagram of an open refrigerator showing internal compartments and a close-up of the door handle (no text or labels present)

Fig. 88

AVVERTENZA

Diagram of an open refrigerator showing internal compartments and a close-up inset of the door handle (no text or labels)

Diagram of a rectangular device with three horizontal bars inside, mounted on a frame, with two vertical supports extending outward (no text or symbols)

Fig. 90
Fig. 89

Diagram of a device with a rectangular component and two upward arrows indicating motion or assembly (no text or symbols present)

Fig. 91

Diagram of a monitor with a separate panel attachment, showing no text or symbols

Fig. 92

Illustration of an open refrigerator with internal compartments and exterior door, shown with close-up details (no text or symbols)

Fig. 93 RBM90S5FPNS /RBM75S5FPNS

Technical illustration of an open refrigerator with internal compartments and exterior door, shown with close-up details (no text or symbols)

Fig. 94 RFD90S5FPNS/24

Diagram showing a server rack with internal components and a magnified view of the rack structure (no text or symbols)

Fig. 95

Diagram of a rectangular panel with internal horizontal lines and directional arrows indicating force or movement (no text or symbols)

Fig. 96

NOTA

Diagram of an open refrigerator showing internal compartments and a close-up view of the interior panel (no text or labels)

Fig. 97

Diagram of an open refrigerator showing internal shelves and door frame (no text or labels)

Fig. 98

Diagram of a refrigerator interior showing internal compartments and ventilation duct (no text or labels)

Fig. 99

Diagram of an open refrigerator showing internal compartments and a close-up view of the door (no text or labels present)

Fig. 100

Diagram showing a device interior with labeled parts, before and after transformation (no text or symbols present)

Fig. 101

RIMONTAGGIO DELLE PORTE.

Technical line drawing of a cabinet or shelf assembly with metal frame and support brackets (no text or symbols)

Fig. 102

DIMENSIONI DI INTAGLIO DEL MOBILETTO

A B C D E O

Fig. 104

CONFIGURAZIONE A B C D E
75+75 cm (30"+30")	485 mm (19 1/8")	50,8 mm (2")	280 mm (11")	127 mm (5")	102 mm (4")
75+90 cm (30"+36")	637 mm (25 1/16")	50,8 mm (2")	280 mm (11")	127 mm (5")	102 mm (4")
90+90 cm (36"+36")	637 mm (25 1/16")	50,8 mm (2")	280 mm (11")	127 mm (5")	102 mm (4")

E O E A C B C D

Fig. 105

Diagram showing a rectangular object with five numbered labeled components and directional arrows indicating movement or flow.

Fig. 106

Technical diagram showing a metal bracket assembly with screw fasteners and mounting holes, no text or symbols present

Fig. 108

Technical diagram of an appliance showing internal components and a close-up view of the exterior panel (no text or symbols visible)

Fig. 109

a. Schiuma isolante

A. 60 ~mm
B. 55 mm

NOTA

Technical diagram showing structural connection with labeled components and directional arrows indicating assembly or inspection.

Fig. 110

Technical diagram showing a mechanical assembly with a close-up view of a component detail (no text or symbols present)

Fig. 111

Technical diagram showing internal components and a close-up of a device with directional arrows indicating movement or force (no text or symbols present)

Fig. 112

Technical line drawing of an internal refrigerator unit with open doors and ventilation slots (no text or labels)

Fig. 113

Technical diagram showing a 3D mechanical setup with labeled components A, B, C, D and directional arrows indicating motion or force vectors.

Fig. 116

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or labels)

Fig. 117

INSTALLAZIONE DELLE STAFFE DI COLLEGAMENTO SULLA PARETE SUPERIORE DEL FRIGORIFERO

Technical line drawing of an open refrigerator with internal compartments and a hanging tool (no text or symbols)

Fig. 118

INSTALLAZIONE DELLE FINITURE LATERALI E SUPERIORI

Line drawing of a refrigerator interior showing door, shelves, and shelf (no text or symbols)

Fig. 119

Diagram of a refrigerator interior showing front and side views with no text or symbols

Fig. 120

Technical line drawing of a refrigerator interior showing front and rear panels with no text or symbols

Fig. 121

Technical line drawing of a cabinet or enclosure with structural components and mounting brackets (no text or symbols)

Fig. 122

Line drawing of a two-decker cabinet with two doors and two handles (no text or symbols)

Fig. 123

DU BUREAU DE NOTRE PRÉSIDENT

DIMENSIONS DU PRODUIT 162

CAPACITÉ DE CHARGEMENT DES PORTES DU RÉFRIGÉRATEUR 167

PANNEAU DE PORTE PERSONNALISÉ (POUR LES MODÈLES AVEC PANNEAU PERSONNALISÉ) 168

EXIGENCES ÉLECTRIQUES 170

EXIGENCES EN MATIÈRE DE PLOMBERIE 172

INSTALLATION 174

LISTE DES OUTILS 175

ALTERNATIVES POUR L'INSTALLATION 175

DÉBALLAGE 176

RETRAIT DES CONNECTEURS SUR LA PAROI LATÉRALE DE L'UNITÉ 177

RETRAIT DU MATÉRIEL D'INSTALLATION 178

RETRAIT DU TIROIR DU CONGÉLATEUR 180

RETRAIT DE LA PORTE DU CONGÉLATEUR 180

A1 A1 B D1 C D2 E A G F H α I L L M β N

Fig. 3

CATÉGORIE	RFD90S5FPNS/24	CATÉGORIE	RFD90S5FPNS/24
A	907 mm (13 11/16")	G	555 mm (21 7/8")
A1	451 mm (17 3/4")	H	56 mm (2 3/16")
B	sans panneau : 592 mm (23 5/ 16"),avec panneau : 611 mm (24 1/ 16")	I	1 368 mm (53 7/8")
C	3 mm (1/8 ")	L	230 mm (9 1/16")Distance minimum jusqu'au mur
D1	1 297 mm (51 1/16")	N	1 289 mm (50 3/4")
D2	729 mm (28 11/16")	O	388 mm (15 1/4")
E	94 mm (3 13/16") α		90°
F	1 067 mm (42") β		115°

J K I

Technical diagram of a mechanical assembly with no visible text or symbols

E B1 A B2 C

Fig. 4

A B1 B2 C E

2 134 mm (84") 1 297 mm (51 1/16") 729 mm (28 11/16") 102 mm (4")

Technical diagram of a mechanical bracket with labeled point O (no text or symbols beyond label)

Fig. 6

DIMENSION D'ASSEMBLAGE ENTRE LE BOIS ETPORTE DU RÉFRIGÉRATEUR
M	N

min 16 mm (5/8") 83 mm (4")

LA DIMENSION D'ASSEMBLAGE ENTRE LE PANNEAU ET LA PORTE DU CONGÉLATEUR

O

6 mm (1/4")

CAPACITÉ DE CHARGEMENT DES PORTES DU RÉFRIGÉRATEUR

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

Fig. 8 RFD90S5FPNS/24

Fig. 7 RBM90S5FPNS RBM75S5FPNS

CATÉGORIE	RFD90S5FPNS/24	RBM90S5FPNS	RBM75S5FPNS
Porte du réfrigérateur	10 kg (22 lbs)	25 kg (55 lbs)	25 kg (55 lbs)
Tiroir du congélateur	10 kg (22 lbs)	10 kg (22 lbs)	10 kg (22 lbs)

PANNEAU DE PORTE PERSONNALISÉ (POUR LES MODÈLES AVEC PANNEAU PERSONNALISÉ)

C D y x I B L H A

E E E E

Fig. 9 RBM90S5FPNS RBM75S5FPNS

C D1 D1 y x I B L H A

E G F E F

Fig. 10 RFD90S5FPNS/24

PANNEAU DE PORTE PERSONNALISÉ (POUR LES MODÈLES AVEC PANNEAU PERSONNALISÉ)

3D line drawing of a cabinet with open door and internal compartments (no text or symbols)

Fig. 13

MISE EN GARDE

Four hand-drawn signs with checkmarks and a lock, likely indicating approval or rejection actions.

Fig. 14

Diagram showing six identical configurations of a lifting device with checkmarks and X marks, each paired with a vertical bar.

Fig. 15

DÉBALLAGE

MISE EN GARDE

3D architectural rendering of a rectangular building with vertical supports and horizontal beams (no text or symbols)

Fig. 16

Exploded view diagram of a server rack unit with internal components and mounting brackets (no text or labels)

Fig. 17

ATTENTION !

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

Fig. 20

3D technical illustration of a mechanical device with internal components and mounting base (no text or symbols)

Fig. 21

NOTE

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Fig. 22

Diagram of a refrigerator interior showing internal components and a magnified view of the refrigerator handle (no text or symbols present)

Fig. 23

NOTE

Technical line drawing of a structural assembly with mounting base and panel (no text or symbols)

Fig. 24

Technical diagram of a mechanical assembly with mounting base and structural components (no text or symbols)

Fig. 25

MONTAGE DES SUPPORTS ANTI- BASCULEMENT

MISE EN GARDE

Three black-and-white icons: a hammer, a rifle, and a glove, arranged horizontally within rounded square frames (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Fig. 28

Technical diagram of a mechanical assembly with circular component and mounting base (no visible text or symbols)

Fig. 33

Diagram showing a mechanical device with a side-mounted frame and its internal structure, no text or symbols present.

Fig. 34

NOTE

Technical diagram of an electronic device showing internal components and a close-up view of a cable or connector (no text or symbols present)

Fig. 35

NOTE

Technical diagram of a mechanical assembly with labeled components A, B, C, D and directional arrows indicating motion or flow.

Fig. 39

Interior view of a server rack unit with visible internal components and mounting hardware (no text or symbols)

Fig. 40

Technical line drawing of a cabinet with internal components and a magnified inset showing cross-section details (no text or symbols)

Fig. 41

Technical diagram of a refrigerator with labeled components and an inset view showing internal structure details.

Fig. 43

Technical line drawing of a refrigerator internal structure with an inset showing a close-up of the front panel (no text or symbols present)

Fig. 44

NOTE

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

SÉCURISATION DU SUPPORT SUPÉRIEUR

Line drawing of a refrigerator interior showing front and rear compartments with no text or symbols

Fig. 46
Fig. 45

INSTALLATION DE L'ARMOIRE INFÉRIEURE

Technical diagram of an industrial machine with labeled component A, showing internal components and wiring (no readable text or symbols)

Fig. 47

Technical line drawing of an industrial machine or electrical enclosure with internal components and mounting brackets (no visible text or symbols)

Fig. 48

FIXATION DU COMPOSANT SUPÉRIEUR DE L'OUVERTURE DE VENTILATION

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 49

Technical line drawing of a refrigerated kitchen unit with ventilation grilles and door frame (no text or symbols)

Fig. 50

NOTE

Technical line drawing of a door panel and refrigerator interior (no text or symbols)

Fig. 51

Line drawing of a computer front panel with ventilation slots and a control panel (no text or symbols)

Fig. 52

INSTALLATION ET PRÉPARATION DES PANNEAUX DE RECOUVREMENT

Mechanical assembly diagram showing a bracket with mounting holes and a pin (no text or symbols)

Fig. 54

A a. B C D E b. B C D E

Fig. 55

a. Avant de l'armoire
b. Panneau avant
A. 3 mm (1/8")
B. 19 mm (3/4")
C. 24 mm (15/16")
D. 32 mm (1 1/4")
E. 38 mm (1 1/2")

RETRAIT DES COUVERCLES DU MÉCANISME DES PANNEAUX DE REVÊTEMENT

Technical diagram of a door frame assembly with mounting brackets and a central component (no text or symbols)

Technical diagram showing a mechanical assembly with mounting brackets and a bracket, no text or symbols present

Fig. 57
Fig. 56

MISE EN GARDE

Illustration of an open refrigerator with visible door, shelves, and cooling unit (no text or labels)

Fig. 58

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Fig. 59

Two technical line drawings of structural components or supports, shown in isometric view with no text or symbols.

Fig. 61

MISE EN GARDE

G C F A B E G C

Diagram showing three mechanical components with downward arrows indicating motion or force, mounted on a flat surface (no text or symbols present)

Fig. 64 RFD90S5FPNS/24

Diagram showing two floating objects on a flat surface with directional arrows, no text or symbols present

Fig. 65 RBM90S5FPNS / RBM75S5FPNS

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 66

MISE EN GARDE

Diagram illustrating a device's internal structure with labeled components and an inset showing a display panel.

Fig. 68

MISE EN GARDE

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 69

INSTALLATION DU PANNEAU DE PORTE PERSONNALISÉ DU RÉFRIGÉRATEUR

Simple line drawing of a vertical object with an arrow indicating rotation or motion, no text or symbols present.

Fig. 70

ALIGNEMENT DE LA PARTIE SUPÉRIEURE ALIGNEMENT DE LA PARTIE INFÉRIEURE DU DU PANNEAU DE PORTE PERSONNALISÉ À PANNEAU DE PORTE PERSONNALISÉ À L'AIDE DE BOULONS L'AIDE DE BOULONS.

Technical diagram showing three mechanical assembly states (A, B, C) with directional arrows indicating rotation or movement in a component.

Fig. 71

Technical line drawing of a door frame with two horizontal bars and two circular annotations indicating measurement points (no text or symbols present)

Fig. 72

A B C

Fig. 73

Three tool icons: a pencil, a wrench, and a hammer, displayed in separate rounded squares (no text or symbols)

Illustration of an open refrigerator with internal compartments and two inset diagrams showing mechanical components (no text or symbols)

Fig. 74

MISE EN GARDE

Illustration of an open refrigerator with a close-up inset showing its exterior shelf detail (no text or symbols)

Fig. 75

Diagram of an open refrigerator showing internal compartments and doorways, with arrows indicating movement (no text or symbols present)

Fig. 76

Diagram of a refrigerator interior showing internal compartments and a close-up view of the door (no text or symbols present)

Fig. 77

Technical illustration of a mechanical assembly with a base plate and support structure, showing internal components and motion indicators (no text or symbols)

Fig. 78

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating movement or assembly steps.

Fig. 79

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Fig. 80

Technical line drawing of a mechanical component with an inset view showing internal components (no text or symbols)

Fig. 81

Technical line drawing of a mechanical assembly with a magnified inset showing a tool interacting with a component (no text or symbols present)

Fig. 82

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

Fig. 83

Technical illustration of a refrigerator interior showing internal components and a close-up view of the door (no text or symbols present)

Fig. 84

3D mechanical assembly diagram showing two components with mounting holes and a directional arrow (no text or symbols)

Fig. 85

TERMINER L'INSTALLATION

Technical line drawing of a wallet with a side panel and a separate view labeled 'a' (no text or symbols on the diagram itself)

Fig. 86

Technical line drawing of a double-door refrigerator with ventilation slots and doorways (no text or symbols)

Fig. 87

RÉGLAGE DE LA TENSION DU RESSORT DES CHARNIÈRES

Diagram of an open refrigerator showing internal shelves and door, with a magnified inset highlighting the interior structure (no text or symbols present)

Fig. 88

MISE EN GARDE

Diagram of an open refrigerator showing internal compartments and a close-up view of the door (no text or labels present)

Technical line drawing of a door frame with two vertical supports and horizontal bars, showing internal structure (no text or symbols)

Fig. 90
Fig. 89

Technical line drawing of a device with an open lid and a rectangular component, showing alignment arrows (no text or symbols)

Fig. 91

Diagram of a monitor with a cable attachment and three arrows indicating assembly or insertion (no text or symbols present)

Fig. 92

Illustration of an open refrigerator with internal compartments and exterior door, shown with close-up details (no text or symbols)

Fig. 93 RBM90S5FPNS / RBM75S5FPNS

Technical illustration of an open refrigerator with internal compartments and exterior door, shown with close-up details (no text or symbols)

Fig. 94 RFD90S5FPNS/24

Diagram showing a vehicle inside a server rack with an inset close-up of the front panel (no text or symbols present)

Fig. 95

Diagram of a rectangular panel with internal horizontal lines and directional arrows indicating force or movement (no text or symbols)

Fig. 96

NOTE

Diagram of an open refrigerator showing internal compartments and a close-up view of the interior panel (no text or labels)

Fig. 97

Technical line drawing of an open refrigerator with visible door, shelves, and door joints (no text or symbols)

Fig. 98

3D line drawing of a refrigerator interior showing internal shelves and doorways (no text or symbols)

Fig. 99

Diagram of an open refrigerator with a close-up inset showing internal components (no text or labels)

Fig. 100

CHANGEMENT DE L'ORIENTATION DE LA PARTIE SUPÉRIEURE DE L'ÉVENT D'AÉRATION

Diagram showing a device's internal structure before and after assembly, with no visible text or symbols.

Fig. 101

RÉINSTALLATION DE LA PORTE

Technical line drawing of a cabinet or shelf with internal components and directional arrows (no text or symbols)

Fig. 102

DIMENSIONS DE DÉCOUPE DE L'ARMOIRE

Diagram showing a rectangular object with five numbered labeled components and directional arrows indicating movement or alignment.

Fig. 106

NON	NOM DE LA PIÈCE SPÉCIFICATIONS		QTÉ
1 Mousse isolante		Mousse, grise,T3.0*400*1750	1
2	Support de connexion	T2.0, revêtement Cr+zn	2
3 Tête de rondelle Truss M4*12 16
4 Attache		métallique 3
5	Garniture centrale	Extrusion en PVC, L = 1 876 mm	1

INSTALLATION DE LA MOUSSE ISOLANTE

Technical diagram showing a metal bracket assembly with screws and a door handle, no text or symbols present

Fig. 108

Technical diagram of an appliance showing internal components and a close-up view of the exterior panel (no text or symbols visible)

Fig. 109

Technical diagram showing structural connection with labeled components and directional arrows indicating assembly or inspection.

Fig. 110

Exterior view of a mechanical or electrical component with an inset close-up showing a detail (no visible text or symbols)

Fig. 111

Technical diagram showing internal components and a close-up of a device with mounting holes (no text or symbols visible)

Fig. 112

Technical line drawing of an internal refrigerator unit with open doors and internal compartments (no text or symbols)

Fig. 113

Technical diagram showing a 3D mechanical setup with labeled components A, B, C, D and directional arrows indicating motion or assembly.

Fig. 116

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or labels)

Fig. 117

INSTALLATION DES SUPPORTS DE CONNEXION SUR LA PAROI SUPÉRIEURE RÉFRIGÉRATEUR

Technical line drawing of an open refrigerator with internal components and a screwdriver (no text or symbols)

Fig. 118

INSTALLATION DES GARNITURES DUATÉRALES ET SUPÉRIEURES

Technical line drawing of a refrigerator interior showing door, shelves, and shelf (no text or symbols)

Fig. 119

Diagram of a refrigerator interior showing front and side views with no text or symbols

Fig. 120

Technical line drawing of a refrigerator interior showing front and rear panels with no text or symbols

Fig. 121

Technical line drawing of a cabinet or enclosure with structural details and mounting brackets (no text or symbols)

Fig. 122

Line drawing of a two-decker cabinet with two doors and two handles (no text or symbols)

Fig. 123

BERICHT VAN ONZE VOORZITTER

A1 A1 B D1 C D2 E A G F H α I L L M β N

Afb. 3

CATEGORIE RFD90S5FPNS/24 CATEGORIE RFD90S5FPNS/24
A	907 mm (13 11/16")	G	555 mm (21 7/8")
A1	451 mm (17 3/4")	H	56 mm (2 3/16")
B	zonder paneel: 592 mm(23 5/ 16"),met paneel: 611 mm (24 1/16")	I	1368 mm (53 7/8")
C	3 mm (1/8 ")	L	230 mm (9 1/16")Minimale afstand tot muur
D1	1297 mm (51 1/16")	N	1289 mm (50 3/4")
D2	729 mm (28 11/16")	O	388 mm (15 1/4")
E	94 mm (3 13/16") α		90°
F	1067 mm (42") β		115°

J K I

Technical diagram of a mechanical assembly with no visible text or symbols

E B1 A B2 C

Afb. 4

A B1 B2 C E

2134 mm (84") 1297 mm (51 1/16") 729 mm (28 11/16") 102 mm (4")

Technical diagram of a mechanical bracket with labeled point O (no text or symbols beyond label)

Afb. 6

MONTAGEMAAT TUSSEN HOUT EN KOELKASTDEUR M N

min. 16 mm (5/8") 83 mm (4")

MONTAGEMAAT TUSSEN HOUTEN PANEEL EN VRIEZERDEUR O

6 mm (1/4")

DRAAGVERMOGEN VAN DEUREN VOOR VOEDSEL

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

Afb. 8 RFD90S5FPNS/24

Afb. 7 RBM90S5FPNS RBM75S5FPNS

CATEGORIE RFD90S5FPNS/24 RBM90S5FPNS RBM75S5FPNS
Koelkastdeur	10 kg (22 lbs) 25 kg (55 lbs) 25 kg (55 lbs)
Vrieslade	10 kg (22 lbs) 10 kg (22 lbs) 10 kg (22 lbs)

AANGEPAST DEURPANEEL (VOOR MODELLEN DIE MET PANELEN KUNNEN WORDEN BEKLEED)

C D y x I B L H A

E E E E

Afb. 9 RBM90S5FPNS RBM75S5FPNS

C D1 D1 y x I B L H A

E G F E F

Afb. 10 RFD90S5FPNS/24

AANGEPAST DEURPANEEL (VOOR MODELLEN DIE MET PANELEN KUNNEN WORDEN BEKLEED)

3D line drawing of a cabinet with open door and internal compartments (no text or symbols)

Afb. 13

WAARSCHUWING

Diagram showing four labeled boxes with checkmarks and a cross, likely indicating approval or rejection status.

Afb. 14

Diagram showing six identical configurations of a door frame with checkmarks and X marks, likely for safety or electrical installation instructions.

Afb. 15

UITPAKKEN

WAARSCHUWING

3D architectural rendering of a rectangular building with vertical supports and horizontal beams (no text or symbols)

Afb. 16

Exploded view diagram of a modular electronic device with internal components and mounting brackets (no text or symbols)

Afb. 17

OPGELET

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

Afb. 20

3D technical illustration of a mechanical device with internal components and mounting base (no text or symbols)

Afb. 21

OPMERKING

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Afb. 22

Diagram of a refrigerator interior showing door, drawer, and drawer with an inset close-up of the drawer handle (no text or symbols)

Afb. 23

OPMERKING

Technical line drawing of a structural assembly with mounting base and support components (no text or symbols)

Afb. 24

Technical diagram of a mechanical assembly with mounting base and structural components (no text or symbols)

Afb. 25

MONTAGE VAN MUURBEUGELS

WAARSCHUWING

Five black-and-white icons representing different types of tools or devices: a tool, a pen, a pair of eyeglasses, and a glove (no text or symbols)

B A

Afb. 27

A. ∅ 8 mm
B. >62 ~mm

Three black-and-white icons: a hammer, a nail, and a glove, arranged horizontally within rounded squares (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Afb. 28

Technical diagram of a mechanical assembly with circular component and mounting base (no visible text or symbols)

Afb. 33

Diagram showing a mechanical device with a lever mechanism and its side view of a rectangular enclosure (no text or symbols present)

Afb. 34

OPMERKING

Technical illustration of a server rack with zoomed-in views showing internal components (no text or symbols)

Afb. 35

OPMERKING

Afb. 38
A 3 mm (1/8")
A 102 mm (4")
B 3 mm (1/8")
C 3.5 mm (1/8")
D 5 mm (3/16")

Technical diagram showing mechanical assembly with labeled components A, B, C, D and directional arrows indicating motion or flow.

Afb. 39

• A/D -Draai de stelstang rechtsom om de voorkant te heffen
• B/C -Draai de stelstang rechtsom om de achterkant te heffen

Interior view of a server rack unit with visible internal components and no text or symbols

Afb. 40

Technical line drawing of a cabinet with an inset showing internal components (no text or symbols)

Afb. 41

Technical line drawing of a refrigerator internal structure with an inset showing a close-up of the door panel (no text or symbols present)

Afb. 44

OPMERKING

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

Afb. 45

BEVESTIGING VAN DE BOVENSTE BEUGEL

Line drawing of a refrigerator interior showing front and rear compartments (no text or symbols)

Afb. 46

DE ONDERKAST INSTALLEREN

Mechanical assembly diagram showing internal components and labeled parts (A), no readable text or symbols present.

Afb. 47

Technical line drawing of an industrial machine with internal components and mounting brackets (no text or symbols)

Afb. 48

BEVESTIGEN VAN DE COMPONENT VAN BOVENSTE VENTILATIEOPENING

Technical line drawing of a mechanical assembly with no visible text or symbols

Afb. 49

Technical line drawing of a stainless steel kitchen or oven unit with ventilation grilles and a door opening (no text or symbols)

Afb. 50

OPMERKING

Technical line drawing of a door panel and shelf rack assembly (no text or symbols)

Afb. 51

Line drawing of a front view of a computer oven with ventilation slots and a door (no text or symbols)

Afb. 52

INSTALLATIE EN VOORBEREIDING BEDEKKINGSPANEEEL

A. 3 mm (1/8")
B. 19 mm (3/4")
C. 24 mm (15/16")

D. 32 mm (1 1/4")
E. 38 mm (1 1/2")
F. 5 mm (3/16")

α 115°

DE DEURDIKTE KIEZEN

3D mechanical assembly diagram showing a bracket with mounting holes and a small pin (no text or symbols)

Afb. 54

A a. B C D E b. B C D E

Afb. 55

a. Voorzijde kast
• b. Voorpaneel
A. 3 mm (1/8")
B. 19 mm (3/4")
C. 24 mm (15/16")
D. 32 mm (1 1/4")
E. 38 mm (1 1/2")

DE BEDEKKINGEN VAN DE MECHANISMEN VAN BEDEKKINGSPANELEN VERWIJDEREN

Technical diagram of a door frame assembly with mounting brackets and a central component (no text or symbols)

Technical diagram showing a mounted device with mounting brackets and a separate bracket, no text or symbols present.

Afb. 57
Afb. 56

WAARSCHUWING

Technical illustration of an open refrigerator with visible door, shelves, and cooling unit (no text or labels)

Afb. 58

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Afb. 59

Two technical line drawings of structural components or supports, shown in isometric view with no text or symbols.

Afb. 61

WAARSCHUWING

G C F A B E G C

G C G F F D A A H B a b E E G C G

Afb. 63 RFD90S5FPNS/24
a. rechter deur

Afb. 62 RBM90S5FPNS RBM75S5FPNS b. linker deur

CATEGORIE RBM90S5FPNS RBM75S5FPNS REF36FDBZPNV/24
A	908 mm (35 3/4") 756 mm (29 3/4") 451 mm (17 3/4")
B	1297 mm (51 1/16")	1297 mm (51 1/16")	1297 mm (51 1/16")
C	888 mm (34 15/16") 736 mm (29") 431 mm (17")
D	--	637 mm (25 1/16")
E	87 mm (3 7/16")	87 mm (3 7/16")	24,2 mm (15/16")
F	98 mm (3 7/8")	98 mm (3 7/8")	108 mm (4 1/4")
G	10 mm (3/8")	10 mm (3/8")	10 mm (3/8")
H	--	14 mm (9/16")

WAARSCHUWING

Diagram showing three mechanical components with downward arrows indicating motion or force, mounted on a flat surface (no text or symbols present)

Afb. 64 RFD90S5FPNS/24

Diagram showing two floating objects on a flat surface with directional arrows, no text or symbols present

Afb. 65 RBM90S5FPNS / RBM75S5FPNS

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Afb. 66

WAARSCHUWING

Diagram illustrating a process with arrows indicating flow and a magnified inset showing a device or component layout.

Afb. 68

WAARSCHUWING

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Afb. 69

INSTALLEREN VAN HETAANGEPASTE DEURPANEEL VAN DE KOELKAST

Simple line drawing of a vertical structure with an arrow indicating rotation or motion, no text or symbols present.

Afb. 70

HET BOVENSTE DEEL VAN HET AANGEPASTE DEURPANEEL MET BOUTEN UITLIJNEN

Technical diagram showing three mechanical assembly states (A, B, C) with directional arrows indicating rotation or movement in a component.

Afb. 71

Technical line drawing of a door frame with two horizontal bars and two circular annotations indicating measurement points (no text or symbols present)

Afb. 72

A B C

Afb. 73

Three tool icons: a pencil, a wrench, and a hammer, displayed in separate rounded squares (no text or symbols)

Illustration of an open refrigerator with internal compartments and a close-up inset showing the mechanism (no text or symbols present)

Afb. 74

WAARSCHUWING

Illustration of an open refrigerator with a close-up inset showing the exterior view (no text or symbols)

Afb. 75

- Bevestig en schroef de bovenste/onderste sierafdekking vast.

Exploded view diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

Afb. 76

Diagram of a refrigerator interior showing internal compartments and a close-up view of the door (no text or symbols present)

Afb. 77

Technical illustration of a mechanical assembly with a base plate and support structure, showing internal components and motion indicators (no text or symbols)

Afb. 78

Technical diagram showing assembly steps of a door panel with labeled components and directional arrows indicating movement.

Afb. 79

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Afb. 80

Klem de afdekking vast op de meubeldeurbeugel (item #14).

Technical line drawing of a mechanical component with an inset view showing internal components (no text or symbols)

Afb. 81

Interior view of a kitchen appliance with a close-up inset showing a hand near a surface (no text or symbols visible)

Afb. 82

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Afb. 83

3D diagram of a structural assembly with two parallel plates and internal channels, one showing an arrow indicating direction (no text or symbols present)

Afb. 85

Technical illustration of a refrigerator interior showing internal compartments and doorways, with an inset close-up highlighting the exterior panel (no text or symbols present)

Afb. 84

DE INSTALLATIE VOLTOOEN

Diagram showing a wallet with a separate card and a separate bracket, labeled 'a' (no text or symbols on the main diagram)

Afb. 86

Technical line drawing of a refrigerator with door, vent, and door panel (no text or symbols)

Afb. 87

DE VEERSPANNING VAN DE SCHARNIEREN AFSTELLEN

Diagram of an open refrigerator showing internal compartments and a close-up view of the door (no text or labels present)

Afb. 88

WAARSCHUWING

Diagram of an open refrigerator showing internal compartments and a close-up of the door handle (no text or labels present)

Afb. 89

Technical line drawing of a door frame with two vertical supports and horizontal bars, showing internal structure (no text or symbols)

Afb. 90

Technical line drawing of a door frame with an attached rectangular component and directional arrows indicating motion (no text or symbols)

Afb. 91

Diagram of a monitor with a separate panel attachment, showing no text or symbols

Afb. 92

Illustration of an open refrigerator with internal compartments and exterior door, shown with close-up details (no text or symbols)

Afb. 93 RBM90S5FPNS / RBM75S5FPNS

Technical illustration of an open refrigerator with internal compartments and mounting hardware (no text or symbols)

Afb. 94 RFD90S5FPNS/24

Technical diagram showing a device with labeled components and an inset view of a mechanical assembly with a moving component.

Afb. 95

Diagram of a rectangular panel with internal horizontal lines and directional arrows indicating force or movement (no text or symbols)

Afb. 96

OPMERKING

Diagram of an open refrigerator showing internal compartments and a close-up view of the door (no text or labels present)

Afb. 97

Diagram of an open refrigerator showing internal shelves and door frame (no text or labels)

Afb. 98

Technical line drawing of a refrigerator interior showing internal shelves and ventilation duct (no text or symbols)

Afb. 99

Diagram of an open refrigerator showing internal shelves and doorways, with a magnified inset highlighting the interior portion (no text or symbols present)

Afb. 100

OMKEREN RICHTING BOVENSTE DEEL LUCHTROOSTER

Diagram showing a device interior with labeled parts, before and after transformation (no text or symbols present)

Afb. 101

DE DEUR TERUGPLAATSEN

Technical line drawing of a cabinet or shelf assembly with internal components and directional arrows (no text or symbols)

Afb. 102

AFMETINGEN UITSPARING IN KAST

E O E A C B C D

Afb. 105

CONFIGURATIE A B C D E

75+75 cm (30"+30") 508 mm (20") 50,8 mm (2") 254 mm (10") 21 mm (7/8") 102 mm (4")

75+90 cm (30"+36") 508 mm (20") 50,8 mm (2") 254 mm (10") 21 mm (7/8") 102 mm (4")

90+90 cm (36"+36") 660 mm (26") 50,8 mm (2") 254 mm (10") 21 mm (7/8") 102 mm (4")

Diagram showing a rectangular object with five numbered circular elements and directional arrows, possibly illustrating a geometric or structural concept.

Afb. 106

NR. ONDERDEELNAAM SPEC AANTAL

1 Isolatieschuim	Spons, grijs, T3.0*400*1750	1
2	Verbindingsbeugel T2.0, Cr+zn-coating	2
3	Laagbolkop M4*12	16
4	Bevestiging metaal 3
5	Centrale afwerking PVC-extrusie L = 1876 mm	1

INSTALLEREN VAN HET ISOLATIESCHUIM

Technical diagram showing a metal bracket assembly with screws and a door handle, no text or symbols present

Afb. 108

Technical diagram of an appliance showing internal components and a close-up view of the exterior panel (no text or symbols visible)

Afb. 109

Breng alle stroomaansluitingen tot stand.

Technical diagram showing structural connection with labeled components and directional arrows indicating assembly or inspection.

Afb. 110

Exterior view of a mechanical or electrical component with an inset close-up showing a mounting bracket detail (no text or symbols visible)

Afb. 111

Technical diagram showing internal components and a close-up of a device with directional arrows (no text or symbols present)

Afb. 112

Technical line drawing of an internal refrigerator unit with open doors and internal compartments (no text or symbols)

Afb. 113

Afb. 114

DE KOELKASTEN IN DE UITSPARING VOOR DE KAST PLAATSEN

A B C ! Rd1 Rd2

Afb. 115

A. Uitsparing kast
B. Koelkasten
C. 3 mm (1/8")

DE KOELKASTEN WATERPAS PLAATSEN

Technical diagram showing a 3D mechanical setup with labeled components A, B, C and directional arrows indicating motion or assembly.

Afb. 116

Technical line drawing of an open refrigerator with internal compartments and ventilation system (no text or labels)

Afb. 117

DE VERBINDINGSBEUGELS OP DE BOVENZIJDE VAN DE KOELKAST INSTALLEREN

Technical line drawing of an open refrigerator interior with handle, drawer, and door (no text or symbols)

Afb. 118

DE BOVENSTE EN ZIJAFWERKINGEN INSTALLEREN

Line drawing of a refrigerator interior showing door, shelves, and shelf (no text or symbols)

Afb. 119

Diagram of a refrigerator interior showing front and side views with no text or symbols

Afb. 120

Technical line drawing of a refrigerator interior showing front and rear compartments with no text or symbols

Afb. 121

Technical line drawing of a cabinet or enclosure with structural components and mounting brackets (no text or symbols)

Afb. 122

Line drawing of a two-decker cabinet with two doors and two handles (no text or symbols)

Afb. 123

FRÅN CHEFENS SKRIVBORD

AVLÄGSNA OCH FÖRBEREDA INNERDÖRREN 369

BYTA UT GÅNGJÄRNEN 370

RIKTNINGSÄNDRING AV LUFTVENTILATIONENS ÖVRE DEL 371

INSTALLERA DÖRREN PÅ NYTT 371

INSTALLATION KONFIGURATION SIDA VID SIDA 372

SKÅPETS UTTAGSMÄTT 372

PLACERING AV DEN ELEKTRISKA LEDNINGSDRAGNINGEN 373

PLACERING AV VATTENSYSTEMET 374

INSTALLERA ISOLERINGSSKUMMET 376

INSTALLERA FÄSTDONEN OCH ANSLUTNINGSFÄSTENA 376

FIXERA CENTRALTRIMNINGEN MELLAN KYLSKÅPEN 378

POSITIONERA KYLSKÄPEN I SKÄPURTAGET 378

AVVÄGA KYLSKÅPEN 379

INSTALLERA ANSLUTNINGSFÄSTENA PÅ KYLSKÄPETS SIDOVÄGGAR 379

INSTALLERA ANSLUTNINGSFÄSTENA PÅ KYLSKÄPETS ÖVRE VÄGG 380

INSTALLERA DE LATERALA OCH ÖVRE TRIMNINGARNA 380

INFORMATION OM HANDBOKEN

A1 A1 B D1 C D2 E A G F H α I L L M β N

Fig. 3

KATEGORI RFD90S5FPNS/24 KATEGORI RFD90S5FPNS/24
A	907 mm (13 11/16")	G	555 mm (21 7/8")
A1	451 mm (17 3/4")	H	56 mm (2 3/16")
B	utan panel: 592 mm (23 5/16"),med panel: 611 mm (24 1/16")	I	1368 mm (53 7/8")
C	3 mm (1/8 ")	L	230 mm (9 1/16")Minsta avstånd till vägg
D1	1297 mm (51 1/16")	N	1289 mm (50 3/4")
D2	729 mm (28 11/16")	O	388 mm (15 1/4")
E	94 mm (3 13/16") α		90°
F	1067 mm (42") β		115°

J K I

Technical diagram of a mechanical assembly with labeled dimension L (no text or symbols beyond basic geometry)

E B1 A B2 C

Fig. 4

A B1 B2 C E

2134 mm (84") 1297 mm (51 1/16") 729 mm (28 11/16") 102 mm (4")

Återstäende utrymme efter installation:

19 mm (3/4")

PLATS FÖR TIPPSKYDDSFÄSTE

IJK

2134 mm (84") 4 mm (5/32")

2130 mm (83 7 / 8")

MINSTA HÖJDJUSTERING FÖR NIVELLERING

L

Fram	8 mm (5/16")
Bak	7 mm (1/4")

M N

Fig. 5

Technical diagram of a mechanical bracket with labeled point O (no text or symbols beyond label)

Fig. 6

MONTERINGSMÄTT MELLAN TRÄ OCH KYLSKÅPSDÖRR M N

min. 16 mm (5/8") 83 mm (4")

MONTERINGSMÄTT MELLAN TRÄPANEL OCH FRYSDÖRR O

6 mm (1/4")

DÖRRARNAS LASTKAPACITET FÖR LIVSMEDEL

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

Fig. 8 RFD90S5FPNS/24

Fig. 7 RBM90S5FPNS RBM75S5FPNS

KATEGORI RFD90S5FPNS/24 RBM90S5FPNS RBM75S5FPNS
Kylskåpsdörr	10 kg (22 lbs) 25 kg (55 lbs) 25 kg (55 lbs)
Fryslåda	10 kg (22 lbs) 10 kg (22 lbs) 10 kg (22 lbs)

C D y x I B L H A

E E E E

Fig. 9 RBM90S5FPNS RBM75S5FPNS

C D1 D1 y x I B L H A

E G F E F

Fig. 10 RFD90S5FPNS/24

3D line drawing of a cabinet with open door and internal compartments (no text or symbols)

Fig. 13

WARNING

Diagram showing four labeled boxes with checkmarks and arrows, likely indicating approval or cancellation options.

Fig. 14

Diagram showing six identical configurations of a lifting device with checkmarks and X marks, each paired with a vertical bar.

Fig. 15

UPPACKNING

WARNING

Technical line drawing of a three-tiered rectangular structure with vertical supports and horizontal beams (no text or symbols)

Fig. 16

Exploded view diagram of a server rack unit with internal components and mounting brackets (no text or labels)

Fig. 17

OBSERVERA

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols present)

Fig. 20

3D technical illustration of a mechanical device with internal components and mounting base (no text or symbols)

Fig. 21

ANMÄRKNING

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Fig. 22

Diagram of a refrigerator interior showing door, drawer, and drawer with an inset close-up of the drawer handle (no text or symbols)

Fig. 23

ANMÄRKNING

Architectural cross-section diagram of a building facade with structural components (no text or labels)

Fig. 24

Technical diagram of a mechanical assembly with mounting base and structural components (no text or symbols)

Fig. 25

MONTERA TIPPSKYDDSFÄSTENA

WARNING

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Fig. 28

Technical diagram of a mechanical assembly with circular components and mounting base (no visible text or symbols)

Fig. 33

Diagram showing a mechanical device with a side-mounted frame and its side-mounted unit, no text or symbols present.

Fig. 34

ANMÄRKNING

Technical illustration of a server rack with zoomed-in views showing internal components (no text or symbols)

Fig. 35

ANMÄRKNING

Fig. 38
A 3 mm (1/8")
A 102 mm (4")
B 3 mm (1/8")
C 3.5 mm (1/8")
D 5 mm (3/16")

Technical diagram of a mechanical assembly with labeled components A, B, C, D and directional arrows indicating motion or flow.

Fig. 39

Interior view of a server rack unit with visible internal components and mounting hardware (no text or symbols)

Fig. 40

Technical line drawing of a cabinet or enclosure with internal components and a magnified inset showing internal structure (no text or symbols)

Fig. 41

Technical diagram of a refrigerator with labeled components and an inset view showing internal structure details.

Fig. 43

· 1 Kylskåp a. 19 mm (3/4")
2 Dörrtätning b. 24 mm (15/16")
3 Dörr c. 32 mm (1 1/4")
4 Skåpsidopanel d. 38 mm (1 1/2")

WARNING

Technical line drawing of a refrigerator internal structure with an inset showing a close-up of the door panel (no text or symbols present)

Fig. 44

ANMÄRKNING

Interior view of a refrigerator showing open doors, shelves, and internal compartments (no text or labels visible)

SÄKRA DET ÖVRE FÄSTET

Line drawing of a cabinet interior showing front and rear compartments with no text or symbols

Fig. 46
Fig. 45

INSTALLERA DET UNDRE SKÅPET

Technical diagram of an industrial machine with labeled component A, showing internal components and wiring (no readable text or symbols)

Fig. 47

Technical illustration of an industrial machine with internal components and mounting brackets (no visible text or symbols)

Fig. 48

FÄSTA DEN ÖVRE VENTILATIONSÖPPNINGENS KOMPONENT

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 49

FÄSTA DEN NEDRE VENTILATIONSÖPPNINGSENHETEN

Technical line drawing of a server rack unit with ventilation grilles and mounting base (no text or symbols)

Fig. 50

ANMÄRKNING

Technical line drawing of a door panel and front view of a refrigerator (no text or symbols)

Fig. 51

Line drawing of a front view of a computer monitor with an open lid and drive buttons (no text or symbols)

Fig. 52

INSTALLATION OCH FÖRBEREDELSE AV ÖVERLÄGGSPANEL

VÄLJA TJOCKLEK PÅ DÖRREN

3D mechanical assembly diagram showing a bracket with mounting holes and a small pin (no text or symbols)

Fig. 54

A a. B C D E b. B C D E

Fig. 55

a. Inbyggnadsskåpets front
b. Frontpanel
A. 3 mm (1/8")
B. 19 mm (3/4")
C. 24 mm (15/16")
D. 32 mm (1 1/4")
E. 38 ~mm (1 1/2")

AVLÄGSNA ÖVERLÄGGSPANLENS MEKANISMSKYDD

Technical diagram of a door frame assembly with mounting brackets and a central component (no text or symbols)

Fig. 56

Technical diagram showing a mounted device with mounting brackets and a separate panel assembly (no text or symbols)

Fig. 57

WARNING

Technical illustration of an open refrigerator with visible door, shelves, and cooling unit (no text or labels)

Line drawing of an open refrigerator with shelves and doors open (no text or symbols)

Fig. 59

Two technical line drawings of structural components or supports, shown in isometric view with no text or symbols.

Fig. 61

WARNING

G C F A B E G C

G C G F F D A A H B a b E E G C G

Fig. 63 RFD90S5FPNS/24

Diagram showing three mechanical components with downward arrows on a gray surface, no text or symbols present

Fig. 64 RFD90S5FPNS/24

Diagram showing two rectangular blocks with downward arrows pointing to a flat surface, no text or symbols present

Fig. 65 RBM90S5FPNS / RBM75S5FPNS

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 66

WARNING

FÖRBEREDA FRYSLÅDPANELEN

Diagram illustrating a device's internal structure with labeled components and an inset showing a display panel.

Fig. 68

WARNING

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 69

INSTALLERA KYLSKÅPETS ANPASSADE DÖRRPANEL

Simple line drawing of a vertical object with an arrow indicating rotation or motion, no text or symbols present.

Fig. 70

INRIKTA DEN ÖVRE DELEN AV ANPASSAD DÖRRPANEL MED BULTAR

Technical diagram showing three labeled mechanical components (A, B, C) with directional arrows indicating rotational or movement.

Fig. 71

Technical line drawing of a door frame with two horizontal bars and two circular annotations indicating measurement points (no text or symbols present)

Fig. 72

A B C

Fig. 73

Three icon buttons: a tool, a screwdriver, and a hammer, each enclosed in a rounded square frame (no text or symbols)

Illustration of an open refrigerator with internal compartments and a close-up inset showing internal components (no text or symbols)

Fig. 74

WARNING

Illustration of an open refrigerator with a close-up inset showing the exterior view (no text or symbols)

Fig. 75

Diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

Fig. 76

Diagram of an open refrigerator with internal compartments and a close-up view showing internal structure (no text or symbols)

Fig. 77

Technical illustration of a mechanical assembly with a base plate and support structure, showing internal components and alignment indicators (no text or symbols)

Fig. 78

Technical diagram showing assembly steps of a device with labeled components and directional arrows indicating movement.

Fig. 79

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Fig. 80

Technical line drawing of a mechanical component with an inset view showing internal components (no text or symbols)

Fig. 81

Technical line drawing of a mechanical assembly with an inset magnified view showing a tool interacting with a component (no text or symbols present)

Fig. 82

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

Fig. 83

Technical illustration of an open refrigerator with internal compartments and a close-up view of the door (no text or symbols)

Fig. 84

3D diagram of a structural assembly with two parallel plates and internal slots, one showing an arrow indicating direction (no text or symbols present)

Fig. 85

SLUTFÖRA INSTALLATIONEN

Technical diagram showing a mechanical component with a labeled part 'a' and directional arrow (no text or symbols beyond label)

Fig. 86

Technical line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

Fig. 87

JUSTERA FJÄDERSPÄNNINGEN PÅ GÅNGJÄRNEN

Diagram of an open refrigerator showing internal compartments and a close-up view of the door (no text or labels present)

Fig. 88

WARNING

Diagram of an open refrigerator showing internal compartments and a close-up view of the door (no text or labels present)

Fig. 89

Technical line drawing of a door frame with two vertical supports and horizontal bars, showing internal structure (no text or symbols)

Fig. 90

Technical line drawing of a door frame with an attached rectangular component and directional arrows indicating motion (no text or symbols)

Fig. 91

Diagram of a monitor with a separate panel attachment, showing no text or symbols

Fig. 92

Illustration of an open refrigerator with internal compartments and exterior door, shown with close-up details (no text or symbols)

Fig. 93 RBM90S5FPNS / RBM75S5FPNS

Technical illustration of an open refrigerator with internal compartments and mounting hardware (no text or symbols)

Fig. 94 RFD90S5FPNS/24

AVLÄGSNA OCH FÖRBEREDA INNERDÖRREN

Diagram showing a vehicle loading mechanism inside a server rack, with an inset close-up highlighting the component and directional arrows.

Fig. 95

Diagram of a rectangular panel with internal horizontal lines and directional arrows indicating force or movement (no text or symbols)

Fig. 96

ANMÄRKNING

Diagram of an open refrigerator showing internal compartments and a close-up view of the interior door (no text or labels present)

Fig. 97

Diagram of an open refrigerator showing internal shelves and door frame (no text or labels)

Fig. 98

Diagram of a refrigerator interior showing the exterior and front panels with no text or symbols

Fig. 99

Diagram of an open refrigerator showing internal shelves and doorways, with a magnified inset highlighting the interior portion (no text or symbols present)

Fig. 100

RIKTNINGSÄNDRING AV LUFTVENTILATIONENS ÖVRE DEL

Diagram showing a device's internal structure before and after assembly, with no visible text or symbols.

Fig. 101

INSTALLERA DÖRREN PÅ NYTT

Technical line drawing of a cabinet or shelf assembly with internal components and directional arrows (no text or symbols)

Fig. 102

SKÅPETS UTTAGSMÄTT

Diagram showing a rectangular object with five numbered circular components and directional arrows, likely illustrating a structural or engineering concept.

Fig. 106

Technical diagram showing a mechanical assembly with bolts and a door handle, no visible text or symbols

Fig. 108

Interior view of an appliance showing a mounted panel and internal storage unit (no text or symbols visible)

Fig. 109

Gör alla kraftanslutningar.

Technical diagram showing structural connection with labeled components and directional arrows indicating assembly or inspection.

Fig. 110

Technical diagram showing a mechanical assembly with a close-up view of a component detail (no text or symbols present)

Fig. 111

Technical diagram showing internal components and a close-up of a device with directional arrows indicating movement or force (no text or symbols present)

Fig. 112

Technical line drawing of an internal refrigerator unit with open doors and internal compartments (no text or symbols)

Fig. 113

Fig. 114

POSITIONERA KYLSKÅPEN I SKÅPURTAGET

Technical diagram showing a 3D mechanical or electrical setup with labeled components A, B, C, D and directional arrows indicating rotation or movement.

Fig. 116

Technical line drawing of an open refrigerator with internal compartments and ventilation slots (no text or labels)

Fig. 117

INSTALLERA ANSLUTNINGSFÄSTENA PÅ KYLSKÅPETS ÖVRE VÄGG

Technical line drawing of an open refrigerator with internal compartments and a hanging tool (no text or symbols)

Fig. 118

INSTALLERA DE LATERALA OCH ÖVRE TRIMNINGARNA

Technical line drawing of a refrigerator interior showing door, shelves, and shelf (no text or symbols)

Fig. 119

Diagram of a refrigerator interior showing front and side views with no text or symbols

Fig. 120

Technical line drawing of a refrigerator interior showing front and rear panels with no text or symbols

Fig. 121

Technical line drawing of a cabinet or enclosure with structural components and mounting brackets (no text or symbols)

Fig. 122

Line drawing of a two-decker cabinet with two doors and two handles (no text or symbols)

Fig. 123

© 2025 BERTAZZONI. All rights reserved.

R132S01_IM_EU-UK_v.02
