USER MANUAL DV7711EM LG

Two hand diagrams showing a circular object being held by hands, with an 'X' symbol indicating a comparison (no text or labels present)

OPEN/CLOSE (OUVERT/FERME)

Commence la lecture.

• Arrière SKIP/SCAN (◀◀)

Blank grayscale gradient image with no visible text, symbols, or identifiable objects

Préliminaires (Suite)

Réglages initiaux

DOLBY DIGITAL/PCM (DOLBY NUMERIQUE/MIC):

Solid dark gray vertical bar with no text or symbols

Préliminaires (Suite)

Contrôle parentale

Classement

MP3IWMA Program Folder1 Folder2 Folder3 Folder4 Folder5 Folder6 Folder7 Folder8 80.00 OKP

MP3IWMA Program TRACK 2.mp3 TRACK 2.mp3 TRACK 4.mp3 TRACK 5.mp3 TRACK 6.mp3 TRACK 7.mp3 TRACK 8.mp3 01:00 OFF

Menu MP3/WMA

Astuce

Black-and-white landscape photo of a rugged mountain range with snow-covered peaks and no visible text or symbols

Astuce

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION:

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference should the unit require maintenance, contact an authorized service location (see service procedure).

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

NOTES ON COPYRIGHTS:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs on a VCR, picture noise will appear.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No.

Serial No.

Table of Contents

Introduction

Safety Precautions 2

Table of Contents 3

Before Use 4-5

Playable Discs 4

Precautions 5

Notes on Discs 5

About Symbols 5

Front Panel and Display Window 6

Remote Control....7

Rear Panel 8

Preparation

Connections 9-10

Connecting to a TV 9

Connecting to Optional Equipment....10

Before Operation 11-14

General Explanation....11

On-Screen Display....11

Initial Settings 12-14

- Initial Settings General Operation....12

- Language 12

- Picture....12

- Sound 13

- Others 13

- Parental Control. 14

Operation

Operation with DVD and Video CD....15-17

Playing a DVD and Video CD 15

General Features....15

- Moving to another TITLE ..... 15

- Moving to another CHAPTER/TRACK ..... 15

- Search. 15

● Still Picture and Frame-by-Frame Playback . 16

- Slow Motion.... 16

- Random 16

- Repeat 16

- Repeat A-B 16

• Time Search 16

• 3D Surround ..... 16

- Zoom....17

- Marker Search.... 17

Special DVD Features 17

- Title Menu 17

- Disc Menu....17

- Camera Angle 17

- Changing the Audio Language....17

- Changing the Audio Channel ..... 17

- Subtitle 17

Operation with Audio CD and MP3/WMA Disc .. 18

Playing an Audio CD and MP3/WMA Disc ..... 18

Notes on MP3/WMA Recordings ..... 18

- Pause 19

- Moving to another Track.... 19

- Repeat Track/ All/ Off 19

- Search....19

- Random 19

- Repeat A-B 19

• 3D Surround ..... 19

- Changing the Audio Channel ..... 19

Operation with JPEG Disc. 20

Viewing a JPEG disc 20

- Moving to another File 20

- Still Picture 20

- To flip the picture .... 20

- To rotate picture....20

- Notes on JPEG Recordings ..... 20

Programmed Playback 21

Programmed Playback with Audio CD and

MP3/WMA Disc 21

Programmed Playback with Video CD .....21

- Repeat Programmed Tracks....21

- Erasing a Track from Program List ..... 21

- Erasing the Complete Program List ..... 21

Additional Information....22

Last Condition Memory 22

Screen Saver 22

System Select 22

Controlling the TV 22

Reference

Troubleshooting 23

Language Code List 24

Country Code List....25

Specifications 26

About the symbols for instructions

⚠️ Indicates hazards likely to cause harm to the unit itself or other material damage.

Indicates special operating features of this unit.

Indicates tips and hints for making the task easier.

Before Use

playable Discs

	DVD(8 cm / 12 cm disc)
	Video CD (VCD)(8 cm / 12 cm disc)
	Audio CD(8 cm / 12 cm disc)

In addition, this unit can play a DVD-R, DVD±RW, Kodak PICTURE CD, SVCD, and CD-R or CD-RW that contains audio titles, MP3, WMA or JPEG files.

Notes

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD-R/±RW) disc itself, some CD-R/RW (or DVD-R/±RW) discs cannot be played on the unit.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available or other functions may be added.

Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.

Regional code of the DVD player and DVDs

This DVD player is designed and manufactured for playback of region "5" encoded DVD software. The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled "5" or "ALL". If you try to play any other discs, the message "Check Regional Code" will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.

Disc-related terms

Title (DVD only)

The main film content or accompanying feature content or additional feature content, or music album.

Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

Track (Video CD and audio CD only)

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called "Scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.

A scene is composed of one or several tracks.

Types of video CDs

There are two types of video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.

Before Use (Continued)

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.

To keep the exterior surfaces clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long period of time. They will leave marks on the surface.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

To obtain a clear picture

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality will be poor. Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

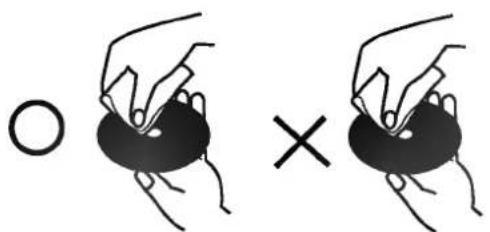

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Illustration of two hands holding a ring with a circle and an 'X' symbol (no text or labels)

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

About Symbols

About the Ⓧ symbol display

" ⊗ " may appear on the TV screen during operation. This icon means the function explained in this owner's manual is not available on that specific DVD video disc.

About the disc symbols for instructions

A section whose title has one of the following symbol is applicable only to the disc represented by the symbol.

• DVD
  [Non-Text]
  Video CDs with the PBC (playback control) function.
• Video CDs without the PBC (playback control) function.
• Audio CDs.
  [Non-Text]
  MP3 disc.
  [Non-Text]
  WMA disc.
  [Non-Text]
  JPEG disc.

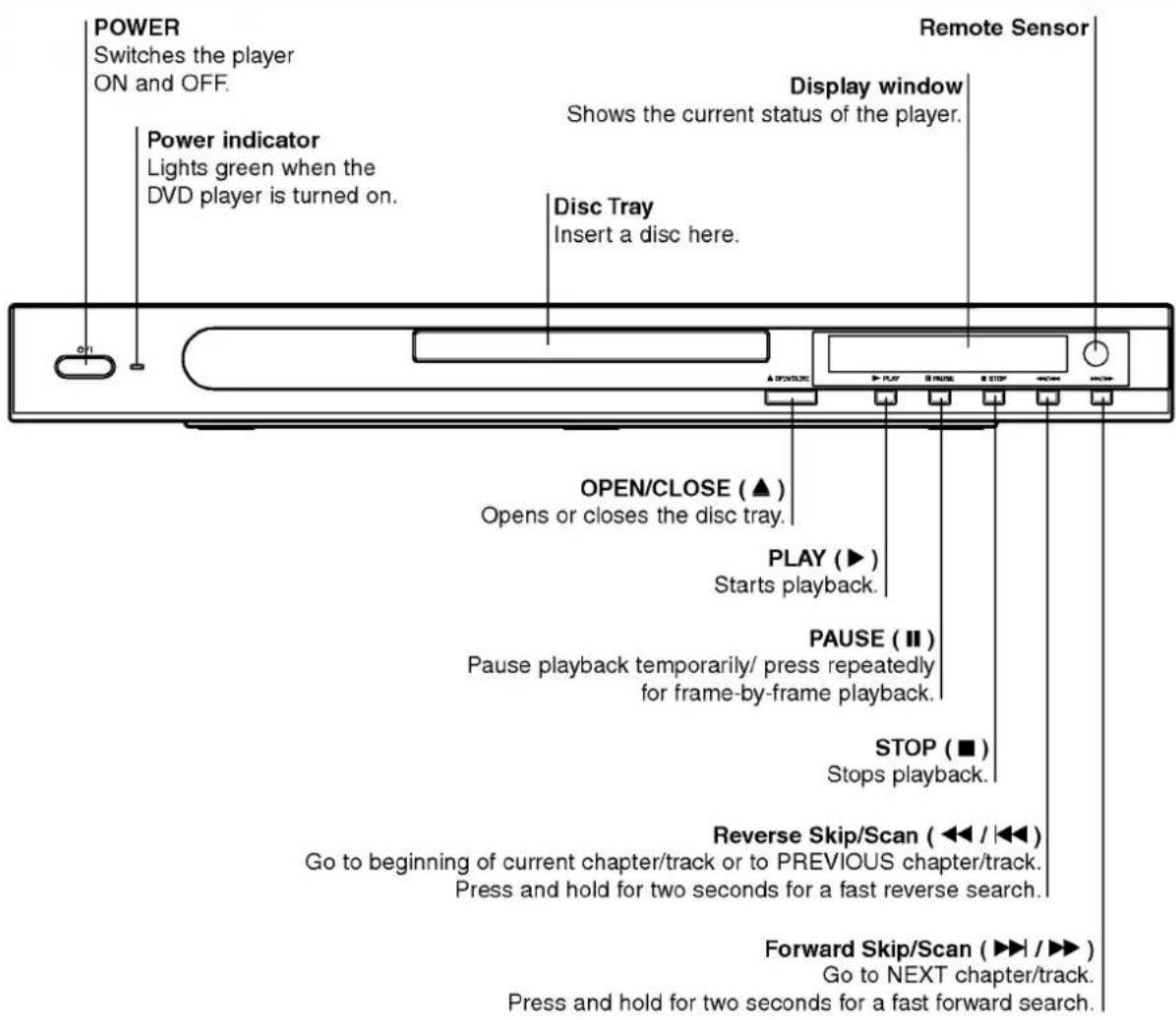

Front Panel and Display Window

POWER Switches the player ON and OFF. Power indicator Lights green when the DVD player is turned on. Display window Shows the current status of the player. Disc Tray Insert a disc here. Remote Sensor OPEN/CLOSE (▲) Opens or closes the disc tray. PLAY (►) Starts playback. PAUSE (■) Pause playback temporarily/ press repeatedly for frame-by-frame playback. STOP (■) Stops playback. Reverse Skip/Scan (◄◄ / ◀◄) Go to beginning of current chapter/track or to PREVIOUS chapter/track. Press and hold for two seconds for a fast reverse search. Forward Skip/Scan (►► / ►►) Go to NEXT chapter/track. Press and hold for two seconds for a fast forward search.

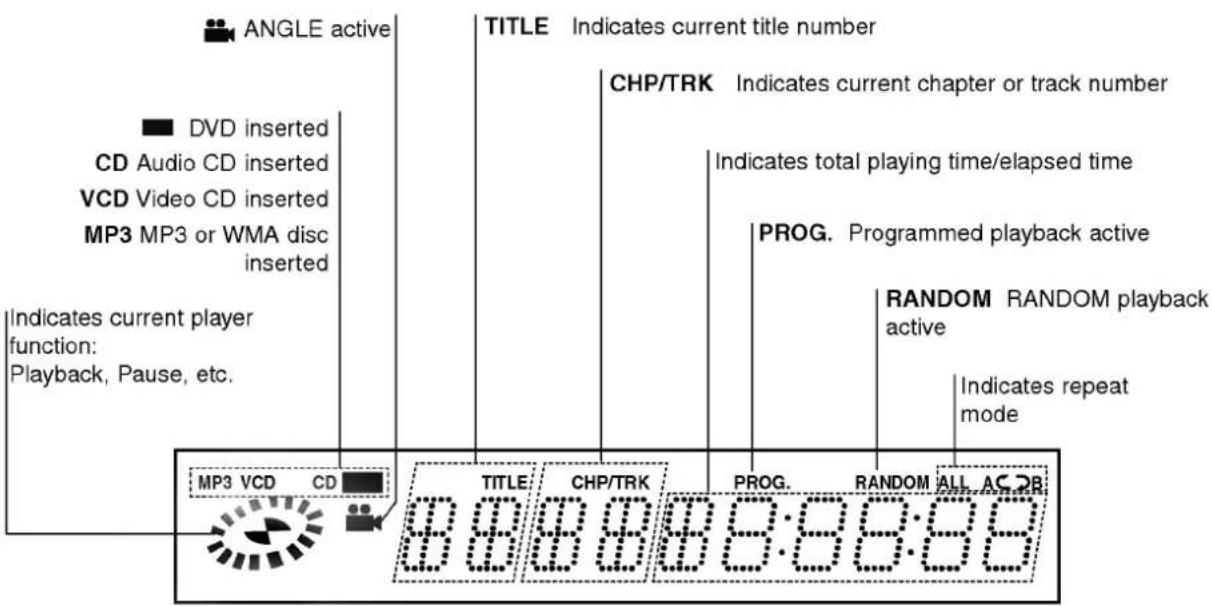

ANGLE active DVD inserted CD Audio CD inserted VCD Video CD inserted MP3 MP3 or WMA disc inserted Indicates current player function: Playback, Pause, etc. TITLE Indicates current title number CHP/TRK Indicates current chapter or track number Indicates total playing time/elapsed time PROG. Programmed playback active RANDOM RANDOM playback active Indicates repeat mode MP3 VCD CD TITLE CHP/TRK PROG. RANDOM ALL AC DR

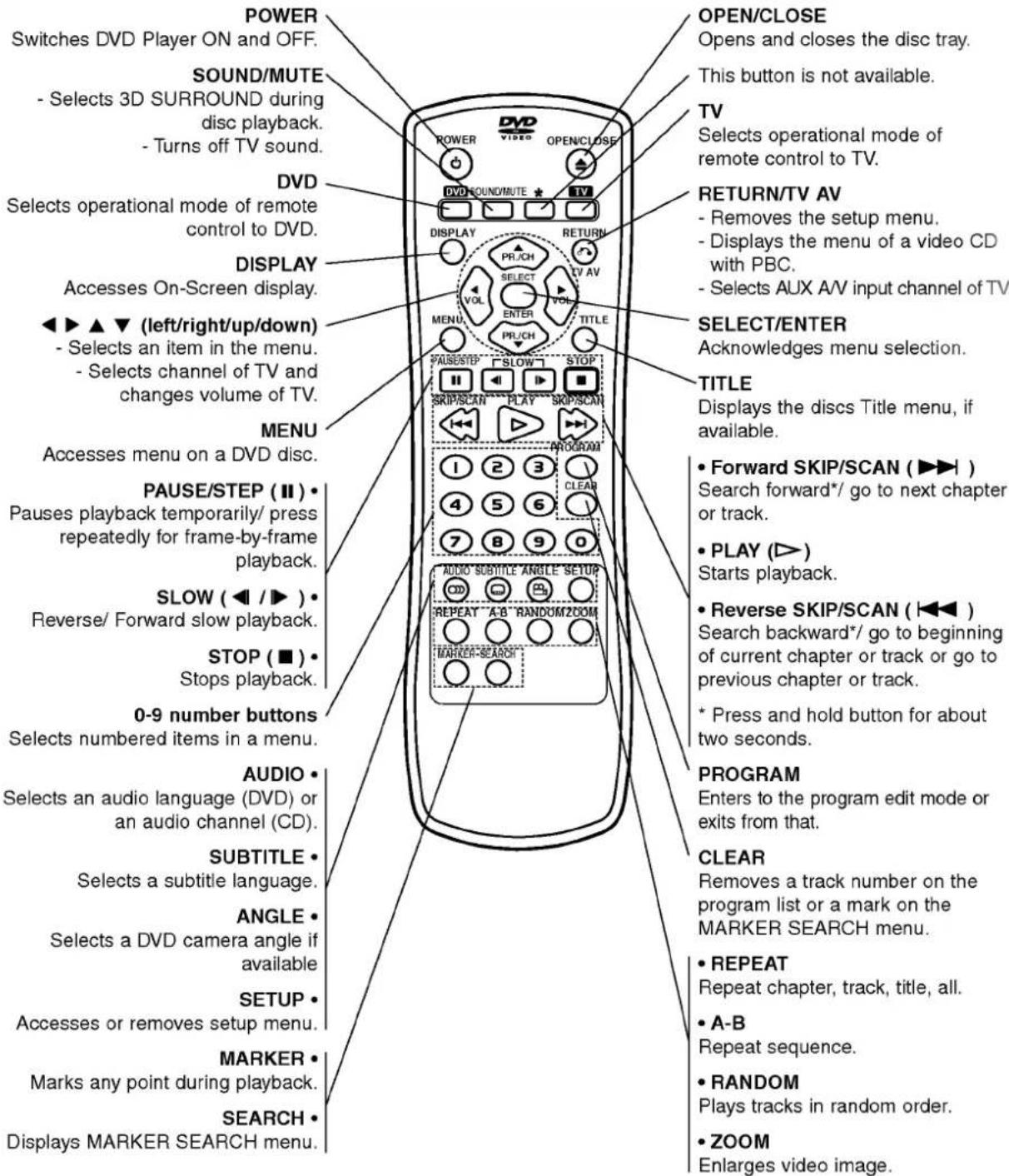

Remote Control

POWER Switches DVD Player ON and OFF. SOUND/MUTE - Selects 3D SURROUND during disc playback. - Turns off TV sound. DVD Selects operational mode of remote control to DVD. DISPLAY Accesses On-Screen display. ◀ ▶ ▲ ▼ (left/right/up/down) - Selects an item in the menu. - Selects channel of TV and changes volume of TV. MENU Accesses menu on a DVD disc. PAUSE/STEP (Ⅱ) • Pauses playback temporarily/ press repeatedly for frame-by-frame playback. SLOW (◀ / ▶) • Reverse/ Forward slow playback. STOP (■) • Stops playback. 0-9 number buttons Selects numbered items in a menu. AUDIO • Selects an audio language (DVD) or an audio channel (CD). SUBTITLE • Selects a subtitle language. ANGLE • Selects a DVD camera angle if available SETUP • Accesses or removes setup menu. MARKER • Marks any point during playback. SEARCH • Displays MARKER SEARCH menu. OPEN/CLOSE Opens and closes the disc tray. This button is not available. TV Selects operational mode of remote control to TV. RETURN/TV AV - Removes the setup menu. - Displays the menu of a video CD with PBC. - Selects AUX A/V input channel of TV. SELECT/ENTER Acknowledges menu selection. TITLE Displays the discs Title menu, if available. • Forward SKIP/SCAN (▶▶) Search forward*/ go to next chapter or track. • PLAY (▶) Starts playback. • Reverse SKIP/SCAN (◀◀) Search backward*/ go to beginning of current chapter or track or go to previous chapter or track. * Press and hold button for about two seconds. PROGRAM Enters to the program edit mode or exits from that. CLEAR Removes a track number on the program list or a mark on the MARKER SEARCH menu. • REPEAT Repeat chapter, track, title, all. • A-B Repeat sequence. • RANDOM Plays tracks in random order. • ZOOM Enlarges video image.

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

• Distance: About 23 ft (7 m) from the front of the remote sensor.
• Angle: About 30^ in each direction of the front of the remote sensor.

Remote control battery installation

Detach the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with + and - aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

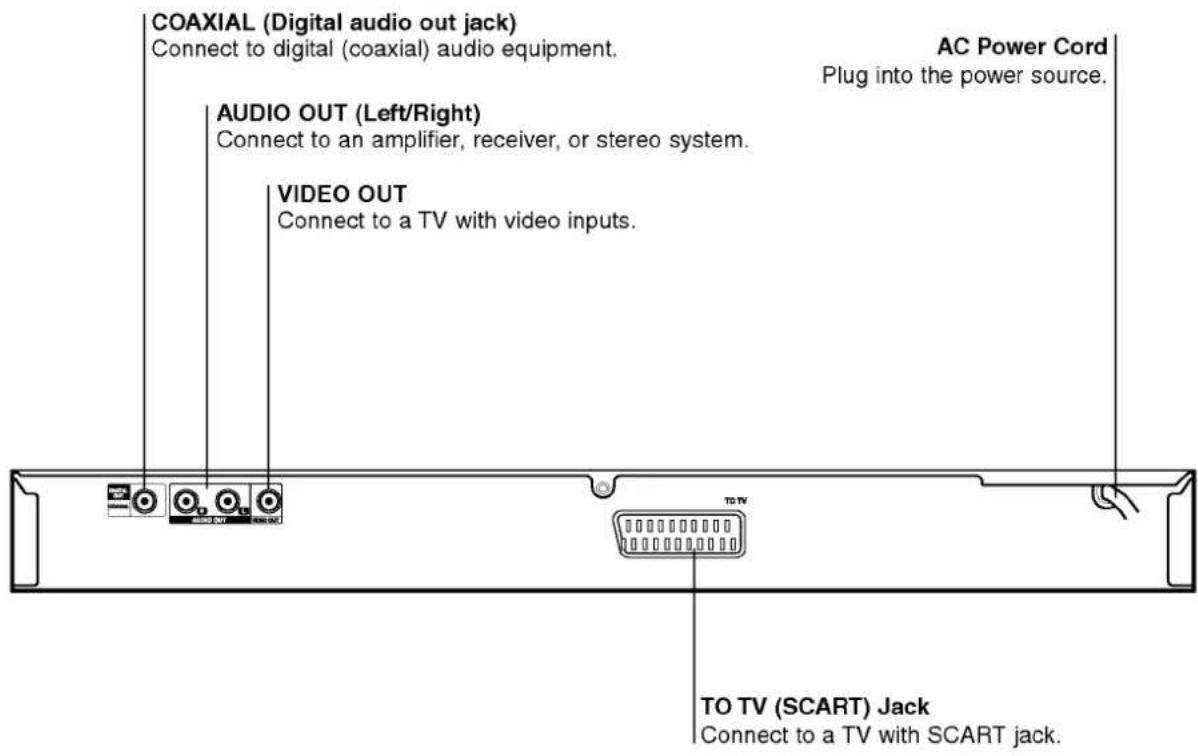

Rear Panel

COAXIAL (Digital audio out jack) Connect to digital (coaxial) audio equipment. AUDIO OUT (Left/Right) Connect to an amplifier, receiver, or stereo system. VIDEO OUT Connect to a TV with video inputs. AC Power Cord Plug into the power source. TO TV (SCART) Jack Connect to a TV with SCART jack.

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

Connections

Tips

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described below.
• Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.
• For better sound reproduction, connect the player's AUDIO OUT jacks to the audio in jacks of your amplifier, receiver, stereo or audio/video equipment. See "Connecting to Optional Equipment" on page 10.

Caution

• Make sure the DVD Player is connected directly to the TV. Tune the TV to the correct video input channel.
• Do not connect the DVD Player's AUDIO OUT jack to the phono in jack (record deck) of your audio system.
• Do not connect your DVD Player via your VCR. The DVD image could be distorted by the copy protection system.

Connecting to a TV

- Make one of the following connections, depending on the capabilities of your existing equipment.

Video connection

1 Connect the VIDEO OUT jack on the DVD Player to the video in jack on the TV using the video cable (V).
2 Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the audio cables.

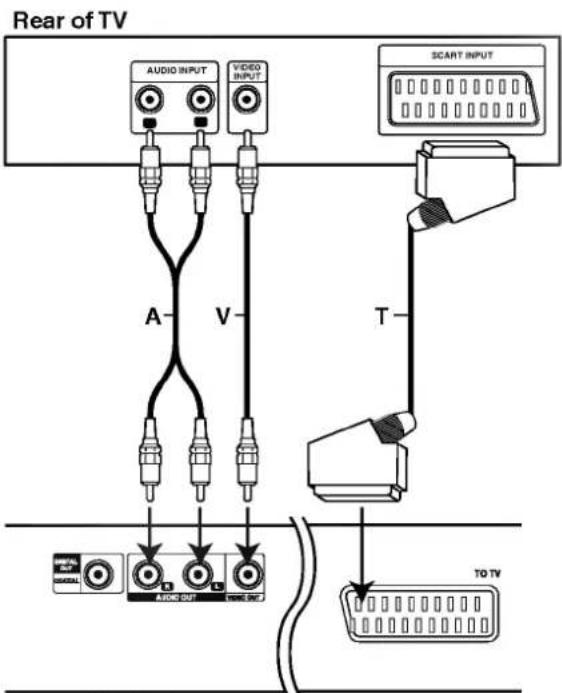

SCART connection

Connect the TO TV scart jack on the DVD Player to the corresponding in jacks on the TV using the scart cable (T).

Rear of TV AUDIO INPUT VIDEO INPUT A V T SCART INPUT TO TV

Rear of DVD player

Solid gray vertical rectangle with no text, symbols, or discernible features.

Connections (Continued)

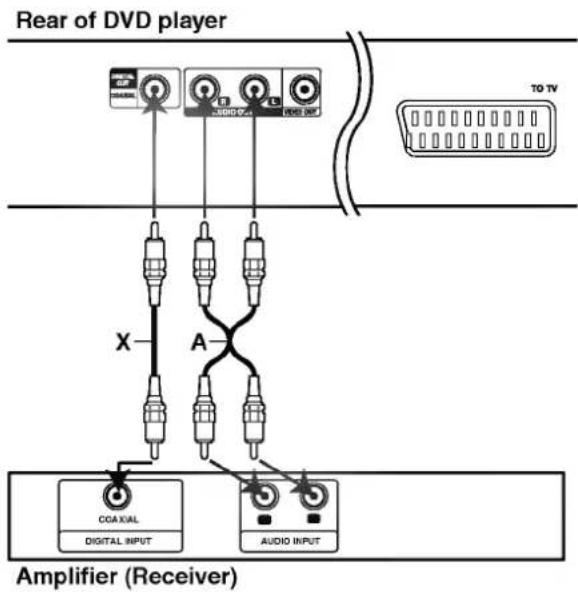

Connecting to Optional Equipment

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic II/Pro Logic

Connect the Left and Right AUDIO OUT jacks on the DVD Player to the audio left and right in jacks on your amplifier, receiver, or stereo system, using the audio cables (A).

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)

1 Connect one of the DVD Player's DIGITAL AUDIO OUT jacks (COAXIAL X) to the corresponding in jack on your amplifier. Use an optional digital (coaxial X) audio cable.
2 You will need to activate the player's digital output. (See "Digital Audio Output" on page 13).
Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your DVD Player (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.

Caution:

Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

Notes

• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
  – Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.
• To see the audio format of the current DVD in the on-screen display, press AUDIO.

Rear of DVD player TO TV X A COA KIAL DIGITAL INPUT AUDIO INPUT Amplifier (Receiver)

Before Operation

Caution:

Before using the remote control, press the DVD or TV button to select the device to be operated.

General Explanation

This manual gives basic instructions for operating the DVD Player. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol ⊙ appears on the TV screen, indicating that the operation is not permitted by the DVD Player or is not available on the disc.

On-Screen Display

General playback status can be displayed on the TV screen. Some items can be changed on the menu.

On-screen display operation

Press DISPLAY during playback.

Press ▲▼ to select an item.

The selected item will be highlighted.

Press ◀ to change the setting of an item.

The number buttons can be also be used for setting numbers (e.g., title number). For some functions, press SELECT/ENTER to execute the setting.

Temporary Feedback Field Icons

Repeat Title

Repeat Chapter

Repeat Track (non-PBC Video CDs only)

Repeat All Tracks (non-PBC Video CDs only)

Repeat A-B

Repeat Off

Resume play from this point

Action prohibited or not available

Notes

• Some discs may not provide all of the features on the on-screen display example shown below.
• If no button is pressed for 10 seconds, the on-screen display disappears.

Items			Function (Press ▲/▼ to select desired item)	Selection Method
Title Number	[0654]	1 /3	Shows the current title number and total number of titles, and skips to the desired title number.	◀ / ▶, or Numbers, SELECT/ENTER
Chapter Number	[08H6]	1 /12	Shows the current chapter number and total number of chapters, and skips to the desired chapter number.	◀ / ▶, or Numbers, SELECT/ENTER
Time search	[2DHH8]	0:20:09	Shows the elapsed playing time, and searches the point by the elapsed time directly.	Numbers, SELECT/ENTER
Audio language and Digital Audio Output mode		1 ENG 00D 5.1 CH	Shows the current audio soundtrack language, encoding method, and channel number, and changes the setting.	◀ / ▶, or AUDIO
Subtitle language			Shows the current subtitles language, and changes the setting.	◀ / ▶, or SUBTILE
Angle			Shows the current angle number and total number of angles, and changes the angle number.	◀ / ▶, or ANGLE
Sound		NORM.	Shows the current sound mode, and changes the setting.	◀ / ▶, or SOUND

Items			Function (Press ▲/▼ to select desired item)	Selection Method
Track Number		1 /4	Shows the current track number, total number of tracks and PBC On mode, and skip to the desired track number.	◀ / ▶, or Numbers, SELECT/ENTER
Time		0:20:09	Shows the elapsed playing time (Display only)	-
Audio Channel		STER.	Shows the audio channel, and changes the audio channel.	◀ / ▶, or AUDIO
Sound		NORM.	Shows the current sound mode, and changes the setting.	◀ / ▶, or SOUND

Before Operation (Continued)

Initial Settings

You can set your own Personal Preferences on the player.

Initial Settings General Operation

1 Press SETUP. The setup menu appears.

Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Digital Audio Clusters Others

2 Press ▲▼ to select the desired item. The screen will show the current setting for the selected item, as well as alternate setting(s).
3 While the desired item is selected, press ▶, then ▲▼ to select the desired setting.
4 Press SELECT/ENTER to confirm your selection. Some items require additional steps.
5 Press SETUP, RETURN, or PLAY to exit the setup menu.

Language

Disc Language

Select a language for the disc's Menu, Audio, and Subtitle.

Original : The original language set for the disc is selected. Other : To select another language, press number buttons to enter the corresponding 4-digit number according to the language code list on page 24. If you enter the wrong language code, press CLEAR.

Disc Subtitle Disc Menu Rating Country Code V Aspect Menu Language Digital Audio Output Others

Menu Language

Select a language for the setup menu. This is the menu you see when you press SETUP.

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect Digital Audio Outputs Others


TV Aspect

4:3 Letterbox: Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.
4:3 Panscan: Select when a conventional TV set is connected. The video material formatted in the Pan & Scan style is played back in that style (Both sides of the picture are cut off).
16:9 Wide: Select when a 16:9 wide TV is connected.

Disc Audio Disc Subtitle Disc Menu Rating Country Code Menu Language Digital Audio Output

Before Operation (Continued)

Sound

Digital Audio Output

Each DVD disc has a variety of audio output options. Set the player's Digital Audio Output according to the type of audio system you use.

DOLBY DIGITAL/PCM: Select "DOLBY DIGITAL/PCM" if you connected the DVD Player's DIGITAL OUT jack to a Dolby Digital decoder (or an amplifier or other equipment with a Dolby Digital decoder).

Stream/PCM: Select "Stream/PCM" if you connected the DVD Player's DIGITAL OUT jack to an amplifier or other equipment with a DTS decoder, Dolby Digital decoder or MPEG decoder.

PCM: Select when connected to a 2-channel digital stereo amplifier. The DVD player outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital, MPEG1, or MPEG2 recording system.

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Others

Sample Frequency

To change the Sample Frequency setting, first select the desired Digital Audio Output as indicated as above. If your receiver or amplifier is NOT capable of handling 96KHz signals, select 48KHz. When this choice is made, this unit will automatically convert any 96KHz signals to 48KHz so your system can decode them. If your receiver or amplifier is capable of handling 96KHz signals, select 96KHz. When this choice is made, this unit will pass each type of signal through without any further processing.

Others

The DRC, Vocal, PBC and Auto Play settings can be changed.

- Press ▲▼ to select the desired item and press SELECT/ENTER. The setting of the selected item is changed between On and Off.

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Digital Audio Output

Dynamic Range Control (DRC)

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

Vocal

Set Vocal to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.

PBC

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio CDs.

Auto Play

You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted.

If Auto Play mode is set to On, this DVD player will search a title that playback time is long most and then play back the title automatically.

On: Auto Play function is activated.

Off: Auto Play function is not activated.

The Auto Play function may not work for some DVDs.

Solid gray vertical rectangle with no visible text, symbols, or features.

Before Operation (Continued)

Parental Control

Rating

Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country-dependent. The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

Disc Audio Disc Subtitle Disc Menu Country Code TV Aspect Menu Language Digital Audio Outputs Others

1 Select "Rating" on the Setup menu using the ▲▼ buttons.

2 While "Rating" is selected, press ▶.

3 When you have not entered a password yet. Enter a 4-digit password using the numbered buttons to create a personal 4-digit security password. then press SELECT/ENTER. Enter the 4-digit password again and press SELECT/ENTER to verify. When you have already entered a password; Enter a 4-digit password using the numbered buttons to confirm the personal 4-digit security password, then press SELECT/ENTER.

If you make a mistake before pressing SELECT/ENTER, press CLEAR and enter 4-digit security password again.

4 Select a rating from 1 to 8 using the ▲▼ buttons. One (1) has the least playback restrictions. Eight (8) has the most playback restrictions. Unlock: If you select Unlock, Parental Control is not active. The disc will play in full. Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the player, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.

5 Press SELECT/ENTER to confirm your rating selection, then press SETUP to exit the menu.

Country Code

Enter the code of a country/area whose standards were used to rate the DVD video disc, referring to the list (See "Country Code List", page 25.).

Disc Audio Disc Subtitle Disc Menu Rating TV Aspect Menu Language Digital Audio Options

1 Select Country Code using the ▲▼ buttons on the setup menu.

2 While Country Code is selected, press ▶.

3 Follow step 3 of "Rating" on left.

4 Select the first character using the ▲▼ buttons.

5 Shift the cursor using ▶ button and select the second character using ▲▼ buttons.

6 Press SELECT/ENTER to confirm your country code selection, then press SETUP to exit the menu.

Note

Confirmation of the 4-digit password is necessary when the code is changed (see "Changing the 4-digit code" below.).

Changing the 4-digit code

1 Follow Steps 1-2 as shown above to the left (Rating).
2 Enter the old code, then press SELECT/ENTER.
3 Select Change using ▲▼ buttons then press SELECT/ENTER.
4 Enter the new 4-digit code, then press SELECT/ENTER.
5 Enter exactly the same code a second time and verify by pressing SELECT/ENTER.
6 Press SETUP to exit the menu.

If you forget your 4-digit code

If you forget your password, to clear the current password, follow the procedure below.

1 Press SETUP to display the setup menu.
2 Use the Number buttons to enter the 6-digit number "210499".
The 4-digit password is cleared. "P CLr" appears on the display for a moment.
3 Enter a new code as shown above to the left (Rating).

Operation with DVD and Video CD

Playing a DVD and Video CD

Playback Setup

• Turn on the TV and select the video input source connected to the DVD player.
• Audio system: Turn on the audio system and select the input source connected to the DVD player.

Press OPEN/CLOSE to open the disc tray.

Load your chosen disc in the tray, with the playback side down.

Press OPEN/CLOSE to close the tray.

READING appears on the TV screen, and playback starts automatically. If playback does not start, press PLAY. In some cases, the disc menu might appear instead.

If a menu screen is displayed

The menu screen may be displayed first after loading a DVD or Video CD which offer a menu.

Use the ◀▶▲▼ buttons to select the title/chapter you want to view, then press SELECT/ENTER to start play-back.

Press TITLE or MENU to return to the menu screen.

• Use the number buttons to select the track you want to view. Press RETURN to return to the menu screen.
• Menu setting and the exact operating procedures for using the menu may differ depending on the disc. Follow the instructions on the each menu screen. You also may set PBC to Off under setup. See page 13.

Notes

• If Parental Control is set and the disc is not within the Rating settings (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see "Parental Control", on page 14).
• DVDs may have a region code. Your player will not play discs that have a region code different from your player. The region code for this player is 5 (five).

General Features

Note

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

Moving to another TITLE

When a disc has more than one title, you can move to another title as follows:

- Press DISPLAY, then press the appropriate numbered button (0-9) to select a title number.

Moving to another CHAPTER/TRACK

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press SKIP/SCAN ◀◀◀ or ▶▶◀ briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.
• Press ◀◀ twice briefly to step back to the previous chapter/track.
• To go directly to any chapter during DVD playback, press DISPLAY. Then, press ▲▼ to select the chapter/track icon. Then, enter the chapter/track number using the numbered buttons (0-9).

Note

For two-digit numbers, press the numbered buttons (0-9) in rapid succession.

Search

1 Press and hold SKIP/SCAN ◀◀ or ▶▶ for about two seconds during playback. The player will now go into SEARCH mode.
2 Press and hold SKIP/SCAN I◀◀ or ▶▶I repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X16, ◀◀X100 (backward) or ▶▶X2, ▶▶X4, ▶▶X16, ▶▶X100 (forward). With a Video CD, the Search speed changes: ◀◀X2, ◀◀X4, ◀◀X8, (backward) or ▶▶X2, ▶▶X4, ▶▶X8, (forward).
3 To exit SEARCH mode, press PLAY.

Blank grayscale image with no visible content, text, or symbols

Operation with DVD and Video CD

General Features (continued)

Still Picture and Frame-by-frame playback

1 Press PAUSE/STEP during playback. The player will now go into PAUSE mode.
2 You can advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly on the remote control.

Slow Motion

1 Press SLOW ◀ or ▶ during playback. The player will enter SLOW mode.
2 Use the SLOW ◀ or ▶ to select the required speed: ◀ 1/16, ◀ 1/8, ◀ 1/4 or ◀ 1/2 (backward), or ▶ 1/16, ▶ 1/8, ▶ 1/4 or ▶ 1/2 (forward).
3 To exit slow motion mode, press PLAY.

Note

Slow motion playback in reverse is not applicable for Video CD.

Random

1 Press RANDOM during playback or in stop mode. The unit automatically begins Random Playback and "RANDOM" appears on the display window.
2 To return to normal playback, press RANDOM until "RANDOM" disappears on the display window.

Tips

By pressing SKIP/SCAN ▶▶ during Random playback, the unit selects another title (track) and resumes Random playback.

Note

• This function only works with DVD Karaoke discs and video CD without PBC.
• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Random function. See page 13.

Repeat

DVD Video Discs - Repeat Chapter/Title/Off

1 To repeat the currently playing chapter, press REPEAT.
The Repeat Chapter icon appears on the TV screen.
2 To repeat the title currently playing, press REPEAT a second time. The Repeat Title icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.

Video CDs - Repeat Track/All/Off

1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the TV screen.
2 To repeat the disc currently playing, press REPEAT a second time. The Repeat All icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 13.

Repeat A-B

To repeat a sequence in a title:

1 Press A-B at your chosen starting point. "A * " appears briefly on the TV screen.
2 Press A-B again at your chosen end point. "A B" appears briefly on the TV screen, and the repeat sequence begins ("A↔B" appears the display window).

3 To cancel the sequence, press A-B.

Time Search

The Time Search function allows you to start playing at any chosen time on the disc.

1 Press DISPLAY during playback. The on-screen display appears on the screen.
The Time Search box shows the elapsed playing time of the current disc.
2 Within 10 seconds, press ▲▼ to select the Time Search icon in the on-screen display.
The "-:-:-:" appears in the Time Search box.
3 Within 10 seconds, use the number buttons to enter the required start time. Enter hours, minutes, and seconds from left to right in the box. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.
4 Within 10 seconds, press SELECT/ENTER to confirm the start time.
Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.

3D Surround

This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.

1 Press SOUND to select "3D SUR" during playback.
2 To turn off the 3D Surround effect, press SOUND again to select "NORM".

Operation with DVD and Video CD

General Features (continued)

Zoom

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

1 Press ZOOM during playback or still playback to activate the Zoom function. If you press ZOOM repeatedly, the magnification level increases up to six steps.
2 Use the ◀▶▲▼ buttons to move through the zoomed picture.
3 Press CLEAR to resume normal playback or return to the paused image.

Note

- The zoom function may not work for some DVDs.

Marker Search

You can start playback from a memorized point. Up to nine points can be memorized. To enter a mark, follow these steps.

1 During disc playback, press MARKER when playback reaches the spot that you want to memorize.
The Marker icon will appear on the TV screen briefly.
2 Repeat step 1 to enter up to nine Marker points on a disc.

To Recall a Marked Scene

1 During disc playback, press SEARCH. The MARKER SEARCH menu will appear on the screen.
2 Within 10 seconds, press ◀/▶ to select a Marker number that you want to recall.
3 Press SELECT/ENTER. Playback will start from the Marked scene.
4 To remove the MARKER SEARCH menu, press SEARCH.

To clear a Marked Scene

1 During disc playback, press SEARCH. The MARKER SEARCH menu will appear on the screen.
2 Press ◀ to select the Marker number that you want to erase.
3 Press CLEAR. The Marker number will be erased from the list.
4 Repeat steps 2 and 3 to erase additional Marker numbers.
5 To remove the MARKER SEARCH menu, press SEARCH.

Special DVD Features

Checking the contents of DVD Video discs: Menus

DVDs may offer menus that allow you to access special features. To use the disc menu, press MENU. Then, press the appropriate number button to select an option. Or, use the ◀▶▲▼ buttons to highlight your selection, then press SELECT/ENTER.

Title Menu

1 Press TITLE. If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.

2 The menu can list camera angles, spoken language and subtitle options, and chapters for the title.

3 To remove the title menu, press TITLE again.

Disc Menu

1 Press MENU. The disc menu is displayed.

2 To remove the disc menu, press MENU again.

Camera Angle

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

• Press ANGLE repeatedly during playback to select a desired angle.
  The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear a different audio language or audio track.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT or RIGHT).

Subtitles

Press SUBTITLE repeatedly during playback to see the different subtitle languages.

Note

If ⊗ appears, the feature is not available on the disc.

Operation with Audio CD and MP3/WMA Disc

Playing an Audio CD and MP3/WMA Disc

The DVD Player can play MP3/WMA formatted recordings on CD-ROM, CD-R or CD-RW discs. Before playing MP3/WMA recordings, read the notes on MP3/WMA Recordings on right.

1 Insert a disc and close the tray.

Audio CD; Audio CD menu appears on the TV screen go to step 3.

MP3/WMA disc; The MP3/WMA-JPEG choice menu appears on the TV screen. Go to step 2

2 Press ▲▼ to select the MP3/WMA then press SELECT/ENTER.

The MP3/WMA menu appears on the TV screen. Press RETURN to move to the MP3/WMA-JPEG choice menu.

MP3/WMA Program Folder1 Folder2 Folder3 Folder4 Folder5 Folder6 Folder7 Folder8 00:00 OFF

3 Press ▲▼ to select a folder, and SELECT/ENTER. A list of files in the folder appears.

4 Press ▲▼ to select a track then press PLAY or SELECT/ENTER.

Playback starts.

During playback, the current track's elapsed playing time will appear on the display window and menu.

Playback will stop at the end of the disc.

Press TITLE to move to the next page.

Press MENU to move to the previous page.

CD Program TRACK02 TRACK03 TRACK04 TRACK05 TRACK06 TRACK07 TRACK08 Clear All 0: 58: 18 STER NORM

Audio CD menu

MP3IWMA Program TRACK 2.mp3 TRACK 3.mp3 TRACK 4.mp3 TRACK 5.mp3 TRACK 6.mp3 TRACK 7.mp3 TRACK 8.mp3 Open All

MP3/WMA menu

Tip

If you are in a file list and want to return to the Folder list, use the ▲▼ to highlight ■-- and press SELECT/ENTER to return to the previous menu screen.

5 To stop playback at any other time, press STOP.

Notes on MP3/WMA Recordings

About MP3

• An MP3 file is audio data compressed by using the MPEG1 audio layer-3 file-coding scheme. We call files that have the ".mp3" file extension "MP3 files".
• The player can not read an MP3 file that has a file extension other than ".mp3".

About WMA(Window Media Audio)

• An WMA file is a Microsoft audio compression technology.
• WMA(Windows Media Audio) offers double the audio compression of the MP3 format.

MP3/WMA Disc compatibility with this player is limited as follows:

1. Sampling Frequency / only at 44.1 kHz (MP3), 22.05-44.1 kHz (WMA)
2. Bit rate / within 32-320 kbps (MP3), 32-128 kbps (WMA)

3. CD-R physical format should be "ISO 9660"

4. If you record MP3/WMA files using the software which cannot create a FILE SYSTEM, for example "Direct-CD" etc., it is impossible to playback MP3/WMA files. We recommend that you use "Easy-CD Creator", which creates an ISO9660 file system.

5. A single session disc requires MP3/WMA files in the first track. If there is no MP3/WMA file in the 1st track, it cannot playback MP3/WMA files. If you wish to playback MP3/WMA files, format all the data in the disc or use a new one.

6. File names should be named using 8 letters or less and must incorporate ".mp3" or ".wma" extension e.g. "*******.MP3" or "*******.WMA".

7. Do not use special letters such as "/ : * ? " < >" etc.

8. Total number of files on the disc should be less than 650.

This DVD player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files). That require certain pre-existing conditions (see above) to insure compatible playback.

Customers should also note that permission is required in order to download MP3/WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Operation with Audio and MP3/WMA Disc (Continued)

Pause

1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY or press PAUSE/STEP again.

Moving to another Track

• Press SKIP/SCAN ◀◀◀ or ▶▶◀ briefly during playback to go to the next track or to return to the beginning of the current track.
• Press SKIP/SCAN I◄◄ twice briefly to step back to the previous track.
• In case of audio CD, to go directly to any track, enter the track number using the numbered buttons (0-9) during playback.

Repeat Track/All/Off

1 To repeat the track currently playing, press REPEAT. The Repeat icon and "TRACK" appears on the menu screen.
2 To repeat all tracks on a disc, press REPEAT a second time. The Repeat icon and "ALL" appears on the menu screen.
3 To cancel Repeat mode, press REPEAT a third time. The Repeat icon and "OFF" appears on the menu screen.

Search

1 Press and hold SKIP/SCAN ◀◀◀ or ▶▶◀ for about two seconds during playback. The player will now go into SEARCH mode.
2 Press and hold SKIP/SCAN I◀◀ or ▶▶▶ repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X8 (backward) or ▶▶X2, ▶▶X4, ▶▶X8 (forward). Search speed and direction are indicated on the menu screen.
3 To exit SEARCH mode, press PLAY.

Random

1 Press RANDOM during playback or when playback is stopped. The unit automatically begins Random Playback and RANDOM or "RAND" appears on the display window and menu screen.
2 To return to normal playback, press RANDOM repeatedly until RANDOM or "RAND." disappears on the display window and menu screen.

Repeat A-B

To repeat a sequence.

1 During disc playback, press A-B at your chosen starting point. The Repeat icon and "A * " appears on the menu screen.
2 Press A-B again at your chosen end point. The Repeat icon and "A B" appears on the menu screen, and the sequence begins to play repeatedly.
3 To exit the sequence and return to normal play, press A-B again. The Repeat icon and "OFF" appears on the menu screen.

3D Surround

This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.

1 Press SOUND to select "3D SUR" during playback.
2 To turn off the 3D Surround effect, press SOUND again to select "NORM.".

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT, or RIGHT).

Operation with JPEG Disc

Viewing a JPEG disc

This DVD Player can play discs with JPEG files and Kodak picture CD. Before playing JPEG recordings, read the notes on JPEG Recordings on right.

1 Insert a disc and close the tray. The MP3/WMA-JPEG choice menu appears on the TV screen.

2 Press ▲▼ to select the JPEG then press SELECT/ENTER. The JPEG menu appears on the TV screen.

JPEG File Format1 File Format2 File Format3 File Format4 File Format5 File Format6 File Format7 File Format8 Slide Speed Cut

3 Press ▲▼ to select a folder, and SELECT/ENTER. A list of files in the folder appears. Press RETURN to move to the MP3/WMA-JPEG choice menu.

Tip

If you are in a file list and want to return to the Folder list, use the ▲▼ buttons on the remote to highlight "■- " and press SELECT/ENTER to return to the previous menu screen.

4 If you want to view a particular file, press ▲/▼ to highlight a file and press SELECT/ENTER or PLAY.

Viewing the file proceeding starts. During viewing a file, press RETURN to move to the previous menu (JPEG menu). Press TITLE to move to the next page. Press MENU to move to the previous page.

JPEG Folder1 ... Picture1.jpg Picture2.jpg Picture3.jpg Picture4.jpg Picture5.jpg Picture6.jpg 500 1024788 Slice Speed Off

Black-and-white landscape photo of a mountain range with snow-covered ground and distant peaks (no text or symbols visible)

Tip

There are three viewing Slide Speed options: Fast, Normal, Slow, and Off. Press ◀/▶ to highlight the Slide Speed then press ▲/▼ to select the option you want to use, and press SELECT/ENTER.

5 To stop viewing at any other time, press STOP. The JPEG menu appears.

Moving to another File

Press SKIP/SCAN ◀◀◀ or ▶▶▶ once during viewing a picture to advance to the next file or to the previous file.

Still Picture

1 Press PAUSE/STEP during slide show. The player will now go into PAUSE mode.
2 To return to the slide show, press PLAY or press PAUSE/STEP again.

To flip the picture

Press ▲▼ during showing a picture to flip the picture horizontally or a vertically.

To rotate picture

Press ◀▶ during showing a picture to rotate the picture clockwise or counter clockwise.

Notes on JPEG Recordings

• Depending upon the size and number of the JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files are too big — reduce the resolution of the JPEG files to less than 2 mega pixels and burn another disc.
• Total number of files and folders on the disc should be less than 650.
• Some disc may be incompatible due to different recording format or condition of disc.
• When you are using software such as "Easy CD Creator" to burn the jpeg files into the CD-R, ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
• If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" files.
• File names without ".jpg" extension will not be able to be read by this DVD player. Even though the files are shown as JPEG image files in windows explorer.

Programmed Playback

Programmed Playback with Audio CD and MP3/WMA Disc

The Program function enables you to store your favorite tracks from any disc in the player memory.

Program can contain 30 tracks.

1 Press PROGRAM during playback or in the stop mode to enter the Program Edit mode.

The E mark will appear to the right of the word Program on the right side of the menu screen.

Note

Press PROGRAM to exit the Program Edit mode; the ☐ mark will disappear.

2 Select a track, then press SELECT/ENTER to place the selected track on the Program list.
3 Repeat step 2 to place additional tracks on the Program list.

CD TRACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5 TRACK 6 TRACK 7 TRACK 8 Program TRACK 12 TRACK 8 TRACK 10 TRACK 3 Clear All 0:56:18 STEP. NORM.

Audio CD menu

MP31WMA Program TRACK 1.mp3 TRACK 2.mp3 TRACK 3.mp3 TRACK 4.mp3 TRACK 5.mp3 TRACK 6.mp3 TRACK 7.mp3 Track 8.mp3 TRACK 9.mp3 TRACK 10.mp3 TRACK 11.mp3 TRACK 12.mp3 Track 13.mp3 Track 14.mp3 Track 15.mp3 Track 16.mp3 Track 17.mp3 Track 18.mp3 Track 19.mp3 Track 20.mp3 Track 21.mp3 Track 22.mp3 Track 23.mp3 Track 24.mp3 Track 25.mp3 Track 26.mp3 Track 27.mp3 Track 28.mp3 Track 29.mp3 Track 30.mp3 Track 31.mp3 Track 32.mp3 Track 33.mp3 Track 34.mp3 Track 35.mp3 Track 36.mp3 Track 37.mp3 Track 38.mp3 Track 39.mp3 Track 40.mp3 Track 41.mp3 Track 42.mp3 Track 43.mp3 Track 44.mp3 Track 45.mp3 Track 46.mp3 Track 47.mp3 Track 48.mp3 Track 49.mp3 Track 50.mp3 Track 51.mp3 Track 52.mp3 Track 53.mp3 Track 54.mp3 Track 55.mp3 Track 56.mp3 Track 57.mp3 Track 58.mp3 Track 59.mp3 Track 60.mp3 Track 61.mp3 Track 62.mp3 Track 63.mp3 Track 64.mp3 Track 65.mp3 Track 66.mp3 Track 67.mp3 Track 68.mp3 Track 69.mp3 Track 70.mp3 Track 71.mp3 Track 72.mp3 Track 73.mp3 Track 74.mp3 Track 75.mp3 Track 76.mp3 Track 77.mp3 Track 78.mp3 Track 79.mp3 Track 80.mp3 Track 81.mp3 Track 82.mp3 Track 83.mp3 Track 84.mp3 Track 85.mp3 Track 86.mp3 Track 87.mp3 Track 88.mp3 Track 89.mp3 Track 90.mp3 Track 91.mp3 Track 92.mp3 Track 93.mp3 Track 94.mp3 Track 95.mp3 Track 96.mp3 Track 97.mp3 Track 98.mp3 Track 99.mp3

MP3/WMA menu

Press ▶.

The programmed track you selected last is highlighted on the program list.

Press ▲▼ to select the track you want to start playing.

Press TITLE to move to the next page. Press MENU to move to the previous page.

Press PLAY to start.

Playback begins in the order in which you programmed the tracks and "PROG." appears on the menu screen. Playback stops after all of the tracks on the Program list have played once.

To resume normal playback from programmed playback, select a track of CD (or MP3/WMA) list and then press SELECT/ENTER.

"PROG." indicator disappears on the menu screen.

Programmed Playback with Video CD

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 13.

Insert Video CD and close the tray.

Press PROGRAM while playback is stopped. The VCD Program menu will appear.

VCD Program TRACK 2 TRACK 3 TRACK 4 TRACK 5 TRACK 6 TRACK 7 TRACK 8 Clear All

Note

Press RETURN or PROGRAM to exit the Program menu.

Follow steps 2-6 of "Programmed Playback with Audio CD and MP3/WMA disc" on left.

To resume normal playback from programmed playback, press PROGRAM.

"PROG." indicator disappears in the display window.

Repeat Programmed Tracks

• To repeat the track currently playing, press REPEAT. The Repeat icon and "TRACK" appears on the menu screen.
• To repeat all tracks on the program list, press REPEAT a second time. The Repeat icon and "ALL" appears on the menu screen.
• To cancel Repeat mode, press REPEAT a third time. The Repeat icon and "OFF" appears on the menu screen.

Erasing a Track from Program List

1 Press PROGRAM during playback (Audio CD and MP3/WMA disc only) or in the stop mode to enter the Program Edit mode.

The E mark will appear.

2 Press ▶ to move to the Program list.
3 Use ▲▼ to select the track that you wish to erase from the Program list.
4 Press CLEAR. The track will be erased from the Program list.

Erasing the Complete Program List

1 Follow steps 1-2 of "Erasing a Track from Program List" as above.
2 Use ▲▼ to select "Clear All", then press SELECT/ENTER.

The complete Program for the disc will be erased. The programs are also cleared when the disc is removed.

Solid gray vertical bar with no text, symbols, or markings

Additional Information

Last Condition Memory

This player memorizes the user settings for the last disc that you have viewed. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, the latest stop position is automatically recalled.

Notes

• Settings are stored in memory for use any time.
• This player does not memorize settings of a disc if you switch off the player before commencing to play it.

Screen Saver

The screen saver picture appears when you leave the DVD Player in stop mode for about five minutes. After the Screen Saver has been engaged for about five minutes, the DVD Player will automatically turn itself off.

System Select

You must select the appropriate system mode for your TV system. If NO DISC appears in the display window, press and hold PAUSE on the front panel for more than 5 seconds to be able to select a system (PAL, NTSC, or AUTO).

- When the selected system does not coincide with the system of your TV, normal color picture may not be displayed.

AUTO: Select when DVD player is connected with Multi system TV.

NTSC: Select when DVD player is connected with NTSC-TV.

PAL: Select when DVD player is connected with PAL-TV.

Controlling the TV

Your remote control is capable of operating your DVD player as well as limited functions of LG TV. Follow the instructions below to operate for your LG TV.

1 Before using the remote control, press the DVD or TV button to select the device to be operated. To switch the remote control mode (to operate a different device), be sure to press the DVD or TV button first.

2 The POWER, PR./CH.(▼/▲), VOL (◄/►), MUTE and TV AV buttons on remote control are used to operate the LG TV.

Setting Remote Control Codes for LG TV

• This remote control supports two remote control codes for LG TV: Code 1 and Code 2.
• When the unit is shipped from the factory, the remote control is set to Code 1.
• To set the remote control to Code 2, hold down both the TV button and the number "2" button on the remote control. (If the batteries in the remote control are replaced while the remote control is set to Code 2, the setting will revert to Code 1.)
• To set the remote control back to Code 1, hold down both the TV button and the number "1" button on the remote control.

Note

If the remote control does not operate your particular TV, try the other code or use the remote control originally supplied with the LG TV. Due to the variety of codes used by manufacturers, OUR COMPANY cannot guarantee that the remote control will operate every model of LG TV.

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Correction
No power.	The power cord is disconnected.	Plug the power cord into the wall outlet securely.
The power is on, but the DVD player does not work.	No disc is inserted.	Insert a disc. (Check that the DVD or, audio CD indicator in the display window is lit.)
No picture.	The TV is not set to receive DVD signal output.	Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable securely.
	The connected TV power is turned off.	Turn on the TV.
No sound.	The equipment connected with the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.
	The audio cables are not connected securely.	Connect the audio cable securely.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The Digital Audio Output is set to the wrong position.	Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing POWER.
The playback picture is poor.	The disc is dirty.	Clean the disc.
The DVD player does not start playback.	No disc is inserted.	Insert a disc. (Check that the DVD, or audio CD indicator in the DVD display is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, color system, and Regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	The Rating level is set.	Cancel the Rating function or change the rating level.
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the DVD player.	Point the remote control at the remote sensor of the DVD player.
	The remote control is too far from the DVD player.	Operate the remote control within 23 ft (7 m).
	There is an obstacle in the path of the remote control and the DVD player.	Remove the obstacle.
	The batteries in the remote control are exhausted.	Replace the batteries with new ones.

Language Code List

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 12).

Code	Language	Code	Language	Code	Language	Code	Language
6566	Abkhazian	7074	Fiji	7678	Lingala	8373	Singhalese
6565	Afar	7073	Finnish	7684	Lithuanian	8375	Slovak
6570	Afrikaans	7082	French	7775	Macedonian	8376	Slovenian
8381	Albanian	7089	Frisian	7771	Malagasy	8379	Somali
6577	Ameharic	7176	Galician	7783	Malay	6983	Spanish
6582	Arabic	7565	Georgian	7776	Malayalam	8385	Sudanese
7289	Armenian	6869	German	7784	Maltese	8387	Swahili
6583	Assamese	6976	Greek	7773	Maori	8386	Swedish
6588	Aymara	7576	Greenlandic	7782	Marathi	8476	Tagalog
6590	Azerbaijani	7178	Guarani	7779	Moldavian	8471	Tajik
6665	Bashkir	7185	Gujarati	7778	Mongolian	8465	Tamil
6985	Basque	7265	Hausa	7865	Nauru	8484	Tatar
6678	Bengali; Bangla	7387	Hebrew	7869	Nepali	8469	Telugu
6890	Bhutani	7273	Hindi	7879	Norwegian	8472	Thai
6672	Bihari	7285	Hungarian	7982	Oriya	6679	Tibetan
6682	Breton	7383	Icelandic	8065	Panjabi	8473	Tigrinya
6671	Bulgarian	7378	Indonesian	8083	Pashto, Pushto	8479	Tonga
7789	Burmese	7365	Interlingua	7065	Persian	8482	Turkish
6669	Byelorussian	7165	Irish	8076	Polish	8475	Turkmen
7577	Cambodian	7384	Italian	8084	Portuguese	8487	Twi
6765	Catalan	7465	Japanese	8185	Quechua	8575	Ukrainian
9072	Chinese	7487	Javanese	8277	Rhaeto-Romance	8582	Urdu
6779	Corsican	7578	Kannada	8279	Rumanian	8590	Uzbek
7282	Croatian	7583	Kashmiri	8285	Russian	8673	Vietnamese
6783	Czech	7575	Kazakh	8377	Samoan	8679	Volapük
6865	Danish	7589	Kirghiz	8365	Sanskrit	6789	Welsh
7876	Dutch	7579	Korean	7168	Scots Gaelic	8779	Wolof
6978	English	7585	Kurdish	8382	Serbian	8872	Xhosa
6979	Esperanto	7679	Laothian	8372	Serbo-Croatian	7473	Yiddish
6984	Estonian	7665	Latin	8378	Shona	8979	Yoruba
7079	Faroese	7686	Latvian, Lettish	8368	Sindhi	9085	Zulu

Country Code List

Enter the appropriate code number for the initial setting "Country Code" (See page 14).

Code	Country	Code	Country	Code	Country	Code	Country
AD	Andorra	ER	Eritrea	LC	Saint Lucia	SC	Seychelles
AE	United Arab Emirates	ES	Spain	LI	Liechtenstein	SD	Sudan
AF	Afghanistan	ET	Ethiopia	LK	Sri Lanka	SE	Sweden
AG	Antigua and Barbuda	FI	Finland	LR	Liberia	SG	Singapore
AI	Anguilla	FJ	Fiji	LS	Lesotho	SH	Saint Helena
AL	Albania	FK	Falkland Islands	LT	Lithuania	SI	Slovenia
AM	Armenia	FM	Micronesia	LU	Luxembourg	SJ	Svalbard and Jan Mayen Islands
AN	Netherlands Antilles	FO	Faroe Islands	LV	Latvia
AO	Angola	FR	France	LY	Libya	SK	Slovak Republic
AQ	Antarctica	FX	France (European Territory)	MA	Morocco	SL	Sierra Leone
AR	Argentina			MC	Monaco	SM	San Marino
AS	American Samoa	GA	Gabon	MD	Moldavia	SN	Senegal
AT	Austria	GB	Great Britain	MG	Madagascar	SO	Somalia
AU	Australia	GD	Grenada	MH	Marshall Islands	SR	Suriname
AW	Aruba	GE	Georgia	MK	Macedonia	ST	Saint Tome and Principe
AZ	Azerbaidjan	GF	French Guyana	ML	Mali	SU	Former USSR
BA	Bosnia-Herzegovina	GH	Ghana	MM	Myanmar	SV	El Salvador
BB	Barbados	GI	Gibraltar	MN	Mongolia	SY	Syria
BD	Bangladesh	GL	Greenland	MO	Macau	SZ	Swaziland
BE	Belgium	GM	Gambia	MP	Northern Mariana Islands	TC	Turks and Caicos Islands
BF	Burkina Faso	GN	Guinea	MQ	Martinique (French)	TD	Chad
BG	Bulgaria	GP	Guadeloupe (French)	MR	Mauritania	TF	French Southern Territories
BH	Bahrain	GQ	Equatorial Guinea	MS	Montserrat
BI	Burundi	GR	Greece	MT	Malta	TG	Togo
BJ	Benin	GS	S. Georgia & S. Sandwich Isls.	MU	Mauritius	TH	Thailand
BM	Bermuda			MV	Maldives	TJ	Tadjikistan
BN	Brunei Darussalam	GT	Guatemala	MW	Malawi	TK	Tokelau
BO	Bolivia	GU	Guam (USA)	MX	Mexico	TM	Turkmenistan
BR	Brazil	GW	Guinea Bissau	MY	Malaysia	TN	Tunisia
BS	Bahamas	GY	Guyana	MZ	Mozambique	TO	Tonga
BT	Bhutan	HK	Hong Kong	NA	Namibia	TP	East Timor
BV	Bouvet Island	HM	Heard and McDonald Islands	NC	New Caledonia (French)	TR	Turkey
BW	Botswana			NE	Niger	TT	Trinidad and Tobago
BY	Belarus	HN	Honduras	NF	Norfolk Island	TV	Tuvalu
BZ	Belize	HR	Croatia	NG	Nigeria	TW	Taiwan
CA	Canada	HT	Haiti	NI	Nicaragua	TZ	Tanzania
CC	Cocos (Keeling) Islands	HU	Hungary	NL	Netherlands	UA	Ukraine
CF	Central African Republic	ID	Indonesia	NO	Norway	UG	Uganda
CG	Congo	IE	Ireland	NP	Nepal	UK	United Kingdom
CH	Switzerland	IL	Israel	NR	Nauru	UM	USA Minor Outlying Islands
CI	Ivory Coast	IN	India	NU	Niue
CK	Cook Islands	IO	British Indian Ocean Territory	NZ	New Zealand	US	United States
CL	Chile			OM	Oman	UY	Uruguay
CM	Cameroon	IQ	Iraq	PA	Panama	UZ	Uzbekistan
CN	China	IR	Iran	PE	Peru	VA	Vatican City State
CO	Colombia	IS	Iceland	PF	Polynesia (French)	VC	Saint Vincent & Grenadines
CR	Costa Rica	IT	Italy	PG	Papua New Guinea
CS	Former Czechoslovakia	JM	Jamaica	PH	Philippines	VE	Venezuela
CU	Cuba	JO	Jordan	PK	Pakistan	VG	Virgin Islands (British)
CV	Cape Verde	JP	Japan	PL	Poland	VI	Virgin Islands (USA)
CX	Christmas Island	KE	Kenya	PM	Saint Pierre and Miquelon	VN	Vietnam
CY	Cyprus	KG	Kyrgyzstan	PN	Pitcairn Island	VU	Vanuatu
CZ	Czech Republic	KH	Cambodia6	PR	Puerto Rico	WF	Wallis and Futuna Islands
DE	Germany	KI	Kiribati	PT	Portugal	WS	Samoa
DJ	Djibouti	KM	Comoros	PW	Palau	YE	Yemen
DK	Denmark	KN	Saint Kitts & Nevis Anguilla	PY	Paraguay	YT	Mayotte
DM	Dominica	KP	North Korea	QA	Qatar	YU	Yugoslavia
DO	Dominican Republic	KR	South Korea	RE	Reunion (French)	ZA	South Africa
DZ	Algeria	KW	Kuwait	RO	Romania	ZM	Zambia
EC	Ecuador	KY	Cayman Islands	RU	Russian Federation	ZR	Zaire
EE	Estonia	KZ	Kazakhstan	RW	Rwanda	ZW	Zimbabwe
EG	Egypt	LA	Laos	SA	Saudi Arabia
EH	Western Sahara	LB	Lebanon	SB	Solomon Islands

Specifications

General

Power requirements	AC 110-240V, 50/60 Hz
Power consumption	14W
Dimensions (approx.)	430 X 48 X 242 mm (w x h x d)
Mass (approx.)	2.34 kg
Operating temperature	5°C to 35°C (41°F to 95°F)
Operating humidity	5 % to 90 %

System

Laser	Semiconductor laser, wavelength 650 nm
Signal system	PAL/NTSC
Frequency response	DVD (PCM 96 kHz): 8 Hz to 44 kHzDVD (PCM 48 kHz): 8 Hz to 22 kHzCD: 8 Hz to 20 kHz
Signal-to-noise ratio	More than 100dB (ANALOG OUT connectors only)
Harmonic distortion	Less than 0.008%
Dynamic range	More than 100 dB (DVD)More than 95 dB (CD)

Outputs

VIDEO OUT	1 Vp-p 75 Ω, sync negative, RCA jack x 1 / SCART (TO TV)
Audio output (digital audio)	0.5 V (p-p), 75 Ω, RCA jack x 1
Audio output (analog audio)	2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 / SCART (TO TV)

Accessory

Video cable	1
Audio cable	1
Remote control	1
Batteries	2

• Design and specifications are subject to change without notice.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.
