Product type	Range hood
Brand	NODOR
Model	NorBreeze ECLIPSE 60 BK
Width	60 cm
Number of speeds	4 (including one Max timed speed)
Timer	Yes, gradual automatic shut-off (5 min per speed)
Lighting	Adjustable intensity (dimmer)
Grease filters	Aluminum, dishwasher-safe
Charcoal filter	Optional for recirculation mode
Filter saturation indicator	Yes (LED indicator)
Power supply	220-240 V ~ 50/60 Hz
Controls	Touch-sensitive buttons
Operation	Extraction or recirculation
External cleaning	Non-corrosive liquid detergent, no steam
Grease filter maintenance	Monthly (hot water + neutral detergent)
Charcoal filter replacement	Every 3 to 6 months depending on use
Installation	Following manufacturer's instructions
Safety	Disconnect power before any intervention
Spare parts	Original manufacturer filters recommended

Frequently Asked Questions - NorBreeze ECLIPSE 60 BK NODOR

How to clean the grease filters of the hood?

Remove the filters and wash them with hot water and a neutral detergent. You can also use a dishwasher by placing them vertically, without rinse aid. Monthly cleaning is recommended.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press the cleaning warning indicator button to deactivate the alert.

What to do if the hood vibrates excessively?

Check that the hood is properly secured on its supports. If the fan blade is damaged or the motor is not securely fastened, turn off the appliance and contact a qualified professional.

Why is the suction weak?

Select a higher speed. Clean the aluminum grease filters if they are dirty. Make sure the exhaust duct is not obstructed and is properly installed.

How to adjust the lighting intensity?

Press and hold the lighting on/off button until the desired intensity is achieved.

What is the function of the timer?

The timer gradually turns off the hood: it runs for 5 minutes at the selected speed, then 5 minutes at each lower speed until complete shutdown.

The hood does not turn on, what to do?

Check that the hood is properly plugged in and that the fuse or circuit breaker has not tripped. If the problem persists, contact technical support.

Can the hood be used in recirculation mode?

Yes, by installing a charcoal filter (not supplied). Replace it every 3 to 6 months depending on usage intensity.

How to install the exhaust kit?

Follow the manufacturer's instructions. The ventilation duct must have the correct diameter, without reduction or restriction, and be secured according to the manual.

How often should I replace the charcoal filter?

Every 3 to 6 months, or more often if the hood is used more than 2 hours per day. Always use an original manufacturer filter.

USER MANUAL NorBreeze ECLIPSE 60 BK NODOR

ES MAMMALADIENBISERTBOCCICINEES

EN INSERTBODTOSISGRUSSE

FR MAMNELEDDTUCISASADON

PT MANIDALADEENISIEFUCOES

DE GEBBAOBSASWBSISNGC

EN IMPORTANT - Please read carefully the separate safety guide before use.

3 MESES
3 MONTHS
3 MOIS
3 MESES
3 MONATE

Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact an official distributor or authorised dealer.

Cleaning the outside: use liquid, non-corrosive detergent and avoid using abrasive cleaning products and solvents. Do not use high-pressure or steam cleaning devices.

Important: increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

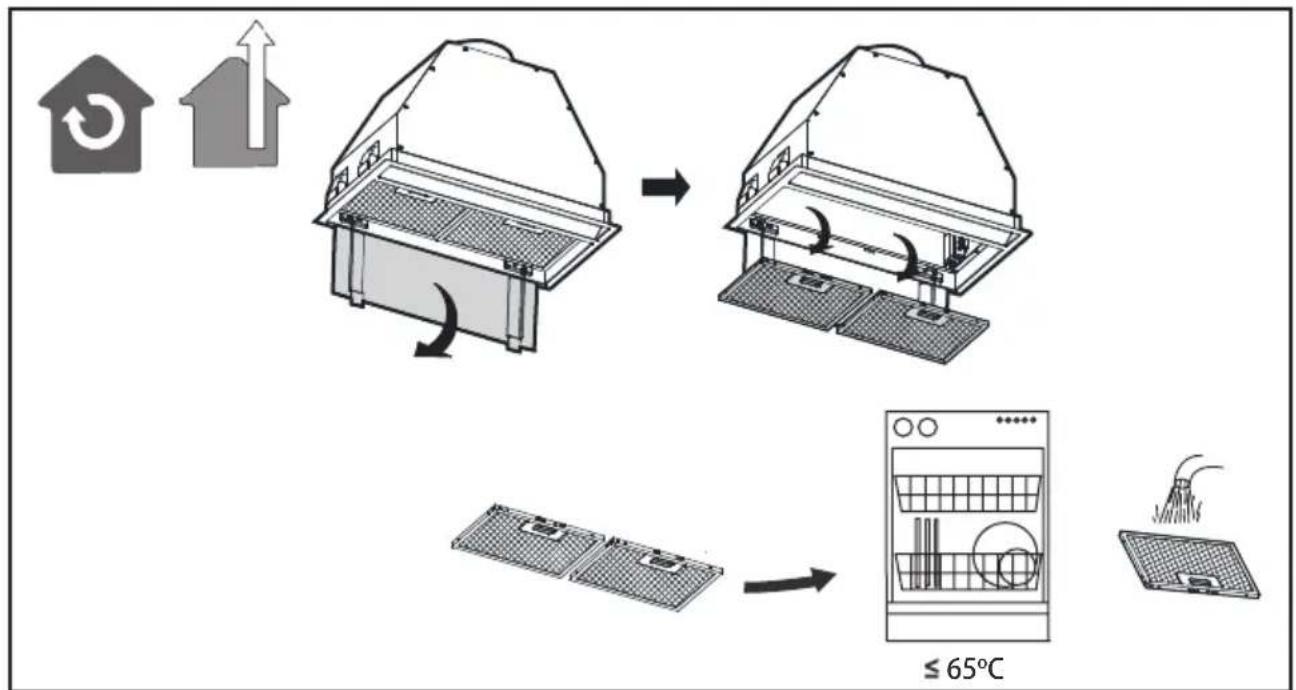

Grease cleaning

To avoid fires, clean thoroughly once a month or whenever the display pilot light indicates as such. To do so, remove the filters and wash with hot water and detergent. If using a ishwasher (metal parts may turn black without this affecting their functional capacity), load the filters vertically to avoid solid residue from being deposited.

1 MONTH

Problem Possible cause Solution
Excessive vibration.	The appliance is not installed properly on the brackets.	Take down the appliance and check it is properly fixed.
	The fan blade is damaged.	Switch off the appliance. Repair to be carried out by qualified service personnel only.
	The fan motor is not fixed tightly.
The light is on, but the fan does not work.	The fan blade is jammed.
	The motor is damaged.
Both the light and motor do not work.	Light bulb blown. Contact Customer Services on.
	Power connection loose. Check	power supply.
Suction performance reduced.	Speed may be too low. Select a higher speed.
	Aluminium filters are dirty. Clean	the aluminium filters. (See Care and maintenance section).
	Top vent might be obstructed. Clear	Clear any obstruction.
	Optional vent kit might be twisted.	Ensure that the vent kit is fitted according to the manufacturer's instructions.
	The installation may not comply with the manufacturers instructions.	The vent hose should be correct diameter throughout with no reductions or restriction.(See installation section).
Works normally but cooking smells linger.	Carbon filter is not fitted in recirculation mode or is full of grease.	Fit carbon filter or replace the carbon filter (See Care and maintenance section).
The hood does not work.	Check that the hood is connected to power. Check that the fuses or automatic have not jumped.
The hood still does not work.	If, after having checked the points mentioned above, your problem has not yet been solved, contact the technical service or your distributor.
