NorBreeze ECLIPSE 90 BK - Range hood NODOR - Free user manual and instructions

Brand	Nodor
Model	NorBreeze ECLIPSE 90 BK
Product type	Wall-mounted hood
Width (cm)	90
Approximate dimensions (W x D x H in mm)	900 x 500 x 400
Approximate weight (kg)	15
Electrical supply (V/Hz)	220-240 V / 50 Hz
Number of speeds	4 speeds including a timed Max speed (5 min)
Timer	Yes, automatic operation 5 min at each speed then stop
Lighting	LED, adjustable brightness (hold the lighting key)
Grease filters	Aluminium, dishwasher safe (vertical position)
Charcoal filter (optional)	Mandatory in recirculation mode, replace regularly
Extraction type	Ducted (diameter 150 mm) or recirculation with charcoal filter
Estimated noise level (dB)	Approximately 60 dB (depending on speed)
Functions	Touch control, filter cleaning alert, Max speed 5 min
Maintenance and cleaning	Use non-corrosive liquid detergent, do not use high-pressure steam cleaner. Clean the grease filters every month.
Safety	Disconnect power before any intervention. Fire risk if greasy filters are not cleaned.
Spare parts and repairability	Contact an official distributor or authorized service. Use only original filters.
Manual available online	Yes, PDF format on notice-facile.com

Frequently Asked Questions - NorBreeze ECLIPSE 90 BK NODOR

How to clean the grease filters of the Nodor NorBreeze ECLIPSE 90 BK hood?

Remove the aluminium filters and wash them with hot water and neutral detergent. You can also put them in the dishwasher, placing them vertically to avoid deposits. Do not use rinse aid. Monthly cleaning is recommended.

How to reset the filter cleaning indicator?

Press the dedicated button (indicator light) after cleaning or replacing the filters. The light will turn off.

How to activate the timer on the hood?

Press the timer button. The hood will run for 5 minutes at the selected speed, then automatically switch to lower speeds (5 min each) until stopping.

How to adjust the lighting brightness?

Hold down the lighting button to vary the brightness of the LEDs.

What to do if the hood vibrates excessively?

Check that the appliance is properly fixed on its supports. If the fan blade is damaged or the motor is not fixed correctly, contact a qualified professional.

Why is the hood not suctioning well?

Check that the selected speed is sufficient (use a higher speed). Clean the aluminium filters if they are dirty. Make sure the exhaust duct is not blocked and the diameter is correct (150 mm without reduction).

How to install the hood in recirculation mode?

You must install a charcoal filter (optional). The hood will draw in air, filter it through active carbon, then release it back into the room. Replace the charcoal filter regularly.

What to do if the hood does not turn on?

Check that the hood is properly connected to the power supply and that the fuses or circuit breaker have not tripped. If the problem persists, contact technical support.

How to maintain the exterior of the hood?

Use a non-corrosive liquid detergent with a soft cloth. Avoid abrasive products, solvents, and high-pressure or steam cleaners.

Where to find the complete user manual?

The manual is available in PDF format on notice-facile.com. You can download it for free or request a translation in your language.

USER MANUAL NorBreeze ECLIPSE 90 BK NODOR

ES MAMMALADIENBISERTBOCCICINEES

EN INSERTBODTOSISGRUSSE

FR MAMNELEDDTUCISASADON

PT MANIDALADEENISIEFUCOES

DE GEBBAOBSASWBSISNGG

EN IMPORTANT - Please read carefully the separate safety guide before use.

3 MESES
3 MONTHS
3 MOIS
3 MESES
3 MONATE

Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact an official distributor or authorised dealer.

Cleaning the outside: use liquid, non-corrosive detergent and avoid using abrasive cleaning products and solvents. Do not use high-pressure or steam cleaning devices.

Important: increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

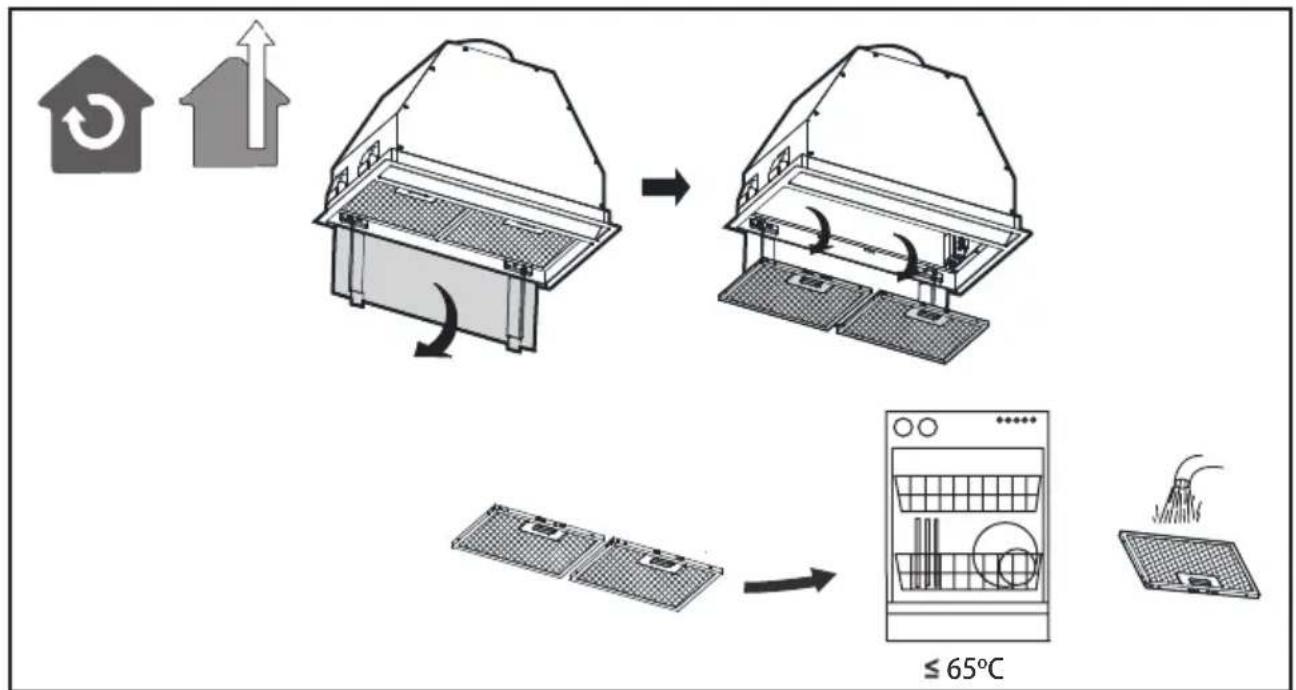

Grease cleaning

To avoid fires, clean thoroughly once a month or whenever the display pilot light indicates as such. To do so, remove the filters and wash with hot water and detergent. If using a ishwasher (metal parts may turn black without this affecting their functional capacity), load the filters vertically to avoid solid residue from being deposited.

1 MONTH

Problem Possible cause Solution
Excessive vibration.	The appliance is not installed properly on the brackets.	Take down the appliance and check it is properly fixed.
	The fan blade is damaged.	Switch off the appliance. Repair to be carried out by qualified service personnel only.
	The fan motor is not fixed tightly.
The light is on, but the fan does not work.	The fan blade is jammed.
	The motor is damaged.
Both the light and motor do not work.	Light bulb blown. Contact Customer Services on.
	Power connection loose. Check	power supply.
Suction performance reduced.	Speed may be too low. Select a higher speed.
	Aluminium filters are dirty. Clean	the aluminium filters. (See Care and maintenance section).
	Top vent might be obstructed. Clear	clear any obstruction.
	Optional vent kit might be twisted.	Ensure that the vent kit is fitted according to the manufacturer's instructions.
	The installation may not comply with the manufacturers instructions.	The vent hose should be correct diameter throughout with no reductions or restriction.(See installation section).
Works normally but cooking smells linger.	Carbon filter is not fitted in recirculation mode or is full of grease.	Fit carbon filter or replace the carbon filter (See Care and maintenance section).
The hood does not work.	Check that the hood is connected to power. Check that the fuses or automatic have not jumped.
The hood still does not work.	If, after having checked the points mentioned above, your problem has not yet been solved, contact the technical service or your distributor.

NODOR always innovating

CNA group

CATA ELECTRODOMÉSTICOS, S.L.
