USER MANUAL 12 Jazz DV Mark

1) Read these instructions;
2) Keep these instructions;
3) Heed all warnings;
4) Follow all instructions;
5) Do not use this apparatus near water;
6) Clean only with a dry cloth;
7) Install in accordance with the manufacturer's instructions;
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatuses (including amplifiers) that produce heat;
9) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus;
10) Only use attachments/accessories specified by the manufacturer;
11) Unplug this apparatus during lightning storms or when unused for long periods of time;
12) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped;
13) "Warning: to reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture; and objects filled with liquids, such as vases, should not be placed on this apparatus";
14) The socket outlet shall be installed near the equipment and shall be easily accessible;
15) The power cord must be unplugged prior to servicing

For warranty and service information, please contact your local DV Mark distributor (contact information available at www.dvmark.it). For more technical information, please visit us at www.dvmark.it and fill out the form on the Contact Us page. We hope you enjoy your amplifier and use it to make great music!

"The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons."

"The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product."

"The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons."

"The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product."

MARK VISION

A Word from Marco De Virgiliis

Thank you for choosing the DV Little Jazz / DV 12 Jazz combo.

Jazz guitarists are well aware that creating a great jazz tone requires not only the right guitar but also the right amplifier.

The DV Little Jazz / DV 12 Jazz combos have been designed with a jazz guitar in mind.

Lots of attractive features which make them a new standard for jazz guitarists and everyone in need of a small, ultra-compact, very-portable combo with a clean, warm, powerful sound!

We hope you will enjoy your new guitar amp, and we invite you to contact us any time with your comments and questions, at [e-mail]. Thanks again, and good music!

We hope you will enjoy your new guitar amp, and we invite you to contact us any time with your comments and questions, at [e-mail].

Thanks again, and good music!

Marco De Virgilis Marco De Virgilis

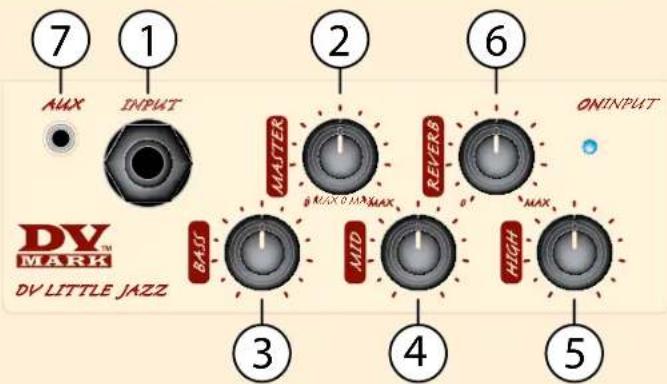

FRONT PANEL

1) INPUT Connect your guitar to this input using a standard 14 " shielded instrument cable.
2) MASTER Start with the Master control OFF (all the way counter-clockwise) and turn it up gradually until you reach your deidered volume.
3) BASS This knob controls the amount of low frequencies in your sound.
4) MID The Middle control regulates the midrange frequencies and it is an important part of your tone shaping.
5) HIGH The High knob controls the amount of high frequencies in your sound.
6) REVERB Level control for the onboard reverb. This amp features a last generation of digital reverb, it's sweet-sounding, warm and natural.
7) AUX Use this input to plug in an iPod, CD or MP3 player using a mini plug 1/8". This signal mixes in evenly with your instrument input.

7 1 MAX INPUT 2 6 ONINPUT DYMARK DV LITTLE JAZZ 3 MATTER REVERS MAX MAX MID 4 HIGH 5

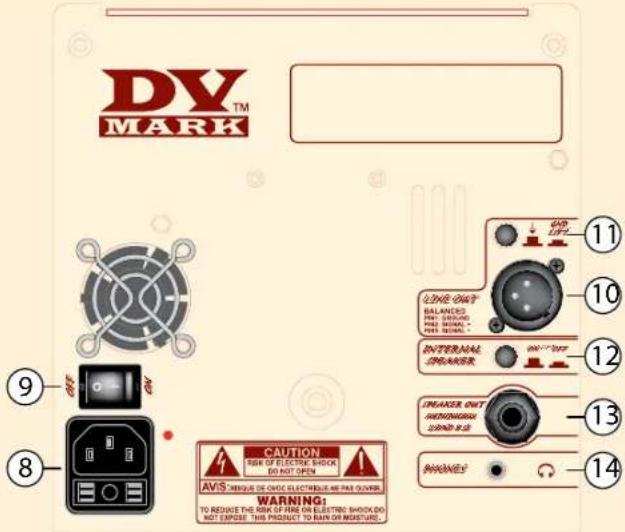

REAR PANEL

8) AC POWER SOCKET Make sure the unit is grounded; all three terminals of the AC power plug must be connected to avoid any injury to the user or damage to the unit.
DV Mark amps and combos are manufactured to be used in the country where they have been sold, and are factory preset to that country's voltage.
So make sure you're sending the correct voltage to your amp before you connect it to AC power.
9) ON/OFF SWITCH This switch delivers AC power to the amp,
10) LINE OUT This balanced XLR output sends a balanced signal to the mixing console or snake in live and studio situations. The Line Out signal is post-EQ and post-reverb.
11) GROUND LIFT Occasionally, when you're playing live and using the Line Out (10), the soundman will detect a hum from your amp's signal. This is often due to a ground problem related to your power source; You will likely eliminate this hum simply flipping the Ground Lift switch.
12) INTERNAL SPEAKER ON/OFF This switch turns off the speaker when using headphones so you can practice anywhere and anytime you like.
13) SPEAKER OUT Use this output to connect an 8 ohm extension cabinet, giving you a louder rig.
14) PHONES For quiet practing plug headphones into this mini plug 1/8" input, turning OFF the internal speaker switch (12).

DV™ MARK 11 10 12 13 14 9 8 CANTON FOR ELECTRIC SHOCK DO NOT OPEN AVIS: VENSUE DE CHICK ELECTRICSE NE PAS OVERT. WARNING: TO REDUCE THE RISK OF FIRE ON ELECTRIC SHOCK DO NOT EXPOSED THIS PRODUCT TO RAIN OR MOBILITY. OUT: OUT INTEURAL SPRANGER. CREATER OUT MINIMUM ON ON IN 5.5

TECHNICAL SPECS

Channels: One

Controls: Gain - Master - Reverb

EQ Controls: Low - Mid - High

Speaker Outputs: One 1/4" Jack mono out 8 ohm

Power Output: 60W @ 4ohm,

45W @ 8ohm

Other Features: Onboard reverb

Dimensions: 270 x 280 x 270 mm / 10.63" x 11.02" x 10.63" (DV Little Jazz)

440 x 430 x 306 mm / 17.32" x 16.93" x 12.05" (DV 12 Jazz)

Weight: 6,9 kg / 15.21 lbs (DV Little Jazz)

10,2 kg / 22.49vv lbs (DV 12 Jazz)

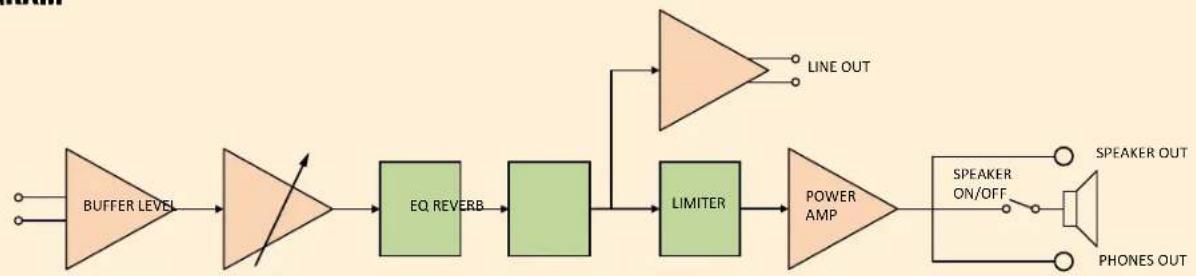

BLOCK DIAGRAM

POWER REQUIREMENT: 100V; 120V; 230V; 240V - 50/60Hz (Voltage is factory preset according to region of sale).

DV Mark amps/combos are manufactured to be sold and used in the country of purchase, and they are factory preset to at country's voltage.

Due to homologation issues, the voltage may not be changed.

NOTE

Product specifications are subject to change without notice

DY MARK

Guitar at its Best!

srl

Italy - 66020 San Giovanni Teatino CH - Via Po, 52

Tel: [phone] - Fax: [phone] - www.dvmark.it - [e-mail]
