USER MANUAL Primo 6.0-1 Fronius

Operating Instructions

Fronius Primo

3.0-1 / 3.5-1 / 3.6-1 / 4.0-1

4.6-1 / 5.0-1 AUS / 5.0-1

5.0-1 SC / 6.0-1 / 8.2-1

EN | Operating Instructions

FR | Instructions de service

Exterior view of a FRONIUS PRIMO industrial powertrain device (no signage or text beyond branding)

Contents

Safety rules.5.

General.5.

Environmental conditions.5.

Qualified personnel 5

Noise emission values.6

EMC measures 6

Disposal 6.

Data protection 6

Copyright 6.

General 8.

Explanation of safety notices 8

Device concept.8

Proper use/intended purpose.9

Warning notices on the device 9.

Data communication and Fronius Solar Net 11

Fronius Solar Net and data interface 11

Data communication area 11

Explanation of the multifunction current interface 12

Description of the "Fronius Solar Net" LED 13

Example 14

Installing option cards in the inverter 14

Dynamic power reduction by means of inverter 15

System monitoring.... 16

General 16

Fronius Datamanager during the night or when the available DC voltage is insufficient.... 16

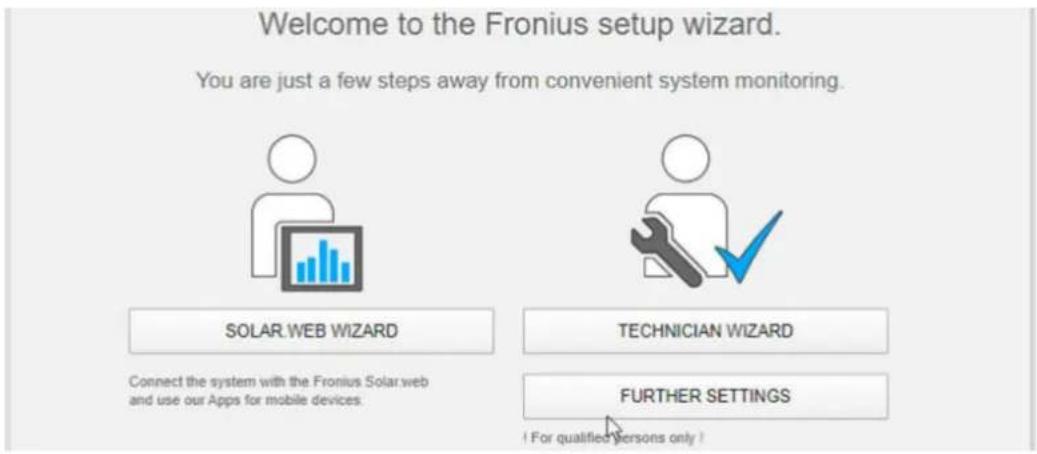

Starting for the first time 16

Further information on Fronius Datamanager 2.0 18

Controls and indicators 19

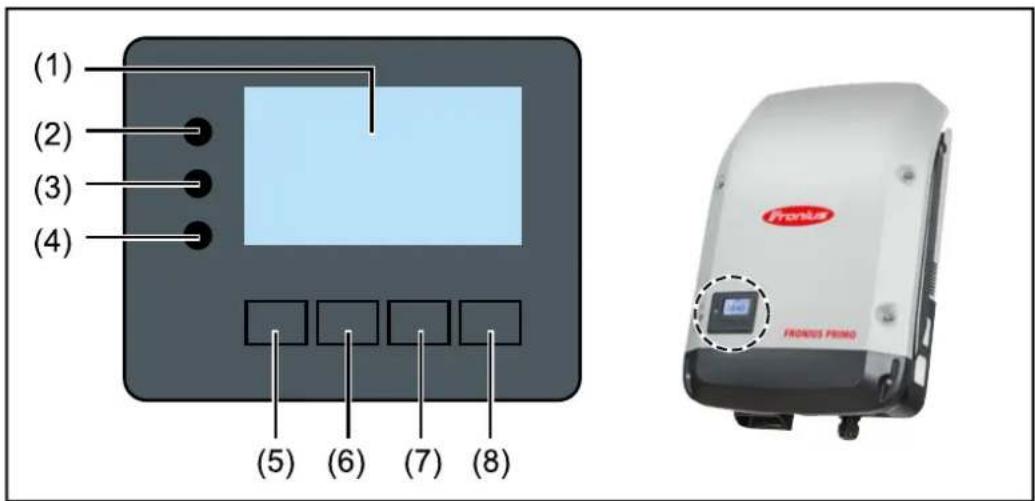

Controls and displays.... 19

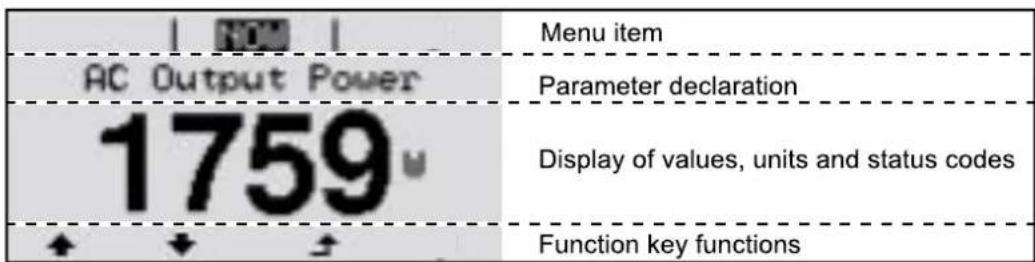

Display 20

The menu level 21

Activating display backlighting 21

Automatic deactivation of display backlighting / changing to the "NOW" menu item 21

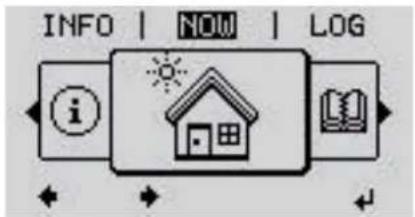

Open menu level 21

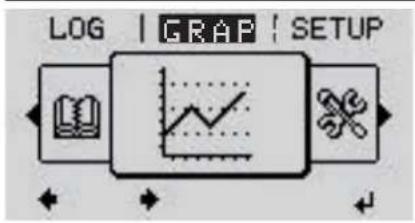

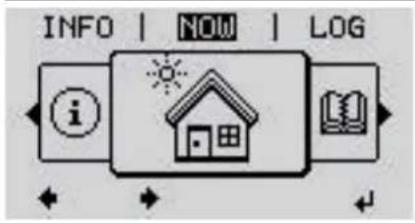

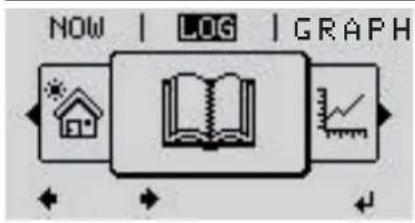

The NOW, LOG and GRAPH menu items 22

NOW LOG GRAPH 22

Values displayed in the NOW and LOG menu items 22

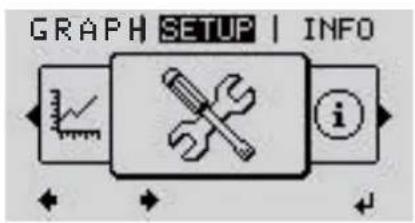

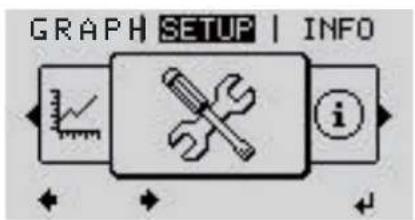

SETUP menu item 24

Initial setting 24

SETUP 24

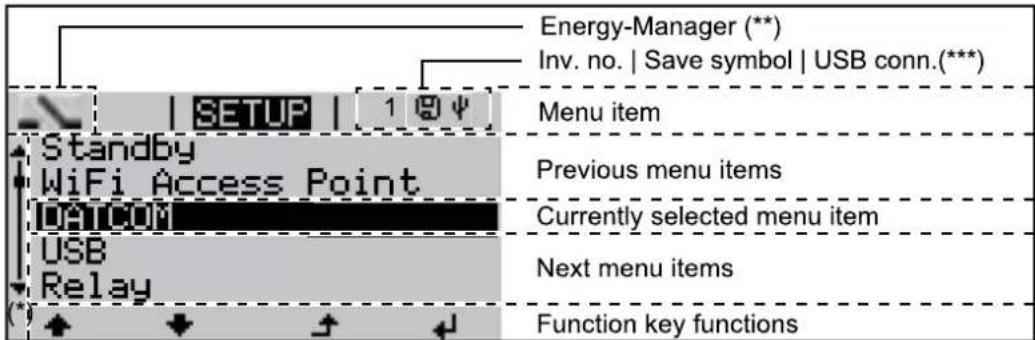

Navigating the SETUP menu item 24

Setting menu entries, general 25

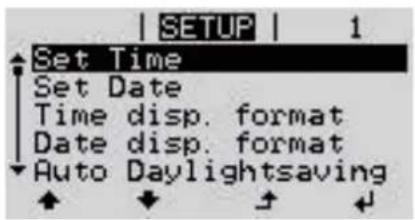

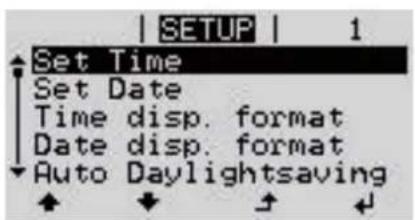

Application example: Setting the time 26

The Setup menu items 28

Standby 28

WiFi Access Point 28

DATCOM 29

USB 29

Relay (floating contact switch) 31

Energy Manager(under Relay menu item) 32

Time / Date 33

Display settings 34

ENERGY YIELD 35

Fan 36

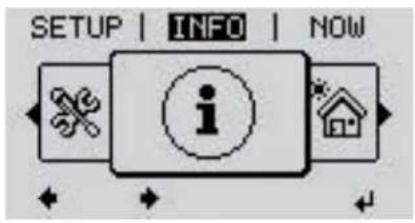

The INFO menu item 37

INFO 37

Measured values PSS status Grid status 37

Device information 38

Version 39

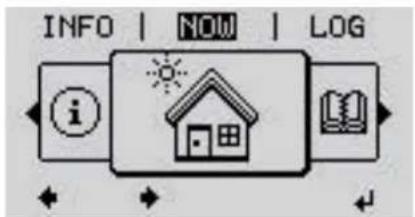

Switching the key lock on and off 40

General 40

Switching the key lock on and off 40

USB Stick as a Data Logger and for Updating Inverter Software.41

USB flash drive as a datalogger 41

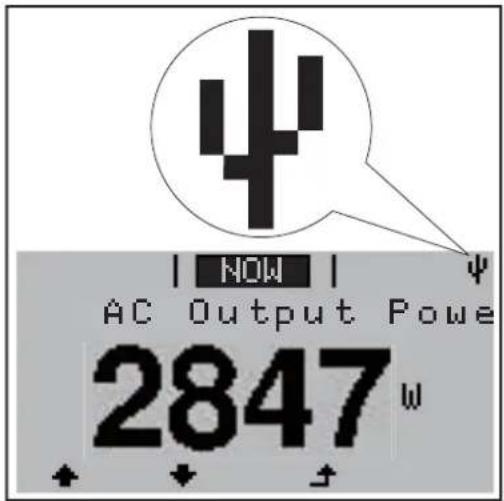

Suitable USB flash drives 41

USB stick for updating the inverter software.42

Removing the USB flash drive.42

The Basic menu.43

General 43

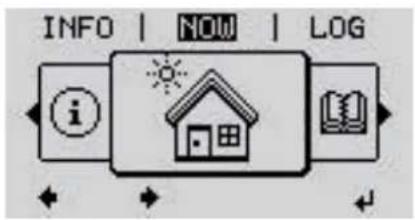

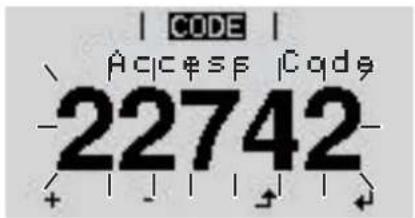

Access the Basic menu.43

Menu items in the Basic menu 43

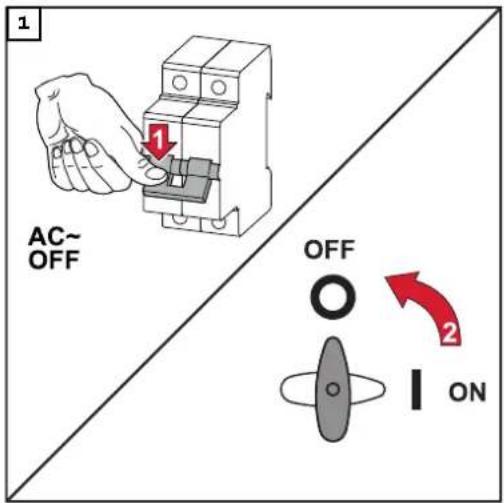

Switching off current supply and restarting the inverter 45

Switch off power to the inverter.45

Status diagnostics and troubleshooting 46.

Status code display 46

Total failure of the display 46

Status codes in the e-Manual 46

Customer service 46

Operation in dusty environments 46

Technical data

General data and protection devices Fronius Primo 3.0-1 - 8.2-1 47

WLAN 50

Explanation of footnotes 51

Integrated DC disconnector 51

Applicable standards and guidelines 52

Warranty terms and conditions, and disposal 53

Fronius manufacturer's warranty 53

Disposal 53

General The device has been manufactured in line with the state of the art and according to recognized safety standards. If used incorrectly or misused, however, it can cause:- Injury or death to the operator or a third party- Damage to the device and other material assets belonging to the operating company.
Environmental conditions	Operation or storage of the device outside the stipulated area will be deemed as not in accordance with the intended purpose. The manufacturer accepts no liability for any damage resulting from improper use.
Qualified personnel	The servicing information contained in these operating instructions is intended only for the use of qualified service engineers. An electric shock can be fatal. Do not carry out any actions other than those described in the documentation. This also applies to qualified personnel.
	All cables and leads must be secured, undamaged, insulated and adequately dimensioned. Loose connections, scorched, damaged or inadequately dimensioned cables and leads must be immediately repaired by authorised personnel.
	Maintenance and repair work must only be carried out by an authorised specialist.
	It is impossible to guarantee that bought-in parts are designed and manufactured to meet the demands made on them, or that they satisfy safety requirements. Use only original spare parts (also applies to standard parts).
	Do not carry out any alterations, installations, or modifications to the device without first obtaining the manufacturer's permission.
	Components that are not in perfect condition must be changed immediately.
Noise emission values	The inverter generates a maximum sound power level of < 65 dB(A) (ref. 1 pW) when operating under full load in accordance with IEC 62109-1:2010.
	The device is cooled as quietly as possible with the aid of an electronic temperature control system, and depends on the amount of converted power, the ambient temperature, the level of soiling of the device, etc.
	It is not possible to provide a workplace-related emission value for this device because the actual sound pressure level is heavily influenced by the installation situation, the power quality, the surrounding walls and the properties of the room in general.
EMC measures In certain cases, even though a device complies with the standard limit values for emissions, it may affect the application area for which it was designed (e.g., when there is equipment that is susceptible to interference at the same location, or if the site where the device is installed is close to either radio or television receivers). If this is the case, then the operator is obliged to take appropriate action to rectify the situation.
Disposal To comply with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation as national law, electrical equipment that has reached the end of its life must be collected separately and returned to an approved recycling facility. Any device that you no longer require must be returned to your distributor, or you must locate the approved collection and recycling facilities in your area. Ignoring this European Directive may have potentially adverse effects on the environment and your health!
Data protection The user is responsible for the safekeeping of any changes made to the factory settings. The manufacturer accepts no liability for any deleted personal settings.
Copyright Copyright of these operating instructions remains with the manufacturer.
	The text and illustrations are all technically correct at the time of printing. We reserve the right to make changes. The contents of the operating instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you have any suggestions for improvement, or can point out any mis-

takes that you have found in the instructions, we will be most grateful for your comments.

General

Explanation of safety notices

WARNING!

Indicates a potentially hazardous situation.

▶ If not avoided, death or serious injury may result.

CAUTION!

Indicates a situation where damage could occur.

▶ If not avoided, minor injury and/or damage to property may result.

NOTE!

Indicates a risk of flawed results and possible damage to the equipment.

If you see any of the symbols depicted in the "Safety rules" chapter, special care is required.

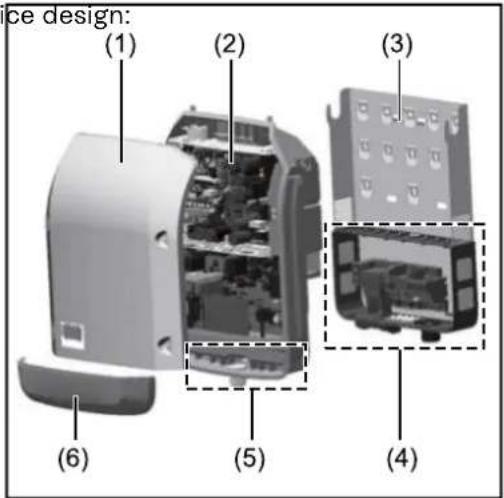

Device concept Device design:

ce design: (1) (2) (3) (4) (5) (6)

(1) Housing cover
(2) Inverter
(3) Mounting bracket
(4) Connection area incl. DC main switch
(5) Data communication area
(6) Data communication cover

The inverter transforms the direct current generated by the solar modules into alternating current. This alternating current is fed into the public grid synchronously with the grid voltage.

The inverter has been developed exclusively for use in grid-connected photovoltaic systems; it is impossible to generate energy independently of the public grid.

The inverter automatically monitors the public grid. In the event of abnormal grid conditions, the inverter ceases operating immediately and stops feeding power into the grid (e.g. if the grid is switched off, if there is an interruption, etc.).

The grid is monitored by monitoring the voltage, frequency and islanding conditions.

The inverter operates fully automatically. As soon after sunrise as there is sufficient energy available from the solar modules, the inverter starts monitoring the grid. When insolation has reached a sufficient level, the inverter starts feeding energy into the grid.

The inverter operates in such a way that the maximum possible amount of power is obtained from the solar modules.

As soon as the power available has fallen below the level at which energy can be

fed into the grid, the inverter disconnects the power electronics completely from the grid and stops running. It retains all its settings and stored data.

If the inverter becomes too hot, it automatically reduces the current output power in order to protect itself.

Reasons for the inverter becoming too hot include the ambient temperature being too high or inadequate heat dissipation (e.g. if it is installed in a switch cabinet without suitable heat dissipation).

Proper use/intended purpose

The inverter is intended exclusively to convert direct current from solar modules into alternating current and to feed this into the public grid.

Utilisation not in accordance with the intended purpose comprises:

• Any use above and beyond this purpose
• Making any modifications to the inverter that have not been expressly approved by Fronius
• the installation of components that are not distributed or expressly approved by Fronius.

Fronius shall not be liable for any damage resulting from such action. No warranty claims will be entertained.

Proper use also includes:

• Carefully reading and obeying all the instructions and all the safety and danger notices in the Operating Instructions and Installation Instructions
• Performing all stipulated maintenance work
• Installation as specified in the Installation Instructions

When designing the photovoltaic system, ensure that all components are operated within their permitted operating ranges at all times.

Observe all the measures recommended by the solar module manufacturer to ensure that the solar module retains its properties in the long term.

Obey the regulations of the power supply company regarding connection methods and energy fed into the grid.

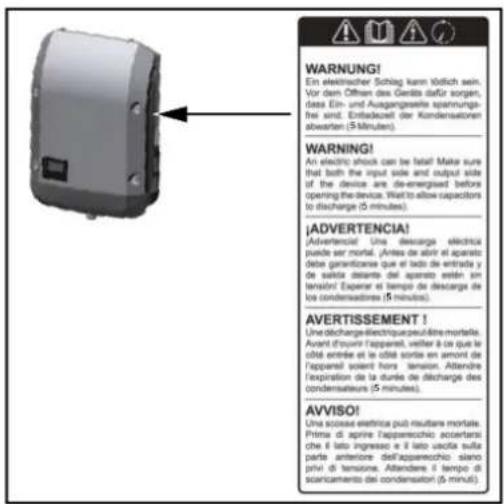

Warning notices on the device

There are warning notices and safety symbols on and in the inverter. These warning notices and safety symbols must not be removed or painted over. They warn against incorrect operation, as this may result in serious injury and damage.

WARNING! Ein elektrischer Schlag kann tödlich sein. Vor dem Offesen des Gedits dafür sorgen, dass Ein- und Ausgangsante spannungs- frei sind. Endeadeut der Kondensatoren abwarten (5 Minuten). WARNING! An electric shock can be fatal! Make sure that both the input side and output side of the device are de-emerged before opening the device. What to allow capacitors to discharge (5 minutes). ¡ADVERTENCIA! Advertencé! Una descarga électrique puede ser mortal. Antes de partir el aparato debe garantizarse que el tado de entrada y de salida delante del aparato estér sin tensin! Experer el tiempo de descarga de los condensatoren (5 minutes). AVERTISSEMENT ! Une d'charge-electricque peut-être mortals. Avent d'ouvrir l'apparel, veiller à ce que le obité entrée et le côte sorte en amont de l'apparel soient hors tension. Attendre l'expiration de la durée de discharge des condensature (5 minutes). AVVISO! Una sciose elektrica può rustiere mortale. Primes di aprire l'appareschio: accertanti: che il lato ingresso e il lato vacità sulla parte anteriore dell'appareschio: siano privi di tensione. Attendere il tempo di scancamento dei condensatori (5 minuti).

Safety symbols:

Danger of serious injury and damage due to incorrect operation

use the functions de- scribed here until you have fully read and understood the following documents:

• These Operating Instructions
• All the Operating Instructions for the system components of the photovoltaic system, especially the safety rules

Dangerous electrical voltage

Wait for the capacitors to discharge.

Symbols on the rating plate:

CE mark – confirms compliance with applicable EU directives and regulations.

WEEE mark – waste electrical and electronic equipment must be collected separately and recycled in an environmentally sound manner in accordance with the European Directive and national law.

RCM mark – tested in accordance with the requirements of Australia and New Zealand.

CMIM mark – tested in accordance with IMANOR requirements for import regulations and compliance with Moroccan standards.

Text of the warning notices:

WARNING!

An electric shock can be fatal. Before opening the device, it must be disconnected at the input and output. Wait for the capacitors to discharge (5 minutes).

Data communication and Fronius Solar Net

Z

Fronius Solar Net and data in- terface

Fronius Solar Net was developed to make system add-ons flexible to use in a variety of different applications. Fronius Solar Net is a data network that enables multiple inverters to be linked up using system add-ons.

It is a bus system that uses a ring topology. One suitable cable is sufficient for communication between one or several inverters that are connected on the Fronius Solar Net using a system add-on.

Similarly, every inverter on the Fronius Solar Net must be assigned a unique number.

Refer to the section entitled "The SETUP menu item" for instructions on how to assign a unique number.

Fronius Solar Net automatically recognises a wide variety of system add-ons.

In order to distinguish between several identical system add-ons, each one must be assigned a unique number.

More detailed information on the individual system add-ons can be found in the relevant operating instructions or on the internet at http://www.fronius.com

More detailed information on cabling Fronius DATCOM components can be found at:

→ http://www.fronius.com/QR-link/4204101938

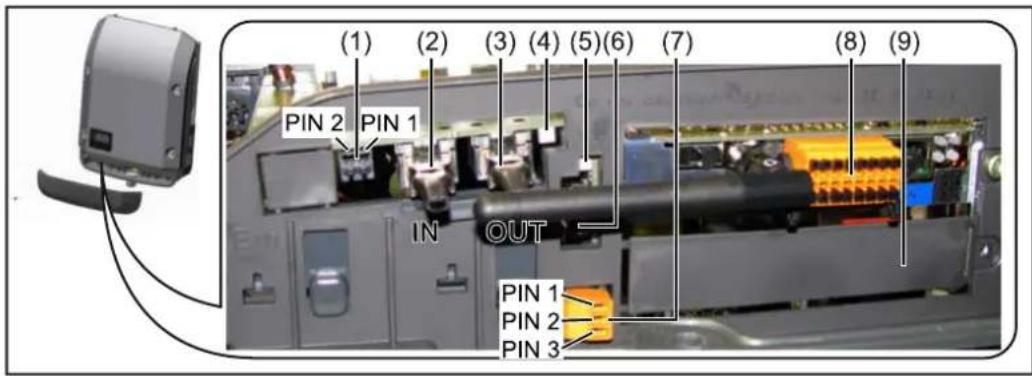

Data communication area

(1) (2) (3) (4) (5)(6) (7) (8) (9) PIN 2 PIN 1 IN OUT PIN 1 PIN 2 PIN 3

Depending on the model, the inverter may be equipped with the Fronius Datamanager plug-in card (8).

Item Description

(1) Switchable multifunction current interface.For more details, refer to the section below entitled "Explanation of the multifunction current interface"Use the 2-pin mating connector supplied with the inverter to connect to the multifunction current interface.

(2) IN Fronius Solar Net connection / interface protocol IN(3) OUT Fronius Solar Net connection / interface protocol"Fronius Solar Net" / interface protocol input and output for connecting to other DATCOM components (e.g. inverter, Fronius sensor box, etc.)If several DATCOM components are linked together, a terminating plug must be connected to every free IN or OUT connection on a DATCOM component.For inverters with a Fronius Datamanager plug-in card, two terminating plugs are supplied with the inverter.

(4) The "Fronius Solar Net" LEDindicates whether the Fronius Solar Net power supply is available

(5) The "Data transfer" LEDflashes while the USB flash drive is being accessed. The USB flash drive must not be removed while recording is in progress.

(6) USB A socketfor connecting a USB flash drive with maximum dimensions of 65 x 30 mm (2.6 x 2.1 in.)The USB flash drive can function as a datalogger for any inverter that it is connected to. The USB flash drive is not included in the scope of supply of the inverter.

(7) Floating switch contact (relay) with mating connectorMax. 250 V AC / 4 A ACMax. 30 V DC / 1 A DCMax. 1.5 mm^2 (AWG 16) cable cross-sectionPin 1 = NO contact (normally open)Pin 2 = C (common)Pin 3 = NC contact (normally closed)For a more detailed explanation, please see the "Menu items in the Setup menu / Relay" section.Use the mating connector supplied with the inverter to connect to the floating switch contact.

(8) Fronius Datamanager with WLAN antennaorcover for option card compartment

(9) Cover for option card compartment

Explanation of the multifunction current interface

Various wiring variants can be connected to the multifunction current interface. However, these cannot be operated simultaneously. For example, if an SO meter is connected to the multifunction current interface, it is not possible to connect a signal contact for the surge protection device (or vice versa).

Pin 1 = measurement input: max. 20 mA, 100 Ohm measurement resistor (load impedance)

Pin 2 = max. short circuit current 15 mA, max. open-circuit voltage 16 V DC or GND

Wiring diagram variant 1: Signal contact for surge protective device

Depending on the setting in the Basic menu (Signal Input submenu), the DC SPD option (surge protective device) either outputs a warning or an error on the display. Further information on the DC SPD option can be found in the Installation Instructions.

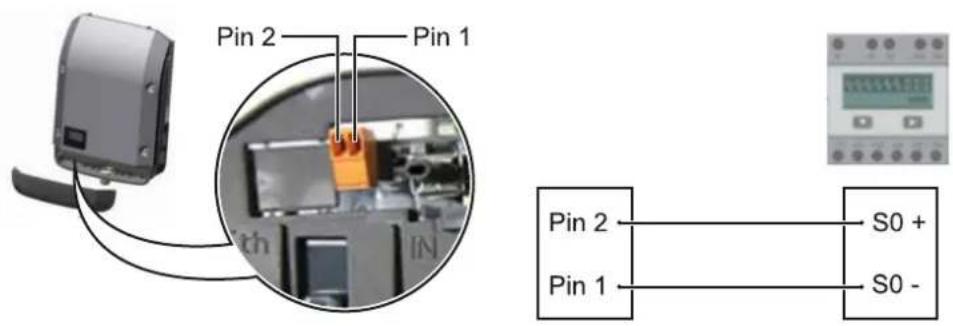

Wiring diagram variant 2: So meter

A meter for recording the self-consumption of each SO can be connected directly to the inverter. This SO meter can be positioned directly at the feed-in point or in the consumption branch.

IMPORTANT! In order to connect an SO meter to the inverter, it may be necessary to update the inverter firmware.

The S0 meter must comply with the IEC62053-31 Class B standard

Recommended max. pulse rate of the SO meter: PV output kWp [kW] Max. pulse rate per kWp

30 1000
20 2000
10 5000
≤ 5.5 10000

With this meter, dynamic power reduction can be performed in two ways:

• Dynamic power reduction by means of inverter
  For more information see chapter Dynamic power reduction by means of inverter on page 15
• Dynamic power reduction by means of the Fronius Datamanager 2.0
  for more info see: manuals.fronius.com/html/4204260191/#0_m_0000017472

Description of the "Fronius Solar Net" LED

The "Fronius Solar Net" LED is on:

the power supply for data communication within the Fronius Solar Net / interface protocol is OK

The "Fronius Solar Net" LED flashes briefly every 5 seconds:

data communication error in the Fronius Solar Net

• Overcurrent (current flow > 3 A, e.g. resulting from a short circuit in the Fronius Solar Net ring)
• Undervoltage (not a short circuit, voltage in Fronius Solar Net < 6.5 V, e.g. if there are too many DATCOM components on the Fronius Solar Net and not enough electrical power is available)

In this case, power for the Fronius DATCOM components must be supplied by connecting an additional power supply (43,0001,1194) to one of the Fronius DATCOM components.

To detect the presence of an undervoltage, check some of the other Fronius DATCOM components for faults as required.

After cutting out because of overcurrent or undervoltage, the inverter attempts to restore the power supply in the Fronius Solar Net every 5 seconds while the fault is still present.

Once the fault is rectified, power to the Fronius Solar Net will be restored within 5 seconds.

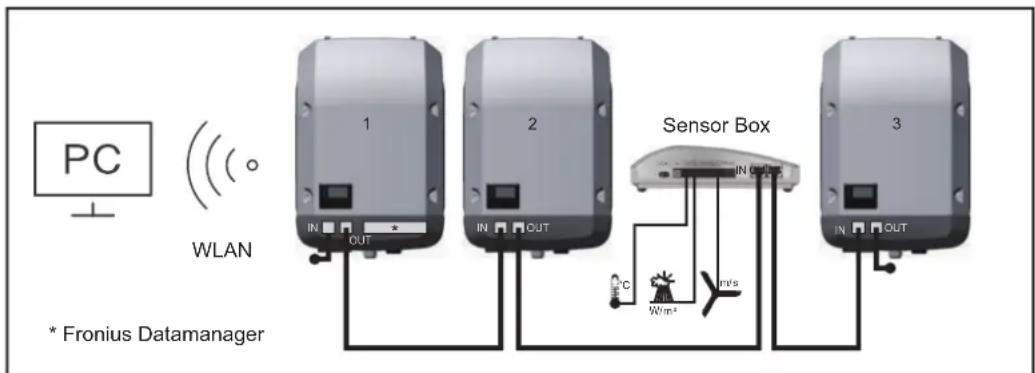

Example Recording and archiving data from the inverter and sensor using a Fronius Datamanager and a Fronius Sensor Box:

PC WLAN * Fronius Datamanager 1 2 Sensor Box 3 IN OUT IN OUT IN OUT °C W/m² m/s

Data network with 3 inverters and a Fronius Sensor Box:

• Inverter 1 with Fronius Datamanager
• Inverters 2 and 3 without Fronius Datamanager!

● = Terminating plug

The external communication (Fronius Solar Net) takes place on the inverter via the data communication area. The data communication area contains two RS 422 interfaces as inputs and outputs. RJ45 plug connectors are used to make the connection.

IMPORTANT! Since the Fronius Datamanager functions as a data logger, the Fronius Solar Net ring must not include any other data logger. Only one Fronius Datamanager per Fronius Solar Net ring!

Any other Fronius Datamanagers must be removed and the unoccupied option card compartment sealed off using the blanking cover (42,0405,2020 - available from Fronius as an optional extra); alternatively, use an inverter without Fronius Datamanager (light version).

Installing option cards in the inverter

Information on installing option cards (e.g.: Datamanager) in the inverter and connecting the data communication cable can be found in the Installation Instructions.

Dynamic power reduction by means of inverter

Energy companies or grid operators may impose feed-in limits on an inverter. Dynamic power reduction takes account of self-consumption by the household before the power of an inverter is reduced:

A counter for determining self-consumption of the SO can be connected directly to the inverter – see chapter Explanation of the multifunction current interface on page 12

A feed-in limit can be set in the Basic menu under Signal input – SO meter – see chapter Menu items in the Basic menu on page 43.

Setting options for SO meter:

- Grid feed-in limit

Field for entering the maximum grid feed-in power in W. If this value is exceeded, the inverter regulates down to the set value within the time required by national standards and regulations.

- Pulses per kWh

Field for entering the pulses per kWh of the SO meter.

Zero feed-in is possible with this configuration.

When using the SO meter and power reduction by means of an inverter, the SO meter must be installed in the consumption branch.

So meter in the consumption branch

If dynamic power reduction is subsequently configured using the Fronius Datamanager 2.0 (Inverter user interface - UC Editor menu - Dynamic power reduction), dynamic power reduction must be deactivated using the inverter (Inverter display - Basic menu - Signal input - SO meter).

System monitoring

General The inverter is fitted with the WLAN-enabled system monitoring Fronius

Datamanager 2.0 as standard.

The following functions are included with the system monitoring:

• Dedicated web page displaying current data and a wide range of settings
• Ability to connect to Fronius Solar.web using WLAN or LAN
• Automatic sending of service messages by SMS or e-mail in the event of a fault
• Option of controlling the inverter by specifying power limit values, minimum or maximum running times or target running times
• Control of the inverter via Modbus (TCP / RTU)
• Ability to assign control priorities
• Ability to control the inverter by means of connected meters (Fronius Smart Meter)
• Ability to control the inverter via a ripple control signal receiver (e.g. by specifying the reactive power or effective power)
• Dynamic power reduction, taking self-consumption into account

Further information on Fronius Datamanager 2.0 can be found online in the Fronius Datamanager 2.0 Operating Instructions.

Fronius

Datamanager during the night or when the available DC voltage is insufficient

The Night Mode parameter under "Display Settings" in the Setup menu is preset to OFF in the factory.

For this reason the Fronius Datamanager cannot be accessed during the night or when the available DC voltage is insufficient.

To nevertheless activate the Fronius Datamanager, switch the inverter off and on again at the mains and press any function button on the inverter display within 90 seconds.

See also the chapters on "Menu items in the Setup menu", "Display settings" (Night Mode).

Starting for the first time

Starting the Fronius Datamanager 2.0 for the first time is made considerably easier with the Fronius Solar.start app. The Fronius Solar.start app is available in the respective app stores.

When starting the Fronius Datamanager 2.0 for the first time,

• the Fronius Datamanager 2.0 plug-in card must be installed in the inverter, or
• there must be a Fronius Datamanager Box 2.0 in the Fronius Solar Net ring.

IMPORTANT! In order to establish a connection to Fronius Datamanager 2.0, "Obtain IP address automatically (DCHP)" must be activated on the end device in question (e.g. laptop, tablet, etc.).

NOTE!

If the photovoltaic system has only one inverter, steps 1 and 2 below can be skipped.

In this case, starting for the first time will commence with step 3.

1 Connect inverter with Fronius Datamanager 2.0 or Fronius Datamanager Box 2.0 to the Fronius Solar Net

2 When networking several inverters in Fronius SolarNet:

Set the Fronius Solar Net client/server switch on the Fronius Datamanager 2.0 plug-in card correctly

- One inverter with Fronius Datamanager 2.0 = master - All other inverters with Fronius Datamanager 2.0 = slave (the LEDs on the Fronius Datamanager 2.0 plug-in cards are not illuminated)

3 Switch the device to Service mode - Activate the WiFi Access Point via the Setup menu on the inverter

SETUP | 1 Stand by WiFi Access Poi DATCOM USB Clock

The inverter establishes the WLAN access point. The WLAN access point remains open for 1 hour. The IP switch on the Fronius Datamanager 2.0 can remain in switch position A due to the activation of the WiFi Access Point.

Installation using the Solar.start app

4 Download Fronius Solar.start

5 Run the Fronius Solar.start app

Installation using a web browser

4 Connect the end device to the WLAN access point

SSID = FRONIUS_240.xxxxx (5-8 digits)

• Search for a network with the name "FRONIUS_240.xxxxx"
• Establish a connection to this network
• Enter the password 12345678

(Alternatively, connect the end device and inverter using an Ethernet cable.)

5 Enter the following in the browser:

http://datamanager or 192.168.250.181 (IP address for WLAN connection) or 169.254.0.180 (IP address for LAN connection)

The Setup wizard start page is displayed.

Welcome to the Fronius setup wizard. You are just a few steps away from convenient system monitoring. SOLAR WEB WIZARD TECHNICIAN WIZARD Connect the system with the Fronius Solarweb and use our Apps for mobile devices. FURTHER SETTINGS ! For qualified persons only !

The technician wizard is intended for the installer and contains standard-specific settings. Running the technician wizard is optional.

If the technician wizard is run, it is vital to note the service password that is issued. This service password is necessary for setting the "DNO Editor" menu item. If the technician wizard is not run, no specifications regarding power reduction are set.

Running the Fronius Solar.web wizards is mandatory.

6 Run the Fronius Solar.web wizards and follow the instructions

The Fronius Solar.web homepage is displayed,

or

the Fronius Datamanager 2.0 web page is displayed.

7 Where necessary, run the technician wizard and follow the instructions

Further information on Fronius Datamanager 2.0

Further information on the Fronius Datamanager 2.0 and other start-up options can be found at:

→ http://www.fronius.com/QR-link/4204260191DE

Controls and dis- plays

Monitoring and status LEDs

(2) General status LED (red) lights up

• if a status message is being displayed on the monitor
• If the process of feeding energy into the grid is interrupted
• During error handling (the inverter waits for an acknowledgement or for an error to be rectified)

(3) Startup LED (orange) lights up

• If the inverter is in its automatic startup or self-test phase (as soon after sunrise as the solar modules are delivering sufficient power)
• If the inverter has been switched to Standby mode in the Setup menu (= feeding energy into the grid switched off manually)
• If the inverter software is being updated

(4) Operating status LED (green) lights up

• If the PV system is working correctly after the inverter's automatic startup phase
• all the time while energy is being fed into the grid

Function keys - allocated different functions depending on the selection:

(5) "Left/up" key

For navigating to the left and up

(6) "Down/right" key

For navigating down and to the right

(7) "Menu/Esc" key

For switching to the menu level

For quitting the Setup menu

(8) "Enter" key

For confirming a selection

The keys are capacitive and any exposure to water can impair their function. Wipe the keys dry with a cloth if necessary to ensure optimum functionality.

Display Power for the display comes from the mains voltage. Depending on the setting selected in the Setup menu, the display can be kept on all day.

IMPORTANT! The display on the inverter is not a calibrated measuring device. A slight inaccuracy in comparison with the energy meter used by the energy company is intrinsic to the system. A calibrated meter will be needed to calculate the bills for the power supply company.

AC Output Power 1759 Menu item Parameter declaration Display of values, units and status codes Function key functions

Display areas in Display mode

Energy-Manager (** Inv. no. | Save symbol | USB conn.(***) SETUP | 1 @ψ | Standby WiFi Access Point DATCOM USB Relay Menu item Previous menu items Currently selected menu item Next menu items Function key functions

Display areas in Setup mode

(*) Scroll bar
(**) The Energy Manager symbol is displayed when the Energy Manager function is activated
(***) Inv. no. = Inverter DATCOM number, Save symbol - appears briefly while set values are being saved, USB connection - appears if a USB stick has been connected

The menu level

Activating dis- play backlighting

1 Press any key

The display backlighting is activated.

There is an option under "Display Settings - Backlighting" in the SETUP menu to set the display backlighting so that it is on all the time or off all the time.

Automatic deactivation of display backlighting / changing to the "NOW" menu item

If two minutes pass without any button being pressed, the display backlighting switches off automatically and the inverter goes to the "NOW" menu item (assuming the display backlighting is set to AUTO).

The automatic selection of the "NOW" menu item can happen from any position on the menu level, unless the inverter was manually switched into the "Standby" operating mode.

After automatically selecting the "NOW" menu item, the current power of feeding in is displayed.

Open menu level

NOW AC Output Power 2359W

1 Press the "Menu" Key

INFO | NOW | LOG i

The display switches to the menu level.

2 Using the "Left" or "Right" keys select the desired menu item

3 Press the "Enter" key ◄ to select the desired menu item

The NOW, LOG and GRAPH menu items

NOW

LOG

GRAPH

INFO | NOW | LOG i

NOW

(Displays real-time values)

NOW | LOG | GRAPH

LOG

(Data recorded today, during the current calendar year and since the inverter was first commissioned)

LOG | GRAP | SETUP

GRAPH

Day characteristic

displays a plot showing the output power during the day. The time axis is scaled automatically.

Press the "Back" key to close the display

Values displayed in the NOW and LOG menu items
Values displayed in the NOW menu item:

AC Output power (W)

AC Reactive power (V Ar)

AC Voltage (V)

AC Output current (A)

AC Frequency (Hz)

PV Array Voltage (V)

PV Array Current (A)

Time / dateTime and date on the inverter or in the Fronius Solar Net ring

Values displayed in the LOG menu item:

(for today, during the current calendar year and since the inverter was started for the first time)

AC Energy Yield (kWh / MWh)

Energy fed into the grid during the period in question

There may be discrepancies with values displayed on other measuring instruments because of differences in measuring methods. As far as the billing of the energy fed in is concerned, the only binding display values are those produced by the calibrated measuring device provided by the electricity supply company.

AC Max. Output Power (W)

Largest amount of power fed into the grid during the period in question

Earnings

Amount of money earned during the period in question (currency can be selected in the Setup menu)

Like the energy supplied figure, the yield figure may also exhibit discrepancies with other measured values.

The 'Setup Menu' section explains how to select a currency and charge rate. The factory setting depends on the respective country setup.

CO2 savings (g / kg)

CO _2 emissions saved during the period in question

The value for CO_2 savings depends on the power station facilities and corresponds to the CO_2 emissions that would be released when generating the same amount of energy. The factory setting is 0.53 kg / kWh (source: DGS – Deutsche Gesellschaft für Sonnenenergie e.V. (German Society for Solar Energy).

AC Max. Voltage L-N (V)

Highest voltage measured between the conductor and neutral conductor during the period in question

PV Array Max. Voltage (V)

Highest solar module voltage measured during the period in question

Operating Hours

Length of time the inverter has been working (HH:MM).

IMPORTANT! A prerequisite for the correct display of day and year values is that the time is set correctly.

SETUP menu item

Initial setting The inverter is pre-configured after commissioning has been completely carried out (e.g. using the Installation Wizard) according to the country setup.

The SETUP menu item allows the initial settings of the inverter to be changed easily to bring it in line, as closely as possible, with the preferences and requirements of the user.

SETUP

GRAPH SETUP | INFO i

SETUP

(Setup menu)

NOTE!

As a result of software updates, you may find that your device has certain functions that are not described in these Operating Instructions, or vice versa.

Certain illustrations may also differ slightly from the actual controls on your device, but these controls function in exactly the same way.

Navigating the SETUP menu item

Entering the SETUP menu item

GRAPH SETUP | INFO i

Menu level, "SETUP" selected

At the menu level, use the "Left" or "Right" keys to select the "SETUP" menu item
2 Press the "Enter" Key

The first entry under the SETUP menu item is displayed:

"Standby"

| SETUP | Standby WiFi Access Point DATCOM USB Relay

"Standby" entry

Scrolling between the entries

| SETUP | Standby WiFi Access Point DATCOM USB Relay

Example: "WiFi Access Point" menu item

3 Use the "Up" and "Down" keys to scroll between the available entries

Exiting an entry

GRAPH SETUP | INFO

4 To exit a menu entry, press the "Back" key

The menu level appears

If no key is pressed for 2 minutes:

• The inverter switches from wherever it is on the menu level back to the "NOW" display mode (exception: "Standby" Setup menu entry),
• The display backlighting goes out.
• The amount of power currently being fed in is displayed.

Setting menu entries, general

1 Open the desired menu
2 Use the 'Up' or 'Down' keys to select the desired menu item
3 Press "Enter"

The available settings are displayed: The first digit of a value to be set flashes:

4 Use the 'Up' or 'Down' buttons to select the desired setting
5 Press the 'Enter' key to save and apply the setting.

To discard the setting, press the 'Esc' key.

4 Use the 'Up' or 'Down' keys to select a value for the first digit
5 Press "Enter"

The second digit of the value flashes.

6 Repeat steps 4 and 5 until ...
the whole value to be set flashes.
7 Press "Enter"
8 Repeat steps 4 - 6 as required for units or other values that are to be set until the appropriate unit or the value flashes.
9 Press the 'Enter' key to save and apply the changes.

To discard the changes, press the 'Esc' key.

The currently selected menu item is displayed.

The currently selected menu item is displayed.

Application example: Setting the time

| SETUP | 1 | USB Relay Clock Display Setting Energy Yield

1 Select "Clock" from the Setup menu

2 Press the "Enter" Key

SETUP | 1 Set Time Set Date Time disp. format Date disp. format Auto Daylightsaving

An overview of the values that can be changed is displayed.

3 Use the "Up" and "Down" keys Select "Set time"

4 Press the "Enter" Key

| SETUP | 1 Time 10:45:46

The current time appears. (HH:MM:SS, 24-hour clock), the "tens" digit for the hour will flash.

5 Use the "Up" and "Down" keys to select a value for the first digit of the code

6 Press the "Enter" Key

| SETUP | 1 Time 10:45:46

The "units" digit for the hour will flash.

7 Repeat steps 5 and 6 to set the "units" digit for the hour, for the minutes and for the seconds until...

SETUP | 1 、 | | Time | | / -10:45:46- + - + +

the set time starts flashing.

8 Press the "Enter" Key

SETUP | 1 Set Time Set Date Time disp. format Date disp. format Auto Daylightsaving

The time is applied and the overview of values that can be changed is displayed.

4 Press the "Esc" key

| SETUP | 1 | USB Relay Clock Display Setting Energy Yield

The "Clock" item on the Setup menu appears.

The Setup menu items

Standby Manual activation / deactivation of Standby mode

• No energy is fed into the grid.
• The Startup LED will show steady orange.
• In the display, STANDBY / ENTER are alternately displayed
• In Standby mode, no other menu item at menu level can be accessed or adjusted.
• The automatic switchover into the "NOW" display mode after 2 minutes of keyboard inactivity does not occur.
• Standby mode can only be terminated manually by pressing the "Enter" key.
• Pressing "Enter" at any time will cause energy to resume feeding into the grid, as long as there is no error (state code)

Switching off Standby mode (manually switching off feeding energy into the grid):

1 Select the "Standby" item
2 Press "Enter" function ↓key

"STANDBY" and "ENTER" appear alternately on the display.

Standby mode is now active.

The Startup LED shows steady orange.

Resuming feeding energy into the grid:

In standby mode, the display alternates between 'STANDBY' and 'ENTER'.

1 Press the "Enter" function key to resume feeding energy into the grid

The "Standby" menu item is displayed.

At the same time, the inverter enters the startup phase.

The operating state LED shows steady green when feeding energy into the grid has been resumed.

WiFi Access Point

Activating / deactivating the WiFi Access Point. This is necessary for setting up or adjusting system monitoring using the Datamanager web interface, for example. If no Datamanager is detected by the inverter, [not available] is displayed

Setting range WiFi Access Point [stopped]

Activate WiFi AP?

To activate the WiFi Access Point ← Press the "Enter" key

WiFi Access Point [active]

The SS-ID (SS) and password (PW) are displayed.

Deactivate WiFi AP?

To deactivate the WiFi Access Point ← Press the "Enter" key

DATCOM Checking data communications, entering the inverter number, protocol settings

Setting range Status / inverter number / protocol type

Status

Indicates data communication is taking place via Fronius Solar Net or that a data communications error has occurred

Inverter number

Sets the number (= address) of the inverter in a system with several inverters

Setting range 00 - 99 (00 = inverter address 100)

Factory setting 01

IMPORTANT! If a number of inverters are linked together in a data communications system, assign a unique address to each one.

Protocol type

Specifies the communications protocol to be used to transfer the data:

Setting range Solar Net / Interface *

Factory setting Fronius Solar Net

* The protocol type "Interface" only functions when there is no Datamanager card in the inverter. All Fronius Datamanager cards should be removed from the inverter.

USB Running firmware updates or saving detailed information from the inverter to the USB flash drive

Setting range Safely remove hardware / Software update / Logging interval

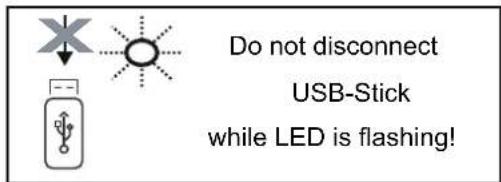

Safely remove hardware

To remove a USB flash drive from the USB A socket on the plug-in data communications card without losing any data.

The USB flash drive can be removed:

- If the OK message appears

- when the "Data transfer" LED stops flashing or comes on steady

Software update

To update the inverter firmware using a USB flash drive.

Procedure:

1 Download the relevant firmware update file "froxxxx.upd" (e.g. from http://www.fronius.com; xxxx stands for the version number)

NOTE!

To successfully update the inverter software, the USB flash drive provided for the purpose must not have a hidden partition or any encryption (see chapter "Suitable USB flash drives").

2 Save the firmware update file to the highest data level of the USB flash drive
3 Open the lid of the data communication area on the inverter
4 Plug the USB flash drive containing the firmware update file into the USB socket in the inverter's data communication area
5 Select "USB" from the Setup menu, followed by "Software update"
6 Press the "Enter" key
7 Wait until the version currently installed on the inverter and the new firmware version are displayed for comparison:
- First Page: Recerbo software (LCD), key controller software (KEY), country setup version (Set)
- Second Page: Power stage set software (PS1/PS2)
8 Press the "Enter" function button after each page

The inverter starts copying the data.

"BOOT" and the progress of storing the individual tests expressed in % are displayed until all the data for all the electronic modules has been copied.

Once copying is complete, the inverter updates the electronic modules as required in sequence.

"BOOT", the affected modules and the update progress in % are displayed.

The final step is for the inverter to update the display.

The display remains dark for approx. 1 minute while the monitoring and status LEDs flash.

Once the firmware update is complete, the inverter enters its start-up phase before going on to start feeding energy into the grid. Unplug the USB flash drive using the "Safely remove hardware" function.

When the inverter firmware is updated, any custom settings that were configured in the Setup menu are retained.

Logging interval

Activate / deactivate the USB logging function and specify a logging interval

Unit Minutes

Setting range 30 min. / 20 min./ 15 min./ 10 min./ 5 min./ No log

Factory setting 30 min.

30 min. The logging interval is 30 minutes; every 30 minutes new logging data will be saved to the USB flash drive.

20 min.

15 min.

10 min.

5 min. The logging interval is 5 minutes; every 5 minutes new logging data will be saved to the USB flash drive.

No log No data is saved

IMPORTANT! In order for the USB logging function to work correctly the time must be set correctly. Setting the time is discussed in the section "Menu items in the Setup menu" - "Clock".

Relay (floating contact switch)

Status codes (state codes), the status of the inverter (e.g. feeding energy into the grid) or Energy Manager functions can be displayed using the floating switch contact (relay).

Setting range Relay mode / Relay test / Switch-on point* / Switch-off point*

* these are only shown if the "E-Manager" function has been activated under "Relay mode".

Relay mode

The following functions can be shown using relay mode:

• Alarm function (Permanent / ALL / GAF)
• Active output (ON / OFF)
• Energy Manager (E-Manager)

Setting range ALL / Permanent / GAF / OFF / ON / E-Manager

Factory setting ALL

Alarm function:

ALL / Per- manent:

Switching the floating switch contact for permanent and temporary service codes (e.g. brief interruption to energy being fed into the grid, a service code occurs a certain number of times a day - can be adjusted in the "BASIC" menu)

GAF As soon as GAF mode is selected, the relay is switched on.

The relay opens as soon as the power stage set registers an error and goes from normally feeding energy into the grid to being in an error state. This means that the relay can be used for fail-safe functions.

Application example

It may be necessary to perform phase compensation when using a single-phase inverter at a multiphase site. If an error occurs on one or several inverters and the connection to the grid is broken, the other inverters must also be disconnected to maintain the phase balance. The "GAF" relay function can be used in conjunction with the Datamanager or an external protection device to recognise or signal that an inverter is not feeding in or is disconnected from the grid and to then disconnect the remaining inverters from the grid using a telecontrol command.

Active output:

ON: The floating NO contact is on all the time the inverter is in operation (as long as the display is not dark or is displaying something).

OFF: The floating NO contact is off.

Energy Manager:

E-Manager: Further details on the "Energy Manager" function may be found in the "Energy Manager" section.

Relay test

Function test to determine whether the floating switch contact switches

Switch-on point (only if "Energy Manager" function is activated)

for setting the effective power limit beyond which the floating switch contact is switched on

Factory setting 1000 W

Setting range Set switch-off point up to the maximum nominal output of the inverter (W or kW)

Switch-off point (only if "Energy Manager" function is activated)

for setting the effective power limit beyond which the floating switch contact is switched off

Factory setting 500

Setting range 0 to the set switch-on point of the inverter (W or kW)

Energy Manager (under Relay menu item)

The "Energy Manager" (E-Manager) function can be used to activate the floating switch contact in such a way that it functions as an actuator.

Thus, a consumer that is connected to the floating switch contact can be controlled by specifying a switch-on or switch-off point that depends on the feed-in power (effective power).

The floating switch contact is automatically switched off:

- If the inverter is not feeding any power into the grid

- If the inverter is manually switched to Standby mode

- If the effective power is set to < 10% of the nominal output of the inverter.

To activate the Energy Manager function, select the "E-Manager" item and press the "Enter" key.

When the "Energy Manager" function is running, the "Energy Manager" symbol will appear in the top left corner of the display:

When the floating NO contact is off (open contact)
When the floating NC contact is on (closed contact)

To deactivate the Energy Manager function, select a different function (ALL / Permanent / OFF / ON) and press the "Enter" key.

NOTE!

Notes on setting up the switch-on and switch-off points If the difference between the switch-on and switch-off points is too small, or if there are fluctuations in effective power, the result may be multiple switching cycles.

To avoid switching on and off frequently, the difference between the switch-on and switch-off points should be at least 100 - 200 W.

When choosing the switch-off point, the power consumption of the connected consumer should be taken into account.

When choosing the switch-on point, the weather conditions and anticipated insolation should be taken into account.

Application example

Switch-on point = 2000 W, switch-off point = 1800 W

If the inverter is outputting 2000 W or above, then the floating switch contact on the inverter is switched on.

If the inverter output falls to below 1800 W, the floating switch contact is switched off.

This allows useful applications, such as operating a heat pump or an air-conditioning system using as much self-generated power as possible, to be implemented quickly

Time / Date Set the time, date, the display format and automatic changeover between summer and winter time

Setting range Set time / Set date / Time display format / Date display format / Summer/winter time

Set time

Set the time (hh:mm:ss or hh:mm am/pm – depending on the setting for the time display format)

Set date

Set the date (dd.mm.yyyy or mm/dd/yyyy - depending on the setting for the date display format)

Time display format

For specifying the time display format

Setting range 12hrs / 24hrs

Factory setting Depends on country setup

Date display format

for specifying the date display format

Setting range mm/dd/yyyy or dd.mm.yy

Factory setting Depends on country setup

Summer/winter time

Activate/deactivate automatic changeover between summer and winter time

IMPORTANT! Only use the automatic summer/winter time changeover function if the Fronius Solar Net ring does not include any LAN- or WLAN-compatible system components (e.g. Fronius Datalogger Web, Fronius Datamanager or Fronius Hybridmanager).

Setting range on / off

Factory setting on

IMPORTANT! The time and date must be set accurately in order for the day and year values and for the day characteristic to be displayed correctly.

Display settings

Setting range Language / Night mode / Contrast / Illumination

Language

Set language for display

Setting range English, German, French, Spanish, Italian, Dutch, Czech, Slovakian, Hungarian, Polish, Turkish, Portuguese, Romanian

Night mode

Night mode controls Fronius DATCOM and inverter display operation during the night or when the DC voltage is insufficient

Setting range AUTO / ON / OFF

Factory setting OFF

AUTO: Fronius DATCOM mode is always in effect as long as there is a Fronius Datamanager connected in an active and uninterrupted Fronius Solar Net. The inverter display remains dark during the night, but can be activated by pressing any function button.

ON: Fronius DATCOM mode is always in effect. The inverter supplies 12 V of DC voltage continuously to power the Fronius Solar Net. The display is always active.

IMPORTANT! If Fronius DATCOM night mode is set to ON or AUTO when there are Fronius Solar Net components connected, the inverter's current consumption during the night will increase to around 7 W.

OFF: Fronius DATCOM will not run at night, the inverter therefore does not require any power during the night to supply the Fronius Solar Net with energy. The inverter display is switched off during the night and the Fronius Datamanager is not available. To nevertheless activate the Fronius Datamanager, switch the inverter off and on again at the mains and press any function button on the inverter display within 90 seconds.

Contrast

Set the contrast on the inverter display

Setting range 0 - 10

Factory setting 5

Since the contrast is temperature-dependent, it may be necessary to adjust the setting under the "Contrast" menu item when the environmental conditions change.

Illumination

Initial setting for inverter display illumination

The "Illumination" menu item only relates to the inverter display backlighting.

Setting range AUTO / ON / OFF

Factory setting AUTO

AUTO: The inverter display backlighting is activated by pressing any key. If no key is pressed for 2 minutes, the display backlighting will go off again.

ON: The inverter display backlighting remains permanently on when the inverter is active.

OFF: The inverter display backlighting is permanently switched off.

ENERGY YIELD The following settings can be changed/set here:

• Counter deviation / Calibration
• Currency
• Feed-in tariff
• CO2 factor

Setting range Currency / Feed-in tariff

Counter deviation / calibration Calibrating the counter

Currency Set the currency

Setting range 3 characters, A-Z

Feed-in tariff Set the remuneration rate for energy fed into the grid

Setting range 2 digits, 3 decimal places Factory setting (depends on country setup)

CO2 factor Setting the CO2 factor of the energy fed into the grid

Fan To check that the fan is working correctly

Setting range Test fan #1 / Test fan #2 (depending on the device)

• Use the "Up" and "Down" keys to select the desired fan
• Testing of the selected fan is initiated by clicking "Enter".
• The fan will continue to run until the operator exits the menu by pressing "Esc".

IMPORTANT! Nothing will show on the inverter display if the fan is working. The only way to check how the fan is working is by listening and feeling.

INFO

SETUP | INFO | NOW

INFO

(Information about the device and the software)

Measured values PSS status Grid status

Measured values

Display range: PV ins. / Ext. lim. / U PV1 / U PV2 / GVDPR / Fan #1

PV ins.

Insulation resistance of the PV system (with unearthed solar modules and solar modules with negative pole earthing)

Ext. lim.

External power reduction in per cent e.g. specified by grid operator

UPV1

Current DC voltage on the terminals, even if the inverter is feeding no power into the grid whatsoever (from the 1st MPP tracker)

UPV2

Current DC voltage on the terminals, even if the inverter is feeding no power into the grid whatsoever (from the 2nd MPP tracker)

GVDPR

Grid voltage-dependent power reduction

Fan #1

Percentage of target output for fan

PSS status The status of the most recent inverter fault can be displayed.

IMPORTANT! Due to the low level of insolation early in the morning and in the evening, the status codes 306 (Power low) and 307 (DC low) are displayed routinely at these times of day. These status codes do not indicate any kind of fault.

• Press the "Enter" key to see the status of the power stage set and the most recent fault
• Use the "Up" and "Down" keys to scroll through the list
• Press the "Back" key to close the status and fault list

Grid status The five most recent grid faults can be displayed:

• Press the 'Enter' key to see the five most recent grid faults
• Use the "Up" and "Down" keys to scroll through the list
• Press the 'Back' key to close the grid fault display

Device information	For displaying the settings that will be of relevance to a power supply company. The values shown will depend on the country setup or the device-specific settings of the inverter.
Display area General / Country-specific setting / MPP tracker / Grid monitoring / Grid voltage limits / Grid frequency limits / Q-mode / AC power limit / AC voltage derating / Fault Ride Through
General: Device type - the exact name of the inverterfam. - inverter family of the inverterserial number - serial number of the inverter
Country-specific setting:	Setup - specified country setupVersion - version of country setupOrigin activated - indicates that the normal country-specific setup is activated.Alternat. activated - indicates that the alternative country-specific setup is activated (for Fronius Symo Hybrid only)Group - group for updating the inverter software
MPP Tracker: Tracker 1 - indicates the set tracking behaviour (MPP AUTO / MPP USER / FIX)Tracker 2 (only on Fronius Symo except for Fronius Symo 15.0-3 208) - indicates the set tracking behaviour (MPP AUTO / MPP USER / FIX)
Grid monitoring: GMTi - Grid Monitoring Time - start-up time of the inverter in sec (seconds)GMTr - Grid Monitoring Time reconnect - reconnection time in sec (seconds) after a grid faultULL - U (voltage) Longtime Limit - voltage limit value in V (volts) for the 10-minute average voltage valueLLTrip - Longtime Limit Trip - trip time for ULL monitoring, how fast the inverter should switch off
Grid voltage limitsinner limit value:	UImax - upper inner grid voltage in V (volts)TTMax - Trip Time Max - trip time for exceeding the upper inner grid voltage limit value in cyl*UMin - lower inner grid voltage in V (volts)TTMin - Trip Time Min - trip time for falling below the lower inner grid voltage limit value in cyl**cyl = grid periods (cycles); 1 cyl corresponds to 20 ms at 50 Hz or 16.66 ms at 60 Hz
Grid voltage limits outer limit value	UMax - upper outer grid voltage in V (volts)
	TTMax - Trip Time Max - trip time for exceeding the upper outer grid voltage limit value in cyl*
	UMin - lower outer grid voltage in V (volts)
	TTMin - Trip Time Min - trip time for falling below the lower outer grid voltage limit value in cyl*
	*cyl = grid periods (cycles); 1 cyl corresponds to 20 ms at 50 Hz or 16.66 ms at 60 Hz
Grid frequency lim-its:	FILmax - upper inner grid frequency in Hz (Hertz)
	FILmin - lower inner grid frequency in Hz (Hertz)
	FOLmax - upper outer grid frequency in Hz (Hertz)
	FOLmin - lower outer grid frequency in Hz (Hertz)
Q-mode: Indicates which reactive power setting is currently active on the inverter (e.g.OFF, Q / P, etc.)
AC power limit in-cluding SoftStart ind-icator and/or AC grid frequency de-rating:	Max P AC - maximum output power, which can be changed using the "Manu-al Power Reduction" function
	GPIS - Gradual Power Incrementation at Startup - indicates (%/sec) wheth-er the SoftStart function is active on the inverter
	GFDPRe - Grid Frequency Dependent Power Reduction enable limit - indic-ates the set grid frequency in Hz (Hertz) from when power derating takes place
	GFDPRv - Grid Frequency Dependent Power Reduction derating gradient - indicates the set grid frequency in %/Hz, how strong power derating is
AC voltage derating:	GVDPRe - Grid Voltage Depending Power Reduction enable limit - threshold value in V from which voltage-dependent power derating starts
	GVDPRv - Grid Voltage Depending Power Reduction derating gradient - de-rating gradient %/V with which the power is reduced
	Message - indicates whether the dispatch of an info message via Fronius Sol-ar Net is active

Version Displays the version and serial numbers of the PC boards in the inverter (e.g. for service purposes)

Display area Display / Display Software / Integrity Checksum / Memory Card / Memory Card #1 / Power Stage / Power Stage Software / EMI Filter / Power Stage #3 / Power Stage #4

Switching the key lock on and off

General The inverter has a key lock function.

When the key lock is active, the Setup menu is not accessible, i.e. the setup data cannot be changed accidentally (or maliciously).

The code 12321 has to be entered in order to activate / deactivate the key lock.

Switching the key lock on and off

INFO | NOW | LOG i

1 Press the "Menu" key

The menu level appears.

2 Press the unassigned "Menu / Esc" key 5 times □ □ □ □

CODE Access Code -0000 + - + +

"Access Code" is displayed in the "CODE" menu; the first digit starts flashing.

3 Enter the code 12321: Use the "Plus" and "Minus" keys to select a value for the first digit of the code

4 Press the "Enter" key

CODE Aqessi Code/ 12321

The second digit flashes.

5 Repeat steps 3 and 4 for the second, third, fourth and fifth digits of the access code until...

the selected code starts flashing.

6 Press the "Enter" key

| LOCK | Setup Menu Lock OFF + - + ↓

"Setup Menu Lock" is displayed in the "LOCK" menu.

7 Use the "Plus" and "Minus" keys to turn the key lock on or off:

ON = key lock is on (the Setup menu is not accessible)

OFF = key lock is off (the Setup menu is accessible)

8 Press the "Enter" key

USB Stick as a Data Logger and for Updating Inverter Software

EN

USB flash drive as a datalogger

If a USB flash drive is connected to the USB A socket it can function as a datalogger for an inverter.

At any time, the logging data stored on the USB flash drive can be

• imported into the Fronius Solar.access software using the FLD file that was logged at the same time,
• viewed directly in third-party programs (e.g. Microsoft® Excel) using the CSV file logged at the same time.

Older versions (before Excel 2007) are limited to a maximum of 65,536 rows.

Further information on "Data on a USB flash drive", "Data volume and storage capacity" as well as "Buffer memory" can be found at:

→ http://www.fronius.com/QR-link/4204260204DE

Suitable USB flash drives

Due to the variety of USB flash drives available on the market, it cannot be guaranteed that every USB flash drive will be detected by the inverter.

Fronius recommends that only certified, industry-grade USB flash drives are used (look out for the USB-IF logo).

The inverter supports USB flash drives with the following file systems:

• FAT12
• FAT16
• FAT32

Fronius recommends that the USB flash drive employed should only be used for recording logging data or updating the inverter software. The USB flash drives should not contain any other data.

USB symbol on the inverter display, e.g. in display mode 'NOW':

↓ | NOW | ↓ AC Output Powe 2847W

If the inverter detects a USB flash drive, the USB symbol will appear in the top right corner of the display.

When inserting a USB flash drive, check whether the USB symbol is displayed (it may also flash).

Note! Please note for outdoor applications that conventional USB flash drives are often only guaranteed to work within a restricted temperature range. For outdoor applications ensure that the USB flash drive also functions, for example, at low temperatures.

USB stick for up- dating the in- verter software

With the help of the USB stick, end customers can also update the inverter software via the USB item on the SETUP menu: the update file is first saved to the USB stick, from where it is then transferred to the inverter. The update file must be saved in the root directory on the USB stick.

Removing the USB flash drive

Safety instruction concerning the removal of a USB flash drive:

Do not disconnect USB-Stick while LED is flashing!

IMPORTANT! To avoid any loss of data, a USB flash drive may only be removed if the following conditions are met:

• Only remove a USB flash drive via the 'Safely remove USB / HW' item on the SETUP menu
• The 'Data transmission' LED has stopped flashing or comes on steady.

General The Basic menu is used to set the following parameters, which are important for installing and operating the inverter:

• DC operating mode - Grounding mode / grounding
• Fixed voltage monitoring
• MPPT1 / MPPT2 start voltage - Insulation settings
• USB logbook - TOTAL reset
• Event counter

Access the Basic menu

INFO | NOW | LOG i

1 Press the "Menu" button

The menu level appears.

2 Press the unassigned "Menu / Esc" key 5 times □ □ □ □

CODE Access Code -0000 + - + +

"Access Code" is displayed in the "CODE" menu; the first digit starts flashing.

3 Enter the code 22742: Use the "Plus" and "Minus" keys to select a value for the first digit of the code

4 Press the "Enter" Button

CODE AAccess Code -22742-

The second digit flashes.

5 Repeat steps 3 and 4 for the second, third, fourth and fifth digits of the access code until...

the selected code starts flashing.

6 Press the "Enter" Button

The Basic menu appears.

7 Use the "Plus" and "Minus" keys to select the desired entry
8 Edit the desired menu item by pressing the "Enter" button
9 Press the "Esc" key to exit the Basic menu

Menu items in the Basic menu

The Basic menu is used to set the following parameters, which are important for installing and operating the inverter:

MPP Tracker 1 / MPP Tracker 2

- MPP Tracker 2: ON / OFF (only for devices with multiple MPP trackers)

- DC operating mode: MPP AUTO / FIX / MPP USER

- MPP AUTO: normal operating status; the inverter automatically searches for the ideal operating point

- FIX: for entering a fixed DC voltage at which the inverter will operate

- MPP USER: for entering a lower MP voltage above which the inverter will search for its ideal operating point

- Dynamic Peak Manager: ON / OFF

- Fixed voltage: for inputting a fixed voltage (80–800 V)

- MPPT start-up input voltage: for entering the start-up input voltage (80–800 V)

USB log book

Activates or deactivates the function for saving all error messages to a USB flash drive

AUTO / OFF / ON

Input signal

- Ext Sig. / So-Meter / OFF operating mode

Ext Sig. operating mode:

- Triggering method: Warning (warning shown on display) / Ext. Stop (inverter switches off)

- Connection type: N/C (normally closed contact) / N/O (normally open contact)

SO meter operating mode - see chapter Dynamic power reduction by means of inverter on page 15.

- Grid feed-in limit

Field for entering the maximum grid feed-in power in W. If this value is exceeded, the inverter regulates down to the set value within the time required by national standards and regulations.

- Pulses per kWh

Field for entering the pulses per kWh of the SO meter.

SMS / relay

- Event delay:

for entering the time delay after which an SMS is sent or the relay is to switch

900–86,400 seconds

- Event counter:

for entering the number of events that lead to signalling: 10–255

Isolation setting

- Isolation warning: ON / OFF

- Threshold warning: for entering a threshold that leads to a warning

TOTAL Reset

Under the LOG menu item, this setting resets the max. and min. voltage values and the max. power of feeding in to zero.

Once the values have been reset, this action cannot be undone.

To reset the values to zero, press the 'Enter' key.

'CONFIRM' is displayed.

Press 'Enter' again.

The values are reset and the menu is displayed

Switching off current supply and restarting the inverter

Z

Switch off power to the inverter

1 AC~ OFF OFF 2 ON

1. Turn off the automatic circuit breaker.
2. Turn the DC disconnector to the "Off" switch position.

To start up the inverter again, follow the steps listed above in reverse order.

Status diagnostics and troubleshooting

Status code dis- play

The inverter performs a system self-diagnosis that automatically detects many faults that may occur and shows them on the display. This means you are promptly made aware of malfunctions in the inverter or the photovoltaic system, or of any installation or operating faults.

If the system self-diagnosis has detected a specific fault, the associated status code will be shown on the display.

IMPORTANT! Status codes may sometimes appear briefly as a result of the inverter's control response. If the inverter then continues working with no sign of any problem, this means that there was no fault.

Total failure of the display

If the display fails to come on some time after sunrise:

- Check the AC voltage ON the inverter connections: the AC voltage must be 230 V (+ 10 % / - 5 %)*.

* The mains voltage tolerance depends on the country setup

Status codes in the e-Manual

The latest status codes can be found in the e-Manual version of these Operating Instructions:

manuals.fronius.com/html/4204102165/#o_t_0000000061

manuals.fronius.com/html/ /4204102165/#0_t_0000 000061 STATE CODES Fronius Primo

Customer service

IMPORTANT! Contact your Fronius dealer or a Fronius-trained service technician if

• an error appears frequently or all the time
• an error appears that is not listed in the tables

Operation in dusty environ- ments

When operating the inverter in extremely dusty environments: when necessary, clean the cooling elements and fan on the back of the inverter as well as the air intakes at the mounting bracket using clean compressed air.

General data and protection devices Fronius Primo 3.0-1 - 8.2-1

Self-consumption at night 0.6 W
Cooling Controlled forced-air ventila-		tion
Protection class IP 65
Dimensions h x w x d 628 x 428 x 205 mm
Weight 21.6 kg
Permitted ambient temperature -40 °C - +55 °C
Permissible humidity 0 - 100%
EMC emission class		B
DC / AC overvoltage category
Inverter topology		Non-insulated transformer-less
Voltage classification	AC	DVC-C
Decisive Voltage Classification (DVC rating)	DC	DVC-C
	Data	DVC-A
Protection devices
DC isolation measurement		Warning/shutdown 2) at RISO < 1 MOHM
Manifestation of DC overload		Operating point shift, power limiter
DC disconnector		Integrated
Active anti-islanding method		Frequency conversion meth- od

Fronius Primo

3.0-1

3.5-1

3.6-1

Input data

MPP voltage range	200 - 800 V
Max. input voltage at 1000 W/m2/14 °C in an open circuit	1000 V
Max. input current (MPPT 1 / MPPT 2)	12.0 A
Max. short circuit current of the solar modules (MPPT1 / MPPT2) 8)	24 / 24 A
Max. inverter backfeed current to the array 3)	18 A

Output data

Fronius Primo 3.0-1 3.5-1 3.6-1
Rated power (Pnom) 3000 W 3500 W 3680 W
Max. output power 3000 W 3500 W 3680 W
Rated apparent power 3000 VA 3500 VA 3680 VA
Nominal grid voltage 1 ~ NPE 220 / 230 / 240 V
Min. grid voltage	Inverter topology 150 V 1)
Max. grid voltage	270 V 1)
Max. output current 13.7 A 16.0 A 16.8 A
Nominal frequency	50 / 60 Hz 1)
Total harmonic distortion < 3%
Power factor (cos phi)	0.85 - 1 ind./cap. 2)
Max. permitted mains impedance Zmax at PCC	None
Current (inrush) 5)	36 A / 2.2 ms
Max. output fault current / duration 38 A / 172 ms

Efficiency

Maximum efficiency	98.0%	98.0%	98.0%
European efficiency	96.1%	96.8%	96.8%

Fronius Primo

4.0-1

4.6-1

5.0-1

Input data

MPP voltage range	210 - 800 V	240 - 800 V	240 - 800 V
Max. input voltageat 1000 W/m2/14 °C in an open circuit	1000 V
Max. input current (MPPT 1 / MPPT 2)	12.0 A
Max. short circuit current of the solar modules(MPPT1 / MPPT2)8)	24 / 24 A
Max. inverter backfeed current to the array3)	18 A

Output data

Rated power (Pnom) 4000 W 4600 W	5000 W
Max. output power 4000 W 4600 W	5000 W
Rated apparent power 4000 VA 4600 VA	5000 VA
Nominal grid voltage 1 ~ NPE 220 / 230 / 240 V
Min. grid voltage	150 V ^1)
Max. grid voltage	270 V ^1)
Max. output current	18.3 A	21.1 A	22.9 A
Fronius Primo 4.0-1 4.6-1 5.0-1
Nominal frequency	50 / 60 Hz 1)
Total harmonic distortion < 3 %
Power factor (cos phi)	0.85 - 1 ind./cap. 2)
Max. permitted mains impedance Z_max at PCC	None
Current (inrush) 5)	36 A / 2.2 ms
Max. output fault current / duration 38 A / 172 ms

Efficiency

Maximum efficiency 98.1% 98.1% 98.1%
European efficiency 97.0% 97.0% 97.1%

Fronius Primo 5.0-1 AUS 6.0-1 8.2-1
Input data

MPP voltage range 240 - 800 V 240 - 800 V 270	- 800 V
Max. input voltageat 1000 W/m2/14 °C in an open circuit	1000 V
Max. input current (MPPT 1 / MPPT 2)	18.0 A
Max. short circuit current of the solar modules(MPPT1 / MPPT2)8)	36 A / 36 A
Max. inverter backfeed current to the array3)	27,0 A

Output data

Rated power (Pnom)	4600 W	6000 W	8200 W
Max. output power	5000 W	6000 W	8200 W
Rated apparent power	5000 VA	6000 VA	8200 VA
Nominal grid voltage	1 ~ NPE 220 / 230 / 240 V
Min. grid voltage	150 V 1)
Max. grid voltage	270 V 1)
Max. output current 22.9 A 27.5 A	37.5 A
Nominal frequency	50 / 60 Hz 1)
Total harmonic distortion	< 3%
Power factor (cos phi)	0.85 - 1 ind./cap. 2)
Max. permitted mains impedance Zmax at PCC	None
Current (inrush) 5)	36 A / 2.2 ms
Max. output fault current / duration 38 A / 172 ms

Efficiency

Fronius Primo 5.0-1 AUS 6.0-1 8.2-1
Maximum efficiency 98.1% 98.1% 98.1%
European efficiency 97.1% 97.3% 97.7%

Fronius Primo 5.0-1 SC

Input data

MPP voltage range 240 - 800 V
Max. input voltageat 1000 W/m2/14 °C in an open circuit	1000 V
Max. input current (MPPT 1 / MPPT 2) 18.0 A
Max. short circuit current of the solar modules(MPPT1 / MPPT2) 8)	36 / 36 A
Max. inverter backfeed current to the array 3)	27 A

Output data

Rated power (Pnom) 5000 W
Max. output power 5000 W
Rated apparent power 5000 VA
Nominal grid voltage 1 ~ NPE 220 / 230 / 240 V
Min. grid voltage	150 V ^1)
Max. grid voltage	270 V ^1)
Max. output current	22.9 A
Nominal frequency	50 / 60 Hz ^1)
Total harmonic distortion	< 3%
Power factor (cos phi)	0.85 - 1 ind./cap. ^2)
Max. permitted mains impedance Zmax at PCC	None
Current (inrush) ^5)	36 A / 2.2 ms
Max. output fault current / duration	38 A / 172 ms

Efficiency

Maximum efficiency	98.1%
European efficiency	97.1%

WLAN

WLAN
Frequency range	2412–2462 MHz
Channels / power used Channel: 1–11 b, g,n HT20Channel: 3–9 HT40<18 dBm
Modulation 802.11b: DSSS (1 Mbps DBPSK,2 Mbps DQPSK, 5.5/11 Mbps CCK)802.11g: OFDM (6/9 Mbps BPSK,12/18 Mbps QPSK, 24/36 Mbps 16-QAM, 48/54 Mbps 64-QAM)802.11n: OFDM (6.5 BPSK, QPSK,16-QAM, 64-QAM)

Explanation of footnotes

1) The values stated are defaults; the inverter is configured specifically to suit the requirements of the relevant country.
2) Depending on the country setup or device-specific settings (ind. = inductive; cap. = capacitive).
3) Maximum current from a defective PV module to all other PV modules. From the inverter itself to the PV side of the inverter, it is O A.
4) Guaranteed by the electrical configuration of the inverter
5) Current peak when switching on the inverter
6) Specified values are standard values; depending on the requirement and PV power, these values must be adjusted accordingly.
7) Specified value is a max. value; exceeding the max. value may negatively affect the function.
8) I_SC PV = I_SC max ≥ I_SC (STC) × 1.25 according to e.g.: IEC 60364-7-712, NEC 2020, AS/NZS 5033:2021

Integrated DC disconnector

Settings
Product name Benedict LS32 E 7798
Rated insulation voltage 1500 V	DC
Rated impulse withstand voltage	8 kV
Suitability for insulation Yes, DC only
Utilisation category and / or PV utilisation category	As per IEC/EN 60947-3 utilisation category DC-PV2
Rated short-time withstand current (Icw)	Rated short-time withstand current (Icw): 1000 A for 2 poles; 1700 A for 2 + 2 poles
Rated short-circuit making capacity (Icm)	Rated short-time withstand current (Icm): 1000 A for 2 poles; 1700 A for 2 + 2 poles

	Rated operating voltage (Ue) [V d.c.]	Rated operating current (Ie) [A]	I(make) / I(break) [A]	Rated operating current (Ie) [A]	I(make) / I(break) [A]	Rated operating voltage (Ie) [A]	I(make) / I(break) [A]
		1P		2P		2+2P
Rated breaking capacity			1P		2P		2+2P
	≤500 14 56 32 128 50 200
	600 8 32 27 108 35 140
	700 3 12 22 88 22 88
	800 3 12 17 68 17 68
	900 2 8 12 48 12 48
	1000 2 8 6 24 6 24

Applicable standards and guidelines

CE mark

The devices comply with all the requisite and relevant standards and guidelines that form part of the relevant EU Directive, and are therefore permitted to display the CE mark.

Circuit to prevent stand-alone operation

The inverter has an approved circuit to prevent stand-alone operation.

Grid failure

The standard measurement and safety procedures integrated into the inverter ensure that in the event of a grid failure, the feed-in of energy is immediately interrupted (e.g. switch-off by the energy supplier or damage to lines).

Warranty terms and conditions, and disposal

Fronius manufacturer's warranty

Detailed, country-specific warranty terms are available on the internet: www.fronius.com/solar/warranty

To obtain the full warranty period for your newly installed Fronius inverter or storage system, please register at: www.solarweb.com.

Disposal Waste electrical and electronic equipment must be collected separately and recycled in an environmentally responsible manner in accordance with the European Directive and national law. Used equipment must be returned to the distributor or through a local, authorised collection and disposal system. Proper disposal of the old device promotes sustainable recycling of material resources. Ignoring this may lead to potential health/environmental impacts.

Sommaire

SETUP | 1 Stand by WiFi Access Poin DATCOM USB Clock

GRAPHE | SETUP | INFOS

SETUP

(menu Setup)

REMARQUE!

GRAPHE | SETUP | INFOS

GRAPHE | SETUP | INFOS

| SETUP | 1 Heure 11:00:25

| SETUP | 1 Heure 11:00:25

| SETUP | 1 |HelurP -11:00:25 + - +

Do not disconnect USB-Stick while LED is flashing!

QR code image containing encoded data, no visible human-readable text

manuals.fronius.com/html/4204102165/#0_t_0000000061

STATE CODES Fronius Primo

SETUP | 1 Stand by WiFi Access Poi DATCOM USB Clock

INFO | NU | LOG i

INFO | NU | LOG i

NU | LOG | GRAPH

GRAPH | SET-UP | INFO i

SETUP (setq-menu)

OPMERKING!

GRAPH | SET-UP | INFO i

SET-UP Standby Wi-Fi-toegangsp DATCOM USB Relais

Item 'Standby'

|SET-UP | Standby Wi-Fi-toegangsp DATCOM USB Relais

GRAPH | SET-UP | INFO i

|SET-UP | 1 \ | |T|j|c| | | / -10:57:11 - + - + | + | +

WiFi AP deactiveren?

SET-UP | INFO | NU

INFO | NU | LOG i

Do not disconnect USB-Stick while LED is flashing!

INFO | NU | LOG i

MPP-tracker 1 / MPP-tracker 2

QR code image containing encoded data, no visible human-readable text

manuals.fronius.com/html/4204102165/#0_t_0000000061

STATE CODES Fronius Primo

QR code image containing encoded data, no visible human-readable text

fronius.com/en/solar-energy/installers-partners/products-solutions/monitoring-digital-tools

MONITORING & DIGITAL TOOLS

Fronius International GmbH

Froniusstraße 1

4643 Pettenbach

Austria

[e-mail]

www.fronius.com

At www.fronius.com/contact you will find the contact details of all Fronius subsidiaries and Sales & Service Partners.
