USER MANUAL SYMFONISK 905.246.07 IKEA

Illustration showing two scenes: one with a person thinking and holding a book, the other with a person examining a laptop labeled 'IKEA' (Idea Store).

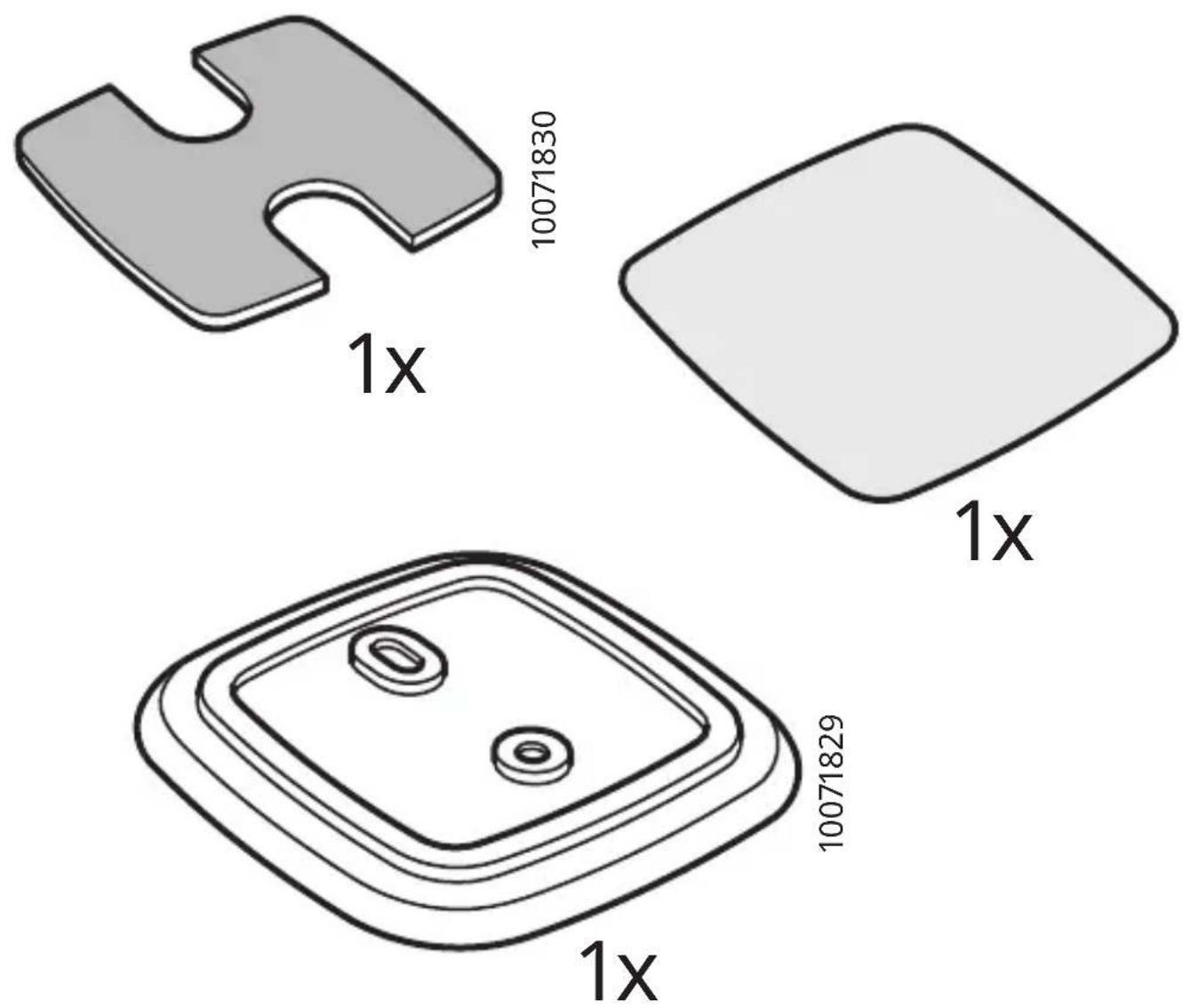

1x 10071830 1x 10071829 1x

2

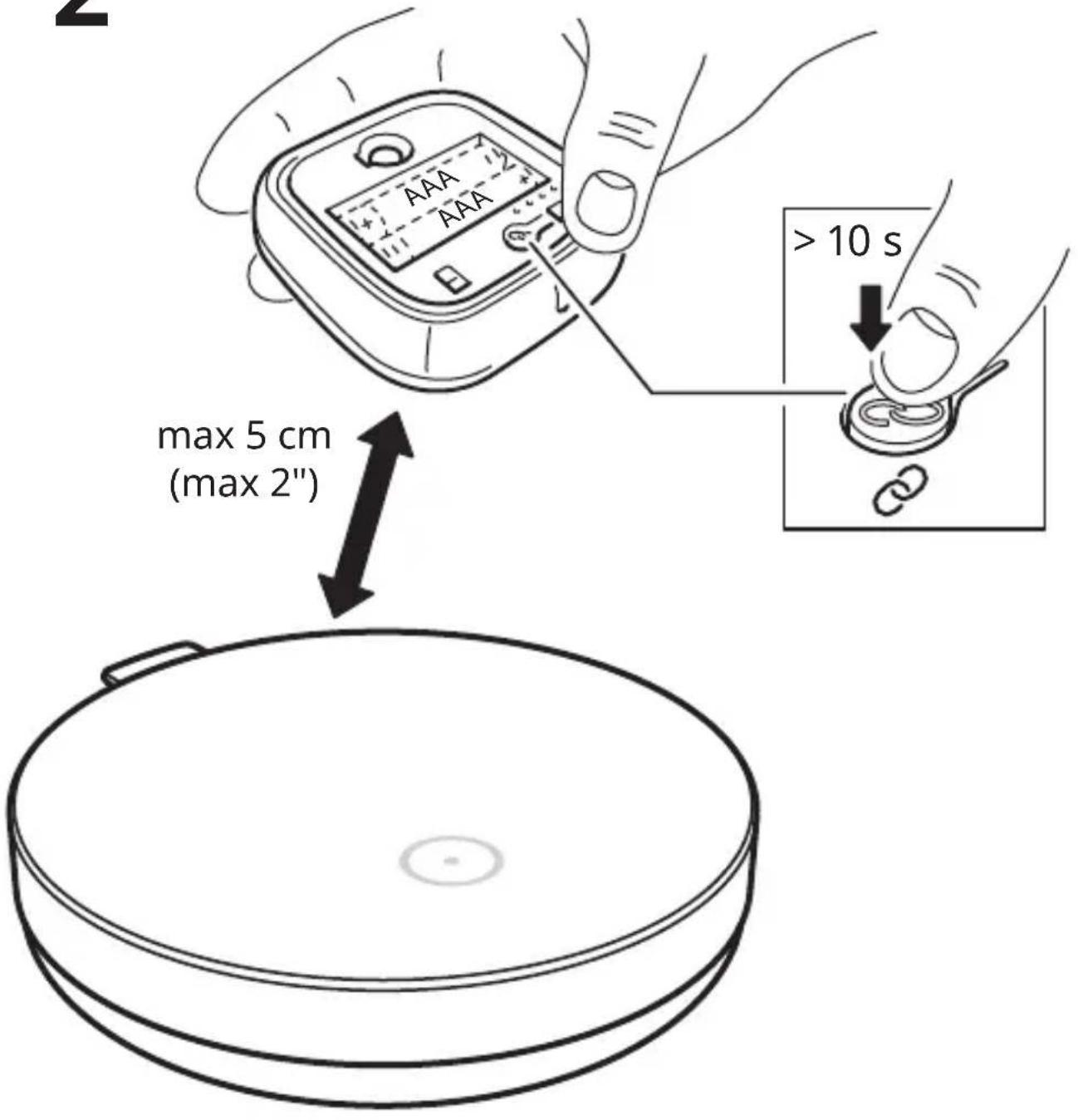

AAA AAA max 5 cm (max 2") > 10 s

3

i

Diagram of a mechanical or electrical component with concentric layers and a central shaft, showing no text or symbols.

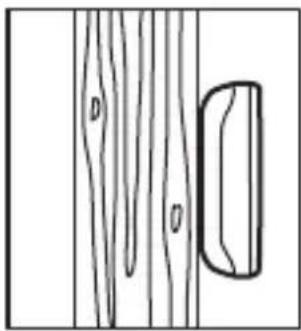

Simple line drawing of a wooden plank with vertical grooves and a curved handle (no text or symbols)

Simple line drawing of a rectangular object with a wavy line on the left side, no text or symbols present.

Simple line drawing of a hand holding a sheet of paper with a diagonal line, no text or symbols present.

i

Simple line drawing of a door with a handle, no text or symbols present

Grid puzzle with checkmarks and a vertical line symbol in the top-right cell

Simple geometric lines inside a square frame (no text or symbols)

Simple line drawing of a vintage-style device with a scroll wheel and arrow indicator (no text or symbols)

Diagram showing a warning sign, a leaf-shaped object, and a circular device with directional arrows, likely illustrating a hazard or safety concept.

Simple line drawing of a hand holding a piece of paper or paper, with the number 9 labeled on the page (no text or symbols beyond the number)

4

Four abstract geometric diagrams with line and grid patterns, no text or symbols present

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)

5

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

6

Simple line drawing of a device with a handle and circular buttons, no text or symbols present.

7

8

Simple line drawing of a door with a double button and an arrow indicating left motion (no text or symbols)

9

Diagram illustrating audio playback mode and sound output, showing device interaction with playback button and music notes

Diagram illustrating audio recording and playback control, showing device interaction with speaker and music notes

Diagram illustrating the use of audio equipment to switch a device, showing a hand interacting with a device labeled 'i' and a speaker icon.

Diagram illustrating audio playback sequence with speaker, sound player, and CD output

Diagram illustrating mobile phone app interface with hand gestures and app icons, including a gear symbol and navigation buttons.

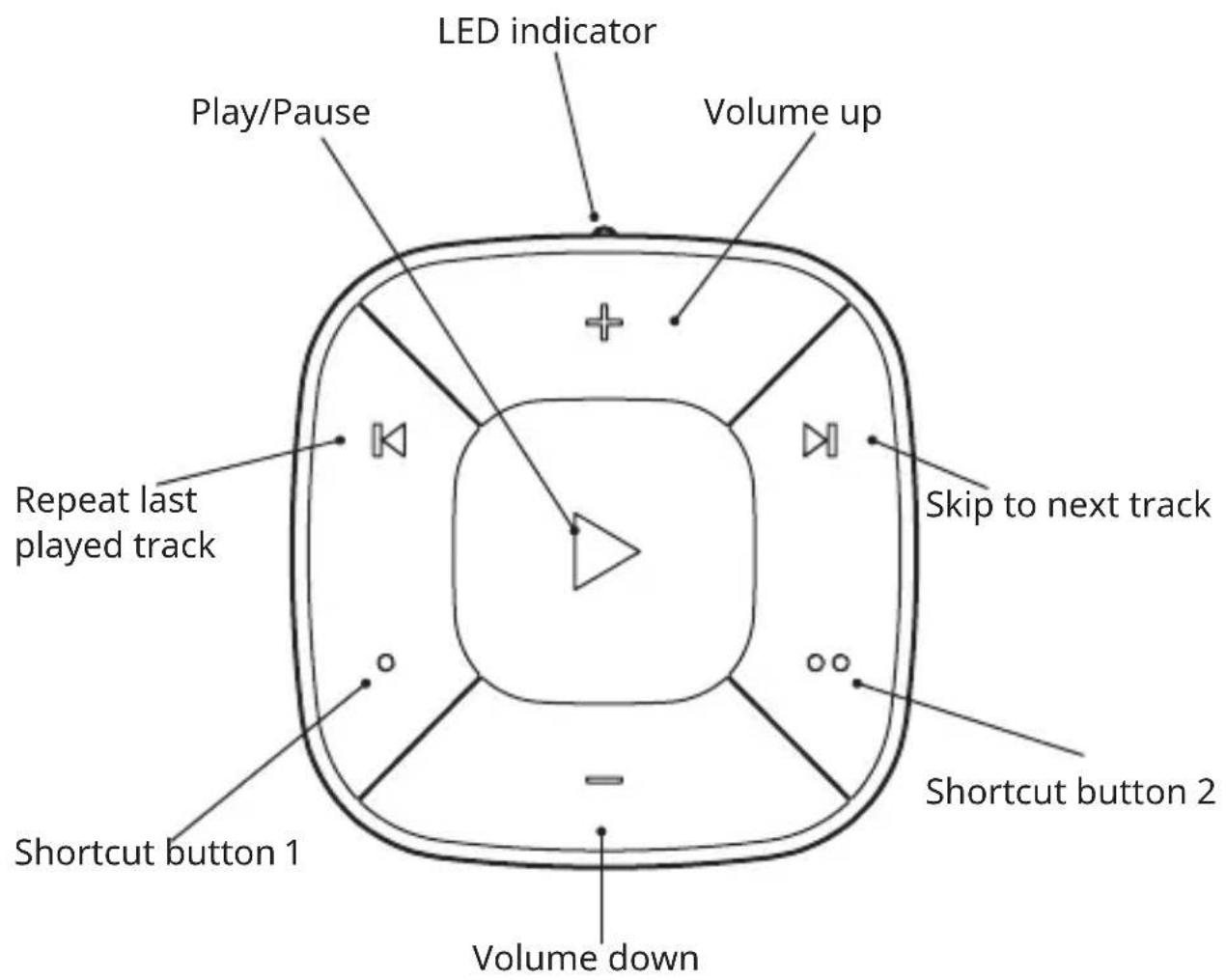

SYMFONISK sound remote overview

LED indicator Play/Pause Volume up Repeat last played track Skip to next track Shortcut button 2 Shortcut button 1 Volume down

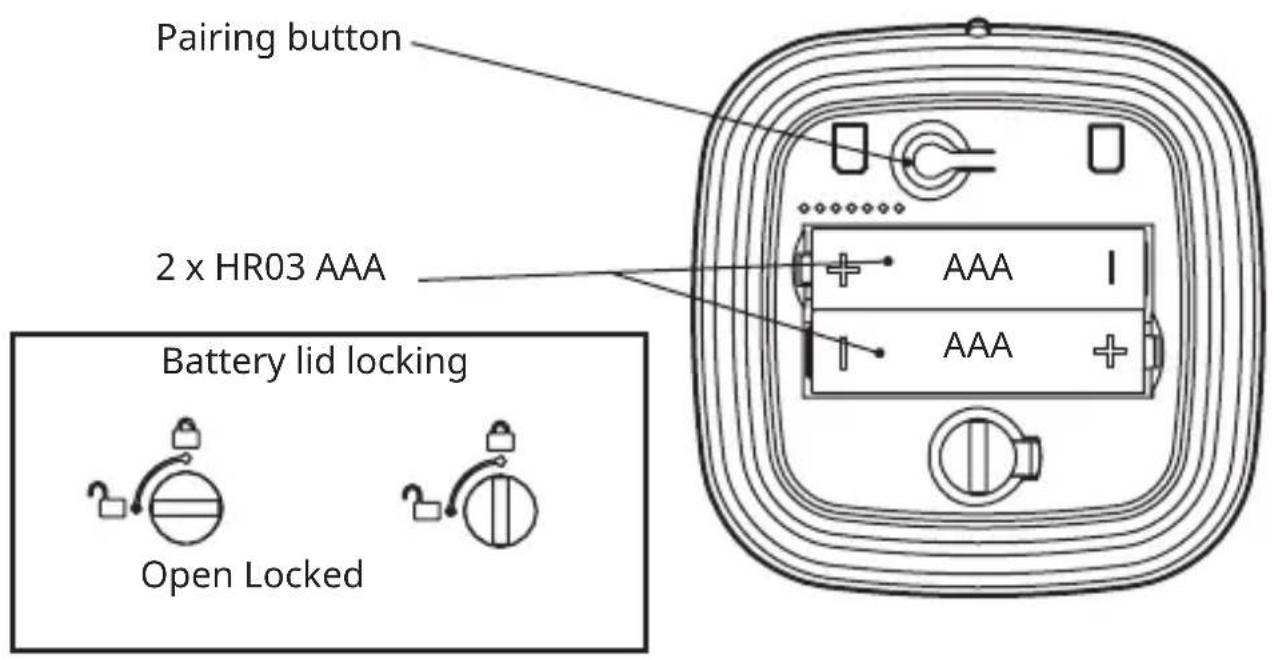

Pairing button 2 x HR03 AAA Battery lid locking Open Locked

English 16 Latviešu 61
Deutsch 19 Lietuvių 64
Français 22 Portugues 67
Nederlands 25 Româna 70
Dansk 28 Slovensky 73
Íslenska 31 Български 76
Norsk 34 Hrvatski 79
Suomi 37 Ελληνικά 82
Svenska 40 Русский 85
Česky 43 Українська 88
Español 46 Srpski 91
Italiano 49 Slovenščina 94
Magyar 52 Türkçe 97
Polski 55 عربی 100
Eesti 58

English

IMPORTANT

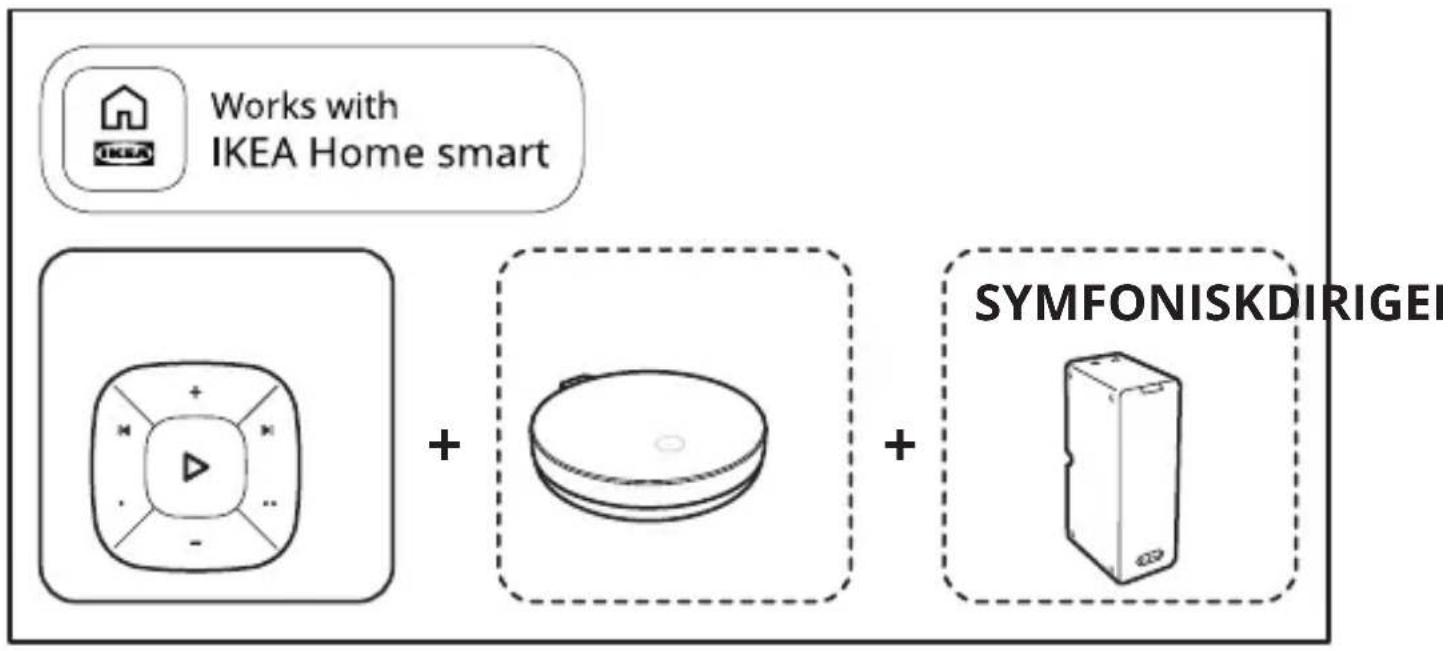

SYMFONISK sound remote is made to work together with IKEA gateway or hub and control your SYMFONISK speakers.

Use the IKEA Home smart app to add more functions to your sound remote.

You cannot add "Works with IKEA Home smart" marked products directly to your sound remote.

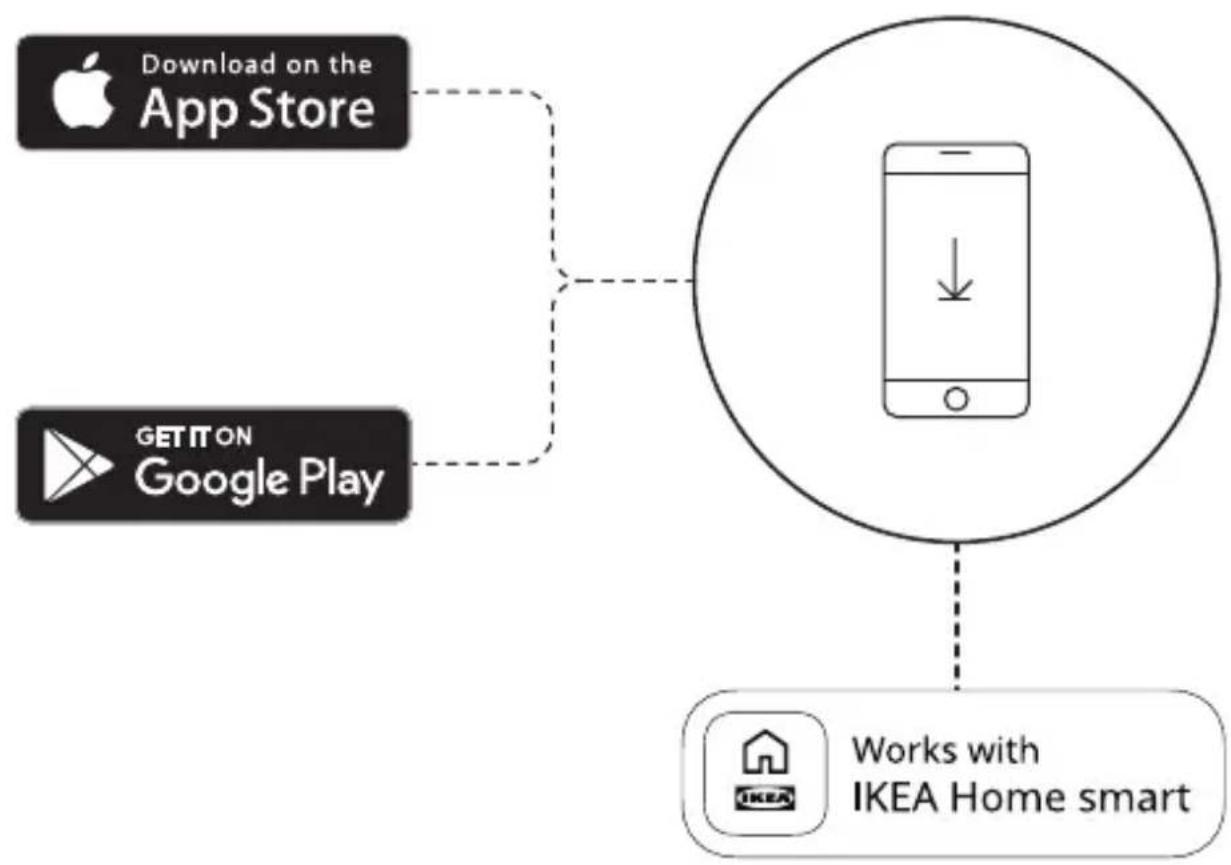

If you have an Apple device

Go to the App Store and download the IKEA Home smart app. The app will take you through the process of installing your SYMFONISK sound remote and other "Works with IKEA Home smart" devices.

If you have an Android device

Go to the Google Play store and download the IKEA Home smart app. The app will take you through the process of installing your SYMFONISK sound remote and other "Works with IKEA Home smart" devices.

Getting started

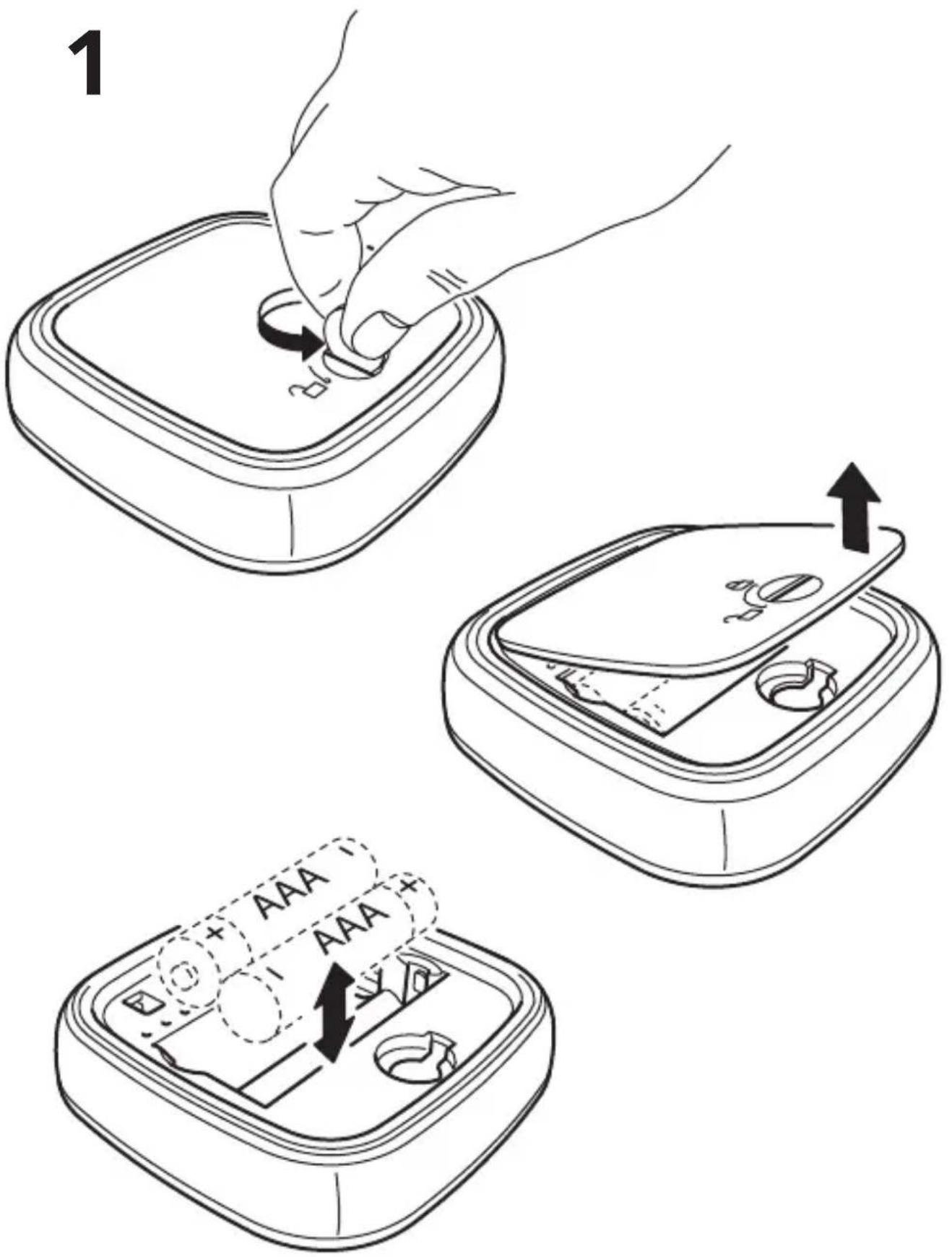

Insert 2 HR03 AAA 1.2V batteries with correct polarity. Start the IKEA Home smart app and follow the instructions in the app on how to set up your device and add scenes to the shortcut buttons.

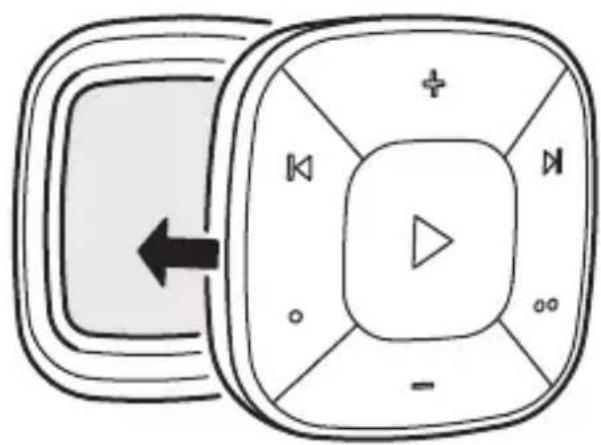

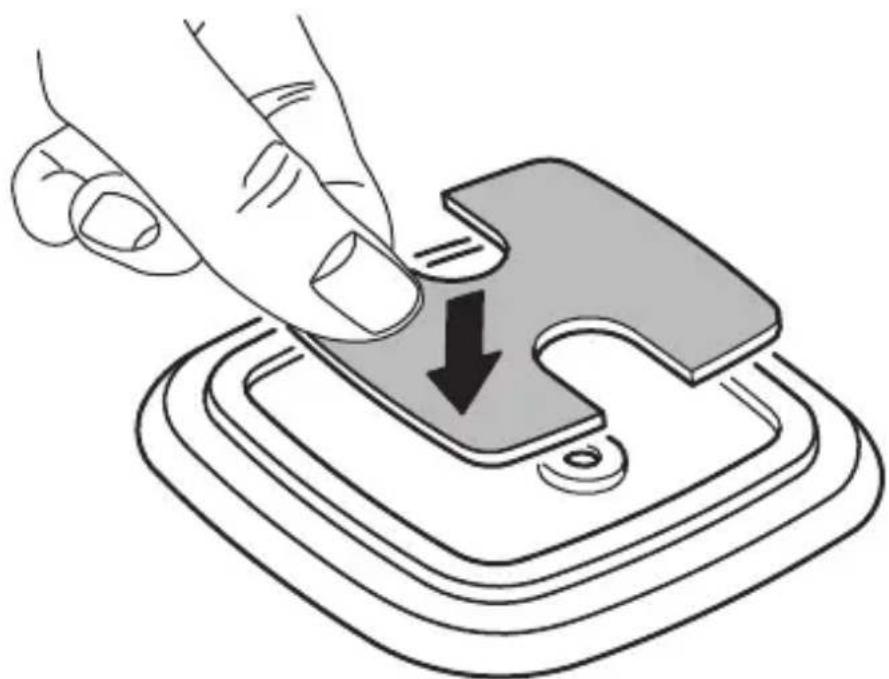

Close the battery lid and your sound remote is now ready for use.

Sound remote functions

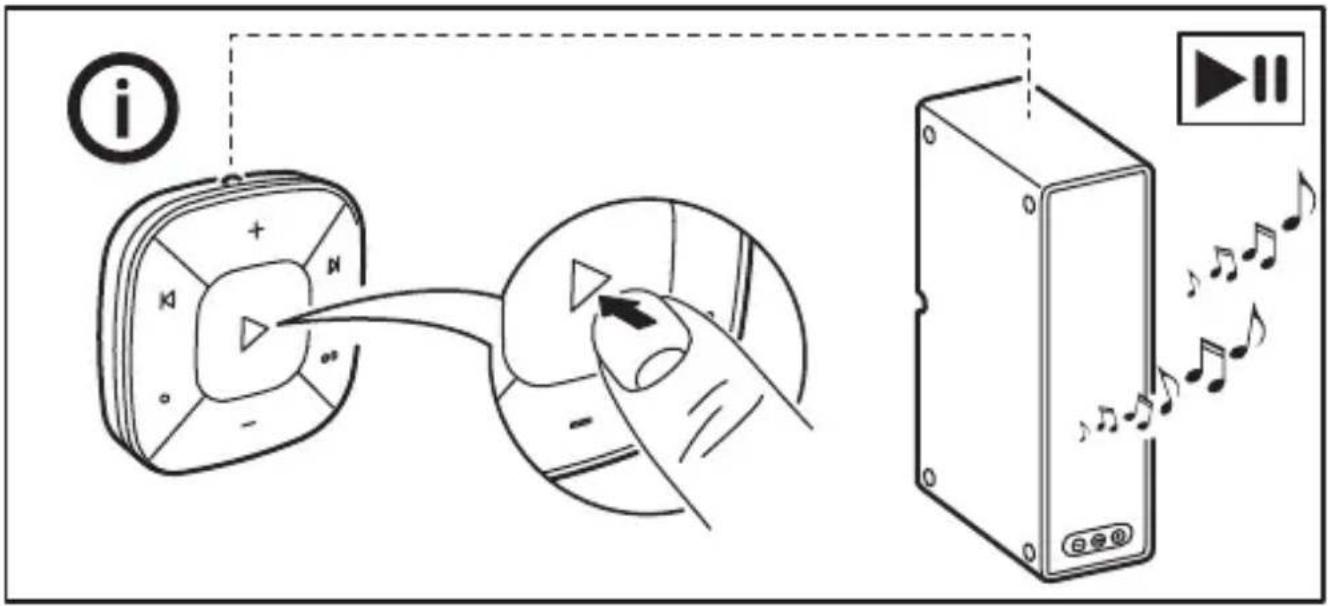

Play/pause

Press once to start or stop the music.

Repeat

Press once to repeat the most recently played music.

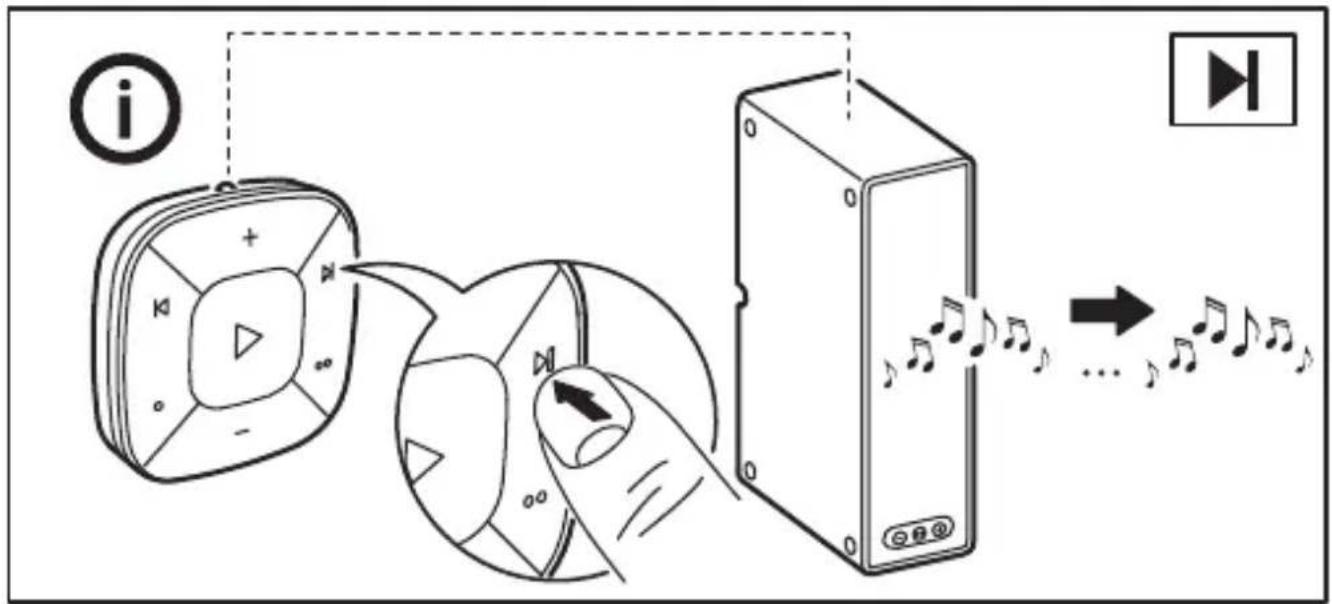

Skip

Press once to skip to the next track.

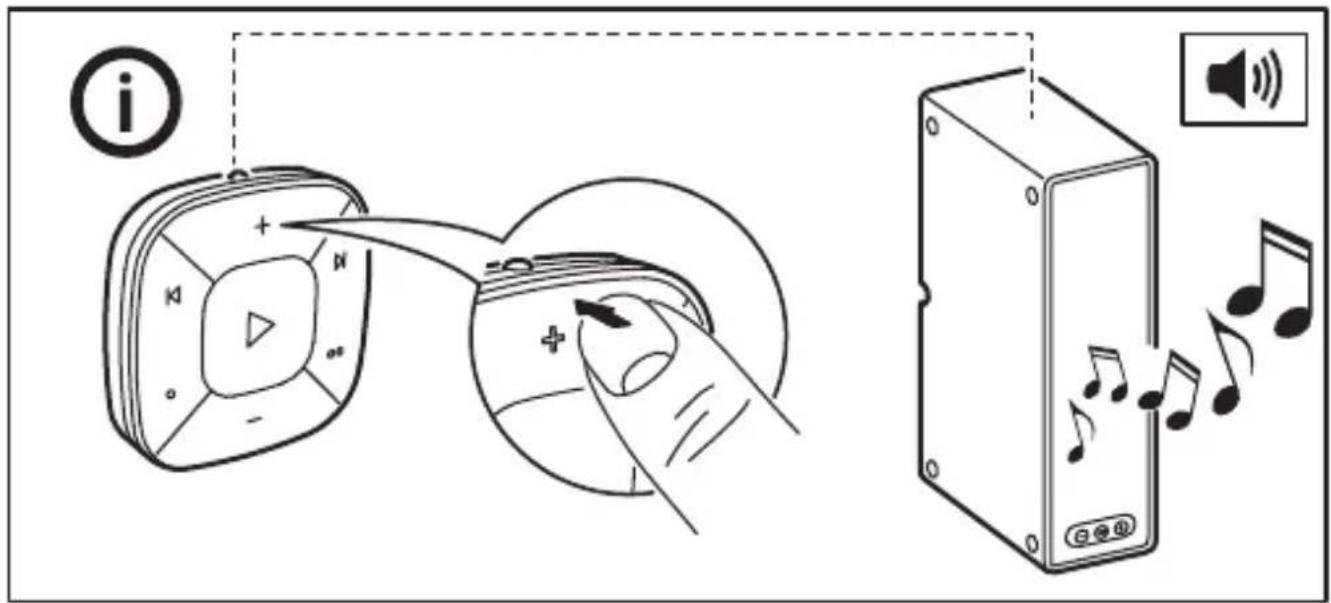

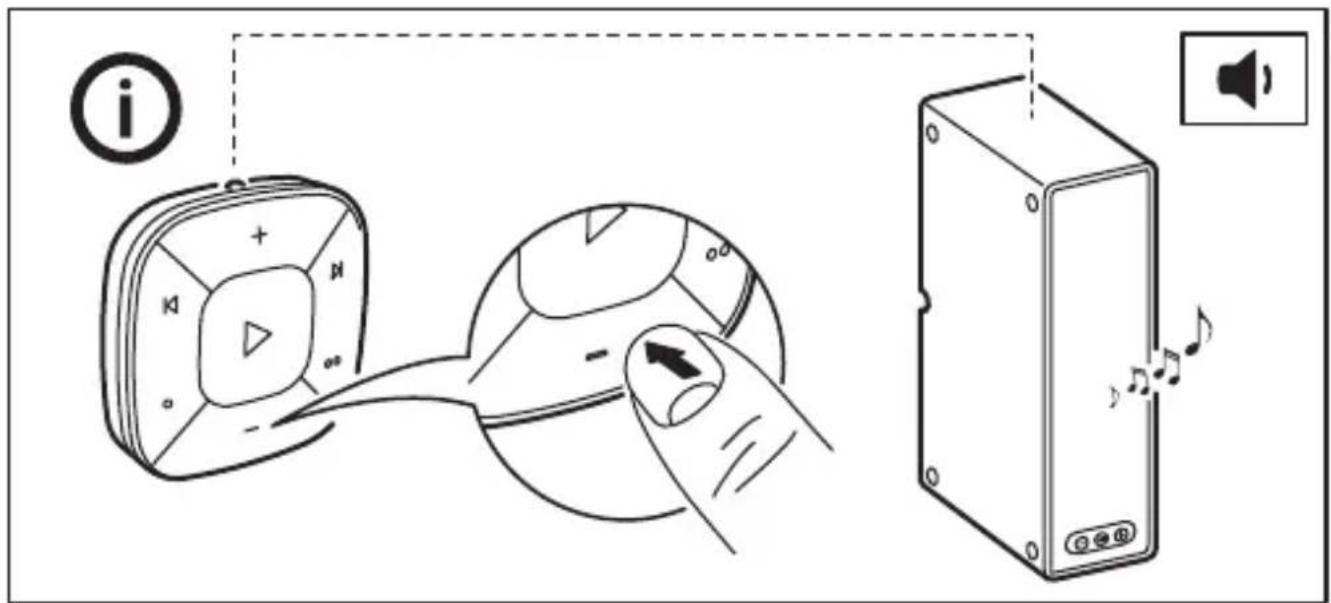

Raise and lower volume

Press and hold to change the volume rapidly.

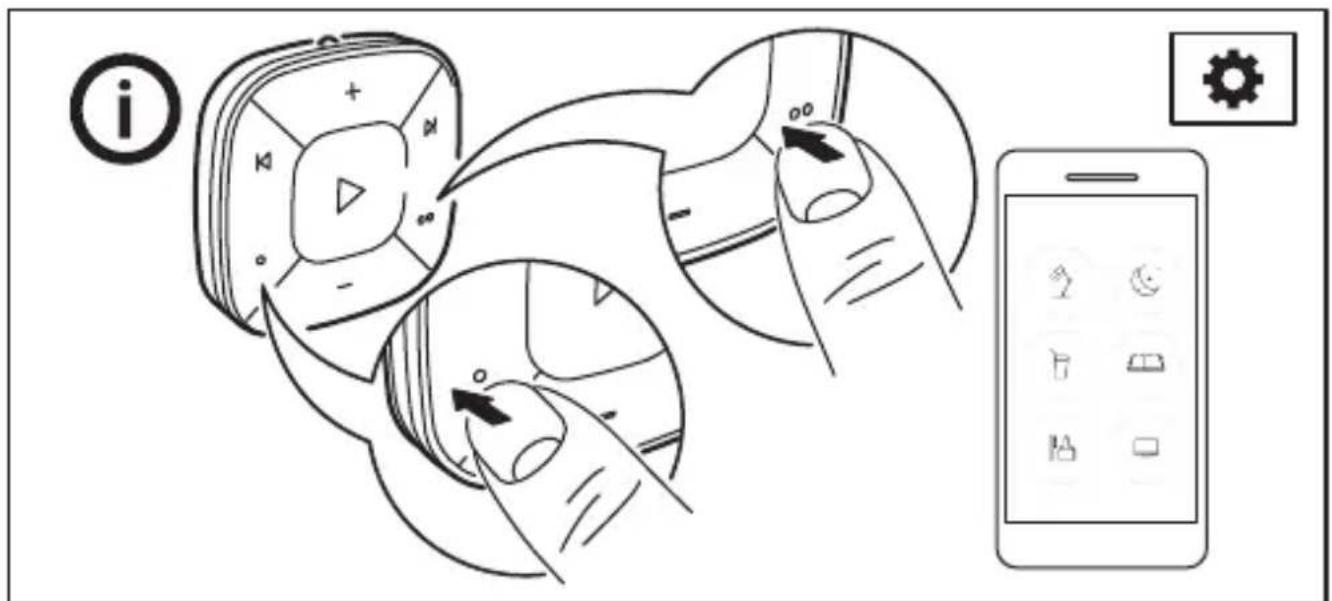

• Shortcutbuttons
• • Used to change the playlist being streamed to the speakers.

Care instructions

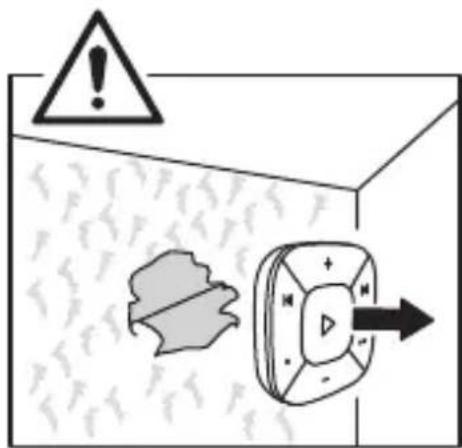

To clean the sound remote, wipe with a soft moistened cloth, Use another soft, dry cloth to wipe dry.

Changing the batteries

When SYMFONISK sound remote is used regularly and as intended, the batteries will last for approximately 2 years. When it's time to replace the batteries, the red LED indicator on the back of the sound remote will flash when you use it.

Open the battery lid and replace the batteries with 2 new HR03 AAA 1.2V batteries.

WARNING!

Risk of explosion if either battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

IMPORTANT!

• SYMFONISK sound remote is for indoor use only and can be used in temperatures ranging from 0 °C to 40 °C.
• Do not leave SYMFONISK sound remote in direct sunlight or near any heat source, as it may overheat.
• The range between SYMFONISK sound remote and the receiver is measured in open air.

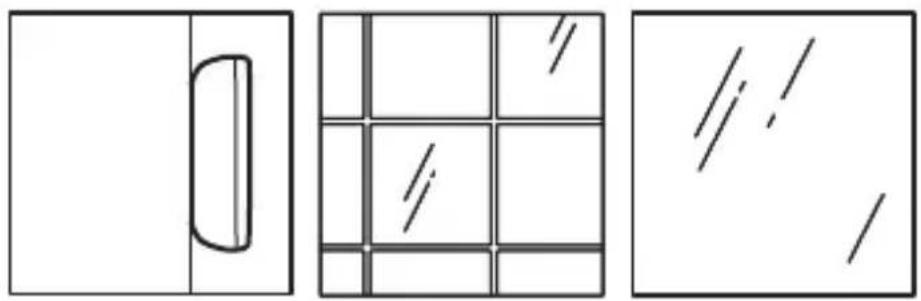

• Different building materials and placement of the units can affect the wireless connectivity range.

Recommended batteries:

Batteries are sold separately. We recommend 2 x LADDA rechargeable batteries HR03 AAA 1.2V

Do not mix batteries of different capacities, types or date stamps.

Save these instructions for future use.

Technical data

Model: SYMFONISK sound remote gen 2

Type: E2123

Input: 2.4V, 2 x LADDA batteries HR03 AAA 1.2V

Range: 10 m unobstructed

For indoor use only

Operating frequency: 2400-2483.5 Mhz

Output power: 3 dBm (EIRP)

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Deutsch

ACHTUNG

Fabricant: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Älmhult, SUÈDE

Model: SYMFONISK sound remote gen 2

Type: E2123

Input: 2.4V, 2 x LADDA batterijen HR03 AAA 1.2V

Bereik: tot 10 m

Producent: IKEA of Sweden AB

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN

Produsent: IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Älmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Älmhult, SWEDEN

Tootja: IKEA of Sweden AB

Aadress: Box 702, SE-343 81 Älmhult, SWEDEN
