USER MANUAL DW 9350.0 Küppersbusch

Simple line drawing of a tower with base and top (no text or symbols)

DW9350.0

Küppersbusch

Please read the users and installation instructions carefully before installation of the appliance and before starting to use it.

Carefully read the instructions before installing and using the equipment. The manufacturer is not liable for improper installation and use of the equipment that may cause injuries and damage. Always keep the instructions at hand, so they can be easily referred to during use.

Children and Vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

General Safety

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Do not flambé under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Installation

• The electric system must be equipped with a means for disconnection, with a contact separation in all poles that provides full disconnection under overvoltage category III conditions, in accordance to the wiring rules.
• If a plug is used for the electric connection, then it must be accessible after installation.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels

(not applicable to appliances that only discharge the air back into the room).

- The lower part of the extractor must be located at a minimum height of 60 cm above the hob for electric cookers and 65 cm for gas cookers. If the instructions of a gas cooker indicate a greater distance these must be observed.

- Before installing the extractor consult the local rules and regulations in force with respect to the discharge of air and fumes.

- When the extractor is working at the same time as other non-electrical cooking equipment, the outlet air pressure must not exceed 4 Pa (4x10-5 bar).

- Before connecting the extractor to the mains, check that both the voltage and the frequency conform to that shown on the characteristics label located inside the extractor.

- To achieve optimum performance the length of the outlet hose should not exceed 4 meters, or include more than two 90^ angles (elbows).

- Although venting to the outside is recommended, activated carbon filter may be used to allow the gas to be returned to the kitchen through the outlet pipe.

- NOTE: For more installation information, refer to the end of this user manual.

Cleaning

• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Do not allow grease to accumulate in any part of the extractor, especially in the grease filters as this COULD PRODUCE A FIRE RISK!
• The grease filters and the internal part of the extractor must be cleaned at least once a month depending on how often

the extractor is used. Note that grease is deposited in the extractor when cooking, whether it is switched on or not.

- We recommend the use of gloves and caution when cleaning the inside of the extractor.

Repairs

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not switch on the extractor if the supply cord is worn or has cuts or if there are signs of deterioration around the control panel.
• If the LED module is malfunctioning, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the extractor stops working or functions abnormally, unplug it from the mains and contact the technical service.
• Please contact the nearest Qualified Technical Assistance Service for any repairs always using original spare parts. Repairs and modifications carried out by others could damage the extractor or cause it to malfunction and cause safety risks.

Instructions for use

By pressing the buttons shown in the figure, you will be able to control the functions of the extractor.

To achieve better extraction, we recommend switching on the extractor a few minutes before starting to cook (3 - 5 minutes) so that the air flow is continuous and stable when extracting the fumes.

Likewise, keep the extractor switched on for a few minutes when cooking is complete to allow all fumes and odors to be expelled.

⑨ 1 2 3 4 5

1- Timer / Clock knob
2- Alarm / Timer key
3- Display
4- Light key
5- On/Off / Speed knob

Setting the clock

To set the clock, proceed as follows:

1) Press Alarm / Timer key twice.
2) Rotate the Timer/Clock knob to set the hours.
3) Press Alarm / Timer key to confirm.
4) Rotate Timer/Clock knob to set the minutes.
5) Press Alarm / Timer key to confirm.

The display shows the clock for some seconds and then switches off to reduce the power consumption. The clock will be shown again for a few seconds when the timer key is pressed in standby.

Cleaning and maintenance

Before carrying out any cleaning or maintenance activities, ensure that the extractor is disconnected from the mains.

To carry out cleaning and maintenance, follow the Safety Instructions.

Fire risk exists in case that cleaning does not take place according to the instructions.

Filter cleaning

To withdraw the filters from their locations release the anchoring points. Clean the filter, either by putting it in the dishwasher (see notes) or leaving it standing in hot water to simplify the removal of grease or, if wished, by means of special sprays (protecting the non-metallic parts). Once clean, leave it to dry.

Notes: cleaning in the dishwasher with aggressive detergents may blacken the surface of metallic parts, without this affecting its gas retaining properties.

N.B. The filter must be cleaned at least once a month depending on how often the extractor is used. It must be remembered that grease is deposited in the extractor when cooking, whether it is switched on or not.

Program the working time

1) Switch on the cooker hood by rotating the speed knob and choose the required aspiration speed.
2) Press Alarm / Timer key.
3) Select the required programming time from 1 to 99 minutes by using the Timer/Clock knob.
4) The display will show the remaining programming time. The maximum speed can only be selected manually and will be changed automatically to the second speed level after 7 minutes.

Cleaning of the extractor body

The use of warm (40°C approx.) soapy water is recommended. A cloth moistened in this water is used for cleaning the extractor, paying special attention to the grids. Afterwards, dry it using a lint-free cloth.

Note:

• Never use metallic scouring pads or abrasive products that could damage the surface.
• Do not use scrapers with metallic surfaces such as knives, scissors etc.

Activated charcoal filter

• To install the charcoal filter, the motor anchorage is made to coincide with the anchor points of the activated charcoal filter and turn it clockwise.
• The carbon filter lasts from three to six months depending on the particular conditions of use.
• The activated carbon filter can neither be washed nor regenerated. Once it is exhausted, it must be changed.

- To replace exhausted filters with new ones, withdraw the old one in the reverse order to that of installation.

Technical Information

Electrical characteristics:

REFER TO RATING PLATE

If something does not work

Before seeking technical assistance carry out the following checks first:

Defect	Possible cause	Solution
The extractor does not work	The cable is not connected	Connect the mains cable
	No current is reaching the plug	Revise/repair the electricity circuit
The extractor does not blow enough or vibrates	Filter saturated with grease	Clean or substitute the filter
	Outlet obstructed	Eliminate obstructions
	Inadequate air conduit	Contact the installer and follow instructions of this manual
The lamps do not light	Lamp broken	Contact the Customer ServiceILCOS D Code: DSL-7-S-700

Special U.K. Requirements

Height above gas hob: 75 mm minimum.

This appliance must be connected by a competent person, using fixed wiring via a DOUBLE POLE SWITCHED FUSED SPUR OUTLET.

Special Australia Requirements

This appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Electrical connection

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations.

Should the color of the wires in the mains lead for the appliance not correspond with the

colored markings identifying the terminal in your spur box proceed as follows:

The wire which is colored blue must be connected to the marked N (Neutral) or colored Black.

The wire which is colored brown must be connected to the marked L (Live) or colored Red

Where available (see installation), the wire which is colored yellow/green must be connected to the marked or colored Yellow/Green.

If the cooker hood is installed for use above a gas appliance then the provision or ventilation

must be in accordance with the Gas Safety (Installation & Use) Regulations 1984 and the relevant Building Regulations. Detailed recommendations are contained in the following British Standard Codes of Practice BS6172, BS5440 and BS6891 Current Edition.

Environmental protection

Disposal of the packaging

The packaging bears the Green Point mark.

Dispose of all the packaging materials such as cardboard, expanded polystyrene and plastic wrapping in the appropriate bins. In this way you can be sure that the packaging materials will be re-used.

Disposal of equipment no longer used

According to European Directive 2012/19/EU on the management of waste electrical and electronic equipment (WEEE), home electrical appliances should not be put into the normal systems for disposal of solid urban waste.

Outdated appliances should be collected separately to optimize component material recovery and re-cycling rates and to prevent potential harm to human health and the environment. The symbol of a rubbish container superimposed by a diagonal cross should be put on all such products to remind people of their obligation to have such items collected separately.

Consumers should contact their local authorities or point of sale and request information on the appropriate places to leave their old home electrical appliances.

Before disposing of your appliance, render it non-usable by pulling out the power cable, cutting this and disposing of it.

Diagram showing five types of electrical hazard symbols and a labeled diagram with Ø6, Ø8

A	∅ 6x30	4x
B	∅ 3.9x32	4x
C		2x
D	∅ 8x40	4x
E	∅ 6.4x18	2x
F	∅ 4.8x45	4x
G	∅ 150-120	1x
H	∅ 150	2x
I		2x
J	∅ 3.9x13	2x
K	∅ 4x8	6x
L		1x
M		1x
N		2x
O		2x
P	∅ 150/125	1x

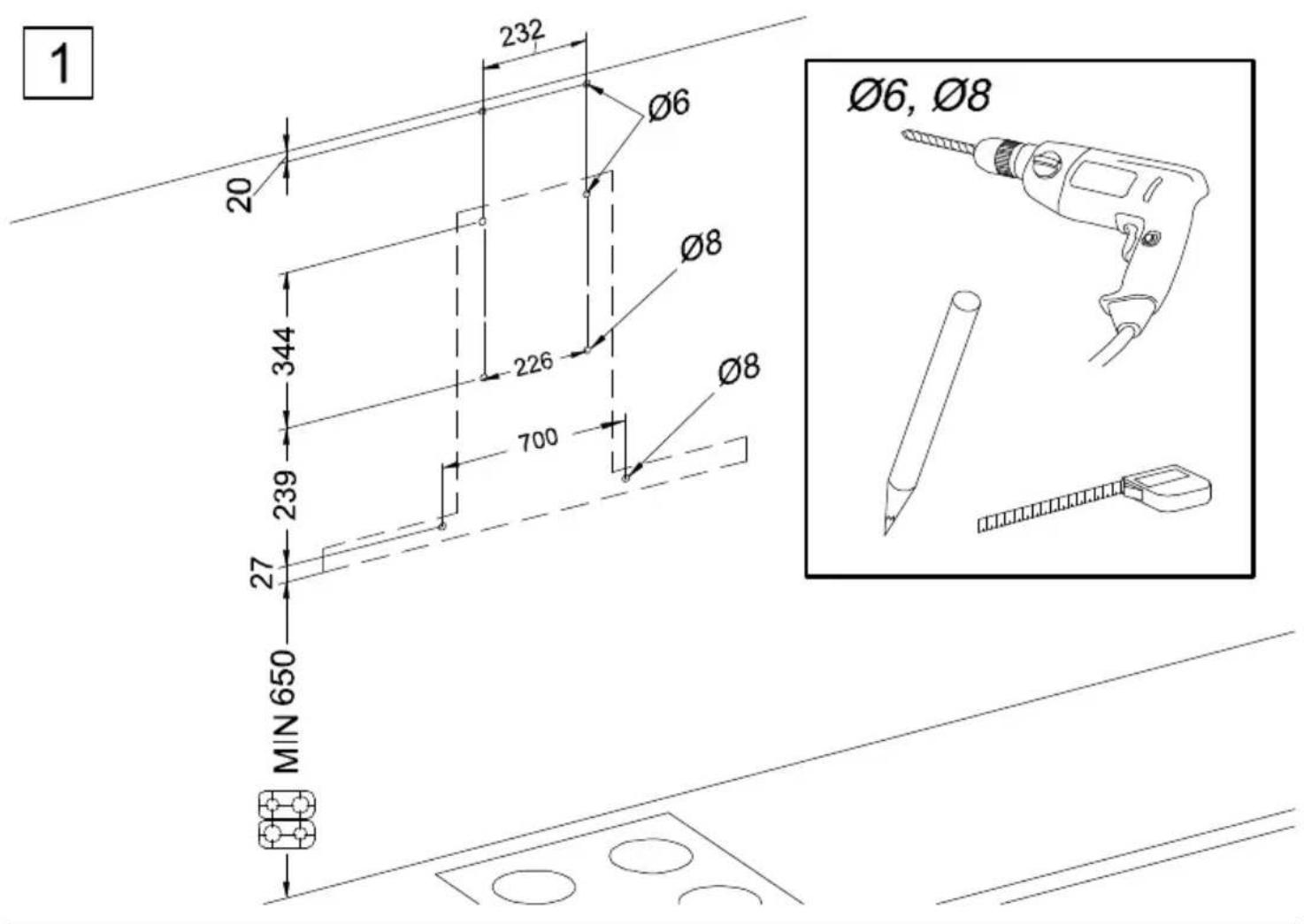

1 20 232 Ø6 Ø8 344 226 239 700 Ø8 MIN 650 27 Ø6, Ø8

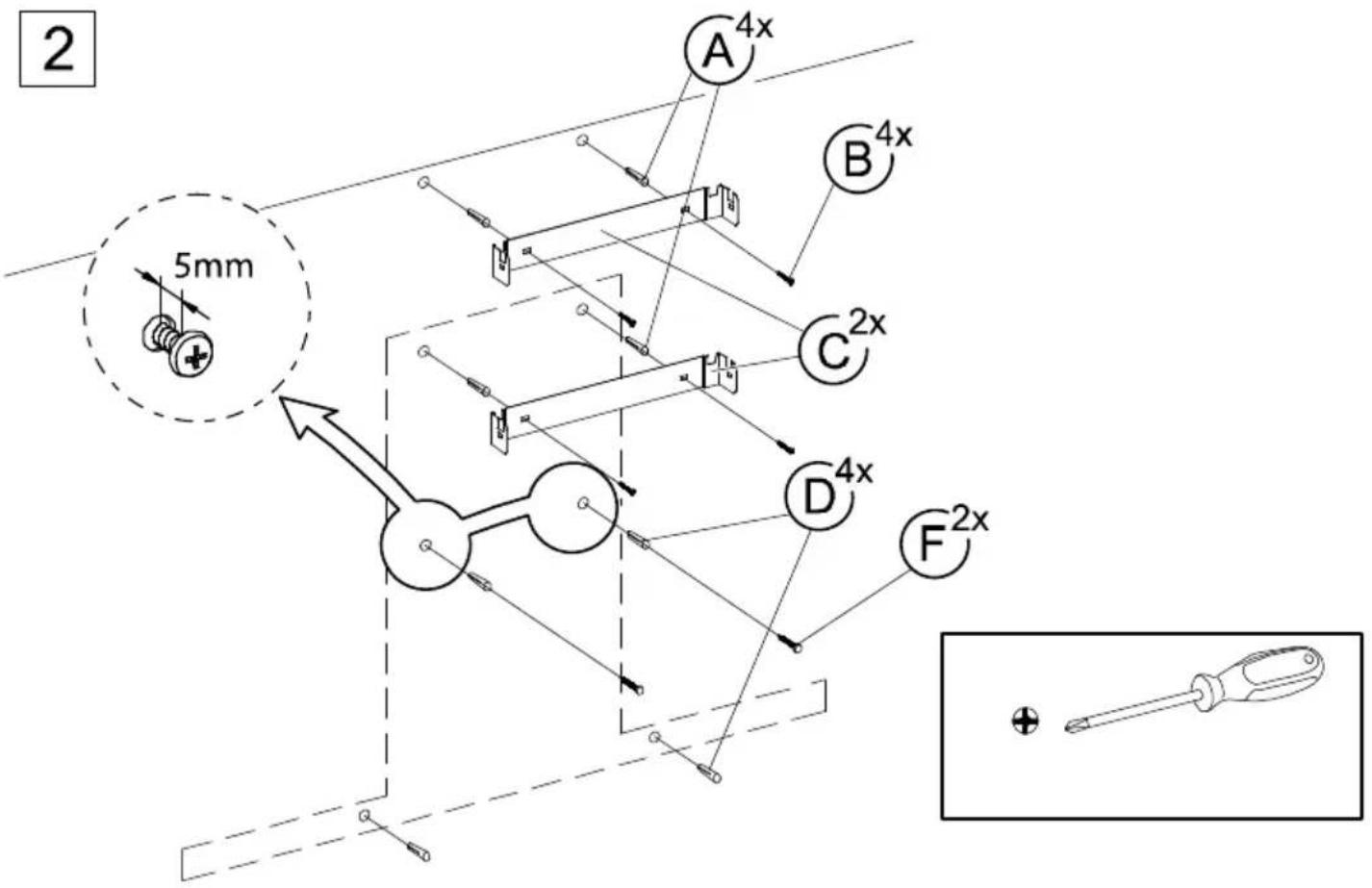

2 5mm A⁴ˣ B⁴ˣ C²ˣ D⁴ˣ F²ˣ

5 J 2x 5.2 I 2x J 5.3 5.1 5.4 K 6x
