USER MANUAL ENEBY 403.575.35 IKEA
Design and Quality IKEA of Sweden


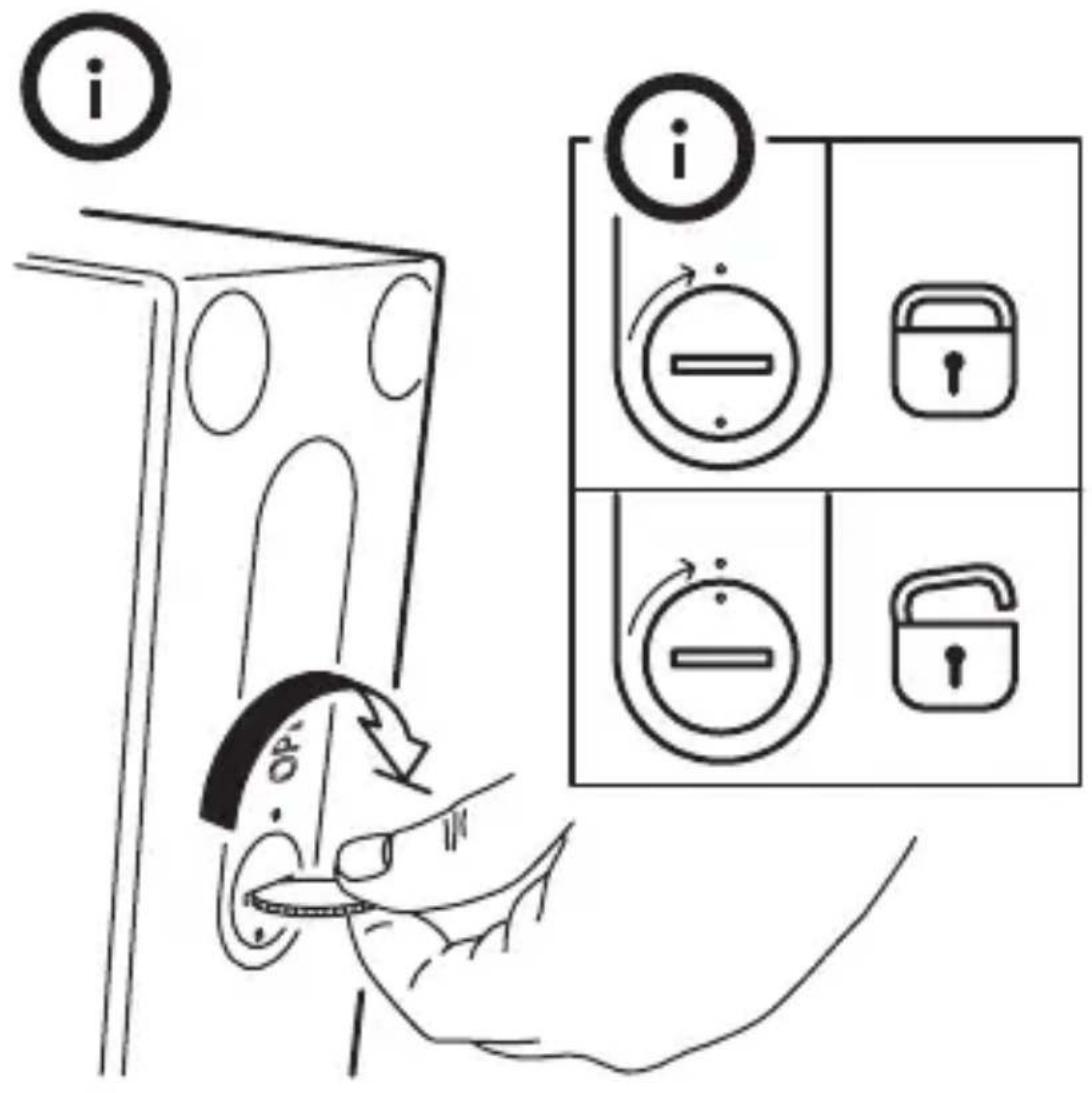

Diagram illustrating a lock operation with labeled icons for battery, lock, and minus sign, showing hand action and control buttons.


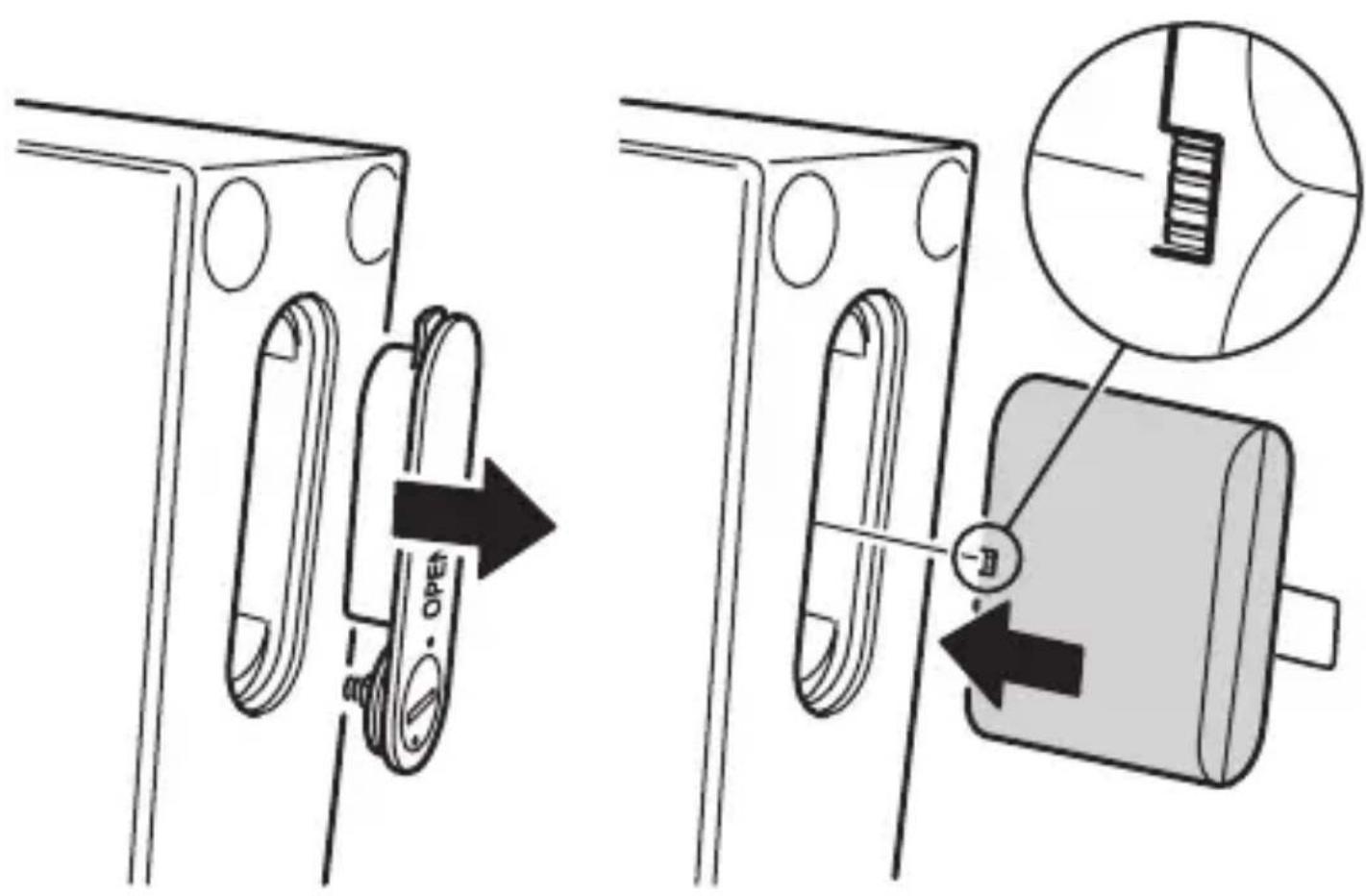

Technical diagram showing mechanical assembly steps with labeled parts and a magnified inset of a component detailENGLISH 6
DEUTSCH 9
FRANÇAIS 12
NEDERLANDS 15
DANSK 18
ÍSLENSKA 21
NORSK 24
SUOMI 27
SVENSKA 30
ČESKY 33
ESPAÑOL 36
ITALIANO 39
MAGYAR 42
POLSKI 45
EESTI 48
LATVIEŠU 51
LIETUVIŲ 54
PORTUGUÊS 57
ROMÂNA 60
SLOVENSKY 63
БЪЛГАРСКИ 66
HRVATSKI 69
ΕΛΛΗΝΙΚΑ 72
РУССКИЙ 75
УКРАЇНСЬКА 78
SRPSKI 81
SLOVENŠČINA 84
TÜRKÇE 87
عربي 90
ENGLISH 6
GOOD TO KNOW
— It is normal for the battery to become hot during charging and it will gradually cool down after charging.
— Charging time may vary depending on remaining charge, battery age and ambient temperature.
— Battery storage temperature: -20^ to 25^ .
— Charger operation temperature: 0°C to 45°C.
— Disconnect the battery from the power outlet before cleaning or when it is not used.
— Battery should not be left discharged for a longer period.
— Battery should not be charged while in contact with flammable material like textiles.
— This battery can only be used with IKEA products.
CAUTION
— Do not modify, disassemble, open, drop, crush, puncture, or shred battery.
— Do not expose the battery to rain or water.
— Risk of fires and burns. Do not open, crush, heat above 140^ F ( 60^ C), or incinerate.
— Keep battery away from open flame or sunlight to prevent heat build-up.
7
— Keep battery away from high voltage devices.
— This product is not a toy, keep away from children. Ensure that all persons who use this product read and follow these warnings and instructions.
— Do not short-circuit the battery or its cells.
— In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.
CARE INSTRUCTION
To clean the unit, wipe with a soft cloth moistened with a little mild detergent. Use another soft dry cloth to wipe dry.
NOTE!
Never use abrasive cleaners or chemical solvents since this can damage the product.
Product servicing
Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
TECHNICAL DATA
Type: ICBL14.4-36-A1
Capacity: 2600mAh/37.4Wh
Input: DC 16.8V, 2.0A
Output: DC 14.4V, 3.1A
For indoor use only
Rechargeable Li-Ion battery cell inside.
This device conforms to UL STD. 2054
Manufacturer: IKEA of Sweden AB
Address: Box 702, SE-343 81 Älmhult, SWEDEN
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
DEUTSCH 9
WISSENSWERTES
Capacité: 2600mAh/37.4Wh
Entrée: 16.8VDC, 2.0A
Sortie: 14.4VDC, 3.1A
Batterie rechargeable Li-ion incluse.
Fabricant : IKEA of Sweden AB
Adresse : Box 702, SE-343 81 Älmhult, SUÈDE
Type: ICBL14.4-36-A1
Capaciteit: 2600mAh/37.4Wh
Input: DC 16.8V, 2.0A
Output: DC 14.4V, 3.1A
Type: ICBL14,4-36-A1
Kapacitet: 2600mAh/37.4Wh
Indgangseffekt: DC 16.8V, 2.0A
Producent: IKEA of Sweden AB
Framleiðandi: IKEA of Sweden AB
Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN
Type: ICBL14.4-36-A1
Kapasitet: 2600 mAh/37,4 Wh
Inngang: DC 16.8V, 2.0 A
Utgang: DC 14.4V, 3.1 A
Produsent: IKEA of Sweden AB
Producent: IKEA of Sweden AB
Adres: Box 702, SE-343 81 Älmhult, SZWECJA
Maht: 2600mAh/37.4Wh
Tootja: IKEA of Sweden AB
Aadress: Box 702, SE-343 81 Älmhult, SWEDEN
Tips: ICBL14.4-36-A1
Jauda: 2600mAh/37,4Wh
Ieeja: DC 16.8V, 2.0A
Izeja: DC 14.4V, 3.1A
Tipas: ICBL14.4-36-A1
Galia: 2600 mAh/37,4 Wh
Capacitate: 2600mAh/37.4Wh
Input: DC 16.8V, 2.0A
Output: DC 14.4V, 3.1A
Model: ICBL14.4-36-A1
Kapacitet: 2600mAh/37,4Wh
Ulaz: DC 16.8V, 2A
Izlaz: DC 14.4V, 3.1A
Samo za upotrebu u zatvorenom prostoru Punjiva litijum-jonska baterija.
Kapasite: 2600mAh/37.4Wh
Giriş: DC 16.8V, 2.0A
