Product type	Air CPU cooler
Dimensions (L x W x H)	130 x 76 x 159 mm
Weight	600 g
Fan	120 mm, 4-pin PWM
Fan speed	900 - 1500 RPM
Noise level	20 - 35 dBA
Max airflow	95 CFM
Static pressure	1.5 mmH2O
Bearing type	Double ball bearing
Max thermal dissipation	180 W TDP
Heat pipes	4 x 6 mm copper heat pipes, direct contact
Radiator material	Aluminum
Base	Nickel-plated copper
Intel compatibility	LGA 115x, 1366, 2011, 2066
AMD compatibility	AM2, AM3, AM4, AM5
Power supply	12 V DC, 0.15 A
Warranty	2 years
Maintenance	Cleaning with compressed air
Safety precautions	Wear gloves, do not touch blades while running
Package contents	Cooler, fan, thermal paste, mounting system, manual

Frequently Asked Questions - CNPS10X Performa ZALMAN

How to install the CNPS10X Performa on an Intel LGA 1151 socket?

To install on LGA 1151, use the provided backplate and screw in the mounting brackets. Apply a small amount of thermal paste (size of a rice grain) on the CPU. Secure the cooler by tightening the screws in a cross pattern step by step.

Which thermal paste is recommended?

The cooler is supplied with Zalman ZM-STC2 thermal paste. If you use another, choose a high-quality silicone-based or liquid metal paste, but avoid conductive pastes that could cause short circuits.

Is the fan PWM?

Yes, the 120 mm fan uses a 4-pin PWM connector, allowing automatic speed control by the motherboard based on CPU temperature.

Can I overclock my CPU with this cooler?

The CNPS10X Performa is designed to dissipate up to 180W TDP, making it suitable for moderate overclocking. For extreme overclocking, a more powerful cooler is recommended.

How to clean the cooler?

For cleaning, use a soft cloth or compressed air. Avoid chemicals. If you remove the fan, dust off the blades and fins. Reassemble correctly.

Is the cooler compatible with tall memory modules?

Yes, the design of the CNPS10X Performa offers good clearance (about 45 mm). It does not interfere with memory modules unless they are very tall. In that case, install the modules in the farthest slots.

What to do if the fan is noisy?

Check that the fan is securely mounted, no cable touches the blades, and the PWM curve is correct in the BIOS. A persistent noise may indicate a defective bearing; then replace the fan.

Are there safety precautions during installation?

Wear gloves to avoid injury. Do not touch the fan blades while it is running. Avoid any contact of thermal paste with skin or eyes.

How to verify that the cooler is properly installed?

After installation, check that the cooler does not move and that the screws are evenly tightened. Turn on the PC and monitor CPU temperature at idle (30-40°C) and under load (70-85°C).

Is the cooler guaranteed?

Zalman offers a 2-year warranty on the CNPS10X Performa, covering manufacturing defects. Keep the proof of purchase. The warranty does not cover damage caused by improper installation or excessive overclocking.

USER MANUAL CNPS10X Performa ZALMAN

Technical line drawing of a computer cooling unit with visible fan and cooling fins (no text or symbols)

Latest Intel & AMD Compatibility

Intel Socket LGA2066/2011-V3/2011/1200/115X CPUs

AMD Socket AM4 CPU

Developed and designed by ZALMAN in Korea.

This product is protected by ZALMAN's pending or registered patents.

www.zalman.com

* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.

Precautions

English

• Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
• Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
  ■ To prevent possible injuries, gloves must be worn while handling this product.
  ■ Excessive force exerted on the fan may cause damage to the fan and/or system.
  ■ Use and keep product away from reach of children.
• Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
• Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
  ■ Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
  ■ During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
  ■ Product design and specifications may be changed to improve quality and performance without notice.

Précautions

Français

Technical line drawing of a fan with 135mm×95mm dimension标注 (no text or symbols on the fan itself)

Components

Cooler

Fan Fan Clips ManGalde Clips

Loading Block (AMD)

Backplate Side Capsulating Block (Intel)

Fixing Bolts Stand-off NutsStand-off(A)d-offs(B) 1200 / 115X / AM4 2066 / 2011-V3 / 2011
Washers
Thermal Compound

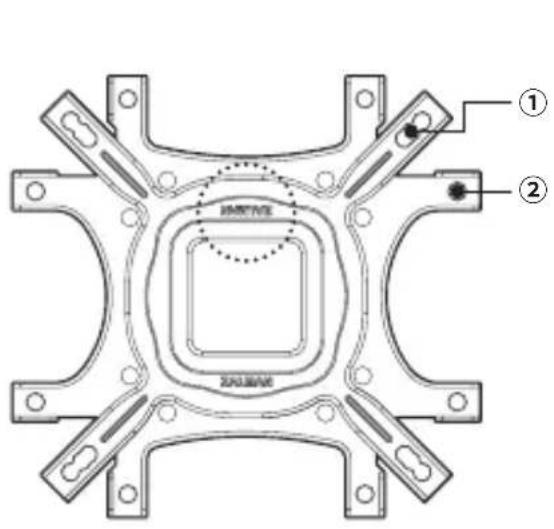

INTEL, AMD Backplate

1) Nuts Position

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Caution

Please check the proper ZALMAN logo direction on backplate for each Intel and AMD socket. No backplate is necessary for Intel LGA2066 /2011-V/2011 socket.

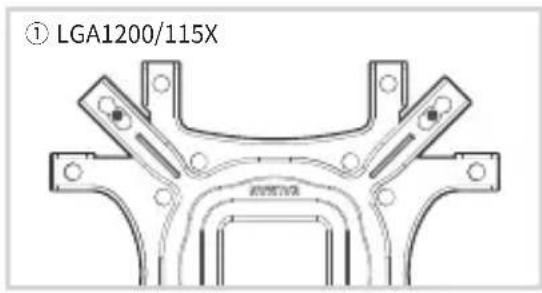

2) LGA1200/115X

Mechanical assembly diagram showing a bracket with two parts and directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a bracket with two pins, no text or symbols present

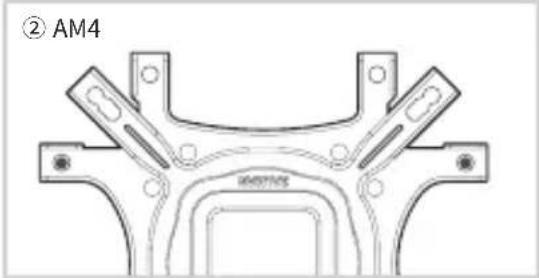

3) AM4

Mechanical assembly diagram showing a clamp tool interacting with a component, with no visible text or symbols.

Mechanical assembly diagram showing a clamping tool interacting with a base component (no text or symbols present)

Caution

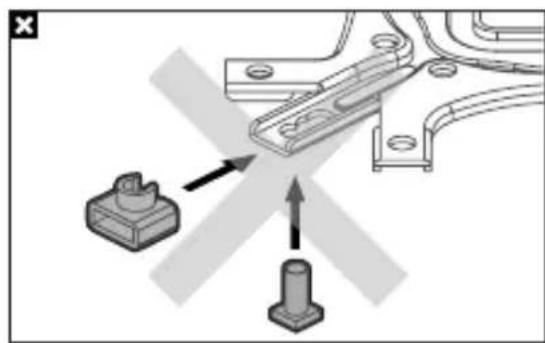

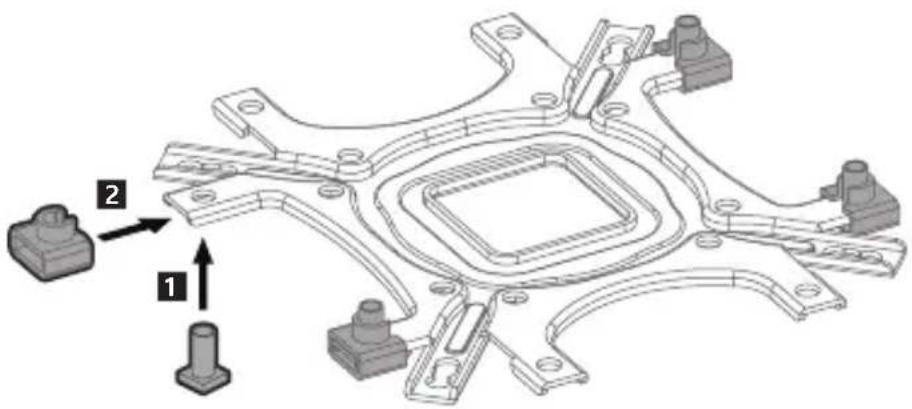

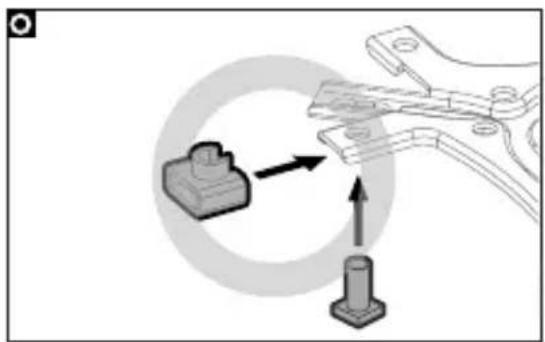

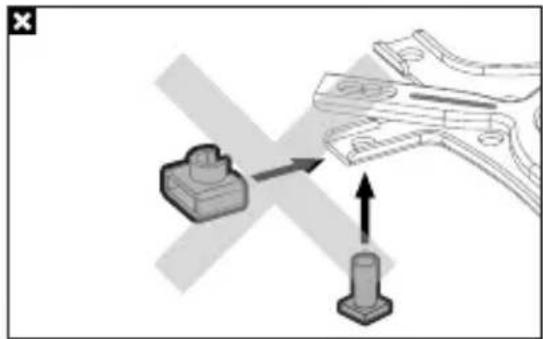

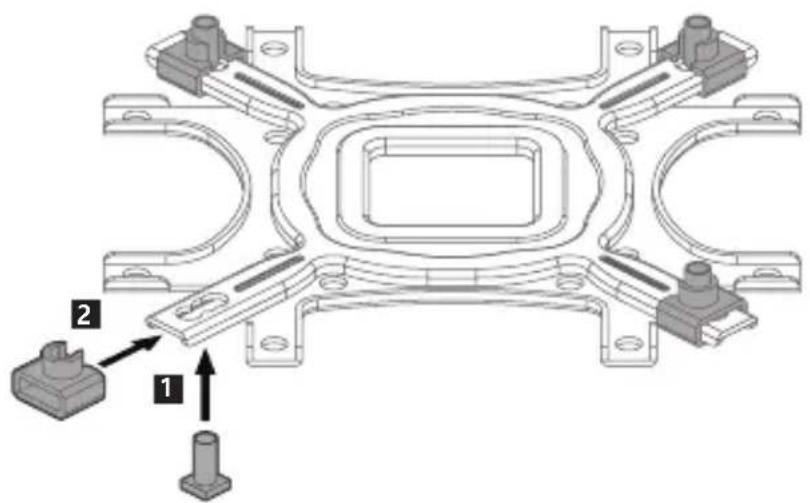

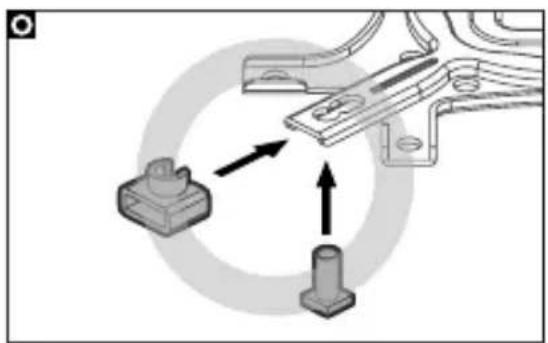

Take note of the orientation of the nuts and the side caps.

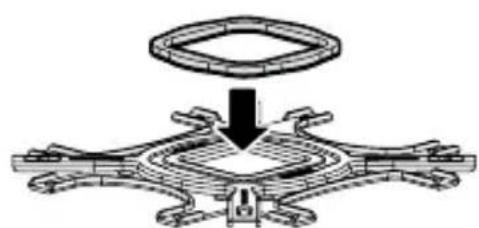

INTEL, AMD Loading Block

1) Intel 2) AMD

Pure mechanical assembly diagram showing a central component with a circular top and internal structure (no text or symbols)

Mechanical assembly diagram showing a hexagonal nut pressing into a central component with multiple arms (no text or symbols)

Caution

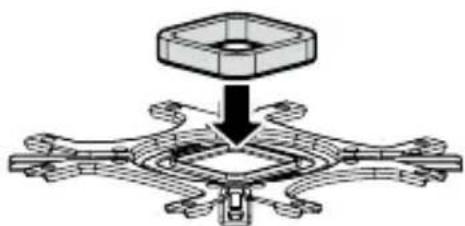

Remove the tape cover of loading block and attach it to the backplate.

1. Intel Users

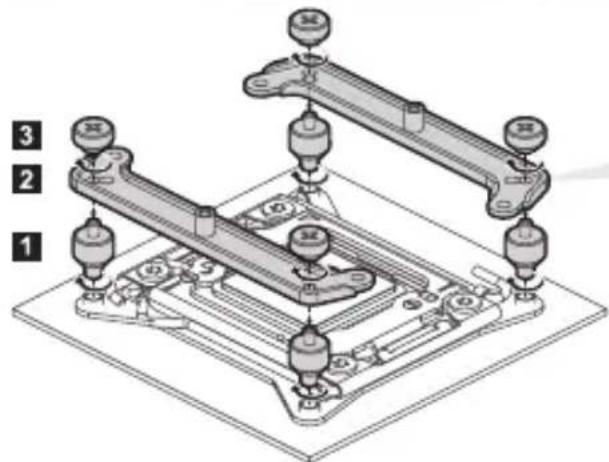

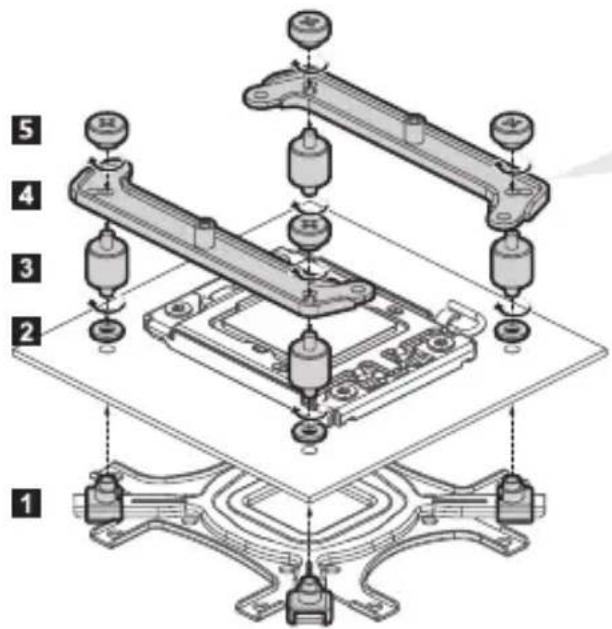

1) LGA2066 / 2011-V3 / 2011

Stand-offs(B)

Guide Clips

Stand-off Nuts

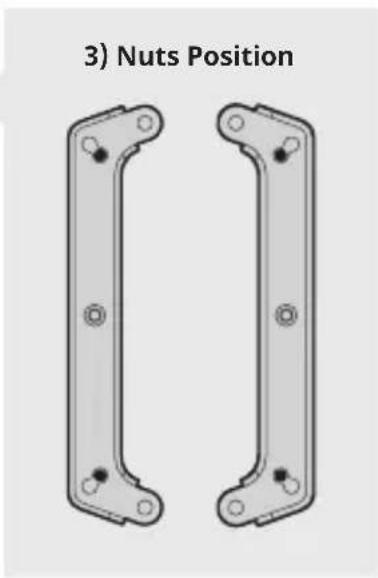

2) Nuts Position

Two identical mechanical bracket components with mounting holes and mounting holes (no text or symbols)

Caution
Backplate is not needed for LGA2066 / 2011-V3 / 2011 sockets.

4

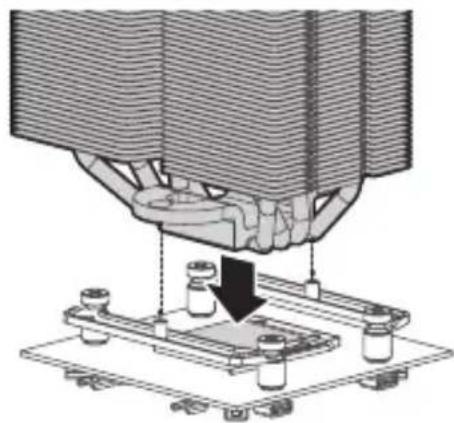

Thermal Compound

Illustration of a hand using a tool to press or install a component on a flat surface (no text or symbols visible)

5

Mechanical assembly diagram showing a 3D printer dispensing liquid into a base platform (no text or symbols visible)

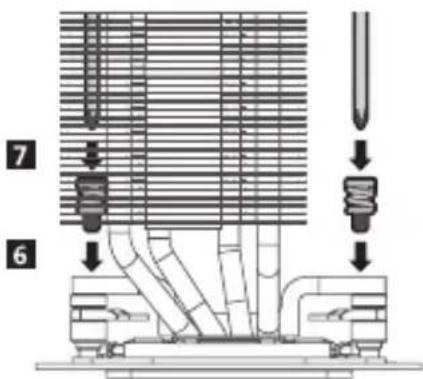

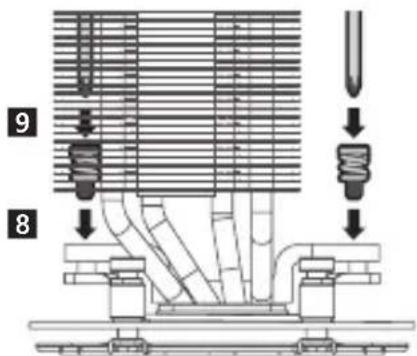

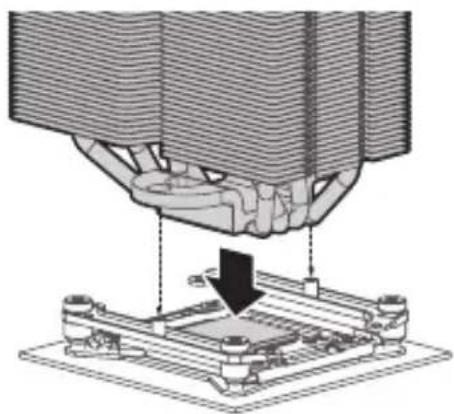

Fixing Bolts

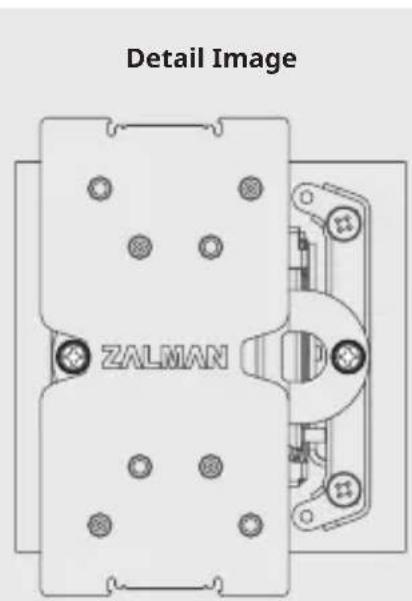

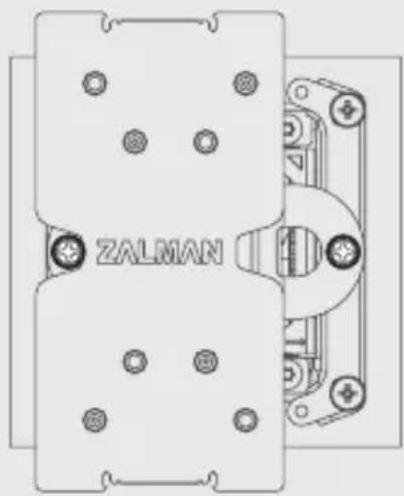

Detail Image

Technical diagram of a ZALMAN component assembly (no text or symbols on the diagram itself)

Caution

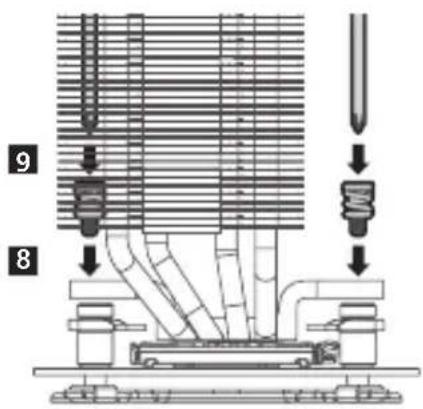

Screw-in both bolts in an alternating fashion until they are completely tightened.

8

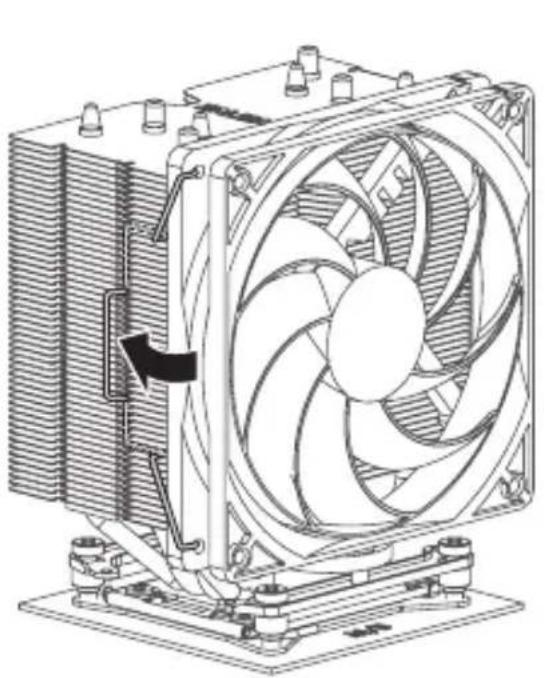

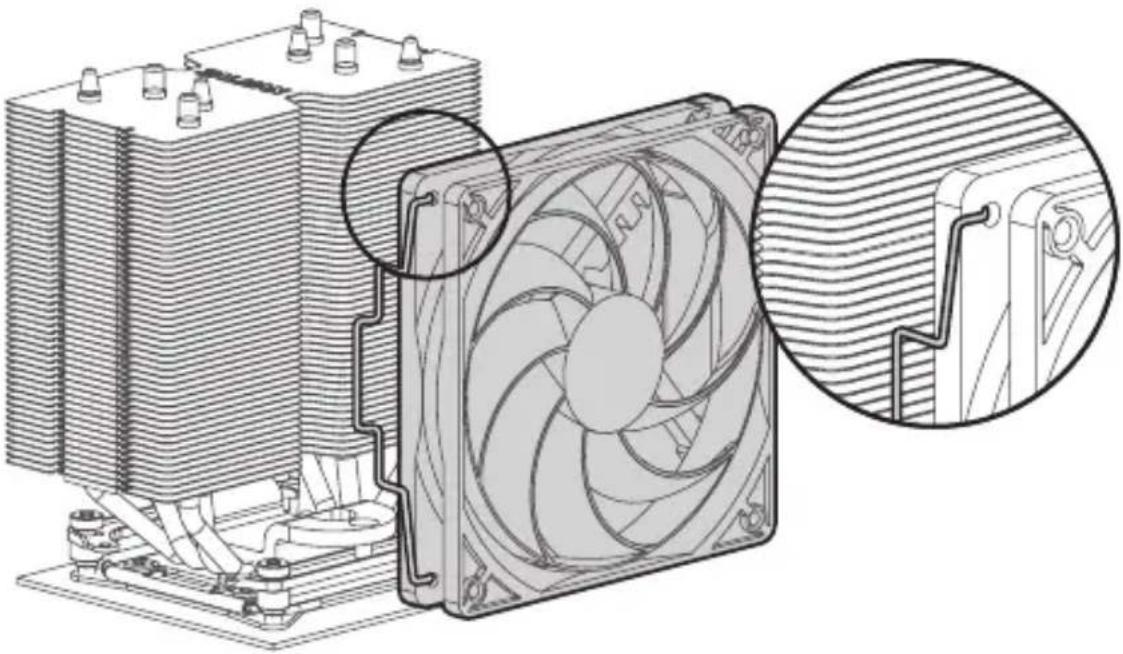

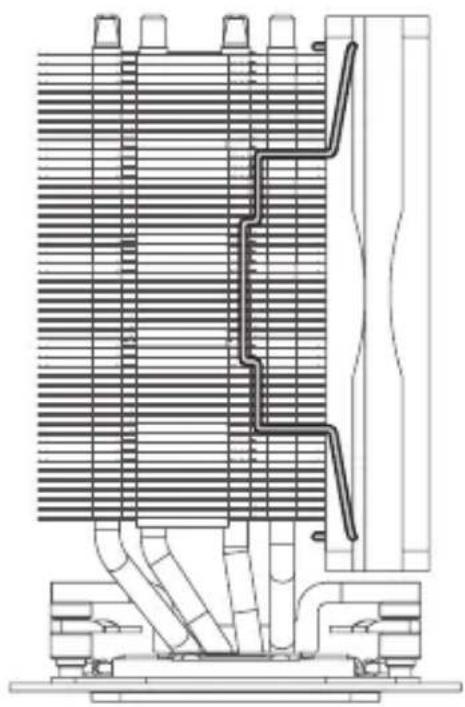

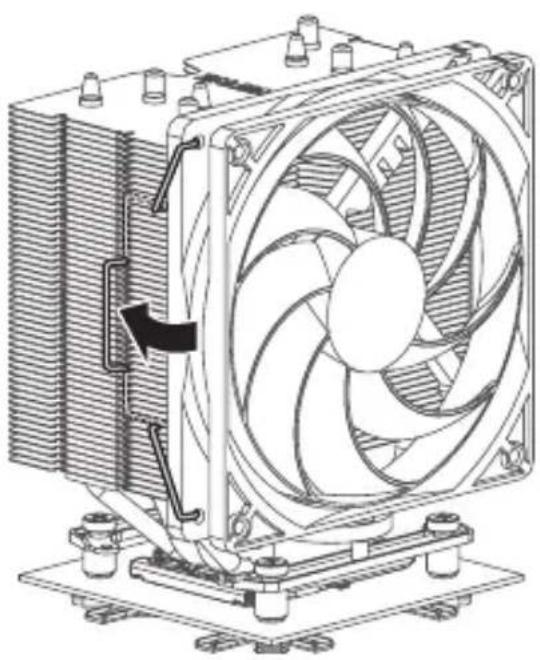

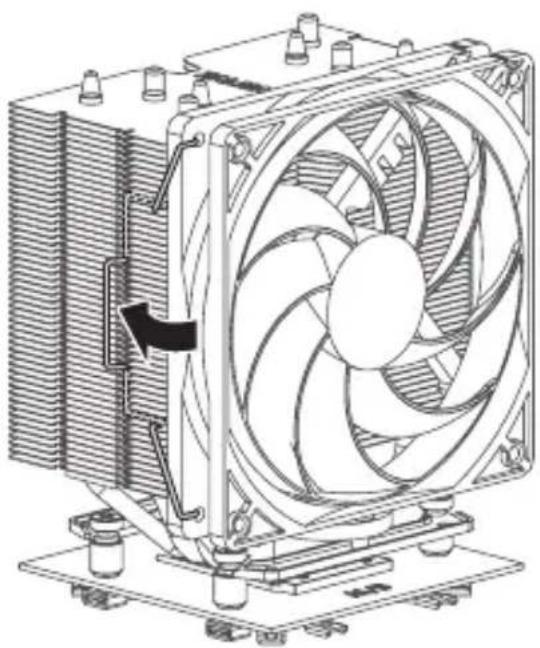

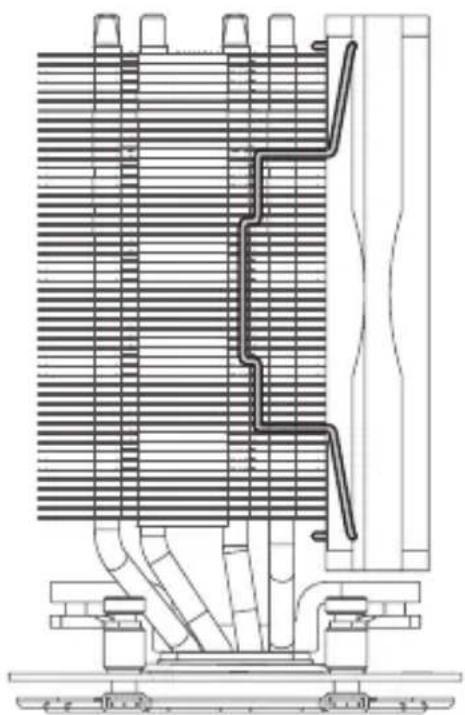

Fan Fan Clips

Technical illustration of a CPU fan assembly with cooling fins and heat exchangers, showing internal structure and mounting detail (no text or symbols)

9

Technical line drawing of a computer cooling fan with cooling fins and heat exchangers (no text or symbols)

Technical line drawing of a heat exchanger or cooling unit with internal pipes and cooling fins (no text or symbols)

Caution

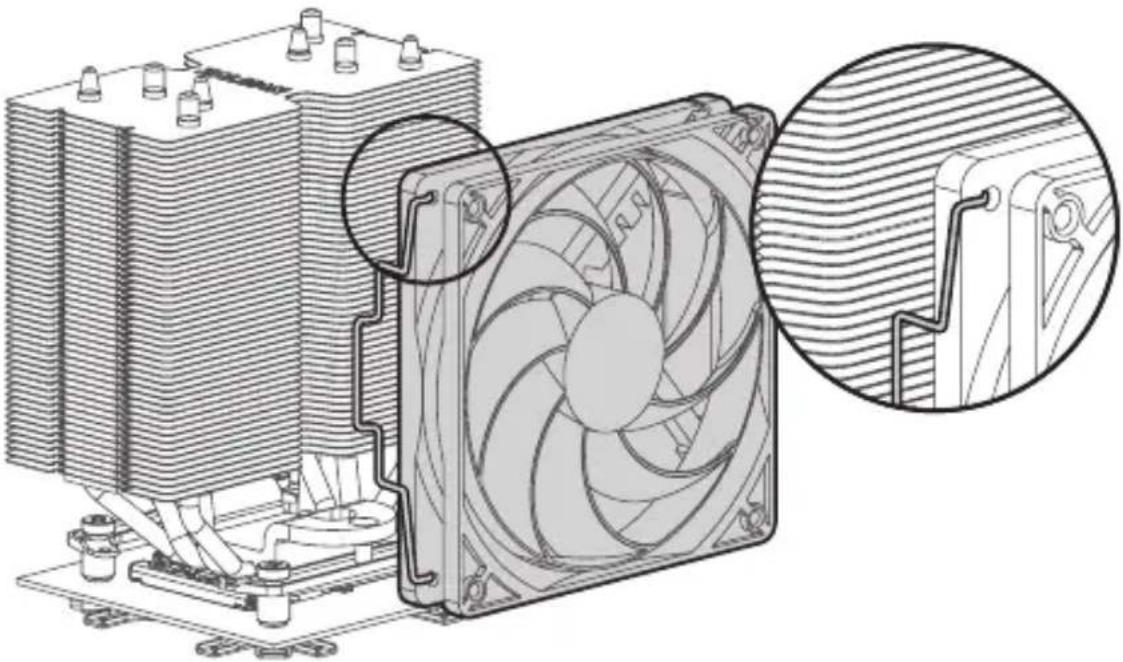

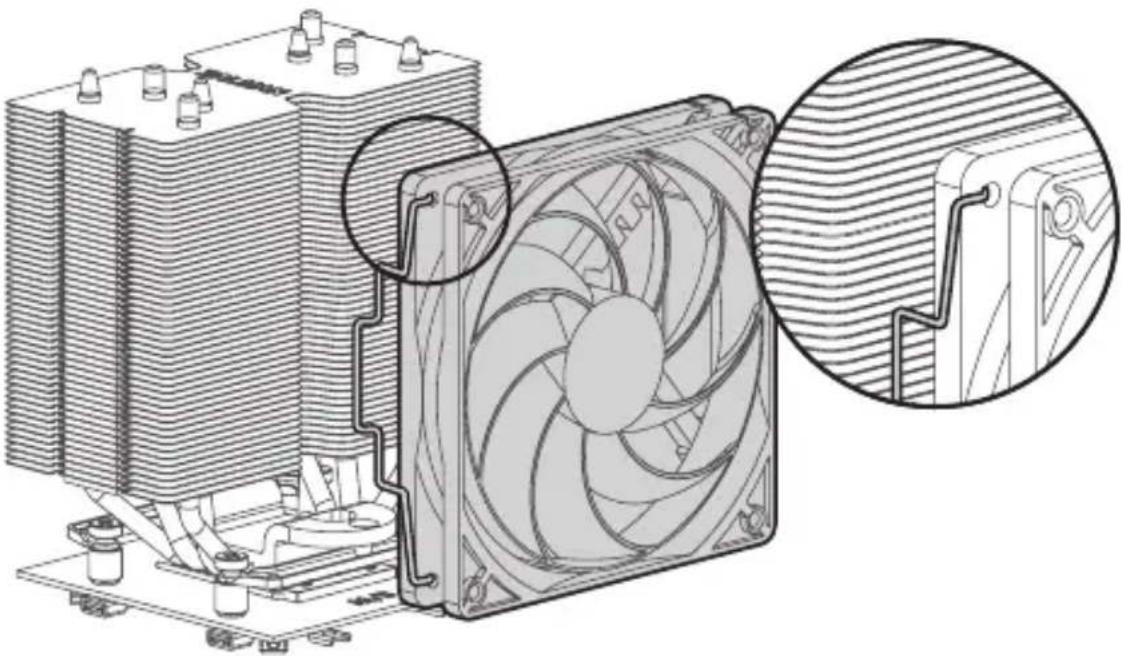

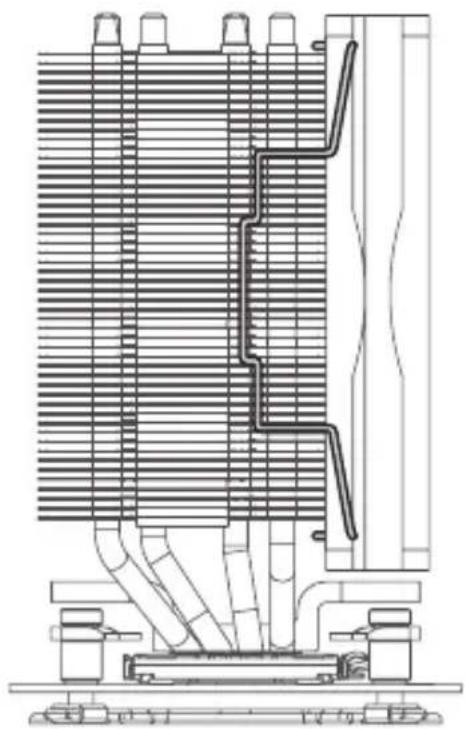

[Installation Guideline for Intel 10th Generation Motherboard User] CNPS10X PERFORMA BLACK Fan may have interference with FET passive heatsink over 30mm high.

2) LGA1200/115X

Hand holding a pen inserted into a small electronic component (no text or symbols visible)

Mechanical assembly diagram showing a clamping device pressing into a base platform (no text or symbols visible)

Caution

Screw-in both bolts in an alternating fashion until they are completely tightened.

10

Fan

Fan Clips

Technical illustration of a computer cooling unit with fan and cooling fins, showing internal structure and mounting bracket (no text or symbols)

11

Technical line drawing of a computer cooling fan with cooling tower and cooling base (no text or symbols)

Technical line drawing of a heat exchanger or cooling unit with cooling pipes and heat exchangers (no text or labels)

Caution

[Installation Guideline for Intel 10th Generation Motherboard User]

CNPS10X PERFORMA BLACK Fan may have interference with FET passive heatsink over

30mm high.

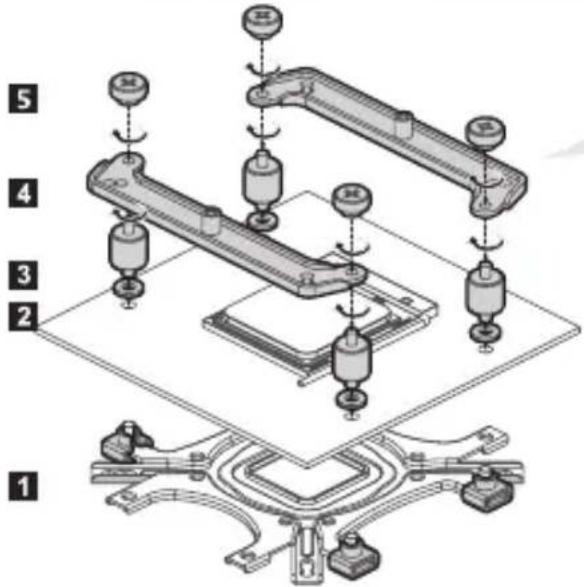

2. AMD Users

1) AM4

Washers

Stand-offs(A)

Guide Clips

Stand-off Nuts

2) Nuts Position

Two identical mechanical bracket components with mounting holes and mounting holes (no text or symbols)

Caution

Please be cautious for the direction of AMD Guide installation.

6

Thermal Compound

Illustration of a hand using a tool to press or install a component on a circuit board (no text or symbols visible)

7

Mechanical assembly diagram showing a robotic arm interacting with a base platform (no text or symbols visible)

Fixing Bolts

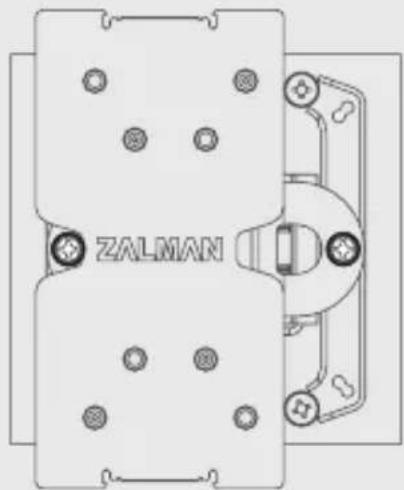

Detail Image

Technical line drawing of a mechanical component with ZALMAN branding (no readable text or symbols beyond branding)

Caution

Screw-in both bolts in an alternating fashion until they are completely tightened.

10

Fan

Fan Clips

Technical illustration of a computer cooling tower with visible fan and cooling elements, showing internal structure and mounting bracket (no text or symbols)

11

Technical line drawing of a computer cooling fan with cooling unit and heat exchanger (no text or symbols)

Technical line drawing of a heat exchanger or cooling unit with internal pipes and cooling fins (no text or labels)

Caution

[Installation Guideline for Intel 10th Generation Motherboard User]

CNPS10X PERFORMA BLACK Fan may have interference with FET passive heatsink over

30mm high.

3. Cable Connection

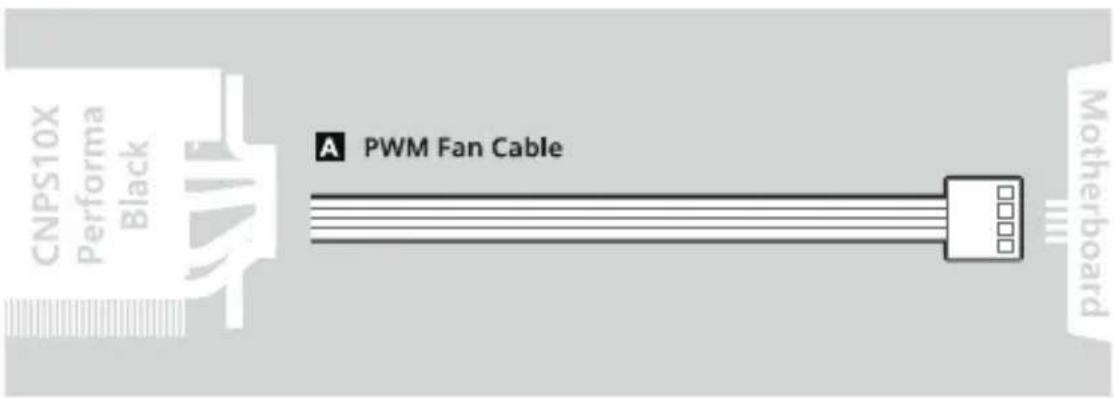

1) Connection to other motherboards

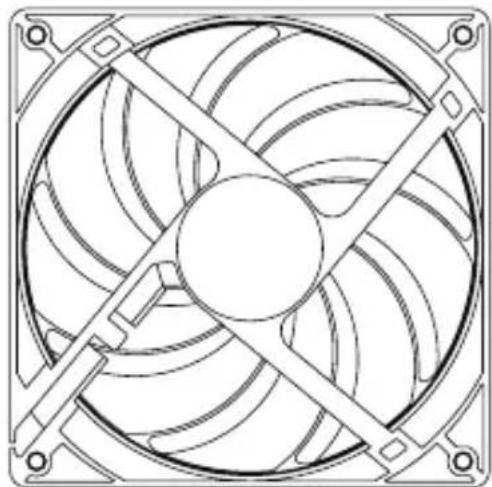

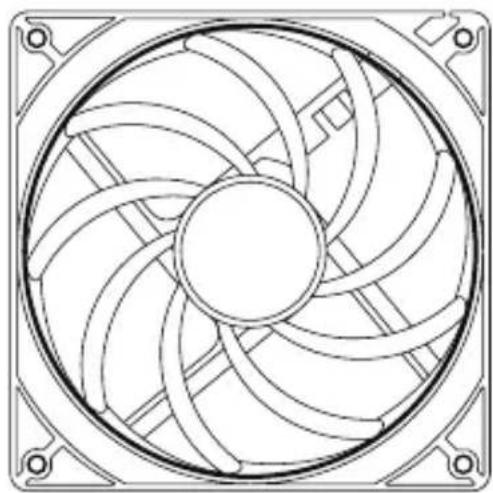

1. Fan Specifications


Line drawing of a computer fan with visible blades and mounting feet (no text or symbols)

Line drawing of a mechanical fan with four blades and mounting holes (no text or symbols)

Dimensions 135 x 135 x 25(H)mm
Bearing Type EBR Bearing
Speed 700~1,500RPM ±10%
Max. Noise Level 27dB(A) ±10%
Max. Air Flow 75.16CFM
Max. Air Pressure 1.35mmH	^2O
Control Method PWM Control
Life Span 50,000 hours
