CCQP4T618CX - Fridge CANDY - Free user manual and instructions

Product Type	Fridge-freezer
Brand	Candy
Model	CCQP4T618CX
Energy Efficiency Class	C
Annual Energy Consumption	165 kWh/year
Fridge Volume	235 L
Freezer Volume	117 L
Freezing Capacity	10 kg/24h
Storage Time in Case of Power Failure	13 h
Freezer Star Rating	4
Defrosting	Automatic
Climate Class	SN/N/ST/T (10 °C to 43 °C)
Noise Level	35 dB(A)
Electrical Supply	220-240 V ~ 50 Hz
Input Current	1.4 A
Refrigerant	R600a (50 g)
Dimensions (W x D x H)	595 x 667 x 1850 mm
Connectivity	Wi-Fi 2.4 GHz, Bluetooth
Special Functions	Super Cool, Super Freeze, Holiday, Eco Mode
Interior Lighting	LED
Door Reversibility	Yes
Available Spare Parts	Thermostats, sensors, lamps (7 years); handles, hinges, drawers, gaskets (7-10 years)

Frequently Asked Questions - CCQP4T618CX CANDY

How to adjust the refrigerator temperature?

Press the K2 button (Refrigerator temperature selection / Super Cool). The display alternates between Super Cool and temperatures from 2°C to 8°C. After about 5 seconds, the setting is confirmed. You can also adjust via the hOn app with a 1°C sensitivity.

How to activate the Super Cool function?

Press the K2 button repeatedly until the Super Cool icon flashes. After 5 seconds, it stays on permanently. The function turns off automatically after 30 hours or manually via the panel or app.

What to do in case of a power outage?

Open the door as little as possible. Food stays cold for about 13 hours. Do not add extra food. Preparing ice cubes in advance can help. Check food after power returns.

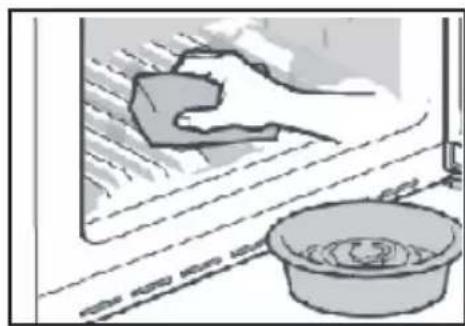

How to clean the inside of the refrigerator?

Unplug the appliance. Use a sponge with warm water and a mild detergent. Rinse and dry with a soft cloth. Do not use hard brushes, abrasive products, or steam cleaners. Do not clean glass shelves when hot.

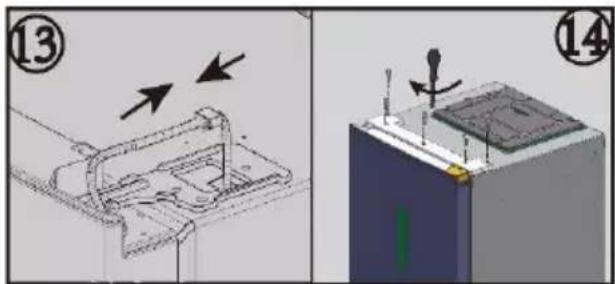

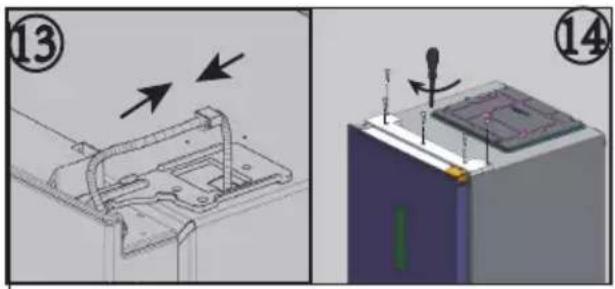

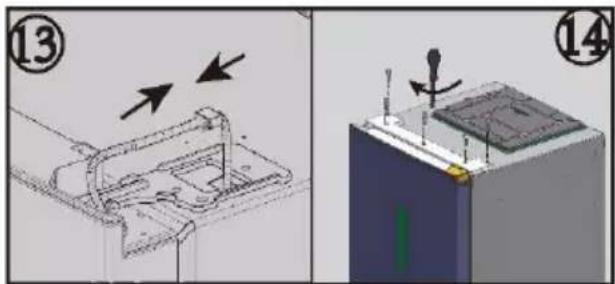

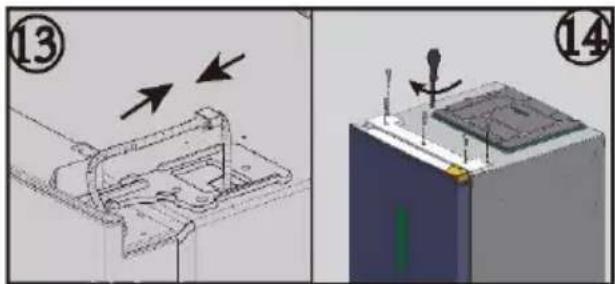

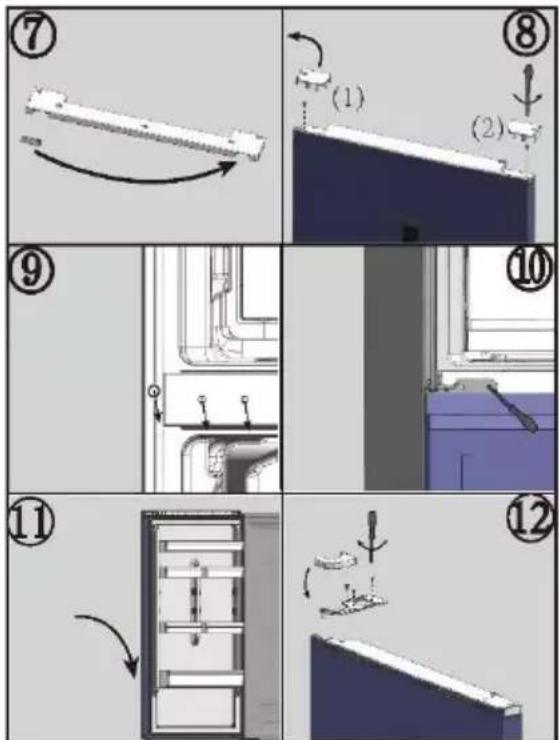

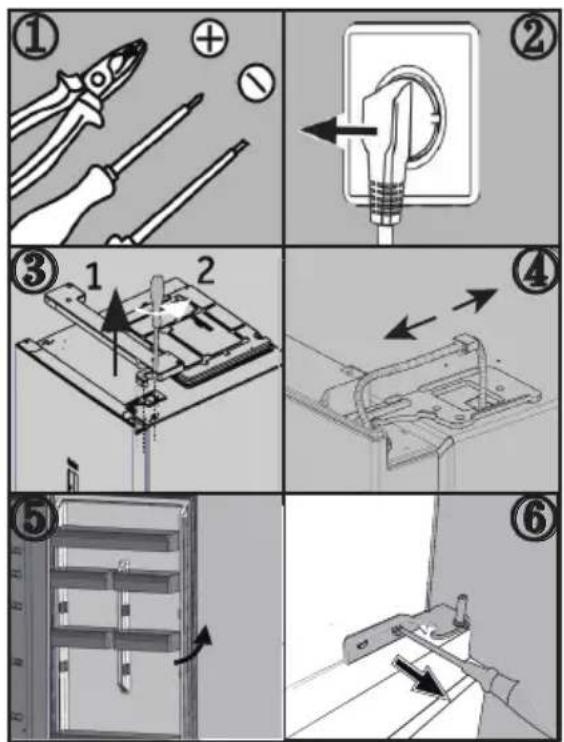

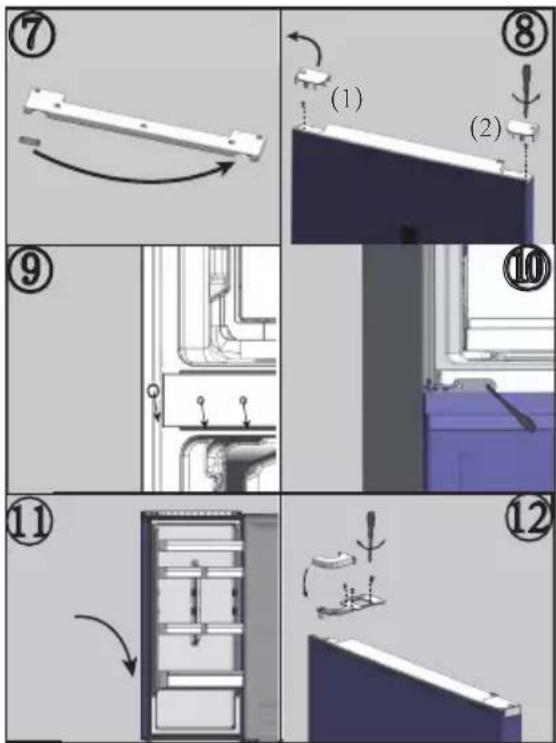

How to reverse the door opening direction?

Unplug the appliance. Remove the upper right hinge, disconnect the cable, remove the door. Replace the lower hinge to the left, install the door, then attach the new upper left hinge (included). Two people are needed. Do not tilt the appliance more than 45°.

Why is there frost in the freezer?

Possible causes: poorly packed food, door not closed properly, too frequent opening, dirty or worn gasket. Check and correct. Defrosting is automatic, but excessive frost indicates a problem.

How to connect the appliance to Wi-Fi?

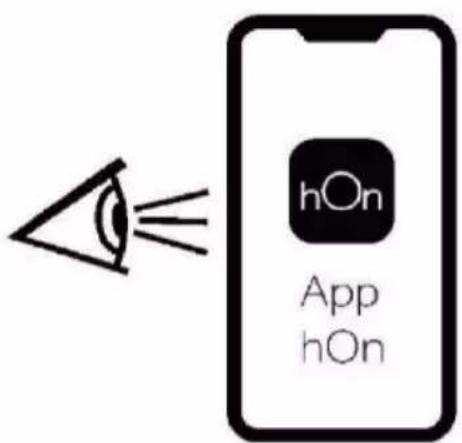

Download the hOn app from Google Play or the App Store. Create an account or log in. Follow the pairing instructions in the app. Wi-Fi works on the 2.4 GHz band.

What does the audible alarm mean?

The alarm sounds if the refrigerator door is left open for more than 3 minutes. Close the door to deactivate it. After 7 minutes, the interior light and control panel turn off automatically.

What is the maximum freezing capacity?

The freezing capacity is 10 kg per 24 hours. For large quantities, activate the Super Freeze function 24 hours in advance via the app.

How to replace the LED bulb?

The LED bulb must only be replaced by the manufacturer or an authorized maintenance agent. Do not replace it yourself. Contact customer service. The lamp operates at 12 V, max 1.5 W.

USER MANUAL CCQP4T618CX CANDY

• Please read this manual carefully before using refrigerator.
• Retain it for future reference.

WARNING: Risk of fire/fl ammable material EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

Safety Information....5

Intended Use....10

Product Description....11

Control Panel....13

Use....14

Wi-Fi Use....17

Energy Saving Tips....21

Equipment....22

Care And Cleaning....24

Trouble Shooting....27

Installation....31

Technical Data....34

Customer Service....36

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

EN

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings with the help of the manual.

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

EN

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.
▶Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶Handle the appliance always with at least two persons because it is heavy.

Installation

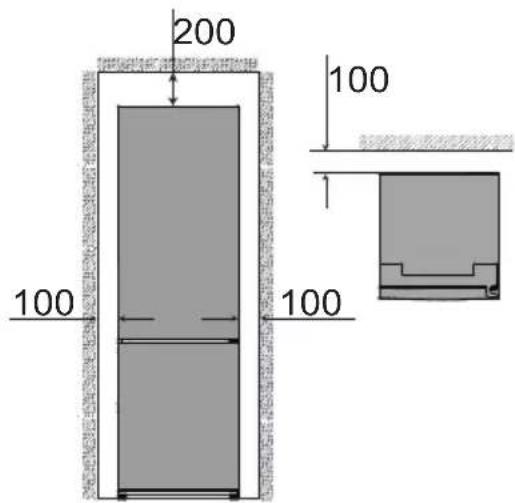

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).
▶Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed.
▶Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
▶Do not use multi-plug adapters and extension cables.
▶Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.
▶Do not damage the refrigerant circuit.
▶Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING!

Daily use

This appliance can be used by children aged from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instructions concerning the use of the appliance in a safe way and understand the hazards involved.
▶Children shall not play with the appliance.
▶Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.
▶Keep children under 3 years old away from the appliance unless they are under supervision all the time.
▶Cleaning and user maintenance shall not be made by children without supervision.
▶The appliance must be positioned so that the plug is accessible.
▶If cool gas or other infl ammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.
▶Notice that the appliance is set for operation at a specific ambient range between 10°C and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator/freezer, to avoid personal injury caused by falling or electric shock caused by contact with water.
▶Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple.
▶Open and close the door only with handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these ares to avoid pinching your fingers. Open or close the refrigerator/freezer doors only when there are no children standing within the range of door movement.
▶Never store bottled beer or beverages, liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING!

▶Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.

▶To avoid contamination of food, please respect the following instructions:

▶- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

▶- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

▶— One-, two- and three-star compartments are not suitable for the freezing of fresh food.

▶- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

▶Check the condition of food if a warming in the freezer has taken place.

▶Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst.

▶Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!

▶Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.

▶Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.

▶Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Maintenance/cleaning

▶Make sure children are supervised if they carry out cleaning and maintenance.

▶Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

▶Hold the plug, not the cable, when unplugging the appliance.

▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water.

WARNING!

▶Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
▶Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
▶If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
▶If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break.
▶If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.
In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.
The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.
▶For refrigerators with ice-water function, please pay attention to the following warning:
- For appliances not intended to be connected to the water supply: fill with portable water only.
▶- For appliances intended to be connected to the water supply: connect to potable water supply only.
▶- If you want to clean the water system, please refer to the User Manual. If you have any questions, please contact the after-sales service.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

EN

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from model. (CCQP4T620C*/CCQP4T620D*)

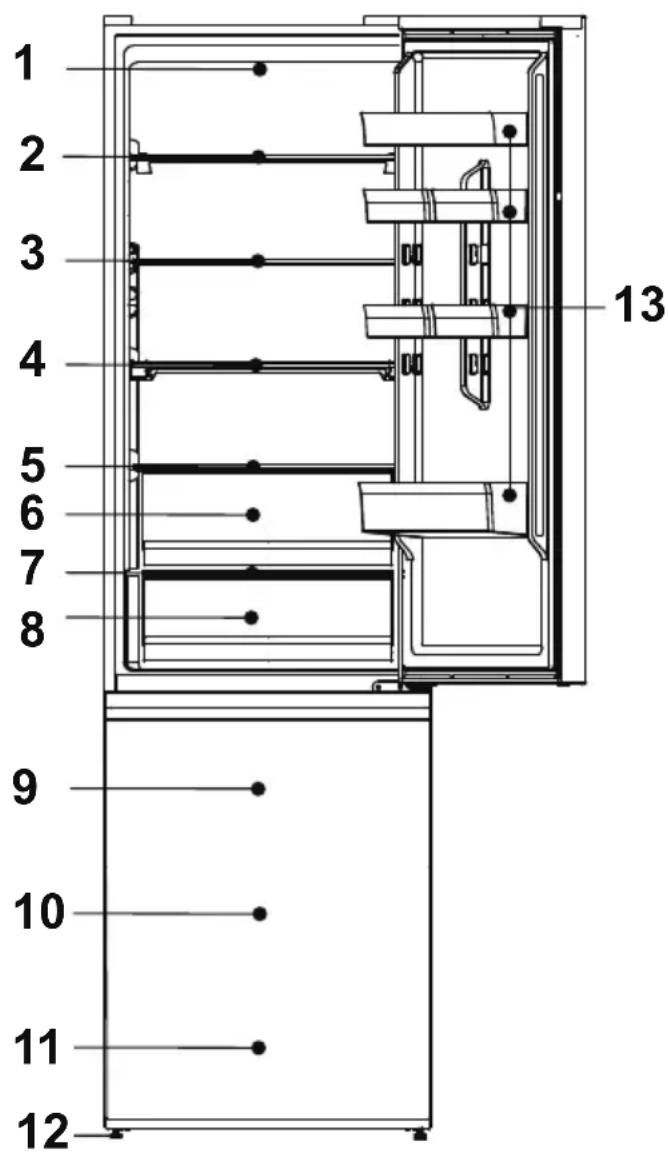

1 2 3 4 5 6 7 8 9 10 11 12 13

1-Refrigerator LED lamp
2-Glass shelf
3-Glass shelf
4-Glass shelf
5-Glass shelf
6-Fridge storage drawer (only for CCQP4T620*)
7-Drawer cover

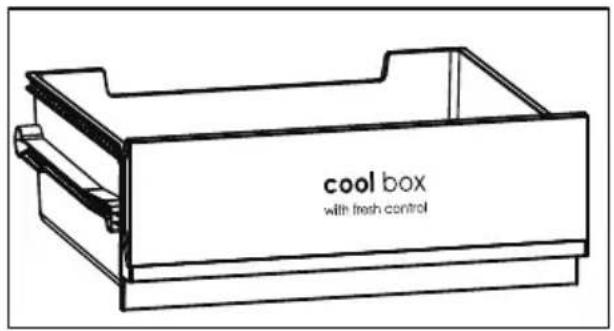

8-Fridge storage drawer
9-Upper freezer storage drawer
10-Middle freezer storage drawer
11-Lower freezer storage drawer
12-Adjustable feet
13-Door balcony

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from model. (CCQP4T618C*)

EN

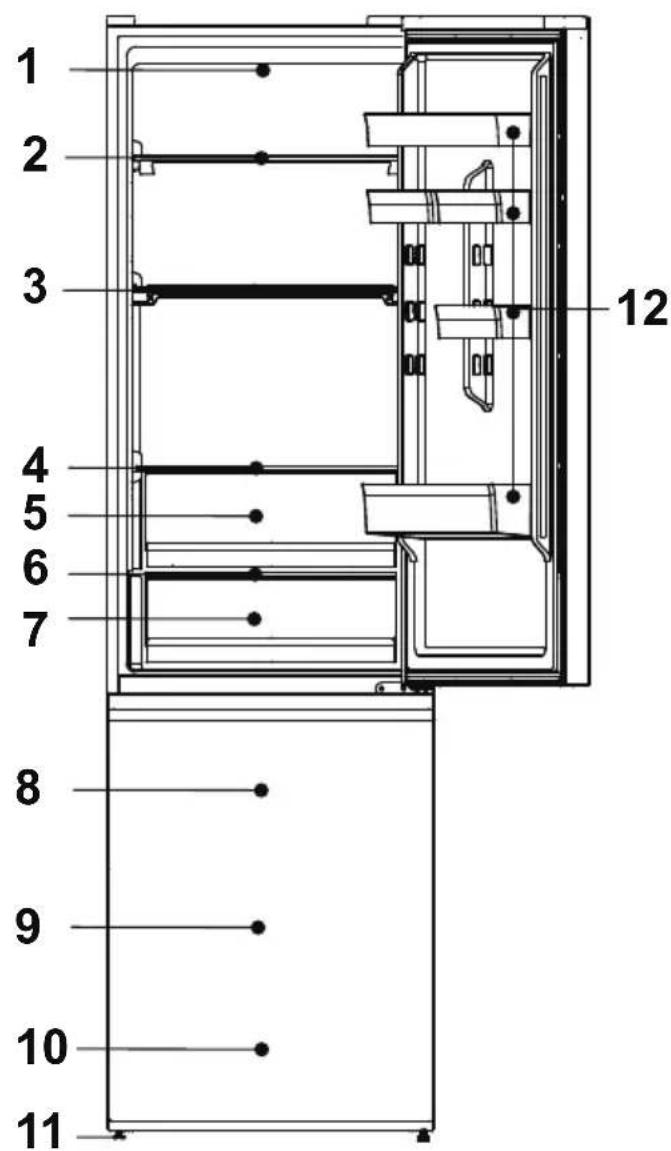

1 2 3 4 5 6 7 8 9 10 11 12

1-Refrigerator LED lamp
2-Glass shelf
3-Glass shelf
4-Glass shelf
5-Fridge storage drawer
6-Drawer cover
7-Fridge storage drawer
8-Upper freezer storage drawer
9-Middle freezer storage drawer
10-Lower freezer storage drawer
11-Adjustable feet
12-Door balcony

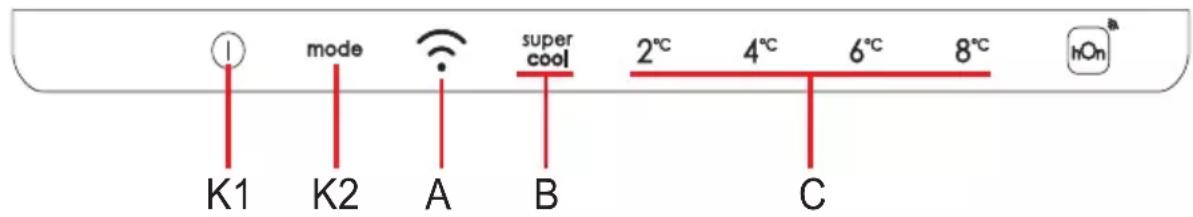

Control panel

K1 mode A super cool 2°C 4°C 6°C 8°C K2 B C hOn

EN

IconsIcons

A Wi-Fi Indication A Wi-Fi Indication
B Super Cool function DisplayB Super Cool function Display
C Fridge Compartment C Fridge Compartment

KeysKeys

K1 Power On/Off K1 Power On/Off
K2 Super Cool / Fridge Temperature selection K2 Super Cool / Fridge Temp

Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environment friendly way.
▶ Clean the inside and outside of the appliance as well as the interior and accessories with water and a mild detergent, and dry it well with soft cloth.
▶ After the appliance has been levelled and cleaned, please wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food. The function Super Freeze helps to cool down the freezer compartment quickly.

Sensor keys

The buttons on the control panel are sensor keys, which already respond when touched with the finger.

Switch on /of the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator "C" (Temperature display) illuminates. The fridge temperature and freezer temperature are automatically set to 5°C and -20°C respectively.

NOTICE

The appliance is preset to the recommended temperature of 4°C. These are the recommended settings. If desired, you can change these temperatures manually.

EN

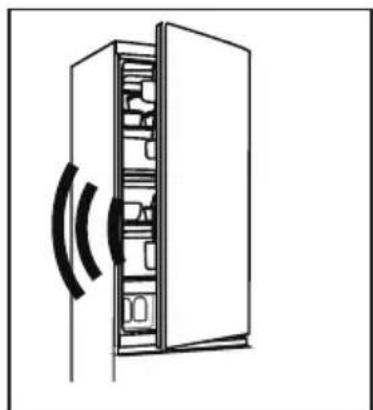

Door opening alarm Door opening alarm

When the refrigerator door is open for more than 3 minutes, the door opening alarm will sound

The alarm can be silenced by closing the door. If the door is open for more than 7 minutes, the light inside the refrigerator and control panel illumination will automatically switch off.

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Adjust the temperature Adjust the temperature

The indoor temperatures are influenced by the following factors:

• Ambient temperature
• Frequency of door opening
• Amount of stored food
• Installation of the appliance

Adjust the temperature of Fridge/Freezer compartment

1. Press the key "K2" (Super Cool / Fridge Temperature Selection) to select the Fridge Temperature;
2. Indicator "B"(Super Cool function display) and "C"(Fridge Compartment) will flashing alternately as below:

$$ " \text { Super Cool }" \rightarrow 2 ^ {\circ} \mathrm{C} \rightarrow 4 ^ {\circ} \mathrm{C} \rightarrow 6 ^ {\circ} \mathrm{C} \rightarrow 8 ^ {\circ} \mathrm{C} \rightarrow " \text { Super Cool }" $$

1. After about 5s, temperature icon "C" (Temperature display) will be bright permanently and the setting is confirmed.

NOTICE

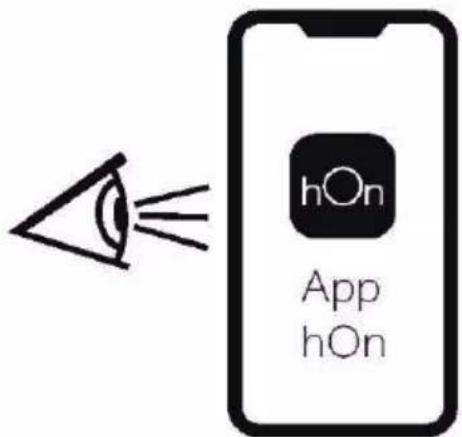

From the App it is possible to customize the temperature for both fridge and freezer. The temperature can be set with 1^ C sensitivity.

The fridge compartment can be setting from 2^ C\~ 8^ C;

When you setting compartment temperature by APP, the Control panel is extinguish(except Wi-Fi Wi-Fi Indication).

Super-Cool function

1. Press the key "K2" (Super Cool / Fridge Temperature Selection) to select the Super Cool function;
2. Indicator "B"(Super Cool function Display) and "C"(Fridge Compartment) will flashing alternately as below;
3. Press the Key "K2" Until the "B" is flashing, After about 5s, icon "B" will be bright permanently and the setting is confirmed

$$ " \text { Super Cool }" \rightarrow 2 ^ {\circ} \mathbf {C} \rightarrow 4 ^ {\circ} \mathbf {C} \rightarrow 6 ^ {\circ} \mathbf {C} \rightarrow 8 ^ {\circ} \mathbf {C} \rightarrow " \text { Super Cool }" $$

NOTICE

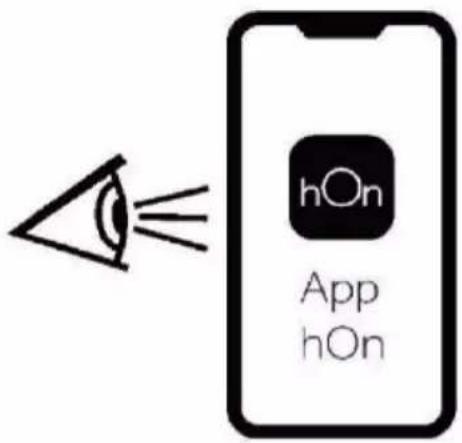

1. From the App it is possible to Setting the "Super Cool Function" either.
2. The appliance quits "Super Cool Function" after entering "Super Cool Function" for 30 hours or turn it off from the control panel or App.

If you need to freeze a large amount of food at once, it is recommended to set the Super Cool function on ahead for 11h before the usage of fridge room.

Super-Frz function

From the App it is possible to Setting the "Super Freeze Function".

NOTICE

The appliance quits "Super Freeze Function" after entering "Super Freeze Function" for 50 hours or turn it off from the App.

Holiday function Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. When the function is on, the fridge is turned, whereas the freezer will keep working normally. The function sets the fridge temperature permanently about 17^ C.

EN

This allows to keep the door of the empty refrigerator closed without causing an odour or mold-during a long absence (e.g. during holiday). The freezer compartment is free for your setting.

From the App it is possible to turning it on/off the "Holiday function";

NOTICE

During the Holiday function, no food should be stored in the fridge

Eco Mode function Eco Mode function

The Eco Mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage. if you do not have any special requirements, we recommend that you use Eco Mode function.

From the App it is possible to turning it on/off the "Eco Mode function";

NOTICE

1. The fridge temperature is 5^ , the freeze temperature is -18^ in this mode.
2. The control panel will not change if you setting this mode by APP.

Step 1 Download the hOn-App from the stores.

Step 2 Create your account in the hOn-App or log in if you already have an account.

Step 3 Follow pairing instructions in the hOn-App.

Welcome! Sign in to enter for your home YOU-IR BASIKU Read, www.cs.com/ Click about to discount your pre-words NO GAME

hOn App hOn

Wi-Fi function Wi-Fi function

Follow in App instructions to configure the Wi-Fi.

NOTICE

1. This product is not intended for commercial use.
2. The Max RF Output Power:2.4 GHz Wi-Fi:16dBm;
3. Frequency band of operation:2400-2483.5 MHz.
   Bluetooth LE:5dBm; Bluetooth(BR/EDR):10dBm.

Tips on storing fresh food Tips on storing fresh food

Storing into the refrigerator compartment Storing into the refrigerator compartment

Keep your fridge temperature below 5°C.

Hot food must be cooled to room temperature before storing in the appliance.

Foods stored in the refrigerator should be washed and dried before storing.

Food to be stored should be properly sealed to avoid odor or taste alterations.

Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogeneous cooling.

Foods eaten daily should be stored at the front of the shelf.

Leave a gap between foods and the inner walls, allowing air flowing. In any way, don't store foods against the rear wall: foods could freeze against the rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.

Frozen food can be gently defrizzed in the refrigerator compartment. This saves energy.

The ageing process of fruit and vegetables such as courgettis, melons, papaya, bananas, pineapples, etc. can be accelerated in the refrigerator. Therefore, it is not recommended to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See Care And Cleaning.

Different foods should be placed in different areas according to their properties.

Technical line drawing of an open refrigerator with doors, shelves, and control panels (no text or labels)

EN

Storage into the freezer compartment

• Keep the freezer temperature at- 18^ C .
• 24 hours before freezing, switch on the Super-Freeze function. For little quantities of food, 4-6 hours are sufficient.
• Hot food must be cooled to room temperature before storing in the freezer compartment.
• Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg
• It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic.
• In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.

WARNING!

Acid, alkali and salt etc. could erode the internal surface of the freezer.

• Do not place the food with these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately.
• Do not exceed the food storage time recommended by the manufacturers. Only take the required amount of food out of the freezer.
• Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may be less edible.
• Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate.
• Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables: 6-12 months).
• While freezing fresh food, avoid bringing them in contact with already frozen food. Risk of thawing!

When storing commercially frozen foods, please follow these guidelines:

• Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines!
• Try to keep the length of time between purchase and storage as short as possible to preserve food quality.
  • Buy frozen food, which have been stored at a temperature of -18^ or below.
• Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and refrozen at some point-temperature rising affects the quality of food.

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or near the heat sources (eg. stoves, heaters).
▶Avoid unnecessarily low temperature in the appliance. The energy consumption increases with the decreasing of the setting temperature in the appliance.
▶Functions like SUPER FREEZE consume more energy.
▶Allow warm food to cool down before placing it in the appliance.
▶Open the appliance door as little and briefly as possible.
▶Do not overfill the appliance to avoid obstructing the air flow.
▶Avoid air within the food packaging.
▶Keep door seals clean so that the door always closes correctly.
The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance in a factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

NOTICE: Differences depending on model

Due to different models, your product may not have all of the following features. Please refer to chapter Product Description.

EN

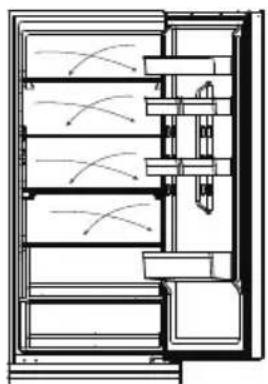

Multi-air-flowMulti-air-flow

The refrigerator is equipped with a multi-air-flow system with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresh for longer time.

Architectural cross-section diagram of a refrigerator with internal compartments and ventilation ducts (no text or labels)

Diagram showing two hands holding a tablet device with arrows labeled ① and ② indicating movement or change.

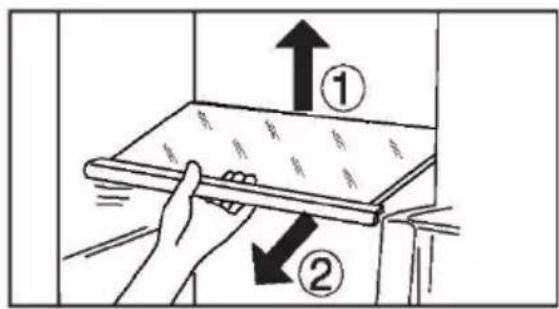

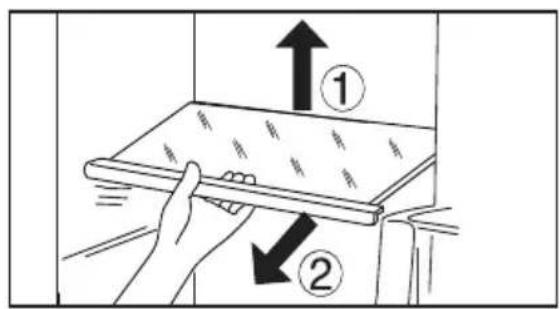

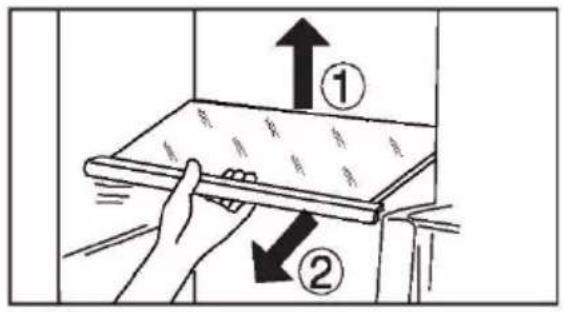

Adjustable shelves Adjustable shelves

The height of the shelves can be adjusted to fit your storage needs.

1. To relocate a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2).

2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

NOTICE

Ensure that all ends of a shelf are level.

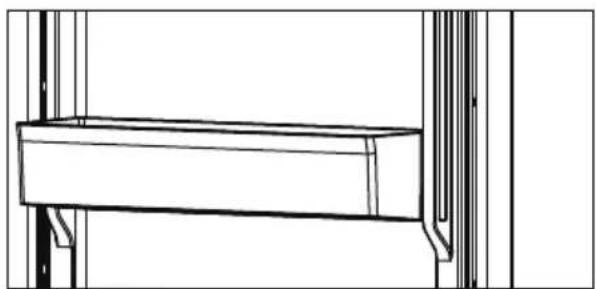

Removable door balcony Removable door balcony

The door balcony can be removed for cleaning:

Place hands on each side of the balcony, lift it upwards (1) and pull it out (2). In order to insert the door balcony, the above steps are carried out in a reverse order.

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Fridge storage drawer Fridge storage drawer

For using and setting the Fridge storage compartment, please check section USE.

cool box with fresh control

EN

Freezer drawer Freezer drawer

The freezer drawer can be extended straightly and completely. They are mounted on easy roll telescopic rail. So that you can store and remove the freezing good comfortably. Because of the automatic door closing mechanism, the handing is easy and you can save energy.

① ② ②

WARNING!

Do not overload the drawers: Maximum load of each drawer: 35kg!

The Light The Light

The LED interior light comes on when the door is open. The performance of the lights is not affected by any other appliances settings.

WARNING!

Disconnect the appliance from the power supply before cleaning.

GeGeneralneral

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours.

EN

WARNING!

• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
  • Do not spray or flush the appliance during cleaning.
  • Do not use water spray or steam to clean the appliance.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may be frozen onto the surface.
  • In case of heating, check the condition of frozen foods.
  • Always keep the door gasket clean.
• Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
  • Rinse and dry with soft cloth.
• Clean the accessories only with warm water and neutral detergent.
  • Do not clean any of the parts of the appliance in a dishwasher.
• Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Defrosting Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lampsReplacing the LED-lamps

The lamp adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See Customer Service.

Parameters of the lamp: Parameters of the lamp:

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorized service agent.

Model	CCQP4T618C*CCQP4T620C*CCQP4T620D*
Part	LED lamp
Voltage in V	12V
Max Power in W	1.5W
LED Spec	White-2835
LED effi ciency class	G
Usage temperature	-40~80°C

Non-use for a longer period Non-use for a longer period

• If the appliance is not used for an extended period of time:
• Take out the food.
• Unplug the power cord.
• Clean the appliance as described above.
- Keep the door and freezer drawers/door open to prevent the creation of bad odours inside.

NOTICE: Switch off

Turn the appliance off only if strictly necessary. Empty the appliance before switching off. To switch off the appliance, pull the power cord off the power socket.

Moving the appliance Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

Do not lift the appliance by its handles.

Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

▶Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Troubleshooting table Troubleshooting table

Problem	Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the main socket.	Connect the main plug.
	The appliance is in the defrosting cycle. This is normal for an automatic defrosting.
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.	In this case, it is normal for the appliance to run longer.
	The appliance has been off power for a period of time.	Normally, it takes 8 to 12 hours for the appliance to cool down completely.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer and ensure the appliance is located on a levelled ground and there is no food or container holding the door.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	The temperature setting for the freezer compartment is too low.	Set the temperature higher until a satisfactory fridge temperature is obtained. It takes 24 hours for the fridge temperature to become stable.
	The door/drawer gasket is dirty, worn, cracked or mismatched.	Clean the door/drawer gasket or replace them through the customer service.
	The required air circulation is not guaranteed. Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or with smell.	The inside of the refrigerator needs cleaning. Clean the inside of the refrigerator.
	Food with strong odour is stored in the refrigerator.	Wrap the food thoroughly.
It is not cold enough inside the appliance.	The temperature is set too high. Reset the temperature
	Too warm food have been stored. Always cool down food before storing them.
	Too much food has been stored at one time. Always store small quantities of food.
	The foods are too close to each other.	Leave a gap between several foods allowing air fl owing.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
It is too cold inside the appliance.	The temperature is set too low. Reset the temperature.
	The Super Freeze function is activated or is running too long.	Switch off the Super Freeze function.
Moisture forming on the inside of the refrigerator compartment.	The climate is too warm and too damp. Increase the temperature.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	Food containers or liquids are left open.	Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.	This is normal in damp climate and will change when the humidity decreases.
	The door/drawer is not closed tightly. Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	The foods were not adequately packaged. Always	pack the foods well.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	The door/drawer gasket is dirty, worn, cracked or mismatched.	Clean the door/drawer gasket or replace them by new ones.
	Something on the inside prevents the door/ drawer to close property.	Reposition the shelves, door racks, or internal containers to allow the door/ drawer to close.
The appliance makes abnormal sounds.	The appliance is not located on levelled ground.	Adjust the feet to level the appliance.
	The appliance touches some object around it. Remove objects around the appliance.
A slight sound is to be heard similar to that of fl owing water.	This is normal. /
You will hear an alarm beep.	The fridge storage compartment door is open.	Close the door or silence the alarm manually.
You will near a faint hum.	The anti-condensation system is working.	This prevents condensation and is normal.
The interior lighting or cooling system does not work.	Main plug is not connected in the main socket Connect the main plug.
	The power supply is not intact.	Check the electrical supply to the room. Call the local electricity company!
	The LED-lamp is out of order.	Please call the service for changing the lamp.
The sides of the cabinet and door strip get warm.	This is normal. /

Power interruption Power interruption

• In the event of a power cut, food should remain safely cold for about 13 hours. Follow these tips during a prolonged power interruption, especially in summer.
- Open the door/drawer as few times as possible.
- Do not put additional food into the appliance during a power interruption.
- If prior notice of a power interruption is given and the interruption duration is longer than 13 hours, make some ice cubes and put them in a container on the top shelf of the refrigerator compartment.
• An inspection of the foods is required immediately after the interruption.
- As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

NOTICE

After the recovery of power, the appliance continues with the settings that were set before the power failure.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and other ways to contact the technical assistance.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmental friendly way.
▶Take the appliance out of the packaging.
▶Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Door reversibility

Before the appliance is permanently installed, check the correct position of the door hinge. If necessary, see section the DOOR REVERSIBILITY.

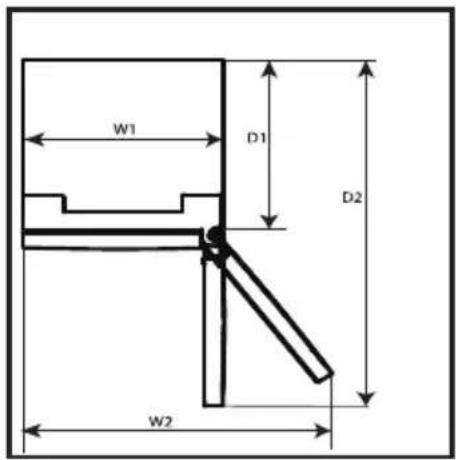

Space requirement

Required space when door is opened:

Appliance width in mm		Appliance depth in mm
W1 W2	D1 D2
595 918	600	1220

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

Door Reversibility Door Reversibility

Before connecting the appliance to the power supply, you should check whether the door swing must be changed from right (as delivered) to left, if this is required by the installation location and the usability.

W1 D1 D2 W2

200 100 100 100

EN

WARNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
▶Before any operation, first unplug the appliance from the mains
- Do not tilt the appliance more than 45°C to prevent damage of the cooling system.

Assembly steps Assembly steps

1. Provide necessary tool.
2. Unplug the appliance.
3. Remove the upper hinge cover (1) and unscrew the upper hinge (three screws) on right side (2).
4. Unplug the connection cable
5. Lift the loose refrigerator door carefully off the lower hinge.

6. Remove the lower hinge of the upper door.

7. Remove the small cover of the front panel from left to right side.

8. Turn the door upside down and unscrew the cover (1). Take out the new cover (2) from the necessary bag and screw them to opposite side.

9. Change the positions of the blanking plugs and the screw on the side.

10. Screw the lower hinge to the left side of the appliance.

11. Lift the upper door carefully on the lower hinge. And be sure the pivot fits into the hinge barrel of the lower door.

12. Take out the new upper hinge and hinge cover from the accessory bag. Put the connection cable through the upper hinge and fix the upper hinge with three screws on left side of appliance. And the put the hinge cover over the hinge.

13. Plug in the connection cable.

14. Replace front panel and fix it with five screws.

After the change of the door, check if the door seals are located properly on the housing and all screws are tightened well.

Ambient temperatures Ambient temperatures

• Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ;
• Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ ;
• Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C;
• Tropical: "this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 43^ .

Product fiche according to regulation EU No.2019/2016

Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located

EN

Trade mark Candy	Candy Candy
Model identifier	CCQP4T618C*	CCQP4T620C*	CCQP4T620D*
Category of the model	Refrigerator -freezer	Refrigerator -freezer	Refrigerator -freezer
Energy efficiency class	C C D
Annual energy consumption(KWh/year)	165 171 213
Volume fridge(L)	235 289 289
Volume Freezing(L)	117 117 117
star rating	4 4	4
Frost-free system	Yes	Yes	Yes
Power cut safe(h)/Temperature rise time(h)	13	13	13
Freezing capacity(kg/24h)	10	10	10
Climate classThis appliance is intended to be used at an ambient temperature between 10°C and 43°C	SN/N/ST/T	SN/N/ST/T	SN/N/ST/T
Noise emission class and airborne acoustical noise emissions(dB(A) re 1 pW)	35	35	35

Additional technical data

Model identifi er	CCQP4T618C* CCQP4T620C* CCQP4T620D*
Total volume(L)	352 406 406
Voltage/ Frequency	220~240V/50Hz	220~240V/50Hz	220~240V/50Hz
imput current(A)	1.4A 1.4A 1	4A
Main fuse(A)	15A 15A 16A
Coolant/amount	R600a/50g R600a/50g R600a/53g
Dimensions (W/D/H in mm)	595*667*1850	595*667*2050	595*667*2050

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonized standards, which provide for CE marking.

We recommend our Candy Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

EN

▶your local dealer or
▶our European Call Service-Center (see listed phone numbers below) or
▶the Service & Support area at www.haier.com where you can activate the service
▶claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES) 902 509 123
Haier Germany (DE) 0180 5 39 39	99	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT) 0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

K1 made A super cool 2°C 4°C 6°C 8°C hOn K2 B C

CS

Ikony

A Indikace Wi-Fi

Diagram of a refrigerator with doors open and hanging sound waves (no text or symbols)

Nastavení teploty

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign in the order to your home email-in Customer Post service: CaiMe! CMS domains: [e-mail]/products © BYV SINGO

hOn App hOn

Funkce Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Architectural floor plan showing room layouts and doorways (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

Nastavitelné police

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

cool box with fresh control

Zásuvka mrazničky

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Odmrazování

Technical diagram showing six steps of a mechanical assembly or repair procedure, labeled 1 to 6 with numbered instructions and directional arrows.

Technical diagram showing mechanical assembly steps with numbered annotations (13 and 14) and directional arrows indicating motion or movement.

Westgate House, Westgate, Ealing

London, W5 1YY

K1 made A super cool 2°C 4°C 6°C 8°C C hOn

Symbole

A Wi-Fi-Anzeige

Diagram of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

Hello! Sign at the order to your home. Add to YOU Add to your Add to your product YOU USED

hOn App hOn

WLAN-Funktion

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Technical line drawing of a refrigerator interior with internal compartments and directional arrows indicating flow (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physical or engineering concept.

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

cool box with fresh control

Gefrierschublade

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Abtauen

Technical diagram showing six steps of a mechanical assembly or repair procedure, labeled 1 to 6 with numbered annotations.

Technical diagram showing mechanical assembly steps with numbered annotations (13 and 14) and directional arrows indicating motion or movement.

K1 made A super cool 2°C 4°C 6°C 8°C C hOn

Εικονίδια

Diagram of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign your order to your home OPEN OK/SUP Hot switch C: Help! Click down to download your products TRY CARD

hOn App hOn

Λειτουργία Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Architectural floor plan of a refrigerator showing internal compartments and doorways (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing to a tray with contents, likely illustrating a physical or engineering concept.

Ρυθμιζόμενα ράφια

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

cool box with fresh control

EL

Συρτάρι καταψύκτη

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Απόψυξη

Technical diagram showing six steps of a mechanical assembly or repair procedure, labeled 1 to 6 with numbered instructions and directional arrows.

Technical diagram showing mechanical assembly with numbered annotations (13 and 14) and directional arrows indicating motion or movement.

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

K1 made A super cool 2°C 4°C 6°C 8°C C hOn

Iconos

A Indicación Wi-Fi

Diagram of a refrigerator with a door open and hanging sound waves (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

Hello! Sign in the order to your home. Add to Add User Post welcome: Add? Click down to include your products BIV SANSO

hOn App hOn

ES

Función Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Technical line drawing of a refrigerator interior with horizontal shelves and doorways (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned surfaces, likely illustrating a physical or engineering concept.

Estantes ajustables

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

cool box with fresh control

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Descongelación

K1 made A super cool 2°C 4°C 6°C 8°C hOn K2 B C

lcônes

Diagram of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

EXPLORE IT ON AppGallery

Welcome! Sign your order to your home GOOUP DOORUP Not sure! Center! Click about to choose your phone. REV QUND

hOn App hOn

Fonction Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Technical line drawing of a refrigerator interior with internal compartments and directional arrows indicating flow (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned material, likely illustrating a physical or engineering concept.

Clayettes réglables

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

cool box with flash control

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Dégivrage

Technical diagram showing six steps of a mechanical assembly or repair procedure, labeled 1 to 6 with numbered annotations.

FR

Technical diagram showing mechanical assembly with numbered annotations (13 and 14) and directional arrows indicating motion or movement.

Westgate House, Westgate, Ealing

Londres, W5 1YY

K1 made A B super cool 2°C 4°C 6°C 8°C C hOn

Ikonok

A Wi-Fijelzőfény

Diagram of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign at the order to your home HON SUPPORT Post received order! CHN phone to access our products. TRY USED

hOn App hOn

Wi-Fi funkció

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Technical line drawing of a refrigerator interior with horizontal shelves and doorways (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a device with textured surfaces, likely illustrating a mechanical or electrical process.

Állítható polcok

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Hűtő tárolófiók

cool box with fresh control

Fagyasztó fiók

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Leolvasztás

Technical diagram showing mechanical assembly steps with numbered annotations (13 and 14) and directional arrows indicating movement.

Westgate House, Westgate, Ealing

London, W5 1YY

K1 made A super cool 2°C 4°C 6°C 8°C hOn K2 B C

Icone

A Indicazione Wi-Fi

Diagram of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign in its order to your home. Add Remove Put new card? Add down to discount or product Add logo

hOn App hOn

IT

Funzione Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Technical line drawing of an open refrigerator interior with internal compartments and ventilation ducts (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned material, likely illustrating a physical or engineering concept.

Ripiani regolabili

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Cassetto frigo

cool box with fresh control

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Sbrinamento

Technical diagram showing mechanical assembly with numbered annotations (13 and 14) and directional arrows indicating motion or force.

Westgate House, Westgate, Ealing

London, W5 1YY

K1 made A super cool 2°C 4°C 6°C 8°C hOn K2 B C

Pictogrammen

A Wifi-indicatie

Diagram of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

Hello! Welcome! Sign or its order to your home. Get Up Cancel Put new Card for Click down to discount or your products. MY SUND

hOn App hOn

Wififunctie

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Technical line drawing of a refrigerator interior with internal compartments and directional arrows indicating flow (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physics or engineering concept.

Verstelbare planken

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Koelkastlade

cool box with fresh control

Vriezerlade

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Ontdooien

Technical diagram showing mechanical assembly steps with numbered annotations (13 and 14) and directional arrows indicating movement.

NL

Westgate House, Westgate, Ealing

K1 made A super cool 2°C 4°C 6°C 8°C hOn K2 B C

Ikony

A Wskazanie Wi-Fi

Diagram of a refrigerator with a door and hanging shelves, showing sound waves (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign at the start to your home YOU YOU Not sure! Center! CNS phone to be used to provide NEW GAMES

hOn App hOn

Funkcja Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Architectural floor plan of a refrigerator showing internal compartments and doorways (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing to a device with textured surfaces, likely illustrating a mechanical or electrical process.

Regulowane półki

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

PL

cool box with flash control

Szuflada zamrażarki

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Rozmrażanie

Technical diagram showing six steps of a mechanical assembly or repair procedure, labeled 1 to 6 with numbered annotations.

Technical diagram showing mechanical assembly with numbered annotations (13 and 14) and directional arrows indicating motion or movement.

Westgate House, Westgate, Ealing

Londyn, W5 1YY

K1 made A B super cool 2°C 4°C 6°C 8°C C hOn

Ícones

A Indicação Wi-Fi

Diagram of a refrigerator with doors open and hanging sound waves (no text or symbols)

Ajustar a temperatura

Download on the App Store

EXPLORE IT ON AppGallery

HON Welcome! Sign to enter in your home HON Welcome Post welcome Cider CHS (please to choose up product) HYDONG

hOn App hOn

Função Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Architectural floor plan showing room layouts and directional arrows (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing to a device with a tray, indicating movement or process.

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Gaveta de armazenamento do frigorífico

cool box with tooth control

Gaveta do congelador

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Descongelamento

Substituir as lâmpadas LED

Westgate House, Westgate, Ealing

London, W5 1YY

K1 made A super cool 2°C 4°C 6°C 8°C hOn K2 B C

Pictograme

Diagram of a refrigerator with doors open and hanging sound waves (no text or symbols)

Reglarea temperaturii

Download on the App Store

EXPLORE IT ON AppGallery

HON Welcome! Sign to enter in your home HON Welcome Post welcome Card? Click down to Recover up profile MY DONG

hOn App hOn

Funcția Wi-Fi

Line drawing of an open refrigerator with doors, shelves, and doorways (no text or symbols)

Technical line drawing of an open refrigerator interior with internal compartments and directional arrows indicating flow (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a tray with textured surfaces, likely illustrating a physical or engineering concept.

Rafturi ajustabile

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

RO

cool box with fresh control

Sertar congelator

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

RO

Decongelarea

Westgate House, Westgate, Ealing

Londra, W5 1YY

Barcode image containing encoded digital information

0060535628
