USER MANUAL HT-RC560 ONKYO

Complies with IDA Standards DA106032

23764/SDPPI/2012 2371

TRA REGISTEREDNo ER0086260/12 DEALERNo 527090

Source Connection 21

Remote Mode Setup 22

Network Connection....22

Terminer l'installation initiale 22

Piles (AA/R6)

Remarque

Technical diagram of a mechanical assembly with numbered components for identification

Two diagrams showing electrical connections with bulbs and wires, no text or symbols present

Two identical diagrams showing a device connected to a speaker and a battery, with no text or symbols present.

Connexions

Internal panel diagram of a wireless device with labeled components including ATMs, RFCs, and ONKYO interface

Initial Setup Welcome to Initial setup. Have you connected all the speakers and devices? Before starting, please connect speakers and sources. Now, would you like to start Initial setup? 1st Step : Audyssey MultiEQ: Auto Setup 2nd Step : Source Connection 3rd Step : Remote Mode Setup 4th Step : Network Connection Yes No HOME Exit

TV ④ ⑤ ⑥ ③ ① ②

-Speakers Type (Front) (→ page 53)
– Powered Zone 2 (→ page 53)
-Surround Back/Front High (→ page 54)
- Subwoofer (→ page 53)

Auto Setup AUCYSSEY Ambient noise is too high. Retry Cancel

Message d'erreur

Les options sont :

dina My favorite song 1 0:11/3:00 Artist name My favorite album

Remarque

■Phase Matching Bass

▶ Off ▶ On

②—Speaker Configuration

③ Subwoofer ④ Yes No

▶ COAXIAL1, COAXIAL2, OPTICAL

Speakers Type (Front)

Speaker Configuration

■Left, Front High Left, Center, Front High Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left, Subwoofer

■ Left, Front High Left, Center ^1 , Front High Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left

■TrueHD Loudness Management

▶ Off ▶ On

Noise Reduction ^2'4'5

Off

Low

Mid

High

5.1. Listening Mode Preset Analog/PCM Mono/Multiplex Source 2ch Source Dolby D/Dolby O Plus/TrueHD DTS/DTS-EB/DTS-HD Other Multich Source Last Valid Last Valid Last Valid Last Valid Default listening mode for analog and PCM sources.

6. Miscellaneous (Divers)

Volume Setup

■Maximum Volume

QfB0 à 79

■AM/FM Frequency Step

10kHz/200kHz 9kHz/50kHz :

Diagram of a washing machine control panel with labeled buttons and gauges

(.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP ou .3G2)

- Bit de quantification : 8 bits, 16 bits, 24 bits

■Ogg Vorbis (.ogg ou .OGG)

■Apple Lossless (.m4a/.mp4/.M4A/.MP4)

■Dolby TrueHD (.vr/.mlp/.VR/.MLP)

Mobile High-Definition Link

1 Vp-p/75 Ω (Composite)

PSK (AES), WPA/WPA2-PSK (TKIP)

1 - 11 ch (norme Wi-Fi®)

+ EDR (Enhanced Data Rate)

FHSS (Freq Hopping Spread Spectrum)

Fr-90

Annexe

Profils Bluetooth compatibles

A2DP 1.2 (Advanced Audio Distribution

Profile)

AVRCP 1.3 (Audio Video Remote

Control Profile)

Codecs pris en charge SBC

Dimensions (L × H × P)

435 mm × 173,5 mm × 328 mm

Poids 9,8 kg

HDMI

Entrée IN 1, IN 2, IN 3, IN 4, IN 5, IN 6

Sortie OUT MAIN, OUT SUB

3D, Audio Return Channel, DeepColor,

x.v.Color, LipSync, CEC (RIHD), 4K

(conversion ascendante et Passthrough)

■Entrées vidéo

Composante

IN

Composite

BD/DVD, CBL/SAT, GAME, PC, AUX

Annexe

Sorties vidéo

Composante OUT

Composite MONITOR OUT

Entrées audio

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

For Dealer, Service, Order and all other Business Inquiries:

Tel: [phone] Fax: [phone]

http://www.us.onkyo.com/

For Product Support Team Only:

1-800-229-1687

http://www.us.onkyo.com/

Europe

Onkyo Europe Electronics GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: [phone] Fax: [phone]

http://www.eu.onkyo.com/

Onkyo Europe Electronics GmbH (UK Branch)

Unit 19, Building 6, Croxley Green Business Park, Hatters Lane, Watford, WD18 8YH, UK

Tel: [phone] Fax: [phone]

China

Onkyo China Limited (Hong Kong)

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

Tel: [phone] Fax: [phone]

http://www.hk.onkyo.com/

Onkyo China PRC (Mainland)

1301, 555 Tower, No.555 West NanJing Road, Jing'an District, Shanghai, China 200041,

Tel: [phone] Fax: [phone]

http://www.cn.onkyo.com/

Asia, Oceania, Middle East, Africa

Please contact an Onkyo distributor referring to Onkyo SUPPORT site.

http://www.intl.onkyo.com/support/

The above-mentioned information is subject to change without prior notice.

Visit the Onkyo web site for the latest update.

ONKYO

Using Internet Radio

Using Internet Radio

Common Procedures in Internet Radio Menu

Note

• Available services may vary depending on the region.
- Certain network service or contents available through this device may not be accessible in case the service provider terminates its service.

1 Press NET.

A list of the network services appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

2 Select the desired service and press ENTER. The top page of the selected service appears.

Using Multiple Accounts

The AV receiver supports multiple user accounts, which means you can freely switch between several logins. After registering user accounts, login is performed from the "Users" screen.

1 Press MENU while the Users screen is displayed.

The following menu items appear:

Add new user:

Remove this user:

You can either store a new user account, or delete an existing one.

Tip

• Some of the services don't allow the use of multiple user accounts.
• You can store up to 10 user accounts.
• To switch between accounts you must first log out from the current account, and log in again on the "Users" screen.

Pandora® internet radio

-Getting Started (U.S. only)...... 2

Using Rhapsody (U.S. only)......3

Using the SiriusXM Internet Radio

(North American only)......4

Using Last.fm Internet Radio......5

Using Slacker Personal Radio......6

Using MP3tunes....7

En-1

Pandora® internet radio –Getting Started (U.S. only)

Pandora is a free, personalized Internet radio service that plays the music you know and helps you discover music you'll love.

1 Use ▲/▼ to select "I have a Pandora Account" or "I'm new to Pandora" and then press ENTER.

If you are new to Pandora select "I'm new to Pandora". You will see an activation code on your TV screen. Please write down this code. Go to an Internet connected computer and point your browser to www.pandora.com/onkyo Enter your activation code and then follow the instructions to create your Pandora account and your personalized Pandora Internet radio stations. You can create your stations by entering your favorite tracks and artists when prompted. After you have created your account and stations you can return to your Onkyo receiver and press enter to begin listening to your personalized Pandora Internet radio.

If you have an existing Pandora account, you can add your Pandora account to your Onkyo receiver by selecting "I have a Pandora Account" and logging in with your email and password.

Tip

- If you want to use multiple user accounts, see "Using Multiple Accounts" (→ page 1). Login can be made from the "Users" screen.

2 To play a station, use ▲/▼ to select the station from your station list, and then press ENTER. Playback starts and the playback screen appears.

Create a New Station:

Enter the name of a track, artist, or genre and Pandora will create a unique radio station for you based on the musical qualities of that track, artist, or genre.

■Menu Items

I like this track:

Give a track "thumbs-up" and Pandora will play more music like it.

I don't like this track:

Give a track "thumbs-down" and Pandora will ban that track from the current station.

Why is this track playing?:

Discover some of the musical attributes that Pandora uses to create your personal radio stations.

I'm tired of this track:

If you are tired of a track, you can put the track to sleep and Pandora will not play it for one month.

Create station from this artist:

Creates a radio station from this artist.

Delete this station:

This will permanently delete a station from your Pandora account. All of your thumbs feedback will be lost should you choose to re-create the station with the same track or artist.

Create station from this track:

Creates a radio station from this track.

Rename this station:

Lets you rename the current radio station.

Bookmark this artist:

Pandora will bookmark your favorite artist for your profile on www.pandora.com.

Bookmark this track:

Pandora will bookmark the current track and allow you to buy them all from Amazon or iTunes in one step!

Add to My Favorites:

Adds a station to My Favorites list.

PANDORA

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

Using Rhapsody (U.S. only)

1 Use ▲/▼ to select "Sign in to your account" and then press ENTER.

To use Rhapsody, you need an account. If you don't have one yet, you can create a new account at

www.rhapsody.com/onkyo

If you have an existing Rhapsody account, select "Sign in to your account" and press ENTER. Enter your user name (usually your email) and password in the next keyboard screen, or in Web Setup.

■ Using the keyboard screen

1. Use ▲/▼/◄/► and ENTER to enter your user name and password.
2. Select "OK"
3. Press ENTER. The "Confirm your entries" screen appears.
4. Press ENTER.

Tip

- If you want to use multiple user accounts, see "Using Multiple Accounts" (→ page 1). Login can be made from the "Users" screen.

2 Use ▲/▼ to select the menu, then press ENTER.

Search:

You can search for music by Artist, Album, or Track.

Music Guide:

You can play tracks from Genres, Top Artists, Top Albums, Top Tracks, New Releases, and Staff Picks.

Rhapsody Channels:

Listen to radio channels programmed by Rhapsody's top-notch editors.

Playlists:

Play your own personal playlists.

My Library:

Bookmark your favorite albums and tracks from the Rhapsody catalog using My Library.

Account Info:

Confirm your account information.

Sign Out:

Sign out from your Rhapsody account.

3 Use ▲/▼ to select a channel, and press ENTER or ▶ to start playback.

Playback starts and the playback screen appears.

You can control the tracks with the buttons on the remote control.

Enabled buttons: ▶, □, ■, ◀◀, ▶▶, □◀◀, ▶▶I, RANDOM, REPEAT

Note

- On Rhapsody Channels, some of the buttons don't work.

■Menu Items

Add track to My Library:

Bookmark currently-playing tracks.

Add album to My Library:

Bookmark currently-playing albums.

Add playlist to My Library:

Bookmark currently-playing playlists.

Add channel to My Channels:

Bookmark currently-playing Rhapsody radio channels.

Add to My Favorites:

Adds a track, channel or playlist to My Favorites list.

Tip

- You can remove bookmarked tracks, albums, and Rhapsody Channels from My Library.

En-3

Using the SiriusXM Internet Radio (North American only)

Your Onkyo AV receiver includes a free trial of SiriusXM Internet Radio. The “Account Info” screen shows how many days are left in your trial. After the trial period expires, if you want to continue listening to the service, you must subscribe. To subscribe go to www.siriusxm.com/internetradio with your computer.

When you subscribe, you will be provided with a username and password which has to be entered into the AV receiver.

To use SiriusXM Internet Radio, you must have your AV receiver connected to the Internet. Using the remote control, follow these steps:

1 Use ▲/▼ to select "Sign In", and then press ENTER.

If you have an existing SIRIUS account, you can sign in by selecting "Sign In". Enter your user name and password in the next keyboard screen, or in Web Setup. If you don't know your username or password, call Sirius XM at [phone] for assistance.

Tip

- If you want to use multiple user accounts, see "Using Multiple Accounts" (→ page 1). Login can be made from the "Users" screen.

■ Using the keyboard screen

1. Use ▲/▼/◄/► and ENTER to enter your user name and password.
2. Select "OK"
3. Press ENTER. The "Confirm your entries" screen appears.
4. Press ENTER.
   "Please wait..." appears and then "SiriusXM Internet Radio" screen appears which displays the category available for selection.

2 Use ▲/▼ to select the category and then press ENTER.

The channel list screen for the selected category appears.

3 Use ▲/▼ to select the desired channel and then press ENTER.

The playback screen for the selected channel appears and you can listen to SiriusXM Internet Radio.

You can control the tracks with the buttons on the remote control.

Enabled buttons: ■, □, ◀◀◀, ▶▶

■Menu Items

Add to My Favorites:

Adds a channel to My Favorites list.

((SiriusXM))

SiriusXM Internet Radio subscriptions are sold separately and are governed by the Sirius Terms and Conditions (see www.sirius.com). Be sure to read this agreement before you purchase your subscription. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved.

En-4

Using Last.fm Internet Radio

Last.fm is a music service that learns what you love...

Your new Onkyo AV receiver is very clever. If you have a free Last.fm account, it will keep track of all the songs you've just played. When you visit the Last.fm website, you can see personal charts of the music you've enjoyed, share them with friends and see what they like, too.

With thousands of biographies, reviews and an endless choice of personalised, ad-free radio stations, Last.fm is a great way to discover music. Pick up your free Last.fm account today at www.last.fm/join

Get a subscription and you can enjoy the best of ad-free Last.fm Radio on your Onkyo AV receiver without a computer!

Recommended Radio:

Discover smart personalised recommendations that adapt as your tastes change.

Artist Radio:

Pick any artist and we'll play you a whole station of music inspired by your choice.

My Library:

Sit back and enjoy selections from all the music you've heard since you joined Last.fm.

Tag Radio:

Polish funk? Death pop? Think of a style and we'll entertain you with it for hours.

Start your free trial straight away when you create your account and see for yourself what it's like to have the world's music at your fingertips. Latest prices and full information are available at www.last.fm/subscribe

1 Use ▲/▼ to select "Sign in to your account", and then press ENTER. If you have the existing Last.fm account, you can sign in to your account to select "Sign In to your account". Enter your user name and password in the next keyboard screen.

■ Using the keyboard screen

1. Use ▲/▼/◄/► and the ENTER to enter your user name and password.
2. Select "OK".
3. Press ENTER. The "Confirm your entries" screen appears.
4. Press ENTER.
   "Please wait..." appears and then "Last.fm Internet Radio" screen appears.

Tip

- If you want to use multiple user accounts, see "Using Multiple Accounts" (→ page 1). Login can be made from the "Users" screen.

2 Use ▲/▼ to select menu and then press ENTER.

Search Station:

You can search station by Artist, Tag, or User Name.

Top Artists Station:

You can play tracks of top-rated artists. Top Tags Station:

You can play tracks of top-rated tags. Personal Station:

- You can play tracks from personalized station ("Your Library", "Your Neighbourhood" and "Your Recommendations").

Profile:

You can play tracks from "Recently Listened Tracks", "Library" and "Neighbours".

Account Info:

Confirm your account information.

Sign Out:

It signs out from your account.

3 Use ▲/▼ to select a station, and press ENTER or ▶ to start playback.

Playback starts and the playback screen appears.

■Menu Items

I Love this track:

Track information is saved in Last.fm server, and playback frequency increases.

Ban this track:

Track information is saved in Last.fm server, and playback frequency reduces.

Add to My Favorites:

Adds a station to My Favorites list.

■ Using scrobbling control

Use ▲/▼ to select "Enable", and then press ENTER.

- Internet radio services provided by a third party may be terminated with or without notice. - Internet radio services may not be available in some areas.

Using Slacker Personal Radio

1 If you do not have an account, create one on the Slacker website (www.slacker.com) with your computer.

If you already have a Slacker account, select "Sign in to your account" and then press ENTER.

The keyboard screen appears. You can enter information from the remote control or the keys on the main unit.

2 If there are no mistakes in the information you have entered, use ▲/▼/◄/► to select "OK" then press ENTER.

An account information confirmation screen appears.

3 If you do not have an account, select "Access without Sign In" and press ENTER to use a restricted version of the service.

Note that use will be restricted.

Tlp

- If you want to use multiple user accounts, see "Using Multiple Accounts" (→ page 1). Login can be made from the "Users" screen.

4 Use ▲/▼ to select a menu item and then press ENTER.

To sign out, use ▲/▼ to select "Sign out" from this screen and then press ENTER.

5 Use ▲/▼ to select a station and then press ENTER or ▶ to start playback from the station.

The playback screen appears.

6 You can control the tracks with the buttons on the remote control.

Rate Song as Favorite:

Stores information to server, making it more likely that the song will be played again.

Ban Song:

Stores information to server, making it less likely that the song will be played again.

Ban Artist:

Stores information to server, making it less likely that the songs from this artist will be played again.

Mark Favorite:

Adds the currently playing station to your favorites.

Unmark Favorite:

Deletes the currently playing station from your favorites.

Add song to Library:

Adds the currently playing track to your library.

Delete song from Library:

Deletes the currently playing track from your library.

Add to My Favorites:

Adds a station or song to My Favorites list.

Using MP3tunes

Listen to your music collection on your home stereo in complete digital fidelity without a personal computer plus safely backup all your songs. Here's how:

Creating an Account on your Computer

1 From your computer, open a web browser and go to: www.mp3tunes.com/signup
2 Create an account.
3 Click the Upload link (www.mp3tunes.com/upload) to add files to your Locker.
4 View, edit and listen to your files by clicking on Player (www.mp3tunes.com/player).

Playing Contents on the AV Receiver

Tlp

- Before proceeding, you need to select the MP3tunes service as described in “Common Procedures in Internet Radio Menu” (→ page 1).

1 Use ▲/▼ to select "Sign in to your account", and then press ENTER.
2 Enter the e-mail address and password you used when creating your account, select "OK" and press ENTER.
The keyboard screen appears. You can enter your user name and password from the remote controller or the buttons on the AV receiver.
3 If there are no mistakes in the information you have entered, select "OK" and press ENTER. An account information confirmation screen appears.

Tip

- If you want to use multiple user accounts, see "Using Multiple Accounts" (→ page 1). Login can be made from the "Users" screen.

4 Use ▲/▼ to select the menu, then press ENTER.

Music:

The place to find your Artists, Albums, and Playlists.

Shuffle:

Starts playing a random selection of tracks from your Locker.

Search:

Find a specific Album, Artist, or Song.

Account Info:

Your MP3tunes account information.

Sign Out:

Log out of your MP3tunes account.

En-7

Using Internet Radio

The track at the top of the music list is automatically played back.

5 Use ▲/▼ to select a track and press ENTER or ▶ to start playback.

A playback screen appears.

You can control the tracks with the buttons on the remote control.

Displays additional menu options.

6 You can view or change your MP3tunes account settings by going to www.mp3tunes.com/account.

Create a New Station :

I don't like this track :

Why is this track playing? :

I'm tired of this track :

Create station from this artist :

Delete this station :

Create station from this track :

Rename this station :

Bookmark this artist :

Add track to My Library :

Add album to My Library :

Add playlist to My Library :

Add channel to My Channels :

Top Artists Station :

Rate Song as Favorite :

Add song to Library :

Delete song from Library :

Create a New Station:

I don't like this track:

Why is this track playing?:

I'm tired of this track:

Create station from this artist:

Delete this station:

Create station from this track:

Rename this station:

Bookmark this track:

Add to My Favorites:

Add track to My Library:

Add album to My Library:

Add playlist to My Library:

Add channel to My Channels:

Add to My Favorites:

Add to My Favorites:

Top Artists Station:

Neighbourhood" y "Your Recommendations").

Profile:

Puede reproducir pistas de "Recently Listened Tracks", "Library" y "Neighbours".

Account Info:

Add to My Favorites:

Rate Song as Favorite:

Add song to Library:

Delete song from Library:

Add to My Favorites:

Common Procedures in Internet Radio Menu

Note

• Available services may vary depending on the region.
- Certain network service or contents available through this device may not be accessible in case the service provider terminates its service.

1 Press NET.

A list of the network services appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

2 Select the desired service and press ENTER. The top page of the selected service appears.

Using Multiple Accounts

The AV receiver supports multiple user accounts, which means you can freely switch between several logins. After registering user accounts, login is performed from the "Users" screen.

1 Press MENU while the Users screen is displayed.

The following menu items appear:

Add new user:

Remove this user:

You can either store a new user account, or delete an existing one.

Tip

• Some of the services don't allow the use of multiple user accounts.
• You can store up to 10 user accounts.
• To switch between accounts you must first log out from the current account, and log in again on the "Users" screen.

Using Last.fm Internet Radio......2

En-1

Using Last.fm Internet Radio

Last.fm is a music service that learns what you love...

Your new Onkyo AV receiver is very clever. If you have a free Last.fm account, it will keep track of all the songs you've just played. When you visit the Last.fm website, you can see personal charts of the music you've enjoyed, share them with friends and see what they like, too.

With thousands of biographies, reviews and an endless choice of personalised, ad-free radio stations, Last.fm is a great way to discover music. Pick up your free Last.fm account today at www.last.fm/join

UK and Germany only:

Get a subscription and you can enjoy the best of ad-free Last.fm Radio on your Onkyo AV receiver without a computer!

Recommended Radio:

Discover smart personalised recommendations that adapt as your tastes change.

Artist Radio:

Pick any artist and we'll play you a whole station of music inspired by your choice.

My Library:

Sit back and enjoy selections from all the music you've heard since you joined Last.fm.

Tag Radio:

Polish funk? Death pop? Think of a style and we'll entertain you with it for hours.

Start your free trial straight away when you create your account and see for yourself what it's like to have the world's music at your fingertips. Latest prices and full information are available at www.last.fm/subscribe

1 Use ▲/▼ to select "Sign in to your account", and then press ENTER. If you have the existing Last.fm account, you can sign in to your account to select "Sign In to your account". Enter your user name and password in the next keyboard screen.

■ Using the keyboard screen

1. Use ▲/▼/◄/► and the ENTER to enter your user name and password.
2. Select "OK".
3. Press ENTER. The "Confirm your entries" screen appears.
4. Press ENTER.
   "Please wait..." appears and then "Last.fm Internet Radio" screen appears.

Tip

- If you want to use multiple user accounts, see "Using Multiple Accounts" (→ page 1). Login can be made from the "Users" screen.

2 Use ▲/▼ to select menu and then press ENTER.

Search Station:

You can search station by Artist, Tag, or User Name.

Top Artists Station:

You can play tracks of top-rated artists. Top Tags Station:

You can play tracks of top-rated tags. Personal Station:

You can play tracks from personalized station ("Your Library", "Your Neighbourhood" and "Your Recommendations").

Profile:

You can play tracks from "Recently Listened Tracks", "Library" and "Neighbours".

Account Info:

Confirm your account information.

Sign Out:

It signs out from your account.

3 Use ▲/▼ to select a station, and press ENTER or ▶ to start playback.

Playback starts and the playback screen appears.

Track information is saved in Last.fm server, and playback frequency increases.

Ban this track:

Track information is saved in Last.fm server, and playback frequency reduces.

Add to My Favorites:

Adds a station to My Favorites list.

■ Using scrobbling control

Use ▲/▼ to select "Enable", and then press ENTER.

- Internet radio services provided by a third party may be terminated with or without notice. Internet radio services may not be available in some areas.

Top Artists Station:

Add to My Favorites:

Remote Control Codes

Remote Control Codes

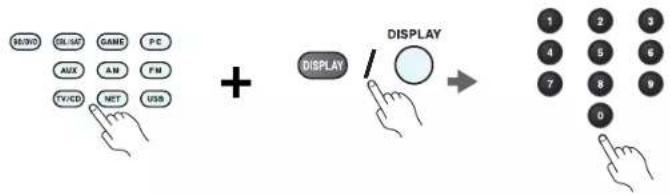

1 While holding down the REMOTE MODE button to which you want to assign a code, press and hold down [DISPLAY] (about 3 seconds).

The REMOTE MODE button/Remote indicator lights.

On Integra products, button names are capitalized. For example, "Remote Mode" button and "Display" button.

Notes:

• Remote control codes cannot be entered for [RECEIVER] and the multi zone button.
• Only TV remote control codes can be entered for [TV].
• Except for [RECEIVER], [TV], and the multi zone button, remote control codes from any category can be assigned for the REMOTE MODE buttons. However, these buttons also work as input selector buttons, so choose a REMOTE MODE button that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose [TV/CD] when entering its remote control code.

2 Within 30 seconds, use the number buttons to enter the 5-digit remote control code.

The REMOTE MODE button/Remote indicator flashes twice.

If the remote control code is not entered successfully, the REMOTE MODE button/Remote indicator will flash once slowly.

Notes:

• The flashing element of the remote controller will differ according to your AV receiver's model.
• The remote controller is preconfigured with remote controller presets of different components. By entering a code from the Remote Control Code list, you can activate the relevant preset for that component.
• When there are multiple codes related to one manufacturer, try and enter them one-by-one until it matches your component.
• Depending on the model and year of your component, compatibility is not guaranteed.
• With some models, the remote controller may not not work or its compatibility may be limited to part of the component's functionality.
• Besides, it is not possible to add new codes to the existing remote controller presets.
• Though the provided remote control codes are correct at the time of printing, they are subject to change by the manufacturer.

1

Remote Control Codes

Cable Set Top Box
ADB 02254, 02769
Aon 02769
Arris 02187
AT&T 00858
Bright House 01376, 01877
BT Vision 02294
Cable & Wireless 01068
Cable One 01376, 01877
Cablecom 01582
Cablevision 01376, 01877
Charter 01376, 01877, 02187
Cisco 01877, 00858, 01982,02345, 02378
Com Hem 00817, 00660, 01666,02015, 02447
Comcast	01376, 01877, 01982,02187
Cox	01376, 01877
Daeryung	01877
Digco	02187
DX Antenna	01500
France Telecom	00817
Freebox	01482
Fujitsu	01497
Humax	00660, 02142, 02447,03051, 03053
Insight	01376, 01877
J:COM	03051, 03053
Knology	01877
Kreatel	01385
Macab 00817
Mediacom 01376, 01877
mio TV	02802
Motorola	01376, 00858, 01562,01982, 01998, 02378
Moxi	02187
NEC	01496

Cable Set Top Box
Neuf TV	03107
Noos 00817
NTL	01068, 01060
Numericable	02767
Ono 01068, 01562
Optus	01060
Orange	00817
Pace	01376, 01877, 01068, 01060, 01982
Panasonic	01488, 01982
Philips	00817, 01582, 02294, 02767
Pioneer	01877, 01500
RCN 01376
Rogers	01877
Sagcm 00817
Samsung	01877, 01060, 01666, 02015, 02774
Scientific Atlanta	01877, 00858, 01982, 02345
SFR	03107
Shaw	01376
SingTel	01998, 02802
Sony 01460
Stofa 02015
Suddenlink	01376, 01877
Sumitomo 01500
Telewest	01068
TeliaSonera	01385
Telus	02345
Thomson	01582, 01982, 02769
Time Warner 01376, 01877, 02187
Toshiba	01509
UPC	01582
Verizon	02378
Videotron	01877
Virgin Media	01068, 01060

Cable Set Top Box
Visiopass	00817
VTR	01376
WideOpenWest	01877
Ziggo	00660, 01666, 02015, 02142, 02447, 02774
Cable/PVR Combination
Arris 02187
Bright House 01376, 01877
Cable One 01376, 01877
Cablevision 01376, 01877
Charter 01376, 01877, 02187
Cisco 01877, 01982
Comcast	01376, 01877, 01982, 02187
Cox	01376, 01877
Digco	02187
Freebox	01482
Humax	02142, 03051, 03053
Insight	01376, 01877
J:COM	03051, 03053
Knology	01877
Mcdiacom	01376, 01877
Motorola	01376
Moxi	02187
Numericable	02767
Pace	01877
Panasonic	01982
Philips	01582, 02767
Pioneer	01877
Rogers	01877
Samsung	01877
Scientific Atlanta	01877, 01982
Shaw	01376
Suddenlink	01376, 01877
Thomson	01582

Cable/PVR Combination
Time Warner 01376, 01877, 02187
UPC	01582
Videotron	01877
VTR	01376
WideOpenWest	01877
Ziggo	02142
IPTV
ADB 02254, 02769
Aon 02769
AT&T 00858
BT Vision 02294
Canal+	02657
Cisco 00858, 02345, 02378
Kreatel	01385
mio TV	02802
Motorola	01376, 00858, 01998, 02378
Neuf TV	03107
Pace	02657
Scientific Atlanta	00858, 02345
SFR	03107
SingTel	01998, 02802
TeliaSonera	01385
Telus	02345
Thomson	02769
Verizon	02378
IPTV/PVR Combination
ADB 02769
Aon 02769
AT&T 00858
BT Vision 02294
Cisco 00858, 02345, 02378
Kreatel	01385
Motorola	00858, 02378

Remote Control Codes

IPTV/PVR Combination
Neuf TV 03107
Philips 02294
Scientific Atlanta 00858
SFR 03107
Verizon 02378
CD/Cassette Dock
TASCAM 73095
CD
Advantage 70032
AII! 70157
Aiwa 70157
Arcam 70157
Atoll Electronique 70157
Audio Research 70157
Audiolab 70157
Audiomeca 70157
Audioton 70157
AVI 70157
Balanced Audio Technology	70157
Cairn 70157
California Audio Labs	70029, 70303
Cambridge	70157
Cambridge Audio	70157
Carver 70157
CCE	70157
Cyrus	70157
Denon	70626, 70766
DKK 70000
DMX Electronics	70157
Dynaco	70157
Gencxxa 70000, 70032
Goldmund	70157
Grundig	70157

CD
Harman/Kardon	70157
Hitachi	70032
Integra	71817, 70101
JVC 70072
Kenwood	70626, 70157, 70036
Krell	70157
Linn	70157
Loewe 70157
Magnavox	70157
Marantz	70626, 70029, 70157
Matsui 70157
MCS	70029
Memorex	70032
Meridian	70157
Micromega 70157
Miro	70000
Mission 70157
Myryad	70157
NAD 70000, 70721
Naim 70157
NSM 70157
Onkyo 71817
Optimus	70000, 70032
Panasonic	70029, 70303
Philips 70626, 70157
Pioneer	70032, 70101
Polk Audio 70157
Primare	70157
Proton	70157
QED	70157
Quad 70157
Quasar	70029
Radiola	70157
RCA	70032
Restek 70157
Revox	70157

CD
Rotel 70157
SAE	70157
Sansui	70157
SAST	70157
Siemens	70157
Silsonic 70036
Simaudio	70157
Sonic Frontiers	70157
Sony	70490, 70000
Sylvania	70157
TAG McLaren	70157
Tandy	70032
TASCAM 73533, 73095
TEAC	73531, 73551, 73532
Technics 70029, 70303
Thorens	70157
Thule Audio	70157
Traxdata 70626
Universum	70157
Victor	70072
Wards	70000, 70032, 70157
Yamaha	70490, 70032, 70036
Zonda	70157

CD-R
Denon	70626, 70766
JVC 70072
Kenwood	70626
Marantz	70626
Onkyo 71323
Philips 70626
Sony	70000
TASCAM 71830, 72304

CD-R/MD
TASCAM 73511

MD
Onkyo 70868
Sony	70490, 70000
TEAC	72977
Yamaha	70490
Cassette Deck
Aiwa 40029
Arcam 40076
Audiolab 40029
Carver 40029
Denon	40076
Grundig	40029
Harman/Kardon	40029
Inkel	40070
JVC 40244
Kenwood	40070
Magnavox	40029
Marantz	40029
Myryad	40029
Onkyo 42157
Optimus	40027
Philips 40029
Pioneer	40027
Polk Audio	40029
Radiola	40029
RCA	40027
Revox	40029
Sansui	40029
Sony	40243
Thorens	40029
Victor	40244
Wards	40027, 40029
Yamaha	40097

Accessory
Apple	81115

Remote Control Codes

Accessory
Jamo 82228
Logitech 82182
Onkyo 82990, 81993, 82351
Polk Audio 82228

Video - Accessory

ADB 02254, 02769
Aon 02769
Apple 02615
AT&T 00858
BT Vision 02294
Canal+ 02657
Cisco 00858, 02345, 02378
Kreatel 01385
mio TV 02802
Motorola 01376, 00858, 01998, 02378
Neuf TV 03107
Pace 02657
Philips	02294
Scientific Atlanta	00858, 02345
SFR	03107
SingTel 01998, 02802
TeliaSonera	01385
Telus	02345
Thomson	02769
Verizon	02378

Receiver

Onkyo 52503

Satellite Set Top Box

@sat	01300
@Sky	01334
Acoustic Solutions	01284
ADB 00642, 00887. 01	259
Akura	01626

Satellite Set Top Box

Alba	01284
Allvision 01334
Amstrad	00847, 01175, 01662, 01693
Ansonic	02418
Arnion	01300
ASCI 01334
AssCom	00853
Astro	00173, 01100
Atlanta 02418
Atsat 01300
AtSky	01334
Audiola	02418
Aurora	00879, 00642, 01433
Austar	00879, 00642, 01259
Avanit 01631
Awa 02418
Axil	01413, 01457, 02418
Axitronic	01626
Balmet 01457
Bcll ExpressVu	00775
Belson	02418
Big Sat 01457
Black Diamond	01284
Blaupunki 00173
Boshmann	01413, 01631
Boston	01251
Boxer 01458
British Sky Broadcasting	00847, 01175, 01662
BskyB 00847, 01175, 01662
Bush	01284, 01291, 01626
Canal Digital	00853, 01334
Canal Satellite	00853, 02657
Canal+ 00853, 02657
CanalSat 00853, 02657

Satellite Set Top Box

Centrex 01457
CGV 01413, 01567
Chess	01334, 01626
CityCom	01176
Clatronic 01413
Claylon 01626
Com Hem	01176, 01915
Comag 01413
Comsat	01413
Coship	01457
Crown 01284
CS	01631
Cyfra+ 01409
Cyfrowy Polsat	00853, 02527
D-box	00723, 01114
Dantax 01626
Denver 02418
Dgtec	01631, 02418
Dick Smith Electronics	02418
Digi Raum Electronics	01176
Digitality 01334
Digihome	01284
DigiLogic	01284
DigiQuest	01300, 01457, 01631
Digisky 01457
DigitalBox	01100, 01631
Digiwave	01631
DirecTV 01377, 00099
Dish Network	00775
Dishpro	00775
DishTV	01300
DRE	01176
Dream Multimedia	01237
DSE 02280, 02418
DSTV	00879, 00642, 01433

Satellite Set Top Box

Durabrand	01284
Echostar	00775, 00853, 01323, 01409, 02527
Eco-Star	01413
Edision	01631
Elap	01413, 01567
Elbe	02418
Energy Sistem	01631, 02418
Engel	01251
EuroLine	01251
Europhon	01334
Europsat 01413, 01611
Expressvu 00775
Fagor	01611
Ferguson 01291
Finlux	01626
Fly Com 01457
FMD	01413, 01457
Foxtel	00879, 01176, 01356
Freesat 02408
Fuba	00173, 01251
Galaxis	00853, 00879
General Satellite	01176
Globo	01251, 01334, 01626
GOI	00775
Gold Box	00853
Gold Vision	01631
GoldMaster	01334
Goodmans	01284, 01291
Gradiente	00099, 00887
Grandin	01626
Grocos 01409, 01457
Grundig	00847, 00853, 00173, 00879, 01284, 01291
Haicr	02418
Hallo	01626

Remote Control Codes

Satellite Set Top Box
Hama 01567
Hanseatic 01100
Hirschmann 00173
Hitachi 01284
Hornet 01300
HTS 00775
Humax 01377, 01176, 01427, 01675, 01808, 01882, 01915, 02144, 02408, 02616
ID Digital 01176
ID Sat 01334
ILLUSION sat 01631
Imperial 01195, 01334
Indovision 00887
iNETBOX 01237
Inno Hit 01626
Innova 00099
inVion 02418
iotronic	01413
ISkyB 00887
ITT	02418
ITT Nokia 00723
Jadeworld	00642
Jacger 01334
JVC	00775
KabclBW	01195, 01882, 01915
Kaon	01300
Kathrein	00173, 01561, 01567
Kenwood	00853
Koenig 01631
Kreiling	01626
Kreiselmeyer	00173
L&S Electronic	01334
LaSAT 00173
Lava	01631

Satellite Set Top Box
Leiko	01626
Lemon	01334
Lenoxx	01611
Linsar	01284
Listo	01626
Lodos	01284
Logik 01284
Macab 00853
Manhattan 01300
Maspro	00173
Matsui 00173, 01284, 01626
Maximum	01334
Mediabox 00853
Mediacom 01206
MediaSat	00853
Medion	01334, 01626
MegaSat	01631
Melronic	01334, 01413, 01631, 02418
Metz	00173
Moscrbacr 01251
Movistar	02527, 02761
Multichoice	00879, 00642, 01433, 02059, 02060
MySky 01356, 01693, 01850
NEOTION	01334
Netsat	00099, 00887
Nikko	00723
Nokia	00853, 00723, 01223
Nordmcnde	01611
NPG	01631
Onn	01284
Optex	01413, 01611, 01626
Optus 00879, 01356
Orbis	01334
Orbitech	01100, 01195

Satellite Set Top Box
Pace 00847, 00853, 00887,	01175, 01323, 01356,01423, 01662, 01693,01850, 02059, 02060,02211, 02657
Pacific 01284
Palcom	01409, 01611
Panasat	00879, 01433
Panasonic 00847, 01304, 01404,03099
Panda	00173
Pass	01567
peeKTon	01457, 02418
Philips 00099, 00853, 00173,01114, 00887, 00133,02211
Phoenix	02418
Pino	01334
Pioneer	00853, 01308
PMB	01611
Premiere	00723
Pro Basic	00853
Proline	01284
QNS	01404
RCA	01291
Regal	01251
Roadstar	00853
Rollmaster	01413
Rownsonic	01567
SAB	01251, 01300, 01631
Sagcm 01114
Saivod 02418
Samsung	01377, 00853, 01175,01206, 01458, 01662,02986
Sansui	01251
Sanyo	01626
Sat Control	01300

Satellite Set Top Box
Sat Industrie	01611
SAT+	01409
Satplus 01100
SatyCon	01631
Schaub Lorenz	02418
Schneider	01206, 01251
Schwaiger	01334, 01457, 01631
Sedca Electronique	01206, 01626
SEG 01251, 01284, 01626
Servimat	01611
ServiSat 01251
Shark	01631
Sherwood 01409
Siemcns 00173, 01334,	01626, 02418
Sigmatek	02418
SKY	00099, 00847, 00887, 01175, 01662, 01693, 01850, 02754
SKY Brazil	00887
SKY Deutschland	02754
SKY Italia 00853, 01693, 01850
SKY New Zealand	02211
SKY PerfecTV!	02299, 02616, 03099
Sky XL	01251
Sky+	01175, 01662
Skymaster	01334, 01409, 01567, 01611
Skymax	01413
Skyplus	01175, 01334
SkySat	01100
Skyvision	01334
SM Electronic	01409
Smart 01404, 01413, 01631
SmartVision	01457
Sony	00847, 00853, 01558, 02299

Remote Control Codes

Satellite Set Top Box
Star 00887
Stream System 01300
Strong 00853, 00879, 01284,01300, 01409, 01626,02418
Sunny 01300
Sunstar 00642
Supernova 00887
Supratech 01413
Systcc 01334
Sytech 02418
TBoston 01251, 02418
TEAC 01251
Technical 01626
Technika 01284
TechniSat 01100, 01195
Technosat 01206
Techwood	01251, 01284, 01626
TELE System	01251, 01409, 01611
Telefonica 02527, 02761
Telcstar	01100, 01195, 01251,01334, 01626
Televes	01300, 01334
Televisa	00887
Tevion	01409
Thomson	00847, 00853, 01175,01046, 01291, 01662
Tonna 01611
Topfield 01206
Toshiba	01284
Trevi	01251
Triax	00853, 01251, 01291,01413, 01611, 01626,01631
Tricolor TV	01176
True Visions	02408
Twinner	01611

Satellite Set Top Box
UBC	00642
UEC	00879, 01356
United 01251, 01626, 02418
Unitymedia	01882
Universum	00173, 01251
Variosat	00173
VEA	02418
Vestel 01251, 01284
Viasat 01195
Vision 01626
Visiosat	01413, 01457
Vitecom 01413
Vivax	02418
Volcasat	02418
Wavelength	01413
Wharfedale	01284
Wisi	00173
Worldsat	01251
Woxter 02418
Xsat	00847, 01323
Xtreme 01300
Yakumo 01413
Yes	00887
Zehnder	01251, 01334, 01413, 01631
Zinwell	02280, 02761

SAT/PVR Combination
@sat	01300
Amstrad 01175, 01662	01693
Atsat	01300
Bell ExpressVu	00775
British Sky Broadcasting	01175, 01662
BskyB 01175, 01662
Canal Satellite	02657

SAT/PVR Combination
Canal+	02657
CanalSat	02657
Cyfrowy Polsat	02527
DigiQuest 01300
DirecTV	01377, 00099, 20739
Dish Network	00775
Dishpro	00775
Dream Multimedia	01237
Echostar	00775, 02527
Edision	01631
Expressvu	00775
Foxtel 01356
Humax	01176, 01427, 01675, 01808
ID Sat 01334
iNETBOX	01237
Kaon	01300
Kathrein	01561
Maximum 01334
Mediacom 01206
MegaSat	01631
Movistar	02527
Multichoice	02059, 02060
MySky	01356, 01693, 01850
NEOTION	01334
Pacc	01175, 01356, 01423, 01662, 01693, 01850, 02059, 02060, 02211, 02657
Panasonic 01304, 03099
Philips	00099
Samsung	01175, 01206, 01662
Sat Control	01300
Schneider 01206
Sedea Electronique	01206
SKY	01175, 01662, 01693, 01850, 02754

SAT/PVR Combination
SKY Deutschland	02754
SKY Italia	01693, 01850
SKY New Zealand	02211
SKY PerfecTV!	02299, 03099
Sky+	01662
Skyplus	01175, 01334
Smart	01631
Sony	02299
Stream System 01300
Strong 01300
Sunny 01300
TechniSat 01195
Technosat 01206
Telefonica 02527
Telestar	01195
Thomson	01175, 01662
Topfield 01206
Viasat 01195
Xtreme 01300

Television
A.R. Systems	10556, 10037
Accent	10037
Acer	11339
Acoustic Solutions	11037, 11667
Action 10650
Addison	10653
AEG	11037, 11324
Agfaphoto 12719
Aiko	10037
Aim	10037, 10499
Akai	10178, 10556, 10037, 10714, 10715, 10208, 11675
Akiba	10037
Akito	10037

Remote Control Codes
Television

Akura 10171, 10037, 10714, 10668, 11037, 11363, 11585, 11667, 11709

Alba 10037, 10714, 10668, 11037, 11585

Alien 11037

Allstar 10037

Amstrad 10171, 10037, 11037

Anam 10037

Anam National 10037, 10650

Andersson 11585

Anitech 10037

Ansonic 10037, 10668

AOC 10178, 10625, 11365

Ardcm 10037, 10714

Arena 10037

Aristona 10556, 10037

ART 11037

Art Mito 11585

Asberg

Astra

ATD

Atlantic

Audiosonic

Audioworld

Aventura

Axxon 10714

Baird 10208

Barco

Basic Line

Baur 10037, 10195, 10512

Beaumark

Beijing

Beko 10037, 10714, 10715, 11652

Belson 10698

Television

Belstar	11037
Beon 10037
Berthen 10556, 10668
Bestar	10037
Bexa	12493
Black Diamond	11037
Blaupunkt	10195
Blue Sky	10556, 10037, 10625, 10714, 10668, 11037, 10715, 10499, 11324, 11363, 11652, 11709
Boca	11652
Boman	11324
Bork 11363
BPL	10037, 10208
Brandt 10625, 10714, 10560
Brimax	11709
Brinkmann	10037, 10668
Brionvega	10037
Bush	10556, 10037, 10714, 10668, 11037, 10698, 10208, 11585, 11652, 11667, 12719
Byd:sign	12140, 12209
Camper 10037
Carad	10668, 11037
Carena	10037
Carrelour	10037
Cascade 10037
Casio	10037
Cathay	10037
CCE 10037
Centrum 11037
Centurion	10037
Changhong	10508
Chimei	11666
Clarivox 10037

Television

Classic	10499
Clatronic	10037, 10714, 11324
Clayton 11037
Condor	10037
Conrowa	10698
Conlec	10037
Cosmel	10037
CPTEC	10625, 11363
Crown 10037, 10714, 10668.
Cyberpix	11667
D-Vision	10556, 10037
Dacwoo 10178, 10556,	10037,
	10634, 10499, 12098
Dansai 10037, 10208
Dantax	10714, 11037, 10715, 11652
Datsura	10208
Dawa	10037
Daytron	10037
De Graaf	10208
DEC 11709
Decca 10037
Dcenver	10037, 11709
Desmet	10037
Diamant 10037
Diamond	10698
Dick Smith Electronics	10698
Digatron	10037
Digihome	11667
Digiline	10037, 10668
Digitek	11709
Digitor	10037, 10698
Dixi	10037
DL	11363

Television

DMTech	12001
Domeos 10668
Drcan 10037
DSE	10698
Dual 10037, 11037, 11585, 11667
Durabrand 10178, 10171, 10714, 11037, 11652
Dux	10037
DX Antenna	11817, 13817
Dynatron	10037
Dynex	12049
c-motion	11709
E:max	11324
Easy Living	11666, 11709
ECE	10037
Elbe	10556, 10037
Electrograph	11755
Elcment 11886
Elfunk 11037
ELG 10037
Elin	10037
Elite	10037
Emcerson	10178, 10171, 10037, 10714, 10668, 11394, 11864, 11886
Envision	11365, 11506
Epson 11379
Erres 10037
ESA	10171
ESC	10037
Euroman	10037
Europa	10037
Europhon	10037
Evesham	11248, 11667
Excello	11037
Exquisit 10037

Remote Control Codes

Television
Ferguson 10037, 10625,	10560,
	10195, 11037, 11585
Fidelity 10171, 10037,	10512
Finlandia 10208
Finlux 10556, 10037,	10714,
	10715, 11248, 11667
Firstline 10556, 10037,	10714,
	10668, 11037, 10208,
	11363
Fisher 10208
Flint 10037
Formenti 10037
Fraba 10037
Friac 10037, 10499
Fujicom 11709
Fujitsu 10809
Fujitsu Siemens 10809,	11248, 11666
Funai 10171, 10714, 10668,	11037, 11394, 11666,
	11817, 13817
G-Hanz 11363
Gaba 11037
Galaxi 10037
Galaxis	10037
Gateway	11755
GE	10178, 11454, 10625,
	10560
GEC	10037
Genesis	10037
Genexxa	10037
GFM	10171, 11864, 11886
Godrej 11585
Goldfunk	10668
GoldStar	10178, 10037, 10714,
	10715

Television
Goodmans	10556, 10037, 10625, 10714, 10560, 10668, 10634, 11037, 10499, 11585, 11667
Gorcnje	11585
Gradiente	10037
Gruetz 10714
Granada	10037, 10560, 10208
Grandin	10556, 10037, 10714, 10668, 11037, 10715, 11652
Grundig 10556, 10037,	10195, 11223, 11667, 12625
GVA	11363, 12098
H & B 12001
Haier	10037, 10698, 10508
Hallmark 10178
Hankook 10178
Hanscatic	10556, 10037, 10625, 10714, 10634, 10499, 12001
Hantarex 10037
Hantor 10037
Harwood 10037
Hauppauge	10037
HB	11324
HCM 10037
Highline	10037
Hinari	10037, 10208
Hisawa	10714
Hiscense	10556, 10508, 10208, 11363, 12098
Hitachi	10150, 10178, 10037, 10634, 11037, 10508, 10499, 10578, 11576, 11585, 11643, 11667, 11691, 12433
Hitachi Fujian	10150
Hitec	10698

Television
Hoeher	10714
Hornyphon	10037
Hugoson	11666
Humax	11295
Hypson 10556, 10037,	10714,10668, 11037, 10715
Hyundai	11037, 10698
Iberia	10037
ICE	10037
iLo	11394
Imperial	10037
Indiana	10037
Ingelen	10714
Inno Hit	11037, 11585
Innova 10037
Insignia	10171, 11423, 12049
Integra	11807, 13100, 13500
Interbuy	10037
Interfunk 10037, 10512
Internal 10556
Intcvision	10037
Irradio	10037
IRT	10698
Isukai	10037
ITS	10037
ITT	10208
ITT Nokia	10208
ITV	10037
JGC	11709
Jinfeng	10208
Jinxing	10556, 10037, 10698
JMB	10556, 10634, 10499
Jubilee	10556
JVC	10650, 10653, 10508,11428, 11601, 12271
Kaisui 10037

Television
Karcher	10714, 11324
Kathrein	10556
Kcendo 10037, 11037, 11	1585
Kennex 11037
Kioto 10556
Kiton 10037, 10668
KLL	10037
Kncissel	10556, 10037, 10499
Kocnig	10037
Kolin 10150, 10037, 11	610, 11755
Kolster	10037
Konka 10037, 10714
Korpel 10037
Kosmos	10037
Kunlun	10208
L&S Electronic	10714
Lavic 11363
Lavis	11037
Lecson	10037
Lenco 10037, 11037
Leyco 10037
LG	10178, 10556, 10037, 10714, 10715, 10698, 11423, 11768, 11840, 12182, 12358, 12424, 12834
Liesenkoetter	10037
Lifetec	10037, 10714, 10668, 11037, 12001
Linsar	11585
Local India TV	10208
Local Malaysia TV	10698
Lodos 11037
Locwc	10037, 10512, 11884
Logik	11037, 10698
Logix	10668

Remote Control Codes

Television
Luma 11037
Lumatron 10037, 10668
Lumcnio 10037
Lux May 10037
Luxor 11037, 10208
LXI 10178
M Electronic 10037, 10714, 10634, 10195, 10512, 11652
Madison 10037
Magnavox 10171, 11454, 11365, 11506, 11755, 11867, 12372
Magnum 10037, 10714, 10715
Mancsth 10037
Manhattan 10037, 10668, 11037
Marantz 11454, 10556, 10037
Mark 10037, 10714, 10715
Master's 10499
Mastro 10698
Masuda 10037
Matsui	10556, 10037, 10714, 10195, 11037, 10208, 11666, 11667
Matsushita	10650
Maxent	11755
Maxcss	12493
Meck	10698
Mediator	10556, 10037
Medion 10556, 10037, 10714, 10668, 11037, 10698, 10512, 11248, 11585, 11667, 12001, 12719
Megatron	10178
MEI	11037
Memorex	10150, 10178, 11037
Mercury 10037
Mermaid	10037

Television
Metronic	10625
Metz	10037, 10668, 10195, 11037
MGA 10150, 10178
Micromaxx	10037, 10714, 10668, 11037, 11324, 12001
Microspot	11614
Mikomi	11037, 11585
Minato	10037
Mincrva	10195, 11248
Ministry Of Sound	11667
Minoka 10037
Mirai	11666
Mitsubishi 10150, 11250, 10178, 10556, 10037, 11037, 10512, 11171
Mivar 10609
Moree	10037
Morgan's 10037
Moscrbacr 11585
MTC 10512
MTlogic 10714
Mudan 10208
Multitec	10037, 10668, 11037
Multitech	10037
Myrica	11666
Myryad 10556
NAD 10178, 10037
Naiko 10037
Nakimura 10037
National 10508, 10208
NEC	10178, 10653, 10508, 10499
Neckermann	10556, 10037
NEI 10037, 11037
NEO	11324
Netsat	10037

Television
NetTV	11755
Neufunk 10556, 10037,	10714
New Tcch	10556, 10037
Newave	10178
Nikkai	10037
Nikkei	10714
Nikko	10178
Nokia 10208
Norcent	11365
Nordmende	10037, 10714, 10560, 10195, 11585, 11667, 12001
Normcrel	10037
Nortck	10668
Novatronic	10037
Novita	11585
Nu-Tec	10698
O.K Line	11037, 11324
Occanic	10208
Odys	12719
Okano	10037
OKI	11585, 11667
Olevia	11610, 12124
Omni	10698
Onei	11667
Onida 10653
Onimax	10714
Onix	10698
Onkyo	11807, 13100, 13500
Onn	11667, 11709
Onyx	11709
Opera 10037, 10714
Optimus 10650
Orbit	10037
Orion 10556, 10037, 10714, 11037, 12001

Television
Orline	10037
Ormond 10668, 11037
Osaki 10556, 10037
Osio	10037
Osume 10037
Otto Versand	10556, 10037, 10195, 10512
Pacific	10556, 10714, 11037, 11324
Palladium	10556, 10037, 10714
Palsonic	10037, 10698
Panama 10037
Panasonic	11480, 10037, 10650, 10508, 10208, 11636, 12170
Panavision	10037
Panda 10698, 10508, 10208
Pansonic 11636
Penney	10178
Perdio	10037
Perfekt	10037
Petters	10037
Philco	10178, 10171, 10037, 11394
Philips	10178, 10171, 11454, 10556, 10037, 10512, 10605, 10690, 11394, 11506, 11867, 12372
Phocus	10714, 11652
Phoenix	10037
Phonola	10556, 10037
Pioneer	10037, 10698, 10512, 11457, 11636, 12171
Plantron	10037
Playsonic	10037, 10714, 10715, 11652
Powerpoint	10037, 10698
Prinston 11037, 10715

Remote Control Codes

Television
Profitronic 10037
Proline 10037, 10625, 10634, 11037
Prosonic 10037, 10714, 10668, 11324, 11585, 11667, 11709, 12001
Protech 10037, 10668, 11037
Proton 10178
ProVision 10556, 10037, 10714, 11324
Pvision 12001
Pye 10556, 10037
Qingdao 10208
Quasar 10650
Quelle 10037, 10668, 10195, 11037, 10512
R-Line 10037
Radiola 10556, 10037
Radiomarelli 10037
RadioShack 10178, 10037
Radiotone 10037, 10668, 11037
RCA	10178, 11454, 10625, 10560, 10618, 11781, 12247, 12403, 12434, 12746, 12932
Realistic 10178
Recor	10037
Rectiligne 10037
Redstar 10037
Reflex 10037, 10668, 11037
Reclisys	11585
Remotec	10171, 10037
Reoc	10714
Revox	10037
RFT	10037
Roadstar	10037, 10714, 10668, 11037, 10715
Rolson 12001, 12098

Television
Rowa	10037, 10698
Saba	10625, 10714, 10560
Sagcm	10618
Saivod	10037, 10668, 11037
Salora	10208, 12001
Sampo	10178, 10171, 10650, 11755
Samsung	10178, 10556, 10037, 10618, 10650, 10208, 12051
Sansui 10171, 10037, 10714, 11248, 12001
Sanyo	11037, 10508, 10208, 11142, 11365, 11585, 11667, 11974
SBR	10556, 10037
Schaub Lorenz	10714, 11324, 11363, 11667, 12001
Schneider	10556, 10037, 10714, 10668, 11037
Schoentech	11037
Scotch	10178
Scott	10178
Sears	10178, 10171
Scaway 10634
Seelver 11037
SEG	10037, 10668, 11037, 12719
SEI 10037
Sei-Sinudyne	10037
Serie Dorada	10178
Shanghai	10208
Sharp	10650, 10818, 11165, 11423, 11659
Shintoshi	10037
Shivaki 10178, 10037
Siam	10037
Siemens	10037, 10195

Television
Siera	10556, 10037
Silva	10037
Silva Schneider	10037
Silver	10715
SilverCrest	11037
Sinudyne	10037
SKY	10037, 11614, 11775
Skyworth	10037, 10698
Sliding 11324
SLX	10668
Solavox	10037
Soniko 10037
Soniq	12493
Sonitron 10208
Sonneclair	10037
Sonoko 10037
Sonolor 10208
Sontec	10037
Sony	10810, 11505, 11167, 11651, 11825
Sounddesign	10178
Soundwave	10037, 11037, 10715
Sowa	10178
Squareview	10171
Standard	10037, 11037, 11709
Starlitc 10037
Strato	10037
SunBriteTV	11610
Sungoo 11248
Sunny	10037
Sunstar 10037
Sunstech	12001
Sunwood	10037
Supersonic	10208
SuperTech 10556, 10037
Supra	10178

Television
Svasa	10208
Swisstec 11614, 11775
Sylvania 10171, 11394,	11864, 11886
Symphonic	10171, 11394
Synco	10178, 11755
Syntax	11610
Sysline	10037
Tacico	10178
Talent	10178
Tashiko	10650
Tatung 10037, 11248, 1	1324
TCL	10698, 12403, 12434, 13183
TCM	10714, 12001
TEAC	10178, 10171, 10037, 10714, 10668, 11037, 10698, 10512, 11248, 11363, 11709, 11755
Tec 10037
Tech Linc 10037, 10668
Technica	11037
Technics	10556, 10650
Technika	11667
TechniSat 10556
Technisson	10714, 11652
Techno 11585
Technosonic	10556, 10625, 10499, 11324
Techvision	11709
Techwood	11037, 11667
Tecnimagen	10556
Teco	10178, 10653
Tedelex	10208, 11709
Teknika	10150
TELE System	11585
Telecor 10037

Remote Control Codes

Television
Telefunken 10037, 10625, 10714,10560, 10698, 11585,11667
Telcfusion 10037
Telegazi 10037
Telemeister 10037
Telesonic 10037
Tclcstar 10556, 10037
Telctech 10037, 10668, 11037
Teleview 10037
Tennessee 10037
Tensai 10037, 11037, 10715
Tcsla 10556, 10037, 10714,11037, 11652
Tevion 10556, 10037, 10714,10668, 11037, 11248,11585, 11667
Thomson 10037, 10625, 10560
Thorn 10037, 10499, 10512
Thorn-Ferguson 10499
TMK	10178
Tokai	10037, 10668, 11037
Tokaido	11037
Topline	10668, 11037
Toshiba 10195, 11037, 10618,10650, 10508, 11169,11508, 11524, 11652,12203
Toyoda	11709
TRANS-contincents	10556, 10037, 10668,11037
Transonic	10037, 10698, 10512,11363
Triad 10556
Trio	11248
Triumph	10556, 10037
TVTEXT 95	10556
Ulher	10037

Television
Ultravox	10037
UMC	11614, 11775
Unic Line	10037
Uniden	12122
United	10556, 10037, 10714, 11037, 10715, 11652
Unitek	11709
Universal 10037, 10714
Universum	10037, 10668, 10195, 11037, 10618, 10512
Univox	10037
V7 Videoseven	11666, 11755
Vestel	10037, 10668, 11037, 11585, 11667
Vexa	10037
Victor	10650, 10653, 11428
Videocon 10037, 10508
VideoSystem	10037
Vidtech	10178
Vicwsonic 11365, 11755, 12049
Vision 10037
Vistron	11363
Vivax 11709
Vizio	11758, 12209
Vortee	10037
Voxson	10178, 10037
VU	11365, 12098
Walker	11667
Waltham	10037, 10668, 11037
Wansa	12098
Wards	10178
Watson	10037, 10714, 10668, 11037
Wega	10037
Welltech	10714, 11652
Weltstar	11037
Westinghouse	11755

Television
Wharfedale 10556, 10037, 11324, 11667
White Westinghouse	10037
Wilson	10556
Windsor 10668, 11037
Windy Sam	10556
Wintel	10714
World-of-Vision	12001
Wyse	11365
Xcnius 10634
Xiahua	10698
XLogic	10698
Xrypton	10037
Yamaha	10650, 11576
Yamishi	10037
Yokan 10037
Yoko	10037
YU-MA-TU	10037
Zenith	10178, 10037, 11365, 11423, 12358
Zepto	11585
Zonda	10698

VCR
DirecTV	20739
Humax	20739
Panasonic	20616
Philips	20739
ReplayTV 20616
Sonic Blue	20616
TiVo	20739

PVR
DirecTV	20739
Humax	20739
Panasonic	20616
Philips	20739

PVR
ReplayTV 20616
Sonic Blue	20616
TiVo	20739
TV/VCR Combination
Amstrad 10171
Ferguson 10625
Fidelity	10171
GoldStar	10037
Grundig	10556, 10037, 10195
LG	10178
Mitsubishi 10556
Philips	10556, 10037
Radiola	10556
Saba	10625
Sanyo	11974
Schneider	10556, 10037
Sharp	10818
Siemens	10037
Sony	11505
TEAC	10178, 10171
Technics	10556
Thomson 10625

DVD
3D LAB 30539
Accurian	30675
Acoustic Solutions	30713
AEG	30675
AFK	31152
Aiwa 30533
Akai	30675
Alba	30539, 30713
Ambiance	33052
Amstrad 30713
Anthem 32820

Remote Control Codes

DVD
Aristona 30539, 30646
ASDA 32213
Audix 30713
Autovox 30713
Awa 32587
Basic Line 30713
Bel Canto Design 31571
Black Diamond 30713
Blue Parade 30571
Blue Sky 30713
Brandt 30503
Bush 30713
C-Tech 31152
California Audio Labs 30490
Cambridge Audio 32808
Centrum 30675, 30713
Changhong	30627
Cinelec	30713
Clatronic	30675
Clayton	30713
Crown 30713
Dantax	30539, 30713
Denon	30490, 30634, 31634, 32258, 32748
Dick Smith Electronics	31152
Digihome	30713
DigiLogic	30713
Digix Media	31394
Disney	30675
DSE 30675, 31152
Dual	30713
Durabrand 30675, 30713
Dynex	32596
Dyon	33052
eBench	31152

DVD
Elfunk 30713
Elite 31152
Emcerson	30675, 32213
EuroLine	30675
Ferguson	30713
Finlux	30741
Firstline	30713
Fochn & Hirsch	33052
Funai	30675
GE	30522
GFM	30675
Global Sphere	31152
Go Video	30741
GoldStar	30741
Goodmans	30713, 31152
GPX	30741
Grandin	30713
Grundig	30539, 30713
H & B	30713
Haaz 31152
Hanseatic	30741
Harman/Kardon	30582, 31229, 33228
Henss	30713
Hitachi	30573, 30713, 31664
Hocher	30713
HotMedia	31152
Humax	30646
Inno Hit	30713
Insignia	30741, 30675, 32428, 32596
Integra	30503, 30571, 30627, 31612, 31634, 32147
Irradio 30646
JVC	30503, 30539, 30623, 30867, 31597, 31602, 32855
Kendo	30713

DVD
Kennex	30713
Kenwood	30490, 30534
Lenco 30713, 33052
Lexicon	32545
LG	30741, 31602
Limit	33052
Lodos 30713
Loewe 30539, 30741, 32474, 32783
Logik	30713
Lumatron	30741, 30713
Lunalron 30741
Luxman	30573
Luxor	30713
Magnavox 30503, 30539, 30646, 30675, 30713, 31354
Manhattan	30713
Marantz	30539, 32414, 32432, 33444
Mark	30713
Matsui	30713
Maxim	30713
MDS	30713
Medion	30630, 30741
Memorex	32213
Metz 30571, 30713
Micromedia	30503, 30539
Micromega	30539
Microsoft	30522, 32083
Minax	30713
Mitsubishi 30713
Momitsu	33052
NAD	30741
NEC	30741, 31602
Onkyo 30503, 30627, 31612, 32147, 30571, 31634
Oppo	30575, 32545

DVD
Orion	30713
Ormond	30713
Pacific	30713
Palladium	30713
Panasonic	30503, 30490, 31579, 31641, 32523, 32710, 32859
Pelican Accessories	30533
Philco	30675
Philips	30503, 30539, 30646, 30675, 30713, 31340, 31354, 32056, 32084, 32434, 32689
Pioneer	30571, 30142, 30631, 31571, 32442, 32860
Polk Audio	30539
Presidian	30675
ProAudio	31394
Proscan	30522
Proson	30713
Pyc	30539, 30646
Radionette	30741
Radiotone	30713
RCA 30522, 30571, 32213, 32587
REC	30490
Red	32213
Redstar	31394
Roadstar	30713
Rotel	30623
Salora	30741
Samsung	30490, 30573, 30199, 30820, 31635, 32069, 32329, 32489, 33195
Sanyo 30713
Schneider	30539, 30646, 30713
Schoentcch	30713
Scott 31394

Remote Control Codes

DVD
SEG 30713
Semp 30503
Sharp 30630, 30675, 30713,32250, 32474, 32652,32869
Sherwood 30741, 33052
Shinsonic 30533
Silva Schncider 30741
SilverCrest 31152
Skantic 30539, 30713
SM Electronic 31152
Smart 30713
Sony 30533, 30864, 31033,31070, 31431, 31516,31633, 32180
Soundwave 30713
Star Clusters 31152
Strato 31152
Strong 30713
Supervision	31152
Sylvania	30630, 30675
Symphonic	30675
Tamashi	31394
Tandberg	30713
Targa 30741
Tchibo	30741
TCL 32587
TCM	30741
TEAC 34004, 30571, 30741,30675, 31394
Technica	30713
Technics	30490
Techwood	30713
Teletech	30713
Theta Digital	30571
Thomson	30522

DVD
Toshiba	30503, 31639, 32277, 32551, 32705, 33157
Transonic 31394
TVE	30713
United	30675, 30713, 31152
Universum	30741, 30713
Urban Concepts	30503
Vestel	30713
Victor	31597
Vizio	32563
Vtrek 32587
Waltham	30713
Wellington 30713
Wellstar	30713
Wharfcdale 30713
Windsor	30713
Windy Sam	30573
Xbox	30522, 32083
XLogic	31152
Yamaha	30490, 30539, 30646, 30817, 31354, 32298, 32299
Zenith	30503, 30741

Blu-ray Disc
Ambiance	33052
Anthem	32820
Cambridge Audio	32808
Denon 32258, 32748
Dyon	33052
Foehn & Hirsch	33052
Funai 30675
Harman/Kardon	33228
Insignia	30675, 32428, 32596
Integra	32147, 32900, 32910, 33100, 33101, 33500, 33501

Blu-ray Disc
JVC	32855
Lenco	33052
Lexicon	32545
LG	30741, 31602
Limit	33052
Loewe	32474, 32783
Magnavox	30675
Marantz	32414, 32432, 33444
Momitsu	33052
Onkyo	32147, 32900, 32910, 33100, 33101, 33500, 33501
Oppo	32545
Panasonic 31641, 32523	3, 32859
Philips	32084, 32434, 32689
Pioneer	30142, 32442
Samsung	30199, 33195
Sharp 32250, 32474, 32652
Sherwood 33052
Sony 31516, 32180
Sylvania	30675
TASCAM	34004
Toshiba	32551, 32705, 33157
Vizio	32563
Yamaha	32298, 32299

DVD-R
Accurian	30675
Aristona	30646
Denon 30490
Emcerson	30675
Funai 30675
Go Video	30741
GPX	30741
Hitachi	31664
Humax	30646

DVD-R
Irradio	30646
JVC	31597
LG	30741
Loewe	30741
Magnavox	30646, 30675
Medion	30741
Panasonic 30490, 31579, 32523, 32710, 32859
Philips	30646, 31340
Pioncer	30631, 32860
Pye	30646
RCA 30522
Samsung	30490, 31635
Schneider	30646
Sharp 30630, 30675, 32869
Sony 31033, 31070, 31431, 31516, 31633, 32180
Sylvania	30675
Targa 30741
Toshiba	31639, 32277, 32551
Victor	31597
Yamaha	30646
Zenith	30741

HD-DVD
Integra	32901, 33104. 33504
LG	30741
Microsoft 32083
Onkyo	32901, 33104 33504
Xbox	32083

TV/DVD Combination
Akai	11675
Black Diamond 11037,	30713
Blue Sky	11037, 30713
Bush 11037, 10698, 127	19,
	30713

Remote Control Codes

TV/DVD Combination
Centrum 11037, 30713
Crown 11037, 30713
DMTech 12001
Dual 11037, 30713
Dynex 12049
Elfunk 11037, 30713
Emerson 11394, 11864, 30675	11886,
Ferguson 11037, 30713
Goodmans 11037, 30713
Grandin 30713
Grundig 30539
II & B 12001
Hanseatic 12001
Hitachi 11037, 11667, 30713
Insignia 12049
JVC 12271
LG	11423
Logik	11037, 30713
Luxor	11037, 30713
Magnavox	12372
Matsui	11037, 30713
Medion	12719
Nordniende	12001
Odys	12719
Panasonic	12170
Philips	11454, 10556, 11394, 30539
Powerpoint	10698
Prosonic 12001
Pvision	12001
RCA	12746, 12932
Schaub Lorenz	12001
SEG	11037, 12719, 30713
Sharp	10818
Soniq	12493

TV/DVD Combination
Sunstech 12001
Sylvania 10171, 11394,	11864,11886, 30630, 30675
TEAC	10698
Technica	11037, 30713
Telefunken	10698
Teletech	11037, 30713
Thomson 10625
Toshiba 11524
United 11037, 30713
Universum	30713
Vestel	11037
Viewsonic	12049
Weltstar	11037, 30713

18

Memo

Remote Control Codes

19

SN 29401471CODE

(C) Copyright 2013 Onkyo Corporation Japan. All rights reserved.

Y1212-1
