USER MANUAL WPP1366SS BEST

Isometric line drawing of a three-tiered industrial chimney or chimney (no text or symbols)

WPP1 SERIES

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

HOMEOWNER: USE AND CARE INFORMATION ON PAGE 13.

BEST, 926 West State Street, Hartford, Wisconsin, USA 53027 BestRangeHoods.com 800-558-1711 BEST, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 BestRangeHoods.ca 800-567-3855

To register your product online or for additional information visit BestRangeHoods.com (in USA) or BestRangeHoods.ca (in Canada)

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
11. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filters.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — violent steam explosion will result.
4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Your hood motor has a thermal overload which will automatically shut off the motor if it overheats. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
5. The minimum hood distance above cooktop must not be less than 24". A maximum of 30" above cooktop is recommended for best capture of cooking impurities.
6. Two installers are recommended because of the large size and weight of this unit.
7. To reduce the risk of fire and to properly exhaust air on a ducted installation, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl spaces or garage.
8. Because of the high exhausting capacity of this hood, make sure enough air is entering the house. Open a window close to or in the kitchen.
9. To reduce the risk of fire and electrical shock, the Best WPP1 series models should only be installed with their own built-in blowers.
10. As an alternative, this product may be installed with the UL-approved range hood cord kit HCK44, following instructions packed with the cord kit.
11. Please read specification label on product for further information and requirements.

Table of content

1. PREPARE THE INSTALLATION .... 3
2. SELECT INSTALLATION TYPE 4
3. HOOD SPECIFICATIONS....4
4. INSTALL HOOD MOUNTING BRACKET....5
5. INSTALL UPPER FLUE MOUNTING BRACKET 6
6. REMOVE HI-FLOW BAFFLE FILTERS....6
7. INSTALL THE HOOD....7
8. CONNECT WIRING....8
9. INSTALL 8" ADAPTER/DAMPER 9
10. INSTALL 10" ADAPTER/DAMPER....9
11. DUCT CONNECTION....10
12. PREPARE DECORATIVE FLUE....10
13. INSTALL DECORATIVE FLUE....10
14. REINSTALL HI-FLOW BAFFLE FILTERS 12
15. CRT OPTION ACTIVATION INSTRUCTIONS FOR WPP1366SS ONLY 12
16. CALIBRATE IQ BLOWER SYSTEM™ 13
17. USE AND CARE 13
18. OPERATION 14

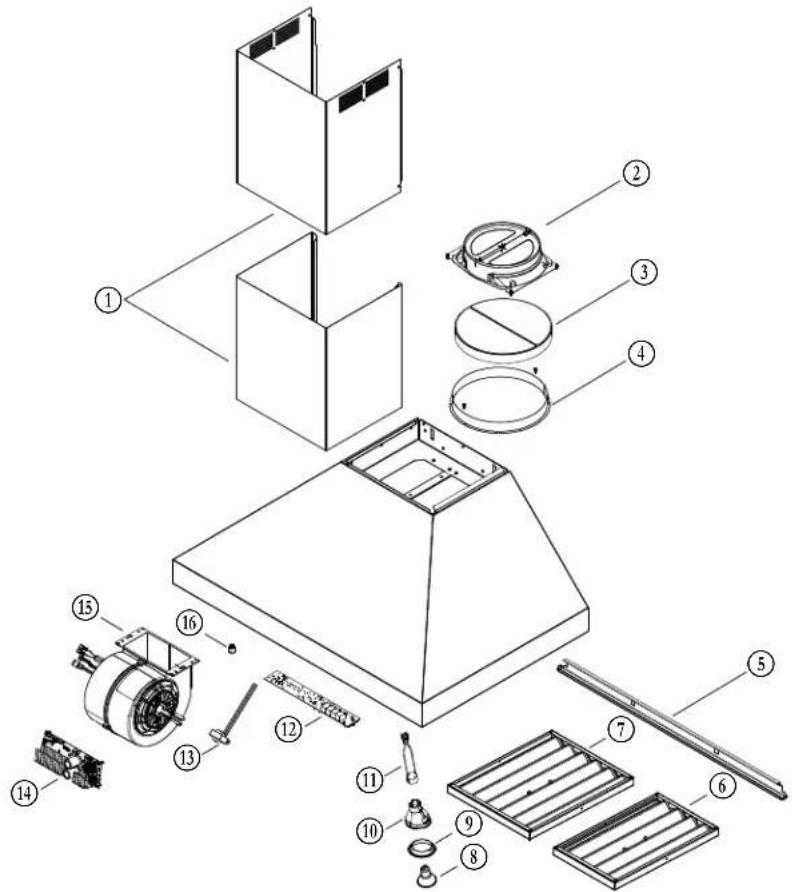

19. SERVICE PARTS....15
20. WARRANTY 16

1. PREPARE THE INSTALLATION

Make sure the following items are included:

• Hood
• Decorative flue
• Upper flue mounting bracket (taped inside the hood)
• Hood mounting bracket (taped inside the hood)
• WPP1366SS: 8" round adapter and damper
• WPP13612SS and WPP14812SS: 10" round adapter and damper
• Installation manual
• Necessary hardware included in parts bag (parts left over are spare parts):

	1 x wire clamp 5 x wall anchors			10 x no. 8 x 1-1/2" screws
	3 x wire connectors 4 x washers			6 x no. 8 x 3/8" screws

Parts sold separately:

• AEWPP1SBN: Decorative flue for ceilings up to 12' high
• HCK44: Cord kit

2. SELECT INSTALLATION TYPE

WARNING

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

Plan where and how the ductwork will be installed. A straight, short duct run will allow the hood to perform most efficiently. Refer to illustration below.

Install 8-inch or 10-inch ductwork, elbows (if needed) and roof or wall cap. Connect metal ductwork to the cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints.

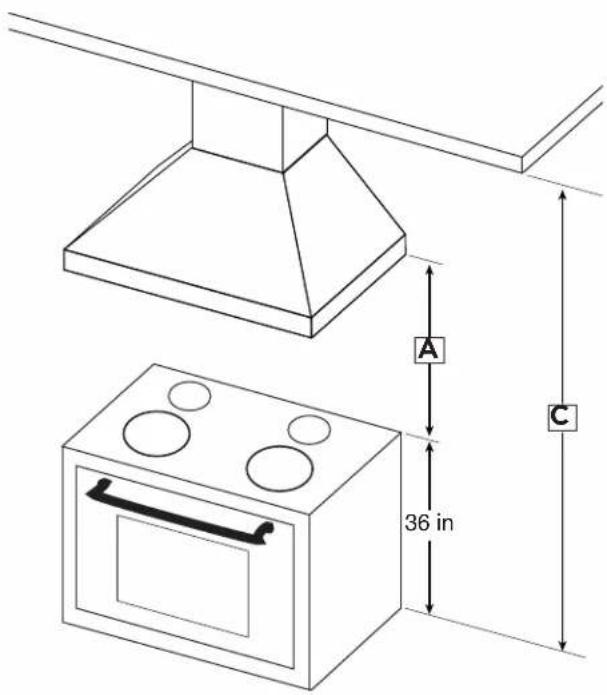

The minimum hood distance above cooktop must not be less than 24". A maximum of 30" above cooktop is recommended for best capture of cooking impurities.

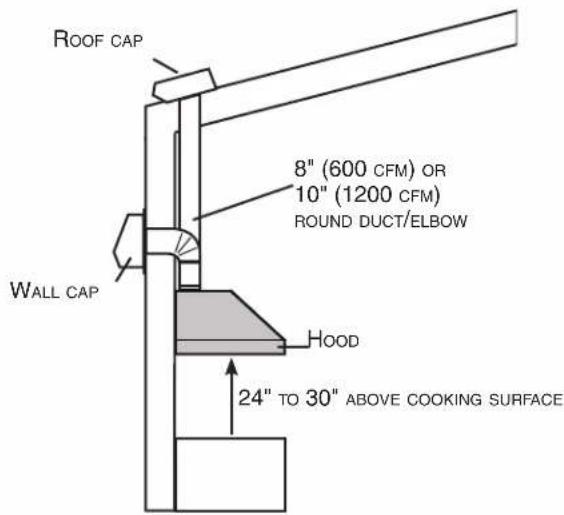

ROOF CAP 8" (600 CFM) OR 10" (1200 CFM) ROUND DUCT/ELBOW WALL CAP HOOO 24" TO 30" ABOVE COOKING SURFACE

3. HOOD SPECIFICATIONS

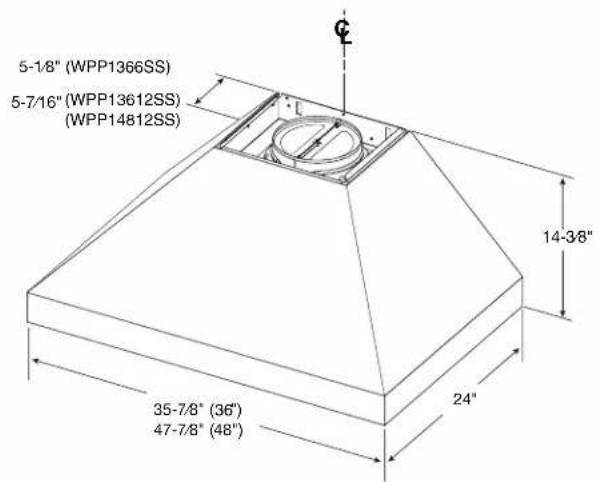

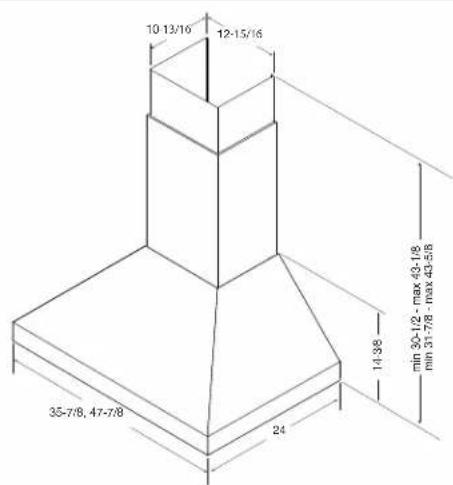

5-1/8" (WPP1366SS) 5-7/16" (WPP13612SS) (WPP14812SS) 14-3/8" 35-7/8" (36") 47-7/8" (48") 24"

10 13/16 12-15/16 35-7/8, 47-7/8 24 14 38 min 30-1/2 - max 43-1/8 min 31-7/8 - max 43-5/8

4. INSTALL HOOD MOUNTING BRACKET

WARNING

When cutting or drilling into wall, do not damage electrical wiring and other hidden utilities.

Ensure that the wall is solid enough to withstand the weight of the hood.

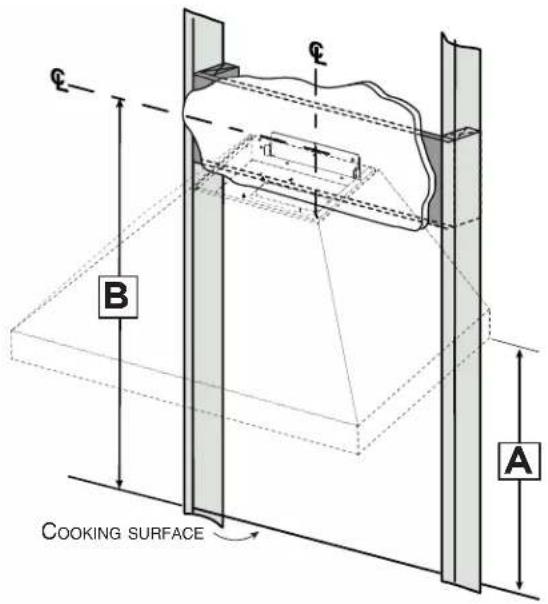

If necessary, construct a wall framing using minimum 2" x 4" lumber. Proper structural support is required to accommodate the weight of the hood. After the wall surface is finished, measure and mark the center of the holes on the bracket; draw the vertical center line up to the ceiling. Carefully center and level the hood mounting bracket over the installation location. Secure it to the wall framing using 3 no. 8 x 1½" screws.

A	B
Hood distance above cooktop (in)	Mounting bracket holes distance above cooktop (in)
24 38-7/8
25 39-7/8
26 40-7/8
27 41-7/8
28 42-7/8
29 43-7/8
30 44-7/8

Φ B Cooking surface A Φ

Standard flue	C	A
	Ceiling height Hood distance above cooktop (in)
	7 ft 7 in to 8 ft 7 in 24 to 30
	8 ft 8 in 25 to 30
	8 ft 9 in 26 to 30
	8 ft 10 in	27 to 30
	8 ft 11 in	28 to 30
	9 ft	29 to 30
	9 ft 1 in	30
*Lower part of optional flue AEWPP1SBN + Upper part of standard flue	9 ft 2 in to 9 ft 6 in	24 to 30
Optional flue AEWPP1SBN	9 ft 7 in to 11 ft 8 in	24 to 30
	11 ft 9 in	25 to 30
	11 ft 10 in	26 to 30
	11 ft 11 in	27 to 30
	12 ft	28 to 30
	12 ft 1 in	29 to 30
	12 ft 2 in	30

A 36 in C

5. INSTALL UPPER FLUE MOUNTING BRACKET

NOTE: The upper flue mounting bracket is taped inside the hood, but the mounting bracket screws are in the parts bag of the hood.

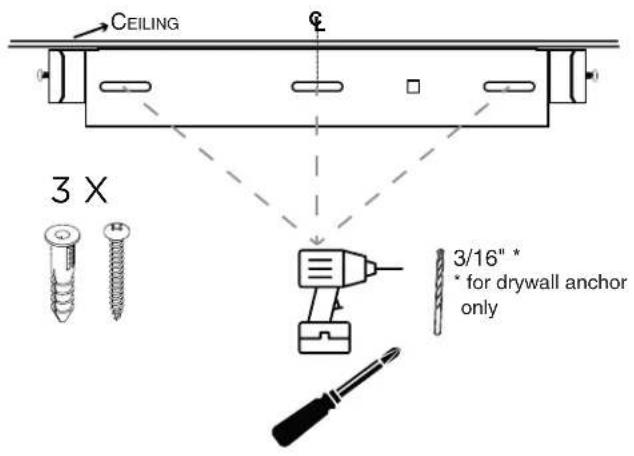

Center the upper flue mounting bracket with the center line drawn in the previous step and place it flush with the ceiling.

Use the upper flue mounting bracket as a template to mark the position of the screws.

Secure the upper flue bracket to the wall using 3 no. 8 x 1½" screws and wall anchors if needed.

Ensure that the bracket is tight against the wall.

CEILING 3 X 3/16" * * for drywall anchor only

6. REMOVE HI-FLOW BAFFLE FILTERS

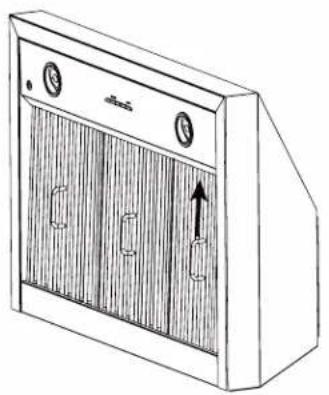

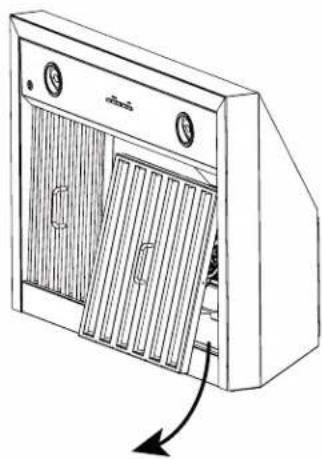

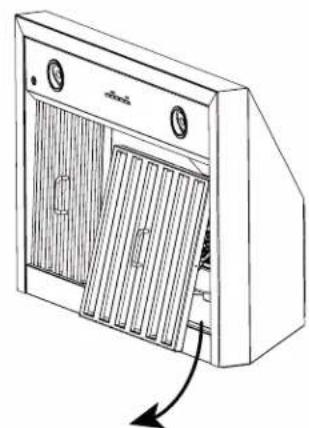

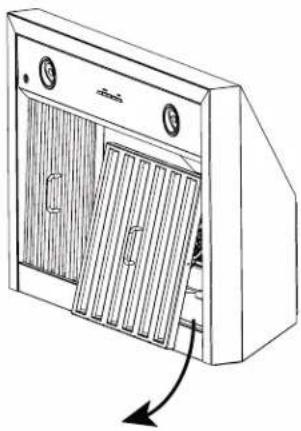

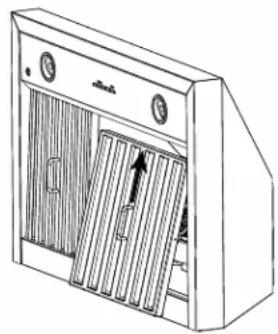

Rest the range hood on a protected surface and remove the tape from the filters. Remove the filters from the range hood by pushing them towards the nose of the hood and rotate downwards. Remove the parts bag and the hood mounting bracket from inside the hood and set these parts aside.

CAUTION

Keep tapes (2) holding the grease rail in place until hood is installed on the wall.

Line drawing of a cabinet with ventilation grilles and control knobs (no text or symbols)

Line drawing of a cabinet with ventilation grilles and a door, showing a directional arrow (no text or symbols)

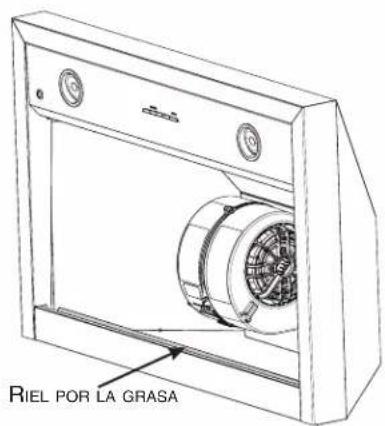

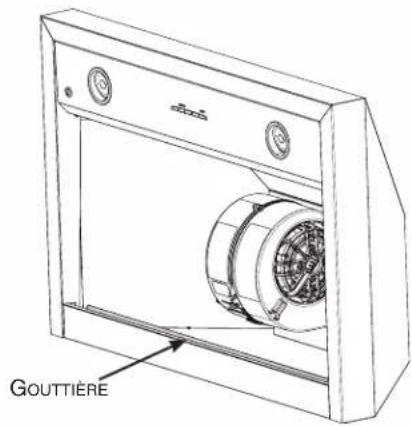

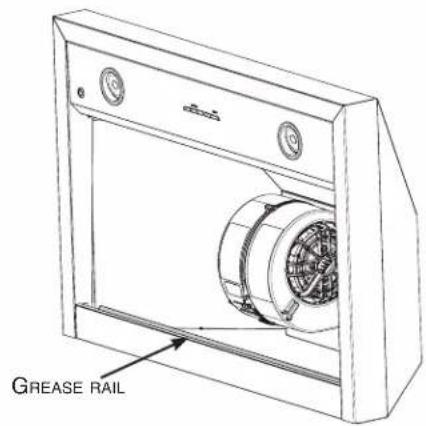

GREASE RAIL

7. INSTALL THE HOOD

WARNING

BE CAREFUL when installing the decorative flue and hood, they may have sharp edges.

CAUTION

DO NOT REMOVE the protective plastic film covering the decorative flue.

1. Align the hood and center it above the hood mounting bracket. Gently lower the hood until it securely engages the bracket.
2. Level the hood.

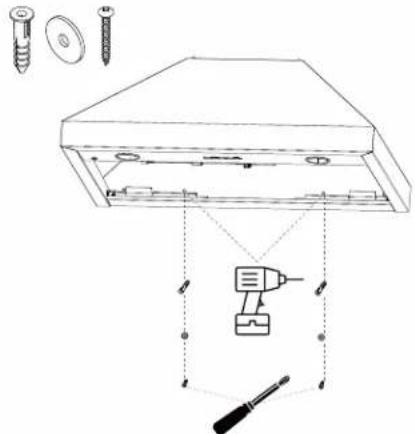

3. While the hood is hanging in place, secure it to the wall through both holes located in the upper back of hood using 2 no. 8 x 1½" screws and washers.

Technical line drawing of a mechanical assembly with mounting brackets and a curved component (no text or symbols)

1. Using at least 1 hole on each side of the lower back of the hood, secure the hood into solid material (wall studs) using 2 no. 8 x 1½" screws and washers. If required, pre-drill holes using a 3/16" drill bit then insert wall anchors before securing the screws. 2 X

Technical diagram showing exploded view of a mechanical assembly with screw, nut, and tool components labeled

8. CONNECT WIRING

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

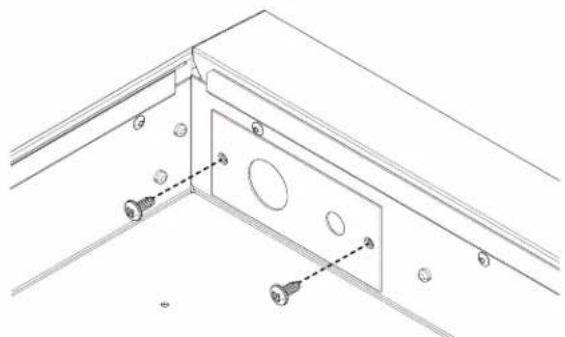

1. Remove strain relief plate.

Technical line drawing of a mechanical bracket with mounting holes and screws (no text or symbols)

1. Install strain relief.

Technical line drawing of a mechanical assembly with three views (front, side, and top) showing bolted components (no text or symbols)

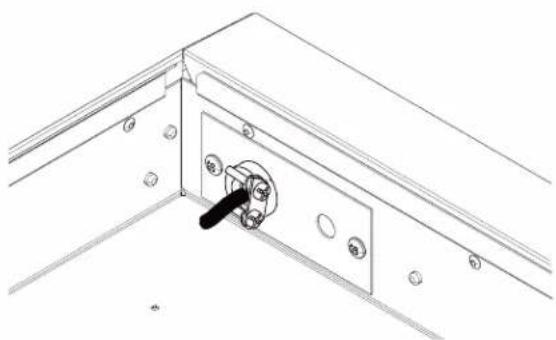

1. Insert the house wiring cable through the wire clamp and tighten the wire clamp screws to secure the cable.

2. Reinstall strain relief plate.

Diagram of a cable inserted into an electrical socket with two wires (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a central switch (no text or symbols)

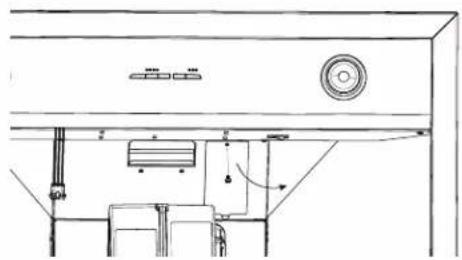

1. From inside the hood, remove electrical cover.

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

8. CONNECT WIRING (CONTINUED)

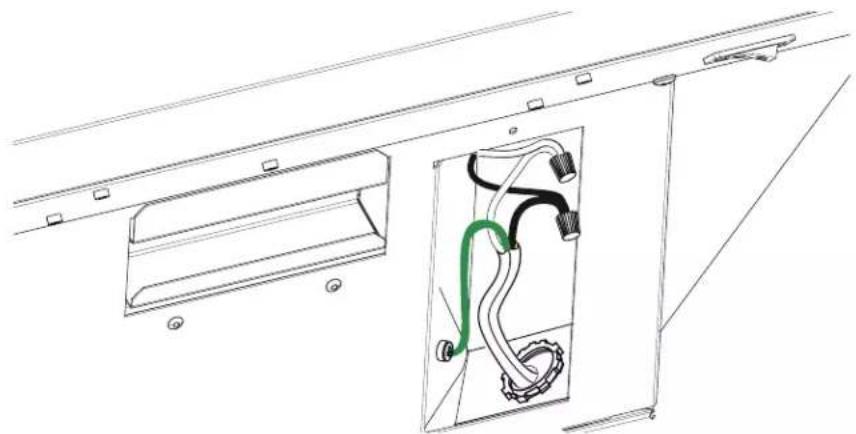

1. Connect the power cable to the range hood wires using provided wire connectors. Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw located inside the hood. DO NOT FORGET TO CONNECT THE GROUND.

2. Reinstall electrical cover removed at step 5.

Technical line drawing of an electrical cabinet with internal wiring and a green cable (no text or symbols)

CAUTION

Make sure not to pinch any wire when reinstalling the electrical cover.

9. INSTALL 8" ADAPTER/DAMPER

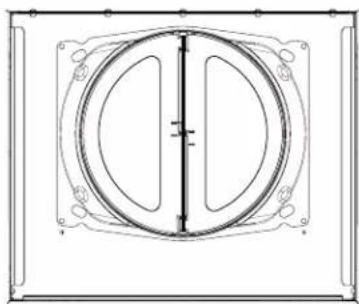

Using 4 no. 8 x 3/8" screws from parts bag, assemble the adapter/damper on the top of the hood. To ensure proper opening of the dampers, remove shipping tape if present. Seal all joints with metal foil duct tape to eliminate air leaks.

Pure technical diagram of a circular mechanical component with mounting flanges and central vertical axis (no text or symbols)

10. INSTALL 10" ADAPTER/DAMPER

① Using 2 no. 8 x 3/8" screws from parts bag, assemble the adapter on the top of the hood. Seal all joints with metal foil duct tape to eliminate air leaks.

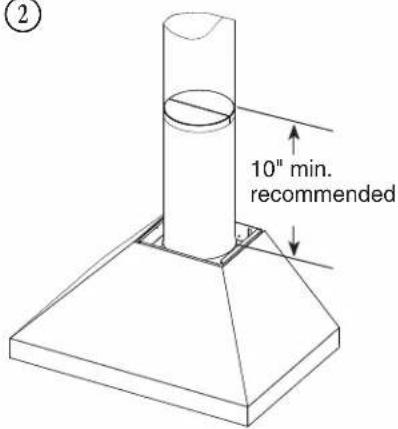

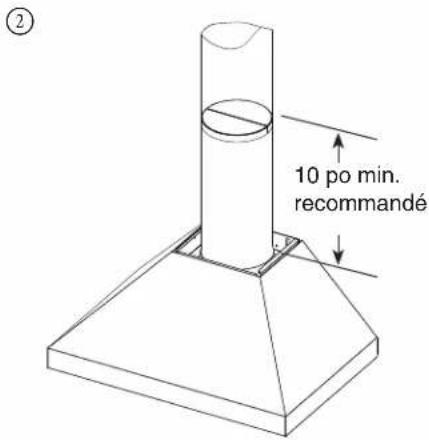

② Install 10" in-line damper inside the vertical ductwork that will be attached to the hood. Do not install in a horizontal ductwork or it will not open and close properly. Remove shipping tape if present. Secure the damper to the duct with 3 no. 8 sheet metal screws (not provided). Ensure damper opens and closes freely. Seal all joints with metal foil duct tape to eliminate air leaks.

①

Technical line drawing of a conical-shaped mechanical component with a circular top and internal cavity (no text or symbols)

②

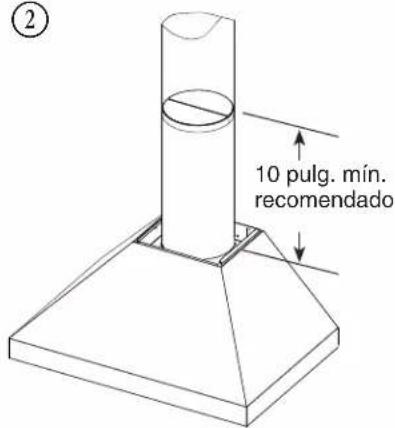

② 10" min. recommended

11. DUCT CONNECTION

Slide a 8" or 10" metal round duct over the adapter ring on top of the hood. Use metal foil duct tape to seal the joint.

10" shown

Diagram of a cylindrical container being inserted into a square base, with an arrow indicating the direction (no text or symbols present)

12. PREPARE DECORATIVE FLUE

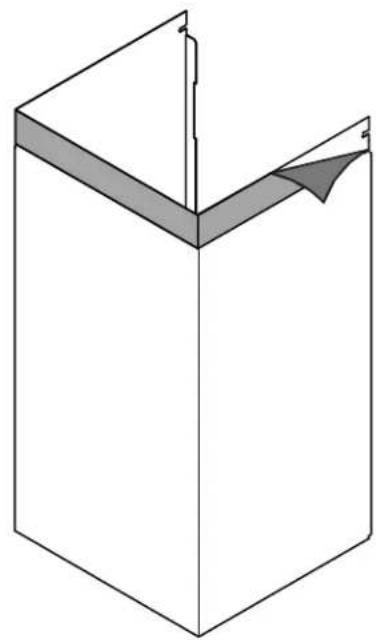

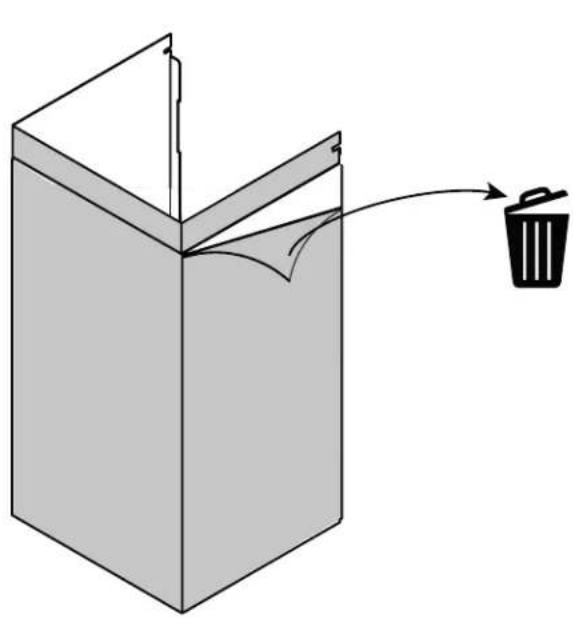

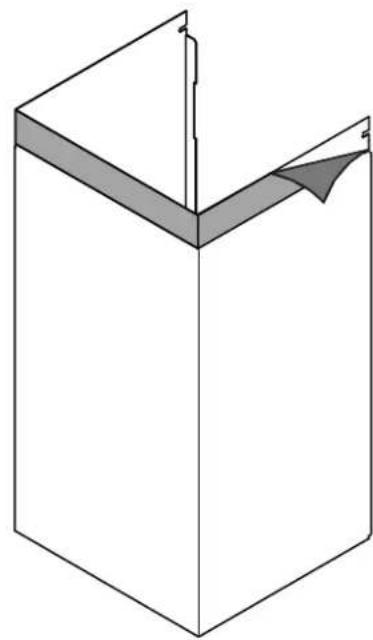

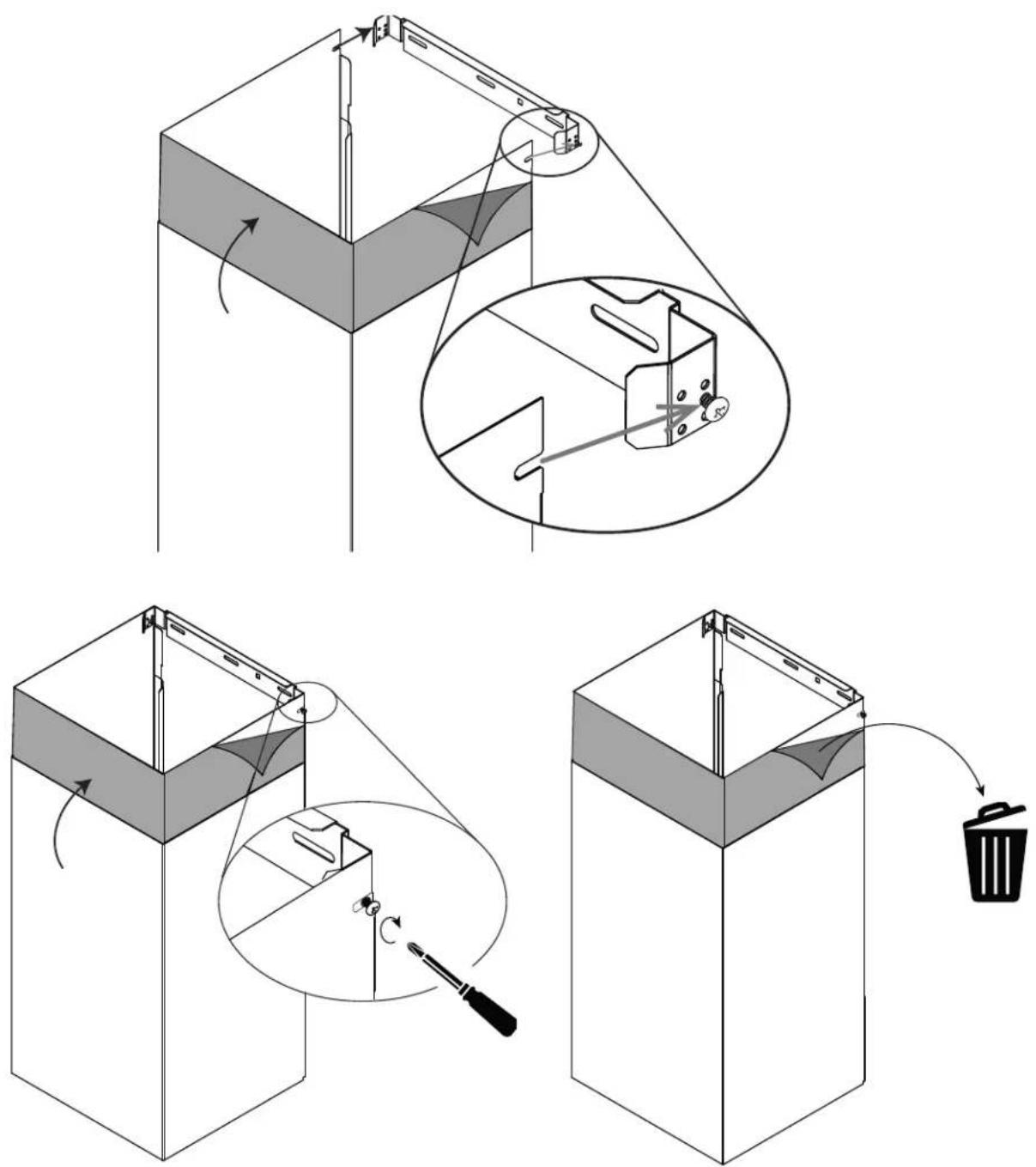

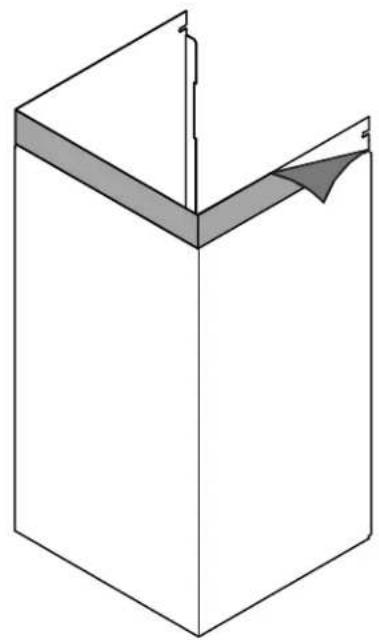

Remove protective film on the lower part. Begin removing protective film on the upper part.

Simple line drawing of a box with a trash bin, no text or symbols present

Isometric line drawing of a 3D rectangular prism with a V-shaped cutout and shaded base (no text or symbols)

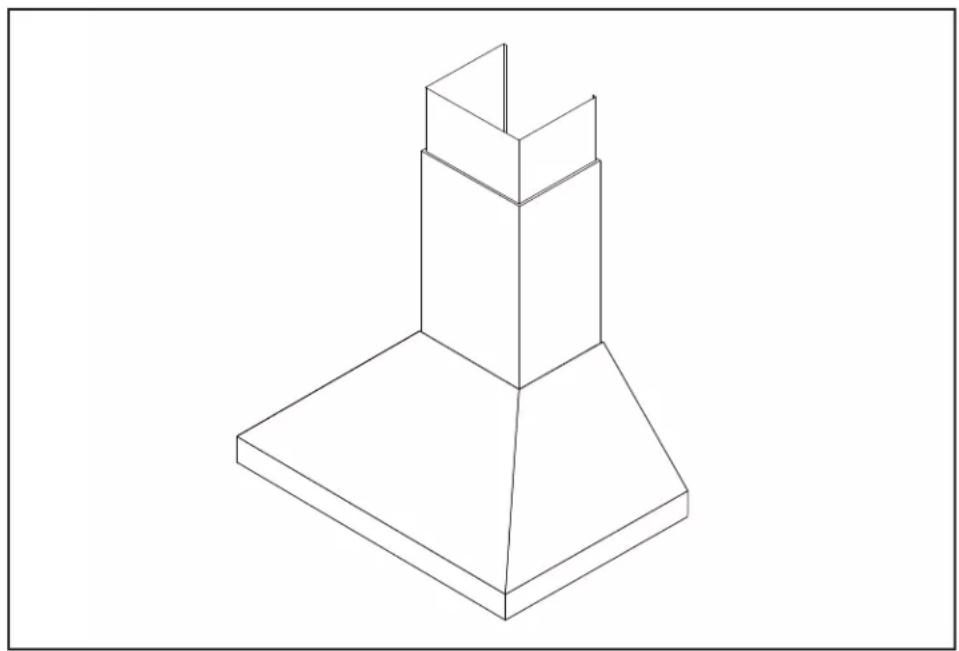

13. INSTALL DECORATIVE FLUE

Simple line drawing of a mechanical setup with a block and support structure (no text or symbols)

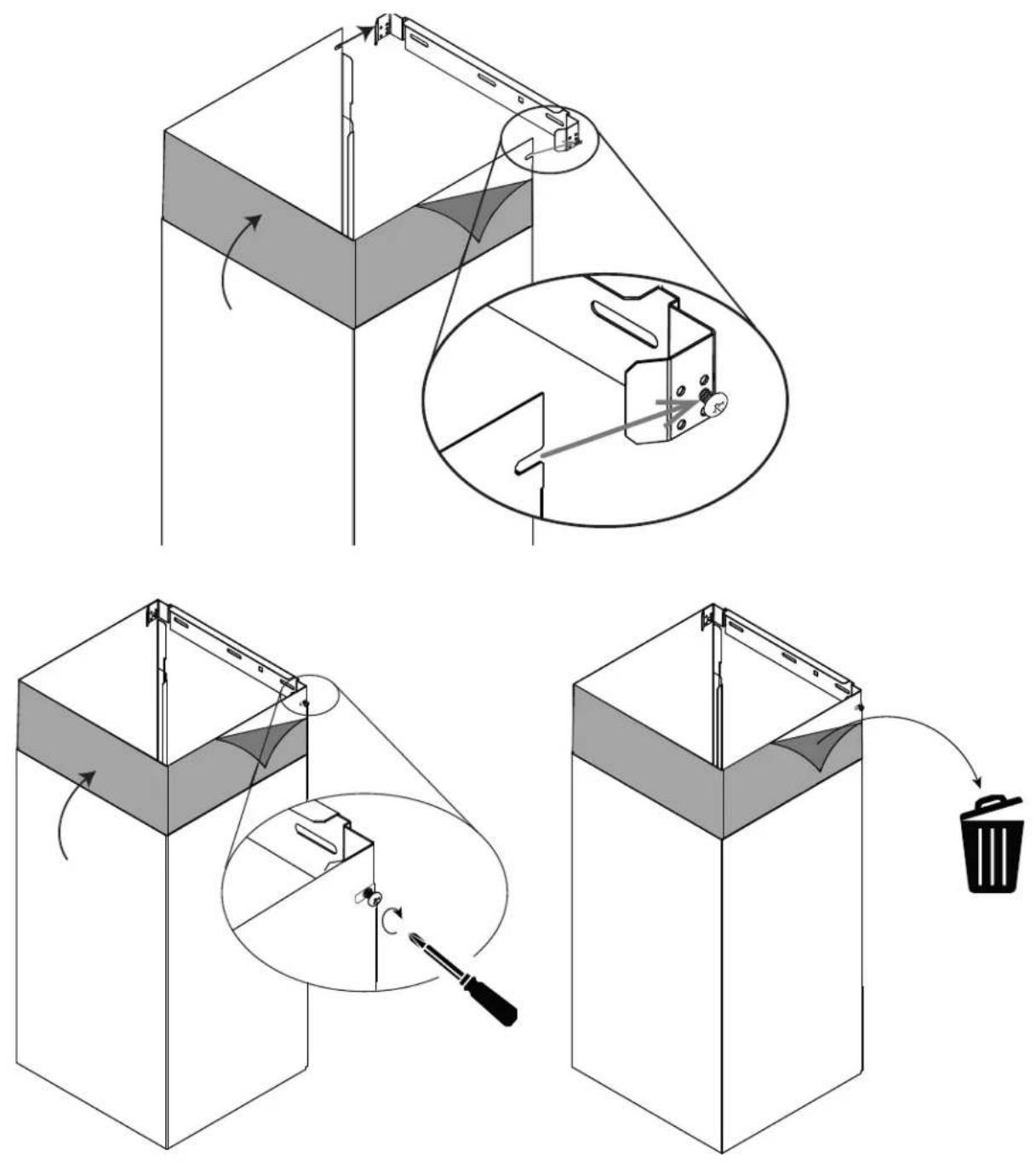

13. INSTALL DECORATIVE FLUE (CONTINUED)

14. REINSTALL HI-FLOW BAFFLE FILTERS

CAUTION

Remove protective plastic film covering hybrid baffle filters before installing them.

CAUTION

Remove tapes (2) holding the grease rail in place.

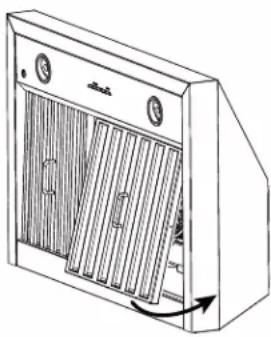

① Insert the end of the hybrid baffle filter in the front channel of the hood.

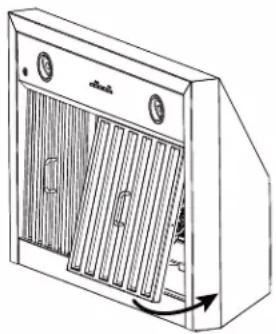

② Raise the other end toward the inside and insert it in the back channel of the hood.

①

Technical line drawing of a cabinet or enclosure with internal compartments and ventilation grilles (no text or symbols)

②

Line drawing of a cabinet with ventilation grilles and fan gauges (no text or symbols)

15. CRT OPTION ACTIVATION INSTRUCTIONS FOR WPP1366SS ONLY

WARNING

Risk of electrical shock. This procedure must be done by qualified personnel in accordance with all applicable codes and standards. Before proceeding, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

IMPORTANT NOTE: The CRT (Code Ready Technology™) option allows changing the blower output from the factory setting (600 CFM) to a maximum of 400 CFM or 300 CFM. The CRT option activation will reduce the hood airflow thus performing within the minimal allowable limit of Make-Up Air (MUA) codes to meet some building code requirements. Do not attempt to change the factory blower CFM setting unless this change is required. This change will alter the performance of your product.

How to activate the CRT option:

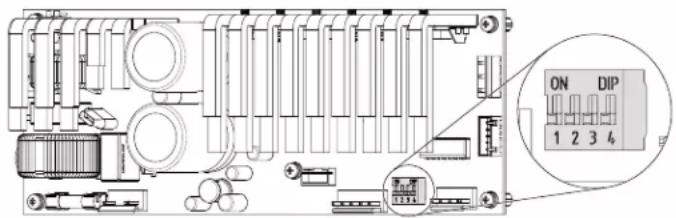

1. Locate the dip switches on the electronic board.

ON DIP 1 2 3 4

1. Using a precision screwdriver, set the dip switches as per one of the illustrations hereafter.

ON 1 2 3 4 —— 300 CFM SETTING

ON 1 2 3 4 — 400 CFM SETTING

1. Locate the label, next to the blower specifications label, then mark the corresponding box.

16. CALIBRATE IQ BLOWER SYSTEM™

After the hood is installed and wired, engage the calibration process (our Guaranteed Performance System Technology to ensure full-rated airflow is being delivered). Prior to calibration, ensure that all filters, light bulbs and duct system are installed.

CALIBRATION PROCESS

Hold the calibration button for 3 seconds; calibration button will light up and stay on for up to 13 minutes. The blower will start and begin the calibration process. When calibration is complete, one of two things will occur:

A. The blower turns off and calibration button light stays on = Successful calibration. Press the button to turn off the LED. NOTE: The LED will also turn off if you select any blower speed on the control.
B. The blower turns off and calibration button light blinks continuously = Too much restriction in the ductwork is preventing the IQ Blower System™ from achieving the rated airflow. The blower is automatically set to maximum intensity.

NOTE: Common items that cause restrictions: restricted damper flap (backdraft damper, wall cap, roof cap), too many elbows, duct size less than 80% of hood outlet, poor transition, use of flex ducting and/or crushed ducting.

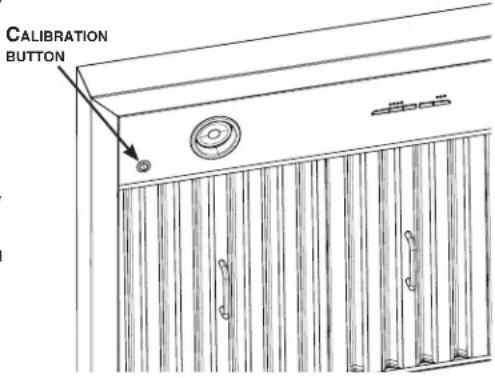

CALIBRATION BUTTON

Three options are available if your hood system has too much restriction:

1. Accept airflow as is. Press the calibration button to accept airflow as is. The IQ Blower System™ is now configured to its highest possible performance. The blinking calibration light goes out. NOTE: The LED will also turn off if you select any blower speed on the control.
2. Correct duct restriction, clear the original calibration data, and repeat the calibration process.

a. Correct the duct restriction.

b. Clear the original calibration data by holding calibration button for 10 seconds. The light will blink 3 times to confirm and the blower configuration will go back to default settings.

c. Repeat calibration process from the beginning.

1. Clear calibration data to reset hood to default factory settings and achieve standard high pressure blower performance by holding calibration button for 10 seconds. The light will blink 3 times to confirm and the blower configuration will go back to default settings.

17. USE AND CARE

Hi-Flow Baffle Filters

The hybrid baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease — like frying foods or wok cooking.

Remove hybrid baffle filters by pushing them towards the front of hood and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them in the hood.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty.

Grease Rail Cleaning

The grease drip rail should be cleaned frequently. Remove it from the hood (see hereafter) and use a warm detergent solution. As with the baffle filters, wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it in the hood.

Foam Cleaning

Hood is equipped with sound absorbing foam. Gently clean foam surface using a soft cloth.

Hood Cleaning

Stainless steel cleaning:

SOUND ABSORBING FOAM

Diagram of a mechanical assembly inside a housing, showing internal components and directional arrows (no text or labels)

GREASE RAIL

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  • Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the hood to make sure no dust sticks to stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

18. OPERATION

Always turn your blower on before you begin cooking to establish an airflow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range.

A) Blower delay-off button
B) ON blower/Speed control button
C) OFF blower!
Filter maintenance button
D) OFF lighting
E) ON light button (3 settings)

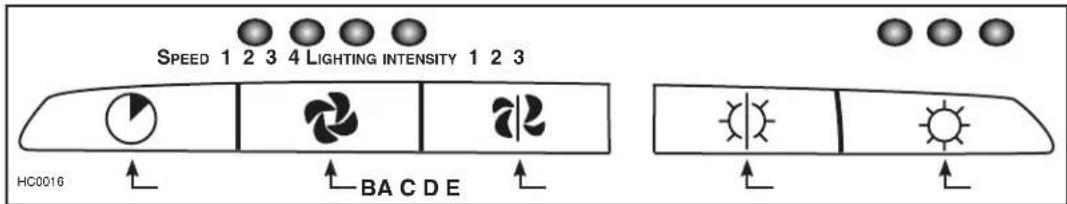

SPEED 1 2 3 4 LIGHTING INTENSITY 1 2 3 HC0016 BACDE

A. BLOWER DELAY-OFF BUTTON:

When blower is on, press the delay-off button to activate the delay-off function. The corresponding speed indicator LED will start flashing to indicate this function is activated. The fan will continue to operate for 10 minutes and will stop automatically. To cancel the delay-off function, press the blower delay-off button once again; the blower will then work in normal mode.

NOTE: The blower speed can be increased—or decreased—during delay-off mode without starting another 10-minute cycle.

B. ON BLOWER/SPEED CONTROL BUTTON:

Press this button to turn on the blower at the last selected speed. To change the blower speed, press the button again until the desired speed is obtained. Press and hold this button for 2 seconds to decrease the speed level down by one increment. Possible decreases are then: 4 to 3; 3 to 2; 2 to 1 and 1 to OFF.

NOTES: 1. Each time you press the speed control button, the speed changes by increments of 1 (e.g.: speed 1 to speed 2, to speed 3, and then speed 4). From the fourth speed, the speed goes down to level 1.
2. The last speed used is kept in memory so that when the unit is turned on, it will return to the last setting except the fourth, the next time the blower will be turned on, it will return to speed 3.

HEAT SENTRY™

The hood is equipped with a protective device that activates when excessive heat is detected inside the hood. This device takes control of the blower and deactivates speed 4 for a 10-minute period and sets it on speed 3. During the Heat Sentry activation, only speed 3 can be used; the speed 4 button will flash while the speed 3 button will light up.

WARNING

The HEAT SENTRY can start the blower during a range top fire or other excessive heat situations even if the hood is turned off. In this case, it is impossible to turn the blower OFF with blower button. If you must stop the blower, do it from the main electrical panel.

C. OFF BLOWER/FILTER MAINTENANCE BUTTON:

Press this button to turn off the blower. Pressing this button also cancels the delay-off function (if activated).

NOTE: After 25 hours of operation, the 4 blower speed lights will flash 30 seconds to indicate the filters need to be cleaned in order to maintain efficient hood operation. Pressing the OFF button will reset the code to indicate that maintenance has been completed.

D. OFF LIGHTING:

Press this button to turn lights off.

E. ON LIGHT BUTTON:

Press this button to turn on the LED lamps. The light intensity changes by increments of 1 (e.g.: Press once for low setting, once again for medium, again for high). From the higher setting, press once to go back to the lower setting.

NOTE: The last light setting used is kept in memory. The next time the LED lamps are turned on, the last setting will be used.

19. SERVICE PARTS

Exploded view diagram of a refrigerator with numbered parts for identification

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use BEST genuine replacement parts only. BEST genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. BEST recommends to contact a certified service depot for all replacement parts and repairs.

KEYNO.	PART NO. DESCRIPTION		QTY. (HOOD MODEL)
			WPP1366SS	WPP13612SS W	PP14812SS
1	S1111342	UPPER AND LOWER FLUE	1	1	1
2	SV08543	8" ADAPTER/DAMPER	1
3	SV08542	10" DAMPER		1	1
4	SV08541	10" ADAPTER		1	1
5	S1111830	GREASE RAIL 36"	1	1
	S1111831	GREASE RAIL 48"			1
6	S1110640	HYBRID BAFFLE FILTER (8.84" x 15")	1	1	5
7	S1110641	HYBRID BAFFLE FILTER (11.84" x 15")	2	2
8	S1110531	LED BULB GU10 BASE	2	2	4
9	SV09434	STAINLESS STEEL LIGHT TRIM	2	2	2
10	SV05917	SOCKET GU10	2	2	2
11	SV09435	SOCKET HOLDER GU10	2	2	2
12	SV20814	BLOWER ELECTRONIC CONTROL	1	1	1
13	SV09022	TRANSFORMER 120 VAC 9 VOLT DC	1	1	1
14	SV21416	SINGLE MOTOR ELECTRONIC DRIVE	1
	SV20818	DUAL MOTOR ELECTRONIC DRIVE		1	1
15	S97018985	BLOWER 600 CFM	1	2	2
16	S1111298	CALIBRATION BUTTON	1	1	1
*	S1111897	OVERCURRENT PROTECTION HARNESS	1	1	1
*	SV21418	HIGH VOLTAGE SINGLE BLOWER HARNESS	1
*	SV20824	HIGH VOLTAGE DUAL BLOWER HARNESS		1	1
*	S1111341	PARTS BAG AND BRACKETS	1	1	1

* NOT SHOWN.

20. WARRANTY

FIVE-YEAR LIMITED WARRANTY FOR BEST® PRODUCTS

Warranty Period and Exclusions: Broan-NuTone, LLC (the "Company") warrants to the consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the materials or its workmanship for a period of five (5) years from the date of original purchase (or such longer period as may be required by applicable law) or a period of two (2) years from the date of service for any labor provided on the Product.

The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (f) damage caused by exposure to salt air, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, (j) damage caused by fire, flood or other act of God, or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to consumers in North America. This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective Products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions (which may include the Province of Quebec or specific US states) do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty. The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control.

PRODUCT SPECIFICATIONS

All illustrations and specifications in this catalog are based on the latest product information available at time of production. Broan-NuTone, LLC and BEST® reserves the right to make changes at any time, without notice, in prices, colors, materials, equipment, specifications and models, place of manufacture and to discontinue models or equipment.

BEST, 926 West State Street, Hartford, Wisconsin, USA 53207 BestRangeHood.com 800-558-1711

BEST, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 BestRangeHoods.ca 800-567-3855

best®

Isometric line drawing of a three-tiered industrial chimney or chimney (no text or symbols)

SÉRIE WPP1

CONÇUE POUR USAGE DOMESTIQUE SEULEMENT

LIRE ET CONSERVER CES DIRECTIVES

INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE. PROPRIÉTAIRE : DIRECTIVES D'ENTRETIEN EN PAGE 29.

BEST, 926 West State Street, Hartford, Wisconsin, USA 53027 BestRangeHoods.com 800 558-1711 BEST, 550 boul. Lemire, Drummondville, Québec, Canada J2C 7W9 BestRangeHoods.ca 800 567-3855

Line drawing of a cabinet with ventilation grilles and directional arrows (no text or symbols)

Line drawing of a cabinet with ventilation grilles and control knobs (no text or symbols)

GOUTTIÈRE

7. INSTALLER LA HOTTE

AVERTISSEMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing assembly of screw and nut components with labeled parts and exploded view

8. EFFECTUER LES BRANCHEMENTS

! AVERTISSEMENT

Technical line drawing of a mechanical bracket with screws and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with three components (no text or symbols)

Diagram of a cable being inserted into an electrical socket (no text or symbols present)

Technical line drawing of a mechanical bracket with mounting holes and a central socket (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

8. EFFECTUER LES BRANCHEMENTS (SUITE)

Technical line drawing of an electrical cabinet or enclosure with internal wiring and mounting brackets (no text or symbols)

ATTENTION

Pure technical diagram of a circular mechanical component with mounting holes and internal divisions (no text or symbols)

10. INSTALLER LE VOLET/ADAPTATEUR DE 10 PO

Technical line drawing of a conical mechanical component with a circular top and rectangular base (no text or symbols)

② 10 po min. recommandé

11. RACCORDER LE CONDUIT

10 po illustré

Diagram of a container with a trash bin, showing an open lid and a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D rectangular prism with a V-shaped cutout and shaded base (no text or symbols)

13. INSTALLER LE CONDUIT DÉCORATIF

Simple line drawing of a mechanical setup with a block and support frame, no text or symbols present

13. INSTALLER LE CONDUIT DÉCORATIF (SUITE)

14. RÉINSTALLER LES FILTRES À CHICANES HYBRIDES

ATTENTION

Line drawing of a cabinet or enclosure with ventilation grilles and control knobs (no text or symbols)

②

Line drawing of a cabinet or air conditioner unit with ventilation grilles and control knobs (no text or symbols)

15. INSTRUCTIONS D'ACTIVATION DE L'OPTION CRT POUR WPP1366SS SEULEMENT

AVERTISSEMENT

ON DIP 1 2 3 4

ON 1 2 3 4

RÉGLAGE 300 pi³/min

ON 1 2 3 4

RÉGLAGE 400 pi³/min

Diagram of a vehicle inside a vehicle enclosure with directional arrows indicating motion (no text or symbols)

GOUTTIÈRE

Exploded view diagram of a refrigerator with numbered parts for identification

PIÈCES DE REMPLACEMENT ET SERVICE

SPÉCIFICATIONS DU PRODUIT

Isometric line drawing of a three-tiered industrial chimney or chimney (no text or symbols)

SERIE WPP1

⚠ EXCLUSIVAMENTE PARA COCINAS DOMÉSTICAS⚠

LEA ESTAS INSTRUCCIONES Y GUÁRDELAS

INSTALADOR: ENTREGUE ESTE MANUAL AL PROPIETARIO DE LA CASA.

BEST, 926 West State Street, Hartford, Wisconsin, USA 53027 BestRangeHoods.com 800-558-1711

BEST, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 BestRangeHoods.ca 800-567-3855

Line drawing of a vintage air conditioner unit with cooling fins and vent gels (no text or symbols)

Line drawing of a cabinet with ventilation grilles and control knobs (no text or symbols)

RIEL POR LA GRASA

7. INSTALE LA CAMPANA

ADVERTENCIA

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing assembly of screw and nut components with labeled parts and a tool inside a device.

Technical line drawing of a mechanical bracket with screws and mounting holes (no text or symbols)

1. Instale la abrazadera.

Technical line drawing of a mechanical assembly with two components and circular features (no text or symbols)

Diagram of a cable inserted into an electrical socket with two wires (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a central socket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an electrical cabinet or enclosure with internal wiring and a green cable (no text or symbols)

PRECAUCIÓN

Pure technical diagram of a circular mechanical component with mounting flanges and central vertical line (no text or symbols)

Technical line drawing of a conical mechanical component with a circular top and internal structure (no text or symbols)

②

Diagram of a box with a trash bin, showing a cut and an arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D rectangular prism with a V-shaped cutout and shaded base (no text or symbols)

13. INSTALE LA CHIMENEA DECORATIVA

Simple line drawing of a mechanical setup with a block and support frame, no text or symbols present

Line drawing of a cabinet with ventilation grilles and control knobs (no text or symbols)

Line drawing of a cabinet with ventilation grilles and control knobs (no text or symbols)

ON DIP 1 2 3 4

Line drawing of a cabinet or enclosure with vertical slats and a circular vent (no text or symbols)

Diagram showing a room interior with furniture and directional arrows indicating movement or orientation.

RIEL POR LA GRASA

Debe hacerse:

Exploded view diagram of a refrigerator with numbered parts for identification

BEST, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 BestRangeHoods.ca 800-567-3855
