USER MANUAL EQ300 TF303E08 SIEMENS

Simple white line drawing of a yin-yang symbol on dark background (no text or symbols)

Line drawing of a kitchen appliance with a handle and base, showing internal components and a curved arrow indicating motion (no text or symbols)

3

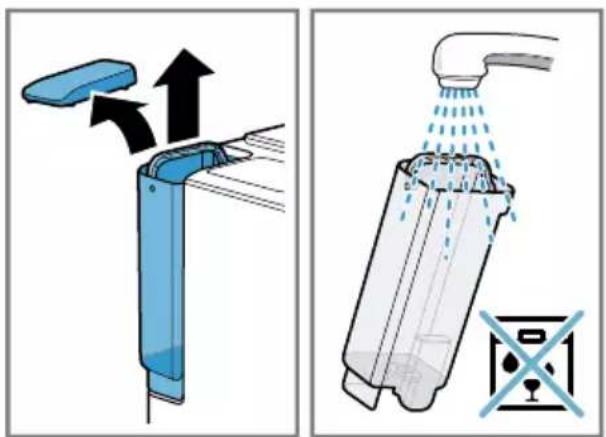

Illustration of a faucet spraying water with a bucket, accompanied by a battery icon and checkmark (no text or symbols)

4

Two-step diagram showing a mechanical assembly with a blue cylindrical component and a magnified inset of a device (no text or symbols)

5

Diagram illustrating a mechanical device with directional arrows and a water drop mechanism, accompanied by a warning symbol.

6

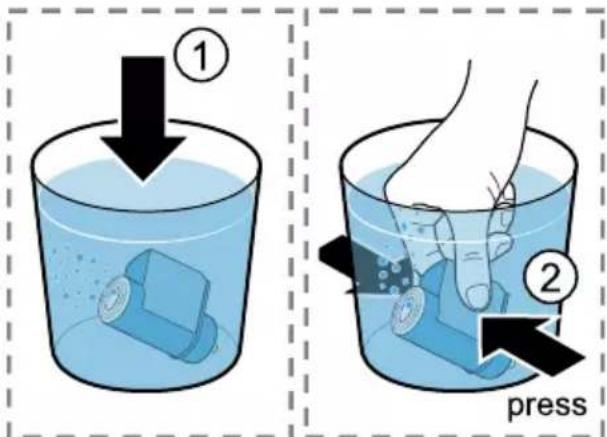

① ② press

7

Diagram illustrating a mechanical device with labeled components and directional arrows, including a circular component with rotation arrow and a 3D container with internal structure.

8

Diagram illustrating a water spray device with liquid flow and a mechanical component, showing fluid movement and assembly steps.

9

Illustration of a computer with a blue tray and an open pill, showing a downward arrow and falling pills into a tray (no text or symbols)

10

2

1

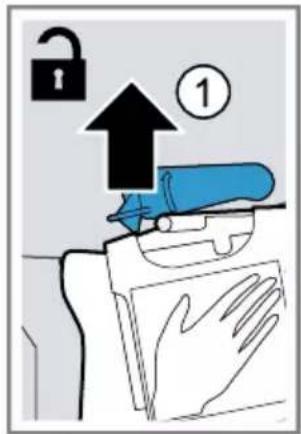

Diagram illustrating a lock mechanism with an upward arrow and numbered step 1, showing hand positioning and safety symbols.

Diagram showing a hand holding a device with a black arrow and number 2, indicating a step or action.

Diagram of a hand washing machine with water spray, showing no text or symbols on the diagram itself

19

Illustration of a mechanical component being processed with a blue tool, no text or symbols present

Illustration of hands cleaning a device with a blue cloth (no text or symbols)

21

Line drawing of a hand cleaning a wall-mounted device with a blue cloth (no text or symbols)

CLICK

23

Diagram of a mechanical device with blue components and an arrow indicating motion (no text or symbols)

24

CLICK

25

QR code image containing encoded data, no visible human-readable text

Inhaltsverzeichnis

1 Sicherheit 8

Illustration of a solar panel with cooling towers and cooling fans (no text or symbols)

Four abstract icons: a rolled-up document, a rectangular block with X marks, a rolled-up cloth, and a textured circular object (no text or symbols)

Tipps

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Further information and explanations are available online:

QR code image containing encoded data, no visible human-readable text

Table of contents

1 Safety.... 37

1.1 General information...... 37
1.2 Intended use.... 37
1.3 Restriction on user group...... 37
1.4 Safety information.... 37

2 Environmental protection and saving energy.... 41

2.1 Disposing of packaging ..... 41
2.2 Tips for saving energy...... 41

3 Installation and connection..... 41

3.1 Scope of delivery.... 41
3.2 Installing and connecting the appliance.... 41

4 Familiarising yourself with your appliance.... 42

4.1 Appliance 42
4.2 Control panel.... 42
4.3 Display.... 43

5 Accessories.... 43

6 Before using for the first time .. 44

6.1 Preparing and cleaning the appliance.... 44
6.2 Performing initial start-up ..... 44
6.3 General information...... 44
6.4 Water filter ^1 45

7 Basic operation ...... 46

7.1 Switching the appliance on or off 46
7.2 Dispensing beverages 46
7.3 Dispensing a coffee drink made from fresh beans...... 46

7.4 Dispensing drinks with milk .... 47
7.5 Dispensing a coffee drink with milk.... 47
7.6 Frothing up milk 47
7.7 Drink settings 47

8 Grinder.... 48

8.1 Adjusting the grinding level..... 49
9 Cup heater ^1 49
9.1 Activating and deactivating the cup heater ^1 49

10 Basic settings.... 49

10.1 Changing the basic set- tings.... 49
10.2 Overview of basic settings .... 50

11 Cleaning and servicing...... 50

11.1 Dishwasher-safe components.... 51
11.2 Cleaning agent 51
11.3 Cleaning the appliance ..... 52
11.4 Cleaning the drip tray and coffee dregs container ..... 52
11.5 Cleaning the milk frother..... 52
11.6 Cleaning the brewing unit ..... 53
11.7 Service programmes...... 53

12 Troubleshooting...... 55

13 Transportation, storage and disposal 60

13.1 Activating frost protection ..... 60
13.2 Disposing of old appliance ... 60

en

14 Customer Service.... 60
14.1 Product number (E-Nr.) and production number (FD)...... 61
15 Technical specifications...... 61

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ in private households and in enclosed spaces in a domestic environment.
■ up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

en Safety

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of electric shock!

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 60

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING – Risk of fire!

The appliance will become hot.

▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cupboard.

It is dangerous to use an extended power cord and non-approved adapters.

▶ Do not use extension cables or multiple socket strips.
- Only use adapters and power cords approved by the manufacturer.
- If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

⚠ WARNING – Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.

⚠ WARNING – Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

⚠ WARNING – Risk of injury!

Improper use of the appliance may endanger the user.

- To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door. The grinder rotates.

▶ Never reach into the grinder.

⚠ WARNING – Danger: Magnetism!

The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ People with electronic implants must stand at least 10 cm away from the appliance.

en Safety

- This minimum distance of 10 cm must also be observed for the water tank when removed.

⚠ WARNING – Risk of harm to health!

Soiling on the appliance may be harmful to health.

- To ensure hygiene, follow the cleaning instructions for the appliance.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less power.

Set the interval for automatic switch-off to the smallest value.

√ If the appliance is not being used, it will switch itself off earlier.
→ "Basic settings", Page 49

Do not interrupt the dispensing process prematurely.

√ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

→ Fig. 1

A	Fully automatic coffee machine
B	Milk frother
C	User manual
D	Cleaning tablet1
E	Descaling tablet1
F	Water filter1

^1 Depending on the appliance specifications

3.2 Installing and connecting the appliance

ATTENTION!

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

• Use the appliance in frost-free rooms only.

• If the appliance has been transported or stored below 0°C, wait 3 hours at room temperature before starting it up.
  ▶ After plugging in, always wait approx. 5 seconds.

• Place the appliance on a level, water-resistant surface that is capable of bearing its weight.

• Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

4 Familiarising yourself with your appliance

4.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→ Fig. 2

1	Water tank
2	Cover for water tank
3	Cup heater ^1
4	Display
5	Rotary selector for grinder setting
6	On/off button

^1 Depending on the appliance specifications

4.2 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Switch the appliance on or off.
Espresso	Dispense espresso.
Caffe Crema	■ Dispense caffe crema■ Display navigation "<" back without saving
1 Depending on the appliance specifications

7	Aroma lid
8	Bean container
9	Control panel
10	Milk frother holder
11	Brewing unit
12	Rating plate
13	Milk frother
14	Outlet system
15	Brewing chamber door
16	Drip tray
17	Drip pan
18	Filling state indicator, mechanical
19	Drip grate
20	Coffee dregs container

^1 Depending on the appliance specifications

Cappuccino	■ Dispense cap-puccino■ Display navigation▼ down
Latte Macchiato	■ Dispense latte macchiato■ Display navigation "ok" confirm and save
Milk	Froth milk.
∅	Strength→ "Adjusting the cof-fee strength",Page 47
1 Depending on the appliance spe-cifications
calc'n Clean	Start service pro-gramme.→ Page 53
1 Depending on the appliance spe-cifications

	Simultaneously dispense 2 cups of espresso or caffe crema. → Page 48
	Switch the cup heater ^1 on or off.
^1 Depending on the appliance specifications

Display

	Lights up and display shows message	Fill the water tankWater tank missingChange the water filter
	is litis flashing	Empty traysClose the brewing chamber door
LEDs are lit	are pulsatingare flashingare off	ready for usedispensing underwaywaiting for operation, e.g. with Calc'nCleannot available

4.3 Display

The display shows the selected drinks, settings and setting options, as well as messages about the appliance's operating status.

The display shows additional information and action steps. The information is hidden after a short period or by

pressing a button. The action steps are hidden when they have been completed.

Note: If no display language is available in your national language, select a display language that is available, e.g. English.

5 Accessories

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service
Cleaning tablets TZ80001A	TZ80001B	0031209700312098
Descaling tablets TZ80002A	TZ80002B	0031209400312095
Water filter TZ70003 00575491
Water filter pack of 3 TZ70033A -
Microfibre cloth - 00460770
Care set TZ80004A		00312105
	TZ80004B	00312106

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION!

Unsuitable beans can block up the grinder.

• Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
• Do not use glazed coffee beans.
• Do not use caramelised coffee beans.
• Do not use coffee beans that have been treated with additives containing sugar.

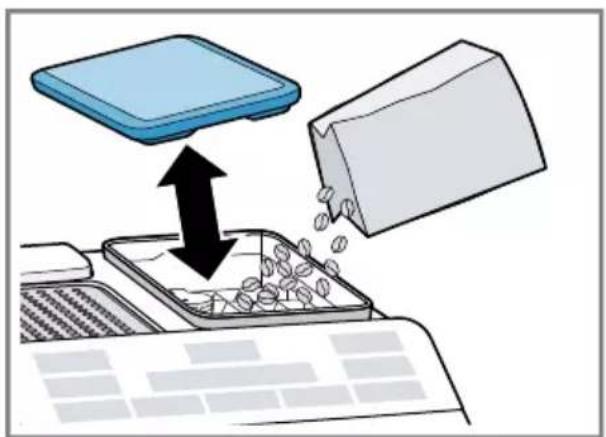

  ▶ Do not add ground coffee.

→ Fig. 3 - 10

Note: Fill the water tank each day with fresh, cold, non-carbonated water.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for the language selection. The language selection step only appears when the machine is switched on for the first time.

1. Press ☐ to switch on the appliance.
   √ The display will show the language that is preset.
2. Press ▼ button re- Cappuccino peatedly until the display shows the required language.
3. To confirm that you want to use these settings, press "ok" button Latte Macchiato.
   √ The appliance is rinsed. When the display shows "Choose beverage", the appliance is ready for use.

Tip: You can change the language at any time.

→ "Basic settings", Page 49

6.3 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.

■ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.

→ "Adjusting the grinding level", Page 49

■ During operation water droplets may form at the ventilation slits.
■ If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings.

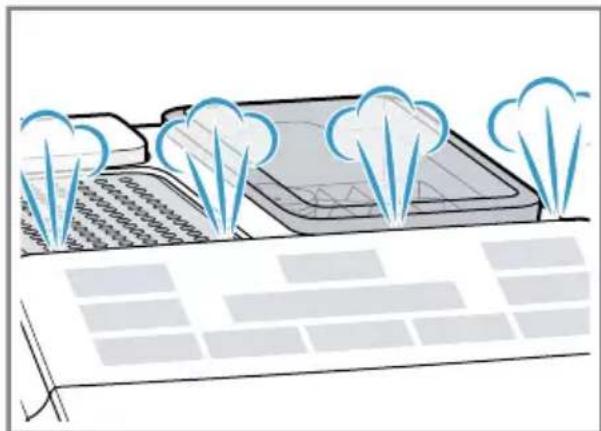

■ For technical reasons steam can escape from the appliance.

Illustration of a solar panel array with cooling towers emitting blue smoke (no text or symbols)

■ If you press a button, a signal tone sounds. You can deactivate the signal tone in the basic settings.

Tip: Check and set the water hardness before using your appliance.

Note

The first beverage will not yet have its full aroma if:

■ You are using the appliance for the first time.
■ You have run a service programme.
■ You have not used the appliance for a long time.

Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

6.4 Water filter ^1

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

Inserting or replacing a water filter

If you have to change the inserted water filter, lights up on the display.

ATTENTION!

Possible damage to the appliance due to limescale build-up.

• Change the water filter in good time.
  ▶ Change the water filter after 2 months at the latest.
  ▶ Observe the display messages.

Requirement: The appliance is switched on.

1. Press and hold buttons ② and calc'n Clean simultaneously for at least 3 seconds.
2. Press ▼ button until the display shows "W. hardness".
3. Confirm with "ok" button Latte Macchiato.
4. Press ▼ button un the display shows "Water filter".
5. Confirm with "ok" button Latte Macchiato.

√ The display shows "Filter act.".

1. Immerse the water filter in a glass of water with the opening facing up and press the sides together lightly until no more air bubbles rise to the surface.

$$ \rightarrow \text { Fig. } 7 $$

en operation

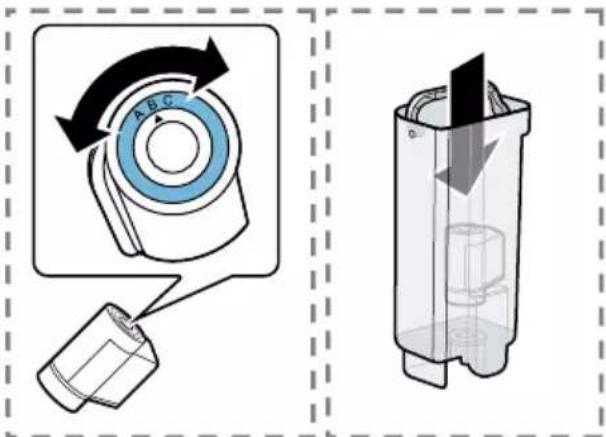

1. Set the water hardness on the aroma ring of the water filter.

- Press the water filter firmly into the empty water tank.

→Fig. 8

You can find out the water hardness from your local water supplier.

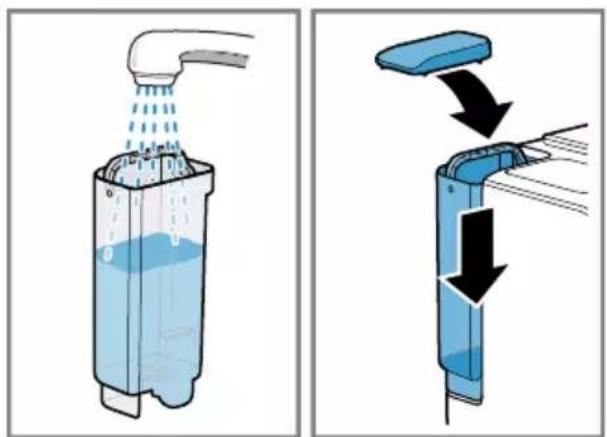

1. Fill the water tank with water up to the max mark.
2. Insert water tank into the appliance.
3. Place a container with a capacity of at least 1.0 l under the outlet.
4. Press the "ok" button Latte Macchiato to save the setting and start rinsing.

√ Water will now flow through the filter.
12. Press "<" button to exit the menu.
13. Empty the container.

√ The appliance is ready to use.

Removing the water filter

You can also operate your appliance without a water filter.

1. Remove the water filter.
2. Set the water hardness. → "Basic settings", Page 49

Tips

■ You should also change your water filter for reasons of hygiene.
■ With a water filter you need to de-scale your appliance less frequently.
■ If you use a water filter, your coffee will be more flavoursome.
■ The water filter can be purchased from retailers or customer service. → "Accessories", Page 43

7 Basic operation

7.1 Switching the appliance on or off

▶ Press . ⏻

When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

• Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

7.3 Dispensing a coffee drink made from fresh beans

1. Place a cup under the outlet system.
2. To set the coffee strength, press the Button repeatedly.
3. Press button of Espresso Caffe Crema

√ The coffee is brewed and then dispensed into the cup.

Tip: To stop the current dispensing step early, press the Espresso or Caffe Crema button.

7.4 Dispensing drinks with milk

You can make coffee drinks with milk or froth up milk.

WARNING

Risk of burns!

The milk frother gets very hot.

- Let the milk frother cool down before you touch it.

ATTENTION!

Milk residues can dry on surfaces and are difficult to remove.

- Clean the milk frother after each use.

Tips

■ You can also use plant-based alternatives to milk, e.g. soya milk.
■ The quality of the milk froth depends on the type of milk or plant-based alternative used.

7.5 Dispensing a coffee drink with milk

You can choose between cap- puccino and latte macchiato.

1. Fill a large cup or a large glass with approx. 100 ml milk for cap-puccino or approx. 150 ml milk for latte macchiato.
2. Place the cup or glass under the outlet system.
3. Slide the outlet system and milk frother right down.
4. To set the coffee strength, press the 🔒 button repeatedly.
5. Press button Cappuccino Latte Macchiato.
   √ The milk is first frothed up in the cup or glass. The coffee is then brewed and dispensed into the cup or the glass.

Tip: To stop the current dispensing step early, press the Cappuccino or Latte Macchiato button.

7.6 Frothing up milk

1. Fill a large cup or a large glass with approx. 100 ml milk.
2. Place the cup or glass under the outlet system.
3. Slide the outlet system and milk frother right down.
4. Press the Molkton.
   √ The milk is frothed up.

Note: To stop the dispensing process early, press the Milk button.

7.7 Drink settings

Prepare a drink according to your taste.

Adjusting the coffee strength

Before making a drink, you can adjust the coffee strength.

▶ To adjust the coffee strength, press the 🔒 button repeatedly.

"	Very mild
""	Mild
""	Normal
""	Strong
""	Very strong
""	aromalntense^1
^1 Depending on the model

Note: The coffee strength selected is then active for all drinks made with coffee.

Adjusting the filling level

You can adjust the filling level of your drinks.

1. Place a cup under the outlet system.

en Grinder

1. Press and hold button for Espresso Caffe Crema for 3 seconds.

√ Dispensing takes place, with the button selected flashing.
√ The display shows the progress. → Fig. 11

1. Once the required filling level is reached, press the button selected to stop.

Notes

■ The new filling level is only apparent when the next drink is dispensed.
■ You can set the filling level between 25-60 ml for espresso or 80-200 ml for caffe crema.
■ The appliance always brews a minimum quantity of approx. 25 ml for espresso and approx. 80 ml for caffe crema.

Tip: You can change the settings at any time.

→ "Basic settings", Page 49

Adjusting the frothing time

You can adjust the frothing time of your drinks.

1. Fill a large cup or a large glass with approx. 100 ml milk for cap-puccino or approx. 150 ml milk for latte macchiato.
2. Place the cup or glass under the outlet system.
3. Slide the outlet system and milk frother right down.
4. Press and hold button Cappuccino Latte Macchiato or M for 3 seconds.

√ The milk is frothed up, and the button selected flashes.

√ The display shows the progress. → Fig. 11

1. Once the required frothing time is reached, press the button selected to stop.

Notes

■ You can set a limited time depending on the drink.
■ Setting the frothing time has no impact on the filling level.

Tip: You can change the settings at any time.

→ "Basic settings", Page 49

Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

1. Press the ☐ button.

√ The display shows "Double cup on" for 5 seconds.
2. Place two cups on the left and right under the outlet system.
3. Press button Espresso Caffe Crema

√ The LED in the button pulses.
√ The drink is prepared in 2 steps. The beans are ground in 2 grinding operations.
√ The drink is brewed and then runs into the cup.
4. Wait until the process is complete.
5. To switch off the double cup function, press the button.

Notes

■ You can set the double cup function for Espresso Only. Caffe Crema
■ If you have set the double cup function, you cannot dispense other drinks.
■ If you do not press any other button within 90 seconds, the appliance automatically switches to the "Double cup off" setting.

8 Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

8.1 Adjusting the grinding level

Set the desired grinding level while the coffee beans are being ground.

WARNING

Risk of injury!

The grinder rotates.

▶ Never reach into the grinder.

ATTENTION!

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

▶ Only set the grinding level when the grinder is running.

- Select the grinding level using the rotary selector step by step.

Grinding level Setting

Fine grinding level for lightly roasted beans

Turn rotary selector anticlockwise.

Coarse grinding level for dark-roasted beans

Turn rotary selector clockwise.

The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.

If the coffee is too thin with too little crema, set a finer grinding level.

9 Cup heater ^1

You can use the cup heater to pre-heat your cups.

9.1 Activating and deactivating the cup heater ^1

WARNING

Risk of burns!

The cup heater ^1 can become very hot.

• Never touch the cup heater ^1 while hot.
• Allow the hot cup heater ^1 to cool down before touching it.

Tip: Place the cups with their base on the cup heater to warm them to optimum effect ^1 .

- To activate or deactivate the cup heater ^1 , press the 🔊 button.

10 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

10.1 Changing the basic settings

1. Press and hold buttons 0 and calc'n Clean simultaneously for at least 3 seconds.
2. Press ▼ button re- cappuccino peatedly until the display shows the required setting.
3. Confirm with "ok" button Latte Macchiato.
4. Press the ▼ button to cappuccino change the setting.

en Cleaning and servicing

1. Confirm with "ok" button Latte Macchiato.

√ The display shows "Settings saved".

1. Press "<" button to exit the menu.

Note: If you do not press any other button within 90 seconds, the appliance switches to the select beverage setting without saving.

Tip: You can change the settings at any time.

→ "Basic settings", Page 49

10.2 Overview of basic settings

You can find an overview of the basic settings here.

Setting Selection Description

Language See selection on the appliance	Set menu language. Changes are immediately displayed.
Factory reset Select the required language.	Restore settings to the factory settings.Note: The appliance rinses and deletes all individual settings.
W. hardness ■ "W. hardness" 1, 2, 3,4■ Water filter■ H2O-Softener	Set the appliance to the local water hardness.Tip: Ask your local water supplier about the water hardness.Note: If a water softening system is installed in your house, select "H2O-Softener".
Auto Stand-by See selection on the appliance	Set how long the appliance should wait after preparing the last beverage before automatically switching itself off.
Sound ■ Sound on■ Sound off	Switch the tones on or off.

11 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

11.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION!

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

- Follow the operating instructions of the dishwasher.

▶ Only clean dishwasher-safe components in the dishwasher.
- Only use programmes that do not heat the components above 60 °C.

Suitable: √

■ Drip plate
■ Drip grate
■ Coffee dregs container
■ Mechanical fill level indicator
■ Milk frother

Not suitable:

■ Water tank
■ Water tank lid
■ Aroma lid
■ Brewing unit
■ Drip tray

11.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appli-ance.

• Do not use harsh or abrasive detergents.
• Do not use cleaning agents containing alcohol or spirits.
• Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to de-scale the appliance.
• Do not use descaling agent with phosphoric acid.
  ▶ Only use cleaning tablets and de-scaling tablets that have been specially developed for the appliance. → "Accessories", Page 43

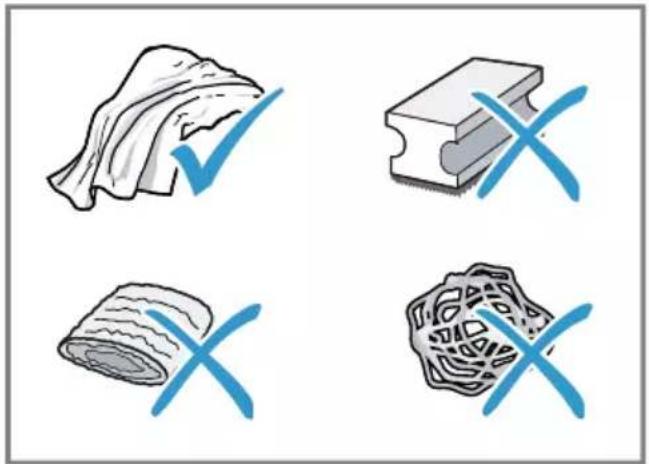

Four hand-drawn icons showing different types of household items: a towel, a block, a rolled-up food item, and a patterned plate (no text or symbols)

Tips

■ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.
■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

11.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.

1. Disconnect the appliance from the mains power supply.
2. Clean the housing, the high-gloss surfaces and the control panel with a microfibre cloth.
3. Clean the outlet system with a soft, damp cloth after beverages have been dispensed.
4. Rinse the water tank with fresh, clean water.
5. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

11.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illustrated instructions at the beginning of this manual.

→ Fig. 12 - 16

11.5 Cleaning the milk frother

Clean the milk frother after each use to remove residues and ensure its proper function.

WARNING

Risk of burns!

The milk frother gets very hot.

- Let the milk frother cool down before you touch it.

1. Fill a glass half-full with water and place under the outlet system.
2. Push the milk frother right down.
3. Press the Milkton.
   √ Milk system is cleaned.
4. Push the milk frother right up and allow it to cool down.
5. Remove the milk frother and clean it thoroughly.

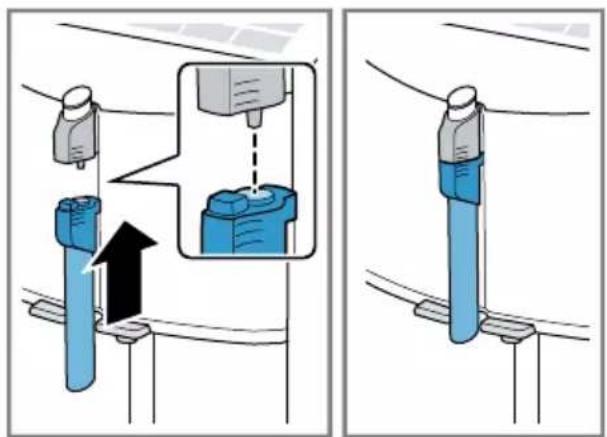

6. Attach the milk frother again.

Note: To stop the process early, press the M button.

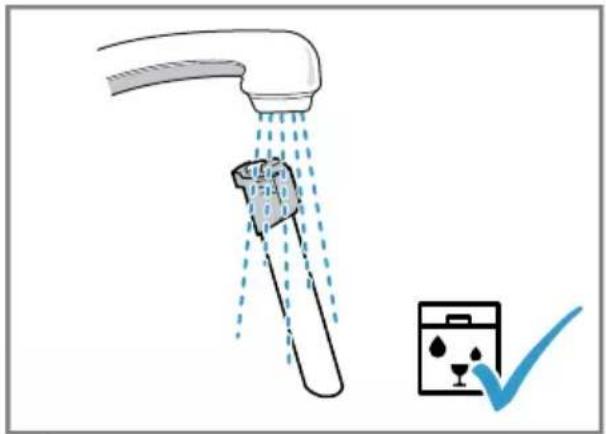

Tip: You can clean the milk frother in the dishwasher. After rinsing, remove the detergent residues thoroughly from the milk frother.

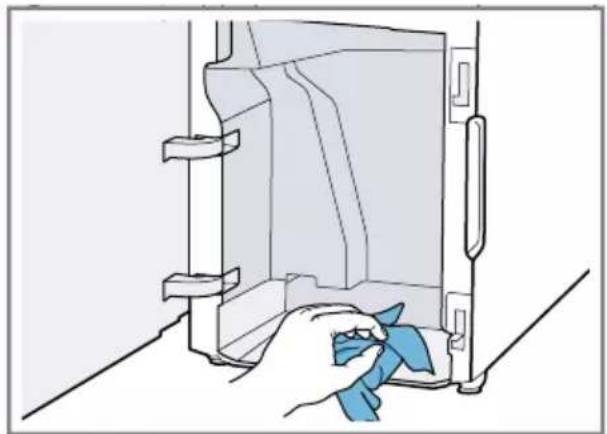

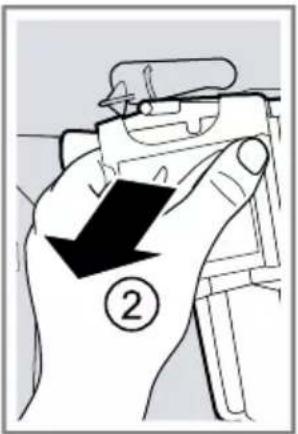

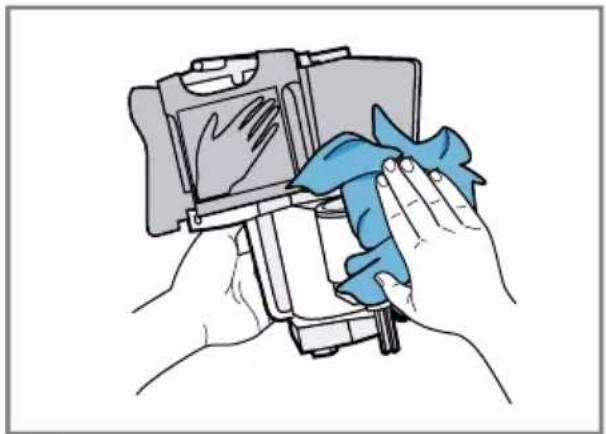

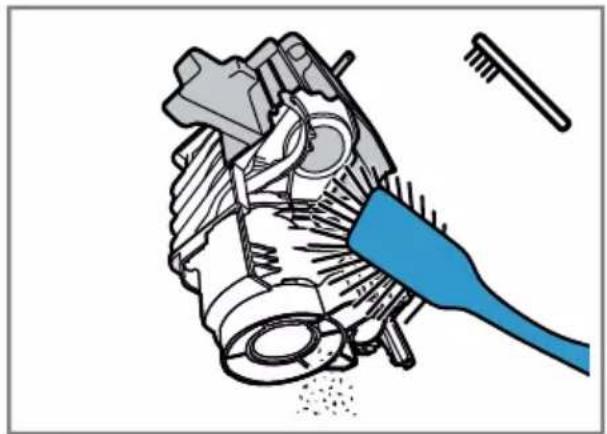

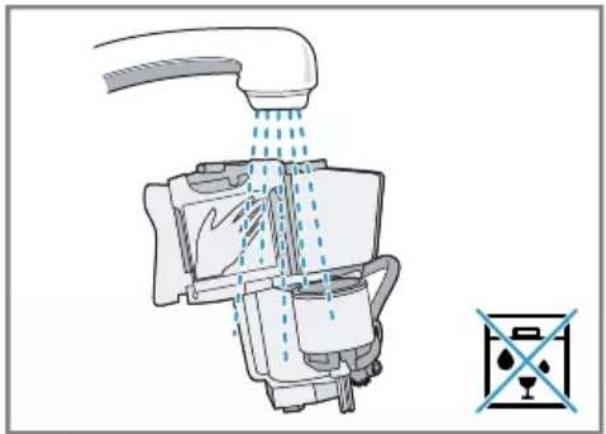

11.6 Cleaning the brewing unit

In addition to automatic rinsing, also remove and clean the brewing unit regularly. Follow the illustrated instructions at the beginning of the manual.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.

ATTENTION!

The brewing unit may be damaged by improper cleaning.

• Do not use washing-up liquid.
• Do not use cleaning agents containing vinegar or acids.
• Do not clean in the dishwasher.

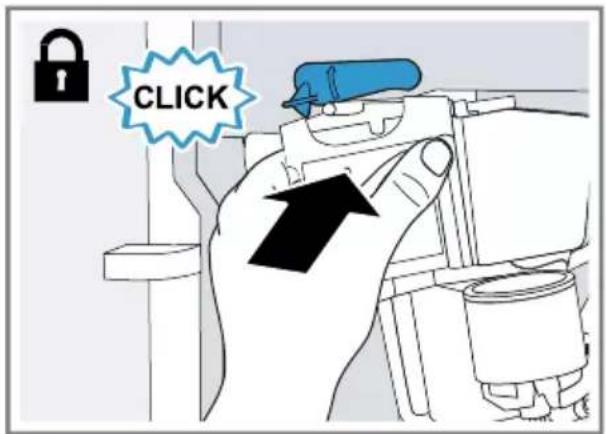

→ Fig. 17 - 26

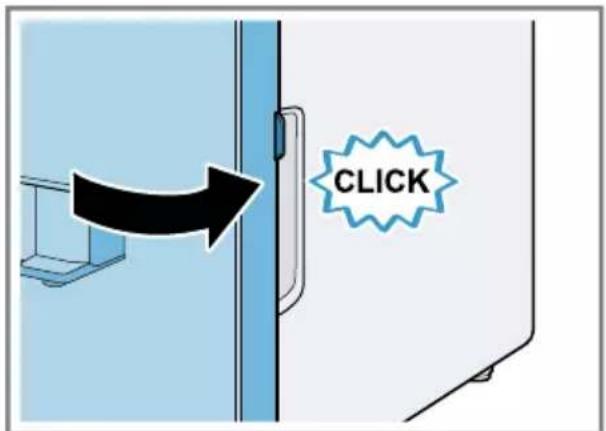

Note: The door can only be closed if the brewing unit and drip tray are inserted correctly.

11.7 Service programmes

The calc'n Clean lights up and the display shows "Calc'nClean required!" depending on the water hardness and use of your appliance. Use the programme to descale and clean your appliance.

ATTENTION!

Improper cleaning and descaling or a delay in doing so may damage the appliance.

• Perform Calc'nClean according to the instructions immediately.
  ▶ Only put cleaning tablets in the duct of the brewing unit.

- Do not put descaling tablets or other products in the duct of the brewing unit.

Notes

■ If you do not descale and clean the appliance in good time, the appliance is locked and the display shows "Device locked".
■ To unlock the appliance, run the service programme.

Tip: Before you start the service programme, remove, clean and re-insert the brewing unit. Clean the milk frother.

Start Calc'nClean

The process takes approx. 40 minutes.

1. Press and hold the colon Clean ton for at least 5 seconds.
   √ symbol lights up.

2. Open the door.

3. Remove and empty the drip tray and coffee dregs container.

4. Remove and clean the brewing unit.

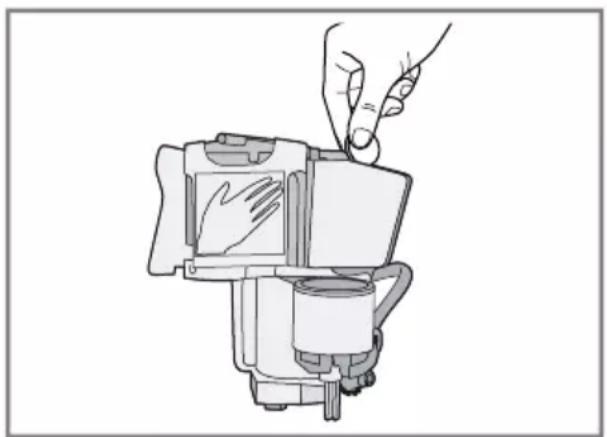

5. Put a cleaning tablet into the duct of the brewing unit and re-insert the brewing unit.

Line drawing of a hand pressing down on a mechanical device component (no text or symbols)

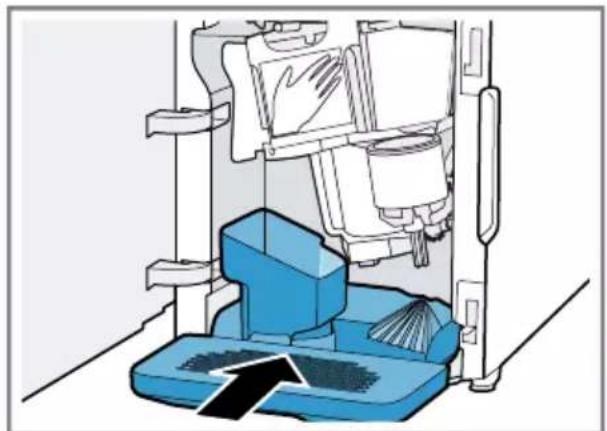

1. Insert the drip tray and coffee dregs container again and close the door.
   √ symbol lights up.
2. If there is a water filter, remove it.

en Cleaning and servicing

1. Fill the empty water tank with lukewarm water up to the 0.5 l mark and dissolve one Siemens descaling tablet in it.
2. Re-insert the water tank and place a container with approx. 1 l capacity under the outlet system.
3. When calc'n Clean, press the calc'n Clean button.

√ The programme starts, cleans and descales the appliance.
√ calcín Clean pulses.
√ The process takes approximately 20 minutes minutes.
√ symbol lights up.
11. Empty the container and open the door.
12. Empty the drip tray and re-insert.
13. Close the door and place the container under the outlet system again.
√ symbol lights up.
14. Clean the water tank. If you have removed the water filter, re-insert the water filter.
15. Fill the water tank with fresh, cold, non-carbonated water up to the max mark.
16. When calc'n Clean, press the calc'n Clean button.
√ The programme starts, cleans and rinses the appliance.

√ calpúlClean
√ symbol lights up.

1. Remove and empty the drip tray and coffee dregs container.
2. Clean the drip tray and the coffee dregs container and re-insert them in the appliance.
   √ The programme has ended and the appliance is ready for operation again.

Resetting a service programme

If the service programme is interrupted, e.g. by a power cut, calc'n Clean and will light up.

1. Clean the water tank. If you have removed the water filter, re-insert the water filter.
2. Fill the water tank with fresh, cold, non-carbonated water up to the max mark.
3. Press the button.

√ The service programme starts and rinses the appliance. The process takes approximately 2 minutes.
4. Empty the drip tray, clean it and re-insert.
5. Close the door.
√ The programme has ended and the appliance is ready for operation again.

12 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

Appliance no longer responds.	Appliance has a fault.1.Pull out the mains plug and wait 60 seconds.2.Re-insert the mains plug.
Appliance only dispenses water, not coffee.	Empty bean container is not detected by the appliance.▸ Pour in coffee beans.
	Beans are too oily and are not falling into the grinder.▸ Gently tap the bean container.▸ Change the coffee variety.▸ Do not use oily beans.▸ Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly.▸ Slide the brewing unit right back.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.▸ Descale the appliance.
Coffee is not dispensed or has slowed to a trickle.	Grinding level is set too fine.▸ Set a coarser grinding level.→ "Adjusting the grinding level", Page 49
Set quantity is not reached.	Heavy build-up of limescale in the appliance.▸ Descale the appliance.
	Air is in the water filter.1.Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2.Reinsert the filter.
	Appliance is soiled.
Fault Cause and troubleshooting
Coffee is not dispensed or has slowed to a trickle.Set quantity is not reached.	▸ Clean the brewing unit.▸ Descale and clean the appliance.Residues of limescale remover are blocking the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.Coffee strength is set too high.▸ Reduce the coffee strength.
Milk or milk-based drinks are too hot.Milk froth is too thin, and there is a loud suction noise.	There is too little milk in the glass or cup.1. Use more milk.2. Change the frothing time.
Milk or milk-based drinks are too cold.	There is too much milk in the glass or cup.1. Use less milk.2. Change the frothing time.Milk in the glass or cup is too cold.▸ Use lukewarm milk.
Coffee has no crema. Type of coffee is not optimal.▸ Use a coffee variety with a higher proportion of Robusta beans.▸ Use beans with a darker roast.
Coffee is too acidic. Grinding level is set too coarse.▸ Adjust the grinder to a finer setting.→ "Adjusting the grinding level", Page 49
Type of coffee is not optimal.▸ Use a coffee variety with a higher proportion of Robusta beans.▸ Use beans with a darker roast.
Coffee is too bitter. Grinding level is set too fine.▸ Set a coarser grinding level.→ "Adjusting the grinding level", Page 49

Fault Cause and troubleshooting

Coffee tastes burnt. Grinding level is set too fine.► Set a coarser grinding level.→ "Adjusting the grinding level", Page 49
Milk froth quality var-ies widely.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimise the result through the selection of the milk or vegetable-based drink type.
Appliance is not dis-pensing milk froth.	Heavy build-up of limescale in the appliance.► Descale the appliance.
	Milk frother is soiled.► Clean the milk frother in the dishwasher.
	Milk frother is not inserted in the milk.1. Use more milk.2. Check whether the milk frother is inserted in the milk.3. Slide the outlet system down completely.
Appliance is not dis-pensing drinks.	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.► Firmly press the water filter straight down into the tank connection.
	Residues of limescale remover are blocking the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
There is dripping wa-ter on the inner floor of the appliance.	Drip tray was removed too soon.► Wait a few seconds after the last drink was dis-pensed before removing the drip tray.
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed.► Switch the appliance off and back on after 3 minutes.
Grinder won't start. Appliance is too hot.1. Disconnect the appliance from the mains.2. Wait 1 hour so the appliance can cool down.
Fault Cause and troubleshooting
Display shows "Fill water tank" despite the water tank being full.	Water tank is wrongly inserted.► Insert the water tank correctly.
	Carbonated water is in the water tank.► Fill the water tank with fresh tap water.
	Float is stuck in the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions.1. Rinse the water filter according to the instructions.2. Place the water filter into operation.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Water filter is old.► Insert a new water filter.
	Limescale deposits in the water tank are blocking the system.1. Clean the water tank thoroughly.2. Start the Calc'nClean service programme.
Display shows "Clean brewing unit".	Brewing unit is soiled.► Clean the brewing unit.
	Mechanism of brewing unit is stiff.► Clean the brewing unit.
Display shows "Incorrect voltage".	There are problems with the power supply.► Only operate the appliance at 220 - 240 V.
Display shows "Calc'nClean required!" very frequently.	Decalcified water still contains small amounts of lime.1. Insert a new water filter.2. Set the corresponding water hardness.
	Incorrect or too little descaling agent used.► When descaling, only use suitable tablets.
Appliance cannot be operated.Change displays.	Appliance is in demo mode.1. To deactivate demo mode, press and hold the ⏻ button for at least 5 seconds.2. Remove the water tank.3. Fill the water tank with fresh water.4. Re-insert the water tank.
Display shows "Close door" despite the fact that the door is closed.	Door is not properly closed.►Press the door firmly shut.
	Appliance is too hot.1.Disconnect the appliance from the mains.2.Wait 1 hour so the appliance can cool down.
Display shows "Empty trays" despite the fact that the drip tray is empty.	Appliance is switched off and does not detect emptying.1.Switch the appliance on, and remove the drip tray.2.Re-insert the drip tray.
Display shows "Fill water tank" and LEDs flashing.	Water tank is missing or wrongly inserted.►Insert the water tank correctly.
	Pipe system in the appliance is dry.►Fill the water tank with fresh, cold, non-carbonated water.
	Air is in the water filter.1.Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2.Reinsert the filter.
Display shows "Device too cold".	Ambient temperature is too cold.►Operate the appliance at temperatures over 5 °C.
Display shows "Re-start appliance".LEDs flashing.	Brewing unit is heavily soiled or cannot be removed.►Restart the appliance.►Clean the brewing unit.
Display shows "Re-start appliance".No LED is lit.	Appliance has a fault.►Restart the appliance.
Display shows "Clean/ fill water tank";calc'n Clean and light up.	Descaling process has been interrupted.►Proceed as described in section→ "Resetting a service programme", Page 54.

13 Transportation, storage and disposal

13.1 Activating frost protection

Protect your appliance from frost during transport and storage.

ATTENTION!

Residues of liquid in the appliance may damage it during transport or storage.

▶ Empty the pipe system before transport or storage.

Requirements

■ The appliance is ready to use.
■ The water tank has been filled.

1. Place a large container under the outlet system and push the milk frother down.
2. Press and hold the Milkton for at least 5 seconds.

√ The LED in the button flashes, and the appliance heats up.
3. When steam escapes from the milk frother, remove the water tank.
4. Allow the appliance to cool down and wait until the display shows "Water tank empty".
5. Use ⬆ to switch the appliance off.
6. Empty the water tank and the drip tray and thoroughly clean the appliance.
7. Disconnect the appliance from the mains power supply.

You can now transport or store the appliance.

Note: The brewing unit is now secured and you cannot remove it.

13.2 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

14 Customer Service

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

14.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

15 Technical specifications

Voltage 220-	240 V ~
Frequency 50 / 60 Hz
Connection rating 1300 W
Maximum static pump pressure	15 bar
Maximum capacity of water tank (without filter)	1,3 l
Maximum capacity of bean container	≈250 g
Length of the power cable	100 cm
Appliance height 38,3 cm
Appliance width 25,1 cm
Appliance depth 43,3 cm
Weight, empty ≈8-9 kg
Type of grinder Ceramic/steel

QR code image containing encoded data, no visible human-readable text

Table des matières

Illustration of a solar panel with cooling towers and cloud patterns (no text or symbols)

Four hand-drawn icons showing different types of household items: a roll, a block, a rolled-up document, and a patterned plate (no text or symbols)

Conseils

Line drawing of a hand pressing down on a mechanical device component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Indice

1 Sicurezza 93

Illustration of a solar panel with cooling towers and cloud patterns (no text or symbols)

Four symbolic illustrations: a rolled-up document, a rectangular block, a rolled-up cloth, and a textured stone with blue X marks (no text or symbols present)

Consigli

Line drawing of a mechanical assembly with a hand adjusting a component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Inhoudsopgave

1 Veiligheid.... 122

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

Illustration of a solar panel with cooling towers emitting steam, no text or symbols present

7 De Bediening in essen- tie

Four abstract icons: a rolled-up document, a rectangular block with X marks, a rolled-up cloth, and a textured circular object (no text or symbols)

Tips

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Spis treści

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

Four symbolic illustrations: a rolled-up shell, a rectangular block with X marks, a rolled-up flatbread, and a textured flatbread (no text or symbols)

Wskazówki

Line drawing of a hand inserting a component into a mechanical device (no text or symbols)

QR code image containing encoded data, no visible human-readable text

İçindekiler tablosu

1 Güvenlik.... 180

Illustration of a roof drainage system with visible airflow and ventilation ducts (no text or symbols)

Four hand-drawn icons showing different types of household items: a roll, a block, a rolled-up document, and a patterned plate (no text or symbols)

İpuçları

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Obsah

Four symbolic illustrations: a rolled parchment, a rectangular block, a rolled parchment, and a textured rectangular block with blue X marks (no text or symbols present)

Tipy

Line drawing of a mechanical device with hands operating it, no text or symbols present

QR code image containing encoded data, no visible human-readable text

Obsah

1 Bezpečnost 234

Illustration of a solar panel with cooling towers emitting blue smoke, no text or symbols present

Four hand-drawn icons showing different types of household items: a roll, a block, a rolled-up box, and a patterned plate (no text or symbols)

Tipy

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Tabla de contenidos

1 Seguridad 261

Illustration of a solar panel with cooling fans emitting vapor, no text or symbols present

Four hand-drawn illustrations of different food items with checkmarks, no text or symbols present

Consejos

Line drawing of a hand pressing down on a mechanical device component (no text or symbols)

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

siemens-home.bsh-group.com

8001286349 (030412)

de, en, fr, it, nl, pl, tr, cs, sk, es
