USER MANUAL Perfect Complet Pro TAURUS

Technical line drawing of a dual-chamber electronic device with circular components and a central connector (no text or symbols)

Technical diagram of a handheld device with labeled parts including fan, bulb, and plug-in box

Fig.1 Fig.2

Technical line drawing of a handheld device with circular top and rectangular base, alongside a separate cable (no text or symbols)

Line drawing of a sleeveless shirt with a hand holding a small object, no text or symbols present

Fig.3 Fig.4

Diagram illustrating clothing fit technique with arrows indicating movement from a button to a sleeve

Line drawing of a hand pressing down on a flat surface (no text or symbols)

Fig.5 Fig.6

Line drawing of a person applying a cap to a garment with an arrow indicating direction (no text or symbols)

Diagram showing a hand pressing down on a wavy patterned surface with directional arrows (no text or symbols)

Fig.7 Fig.8

Diagram of a device with circular top and internal components, showing directional arrows (no text or symbols)

Line drawing of a handheld hair dryer with internal components and ventilation slots (no text or symbols)

Fig.9 Fig.10

Line drawing of a handheld hair dryer with ventilation grille and side door (no text or symbols)

Technical line drawing of a handheld device with internal components and a handle (no text or symbols)

Fig.11

Technical line drawing of a device with internal components and directional arrows indicating assembly (no text or symbols)

Español

QUITA PELUSAS PERFECT COMPLET PRO

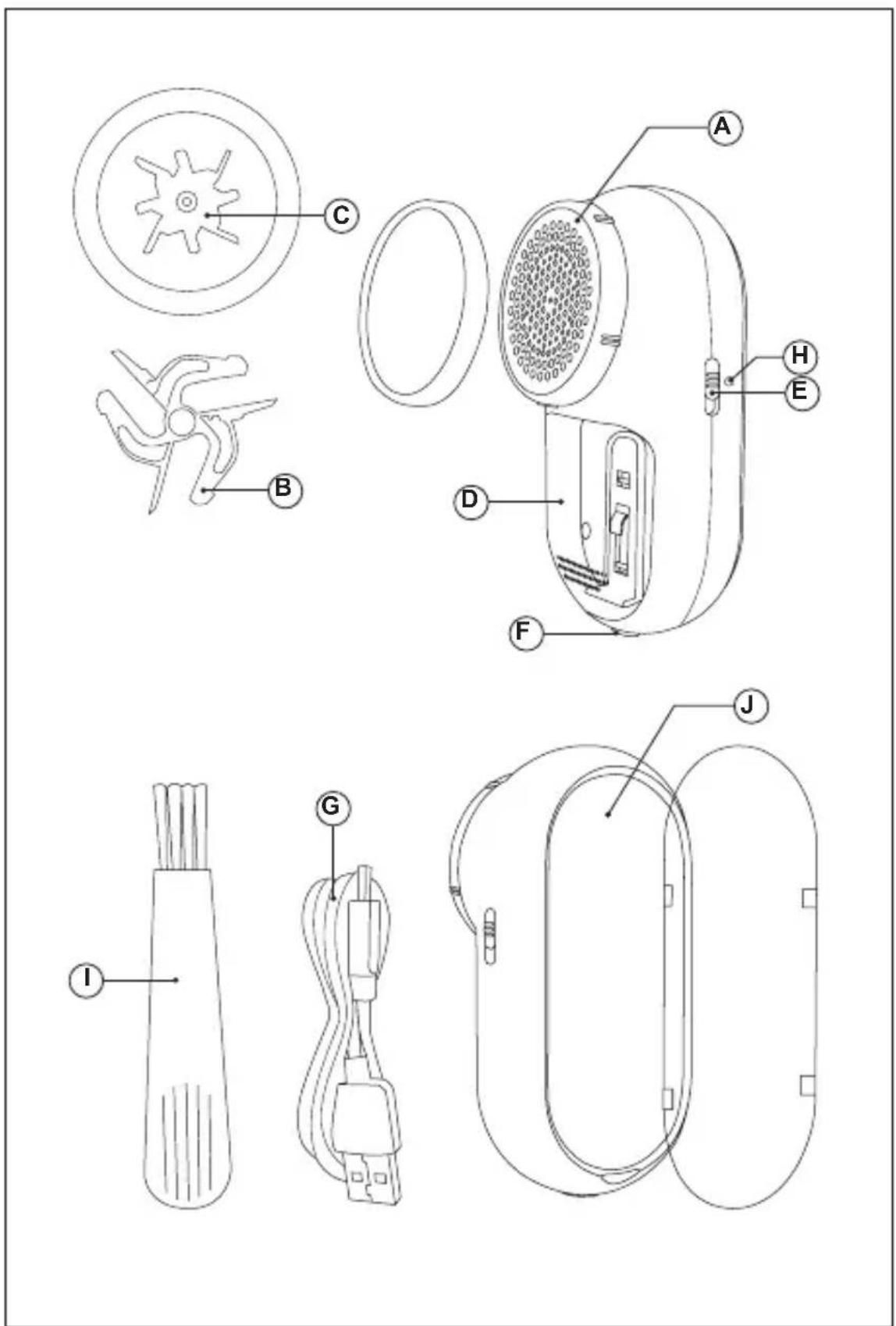

DESCRIPCIÓN

A Outer Foil
B Rotative blades
C Rotation shaft
D Fluff container
E On/off switch
F Appliance socket
G Battery charger
H Charge indicator light
I Brush
J Anti Static brush

CHARGING THE BATTERY

• Caution: A new battery is not fully charged and must therefore be charged before the appliance is used for the first time.
• Charge the battery at an atmospheric temperature of between 4 and 40°C.

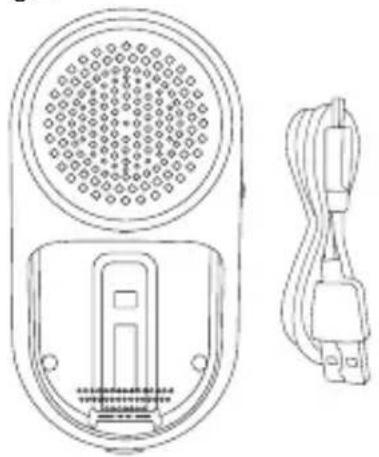

• Plug the charger (G) into the mains. (Fig.1).
• A pilot light will come on to indicate that the charger is ready to begin charging the battery.
• Approximately 8 to 10 hours are needed for a complete charge of the battery. Never attempt to over-charge the battery (although it is recommended that the first charge of the battery be of 10 hours in duration).

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all the product's packaging has been removed.

- Before using this product for the first time, it is important to make a full charge of batteries.

USE:

- The appliance can be used directly connected to the mains, or by using his batteries.

- Unroll the cable completely before plugging it in.

- Take the length of cable required out of the housing.

- Connect the appliance to the mains.

- Turn the appliance on, by using the on/off button.

- The pilot light (H) comes on.

HOW TO SHAVE CLOTHES:

- Place the garment on a smooth surface.

- The remover's handle moves and adapts to the contours of the fabric. This feature also makes it suitable for removing lint from furniture and carpets.

- Do not use the appliance on garments that are being worn in order to avoid damage on the user or garment.

- For best results, please follow these recommendations:

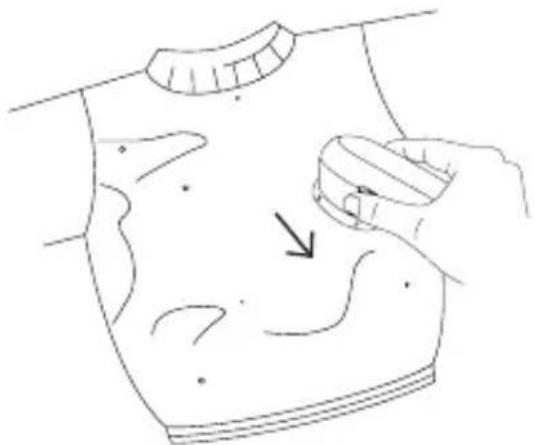

- For fast remove, take the remover circle and shave in small range removing to and forth on clothes. (Fig.2).

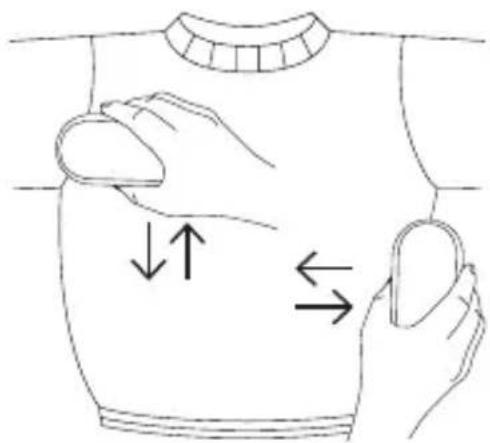

- For sticking lint, move on the clothes perpendicularly and parallel until is removed. (Fig.3).

- On thin texture clothes, pile them up into two layers and shave them gently. (Fig.4).

• On clothes with protrudes or applications, avoid contact with the applications or protrudes. (Fig.5).

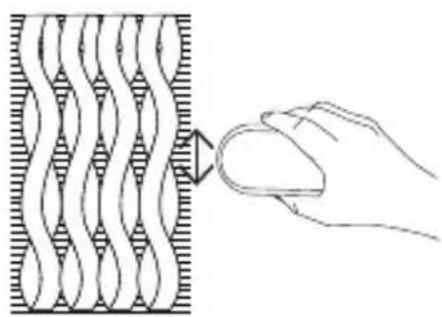

• On clothes with patterns, move the appliance in the direction of the pattern for better results. (Fig.6).

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off switch.
• Unplug the appliance from the mains.

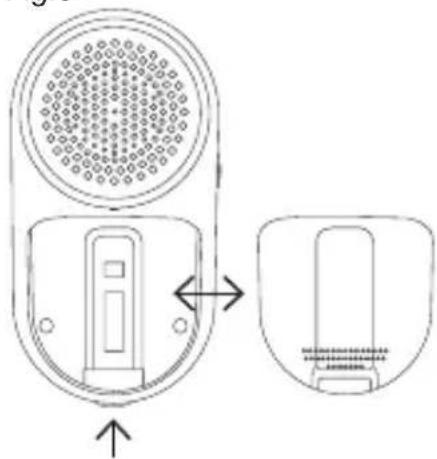

• Remove the fluff container and empty it accordingly. (Fig.7).
• Clean the appliance.

CLEANING

• Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task.
• Disassemble the appliance in accordance with the following steps:

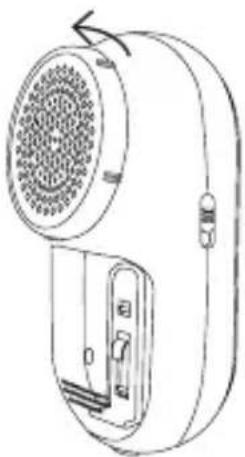

• Take off the remover circle. (Fig.8).

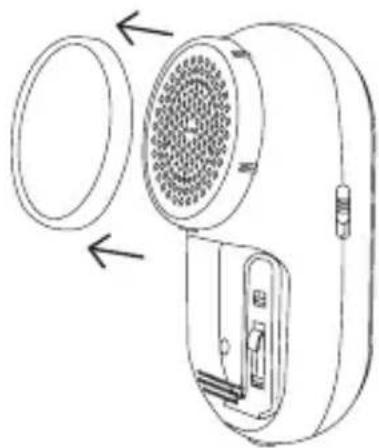

• Remove the outer foil as arrow direction. (Fig.9).

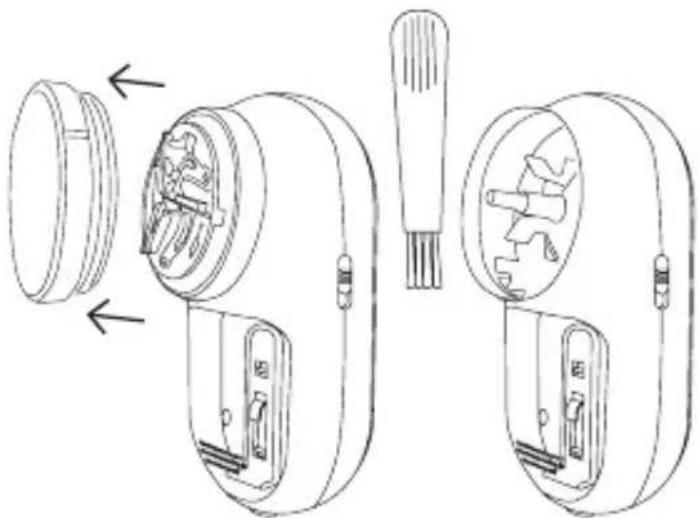

• Take out the rotative blades and clean the blades shaft with the brush. (Fig.10).

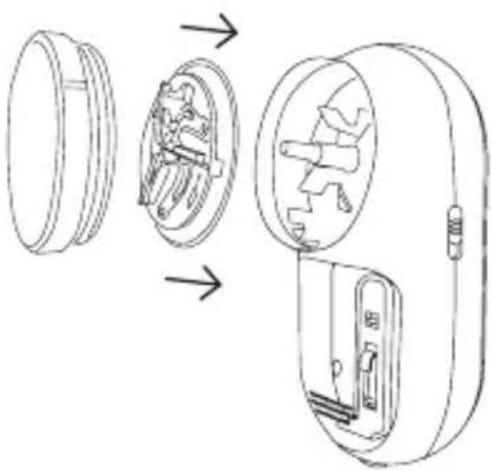

• everselly install the blades and outer foil into the appliance. (Fig.11).
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

Français

RASE-PELUCHES COMPLET PERFECT PRO

DESCRIPTION

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
