USER MANUAL Alpatec RCMB27 TAURUS

Simple line drawing of a rounded rectangle with a circle inside, no text or symbols present.

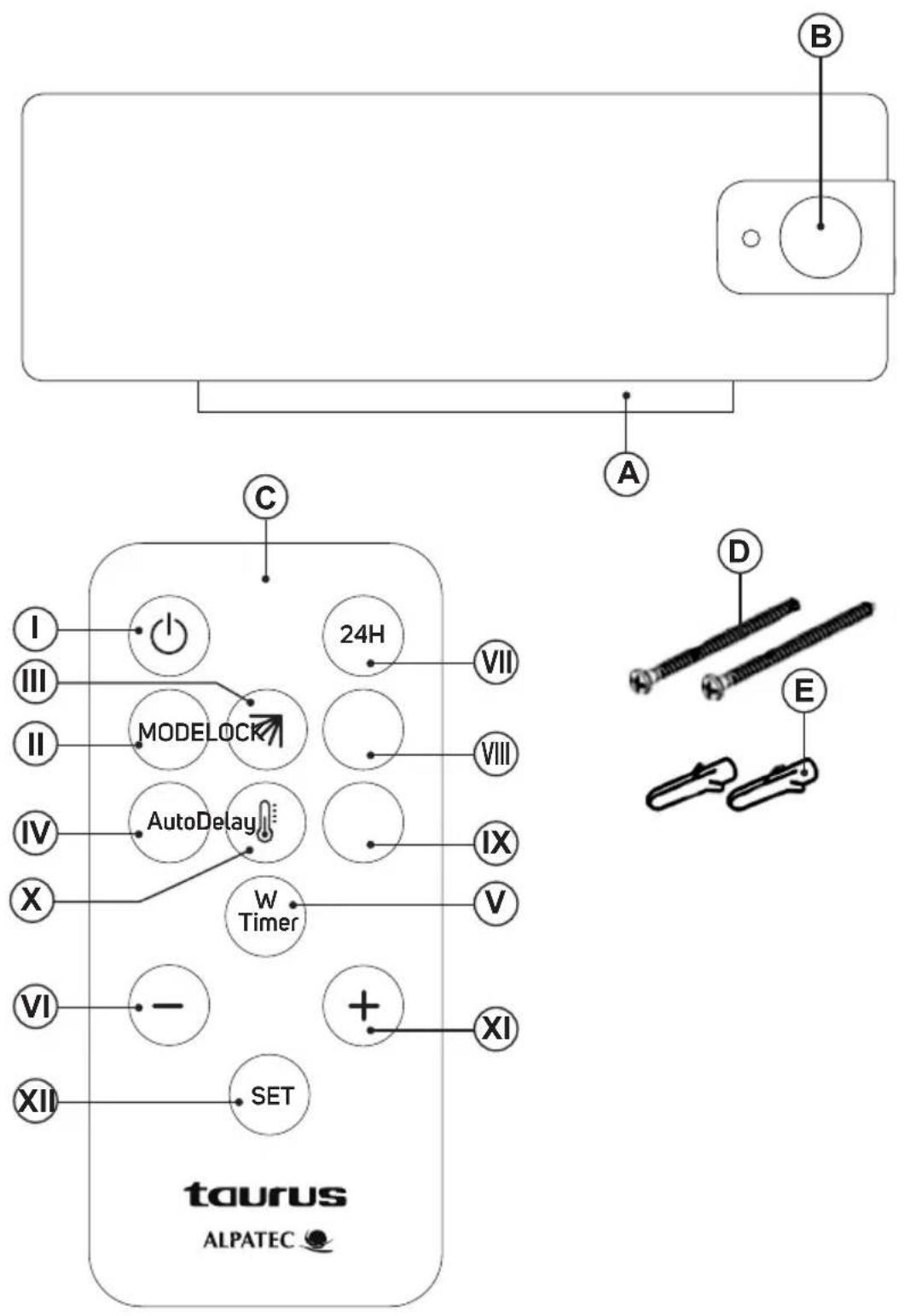

taurus ALPATEC A B C I III II IV X VI XII MODELOCK AutoDelay W Timer 24H VII VIII IX V XI D E T a

1 2 3 4 5 6 7 Mo Tu We Th Fr Sa Su ① ② ③ ④ 1 2 3 4 5 6 7 ⑤ ⑥ ON ⑦ OFF ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱

Fig 1

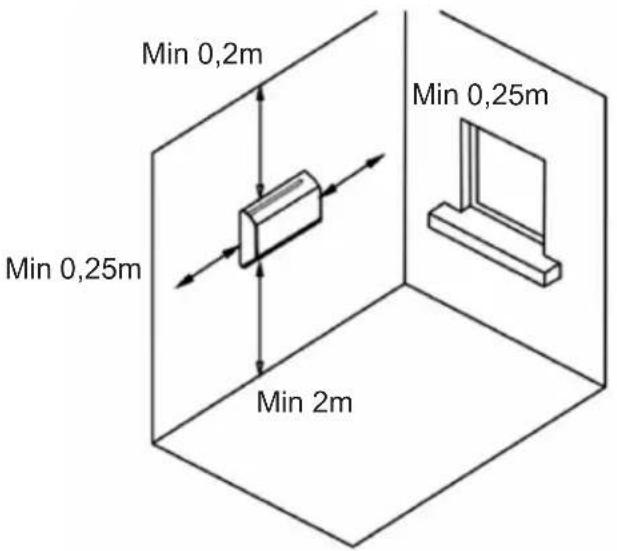

Min 0,2m Min 0,25m Min 0,25m Min 2m

Fig 2

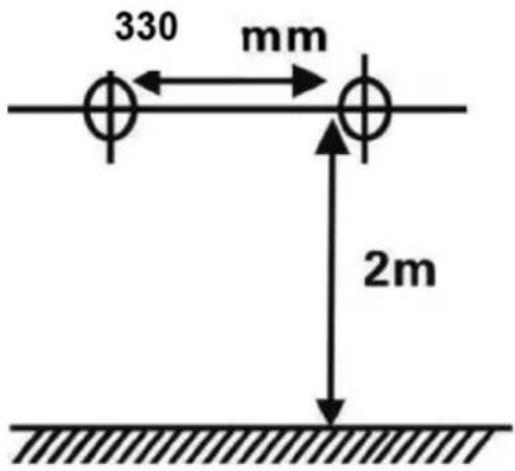

330 mm 2m

EN: This product is only suitable for well insulated spaces or occasional use.

IX Delay-on/off time

X Room temperatura display

XI Increase

XII Set hours/minutes/day

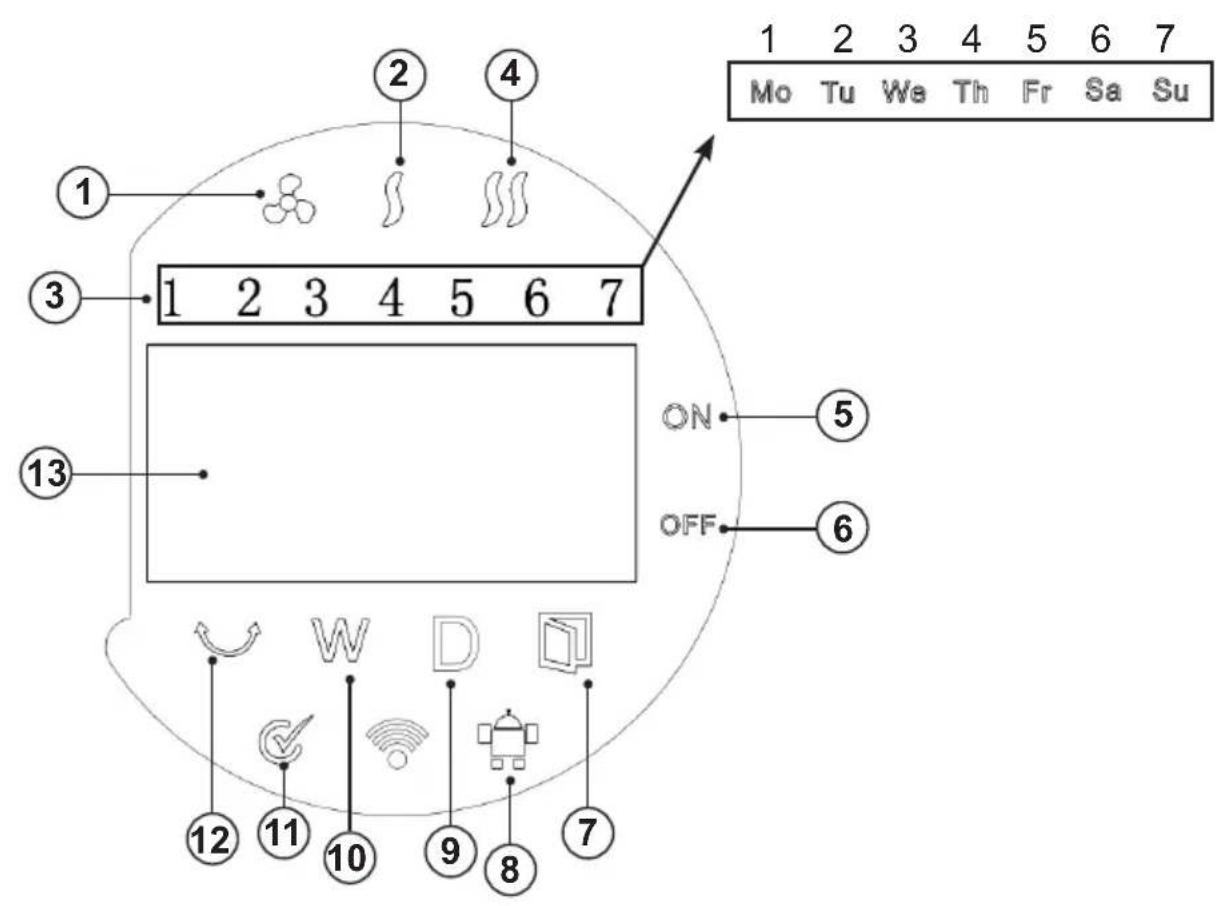

1 Fan function

2 Heat intensity I (1000W)

3 Day

4 Heat Intensity II (2000W)

5 ON button / MODE button / SWING button

6 OFF button

7 Open window

8 Thermostat

9 Timer

10 Week program

11 Delay

12 Swing

13 LED Display

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

- Fully extend the appliance's power cable before each use.

- Do not use the appliance if the on/off switch does not work.

- If you use the appliance in a bathroom or similar place, unplug the appliance from the mains

when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

- Never leave the appliance unattended while in use.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Do not use the appliance to dry textiles of any kind.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

- Install the appliance away from flammable material such as textiles, cardboard or paper, etc.

- Install the appliance a minimum distance of 50cm away from combustible materials, such as curtains, furniture ...

- Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.

- Appliance must be installed at least 2 m above the floor.

- In the event that the appliance is mounted on a bathroom wall, position it in such a way that the socket, power supply cable, switches or other controls are not within the reach a person in the bath, shower or at the wash-hand basin.

- This appliance must be fixed into a wall. The minimum distance between the floor and the lower part of the appliance is 2m

- The appliance requires suitable ventilation in order to work properly. Leave a space of 20 cm above the appliance and 25 cm on each side. (Fig.1)

- Do not cover or obstruct any of the openings of the appliance.

- The plug must be easily accessible so it can be disconnected in an emergency.

- To achieve the highest efficiency from the appliance and so as to be able to install the appliance on a cold wall (an exterior wall) and below a window. But never obstructing or covering a ventilation area.

WALL ASSEMBLING:

- Securing to the wall (Fig.2): Use a pencil to mark the right position to drill the wholes for the wall plugs (E).

- Make sure the diameter of the wholes corresponds to the diameter of the wall plugs.

- Drill two wholes on the areas previously marked (Fig.2).

- Insert the wall plugs (E) into the wholes.

- Once the wall plugs have been fitted into the wall, screw the two screws (D), leaving a distance of approximately 10mm between the screw head and the wall.

- Make sure the screws are well fixed before hanging the appliance.

- Use the wholes behind the appliance to hang it from the two screwheads.

- Ensure that the appliance is properly and safely fixed in its working position with the screws.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all the product's packaging have been removed.

- Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

- To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.

- Prepare the appliance according to the function you wish to use:

FIRST-TIME USE:

- Extend the cable completely before plugging it in.

- Connect the appliance to the mains.

- Before turning on the heater for the first time, you must set the correct time.

- Press the "LOCK" (VIII) button. The LED display will show 00:00 and the "MO" (3) light will turn on. Then you can start setting the time:

- HOURS: Press the "SET" (XII) button once. The first "00" will start blinking. Use the "+" (XI) or "-" (VI) buttons to select the correct hour (1-24h).

- MINUTES: Once you have set the correct hour, press the "SET" button again. Now the second "00" will start blinking. Use the "+" (XI) or "-" (VI) buttons to select the correct minutes (0-59min).

- DAY: Once you have set the correct minutes, press the "SET" (XII) button once more. The "MO" light (3) will start blinking. Use the "+" (XI) or "-" (VI) buttons to select the correct day of the week (Mo-Su)

- NOTICE that the numbers on the display will blink only for 5 seconds. You must operate in that time. Otherwise the appliance will go back to standby mode.

GENERAL USE:

- Turn the appliance on, by pressing the on/off button on the remote control (I).

- The unit will blow cold air and the fan indicator (1) will turn on.

MODE SET UP:

- Press the "MODE" button (II) once to turn on heat intensity I (1000W). Indicators 1 and 2 will turn on.

- Press the "MODE" button (II) a second time to turn on heat intensity II (2000W). Indicatos 1 and 4 will turn on.

- Press the "MODE" button (II) a third time to go back to the fan function. Indicator 1 will turn on.

TIMER FUNCTION:

- The appliance's operating time can be controlled.

- To start this function, press the timer button (VII).

- Every time you press the timer button (VII), the time will adjust one hour (0-24h).

- The "D" indicator (9) will turn on.

THERMOSTAT FUNCTION:

- The appliance can be programmed to automatically keep a set temperature.

- To adjust the temperature press the “+” (XI) or “-” (VI) buttons. The selected temperature will show on the LED display (13). The temperature can be set from 10^ C to 49^ C.

- The thermostat indicator (8) will turn on.

• If the room temperature drops 2 degrees below the set temperature, the heater will start running at intensity I (1000W).
• If the room temperature drops 4 degrees below the set temperature, the heater will start running at intensity II (2000W).

WEEKLY PROGRAM SET UP:

• The appliance can be programmed to function at specific times and days throughout the week.
• To initiate this function press the "W.Timer" button (V).

• Use the “+” (XI) or “-” (VI) buttons to select the desired program (P1-P6). Check table 1 to see the settings for each program. The W indicator (10) will turn on.

• P6 is the customizable program.

• Once you reach P6, press the "W.Timer" button (V) again to program Mondays. The "Mo" indicator (3) will turn on.
• Press the "W.Timer" button (V) again to set the starting time. The "ON" indicator (5) will turn on.
• Use the “+” (XI) or “-” (VI) buttons to select the desired starting hour (1-24h). Press the “W.Timer” button (V) again and use the “+” (XI) or “-” (VI) buttons to select the desired starting minutes (0-59min).
• Press the "W.Timer" button (V) again. The "OFF" indicator (6) will turn on.
• Follow the same process as before to set the ending hours and minutes.
• Press the "W.Timer" button (V) once more to set up the rest of the days, following the same process.
• Once you have selected the program or customized P6, press the "Delay" button (IX) to set the desired temperature for each day of the week.
• Use the “+” (XI) or “-” (VI) buttons to select the desired temperature (10-49°C).
• Repeat the process for each day of the week.

OPEN WINDOW FUNCTION:

• Press the "AUTO" button (IV) to start this function. The open window indicator (7) will turn on.
• In this function the appliance will check and record the room temperature constantly. When it detects that the temperature has dropped 3^ C or more in 1 minute, the appliance will turn off. This function works smartly to save energy.

- Press the "AUTO" button (IV) again to cancel this function.

DELAY FUNCTION:

• This appliance can be turned on and off after set times, when it is on standby mode.
• Press the "DELAY" button (IX) once to set the "turn-on" timer. The "delay" indicator (11) will turn on and the LED display will show « ON » + « √ ».
• Use the “+” (XI) or “-” (VI) buttons to select the desired time until “turn on” (1-24h).
• Press the "DELAY" button (IX) again to set the "turn-off" timer. The "delay" indicator (11) will turn on and the LED display will show « OFF » + « √ ».
• Use the “+” (XI) or “-” (VI) buttons to select the desired time until “turn off” (1-24h).

CHILD-LOCK FUNCTION:

• Press the "LOCK" button (VIII) once to activate the child lock. All the indicators besides de "ON" indicator (4) will turn off. Neither the control remote nor the control panel will be operative.
• To cancel this function, press the "LOCK" button (VIII) again. The indicators will turn back on and the remote control and control panel will be operative again.

SWING FUNCTION:

• Press the "SWING" button (III) once to activate the oscillation of the air outlet.
• To cancel this function, press the "SWING" button (III) again. The air outlet will stop oscillating.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, by pressing the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
• If the appliance turns itself off and does not

switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Do not let water or any other liquid get into the

air vents to avoid damage to the inner parts of the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

- If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

- Remark: When the appliance is used as a heater after long periods in storage or after having been used solely as a fan a small amount of smoke may be produced. This is not important and is due to the heater burning dust deposits which have accumulated on the heating element. This phenomenon may be avoided by cleaning the inside of the appliance beforehand through the grill with a vacuum cleaner or pressurised air.

Day	Monday Tuesd	ay Wednesda	y Thursday	Friday Saturd	day Sunday
Program
P1 8	:00-17:00 8:00	-17:00 8:00-1	7:00 8:00-17	00 8:00-17:00	0 8:00-17:00	8:00-17:00
P2	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00
P3 8	:00-17:00 8:00	-17:00 8:00-1	7:00 8:00-17	00 8:00-17:00	OFF	OFF
P4	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	OFF	OFF
P5	OFF	OFF	OFF	OFF	OFF	00:00-24:00	00:00-24:00
