USER MANUAL High Gloss VKJ944X BREVILLE

Turn on your creativity®

White Breville water heater with perforated lid and control knob (no visible text or symbols on body)

GB Kettle Instructions for Use......4
FR Bouilloire Instructions 7
DE Wasserkocher Bedienungsanleitung....10
ES Hervidor de agua Instrucciones de uso.... 13
PT Chaleira Instruções de Utilização .... 16
NL Waterkoker Gebruiksaanwijzing 19
DK Elkedel Brugsanvisning....22
NO Vannkoker Bruksanvisning 25
FI Vedenkeitin Käyttöohjeet....28
SE Vattenkokare Bruksanvisning 31
CZ Konvice Návod k použití...... 34
SK Kanvica Návod na používanie.... 37
HU Vízforraló Használati útmutató.... 40
RO Cană Instrucțiuni de utilizare.... 43
PL Czajnik Instrukcja użytkowania .... 46
BG български Инструкции за употреба 49

Line drawing of two kitchen utensils with handles and a straw, no text or symbols present

2 MAX

Illustration of two kitchen wakers with a hand adjusting their lid, showing the interior and exterior views (no text or symbols)

4 5 CLICK

Line drawing of a kettle with a lid and handle, showing a rotating knob (no text or symbols)

Illustration of a faucet pouring liquid into a tray (no text or symbols)

Labeled diagram of a kitchen water heater with numbered parts for identification

IMPORTANT SAFETY INFORMATION

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.

Never use a power base other than the one supplied with the appliance.

Never fill the kettle above the MAX marking. If the kettle is overfilled, boiling water may be ejected.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance generates heat during use. Adequate precaution must be taken to prevent the risk of burns, scalds, fires or other damage to persons or property caused by touching the exterior whilst in use or during cooling.
• Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.
  • Always ensure that hands are dry before handling the plug or switching on the appliance.
• Always use the appliance on a stable, secure, dry and level surface.
• This appliance must not be placed on or near any potentially hot surfaces (such as a gas or electric hob).
• Do not use the appliance if it has been dropped, if there are any visible signs of damage or if it is leaking.
• Ensure the appliance is switched off and unplugged from the supply socket after use and before cleaning.

• Always allow the appliance to cool before cleaning or storing.
- Never immerse any part of the appliance or power cord and plug in water or any other liquid.
- Never let the power cord hang over the edge of a work top, touch hot surfaces or become knotted, trapped or pinched.
- Never leave the appliance unattended when in use.
- Beware of steam coming from the spout or lid especially during refilling. Never open the lid during the boiling cycle.
- Never use the appliance without the filter fitted.
- Never fill the appliance when it is positioned on the power base.
- Never use the kettle without sufficient water in the kettle for it to operate correctly.
- Never allow the appliance to boil dry.

FITTING OF A PLUG - FOR U.K. AND IRELAND ONLY

This appliance must be earthed.

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type.

If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted. The appliance must not be used without the fuse cover fitted.

If the plug is unsuitable, it should be dismantled and removed from the supply cord and an appropriate plug fitted as detailed. If you remove the plug it must not be connected to a 13 amp socket and the plug must be disposed of immediately.

If the terminals in the plug are not marked or if you are unsure about the installation of the plug please contact a qualified electrician.

Plug should be ASTA approved to BS1363 Fuse should be ASTA approved to BS1362

Green/Yellow (Earth) Blue (Neutral) 13A Fuse CORD GRIP Brown (Live)

Ensure that the outer sheath of the cable is firmly held by the cord grip

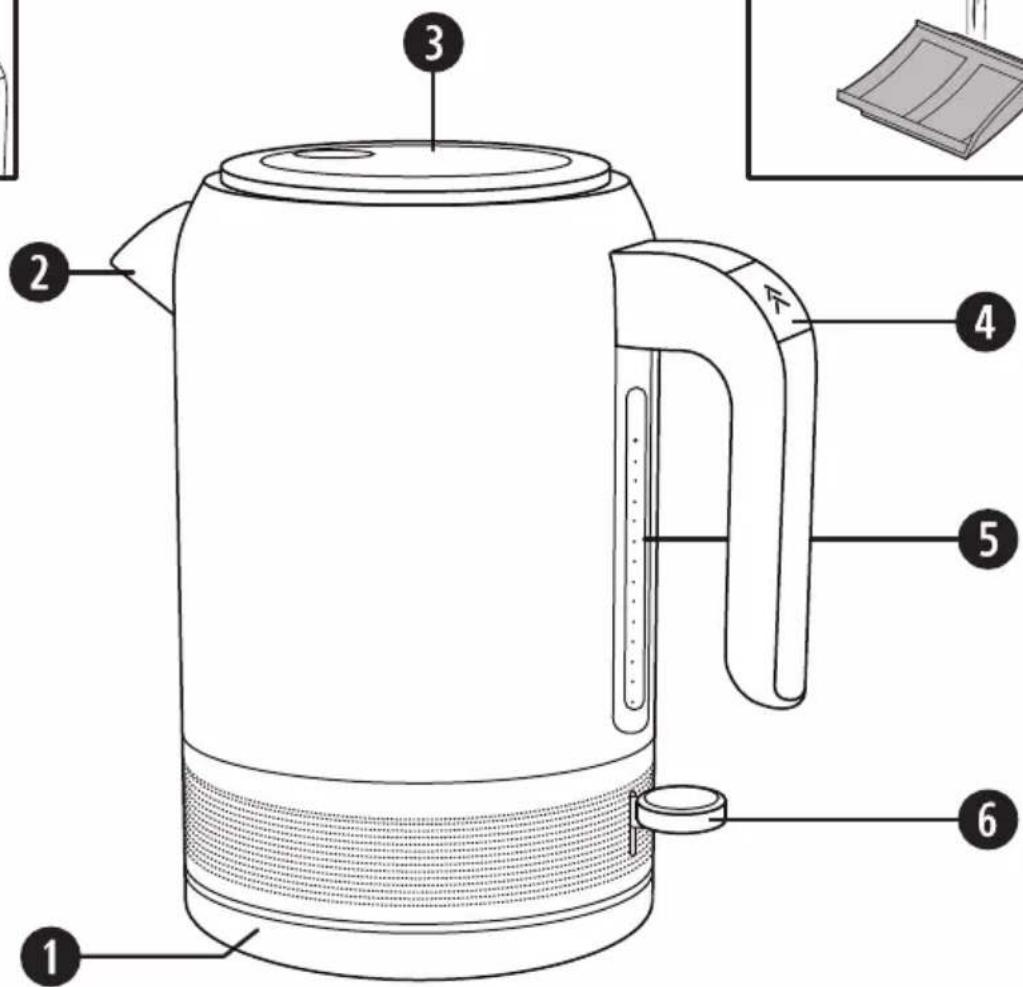

PARTS

1. 360° rotational power base with cord storage
2. Spout
3. Lid
4. Lid release button
5. Water level window
6. On/off switch

BEFORE FIRST USE

Remove any packaging and promotional material from your kettle and position it on a stable, secure, dry and level work surface away from the edge.

Before connecting to a power source, make sure your mains supply voltage is the same as the one indicated on the appliance. Connect the plug to a suitable power outlet and make sure that the power cord does not overhang the work surface. Excess power cord can be stored in the power base.

Remove the kettle from the power base. Fill it to the maximum mark.

Place the kettle back onto the power base. Switch the kettle on, allow it to boil then discard the water. Repeat twice. This will remove any residue left over from the manufacturing process.

USING YOUR KETTLE

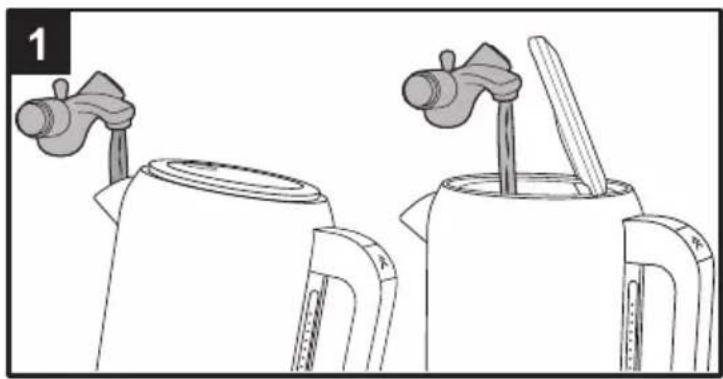

1. Remove the kettle from the power base and fill it with water either through the spout or through the opened lid. Don't overfill the kettle and always ensure that there is sufficient water in the kettle (approx. 250ml) for it to operate correctly (figure 1).
2. Check the level with the kettle on its power base (figure 2).

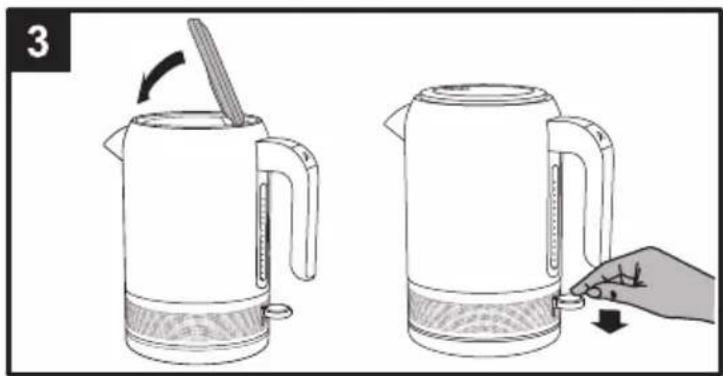

3. If removed, refit the lid and then switch the kettle on by moving the switch to the down position. Make sure that the lid is closed correctly to ensure safe operation (figure 3).

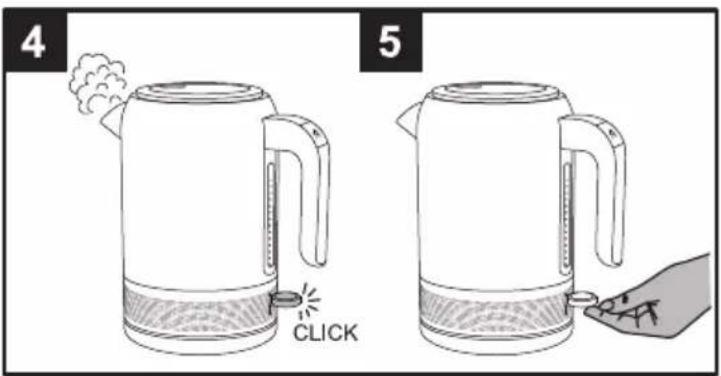

4. When the water reaches boiling point, the kettle will switch off automatically (figure 4).
5. You may also switch the kettle off manually at any time by moving the switch to the up position (figure 5).
   Always use caution when carrying the kettle when it is full of boiling water and when pouring it.

IF THE KETTLE BOILS DRY

If your kettle is operated with insufficient water a built in safety device will automatically switch it back off preventing damage. If this should happen:

• Unplug your kettle and allow it to cool. When your kettle has cooled down sufficiently the safety device will reset itself.
• Once the safety device has reset, refill your kettle with cold water and use it as normal.

CLEANING

1. Unplug the kettle from the mains supply socket and allow it to completely cool down before cleaning or descaling it.
2. Clean the exterior surface of the kettle with a damp cloth and then polish with a soft dry cloth. Do not use steel wool pads or harsh/abrasive cleaners.
3. Descale your kettle regularly to keep it working efficiently. Use a descaling product following the manufacturer's instructions carefully.

CLEANING THE FILTER

• Unplug the kettle from the mains supply socket and allow it to completely cool down.

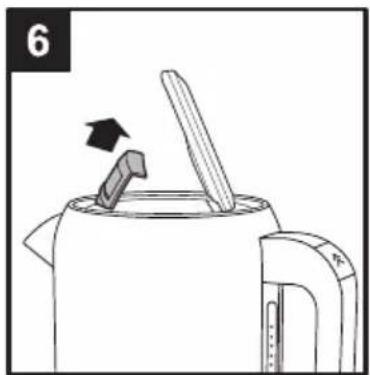

• Open the lid and remove the filter from behind the spout (figure 6).

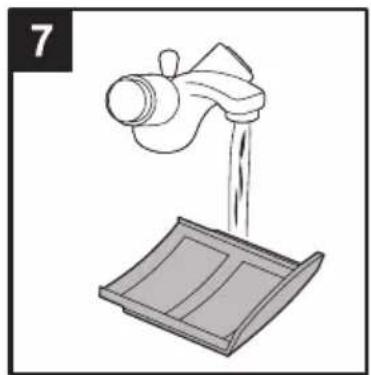

• Rinse the filter under a tap whilst brushing it with a soft brush (figure 7).
• In hard water areas it may be necessary to descale the filter using a descaling agent. Use a descaling product following the manufacturer's instructions carefully.
• The filter may be washed safely in a dishwasher.
• Refit the filter back into the kettle.

TURN ON YOUR CREATIVITY®

Let the Breville® team help you turn on your creativity with a gateway to a world of food and drinks without limits. You don't have to travel far—just to your computer, tablet or mobile—where you will discover our FREE website with top tips and recipes to inspire your imagination. Join us now at:

www.turnonyourcreativity.com

Turn on your creativity®

GUARANTEE

Please keep your receipt as this will be required for any claims under this guarantee.

This appliance is guaranteed for 2 years after your purchase as described in this document.

During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe) Limited (“JCS (Europe)”) has the right to change these terms.

JCS (Europe) undertakes within the guarantee period to repair or replace the appliance, or any part of appliance found to be not working properly free of charge provided that:

• you promptly notify the place of purchase or JCS (Europe) of the problem; and
• the appliance has not been altered in any way or subjected to damage, misuse, abuse, repair or alteration by a person other than a person authorised by JCS (Europe).

Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts of nature, events beyond the control of JCS (Europe), repair or alteration by a person other than a person authorised by JCS (Europe) or failure to follow instructions for use are not covered by this guarantee. Additionally, normal wear and tear, including, but not limited to, minor discoloration and scratches are not covered by this guarantee.

The rights under this guarantee shall only apply to the original purchaser and shall not extend to commercial or communal use.

If your appliance includes a country-specific guarantee or warranty insert please refer to the terms and conditions of such guarantee or warranty in place of this guarantee or contact your local authorized dealer for more information.

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. E-mail us at [e-mail] for further recycling and WEEE information.

Pure electrical circuit lines without any symbols

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

LISEZ AVEC ATTENTION ET CONSERVEZ POUR RÉFÉRENCE

Turn on your creativity®

GARANTIE

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside Cheadle Royal Business Park Cheadle SK8 3GQ UK

WEEE

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Turn on your creativity®

GUARANTEE

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Pure electrical circuit lines without any symbols

Turn on your creativity®

GARANTIA

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

LEIA COM ATENÇÃO E GUARDE-AS PARA REFERÊNCIA FUTURA

Turn on your creativity®

GARANTI

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Pure electrical circuit lines without any symbols

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

ZORGVULDIG LEZEN EN BEWAREN VOOR TOEKOMSTIG GEBRUIK.

Turn on your creativity®

GARANTIE

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Pure electrical circuit lines without any symbols

VIGTIGE SIKKERHEDSANVISNINGER

LÆS OMHYGGELIGT, OG OPBEVAR DEM TIL FREMTIDIG BRUG

Turn on your creativity®

GARANTI

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

VIKTIGE SIKKERHETSINSTRUKSJONER

LES N∅YE OG OPPBEVAR FOR FRAMTIDIG REFERANSE

Turn on your creativity®

GARANTI

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Pure electrical circuit lines without any symbols

Turn on your creativity®

TAKKUU

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Pure electrical circuit lines without any symbols

VIKTIGA SÄKERHETSANVISNINGAR

LÄS NOGA OCH SPARA DEM OM DU BEHÖVER LÄSA DEM IGEN

Turn on your creativity®

GARANTI

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Symbol of a trash bin crossed with no text or labels

DÜLEŽITÉ BEZPEČNOSTNÍ POKYNY

ČTĚTE POZORNĚ A USCHOVEJTE PRO POZDĚJŠÍ POUŽITÍ

Turn on your creativity®

ZÁRUČNÍ LIST

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Pure electrical circuit lines without any symbols

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

PREČÍTAJTE SI ICH POZORNE A ODLOŽTE SI ICH, AK BY STE ICH V BUDÚCNOSTI POTREBOVALI

Turn on your creativity®

ZÁRUKA

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Pure electrical circuit lines without any symbols

FONTOS BIZTONSÁGI UTASÍTÁSOK

FIGYELMESEN OLVASSA EL ÉS ÖRIZZE MEG KÉSÖBBI FELHASZNÁLÁS CÉLJÁBÓL

Turn on your creativity®

WEEE

Pure electrical circuit lines without any symbols

GARANCIA

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

INSTRUCTIUNI IMPORTANTE PRIVIND SIGURANTA

CITIȚI-LE CU ATENȚIE ȘI PĂSTRATI-LE PENTRU A LE PUTEA CONSULTA ULTERIOR

Turn on your creativity®

WEEE

Pure electrical circuit lines without any symbols

GARANTIE

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WAŻNE ZASADY BEZPIECZEŃSTWA

UWAŻNIE PRZECZYTAJ I ZACHOWAJ NA PRZYSZŁOŚĆ.

Turn on your creativity®

WEEE

Pure electrical circuit lines without any symbols

GWARANCJA

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

ВАЖНИ ПРЕДПАЗНИ МЕРКИ

ПРОЧЕТЕТЕ ВСИЧКИ ИНСТРУКЦИИ ПРЕДИ УПОТРЕБА

Turn on your creativity®

ГАРАНЦИЯ

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

UK

WEEE

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Breville®

UK: Jarden Consumer Solutions (Europe) Limited Cheadle Royal Business Park, Cheadle, SK8 3GQ, United Kingdom e-mail: [e-mail] Telephone: [phone]

France: Jarden Consumer Solutions (Europe) Limited 420 Rue D'Estienne D'Orves 92700 Colombes, France

España: Oster Electrodomésticos Iberica, S.L. C/ Basauri 17 Edificio Valreality - B Planta Baja Derecha 28023 - La Florida (Aravaca) Madrid, España

For Customer Service details, please see the website. Pour contacter le service clientèle, consultez le site Web. Para obtener información sobre Atención al Cliente, consulte nuestra web.

www.breville.eu

© 2015 Jarden Consumer Solutions (Europe) Limited

All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited, Cheadle Royal Business Park, Cheadle, SK8 3GQ, United Kingdom. The product you buy may differ slightly from the one shown on this carton due to continuing product development. Two (2) Year Limited Guarantee—see inside for details. Jarden Consumer Solutions (Europe) Limited is a subsidiary of Jarden Corporation (NYSE: JAH).
