USER MANUAL CEFC323NFB CONTINENTAL EDISON

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition

• thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.

• Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. 1)

• Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
• To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 ~h ; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance.[2]

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);

Safety information

• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves, balconies, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol a re recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

PPackaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Warning!

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

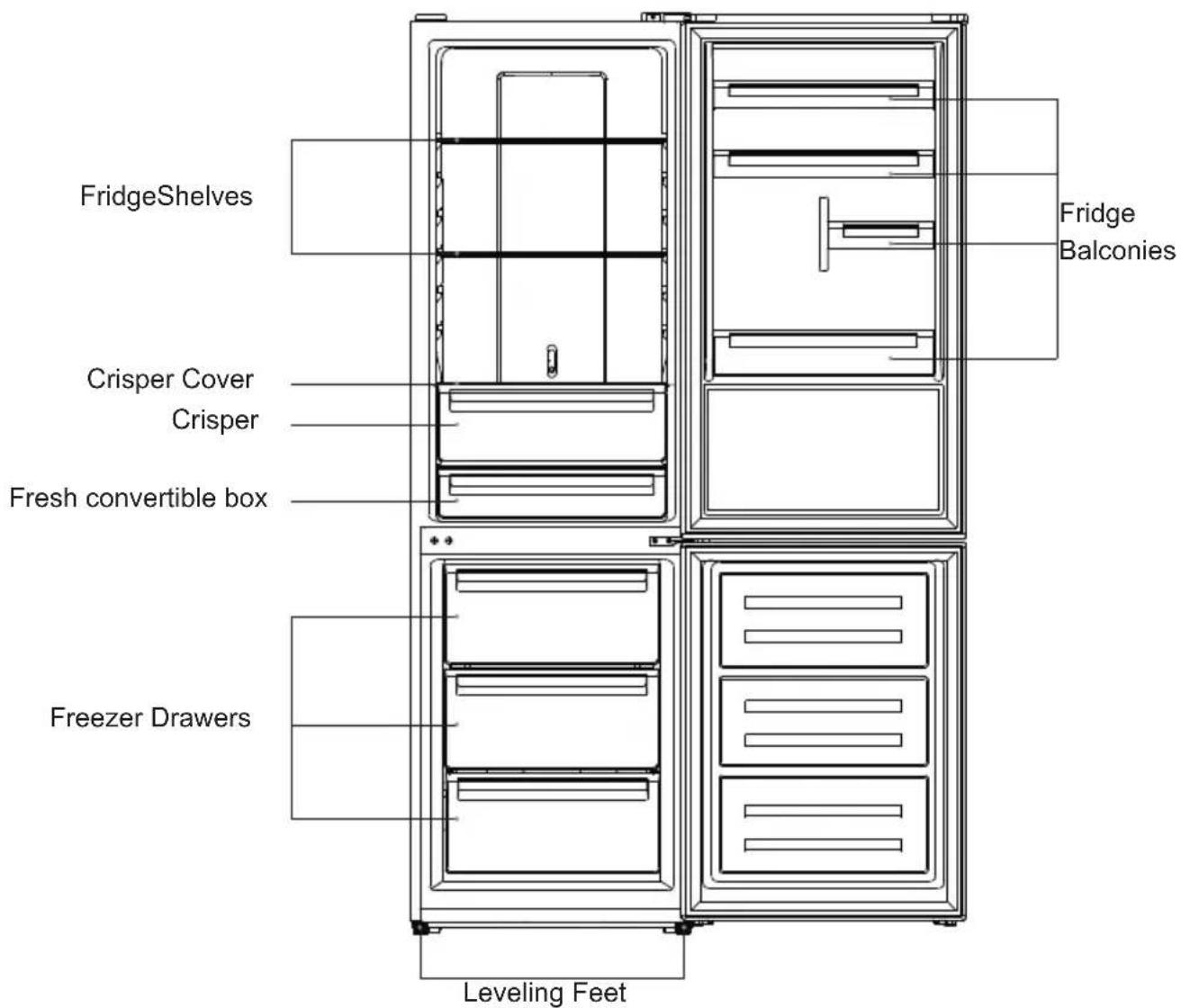

Note: Above picture is for reference only. Real appliance probably is different.
This refrigerating appliance is not intended to be used as a built-in appliance.

II-TECHNICAL CHARACTERISTICS

Mark Continental Edison
Reference Model	CEFC323NFB FN2-46S-6
Voltage	220-24
Frequency	50 Hz
Current	1.3 A
Insulation blowing gas	R600a(52g)
Dimensions (W*H*D)	600x1850x690mm
Energy class	D
Energy consumption of 119 kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit.
Total volume	323L
Fresh food compartme nt volume	219L
4-star storage volume	104L
Climate class	SN, N, ST,T
This unit is designed for use at an ambient temperature between +10°C and +43°C
Noise emissions	39dB

V

ENERG

C

2019/2016 on the energy labelling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product.

https://eprel.ec.europa.eu/qr/1653724

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open easily;
• Select a location with level (or nearly level) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Keep at lest 50mm gap at two sides and back.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ;(SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ ;(N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^ ;(ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 43^ ;(T)

Location

8he appliance should be installed well away from sources of heat such as radiators0 boilers0 direct sunlight etc. )sure that air can circulate freely around the back of the cabinet. 8o ensure best performance0 if the appliance is positioned below an overhanging wall unit0 the minimum distance between the top of the cabi:net and the wall unit must be at least 50~mm . Ideally0 however0 the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the mains power supply- the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in0 ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. 8he appliance must be earthed. 8he power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed0 connect the appliance to a separate earth in compliance with current regulations0 consulting a qualified electrician.8he manufacturer declines all responsibility if the above safety precautions are not observed.8his appliance complies with the ).).C. Directives.

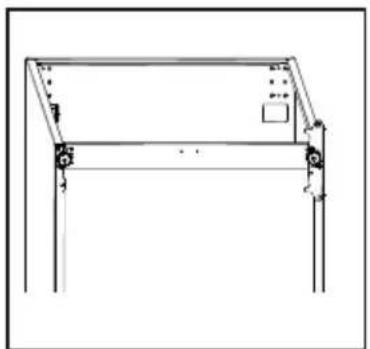

Door Reversibility

Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag:

Left Door Hinge Cover x 1

Left Aid-Closer on Upper Door x 1

Left Aid-Closer on Lower Door x 1

1. Unscrew top hinge cover and disconnect connectors of door switch and harness.

2.Unscrew top hinge

3.Remove the pin with a screwdriver and filp the hinge bracket. Then refit the pin to hinge bracket

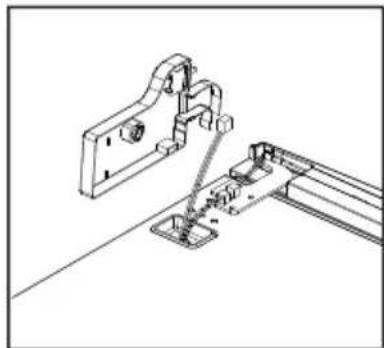

1. Move door switch from right hinge cover to left hinge cover in accessory bag.

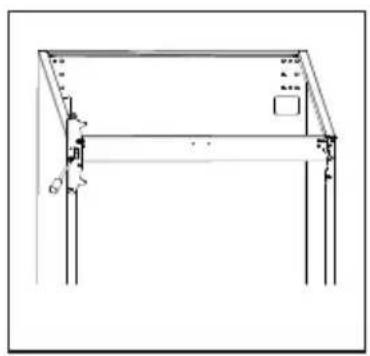

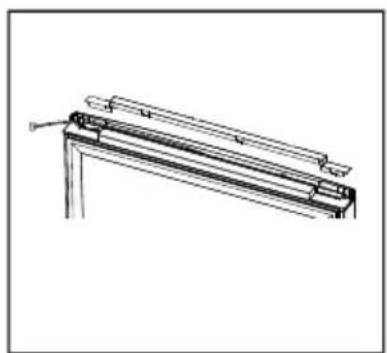

5.Detach cover in top of upper door and move harness from right side to left side, then replace the cover.

1. Move top left cover to right side

1. Take off the upper door, take out the screw from the middle hinge by cross screwdriver, then take off the lower door.

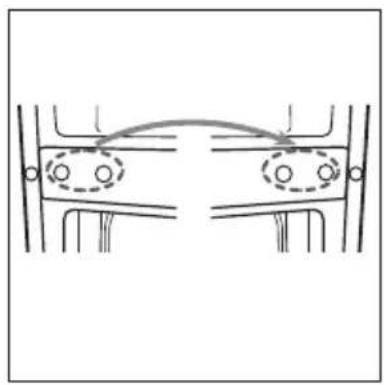

1. Move the hinge hole covers from left side to right side.

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

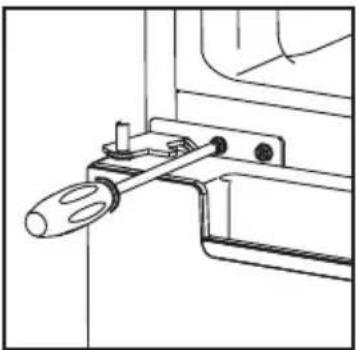

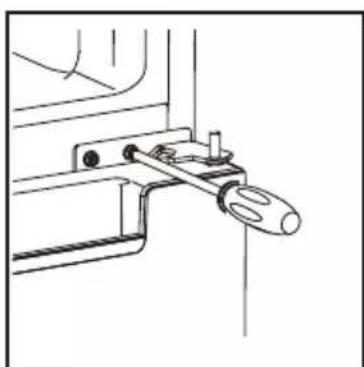

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

1. Remove aid-closers from bottom of upper and lower doors, then take new aid-closers from accessory bag and install them to left side.

13.Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

1. Install the lower door, adjust and fix the middle hinge onto the cabinet.

1. Replace upper door, please ensure the door align with the cabinet to make sure door gasket seal the cabinet tightly. Then connect door with cabinet by tightly fixed top hinge.

1. Connect harnesses from door and cabinet. Then replace top hinge cover. Before screw the cover, connect terminals of door switch.

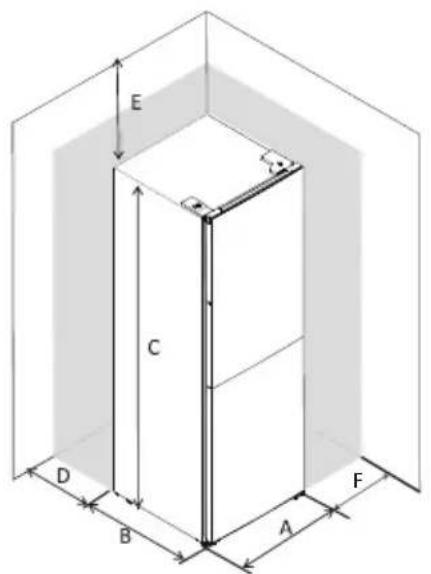

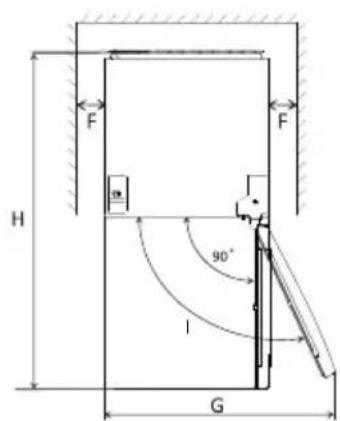

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides and back.

A	600
B	685
C	1850
D	min=0
E	min=50
F	min=50
G	6200
H	1285
I	63qΣ

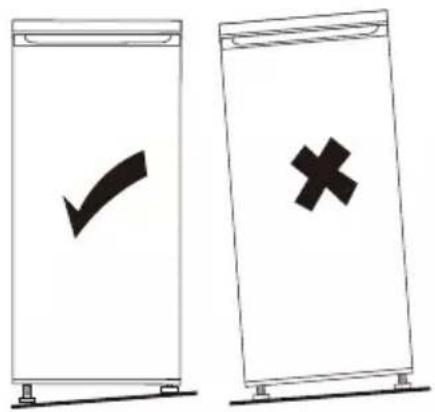

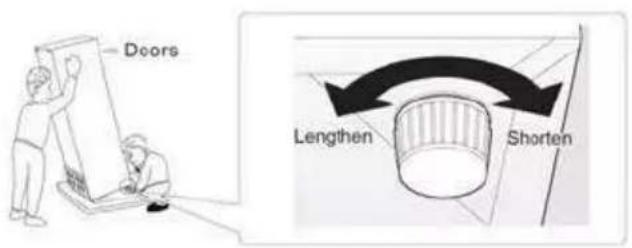

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

1. Temperature setting and functions

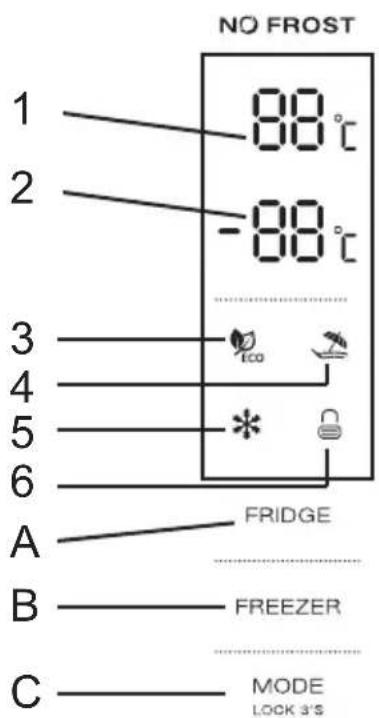

Control panel and display

Display:

1. Fridge compartment temperature

2. Freezer compartment temperature

3. ECO ECO energy saving mode indicator light

4. Holiday mode indicator light
5. Super freezing mode indicator light
6. Lock indicator light

Touch buttons

A. FRIDGE Fridge compartment temperature setting
B. FREEZER Freezer compartment temperature setting MODE Mode setting, Lock/unlock

c. LOCK 3'S -To lock/unlock touch buttons, keep touching this button for 3 seconds.

Setting the fridge compartment temperature

1. Touch FRIDGE once.

2. The current fridge compartment temperature will flash on the display.

3. While the temperature is flashing, repeatedly touch FRIDGE to select the desired fridge compartment temperature from 2^ to 8^ .

4. After the selected temperature flashes for about 5 seconds, it will stop flashing, indicating that the setting is confirmed.

Setting the freezer compartment temperature

1. Touch FREEZER

2. The current freezer compartment temperature will flash on the display.

3. While the temperature is flashing, repeatedly touch FREEZER to select the desired fridge compartment temperature from -14^ to -22^ .

4. After the selected temperature flashes for about 5 seconds, it will stop flashing, indicating that the setting is confirmed.

Setting a mode

MODE

You can select different modes by repeatedly pressing LOCK 3'S When a certain mode is selected, the corresponding mode symbol will be displayed.

ECO energy saving

This mode makes the appliance work in a power saving mode by reducing energy consumption.

MODE

1. Repeatedly touch LOCK 3'S until the indicator light flares on the display.

2. After the indicator light flashes for about 5 seconds, it will stop flashing, indicating that the ECO mode is selected.

3. The temperatures for the fridge and freezer compartments will automatically switch to 5^ C and -18^ C respectively.

MODE

To deactivate this mode, repeatedly touch LOCK 3'S until the indicator light goes out.

>Holiday

This mode is recommended when the appliance will not be used for a long period of time (during holidays for example).

MODE

1. Repeatedly touch LOCK 3'S until the indicator light flashes on the display.

2. After the indicator light flashes for about 5 seconds, it will stop flashing, indicating that the holiday mode is selected.

3. The fridge compartment temperature will be 17^ and cannot be adjusted.

MODE

To deactivate this mode, repeatedly touch LOCK 3'S until the indicator light goes out.

>Super freezing

This mode will help food to freeze quickly and retain its nutrients, vitamins, flavours and appearance.

MODE

1. Repeatedly touch LOCK 3'S until the indicator light flashes on the display.

2. After the indicator light flashes for about 5 seconds, it will stop flashing, indicating that the holiday mode is selected.

3. The freezer compartment temperature will be -25^ and cannot be adjusted.

To deactivate this mode:

This mode will be automatically deactivated after 52 hours of operation.

MODE

To manually devate this mode, repeatedly touch LOCK 3'S until the indicator light goes out.

Lock/Unlock

This function allows you to disable the bu onst

MODE

• To lock buttons, press and hold LOCK 3's for 3 seconds. The indicator light will illuminate on the display.

MODE

• To unlock buttons, press and hold LOCK 3's again for 3 seconds. The indicator light will go out.

IMPORTANT! In the unlock state, if there is no operation of any button for about 25 seconds, the system will automatically enter the lock state.

Door open alarm

When the fridge door is left open or not closed completely for about 1 minute, the appliance will sound the alarm.

Close the fridge door then the alarm will stop.

Warning, check the correct closing of the freezer door which is not equipped with this door open alarm.

2. Temperature control of fresh convertible box

The fridge compartment comes with a Fresh convertible box at the bottom. You can separately adjust the temperature of this box using the Fresh Converter to cater for different types of food.

1. To lower the temperature in this box, push the knob of the Fresh Converter upwards.
2. When the knob is at the lowest position, the Fresh convertible box functions like a crisper and maintains the appropriate temperature and humidity for storing fruit and vegetables.
3. When the knob is at the highest position, the Fresh convertible box is suitable for short-term storage of fresh food such as fish and meat. The food in the box will be kept very cold but unfrozen to maintain its freshness while making it ready to be cooked.

• Tips: If you store fish or meat in the Fresh convertible box, we recommend that you set the fridge temperature to be below 4^ . Also, store your food in the box for no more than 3 days to guarantee the best freshness.

The recommended setting of temperature for fridge and freezer

Location Tempe	ature Types of	food Storage	time
Fridge balconies	4~6°C	- Foods with natural preservatives, such as jams, juices, drinks and condiments - Do not store perishable foods.	3 days
Crisper drawer (salad drawer)	3~5°C	- Fruit, herbs and vegetables - Do not store bananas, onions, potatoes and garlic.	1 week
Fridge shelf - middle	3~5°C	Dairy products and eggs	1 week
Fridge shelf - top	3~5°C	Foods that do not need cooking, such as ready-to-eat foods, deli meats and leftovers	1 week
Freezer drawers	18°C	- Foods for long-term storage - Bottom drawer for raw meat, poultry and fish - Middle drawer for frozen vegetables, chips, etc. - Top drawer for ice cream, frozen fruit, frozen baked foods, etc.	1 to 18 months

First use

Cleaning the Interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments. ·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the risper bin. ·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – to p	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage. ·Bottom drawer/shelf for raw meat, poultry, fish. ·Middle drawer/shelf for frozen vegetables, chips. ·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
- Place the fresh food to be frozen in the bottom compartment.
- The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

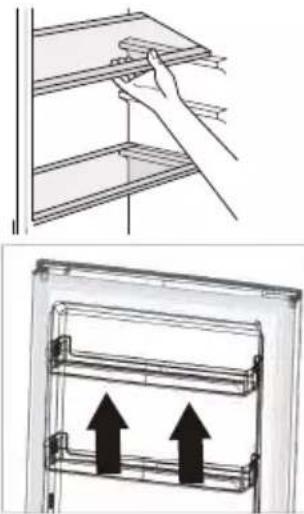

Accessories Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

Door balconies can be disassembled for cleaning. To make the disassembling as follows: gradually pull the balcony in the direction of the arrows until it comes free, after cleaning, reposition it.

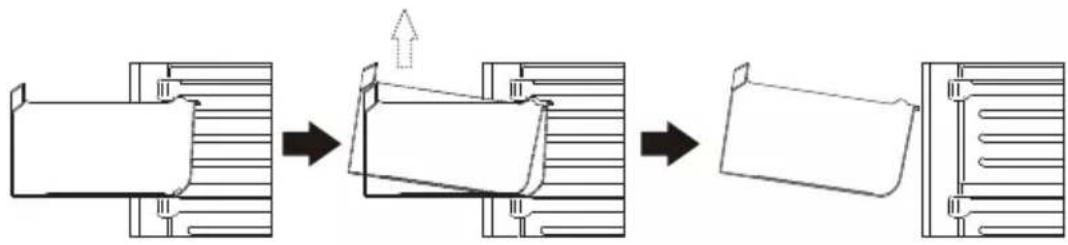

Disassemble the bottom drawer

1.Pull out the bottom drawer to stopper position.
2.Lift up the front of drawer.
3.Pull out the bottom drawer.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
the freezing process takes 24 hours. No further food to be frozen should be added during this period;
onlyfreeze top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
- leanfoods store better and longer than fatty ones; salt reduces the storage life of food;
- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

-Do not store warm food or evaporating liquids in the refrigerator

• Do cover or wrap the food, particularly if it has a strong flavour

Hints for refrigeration

Useful hints:

• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
  -For safety, store in this way only one or two days at the most.
  Cooked foods, cold dishes, etc.... these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

Forhygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• After everything is dry place appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at coldest	Set the knob at other switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at coldest.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.
Side panels are hot.	It's normal. Heat exchange parts are in the sides.	Take gloves to touch sides if needed.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Insight light

This product contains a light source of energy efficiency class 'G'.

Light source in this product is replaceable only by qualified engineers.

The interior temperature of the refrigerator is influenced by several factors such as the ambient temperature of the room, the amount of food stored and how often the door is opened. Take these factors into account when setting the temperature.

For the proper conservation of food in your refrigerator and in particular in the coldest area, make sure that the temperature indicator appears "OK".

If "OK" does not appear, the temperature of the zone is too high. Set the thermostat to a higher position. Wait at least 12 hours before readjusting the thermostat. After loading fresh food into the appliance or after repeated openings (or extended opening) of the door, it is normal for the temperature indicator not to display "OK".

Guarantee

Your refrigerating appliance is guaranteed by the manufacturer during a period of 24 months from the purchasing date (The dated invoice as proof).

Exclusions of guarantee : The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from :

(1) superficial deteriorations due to the normal wear of the product;
(2) defect or deteriorations due to contact with food or liquids and due to the corrosion generated by rust;
(3) any incident, abuse, misuse, modification, disassembly or unauthorized repairs ;
(4) any wrong maintenance operation, use not conforming to the instruction for use of the product and connection to an improper power supply ;
(5) any use of not initially provided accessories or approved by the manufacturer.

Information : The guarantee won't be applicable in case of missing rating plate or/and product serial number. repairs Services

In case of malfunction during the guarantee period of the manufacturer: any repairs request must be addressed to the professional retailer you purchase your product to. After the expiry of the manufacturer guarantee period : refer to the document « Spare parts and repairs » in the documentation related to your refrigerating appliance available on the website

"www.continentaledison.fr" Spare parts The necessary spare parts for your product repairs are available at least 7 years, in conformity with the European regulation related to the eco-design of refrigerating appliances.

Refer to the document « spare parts and repairs » inside the documentation related to your refrigerating appliance, available on the website "www.continentaledison.fr" it will inform you about :

• the availability for each spare part;

• the spare parts purchasing terms;

• some professional repairs services.

DISPOSAL

This device bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be taken into a selective collection system in accordance with European Directive 2012/19/EU so that it can either be dismantled or be recycled, and thus reduce the impact on the environment.

For more information, you can contact your local ( town hall) or regional administration.

Electronic products that have not been sorted are potentially dangerous for the environment due to the presence of hazardous substances.

When this device reaches the end of its useful life, you must take it to a selective collection center for it to be destroyed and / or recycled.

Under no circumstances should you throw this device on the public highway.

IMPORTÉ PAR

AMC
