Product Type	Built-in Hood
Brand	Best
Model	CP34I309SB
Width	30 in (76.2 cm)
Depth	19 5/16 in (49.1 cm)
Height (hood)	4 7/8 in (12.4 cm)
Weight	33 lb (15 kg)
Power Supply	120 V, 60 Hz, 3-wire connection
Lighting	2 halogen bulbs 50 W (MR16 or PAR16, GU10 base)
Fan	Single or dual depending on model, 600 or 1200 CFM
Controls	On/off switch, rotary speed knob, 3-position light
Filters	Metal baffle filters (3 for 30 in), dishwasher safe
Duct Diameter	8 in round (for CP34 and CP35)
Minimum distance above cooking surface	24 in (61 cm)
Recommended distance above cooking surface	30 in (76.2 cm)
Special Feature	Heat Sentry™: thermostat that activates fan in case of excessive heat
Warranty	5-year limited (parts and labor)
Usage	Indoor, residential only

Frequently Asked Questions - CP34I309SB BEST

How to clean the baffle filters?

Baffle filters should be cleaned frequently with a solution of hot water and detergent. They are dishwasher safe. Use phosphate-free detergent to avoid discoloration. Let dry completely before reinstalling.

Which bulb to use for lighting?

Use halogen bulbs with screen 120 V, 50 W, MR16 or PAR16 with GU10 base. Never use cool beam bulbs or those not designed for recessed fixtures.

How to install the exhaust duct?

For model CP34, use an 8 in round metal duct. Seal joints with metal tape. Always vent air to the outside, never into an attic or garage.

What to do if the motor stops and restarts?

The motor has thermal protection. If it overheats, it shuts off automatically and restarts after cooling. If the problem persists, have the unit checked by a professional.

How to replace halogen bulbs?

Gently push the bulb upward and turn clockwise to unlock. Use a dishwashing glove or Best suction cup (part 99526707) for better grip.

What is the minimum distance between the hood and the cooktop?

The minimum distance is 24 in (61 cm). A distance of 30 in (76 cm) is recommended for optimal exhaust.

How to clean the stainless steel surface?

Wash with a soft cloth and warm soapy water, always in the direction of the grain. Rinse thoroughly and wipe dry. Avoid steel wool, abrasive cleaners, and chlorine-based products.

What does the Heat Sentry™ function do?

The Heat Sentry™ is a thermostat that automatically activates the fan at high speed if excessive heat is detected above the cooktop. It may start even if the hood is off.

How to remove and reinstall baffle filters?

To remove, push the filter toward the back of the hood and tilt it downward. To install, insert one end into the front rail, then lift the other side into the channel.

Can I install the hood myself?

Installation must be done by a qualified person in accordance with local codes. Due to weight and size, it is recommended to have two people.

USER MANUAL CP34I309SB BEST

Technical line drawing of a cabinet or enclosure with vertical slats and circular components (no text or symbols)

CP34, CP35 AND CP37 SERIES

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 12 AND 13.

BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711

To register your product online or for additional information visit www.BestRangeHoods.com

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.
    a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
    b) Always turn power pack ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
    c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
    d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
   A. You own a Class ABC extinguisher and you know how to operate it.
   B. The fire is small and contained in the area where it started.
   C. The fire department has been called.
   D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Your power pack motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the power pack serviced.
5. The minimum hood distance above cooktop must not be less than 24". A maximum of 30" above cooktop is recommended for best capture of cooking impurities.
6. Two installers are recommended because of the large size and weight of this unit.
7. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
8. This product is equipped with a thermostat which may start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.
9. Because of the high exhausting capacity of this unit, you should make sure enough air is entering the house to replace exhausted air by opening a window close to or in the kitchen.
10. To reduce the risk of fire and electrical shock, the Best models CP34, CP35 and CP37 Series should only be installed with their own built-in blowers. Other blowers cannot be substituted.

11. Please read specification label on product for further information and requirements.

12. CP34, CP35 AND CP37 POWER PACK SYSTEMS -


WARNING

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.

Make sure that the following items are included:

- Power Pack

Accessories: • Baffle filters with handles:

CP34 and CP35: 3 for the 30" and 36" width models, 4 for the 42" width model

CP37: 5 for this 48" width model

- 2 Shielded halogen lamps (120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base)

- 8" Round adapter/damper (included with single blower power packs)

- 10" Round in-line vertical damper (included with dual blower power pack)

- 10" Round adapter (included with dual blower power pack)

- Bag of parts including: 1 wire clamp, 2 wire connectors, 4 no. 8 x 3/8" screws, 9 no. 8 x 1/2" chrome plated screws, 10 no. 8-32 x 1/4" screws. If need be, discard extra screws.

Parts sold separately:

Ducts, elbows, wall and roof caps. Refer to page 3 for a complete list of venting options and model numbers.

NOTE: During installation, protect countertop and/or cooktop.

2. INSTALL DUCTWORK AND ELECTRICAL WIRING

Plan where and how the ductwork will be installed. Access to the top of the hood is preferred for connection of ductwork.

Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. If installing CP34 or CP35 power pack, use 8" round ductwork and if installing CP37 power pack, use 10" round ductwork. Use 2" metal foil duct tape to seal duct joints.

The minimum hood distance above cooktop must not be less than 24". A maximum of 30" above cooktop is recommended for best capture of cooking impurities.

Distances over 30" are at the installer and users discretion.

Run 3-wire power supply cable to installation location. Its length should extend at least 4 feet below the bottom of the custom hood.

MODELS CP34 & CP35 (SINGLE BLOWER)
OR CP37 (DUAL BLOWER) TYPICAL DUCTWORK

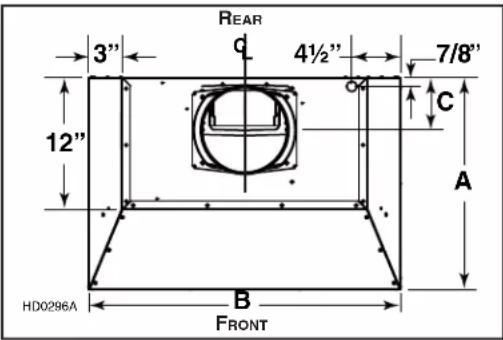

3. CUSTOM HOOD PREPARATION

WARNING

When building a custom hood, always follow all applicable construction codes and standards.

The custom hood must be constructed to fit the size and shape of the CP34, CP35 or the CP37 power pack models.

See chart and illustration for details.

POWER PACK MODEL	WIDTH	TOTAL WEIGHT	RANGE HOOD DIMENSIONS
			A*	B*	C
CP34 AND CP35	30"	33 LB.	19 516 "	28 716 "	4 78 "
	36"	37.2 LB.	19 516 "	34 716 "	4 78 "
	42"	41.6 LB.	19 516 "	40 716 "	4 78 "
CP37	48"	56.5 LB.	22 916 "	46 716 "	5 78 "

* Dimensions A and B include rivets head.

3. CUSTOM HOOD PREPARATION (CONT'D)

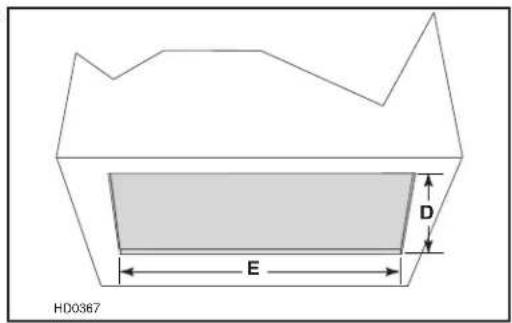

To minimize the gap around the power pack, take actual width and depth measurements of power pack and add 1/16" to get D and E measurements. Cut the hole in the bottom of the cabinet according to dimensions. See chart and illustration for details.

POWER PACKMODEL	WIDTH	CUTOUTDIMENSIONS
		D	E
CP34 AND CP35 30" 19		38" 2	12"
	36" 19	38" 3	12"
	42" 19	38" 4	12"
CP37 48" 22		58" 4	12"

4. MOUNT CUSTOM HOOD INTERNAL FRAMEWORK

WARNING

The framework must be positively secured to wall studs or other wooden framework behind the drywall. Make sure it is capable of supporting its own weight and the weight of the CP34, CP35 or CP37. Failure to do so may cause personal injury or damage to countertop or cooktop.

The CP34, CP35 and CP37 power pack models are supported by the custom hood internal framework with screws provided in parts bag.

Since the CP34, CP35 and CP37 power pack models mounting holes are located in front and rear sides (see illustration at right), plan to install wood frame at front and sides for support.

5. REMOVE FILTERS

Remove tape on filters. Remove filters from power pack and set aside. NOTE: It is recommended to start with the center one(s).

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

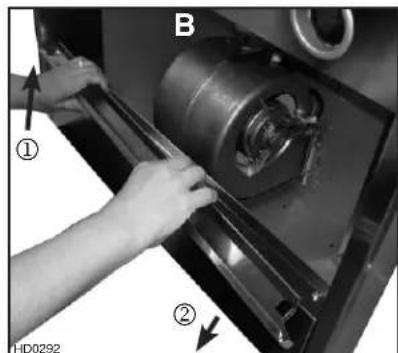

6. REMOVE GREASE DRIP RAIL

A. Lift grease drip rail to disengage it from the bottom panel.
B. Slide grease rail all the way to the left or right (①) and lift the opposite end to disengage the other end from the bottom panel (②). Remove it from the power pack and set aside for later use.

Close-up of hands operating a mechanical device with a circular component and a curved arrow indicating motion (no text or symbols visible)

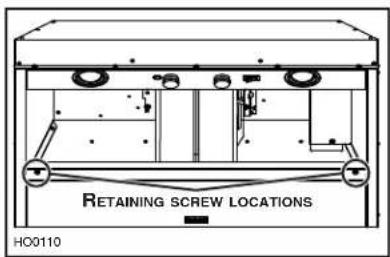

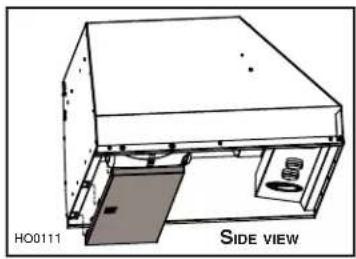

7. REMOVE BOTTOM PANEL

Using a Phillips screwdriver, remove both bottom panel retaining screws and set aside.

Disassemble bottom panel from power pack and set aside.

Technical line drawing of a mechanical assembly with labeled side view (no text or symbols beyond labels)

8. REMOVE KNOCK-OUT OPENING

From inside the power pack, remove the wiring cover by removing 2 retaining screws and set aside. Punch out the electrical knockout hole on top of the power pack. Install the wire clamp (included in parts bag).

Line drawing of a mechanical device with a hammer and hilt, no text or symbols present

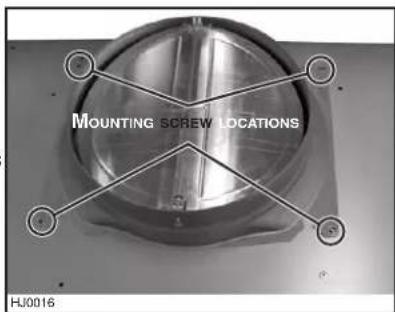

9. INSTALL ADAPTER/DAMPER (CP34 AND CP35 MODELS)

Using 4 no. 8 x 3/8" screws from parts bag, assemble the adapter/damper on the top of the power pack. To ensure proper opening of the dampers, remove shipping tape if present. Seal all joints with metal foil duct tape to eliminate air leaks.

10. INSTALL ADAPTER AND DAMPER (CP37 MODEL ONLY)

Using 2 no. 8 x 3/8" screws from parts bag, assemble the adapter on the top of the power pack. Seal all joints with metal foil duct tape to eliminate air leaks.

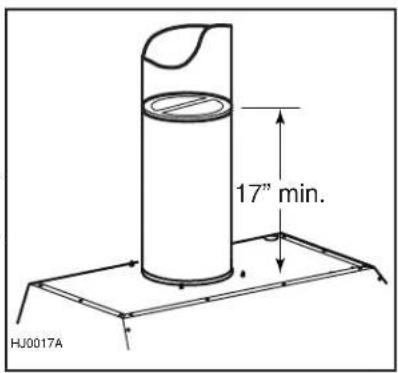

Install 10" damper inside the VERTICAL ductwork that will be attached to power pack. Do not install in a horizontal ductwork or it will not open and close properly. Remove shipping tape if present. To optimize airflow and quiet sound, position the damper at least 17" above the top of the CP37 power pack; or as far as the duct run will allow (see figure at right). Secure the damper to the duct with 3 no. 8 sheet metal screws (not provided). Ensure damper opens and closes freely. Seal all joints with metal foil duct tape to eliminate air leaks.

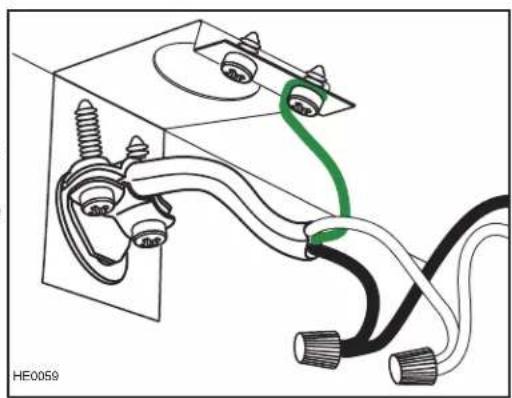

11. CONNECT WIRING

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Position the power pack below the installed custom hood. Insert the house wiring cable through the wire clamp previously installed in step 8. Tighten the wire clamp to secure the cable.

Using the provided wire connectors, connect power pack wires to power cable into wiring box.

Connect wires as follow: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under ground screw. DO NOT FORGET TO CONNECT THE GROUND. Reinstall wiring cover.

Pure electrical wiring diagram showing connections between components (no text or symbols)

12. REMOVE BLOWER(S)

In order to ease the power pack alignment with existing ductwork, unplug and disassemble the blower(s) from the power pack before installing the custom hood.

Unplug the blower(s)

Close-up of a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

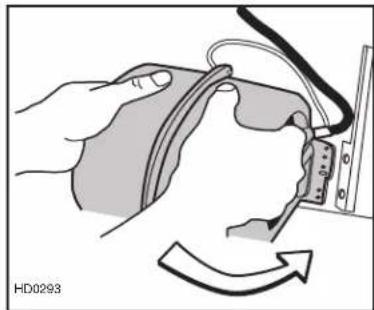

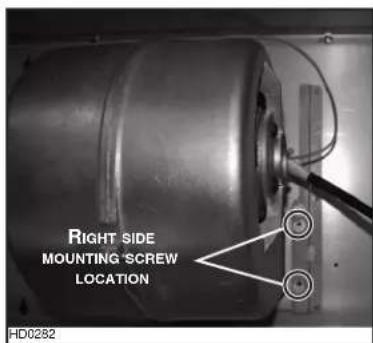

CP34 AND CP35 MODELS

Using a 5/16" socket, remove all blower mounting screws from the inner top of the power pack. Set the screws aside.

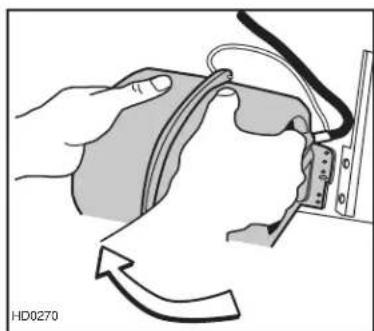

Slide the blower to disengage its flange from the retaining bracket. Set the blower aside.

Illustration of a hand holding a medical device with attached wires and a clip, showing a curved arrow indicating motion (no text or symbols)

CP37 MODEL

For each blower, using a 5/16" socket, remove all blower mounting screws from the inner top of the power pack front and rear brackets. Set the screws aside.

For each blower, slide it to disengage its flanges from the retaining brackets. Set the blowers aside.

Two metallic cylindrical tanks in a storage or processing facility, with a worker and directional arrow visible (no text or symbols on the tanks themselves)

13. INSTALL POWER PACK

CAUTION

Take care not to kink ducting when installing the power pack.

Using provided no. 8 x 1/2" chrome plated screws, install the power pack inside the custom hood. Start with 2 screws on front corners, then use 4 screws for sides and use the remaining ones to finalize securing the front power pack. (See figure at right for mounting screw specific locations.)

Make sure the adapter/damper (or the adapter) enters the ducting. When there is access to the top of the power pack, seal connections with metal foil duct tape.

14. REINSTALL BLOWER(S)

CP34 AND CP35 MODELS

Slide the blower to engage its flange in the retaining bracket.

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Using a 5/16" socket, secure the blower to the inner top of the power pack with all blower mounting screws (previously removed in step 12).

CP37 MODEL

For each blower, slide it to engage its flanges in both retaining brackets.

NOTE: Both blowers are identical and can be mounted on either side of the power pack.

Two metallic cylindrical tanks on a platform, one with an arrow pointing to the top (no visible text or symbols)

For each blower, using a 5/16" socket, secure the blower to the inner top of the power pack through the front and rear brackets with all blower mounting screws (previously removed in step 12).

14. REINSTALL BLOWER(S) (CONT'D)

ALL MODELS

Plug the blower(s) in.

Close-up of a mechanical component with a white arrow pointing to a section, no visible text or symbols.

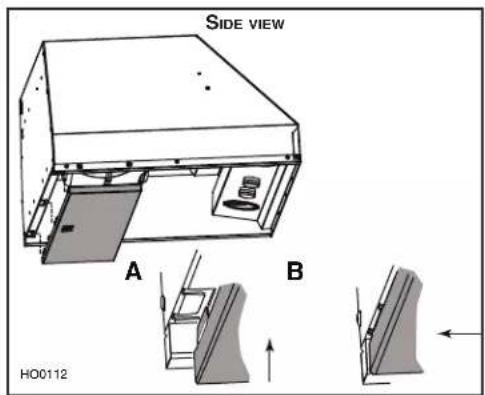

15. REINSTALL BOTTOM PANEL

Lift the bottom panel and engage the power pack metal tabs in bottom panel slots, as shown in details A and B below.

Secure the bottom panel to the power pack using its screws previously removed in step 7.

16. REINSTALL GREASE DRIP RAIL

A. Insert one end of grease rail in power pack side (①) while lifting the other end over the bottom panel edge (②).
B. Center the grease drip rail over the bottom panel edge and flip it to snap in place.

Close-up of hands operating a mechanical device with a circular component and directional arrows (no visible text or symbols)

CAUTION

Remove protective plastic film covering filters before installing them.

It is recommended to install side filters first and finish with center one(s).

1. Insert one end of the filter into the upper channel of the power pack.
2. Raise the other end toward the inside of power pack and insert in the grease drip rail of the power pack.

Technical line drawing of a mechanical assembly with a lever and adjustment mechanism (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

18. LIGHT BULBS

This power pack requires shielded halogen lamps (120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base), included.

NOTE: Before using lamps, remove shipping tape on them (if present).

WARNING

Do not touch lamps during or soon after operation. Burns may occur. In order to prevent the risk of personal injury, only install shielded halogen lamps. Also, never install a cool beam, a dichroic lamp, a lamp not suitable for use in recessed luminaires or identified for use in enclosed fixtures.

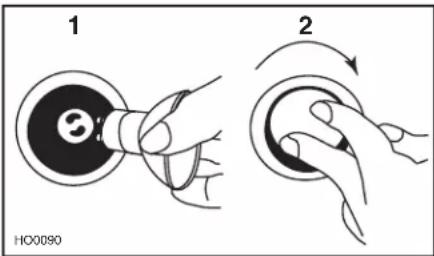

1. Install the lamps by placing the bulb leads into their grooves in the socket.
2. Gently push upwards and turn clockwise until secure.
   To remove lamps, gently push upwards and turn counterclockwise to disengage bulb leads from their grooves.
   NOTE: To ease removal of the bulbs, use a rubber dishwashing glove or use suction cup tool available from Best. Contact Best Customer Service at 1-800-558-1711 to order suction cup tool, part no. 99526707.

19. USE AND CARE

Baffle Filters

The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease — like frying foods or wok cooking.

Remove baffle filters by pushing them towards the back of hood and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them in the power pack.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty.

Rotary Control Knobs

Can be removed for cleaning but first, loosen the set screw using a 1/16" hexagonal key (available at your local hardware store).

Grease Drip Rail

The grease drip rail should be cleaned frequently. Remove it from the power pack (see step 6 on page 5) and use a warm detergent solution. As with the baffle filters, wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it in the power pack.

Blower(s) Cleaning

Remove the filters in order to access the blower(s). Vacuum blower(s) to clean. Do not immerse in water.

Hood cleaning

Stainless steel cleaning:

Do:Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.Always clean in the direction of original polish lines.Always rinse well with clear water (2 or 3 times) after cleaning.Wipe dry completely.You may also use a specialized household stainless steel cleaner.

Don't:Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.Use any harsh or abrasive cleansers.Allow dirt to accumulate.Let plaster dust or any other construction residues reach the power pack. During construction/renovation, cover the power pack to make sure no dust sticks to stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

20. OPERATION

Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.

Two circular icons labeled A and B, each containing a sun icon and a gear-like symbol inside, with no readable text or numbers beyond labels.

A) HALOGEN LIGHT KNOB
B) BLOWER SPEED CONTROL KNOB

COOKTOP LIGHTING (HALOGEN)

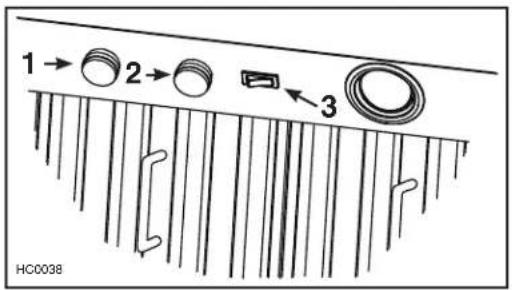

A rotary 3-position knob (1) controls the halogen lights (OFF - low intensity - high intensity).

BLOWER

The blower is operated using two controls.

Use the on/off rocker switch (3) to start and stop the blower. When turned on, the blower operates at the previous setting of the speed control (2).

Turn the speed control knob counterclockwise to increase blower speed – clockwise to decrease speed.

HEAT SENTRY™

This hood is equipped with a Heat Sentry™ thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting – it turns the blower up to HIGH speed.

WARNING

The HEAT SENTRY can start the blower during a range top fire or other excessive heat situations even if the hood is turned off. In this case, it is impossible to turn the blower OFF with blower switch. If you must stop the blower, do it from the main electrical panel.

When the temperature level drops to normal, the blower will return to its original setting.

21. WARRANTY

FIVE-YEAR LIMITED WARRANTY FOR BEST® PRODUCTS

Warranty Period and Exclusions: Broan-NuTone, LLC (the "Company") warrants to the consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the materials or its workmanship for a period of five (5) years from the date of original purchase (or such longer period as may be required by applicable law) or a period of two (2) years from the date of service for any labor provided on the Product.

The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (f) damage caused by exposure to salt air, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, (j) damage caused by fire, flood or other act of God, or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to consumers in North America. This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective Products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions (which may include the Province of Quebec or specific US states) do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty. The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control.

PRODUCT SPECIFICATIONS

All illustrations and specifications in this catalog are based on the latest product information available at time of production. Broan-NuTone, LLC and BEST® reserves the right to make changes at any time, without notice, in prices, colors, materials, equipment, specifications and models, place of manufacture and to discontinue models or equipment.

Best

Broan-NuTone, LLC- 926 W. State Street, Hartford, WI 53207 1-800-637-1453

Best®, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770) www.bestrangehoods.com

22. WIRING DIAGRAM

WARNING

Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

HE0092A

Best CP34, CP35 & CP37 Series

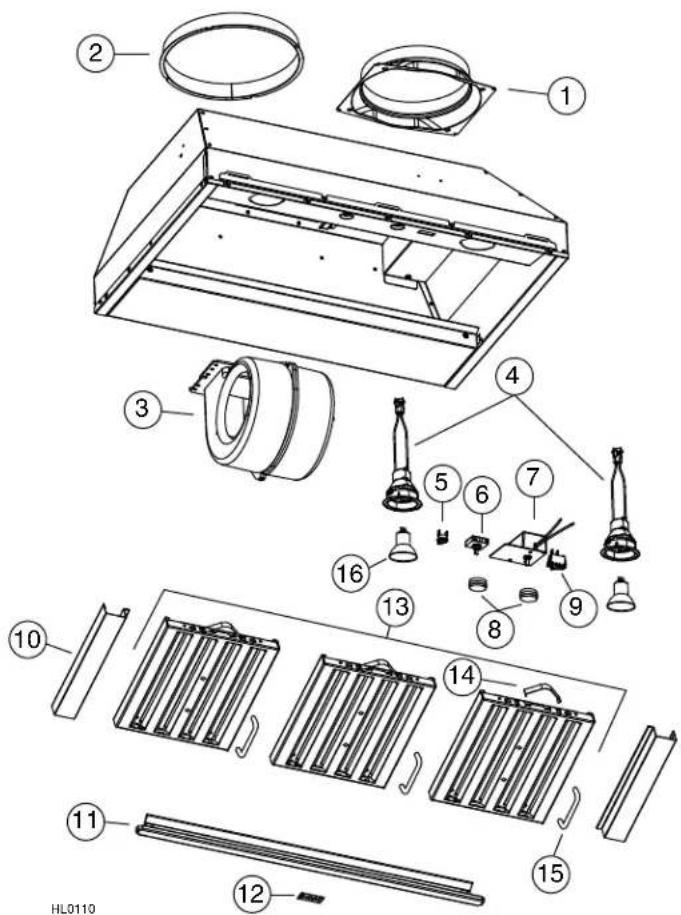

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone genuine replacement parts only. Broan-NuTone genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone recommends to contact a certified service depot for all replacement parts and repairs.

KEYNO.	PART NO.	DESCRIPTION	QTY. (POWER PACK WIDTH)
			30" 39'	45" 48"
1 SV08543 A		DAPTER/DAMPER 8" ROUND	1	1	1	-
2	SV08541	ADAPTER 10" ROUND	-	-	-	1
3 SV08097 INTERNAL BLOWER 1 1 1 2
4	SV16569	LAMP SHELL, SOCKET & TRIM ASS 'Y	2	2	2	2
5	SV03435	HEAT SENTRYTM THERMOSTAT	1	1	1	1
6 SV08338 LIGHT SWITCH			11	11
7	SV03501	SPEED CONTROL	1	1	1	1
8	SV08578	BLOWER AND LIGHT KNOBS (2 KNOBS)	1	1	1	1
9	SV08548	BLOWER ROCKER SWITCH	1	1	1	1
10	SV17852	FILTER FILLER (PAIR)	-	-	1	-
11	SV17870 G	REASE RAIL 30"	1	-	-	-
	SV17871	GREASE RAIL 36"	-	1	-	-
	SV17872	GREASE RAIL 42"	-	-	1	-
	SV17873	GREASE RAIL 48"	-	-	-	1
12	SV05869	BEST LOGO	1	1	1	1
13	SV17600	BAFFLE FILTER 8.84" x 9.80"	3	1	4	5
	SV17603	BAFFLE FILTER 11.84" x 9.80"	0	2	0	0
14	SV08337	FILTER SPRING (SET OF 6)	1	1	1	1
15	SV07680	BAFFLE FILTER HANDLE WITH SCREWS	3	3	4	5
16	SV05921	SHIELDED HALOGEN LAMPS (120 V, 50 W, GU-10)	2	2	2	2
*	SV08542 10" R OUND VERTICAL IN-LINE DAMPER		-	-	-	1
*	SV08342	CAPACITOR 25 μF	1	1	1	1
*	SV08544	INSTALLATION GUIDE	1	1	1	1
*	SV08545	PARTS BAG: 2 WIRE CONNECTORS, 1 WIRE CLAMP, 4 SCREWS NO. 8 x 3/8",9 CHROME PLATED SCREWS NO. 8 x 1/2", 10 MECHANICAL SCREWS NO. 8-32 x 1/4"	1	1	1	1

• Not shown.

best®

Technical line drawing of a cabinet or enclosure with vertical slats and circular components (no text or symbols)

SÉRIES CP34, CP35 ET CP37

⚠️!CONÇUES POUR USAGE DOMESTIQUE SEULEMENT △

LIRE ET CONSERVER CES DIRECTIVES

INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE.

PROPRIÉTAIRE : DIRECTIVES D'UTILISATION ET D'ENTRETIEN

EN PAGES 28 ET 29.

BEST; Hartford, Wisconsin www.BestRangeHoods.com 800 558-1711

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

6. RETIRER LA GOUTTIÈRE

Close-up of hands operating a mechanical device with a curved arrow indicating motion (no visible text or symbols)

7. RETIRER LE PANNEAU INFÉRIEUR

Line drawing of a metal enclosure with a hammer striking the top surface (no text or symbols)

9. INSTALLER L'ADAPTATEUR/VOLET (MODELES CP34 ET CP35)

Pure electrical wiring diagram showing connections between black, white, and green wires (no text or symbols)

12. RETIRER LE(S) VENTILATEUR(S)

Close-up of a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

MODÈLES CP34 ET CP35

Illustration of a hand holding a medical device with attached wires and a clip, showing a curved arrow indicating motion (no text or symbols present)

MODÈLE CP37

Two metallic cylindrical tanks in a storage or processing facility, with a worker on top and an arrow indicating direction (no visible text or symbols)

13. INSTALLER LA HOTTE ENCASTRABLE

ATTENTION

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Modèle CP37

Two metallic cylindrical tanks with a white arrow pointing to the top of the tank (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a section, no visible text or symbols

15. REMETTRE EN PLACE LE PANNEAU INFÉRIEUR

Close-up of hands operating a mechanical device with a curved arrow indicating motion (no visible text or symbols)

17. RÉINSTALLER LES FILTRES À CHICANE

ATTENTION

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

18. AMPOULES

19. ENTRETIEN

Filtres à chicane

Two identical circular icons labeled A and B, each containing a sun icon and a gear-like symbol inside, with no text or numbers present.

A) BOUTON D'ÉCLAIRAGE HALOGÈNE
B) BOUTON DE LA COMMANDE DE VITESSE DU VENTILATEUR

ÉCLAIRAGE DE LA SURFACE DE CUISSON (HALOGÈNE)

SPÉCIFICATIONS DU PRODUIT

Broan-NuTone LLC : 926 W. State Street, Hartford (WI) 53207 1 800 637-1453

Best ^™ , 550, boul. Lemire, Drummondville (Québec), Canada (1 866 737-7770) fr.bestrangehoods.ca

22. SCHÉMA ÉLECTRIQUE

AVERTISSEMENT

Technical line drawing of a cabinet or enclosure with vertical slats and circular components (no text or symbols)

SERIES CP34, CP35 Y CP37

⚠️ EXCLUSIVAMENTE PARA COCINAS DOMÉSTICAS

LEA ESTAS INSTRUCCIONES Y GUÁRDELAS

INSTALADOR: ENTREGUE ESTE MANUAL AL PROPIETARIO DE LA CASA.

5. DESMONTAJE DE LOS FILTROS

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

6. DESMONTAJE DEL RIEL DE VERTIDO DE LA GRASA

Close-up of hands operating a mechanical device with a curved tool and labeled component A (no readable text or symbols)

7. DESMONTAJE DEL TABLERO INFERIOR

Technical line drawing of a mechanical device with a hammer and hilt, no text or symbols present

Pure electrical circuit lines without any symbols

12. DESMONTAJE DE LOS VENTILADORES

Close-up of a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

MODELOS CP34 y CP35

Illustration of a hand holding a medical device with attached wires and a clip, showing a curved arrow indicating motion (no text or symbols)

MODELO CP37

Two large metallic cylindrical tanks in a storage or processing facility, with a worker on top and an arrow indicating direction (no visible text or symbols)

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Two metallic cylindrical tanks in a control room, one with an arrow pointing to the top (no visible text or symbols)

Close-up of a mechanical component with an arrow pointing to a section, no visible text or symbols

Close-up of hands operating a mechanical device with a circular component and directional arrows (no visible text or symbols)

Technical line drawing of a mechanical assembly with a lever and pivot (no text or symbols)

Technical line drawing of a mechanical bracket assembly with no visible text or symbols

18. BOMBILLAS

Two identical circular icons labeled A and B, each containing a sun icon and a gear-like symbol inside, with no text or numbers present.

Broan-NuTone, LLC: 926 W. State Street, Hartford, WI 53207 1 800 637-1453

Best®, 550, boul. Lemire, Drummondville (Québec), Canada (1 866 737-7770) www.bestrangehoods.com

22. DIAGRAMA ELÉCTRICO

ADVERTENCIA
