Product Type Range Hood (for ceiling mount)
Brand Best
Model HBC143ESS
Dimensions (L × W × H) 904 × 140 × 654 mm (35.6 × 5.5 × 25.75 in) approx.
Weight 43 kg (95 lb)
Power Supply 120 VAC, 60 Hz, 15 A
Ventilation Type Exhaust to outside (metal ductwork)
Duct Diameter 8 in (20.3 cm) or 10 in (25.4 cm) depending on blower
Blower Speeds 4 speeds (1-4) + delayed shut-off
Lighting LED with dimmer (3 levels)
Remote Control Included
Grease Filters Dishwasher safe, removable
Material Stainless Steel
Height above range Minimum 48 in (122 cm), recommended maximum 84 in (213 cm)
Thermal Protection Yes (auto shut-off on overheating)
Blower Compatability PM6, PM12 (internal); EB9, EB15 (external); ILB6, ILB9, ILB11 (inline)
Blower Programming 3 settings depending on blower model
Certifications UL, CSA
Limited Warranty 5 years (parts and labor)
Use Domestic, indoor only
Maintenance Regular cleaning of filters and stainless steel with mild detergent

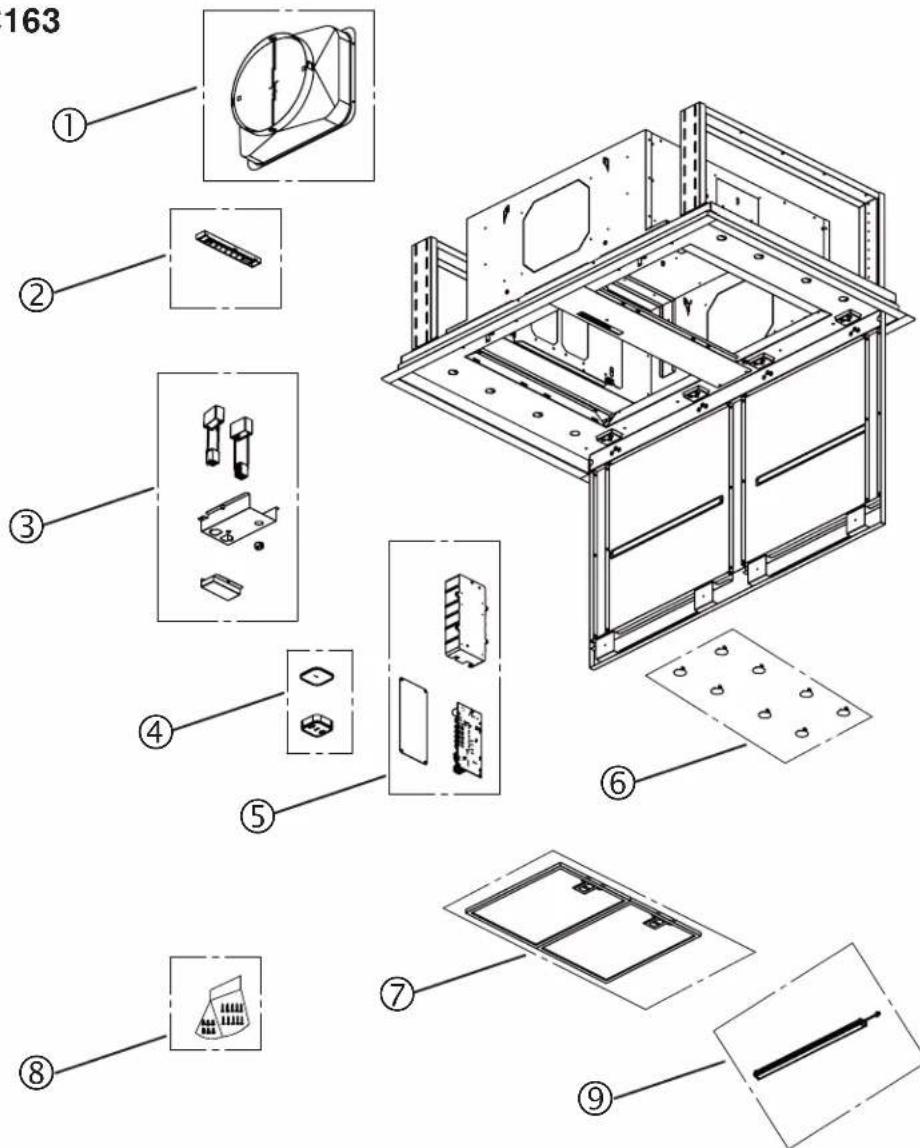

Replacement Parts Blower, adapter, filters, remote control, etc.

Frequently Asked Questions - HBC143ESS BEST

What is the recommended height between the hood and cooking surface?
The bottom of the hood should be installed at a minimum of 48 in (122 cm) and a recommended maximum of 84 in (213 cm) above the cooking surface for optimal odor extraction.
How to clean the grease filters?

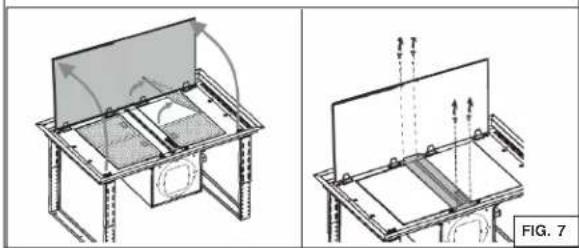

The grease filters are dishwasher safe. Use a phosphate-free detergent to avoid discoloration. You can also wash them by hand with hot water and mild detergent. Clean them frequently.
Can I use flexible duct?
No, to reduce fire risk, use only rigid metal ductwork. Flexible ducts are not recommended.
How to program the hood for an external blower?
Press and hold the BLOWER and LIGHT buttons simultaneously for 6 seconds. Release, then select the setting corresponding to your blower model (Setting 1, 2, or 3) by pressing the BLOWER button. Confirm with the DELAYED OFF button.
What to do if the motor stops and restarts on its own?
The motor has thermal protection that shuts it off in case of overheating. Let it cool; it will restart automatically. If the problem persists, contact a technician.
What size duct is needed?
Use a round duct of 8 in (20.3 cm) for the internal blower PM6, or 10 in (25.4 cm) for other blower types (PM12, external, or inline).
How to install the hood on the ceiling?
The hood attaches to a ceiling opening using 10 no. 8 x 1-3/8 in screws onto a support frame. Ensure the structure can support the weight (95 lb for HBC143). The duct must be connected before final fastening.
Can I use the hood without duct?
No, this hood is designed for exhaust to the outside only. Do not recirculate indoor air. The duct must vent air outside.
How can I change the lighting intensity?
Press the LIGHT button to adjust intensity: one press = level 1, two = level 2, three = level 3, a fourth time to turn off.
Where can I get replacement parts?
Replacement parts (filters, blower, remote control, etc.) are available from the manufacturer. Visit BestRangeHoods.com or call 800-558-1711 (USA) or 800-567-3855 (Canada).
