Product Type Range Hood
Brand Best
Model HBC163ESS
Overall Dimensions (W x D x H) 43 5/16 in x 27 9/16 in x 5 1/2 in (approx. 110 cm x 70 cm x 14 cm)
Weight 120 lb (approx. 54 kg)
Power Supply 120 VAC, 60 Hz
Material Stainless Steel
Grease Filter Type Dishwasher-safe metal mesh filters
Lighting LED module with adjustable brightness (3 levels)
Controls Touch panel with buttons for fan (4 speeds), light, delayed shut-off
Remote Control Included

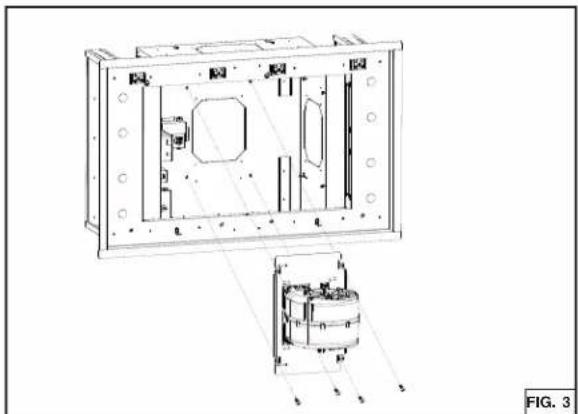

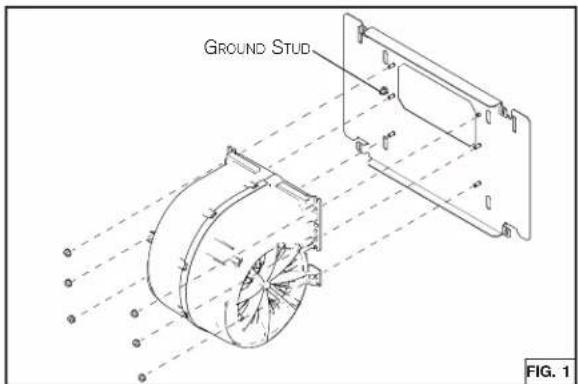

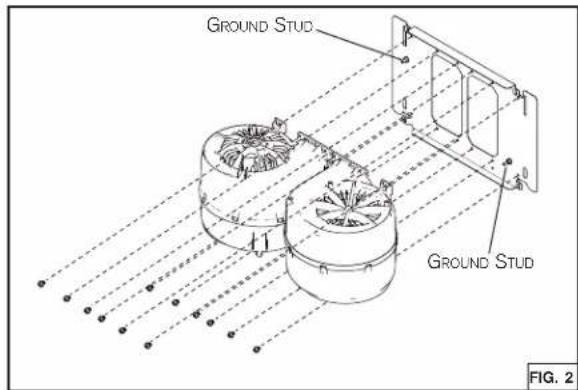

Compatible Fan Internal PM6 (600 CFM) or PM12; external EB9, EB15; inline ILB6, ILB9, ILB11
Duct Diameter 8 in (for PM6) or 10 in (for PM12 and external fans)

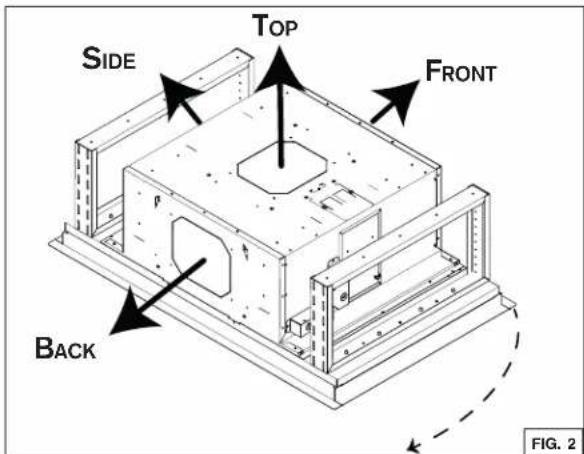

Fan Outlet Positions Top, front, rear, side
Recommended Height Above Range Minimum 48 in, maximum 84 in
Delayed Shut-off Function Yes (10 minutes)
Motor Thermal Protection Yes (automatic shut-off in case of overheating)
Warranty 5-year limited (parts and labor)
Replacement Parts Available Filters, LED module, remote control, fan, adapter/damper, etc.
Use Indoor residential only

Frequently Asked Questions - HBC163ESS BEST

What is the recommended installation height between the hood and the range?
The bottom of the hood should be located at a minimum of 48 in and a recommended maximum of 84 in above the cooking surface for best odor removal.
Can I use non-metallic ductwork?
No, to reduce the risk of fire, use only metal ductwork. Seal joints with metal tape.

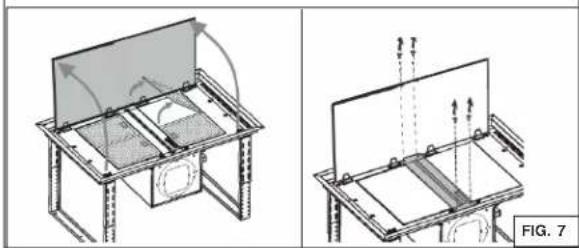

How do I clean the grease filters?
The metal mesh filters are dishwasher safe. Use a phosphate-free detergent. To avoid discoloration, wash them by hand with a mild detergent.

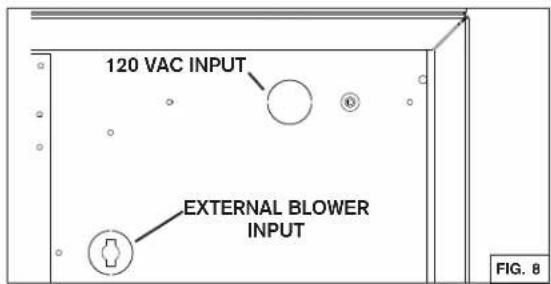

How do I program the hood for an external fan?
Press the FAN and LIGHT buttons simultaneously for 6 seconds. Release, then select the setting (1, 2 or 3) corresponding to your fan. Press DELAYED SHUT-OFF to save.
What should I do if the motor shuts off by itself?
The motor has thermal protection that shuts it off in case of overheating. It will restart automatically after cooling. If the problem persists, have the unit checked.
Can I use an additional solid-state speed control?
No, do not use this unit with an additional solid-state speed control. Use only the original controls.
How do I install the hood in a ceiling?
Ensure the ceiling structure can support the weight (120 lb). Use the provided telescopic bracket and secure it with screws. Connect the ductwork and make electrical connections before attaching the hood.
Is the remote control included?
Yes, a remote control is supplied with the hood to control functions remotely. Refer to the separate instructions.
What type of lighting does the hood use?
The hood is equipped with an LED module with three adjustable brightness levels. The module is replaceable (replacement part no. S1106827).
How do I obtain a replacement part?
Contact Best Range Hoods at 800-558-1711 (USA) or 800-567-3855 (Canada). Part numbers are listed in the manual.
