Dear Customer!

Should you have any remarks or questions concerning the product, please do not

hesitate to contact us: [e-mail]

The product satisfies requirements of EN1888-1:2018 standard.

Producer:

BrandLine Group Sp. z o. o.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. This seat unit is not suitable for children under 6 months.
6. Always use the restraint system.
7. Check that the seat unit attachment devices are correctly engaged before use.
8. This product is not suitable for running or skating.
9. The suitable age range is from 6 months to 36 months and the maximum loading weight is 15 kgs.
10. If you wish to take the child out or put it inside the stroller, make sure the parking device on the wheel is locked.
11. Maximum basket load is 2 kg.
12. Any load attached to the handle, rear side of the backrest or sides of the stroller may affect its stability.
13. The product is intended for one child only.

14. Do not use accessories which have not been approved by the manufacturer.

15. Use only spare parts which have been supplied or recommended by the manufacturer/distributor.

16. Keep the product away from fire and sources of heat.
17. Do not use the product on stairs.

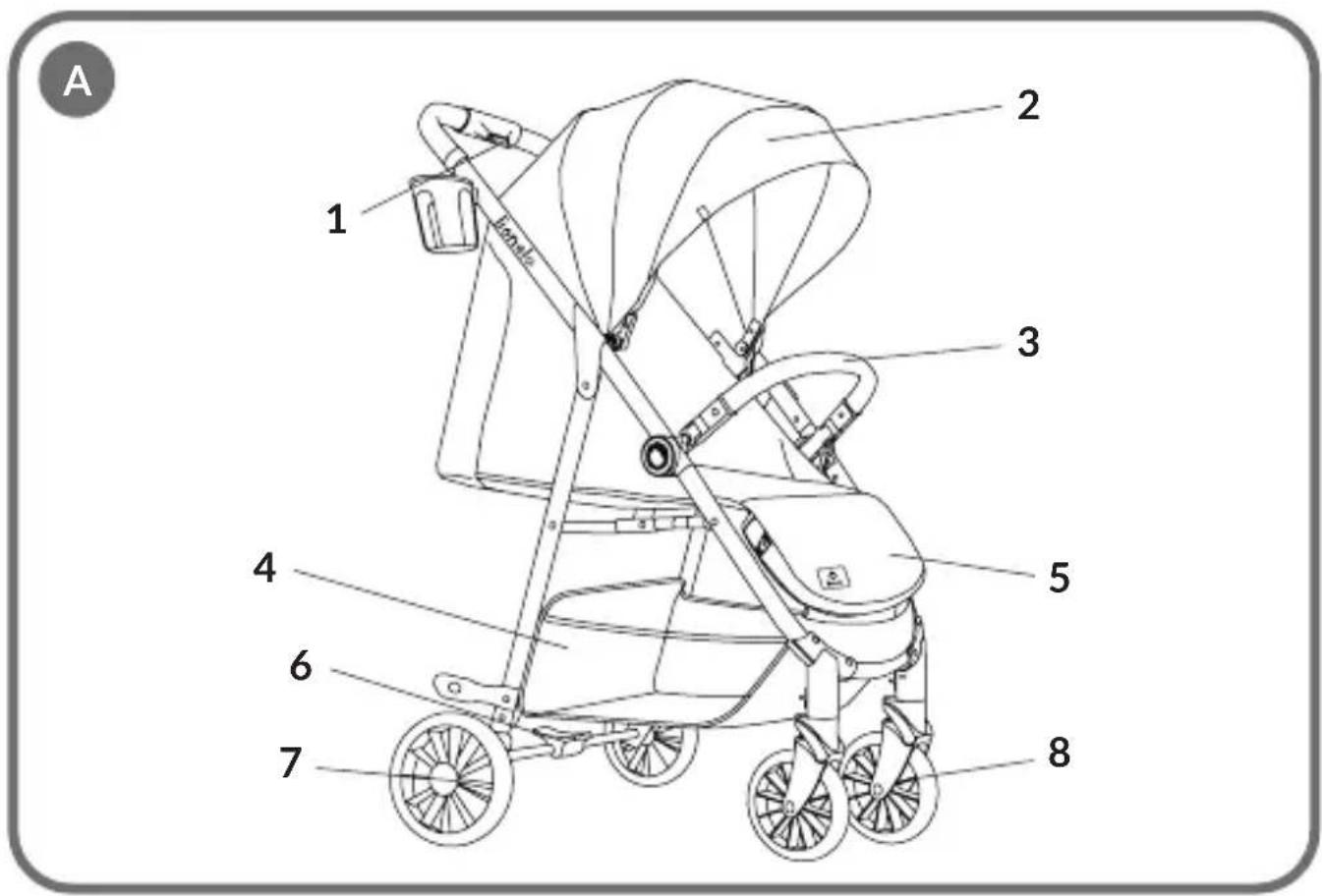

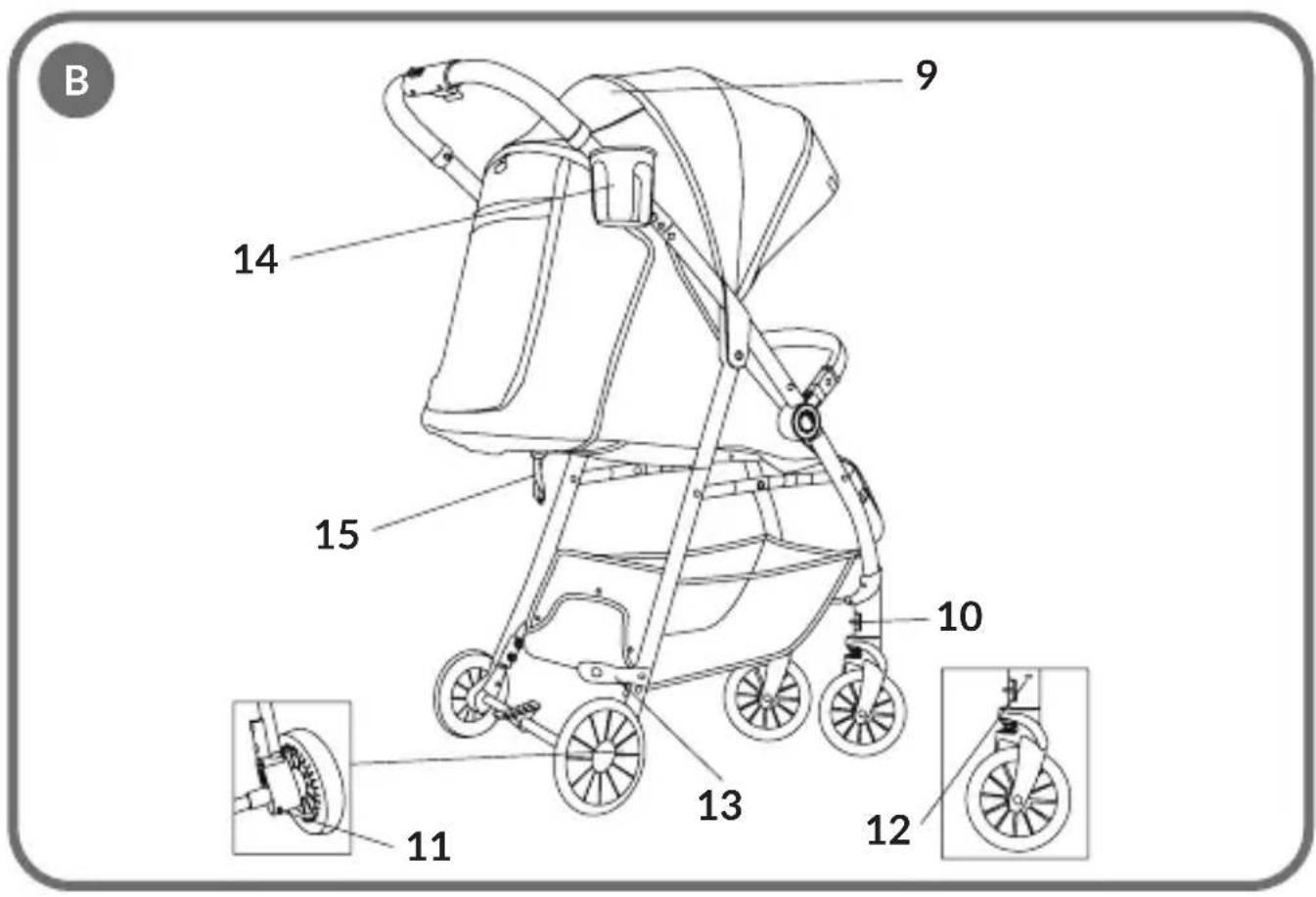

List of parts (fig. A, B)

1. Stroller folding key
2. Sunshade
3. Bow
4. Basket
5. Footrest
6. Parking device
7. Rear wheels

8. Front wheels

9. Air hole

10. Rotating wheels locking key
11. Rear wheels releasing key
12. Front wheels releasing key
13. Folding interlock
14. Mug holder
15. Seat regulation belt

How to assemble and disassemble the stroller

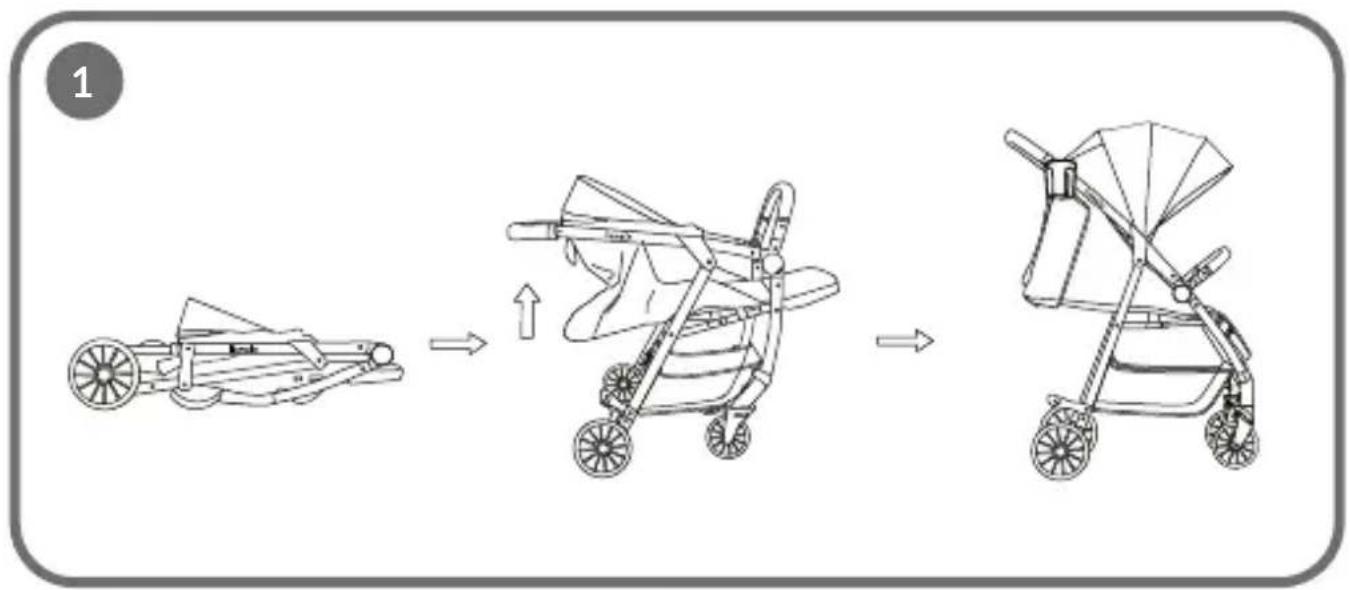

1. How to unfold stroller frame: open unfolding lock (13), next pull the handle up until you can hear a click (fig. 1). Make sure the frame has been properly unfolded.

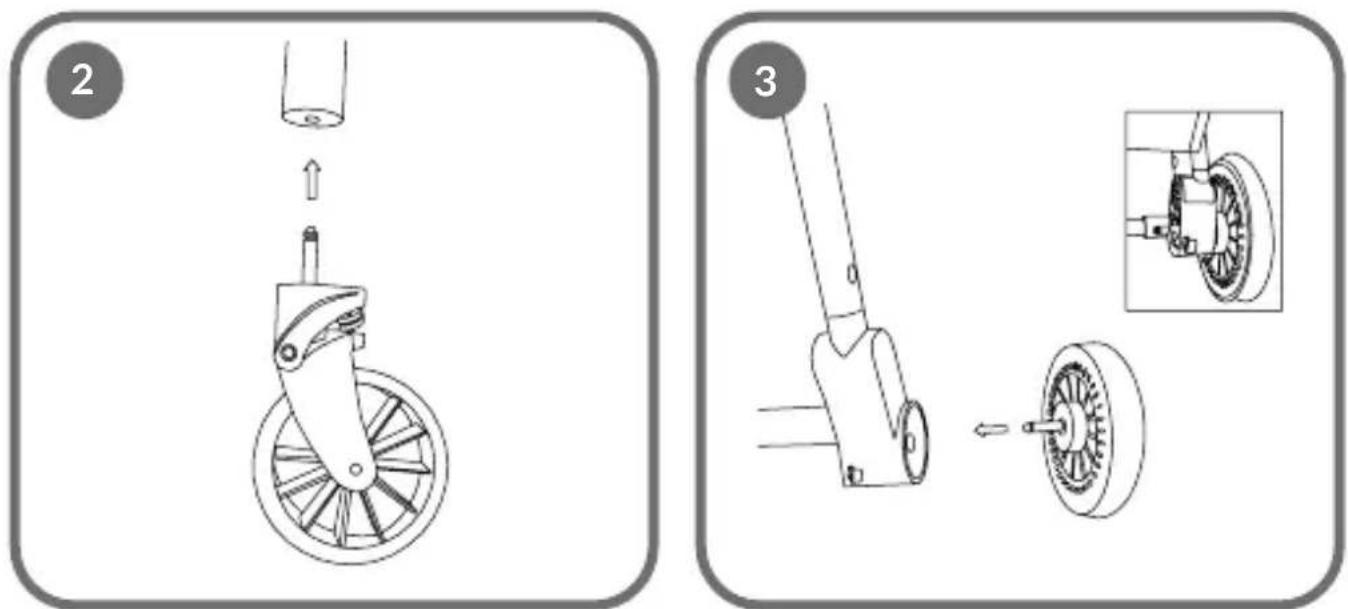

2. How to attach front wheels: slide the wheel shank in corresponding holes on the stroller frame until you can hear a click (fig. 2). To remove front wheels, press the releasing button (12) and then take wheels out.
3. How to attach rear wheels: slide the wheel shank in corresponding holes on the stroller frame, as showed by the arrow (fig. 3). To remove rear wheels, press the releasing button (11) and then take wheels out.

How to fold stroller frame

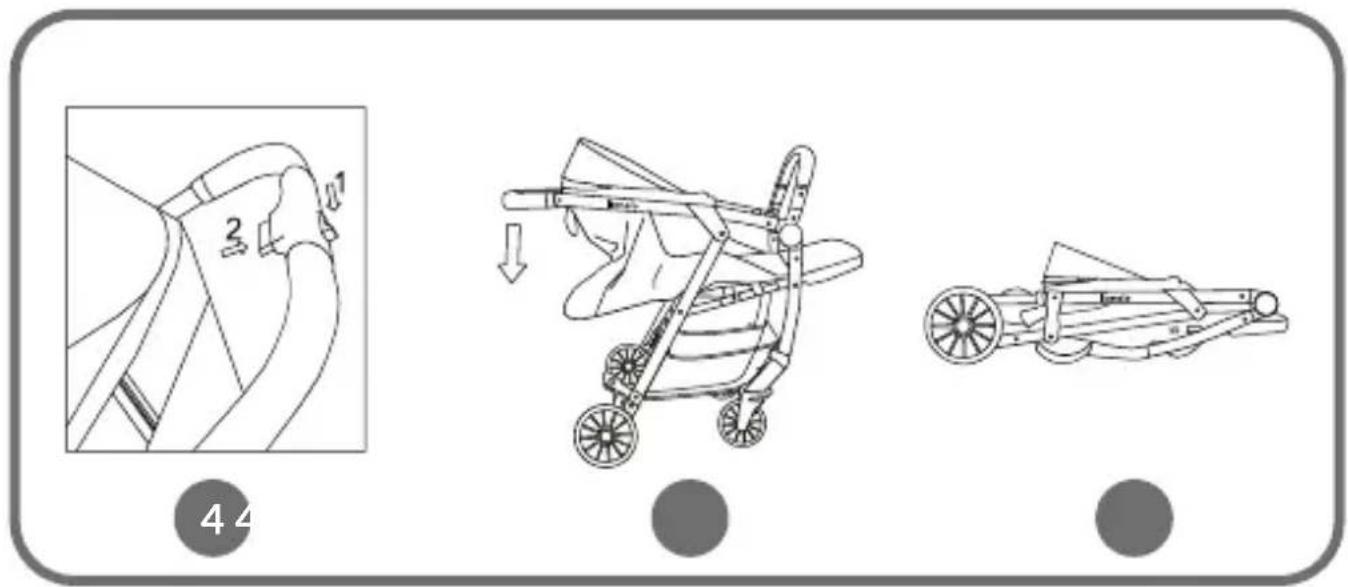

Press the stroller folding keys (1) in the order presented in fig. 4. Fold the stroller as demonstrated by the arrow (fig. 4a). Make sure the unfolding interlock is secured (fig. 4b).

How to use harness

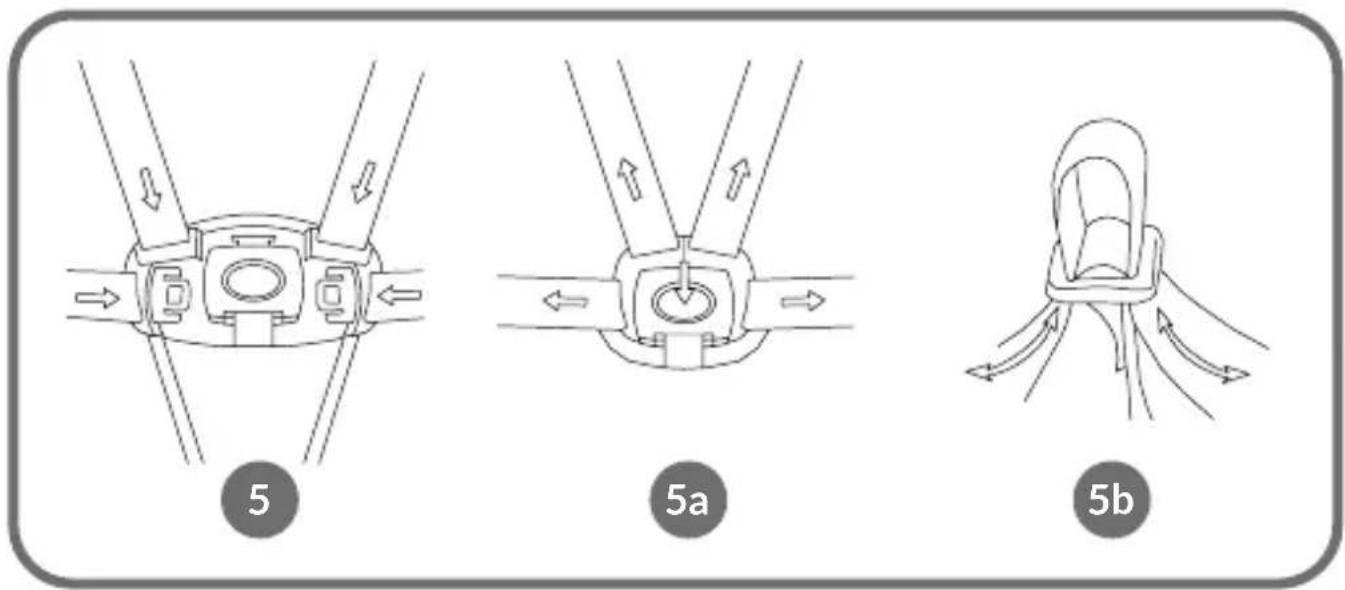

1. How to adjust safety belts: insert belts into the buckle until you can hear a click (fig. 5). To undo the belts, press the button in the buckle (fig. 5a).
2. Adjust length of belts to child's height with the use of buckles (fig. 5b).

How to assemble and disassemble safety belts

To disassemble belts, pull the buckle through the hole in the seat. To assemble it, insert the belts again. There are two belts heights to choose from.

Rotating wheels locking button

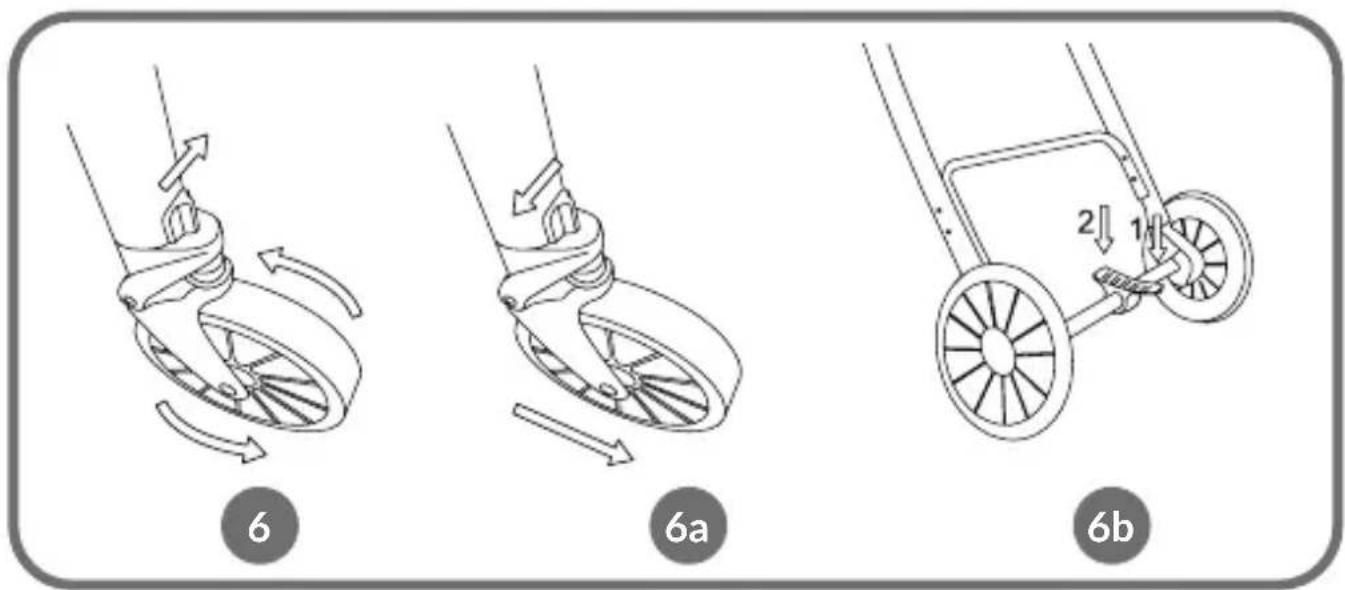

1. Front rotating wheels: to unlock the right wheel, dynamically slide the interlock key (10) to the right (fig. 6). To lock it, slide the interlock key to the left (fig. 6a). To unlock and lock the left wheel, take the above-stated actions in a reversed order.
2. Parking mechanism: to lock it, press the pedal as showed by the arrow no. 1 (fig. 6b). To unlock it, press the pedal as showed by the arrow no. 2 (fig. 6b).
3. Note: make sure the stroller is locked when parked.

How to adjust backrest

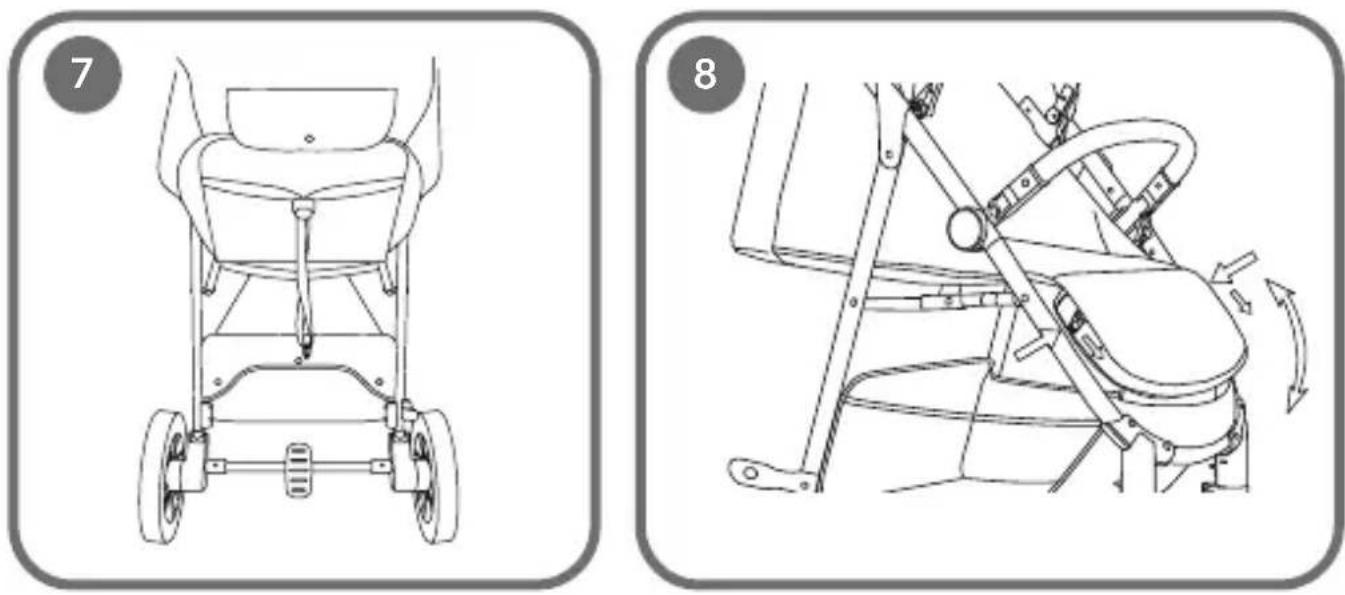

1. To set the seat in the sitting position, slide the buckle on the belt located in the back of the seat upwards (fig. 7).
2. To lower the backrest, pull the buckle on the backrest adjustment belt at the back of the seat (fig. 7).

How to adjust footrest

To lower the footrest, press buttons in holes on both sides of the footrest and then push the footrest down. To lift the footrest, pull it up until you can hear a distinctive click (fig. 8).

Mosquito net compartment

The mosquito net compartment is under the footrest.

How to adjust sunshade

To adjust the sunshade, you need to slide it forward or backward and position as per your liking (fig. 9).

How to adjust bow

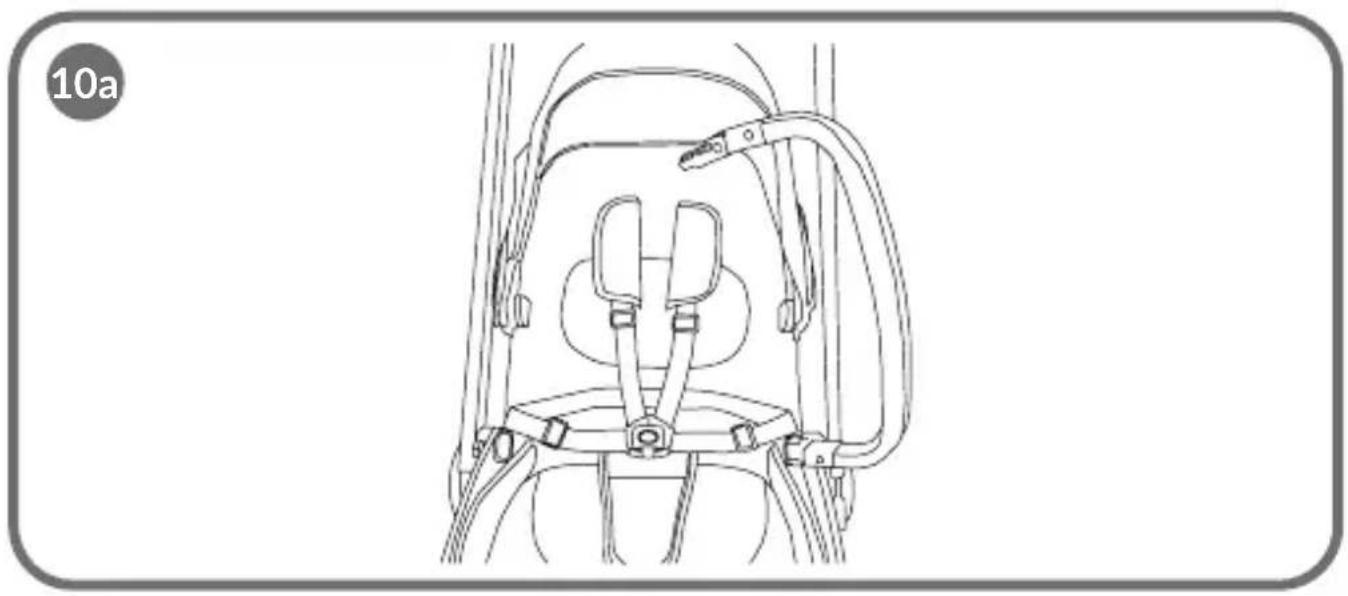

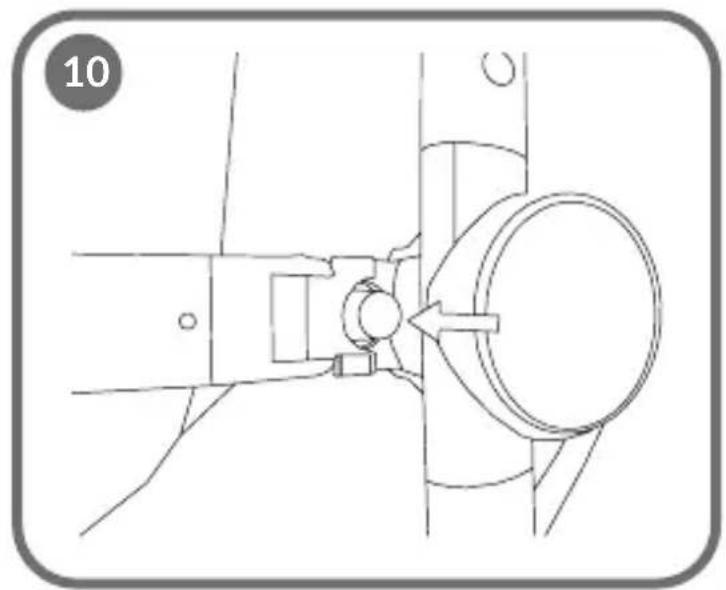

To remove the bow, press releasing keys (fig. 10) and then take the bow out (fig.10a). If you can hear a click, it means the bow has been properly installed.

How to clean and maintain

1. Clean dust and sand off the stroller wheels and frame on a regular basis. To clean these parts, you can use a wet cloth and soft cleaning agents. To clean the stroller upholstery and basket, use a wet cloth.
2. Regularly inspect particular parts of the stroller for their correct functions, durability and potential damage. If you identify any defects, please contact the authorized service center.
3. Use only spare parts which have been recommended by the manufacturer.
4. Do not use strong chemicals to clean this product.

The pictures are for reference only. The real design of the products may differ from the pictures presented.
