Brand	Guardian
Model	AC225
Product Type	Plug-in UV-C Air Purifier
Power Supply	120 V, 60 Hz
Purification Technology	Mechanical filtration + UV-C rays + titanium dioxide
Filter Type	Allergen filter (FLT200) with activated carbon layer
UV-C Lamp	Power 1.7 W, lifespan > 5,000 hours, model LB200
Additional Functions	Night light, essential oil diffuser (pad included)
Replacement Indicator	Flashing night light for filter (yellow) and UV-C lamp (red)
Filter Replacement Frequency	Approximately every 3 months (depending on usage)
UV-C Lamp Replacement Frequency	Approximately every 10 months
Maintenance	Clean the filter with a vacuum if necessary; do not wash or reuse filters
Usage	Indoor use only
Warranty	1 year limited (parts except UV-C lamp)
Replacement Parts	FLT200 filter, LB200 lamp, FLTMST12PK oil pads
Safety	Do not use extension cord; do not immerse; do not expose eyes to UV-C light
Regulatory Information	Ozone concentration < 0.001 ppm (8h average); compliant with Health Canada standards

Frequently Asked Questions - AC225 Guardian

How to replace the filter of the Guardian AC225?

Turn off the device and unplug it. Remove the front cover by unlocking the tabs at the bottom. Replace the old filter with a new one (model FLT200) with the carbon layer facing the cover. Put the cover back on and press the night light button for 3 seconds to reset the indicator.

Why is the night light flashing?

If the night light flashes, it indicates it is time to replace the allergen filter. Replace the filter and reset the system by pressing the night light button for 3 seconds. If it flashes red, the UV-C bulb (model LB200) needs to be replaced.

Can I use an extension cord with the air purifier?

No, using an extension cord is prohibited to reduce the risk of fire or electric shock. Plug the device directly into a 120 V outlet.

How to use the essential oil diffuser?

Remove the front cover, take out the oil pad (located inside), add a few drops of your favorite essential oil, put the pad back, and replace the cover. The oil will be diffused by the airflow.

The device no longer works, what to do?

First check that the device is plugged into a working outlet. Make sure the filter is correctly installed. If the problem persists, contact Guardian customer service at 1.866.603.5900.

How often to replace the UV-C bulb?

The UV-C lamp has a lifespan of approximately 5,000 hours. It is recommended to replace it approximately every 10 months, depending on usage. Use only the Guardian model LB200.

Can I wash the filter?

No, the filters cannot be washed or reused. You can gently vacuum the surface of the filter to remove dust and extend its life. Replace it as soon as the indicator flashes.

Does the device produce ozone?

Yes, but in very small amounts and within standards. The average ozone concentration over 8 hours is 0.001 ppm, well below the limit of 0.05 ppm. The device complies with Health Canada guidelines.

How to reset the filter replacement indicator?

After replacing the filter, press the night light control button (at the top of the device) and hold it for 3 seconds. The light will stop flashing.

What to do if the UV-C lamp flashes red?

This means the UV-C bulb needs to be replaced. Turn off and unplug the device, remove the cover, unscrew the lamp cover with a Phillips screwdriver, unplug the old bulb and replace it with a new one (LB200). Reset by pressing the night light button for 3 seconds.

USER MANUAL AC225 Guardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, Ohio 44132

1.866.603.5900 • www.guardiantechnologies.com

IMPORTANT

The air sanitizer contains no serviceable parts. Due to the unique technology of the product, all repairs must be performed by Guardian Technologies authorized service centers. Any unauthorized repair or tampering with the product VOIDS this warranty. This warranty does not cover misuse or abuse.

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

©2016 Guardian Technologies LLC

guardian technologies™

USE & CARE INSTRUCTIONS

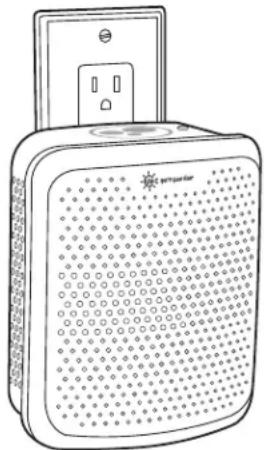

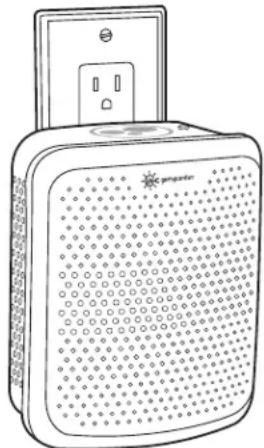

Line drawing of a portable electronic device with a grid-patterned surface and a front panel (no text or symbols)

Pluggable UV-C Air Purifier

Model No. AC225

1-Year Limited Warranty

Customer Service 1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0121

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
• Use this product only as described in this manual.
• Operate this product on 120 V AC, 60HZ only.
• WARNING: To reduce the risk of fire or electric shock, do not use this purifier with any solid-state speed control device.
• Do not operate without cover in place.
• Do not operate with an extension cord.
• Do not operate this product if there is any physical damage to the unit.
• This product is for indoor use only. DO NOT use outdoors.
• Do not operate this product in any area where there is a risk of the unit falling into or being exposed to water.
  • To protect against electrical hazards, DO NOT immerse in water or other liquids.
• Opening windows or doors while operating this device may affect performance.
  • Always unplug the unit before servicing or cleaning.
• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.
• Do not handle the unit or plug with wet hands.
• Keep the product away from heated surfaces.
• Do not put any object into the openings or block the airflow to the unit.
• DO NOT operate any appliance with a damaged plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp with Lamp Model No. LB200, Manufactured by Guardian Technologies.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: Electrical Shock

UNDER NO CIRCUMSTANCES SHOULD YOU CLEAN THE BULB, BULB HOLDER OR CYLINDER WITH WATER OR WET SOLUTIONS. THIS COULD CAUSE ELECTRICAL SHOCK.

WARNING: Electrical Shock

ALWAYS UNPLUG THE UNIT FROM ELECTRICAL OUTLET WHEN SERVICING.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT USE WITH AN EXTENSION CORD.

WARNING:

Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

LAMP CONTAINS MERCURY

Manage In accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

NOTE: THE PLUGGABLE UNIT CONTAINS NO SERVICEABLE PARTS EXCEPT ITS ALLERGEN FILTER (FLT200) AND UV-C BULB (LB200). THE FILTER AND BULB MAY BE REMOVED FOR REPLACEMENT.

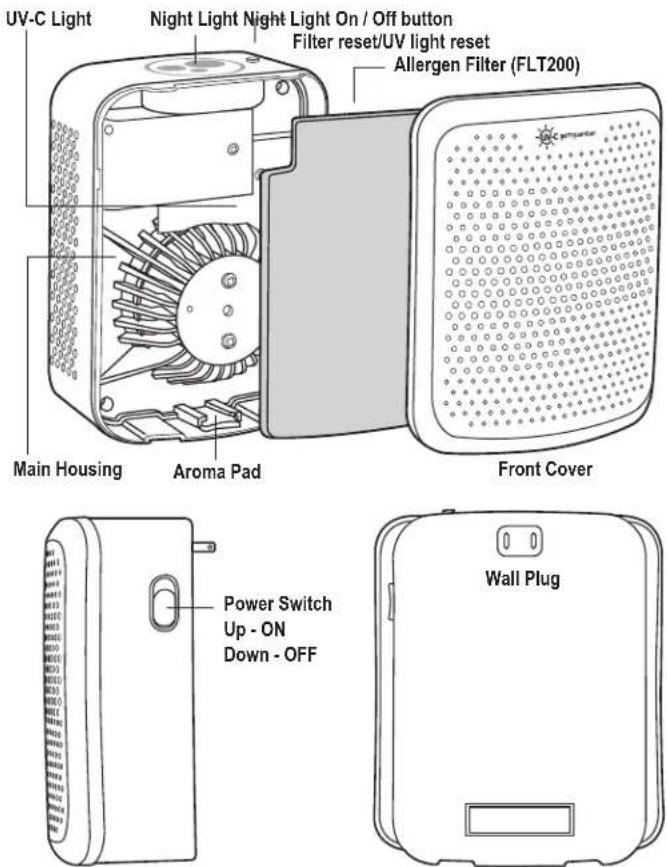

PRODUCT SPECIFICATIONS AND PARTS

UV-C Light Night Light Night Light On / Off button Filter reset/UV light reset Allergen Filter (FLT200) Main Housing Aroma Pad Front Cover Power Switch Up - ON Down - OFF Wall Plug

Back of Unit

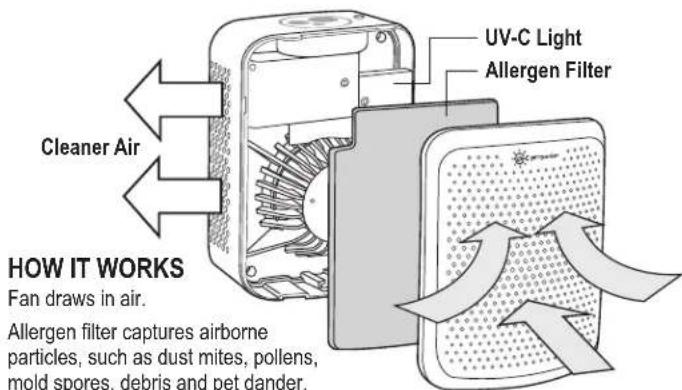

Cleaner Air UV-C Light Allergen Filter HOW IT WORKS Fan draws in air. Allergen filter captures airborne particles, such as dust mites, pollens, mold spores, debris and pet dander.

UV-C light destroys the DNA of germs eliminating their ability to reproduce.
Titanium Dioxide enhances killing efficiency and odor elimination.
Cleaner air is released into the room.

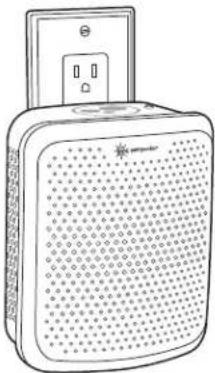

OPERATING INSTRUCTIONS

1. Plug the unit into a 120V AC electrical outlet.
2. Turn power on by sliding up switch on side of unit.
3. UV-C light will run continuously when the unit is on.
4. Turn night light on/off by pressing switch on top of unit.
5. For best results continuous operation is recommended.

Essential oil option

A replaceable aroma pad is included

if the addition of your favorite essential oil is desired.

1. Remove the front cover.
2. Remove the oil pad and add a few drops of an essential oil – more or less may be used depending on your aroma strength preference.
3. Replace the oil pad into your unit.

Line drawing of a portable electronic device with a grid-patterned front panel and two outlets (no text or symbols)

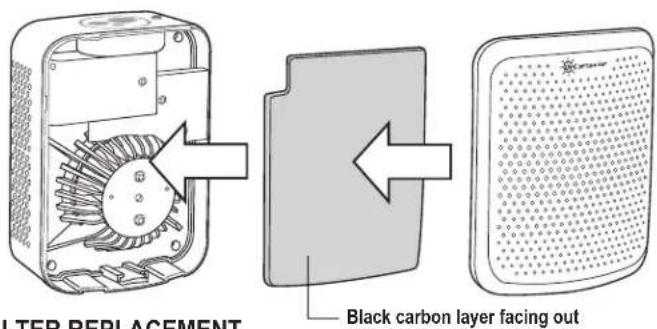

LTER REPLACEMENT Black carbon layer facing out

FILTER REPLACEMENT

CHANGE FILTER INDICATOR

The night light on the top of the air cleaner will flash indicating that it is time to replace the filter. Replace the filter according to the directions then press the night light button and hold for 3 seconds to restart the system. The light will stop flashing. Depending on usage the filter will last approximately 3 months.

REPLACE FILTER

1. Turn off the unit.
2. Remove the unit from the outlet and remove the front cover by first pulling away from the tabs on the bottom of the unit.
3. Remove the used filter.
4. Place the new filter inside of the front cover with the black carbon layer facing the cover.
5. Reattach the front cover of the unit and securely latch into place.
6. Push and hold the night light control button for 3 seconds to reset Filter Change Indicator.

CHECKING AND MAINTAINING FILTER

Maintain the filter by checking it frequently.

Depending on air quality conditions, you may need to replace it more frequently. Vacuum the carbon filter layer as needed to remove loose debris and dust and to help prolong the life of your filter.

IMPORTANT: Do NOT try to wash and re-use the Filter.

IMPORTANT: Use Guardian Technologies GENUINE Replacement Parts only. E-6 E-7

Three-panel technical diagram showing internal components of a device, including a motor, gears, and wiring (no text or labels present)

REPLACING THE UV-C BULB

WHEN TO CHANGE THE BULB

You will know to change the bulb when the night light flashes a red light.

A replaceable 1.7 watt UV-C light bulb will last over 5000 hours.

It is suggested to replace the UV-C light bulb every 10 months depending on use.

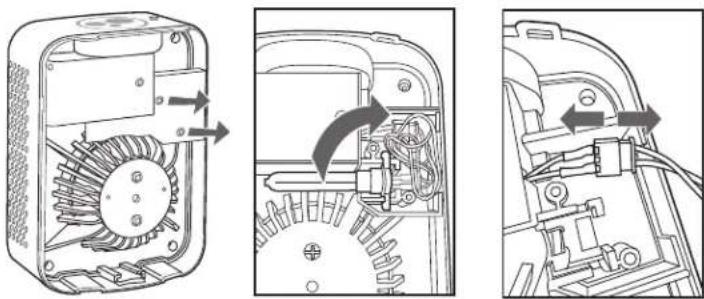

REPLACE BULB

1. Turn off the unit.
2. Unplug the unit from the electrical outlet.
3. Remove the front cover by pulling away from the tabs on the bottom of the unit.

4. Using a small Phillips head screwdriver, loosen and remove the two Phillips screws located on the lamp cover. Remove the bulb and cable from the lamp compartment.

5. Remove the bulb by pulling it to unplug it from the cable. Do not pull the internal wire lead when disassembling the UV Lamp.

6. Replace the new bulb by plugging it into the cable.

Replace the bulb and cable back into the lamp compartment.

1. Reassemble by reversing steps 3-4 above.

2. Push and hold the night light control button for 3 seconds to reset the UV light indicator.

NOTE: The purifier will run but the UV-C light will not function if the front cover is off or not properly installed.

WARNING:

ULTRAVIOLET-C LIGHT IS EMITTED FROM THE BULB WHEN THE UNIT IS ELECTRIFIED, EYE INJURY OR IRRITATION COULD RESULT, UNPLUG THE UNIT WHEN SERVICING THE BULB TO AVOID OVER EXPOSURE OF EYES AND SKIN TO THE ULTRAVIOLET-C LIGHT.

Discard the used bulb by following the recommended disposal procedure for a used fluorescent bulb. The bulb should only be used in the Germ Guardian AC225 and all instructions for use must be followed.

WARNING:

MISAPPLYING OR MISUSING THE UV-C BULB COULD CAUSE INJURY TO THE EYES OR SKIN. NEVER USE THE BULB WITHOUT INSTALLING IT IN THE UNIT AS INSTRUCTED. NEVER OPERATE THE UNIT WITHOUT THE FRONT COVER IN PLACE.

This product can be serviced or maintained only by changing the UV-C bulb. The unit contains no serviceable parts. All parts, except the UV-C bulb, are warranted for 1 year from date of purchase. See the Limited Warranty. Use of any bulb other than the appropriate Guardian Technologies pluggable bulb will void the warranty. You may purchase bulbs directly from Guardian Technologies, or we can provide the names of retailers who stock our products in your area. Please call 866-603-5900 for more information. The health aspects associated with this product and its ability to aid in the disinfection of environmental air have not been investigated by CSA. The purchase of the Germ Guardian device does not prevent illness.

REPLACEMENT PARTS

FILTER: Allergen Filter FLT200

REPLACEMENT PADS: Aroma Oil Replacement Pads FLTMST12PK

BULB: UV-C Bulb LB200

Check out our

AutoShip & Save

Filter Replacement Program

www.guardiantechnologies.com

IMPORTANT: Use Guardian Technologies GENUINE Replacement

Parts only. To Purchase Contact Customer Service

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit. CAUTION: Do NOT use gasoline, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

TROUBLE SHOOTING GUIDE

PROBLEM SOLUTION
Unit does not operate.	Check that unit is plugged into a working electrical outlet.Check that filter is firmly in place.
Unit shuts off unexpectedly.	Check that unit is plugged into a working electrical outlet.Check that filter is firmly in place.
No air circulating from unit.Increase in noise level.	Clean Pre-/Carbon Filter if necessary.Replace filter if necessary.
Night light is flashing.	Replace filter and reset system.Make sure the filters are clean. Replace if necessary.
Night light is flashing red.	Replace UV-C bulb and reset system.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, Ohio 44132

1 866 603-5900 • www.guardiantechnologies.com

IMPORTANT

©2016 Guardian Technologies LLC

guardian

technologies™

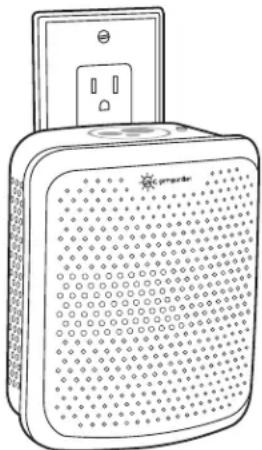

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a portable electronic device with a grid-patterned front panel and two ports (no text or symbols)

Line drawing of a portable electronic device with a grid-patterned front panel and two connected ports (no text or symbols)

Cross-sectional diagram of an electric motor showing stator blades and rotor blades (no text or labels)

Diagram of a mechanical device showing a rotating component with a curved arrow indicating rotation direction (no text or symbols present)

Mechanical assembly diagram showing internal components with arrows indicating motion (no text or labels)

REMPLACEMENT DE L'AMPOULE UV-C REMPLACEMENT DE L'AMPOULE

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, Ohio 44132

1.866.603.5900 • www.guardiantechnologies.com

IMPORTANTE

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a portable electronic device with perforated surface and two buttons (no text or symbols)

Purificador de aire UV-C conectable

NÚMERO DE MODELO: AC225

Tomacorriente

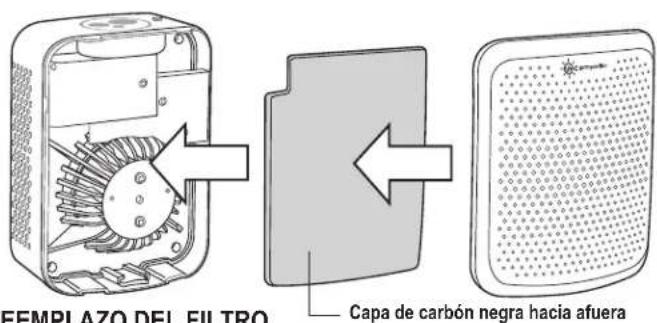

Line drawing of a portable electronic device with a front panel and grid pattern (no text or symbols)

Three technical diagrams showing mechanical components with arrows indicating motion, no text or symbols present.

REEMPLAZO DEL FOCO UV-C CUÁNDO DEBE REEMPLAZAR EL FOCO
