USER MANUAL Force 2201 Plus Eurom

Product photo of a Curot water pressure station with attached power supply and tool (no visible text or symbols)

Safety warning symbol with warning triangle, pictogram of person, and electrical hazard symbols

Do not point the high-pressure jet at people, animals, active electrical equipment or the appliance itself.

Model:	Product code:
Force 2201	135695
Force 2501	135701

WAARSCHUWING

Safety warning illustration showing hazard symbol, safety instruction, and electrical hazard symbols

Afbeelding 2

Exploded view diagram of a car's internal components with numbered labels for identification

Afbeelding 5

Exploded view diagram of a cleaning or cleaning tool with numbered parts for identification

Afbeelding 6

Technical diagram of a handheld electric shaver with numbered parts labeled 1 to 4

Afbeelding 7

Technical diagram of a mechanical device with numbered components and alignment lines

Afbeelding 8

Beugels

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Afbeelding 9

Hogedrukslanghaspel

Diagram showing mechanical assembly steps with numbered components and directional arrow indicating motion

Afbeelding 10

Installatie

LET OP

Diagram of a water heater with labeled parts including power cord, cable, and plug

Afbeelding 11

Spuitpistool

Technical diagram of a spray gun with labeled parts and directional arrows indicating assembly steps

Afbeelding 12

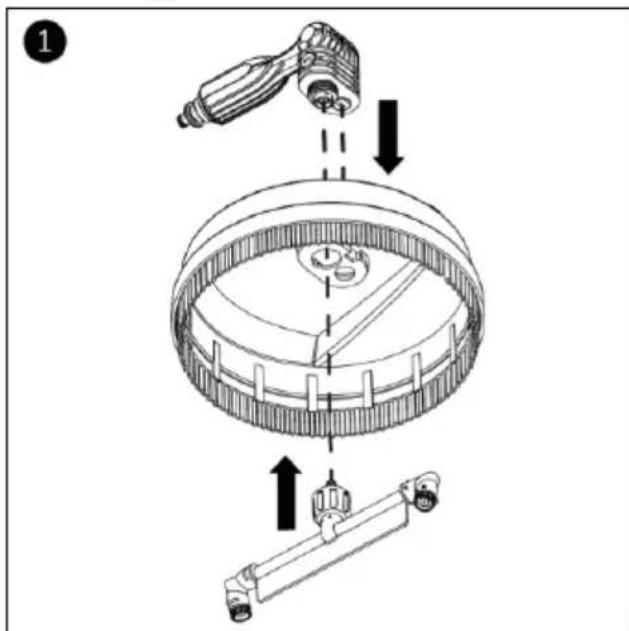

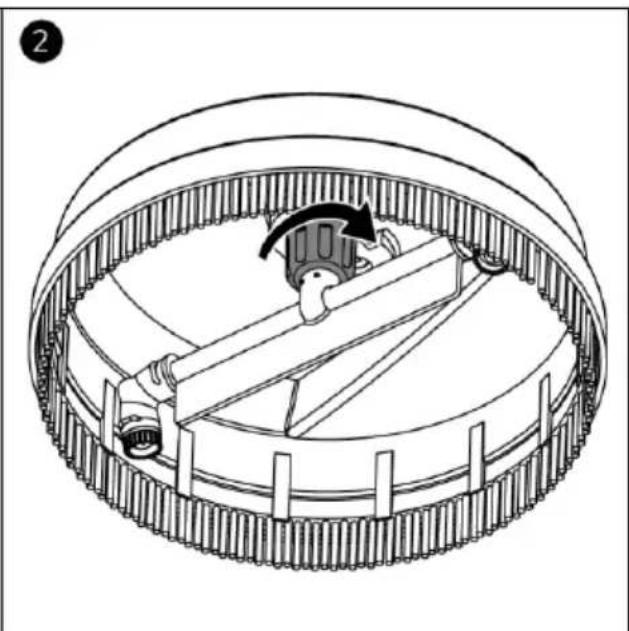

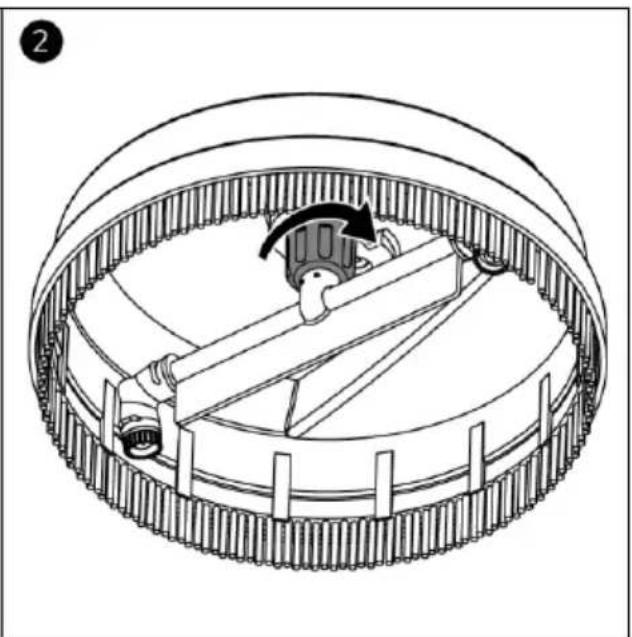

Spuitmonden

Diagram showing the assembly of a water gun with labeled parts including a water gun, hose, and spray can.

Afbeelding 13

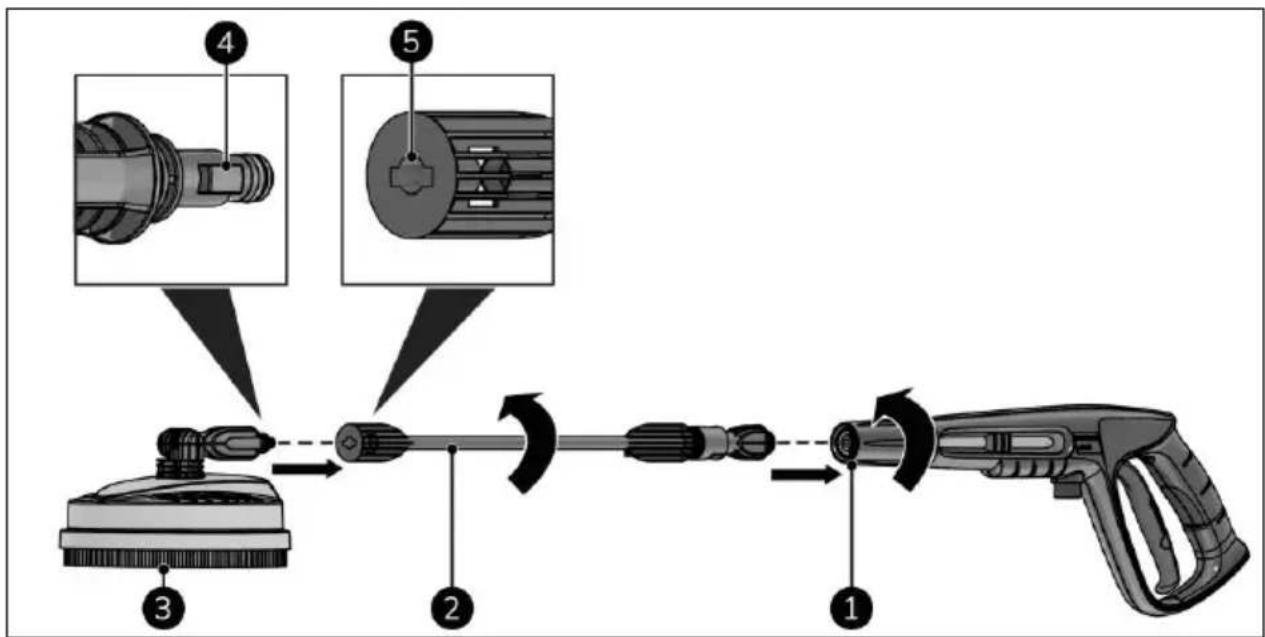

Vloerreiniger

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical component with gear and shaft assembly (no text or symbols)

Afbeelding 14

Diagram illustrating the step-by-step assembly of a power tool, showing components from base to final product with labeled parts 1 through 5.

Afbeelding 15

Werking

WAARSCHUWING

Diagram of a spray gun with labeled parts and an inset showing internal components, likely illustrating safety or cleaning instructions.

Afbeelding 16

Start

Diagram of a cable with labeled components and directional arrows indicating motion or movement

Afbeelding 17

Diagram of a mechanical device with numbered components and rotation arrows indicating motion or assembly.

Afbeelding 18

Na gebruik

WAARSCHUWING

Illustration of a handheld tool with a pointed tip and a magnified close-up showing the internal structure (no text or symbols)

Afbeelding 19

Technical diagram showing a cleaning or polishing process with labeled component '1' and magnified detail view

Afbeelding 20

3D mechanical component diagram showing a gear and shaft assembly (no text or symbols)

Afbeelding 21

Diagram showing a hairdryer with labeled parts and an inset view of the component being adjusted.

Afbeelding 22

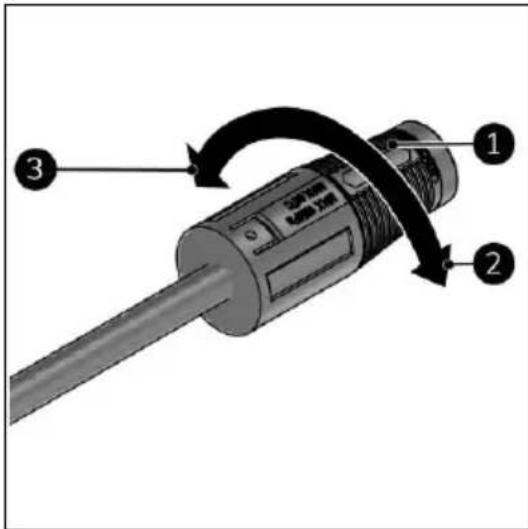

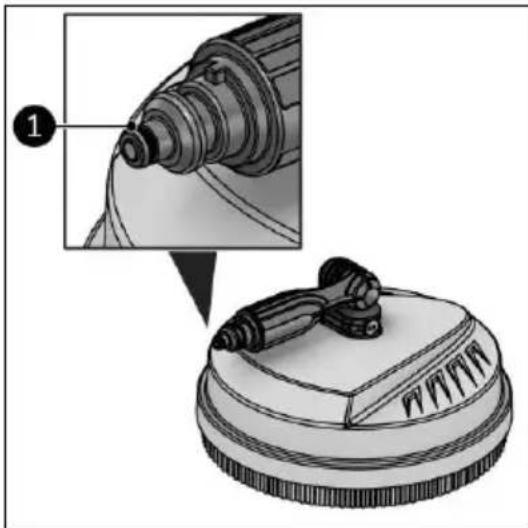

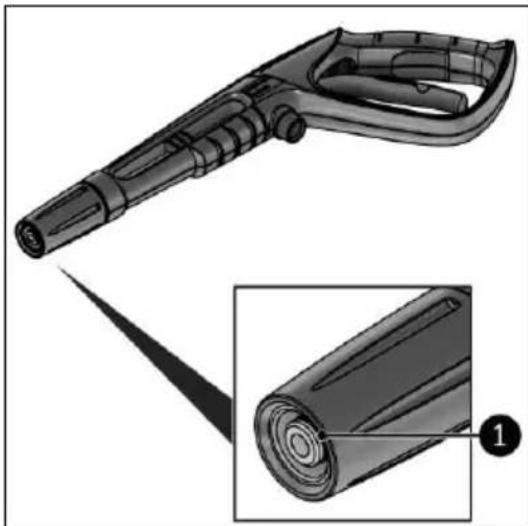

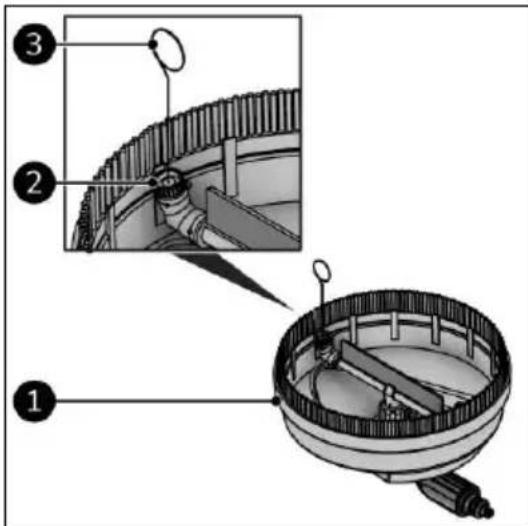

Reinig de spuitmond(en)

Diagram of a connector with labeled parts, showing a threaded cable and two connection points marked 1 and 2.

Afbeelding 23

Technical diagram showing a mechanical assembly with labeled parts, including a magnified inset of the component.

Afbeelding 24

Probleemoplossing

LET OP

• The machine is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
  • Children should be supervised so that they not to play with the appliance.
• Keep all packaging materials, especially foil (danger of suffocation), out of reach of children.
• Instructions for appliances connected to the water mains: Max. inlet water pressure 10 bar or 1 MPa.
• Never touch the plug or the socket with wet hands.
• This machine has been designed for use with the cleaning agent supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the machine. Keep the cleaning agents out of reach of children.
• High pressures jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself.
• During use of high-pressure cleaners, aerosols may be formed. Inhalation of aerosols can be hazardous to health.
• Do not use the machine within range of persons unless the wear protective clothing.
• Do not direct the jet against yourself or others in order to clean clothes or footwear.
• All current-conductive objects in the work area must be protected against water jets.
• Risk of explosion - Do not jet flammable liquids and in circumstances that have risk of explosion.
• Never suck up fluids that contain solvents or undiluted acids or solvents. This includes (for example) petrol, paint thinner or fuel oil. The jet mist is very lightly flammable, explosive and toxic. Do not use acetone, undiluted acids and solvents; these harm the materials used in the machine.

• High pressure cleaners shall not be used by children or untrained personnel.
• High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hoses, fittings and couplings recommended by the manufacturer.
• To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.
• Water that has flowed through backflow preventers is considered to be non-potable.
• The machine has to be disconnected from its power source during cleaning or maintenance and when replacing parts or converting the machine to another function always remove the plug from the socket-outlet.
• Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.
• Inadequate extension cords can be dangerous. If an extensions cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60 mm above the ground.
• Make sure that the line cord and the extension cord are not damaged by stepping on them, squeezing, dragging or something similar. Protect the line cord against heat, oil or sharp edges.
• Always switch off the mains disconnection switch when leaving the machine unattended.
• Depending on the application, shielded nozzles can be used for high pressure cleaning, which will reduce the emission of hydrous aerosols dramatically. However, not all applications allow the use of such a device. If shielded nozzles are not applicable for the protection against aerosols, a respiratory mask of class FFP 2 of equivalent may be needed, depending on the cleaning environment.

General safety instructions

• The minimum diameter of the water connection (hose) is 12.7mm (1/2").
• The water supply must supply at least the water consumption of the device (384 l/h) for the Force 2201!
• The water supply must supply at least the water consumption of the device (420 l/h) for the Force 2501!
• The pump must always be supplied with sufficient water. 'Dry operation' causes damage.
• The water temperature may not exceed 40 °C.

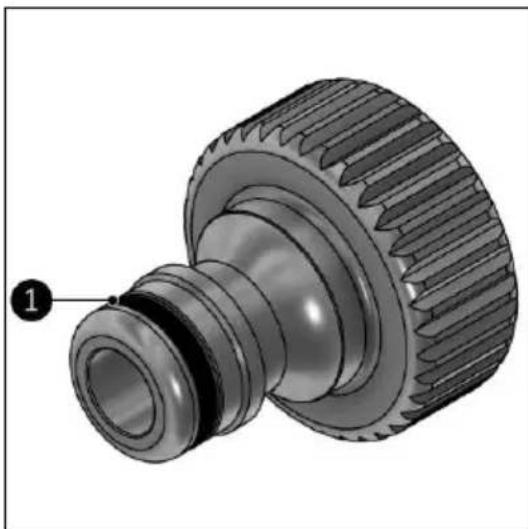

• Only use clean water with this device. Impurities or aggressive chemicals damage the device!
• The voltage and frequency stated on the device must correspond to those of the socket. The electrical system must be approved (IEC 60364-1) and secured with an earth leak

switch (max. 30 mA). Never make any changes to the plug or socket in order to adjust them! Defectiveness in the electric connection could result in a shock!

• Damaged components (including plug, electric cable, hose and jet gun) must be replaced immediately by a technician trained for that purpose or a qualified electrician. Be sure to use only original parts; hoses and connections are also important for safety. Never carry out repairs by yourself.
• Never make any changes to the device, nozzle(s) or any other parts.
• Never cover the device, nozzle(s) or any other parts when using the device.

Safety before and during operation

• Use the device only for home use, such as cleaning cars, boats, terraces, walls, garden equipment, etc.
• Check the device before each time you use it (including cable, plug, hose and jet gun) for any visible damage. Check especially the electric cable for faults or cracks. Do not use a damaged device or one that has not functioned properly when you used last. Give it to your supplier for repair or replacement.
• When using the device, unroll the cable entirely to prevent overheating. If an extension cable is unavoidable, use a cable of adequate thickness: 3x2.5mm ^2 . Inadequate extension cables can be dangerous! The female plug must be waterproof and the connection must be kept dry. Faulty extension cables are dangerous!
• Vehicle tyres and/or tyre valves can get damaged by high-pressure jets and can spring out. The initial sign of this is discolouring of the tyre. Damaged vehicle tyres/tyre valves involve risk of life. When cleaning, observe a minimum jet distance of 30cm.
• In case of long breaks, switch off the device using the main switch or pull out the plug from the socket.
• Do not use the device in temperatures under 0^ .
• It is forbidden to use the device in areas or under circumstances that have risk of explosion.
  • In case of accidents or electricity failure, switch off the device immediately.
• Use only clean water. If you use water that contains for example sand (from a well or something similar), you have to install an extra filter.
• In compliance with valid regulations, the device may not be connected to the drinking water network without a non-return valve. Make sure that your household water system to which the high-pressure cleaner is connected is equipped with a non-return valve.
• Take the device's weight into account when selecting its storage location and during transport in order to prevent accidents and injuries.
• Release the residual pressure by squeezing the trigger a bit before you disconnect the hose from the product.
• Before each time you use the device and at regular intervals, check whether all the metal fasteners are sitting well and whether the components of the product are in good condition; inspect for broken or worn-out parts.

Personal safety

• Wear suitable gear for your personal protection (PPE) when using the device: hearing protection, safety goggles and protective clothing.
• Wear gloves, keep your hands warm and take regular breaks.
• In rare cases, uninterrupted use of the device for several hours might cause insensitivity of the hands.
• Before you operate the device, move it or store it, make sure it is standing on a solid, even and horizontal surface to prevent accidents.
• The user must use the device in a reasonable manner. Take local conditions into account and when carrying out these activities, watch out for people in the surroundings.
• The water jet through the high-pressure mouthpiece results in a kickback, which has an effect on the handgun. Make sure that you are standing firmly and are also holding the handgun firmly.
• Do not jet objects that contain unhealthy substances (e.g., asbestos).

- It is forbidden to clean surfaces that contain asbestos.

- Do not use the device in an inadequately ventilated area.

- Always switch off the device and take out the plug from the socket before assembling, maintaining, storing and transporting it or when changing the function of the device. This also applies when you change the jet head or nozzle and when you are not using the device. For that purpose, take the plug out with your hand. Never use the plug and/or operate the device with wet hands!

• Water from the device, hose or the jet gun is not suitable for consumption.

- Be aware of a kickback; hold the jet gun with both hands.

Additional risks

Even if you use this product in compliance with all the safety requirements, there are still potential risks related to injuries and damage. The following dangers could occur with regard to the structure and design of this product:

• Health deficiencies that result from vibrations if the product is used for long periods, inadequately operated and not maintained properly.
• Danger of injury and material damage from flying objects.
• Wounds and damage to property, as a result of broken accessories or sudden impact from concealed objects during use.

Safety provisions

Safety systems are for the purpose of protecting the user and may not be altered.

- The ON/OFF switch prevents unintended operation of the device.

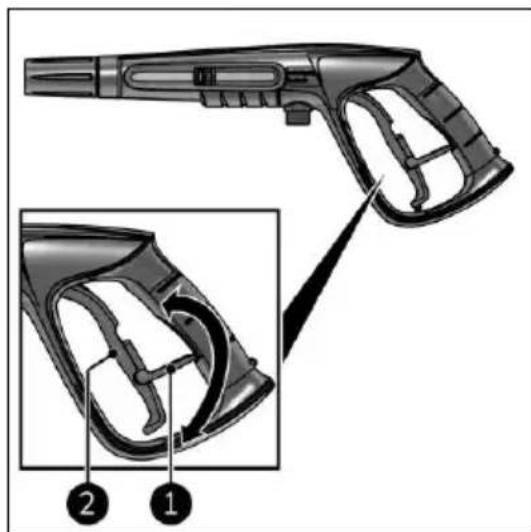

- The jet gun is equipped with a lock. This lock locks the gun and prevents unintended engagement of the device.

- As soon as the trigger of the jet gun is loosened, the pressure switch switches off the pump and the high-pressure jet stops. The pump is re-engaged when the trigger is squeezed.

- The motor is equipped with a thermal protection, which switches off the motor in case of overheating. In principle, the motor restarts by itself after it has cooled down sufficiently. However, it is better to switch off the device and then wait 5 minutes before re-starting. Find out why the device had overheated and then fix the problem. If it recurs, then do not continue using the device and contact your supplier/service provider.

• The motor protection switches off the device if the power consumption is high.

Safety stickers

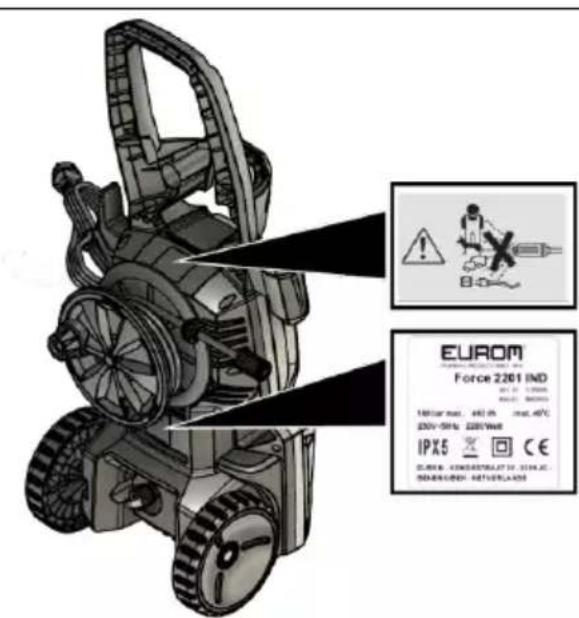

On the device (Figure 1) you will find stickers (Figure 2, 3 and 4). These provide important information about the device.

EUROM Force 2201 IND IPX5 CE 1000 bar max. 480 oh min. 40°C 220V-50Hz 220V Max EUR/USD 47.0000000.0000000.0000000.0000000.0000000.0000000.0000000.0000000.0000000.0000000.0000000.0000000.000

Figure 1

The high-pressure jet (Figure 2) must not be directed at:

• persons;
• animals;
  • live electrical equipment;
  • the appliance itself.

Safety warning illustration showing hazard symbol, safety instruction, and electrical hazard symbols

Figure 2

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

It is important to read and understand this manual before assembling, installing and using the device.

Introduction

This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ. Do not use if the device (including cable and plug) if it is damaged, but always contact your supplier. Keep the packaging for safe storage and transport.

The following symbols and terms are used in this manual to alert the reader to safety issues and important information:

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the user or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Warranty

EUROM offers a 24-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.

Identification

EUROM®

POWERFUL PRODUCTS SINCE 1974

Force 2201 IND

Art. nr. 135695

Batch. BB0450

160 bar max. 462 l/h max. 40°C

230V\~50Hz 2200 Watt

IPX5

CE

EUROM - KOKOSSTRAAT 20 - 8281 JC -

GENEMUIDEN - NETHERLANDS

Figure 3

EUROM®

POWERFUL PRODUCTS SINCE 1974

Force 2501 IND

Art. nr. 135701

Batch. BB0450

180 bar max. 444 l/h max. 40°C

230V\~50Hz 2500 Watt

IPX5

CE

EUROM - KOKOSSTRAAT 20 - 8281 JC -

GENEMUIDEN - NETHERLANDS

Figure 4

Specifications

Type:	Force 2201	Force 2501
Voltage:	AC 220-240V~50Hz
Power consumption:	2200 W	2500 W
Max. pressure:	160 bar	180 bar
Operating pressure:	115 bar	130 bar
Min. water inlet consumption:	384 l/h	420 l/h
Max. pressure water intake:	10 bar
Water inlet connection:	Garden hose connection
Length high-pressure hose:	8 m
Water temperature:	0 – 40 °C
Automatic start-stop:	Yes
Protection class:	II□
Protection level:	IPX5
Sound power level:	90 dB(A)
Dimensions:	91.8 x 38.5 x 35.8 cm
Weight:	20 kg	21 kg

Description

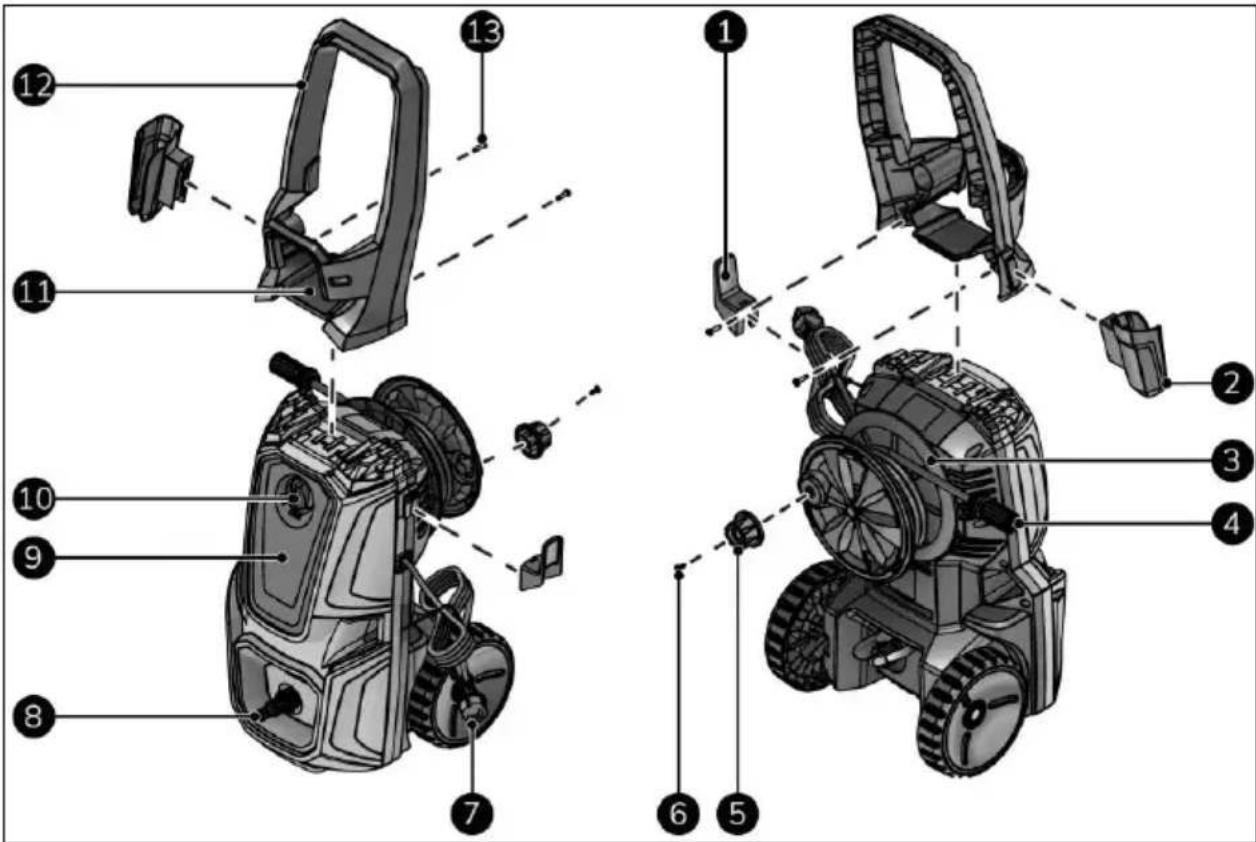

This EUROM device is an easy-to-use high-pressure cleaner (Figure 5). The device is designed for household use, such as cleaning vehicles, buildings, terraces, facades and garden equipment. The device uses clean water and can be used with biodegradable chemical detergents.

Main body

Exploded view diagram of a robotic car with numbered parts for identification and assembly reference.

Figure 5

1. Power cable bracket
2. Jet gun bracket
3. High-pressure hose reel
4. High-pressure water outlet
5. High-pressure hose reel handle
6. Self-tapping screw with Philips head ST4.8x16

7. Power cable

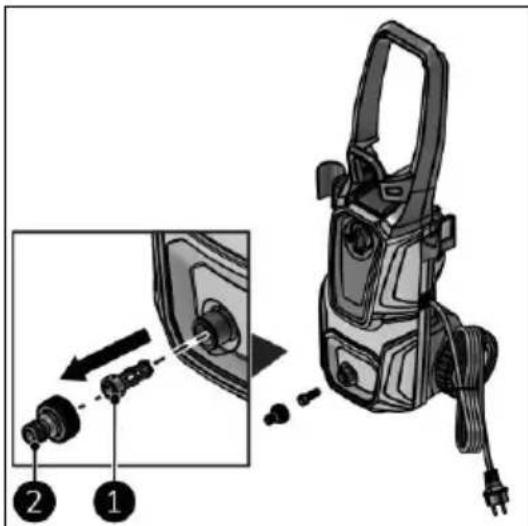

8. Water inlet (garden hose coupling)

9. Main body
10. ON(I) / OFF(0) switch
11. Foam nozzle bracket
12. Handle
13. Self-tapping screw with Philips head ST4.8x20 (2x)

Accessories

CAUTION

The accessories are not interchangeable with another Force devices.

CAUTION

Use only original accessories.

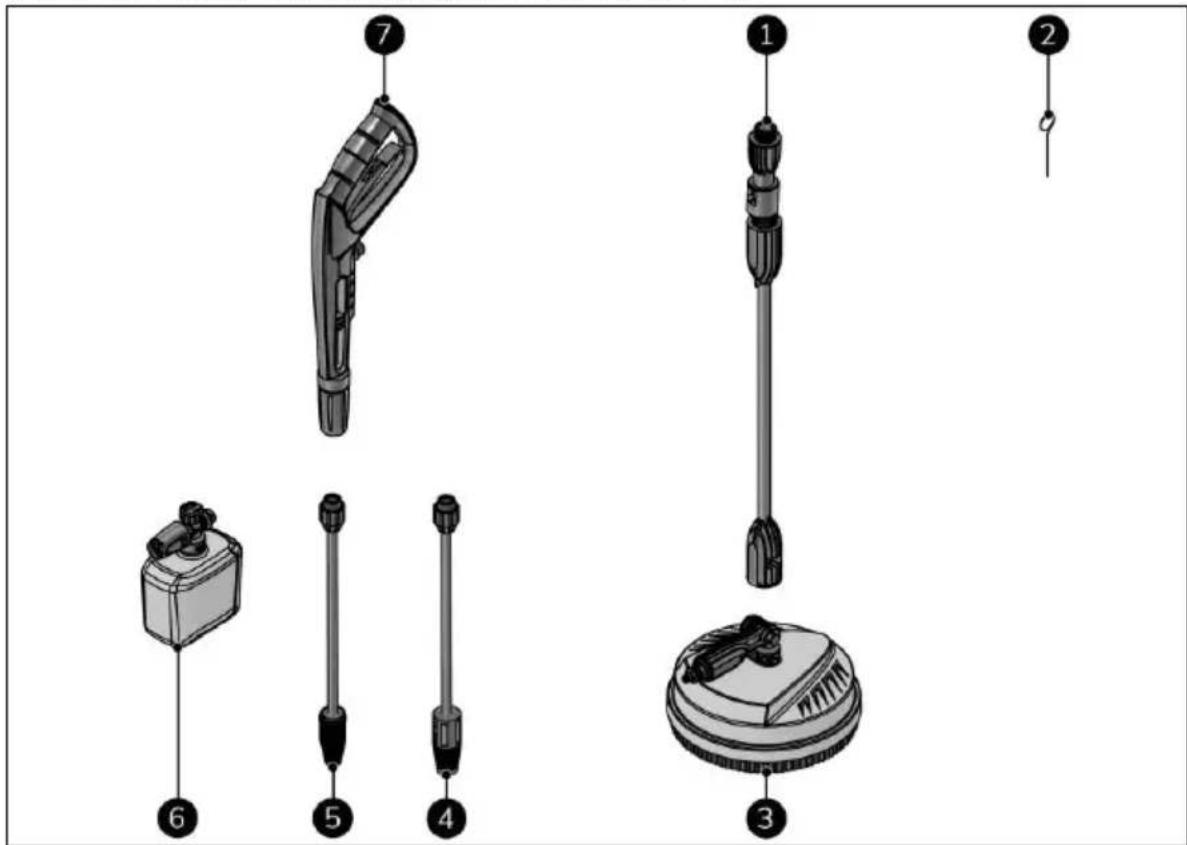

This device contains the following accessories (Figure 6):

Exploded view diagram of a cleaning or cleaning tool with numbered parts for identification

Figure 6

1. Floor cleaner lance
2. Cleaning pin
3. Floor cleaner

4. Adjustable nozzle with lance

5. Turbo nozzle with lance

6. Foam nozzle
7. Jet gun

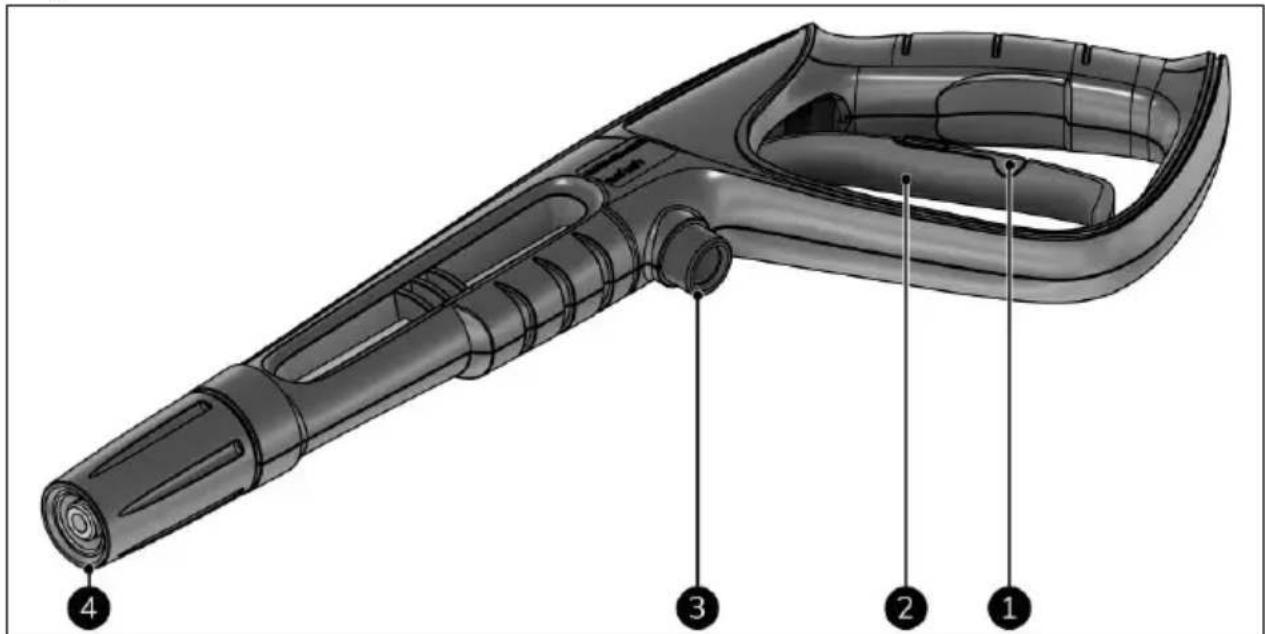

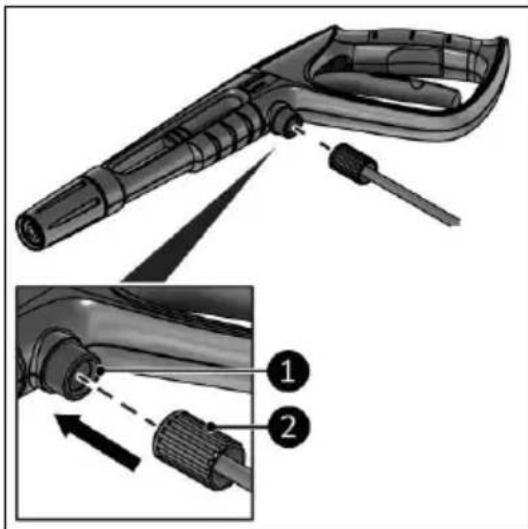

Jet gun

Technical diagram of a handheld device with numbered parts labeled 1 to 4

Figure 7

1. Trigger lock

2. High-pressure water coupling

3. Trigger

4. Accessory coupling (thread)

Assembly

The device is packed in one box. Remove all packaging materials and check that the device is not damaged. Do not use the device if it is damaged, but always contact your supplier. Keep the packaging for safe storage and transport. Minor assembly is required.

Handle

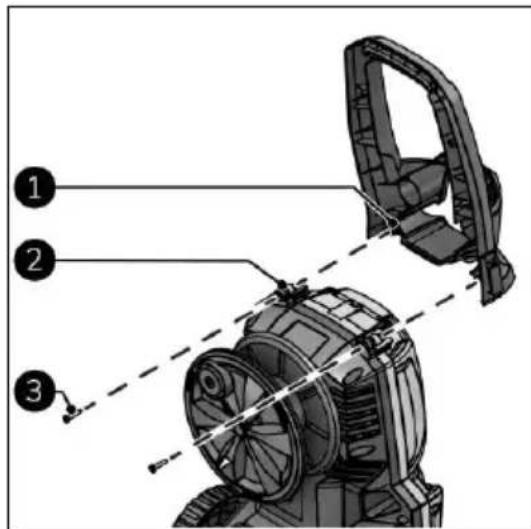

1. Attach the handle (Figure 8, pos. 1) to the main body (Figure 8, pos. 2) with both ST4.8x20 screws (Figure 8, pos. 3).

Technical diagram of a lawn mower with numbered parts and alignment lines

Figure 8

Brackets

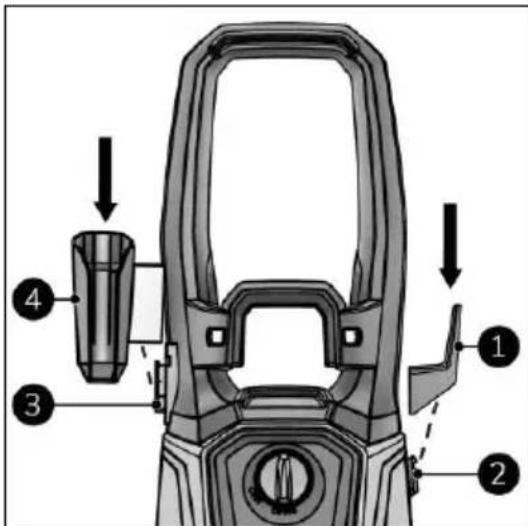

1. Slide the power cable bracket (Figure 9, pos. 1) onto the main body (Figure 9, pos. 2).
2. Press firmly until you hear a 'click'.
3. Slide the jet gun bracket (Figure 9, pos. 4) onto the handle (Figure 9, pos. 3).
4. Press firmly until you hear a 'click'.

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Figure 9

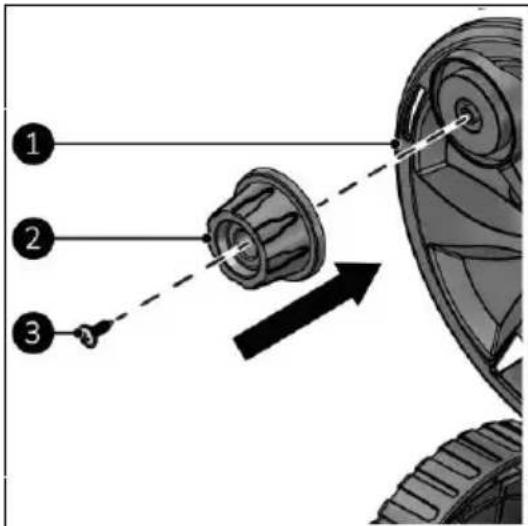

High pressure hose reel

1. Attach the handle (Figure 10, pos. 2) to the high-pressure hose reel (Figure 10, pos. 1) with the ST4.8x16 screw (Figure 10, pos. 3).

Diagram showing mechanical assembly steps with numbered components and directional arrow indicating motion

Figure 10

Installation

CAUTION

Place the cleaner as close as possible to the water supply.

CAUTION

The cleaner must be placed upright on a solid, flat and horizontal surface (handle on top).

Main body

CAUTION

The water hose and female water coupling are not included.

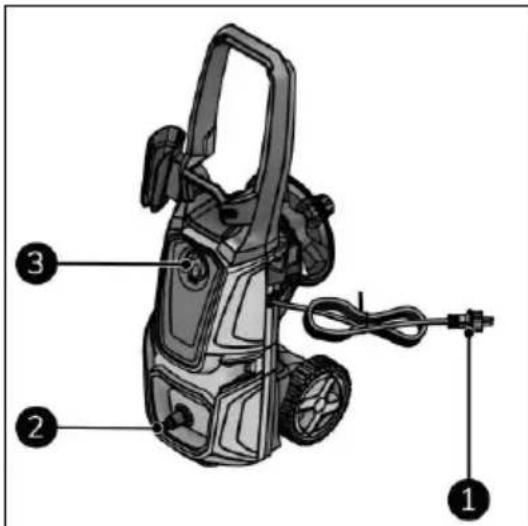

1. Make sure the device is correctly assembled.
2. Make sure the ON(I)/OFF(0) switch (Figure 11, pos. 3) is in the OFF(0) position.
3. Place the power plug (Figure 11, pos. 1) into a socket that is easily accessible.
4. Connect the water supply to the device (Figure 11, pos. 2).
5. You will hear a 'click' when the water supply is correctly connected.

Diagram of a water heater with labeled parts including power cord, hose, and plug

Figure 11

Jet gun

1. Make sure that the safety lock is locked (Figure 7, pos. 1).
2. Screw the high-pressure hose (Figure 12, pos. 2) onto the jet gun (Figure 12, pos. 1).

Technical diagram of a spray gun with labeled parts and directional arrows indicating assembly steps

Figure 12

Nozzles

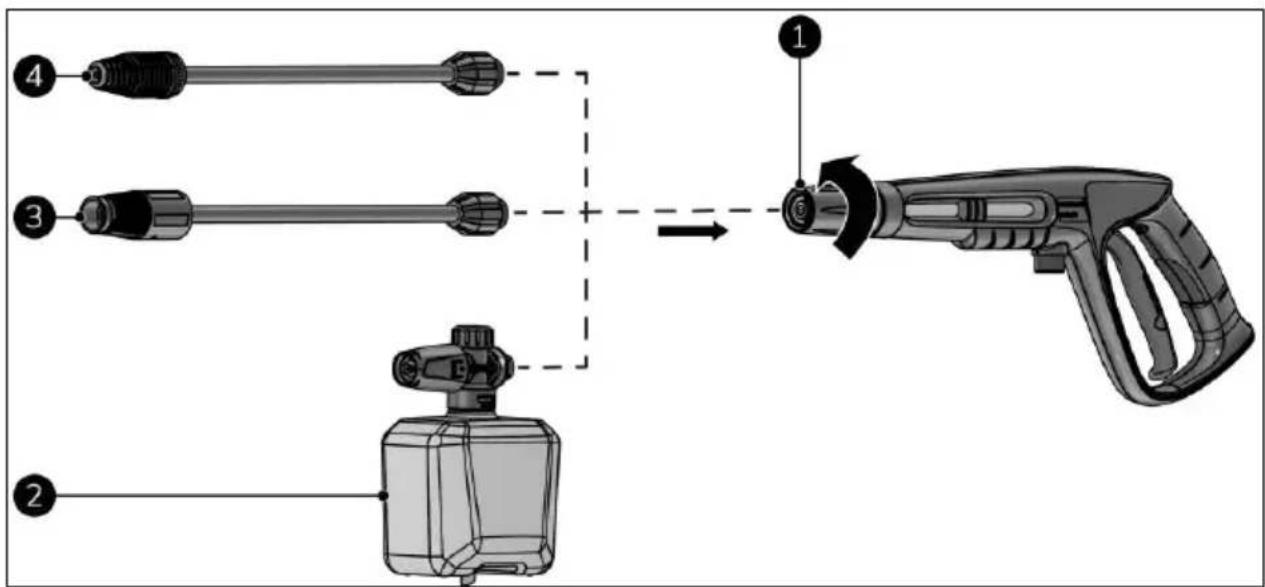

1. On the jet gun (Figure 13, pos. 1), screw on (tight) the:

2. foam nozzle (Figure 13, pos. 2), or;
   • adjustable nozzle (Figure 13, pos. 3), or;
   • turbo nozzle (Figure 13, pos. 4).

Diagram showing the assembly of a water gun with labeled parts including a water gun, hose, and spray can.

Figure 13

Floor cleaner

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical component with gear and shaft assembly (no text or symbols)

Figure 14

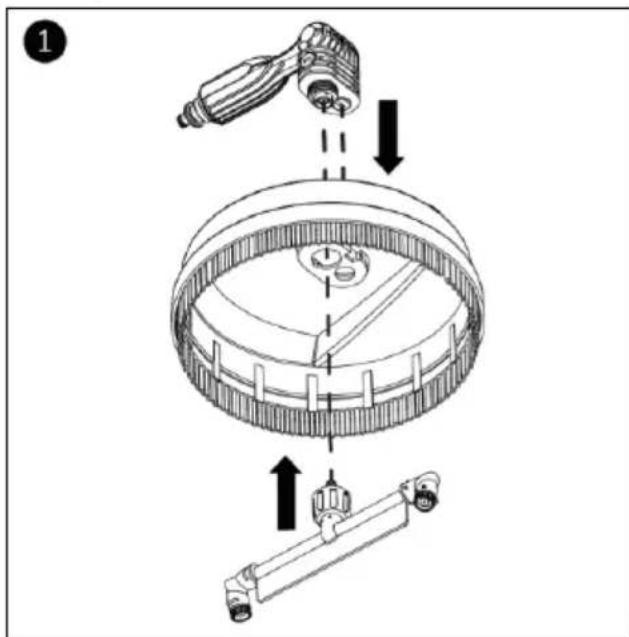

Floor cleaner

1. Align the ridge of the floor cleaner (Figure 15, pos. 4) with the groove in the floor cleaner lance (Figure 15, pos. 5).
2. Insert the floor cleaner (Figure 15, pos. 3) into the floor cleaner lance (Figure 15, pos. 2).
3. Turn the floor cleaner 90° to secure the extension lance.
4. Screw the floor cleaner lance on the jet gun (Figure 15, pos 1).

Diagram illustrating the step-by-step assembly of a cleaning gun, labeled with components 1 through 5.

Figure 15

Operation

WARNING

Before operating, see section Safety.

WARNING

Operating the device more than 2 minutes without water leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".

CAUTION

If the lever of the jet gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Lock and unlock the trigger

1. If applicable, release the trigger (Figure 16, pos. 2).
2. Turn the trigger (Figure 16, pos. 1) lock.

Diagram of a firearm with labeled parts and an inset showing internal structure, likely illustrating safety or cleaning instructions.

Figure 16

Start

1. Make sure the ON(I)/OFF(0) switch is in the OFF(0) position (Figure 5, pos. 10).
2. Open the external water supply completely.
3. Unlock the safety lock under the trigger (Figure 7, pos. 1).
4. Squeeze the trigger (Figure 7, pos. 2) for several seconds to remove the air from the hose.
5. Switch the device on (Figure 5, pos. 10).

Cleaning

WARNING

Be aware of the kickback when squeezing the trigger.

CAUTION

When you stop temporary:

• turn the device off;
• close the external water connection;

• remove the power plug.

• Hold the jet gun (Figure 6, pos. 7) with both hands.

• Aim the jet gun at the object that needs to be cleaned.
• Squeeze the trigger (Figure 7, pos. 2) and start cleaning.

Cleaning with floor cleaner

1. Hold the jet gun (Figure 6, pos. 7) with both hands.
2. Place the floor cleaner (Figure 6, pos. 3) on the surface the be cleaned.
3. Squeeze the trigger (Figure 7, pos. 2) and start cleaning.

Change jet angle

CAUTION

The jet angle can only be changed of the adjustable nozzle. The turbo nozzle and floor cleaner have a fixed jet angle.

1. If applicable, release the trigger (Figure 7, pos. 2).
2. Lock the safety lock under the trigger (Figure 7, pos. 1).
3. Rotate the head of the nozzle (Figure 17, pos. 1) to change the jet angle:

- for a smaller (more powerful jet) turn it clockwise (Figure 17, pos. 2).

- for a bigger (less powerful jet) turn it anticlockwise (Figure 17, pos. 1).

Diagram of a cable with labeled components and directional arrows indicating motion or movement

Figure 17

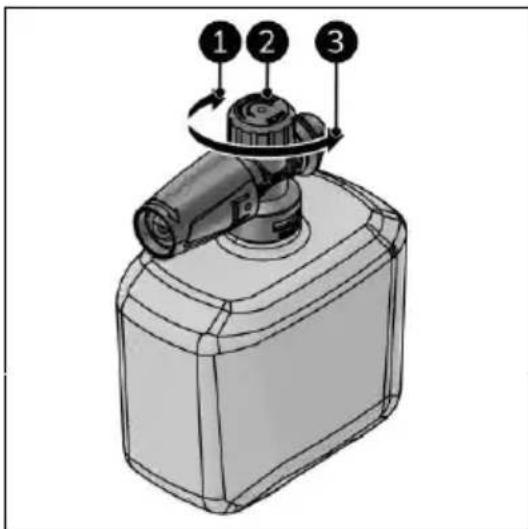

Adjust amount of foam

1. If applicable, release the trigger (Figure 7, pos. 2).
2. Lock the safety lock under the trigger (Figure 7, pos. 1).
3. Rotate the head of the foam nozzle (Figure 18, pos. 2) to change the amount of foam:

- for more foam turn it clockwise (Figure 18, pos. 1).

- for less foam turn it anti-clockwise (Figure 18, pos. 3).

Diagram of a mechanical device with numbered components and rotation arrows indicating motion or assembly.

Figure 18

After operation

WARNING

If the device is off, left-over in the device can still be under high pressure.

CAUTION

• Do not use the power cable to unplug or carry the device.
• Do not wind the power cable too tightly or in sharp angles.

• Do not wrap the power cable around the device.

• Release the trigger (Figure 7, pos. 2).

• Lock the safety lock under the trigger (Figure 7, pos. 1).
• Switch the device off (Figure 5, pos. 10).
• Pull the power plug out of the socket (Figure 5, pos. 7).
• Wind the power cable.
• Place the power cable on the bracket (Figure 5, pos. 1).
• Close and disconnect the water supply.
• Unlock the safety lock under the trigger.
• Hold the jet gun with both hands.
• Squeeze the trigger to drain the jet gun.
• Screw the high-pressure hose off from the jet gun (Figure 7, pos. 3).
• Drain the high-pressure hose for at least 1 minute.

Remove the nozzle

1. Screw the nozzle off from the jet gun.

Remove the floor cleaner

1. Screw the floor cleaner lance off the jet gun.
2. Remove the floor cleaner from the floor cleaner lance by rotating it 90°.

Transport and storage

WARNING

Completely empty the device and accessories. Protect the device from frost. Left over water can freeze and damage the device.

• Move the device by the handle (Figure 5, pos. 12).
• Clean the device before storing it.
• Store the device in its original packaging in, dry and dust-free area.

Prepare for winter / frost-free storage

1. Clean the device.
2. Make sure there is no left-over water in the device.
3. If possible, store the device and accessories in a frost-free of frost-protected room. If not; suck in anti-freeze before you store it. Use the anti-freeze instead of water.

After winter / frost-free storage

WARNING

If the device freezes, have it inspected by an Eurom authorized professional before use.

CAUTION

Frost damage is not covered by warranty.

1. If applicable; clean the device.
2. Let the device thaw.
3. If applicable; remove anti-freeze.

Maintenance

WARNING

Do not repair or modify to this device.

WARNING

Always remove the plug from the socket before you start maintenance!

Repairs and inspections must be carried out by a EUROM authorized professional. If the device, electric cable and/or electric plug are damaged, they should be replaced by the manufacturer or its service employee or persons with similar qualifications to prevent risks.

Perform the following maintenance tasks after every use:

• Carefully remove dust, sand or other dirt from the connections (nozzles, floor cleaner lance, jet gun, high-pressure hose and water inlet).
• Remove the nozzle from the jet gun. Regularly clean the nozzle with the supplied pin. Flush it thoroughly (against the direction of the high-pressure jet).
• Remove the floor cleaner from the floor cleaner lance. Regularly clean the floor cleaner with the supplied pin. Flush it thoroughly (against the direction of the high-pressure jet).

Perform the following maintenance tasks regularly:

• Regularly Vaseline the O-rings of the connectors to prevent them from drying out.
- Clean the water inlet filter.

Grease O-rings

1. Remove the accessories from the (Figure 6, pos. 4, 5 or 6) jet gun.
2. Apply Vaseline to the O-ring (Figure 19, pos. 1).

Illustration of a handheld tool with a pointed tip and a magnified close-up showing the internal structure (no text or symbols)

Figure 19

1. Remove the floor cleaner (Figure 6, pos. 3) from the jet gun.
2. Apply Vaseline to the O-ring of the floor cleaner (Figure 20, pos. 1).

Technical diagram showing a cleaning or polishing process with labeled component 1 and a close-up view of the tool.

Figure 20

1. Apply Vaseline to the O-ring of the garden hose coupling (Figure 21, pos. 1).

3D mechanical component diagram showing a gear and shaft assembly (no text or symbols)

Figure 21

Clean the water inlet filter

WARNING

Contact an EUROM authorized professional if the filter needs to be replaced.

CAUTION

Remove the filter with the help of pliers.

1. Make sure the device is off.
2. Remove the water supply.
3. Unscrew the garden hose coupling (Figure 22, pos. 2).
4. Pull out the filter (Figure 22, pos. 1).
5. Clean the filter under running water.
6. Put back the filter.
7. Put back the water garden hose coupling.

Diagram showing a hairdryer with labeled parts and an inset view of the component being adjusted.

Figure 22

Clean the nozzle(s)

1. Make sure the device is off.
2. Remove the water supply.
3. Remove the nozzle (Figure 23, pos. 2) from the jet gun (Figure 6, pos. 7).

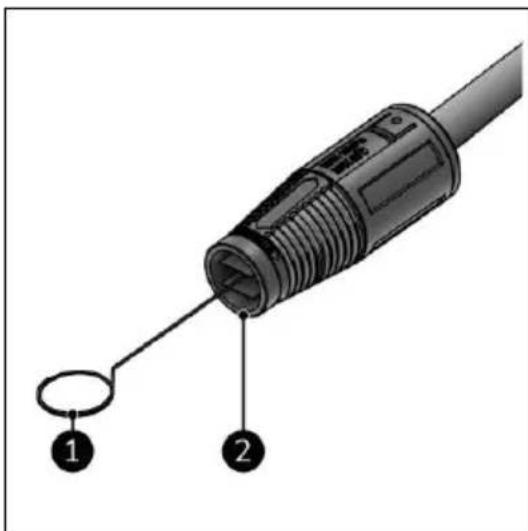

4. Clean the nozzle with the cleaning pin (Figure 23, pos. 1).
5. Flush it thoroughly (against the direction of the high-pressure jet).

Diagram of a connector with labeled parts, showing a threaded cable and two connection points marked 1 and 2.

Figure 23

Clean the floor cleaner

1. Make sure the device is off.

2. Remove the water supply.

3. Remove the floor cleaner (Figure 24, pos. 1) from the extension lance (Figure 5, pos. 1) by turning it 90°.

4. Clean both nozzles (Figure 24, pos. 2) with the cleaning pin (Figure 24, pos. 3).

5. Flush them thoroughly (against the direction of the high-pressure jet).

Technical diagram of a mechanical device with labeled parts, showing internal components and assembly steps.

Figure 24

Troubleshoot

CAUTION

Contact a EUROM authorized professional:

• in the event of regularly recurring errors;
- if the errors are not solved.

The following problems can occur:

Problem	Cause	Solution	Safety instruction
The device does not start.	Plug not in the power outlet.	Plug the power plug into the socket.	Make sure the device is off.
	Power outlet not working.	Use another power outlet.	Make sure the device is off.
	Extension cord broken.	Contact a EUROM authorized professional.	Do not use the device.
Fluctuating pressure.	Pump is sucking in air.	Contact a EUROM authorized professional.	Do not use the device.
	Valves are dirty, worn or broken.	Contact a EUROM authorized professional.	Do not use the device.
	Pump seal work.	Contact a EUROM authorized professional.	Do not use the device.
	The nozzle is partially blocked.	Clean the nozzle.	Make sure the device is off and drained.
Device stops.	Blown fuse.	Contact a EUROM authorized professional.	Do not use the device.
	Active thermal safety.	Allow to cool and remove the cause of overheating.	Make sure the device is off.
			Do not use the device while cooling off.
	Nozzle is partially blocked.	Clean the nozzle.	Make sure the device is off and drained.
Blown fuse.	Electrical installation is to light.	Connect to an installation with a higher amperage.Do not use an extension cable.	Make sure the device is off when switching to another electrical installation.Make sure the device is off when removing the extension cable.
Device vibrates.	Air in the water supply hose.	Allow it to escape by running water through the device while it is switched off.	Make sure the device is off.
	Problem with the water supply.	Do not use an excessively long or thin hose (min. 1/2".)	Make sure the device is off and drained when changing a hose.
	The nozzle is partially blocked.	Clean the nozzle.	Make sure the device is off and drained.
	The water inlet filter is dirty.	Clean the water filter.	Make sure the device is off and drained.
	There is a kink in the hose.	Straighten the hose.	Make sure the device is off.
The device regularly starts and stops by itself.	Pump or jet lance are leaking.	Have them repaired or replaced.	Contact a EUROM authorized professional.
The device starts but does not supply water.	Pump, hose or accessories are frozen.	Allow them to thaw and check them.	Do not use the device.
	No water supply.	Ensure that there is a water supply.	Make sure the device is off while checking the water supply.
	Filter blocked.	Clean the filter.	Make sure the device is off and drained.
	Nozzle blocked.	Clean the nozzle.	Make sure the device is off and drained.

Cleaning

CAUTION

Do not use:

• scouring pads;
• hard brushes;
• flammable, aggressive, or chemical cleaning products.

Prevent water from entering the device. Do not immerse any part of the device in water or other liquids.

It is recommended to clean the device every two weeks and prior to storage. Keep in mind that the water, weather, air pollution, salty environment, smoke, etc. will leave their marks on the device over time.

1. Wipe the device with a damp, clean, soft, lint-free cloth, or a soft brush.
2. Let the device dry completely prior to use and storage.

Disposal

At its end of life, discard the device according to the local laws and regulations, or deliver the device to your supplier.

Sicherheit

WARNUNG

EUROM Force 2201 IND 100V max. 460 Ω min. 40°C 220V-50Hz 220V Max IPX5 CE 30.000 - 400mA/10kV 37.000 mA 100mA/10kV 37.000 mA 100mA/10kV 37.000 mA 100mA/10kV 37.000 mA 100mA/10kV 37.000 mA 100mA/10kV 37.000 mA 100mA/10kV 220V Max 100mA/10kV 220V Max 100mA/10kV 220V Max 100mA/10kV 220V Max 100mA/10kV 220V Max 100mA/10kV 220V Max 100mA/10kV 220V Max 10% 1.5% 2.5% 3.5% 4.5% 5.5% 6.5% 7.5% 8.5% 9.5% 10.5% 11.5% 12.5% 13.5% 14.5% 15.5% 16.5% 17.5% 18.5% 19.5% 20.5% 21.5% 22.5% 23.5% 24.5% 25.5% 26.5% 27.5% 28.5% 29.5% 30.5% 31.5% 32.5% 33.5% 34.5% 35.5% 36.5% 37.5% 38.5% 39.5% 40.5% 41.5% 42.5% 43.5% 44.5% 45.5% 46.5% 47.5% 48.5% 49.5% 50.5% 51.5% 52.5% 53.5% 54.5% 55.5% 56.5% 57.5% 58.5% 59.5% 60.5% 61.5% 62.5% 63.5% 64.5% 65.5% 66.5% 67.5% 68.5% 69.5% 70.5% 71.5% 72.5% 73.5% 74.5% 75.5% 76.5% 77.5% 78.5% 79.5% 80.5% 81.5% 82.5% 83.5% 84.5% 85.5% 86.5% 87.5% 88.5% 89.5% 90.5% 91.5% 92.5% 93.5% 94.5% 95.5% 96.5% 97.5% 98.5% 99.5% 100%

Abbildung 1

Safety warning illustration showing hazard symbol, safety instruction, and electrical hazard symbols

Abbildung 2

Exploded view diagram of a robotic car with numbered parts for identification and assembly reference.

Abbildung 5

Exploded view diagram of a cleaning or cleaning tool with numbered parts labeled 1 through 7

Abbildung 6

Technical diagram of a handheld electric shaver with numbered parts labeled 1 to 4

Abbildung 7

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Abbildung 8

Halterungen

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Abbildung 9

Diagram showing mechanical assembly steps with numbered components and directional arrow indicating motion

Abbildung 10

Installation

VORSICHT

Diagram of a water heater with labeled parts including components 1, 2, and 3

Abbildung 11

Stahlpistole

Technical diagram of a spray gun with labeled parts and directional arrows indicating assembly steps

Abbildung 12

Düsen

Diagram showing the assembly of a water gun with labeled parts including a water gun, hose, and spray can.

Abbildung 13

Bodenreiniger

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical component with gear and shaft assembly (no text or symbols)

Abbildung 14

Diagram illustrating the step-by-step assembly of a power tool, showing components from brush to final gun.

Abbildung 15

Betrieb

WARNUNG

Diagram of a spray gun with labeled parts, showing two views (1 and 2) of the tool's handle and internal structure.

Abbildung 16

Start

Diagram of a USB connector with labeled parts and directional arrows indicating rotation or movement.

Abbildung 17

Diagram of a device with numbered parts and rotation arrow indicating rotational motion

Abbildung 18

Nach dem Betrieb

WARNUNG

Illustration of a handheld tool with a pointed tip and a magnified close-up showing the internal structure (no text or symbols)

Abbildung 19

Technical diagram showing a cleaning or polishing process with labeled component 1 and a close-up view of the tool.

Abbildung 20

3D mechanical component diagram showing a gear and shaft assembly (no text or symbols)

Abbildung 21

Diagram showing a hairdryer with labeled parts and an inset view of the component being adjusted.

Abbildung 22

Diagram of a connector with labeled parts, showing a threaded cable and two connection points marked 1 and 2.

Abbildung 23

Technical diagram showing a mechanical assembly with labeled parts, including a magnified inset view of the component.

Abbildung 24

Fehlerbehebung

VORSICHT

Safety warning illustration showing hazard symbol, safety instruction, and electrical hazard symbols

Figure 2

Technical diagram of a robotic car with numbered parts for identification and assembly reference.

Figure 5

Exploded view diagram of a cleaning or cleaning tool with numbered parts for identification

Figure 6

Technical diagram of a handheld electric shaver with numbered parts labeled 1 to 4

Figure 7

Technical diagram of a mechanical device with numbered parts and dashed alignment lines indicating assembly or alignment.

Figure 8

Supports

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly steps.

Figure 9

Diagram showing mechanical assembly steps with numbered components and directional arrow indicating motion

Figure 10

Installation

PRUDENCE

Diagram of a water heater with labeled parts including power cord, hose, and plug

Figure 11

Pistolet à jet

Technical diagram of a spray gun with labeled parts and directional arrows indicating assembly steps

Figure 12

Buses

Diagram showing the assembly of a water gun with labeled parts including a water gun, hose, and spray can.

Figure 13

Nettoyeur de sol

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical component with gear and shaft assembly (no text or symbols)

Figure 14

Nettoyeur de sol

Diagram illustrating the step-by-step assembly of a power tool, showing components from brush to final gun.

Figure 15

Fonctionnement

AVERTISSEMENT

Diagram of a spray gun with labeled parts, showing two views (1 and 2) of the tool's handle and internal structure.

Figure 16

Démarrage

Diagram of a cable with labeled components and directional arrows indicating motion or movement

Figure 17

Diagram of a mechanical device with numbered parts labeled 1, 2, and 3 indicating specific components or parts.

Figure 18

Après utilisation

AVERTISSEMENT

Illustration of a handheld tool with a pointed tip and magnified detail showing the cable (no text or symbols)

Figure 19

Technical diagram showing a cleaning or polishing process with labeled component '1' and a close-up view of the tool's tip.

Figure 20

3D mechanical component diagram showing a gear and shaft assembly (no text or symbols)

Figure 21

Diagram showing a hairdryer with labeled parts and an inset view of the component being adjusted.

Figure 22

Diagram of a connector with labeled parts, showing a threaded cable and two connection points marked 1 and 2.

Figure 23

Technical diagram showing a mechanical assembly with labeled parts, including a magnified inset view of the component.

Figure 24

PRUDENCE

EU Declaration of Conformity

We,

Company name: Euromac BV

Postal address: Kokosstraat 20

Postcode: 8281 JC

City: Genemuiden

Country: The Netherlands

Declare that the DoC is issued under our sole responsibility and belongs to the following product:

Product: High pressure cleaner

Brand name: Eurom

Model: Force 2201

Item number: 135695

The object of declaration described above is in conformity with the following relevant Union harmonization legislation:

Machinery Directive: 2006/42/EC

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

and that the product is in conformity with the following standards and/or other normative documents:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021

EN 60335-2-79:2012

EN 62233:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019

Signed for and on behalf of Euromac BV:

Genemuiden, 06-12-2022

W.J. Bakker, alg. Dir.

older.

EU Declaration of Conformity

We,

Company name: Euromac BV

Postal address: Kokosstraat 20

Postcode: 8281 JC

City: Genemuiden

Country: The Netherlands

Declare that the DoC is issued under our sole responsibility and belongs to the following product:

Product: High pressure cleaner

Brand name: Eurom

Model: Force 2501

Item number: 135701

The object of declaration described above is in conformity with the following relevant Union harmonization legislation:

Machinery Directive: 2006/42/EC

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

and that the product is in conformity with the following standards and/or other normative documents:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021

EN 60335-2-79:2012

EN 62233:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019

Signed for and on behalf of Euromac BV:

Genemuiden, 06-12-2022

W.J. Bakker, alg. Dir.

older.

Kokosstraat 20, 8281 JC Genemuiden, The Netherlands

T: ([phone]

E: [e-mail]

| : www.eurom.nl

Model: Force 2201 & 2501

Date: 10/03/2023

Version: v3.0
