Einleitung

To enjoy your new appliance as long as possible, please read carefully the Operating Instructions and the attached safety instructions before using it. Further, we recommend keeping the Operating Instructions to recall the product features in the future.

Within the continuous product development, we reserve the right to make technical changes to improve it.

Translation of original operating instructions

Supply includes

Take the appliance out of the transport package and check it whether there are the following parts:

• 1 fretsaw
  • 2 saw blades (1 saw blade being preassembled)
  • 1 saw blade cover
  • M5x40 saw blade cover installation screw
  • M5 saw blade cover installation nut
  • 2 Allen keys (assembly tools)
  • 1 original Operating Instructions
• Warranty Certificate

Please contact your dealer if any parts are missing or are damaged.

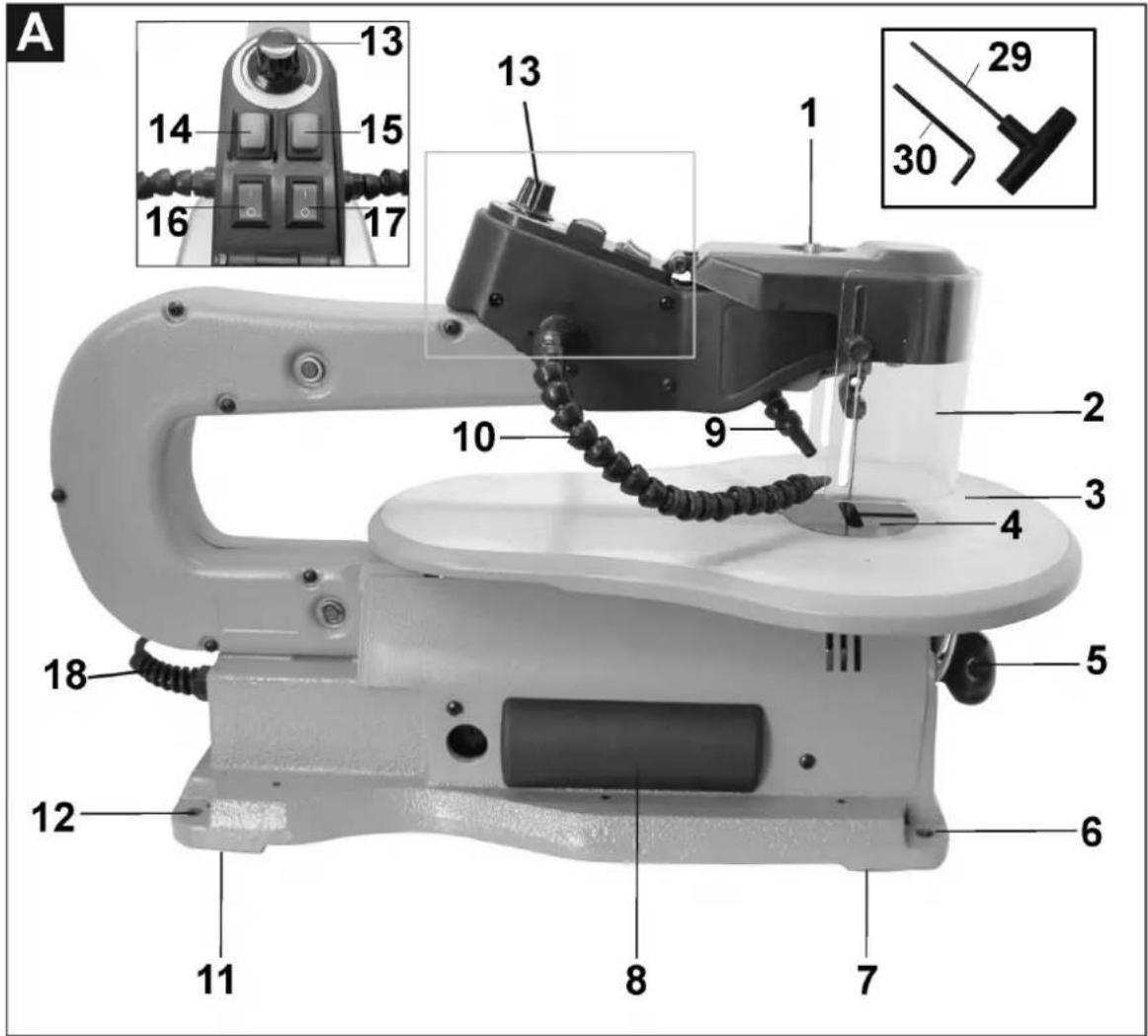

Appliance + accessory equipment description (pic. A-B+D)

1.	Locking	screw
2.	Saw	blade	cover
3.	Saw	bench
4.	Saw	bench	insert
5.	Securing	screw
6.	Assembly	hole
7.	Rubber	legs

1. Saw blade storing area
2. LED lamp
3. Blowing equipment
4. Rubber leg
5. Assembly hole
6. Stroke number controller
7. On
8. Off
9. Laser On/Off
10. LED lamp On/Off
11. Connection
12. Indicator
13. Scale
14. Dust extractor adapter
15. Saw blade tension lever
16. Laser adjusting screw
17. Laser
18. Upper holder of saw blade
19. Saw blade
20. Inspection cover
21. Bottom holder of saw blade
22. Allen key T-shaped handle
23. Allen key

Technical specifications

Connection: 230 V \~ 50 Hz

Protection type: IP 20

Max. output: 120 W/P1 (S2/5 min)

Revolutions: 400-1,600 per

(controllable)

Saw blade length: 128/133 mm

Cutting output 90°: 50 mm

Cutting output 45°: 20 mm

Feeder cable: 2 m

Laser wavelength 650 nm

Laser power: <1 mW

Dimensions LxWxH: 610x270x390 mm

Weight: 17 kg

Switch-on time:

The S2 switch-on time of 5 minutes (short operation) means that the engine may only be subject to continuous load with rated voltage of 120W for a time specified on the type label (5 minutes). Otherwise, the engine could get inadmissibly heated. During a break, the engine gets cooled down to the initial temperature.

Noise emission values:

The fretsaw noise is measured according to DIN EN ISO 3722; 11/95, DIN EN 11 201. Noise in place of work may exceed 93 dB (A). In such a case, the user must take anti-noise measures (ear protectors to be used).

	In such a case, the user must take anti-noise measures (ear protectors to be used).	Idle running
Sound pressure level L_pA :	82.6 dB	72.2 dB
Sound power level L_WA	92.4 dB	81.8 dB

"The given values are emission values and therefore do not have to represent safe values in the place of work. Although there is correlation between emission and pollutant levels, this is not a reliable basis for determining whether or not additional safety measures are necessary. Factors able to influence the current level of pollutants in the place of work include the time of effects, type of place of work, other noise sources, etc. e.g. number of machines and other related processes. Reliable values in the place of work may also differ in various countries. However, this information should authorise the user to evaluate better the threat and risk."

General instructions

• After unpacking, check all parts for any damage during transport.
- Check whether the shipment is complete.
- Learn with the appliance functions using the Operating Instructions before using it.
- Original accessory equipment and original wearable and spare parts to be used only.
- All covers and safety equipment must be properly installed before putting the appliance into operation. See the following points:

Appliance to be used with RCD (safety switch

st stray current) 30mA only!

Safety instructions

CAUTION! Laser radiation

Do not look at class 2 laser beam

Laser specifications

According to EN 60825-1:1994+A2:2001+A1:2002

Laser class 2 RLM-08

λ 650 nm P: ≤ 1 mW

• Follow all safety and warning instructions on the appliance and keep them readable.
• The safety equipment on the appliance must not be disassembled or put out of operation.
• Check the feeder cables. Do not use any defective feeder cables. See Plugging.
  • The saw blade must run freely.
• The processed material must be checked for any undesirable items such as nails, screws, etc.
• Be caution when working: Risk of injury for fingers and hands by the saw blade.
• Any changeover, adjustment, measurement and cleaning to be performed when the engine is off only. Unplug the appliance.
• Any installation, repair and servicing of the wiring may only be performed by professionals.
• All protective and safety equipment must be immediately refitted after finishing any repair and servicing work.
• Switch the engine off after leaving the place of your work. Unplug the appliance.
• Any changes to the appliance exclude the liability of the producer for any consequential damage.
• Do not look directly at the laser beam when your eyes are not protected.
• Never aim with the laser beam at reflection areas, persons and animals. Even a low-power laser beam is able to damage eyes.
• Caution! - if procedures other than those specified are taken, it may lead to dangerous exposure to radiation.
• Never open the laser module.

Use as designated

The fretsaw has been designed to cut angular pieces of wood or similar workpieces.

Logs may only be cut with appropriate holding means.

The appliance may only be used as designated. Any other use will be considered a use in conflict with the designation. The user/operator, not the manufacturer, will be held liable for any consequential damage or injuries of all types.

Please be sure to know that the appliance has not been designed for industrial and craft purposes. We are not liable if the appliance is used for industrial and craft purposes or similar activities.

Saw blades suitable for this appliance to be used only. Using cutting wheels of all types prohibited. The use as designated principles also include following safety instructions, assembly instructions and operating instruction included in the Operating Instructions. Persons operating or servicing this appliance must be notified and instructed in respect of possible risks. Moreover, applicable accident prevention regulations must strictly be followed.

Other general regulations regarding occupational health and safety must also be followed.

Any changes to the appliance exclude the liability of the manufacturer for any consequential damage.

Some residual risk factors cannot be fully ruled out even when the appliance is used as designated. Due to the appliance design and assembly, there may be the following risks:

• Harmful wood dust emissions when used in enclosed places

- Risk of injury as a result of touching in an exposed cutting area of the tool

• Risk of injury when changing a tool (risk of cutting)

- Finger/hand jamming

- Risk of backlash

• Workpiece fall due to insufficient supporting area

- Contact with the cutting tool

- Parts of branches and parts of workpiece thrown away

Assembly

The fretsaw must be unplugged before any servicing pool change.

Fitting the saw to bench

To fit the saw, a massive-wood bench is better than a weak compressed board with vibrations and noise significantly affecting your work.

Fixing materials necessary for assembly are not included in the supply.

Example of materials:

4 M8 hex screws

4 ∅ 8 mm flat gaskets

4 ∅ 8 mm washers

8 M8 hex nuts

For assembly purposes, use the existing assembly holes (pic. A/6+12). Do not tighten the screws too much. Keep some clearance so that the rubber legs (pic. A/7+11) could absorb well.

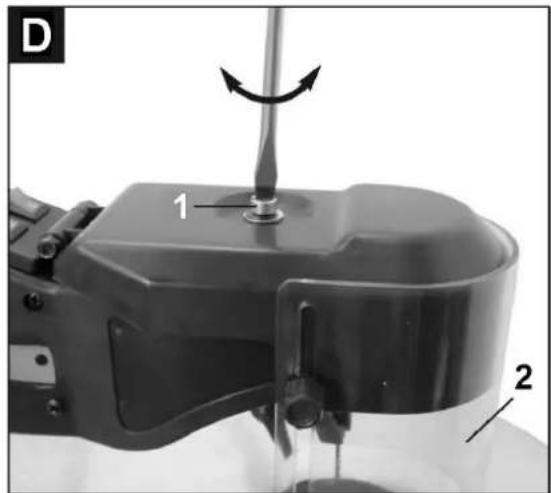

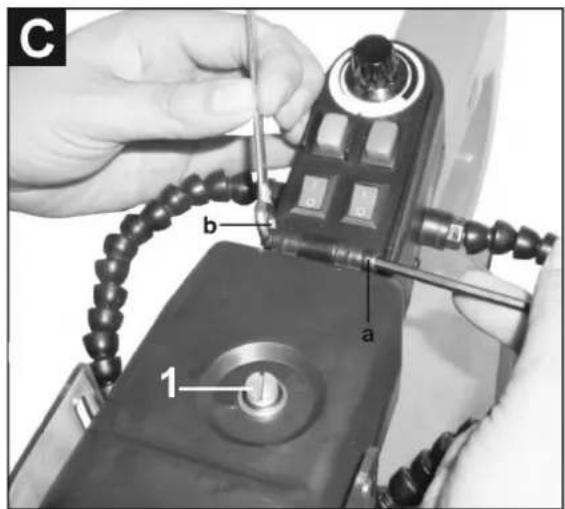

Saw blade cover fitting - pic. C-D

• Now fold the saw blade cover (pic. A/2) using the socket head screw (pic. C/a) and the nut (pic. C/b) as shown in picture C.
• Now fold the saw blade cover (pic. A/2) using the locking screw (pic. D/1) as shown in picture D.

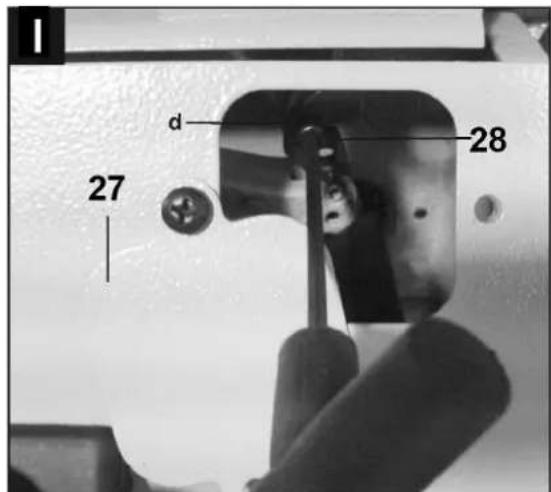

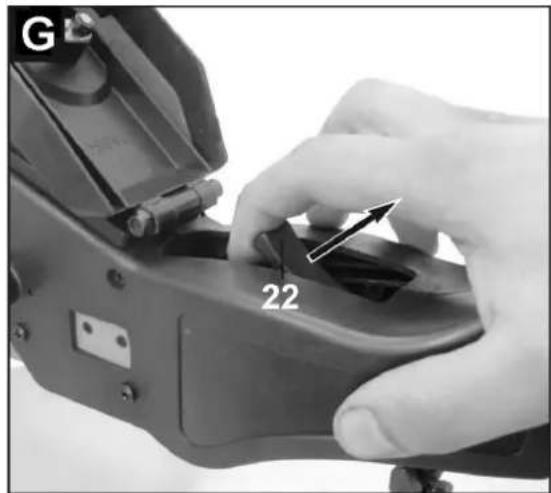

Saw blade change (original saw blades) - pic. G-I

- Release the saw blade cover by loosening the locking screw (pic. D/1). Now fold the saw blade cover (pic. A/2) backwards. Pull the saw blade tension lever (pic. G/22) up so that the saw blade (pic. H/26) is loosened.

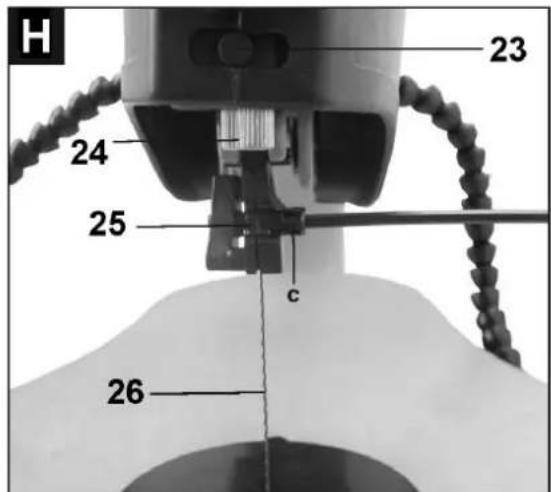

- Loosen the socket head screw (pic. H/c) on the upper holder of the saw blade (pic. H/25). Open the inspection cover (pic. I/27). Loosen the socket head screw (pic. I/d) on the bottom holder of the saw blade (pic. I/28). Take the saw blade (pic. H/26) out using the bench insert (pic. A/4).

• Refit a new saw blade in the reverse order.

- Due to universal saw blade holders (pic. H/25 and I/28), both fretsaw blades and laminated blades can be used.

Caution: The saw blade must always be fitted in a the teeth are pointed at you and down when ding in front of the saw.

Spare Güde saw blades can be obtained under Art. No.

55080, #55081, #55082, #55083 and # 55084

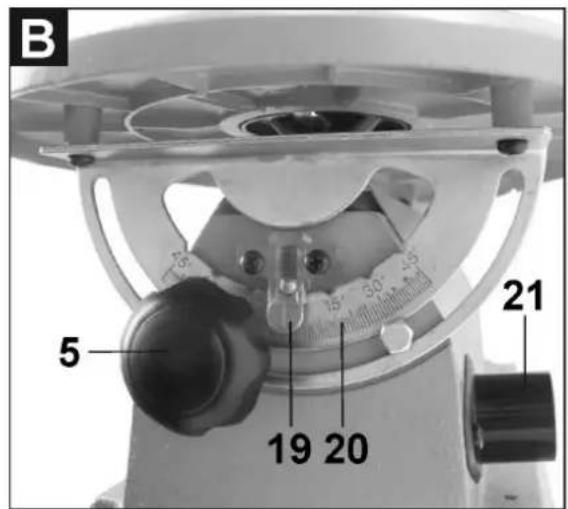

Tilting the saw bench (pic. B)

• Loosen the securing screw (pic. A-B/5).
- Tilt the saw bench (pic. A/3) to the left or to the right so that the indicator (pic. B/19) shows the required angle on the scale (pic. B/20).
- Now fix the saw bench (pic. A/3) using the securing screw (pic. A-B/5).

Caution: If precise work is required, a test cut needs

to be performed and a new angle possibly adjusted.

Before operation

• All covers and safety equipment must be properly installed before putting the appliance into operation.
  • The saw blade must run freely.
• It is necessary to pay attention to undesirable items such as nails, screws, clamps in already processed wood. (Remove them if necessary).
• Before pressing On/Off, make sure the saw blade has been fitted properly and the saw blade tension is adjusted as it should and the moving parts are running smoothly.
• Before connecting the appliance, make sure the details on the type label correspond to the system details.

Appliance to be used with RCD (safety switch against stray current) 30mA only!

Installation

Please make sure the appliance is installed evenly and steadily on a solid surface with adequate lighting. Make sure you have enough room to work safely and undisturbed.

⚠️ Residual risks

The appliance has been designed according to the state of the art and recognised safety-technical regulations. However, there still may be some residual risks when working with the appliance.

• Risk of injury for fingers and hands by the saw blade.
• Risk of injury by throw-away workpieces in case of unprofessional guidance.
• Risk of electric shock when unspecified feeder cables are used.

- Never look directly to the laser.

• Further, there may be some hidden residual risks despite all the preventive measures taken.

- Residual risks can be minimised if Safety instructions and Use as designated and the entire Operating Instructions are followed.

Plugging

Check regularly the feeder cables for any damage. Before that, the appliance must be unplugged!

The feeder cable must be in accordance with applicable provisions of VDE and DIN. Feeder cable with H 07-RN marking to be used only. Sticking the type marking on the feeder cable is mandatory.

Defective feeder cables

Insulation gets often damaged on the electric feeder cables.

Possible causes:

Galls if feeder cables are guided in gaps under windows or doors.

Breaks as a result of unprofessional fixing or guiding of feeder cables.

Cutting-off as a result of the feeder cable being run over. Insulation damage by pulling the cable out of wall socket. Cracks as a result of insulation aging.

Feeder cables damaged in this manner must not be used – they are a risk to life due to the insulation damage!

Operation

• The saw does not cut wood automatically. The user enables cutting by guiding wood to the moving saw blade.
• Teeth cut the wood only when down.
• Wood must be guided slowly to the saw blade as the saw blade teeth are very small.
• Every person needs some time of training to handle the saw. During that time, several blades will certainly get broken.
• When cutting thicker pieces of wood, it is especially necessary to make sure the saw blade is not bent or turned. This will increase the life of the saw blade.
• Best results are achieved with wood thinner than 20 mm.

The right saw blade

Small and narrow saw blades must be used for thin wood not thicker more than 6 mm.

Wider saw blades must be used to cut wood thicker than 6 mm.

With wider saw blades it is not possible to cut small and narrow curves as with thinner saw blades.

The saw blade gets worn more when processing plywood, hard wood and thick pieces of wood (from 19 mm).

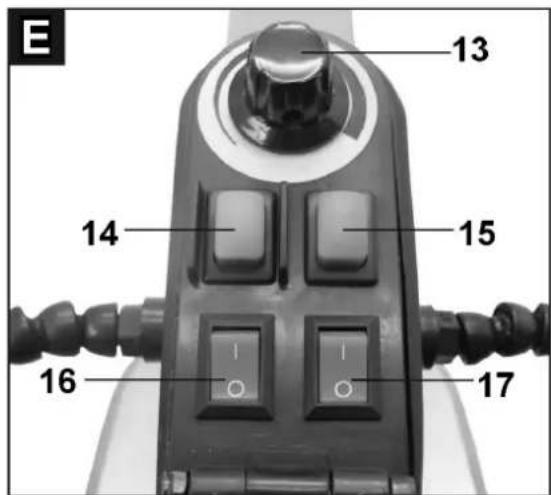

Switching on/off - pic. E

To switch the appliance on, press the green button (pic. E/14).

To switch the appliance off, you must press the red button (pic. E/15).

Caution: The appliance has been fitted with a safety switch against repeated switch-on after power failure.

Speed controller - pic. E

With the stroke number controller (pic. E/13) the number of strokes (saw blade running speed) can be set depending on the cut material.

E.g. the lowest setting of 400 per min. ^-1 and highest setting of 1,600 per min. ^-1 for soft materials and materials with long fibres.

Performance of inner cuts

1. The fretsaw characteristic includes performance of inner cuts in the board with no damage to the board outer side or circuit.

Caution: To prevent injuries due to accidental start of the appliance, the appliance must always be unplugged before removing or changing the saw blade.

1. To perform inner cuts in the board: Remove the saw blade as specified under Changing the saw blade.
2. Drill a hole of app. 6.3 mm in the given board.
3. Put the board with the hole on the saw bench over the inlet.
4. Fit the saw blade through the hole in the board and adjust the blade tension.
5. After performing the inner cuts, remove the saw blade from the holders (as specified under Changing the saw blade) and take the board off the bench.

LED lamp operation

- Switch the appliance on (pic. E/14) as specified under Switching on/off.

- The LED lamp (pic. A/9) can now be turned on/off using the switch (pic. E/17).

Laser operation

• Switch the appliance on (pic. E/14) as specified under Switching on/off.
• Laser (pic. H/24) can now be turned on/off using the switch (pic. E/16).
• Release the saw blade cover (pic. A/2). Fold the saw blade cover backwards.
• Use the laser adjusting screw (pic. H/23) to adjust the laser line projected on the workpiece. For that purpose, loosen the laser adjusting screw (pic. H/23) and adjust the laser (pic. H/24) accordingly. Retighten the laser adjusting screw (pic. H/23).

Caution: Laser line to be adjusted using the laser adjusting screw (pic. H/23) only, not using the laser! Risk of injury by the moving saw blade,

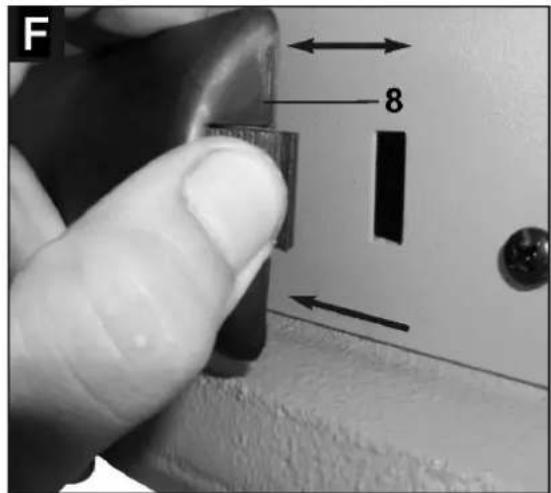

Blowing equipment/exhaust – pic. F

• Adjust the blowing equipment hose in a way it constantly blows the cutting area.
  • In addition, a vacuum can be connected to the dust extractor adapter.

Fitting the saw blades – pic. F

Unnecessary saw blades can be stored in the saw blade storing area (pic. F/8). Open and close the saw blade storing area as shown in picture F.

Marking

Product safety:

Product corresponds to applicable EU standards

Prohibitions:

No pulling the plug!	Protect against rain and moisture!
No touching inside

Warning:

Warning/Caution			Warning against dangerous voltage
Warning against hand injury			Warning against laser beam

Commands:

Read carefully the Operating Instructions. Learn carefully how the appliance is used before using it.			Wear headphones and protective glasses
Pull the plug out before opening.

Environment protection:

Dispose waste professionally so as not harm the environment.			Packing cardboard material may be delivered to collecting centres for recycling.
Any defective and/or disposed electric or electronic devices must be delivered to respective collection centres.

Package:

Protect against moisture		This side up
Interseroh-Recycling

Technical specifications:

Connection Weight
Engine output			Cutting power 90°:
Revolutions:			Cutting power 45°:
			LundB (A)
Saw blade dimensions			Noise:

Other:

Laser function

EU DECLARATION OF CONFORMITY

We,

Güde GmbH & Co. KG – Birkichstrasse 6 D-74549 Wolpertshausen - Germany

hereby declare that the design of the appliances below corresponds to the applicable requirements of the basic EU safety and hygiene directives. In case of alternation of the appliance, not agreed upon by us, this Declaration will lose its validity.

Appliance description: GDS 16 PRO Fretsaw

Art. No. # 55097

Applicable EU Directives:

2006/42/EG

2004/108/EG

Applicable harmonised standards:

EN 61029-1:2009

ZEK 01.2-08/12.08

EN 55014-1/A3:2006

EN 61000-3-2:2006

EN 61000-3-3:1995+A1+A2

EN 55014-2:1997+A1

Date/authorised signature: 07.07.2011

Wolpertshausen

Title of signatory: Managing Director

Mr

Technical documentation: J. Bürkle FBL; QS

Warranty

The warranty exclusively applies to material or manufacturing defects. The original proof of purchase including the date of purchase must be submitted when lodging a claim in the warranty period. The warranty does not cover any unauthorised use such as appliance overload, violent use, damage by a foreign person or an undesirable item. The failure to follow the Operating Instructions and assembly instructions and common wear and tear are also excluded from the warranty.

Behaviour in case of emergency

Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible.

Protect the injured person from other injuries and calm him/her down.

In case of accident, first aid kit must always be available in the place of your work in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away.

Please provide the following details if help is needed:

1. Place of accident

2. Accident nature

3. Number of injured persons

4. Injury type

Disposal

The disposal instructions are based on icons placed on the appliance or its package. The description of the meanings can be found in the "Marking" section.

Transport package disposal

The package protects the appliance against damage during transport. Packing materials are usually chosen depending on their environmental friendliness and disposal method and can therefore be recycled.

Returning the package to material circulation saves raw materials and reduces waste disposal costs.

Parts of packages (e.g. foils, styropor®) can be dangerous to children. Risk of suffocation!

Keep parts of packages away from children and dispose them as soon as possible.

Operator requirements

The operator must carefully read the Operating Instructions before using the appliance.

Qualification

No special qualification is necessary for using the appliance apart from detailed instruction by an expert.

Minimum age

The appliance can only be operated by persons over 16 years of age. An exception includes youngsters operating the appliance within their professional education to achieve necessary skills under trainer's supervision.

Training

Using the appliance only requires appropriate instructions by a professional or reading the Operating Instructions.

No special training necessary.

Maintenance

Do you have any technical questions? A claim? Do you need spare parts or the Operating Instructions?

You will be helped quickly and without needless bureaucracy at our webpage www.guede.com in the Services part. Please help us be able to assist you. To identify your appliance when claimed, we need to know its serial No., order No, and year of production. All these details can be found on the type label. Enter the details below for future reference.

Serial No.

Order No.

Year of production:

Tel. [phone] / 700-360

Fax: [phone]

Email: [e-mail]

Treatment, cleaning and servicing

The appliance must always be unplugged before any servicing/cleaning and other works on the appliance. Let the appliance cool down before any work and transport.

If feeder cables are worn out or damaged, they must be immediately replaced.

Bearings in arms need to be lubricated every 50 hours of operation.

For that purpose, put the fretsaw on side and apply a sufficient amount of SAE 20 oil on the shaft ends and brass bearings. Ideally, let oil absorb over night. Repeat the process on the other side of the saw.

Cleaning

• Keep the protective equipment, ventilation slots and engine covers with no dust and dirt if possible. Wipe the appliance with a dry cloth or blow it with compressed air at low pressure.
• The appliance is recommended to be cleaned immediately after being used.
• Clean the appliance regularly with a wet cloth and a bit of soft soap. Do not use any cleaners and solvents as they could damage the plastic parts of the appliance. Make sure no water gets in the inside of the appliance.

Carbon brushes

Have the carbon brushes checked by an electrician when sparks are produced excessively.

Caution! Carbon brushes may only be replaced by an electrician.

Servicing

There are no other parts inside the appliance requiring servicing.

Transport

The appliance must cool down before being transported.

Troubleshooting

The table shows possible failures, their causes and remedy options. If the problem still cannot be removed, contact a professional to help you.

Switch the appliance off and unplug it before any cing and cleaning.

Risk of electric shock.

Troubleshooting table

Symptoms Possible cause Remedy
Saw blade is broken	Saw blade is too thin for the processed materialToo much pressure on the saw bladeSaw blade is toostretchedCurve cut is too narrow	Fit a thicker saw bladeMove the workpiece continuously with even, however, not too much pressure on the saw blade. Let the saw work by itself.Reduce the saw blade tensionBigger radius or narrower saw blade
Saw blade is not cutting straight, it is turned	Saw blade is too looseSaw blade has been subject to too intensive side loadingSaw blade getting warm/workpiece is too thick.	Increase the saw blade tensionReplace the saw bladeUse a straight saw or thinner material
Engine slowing down and remaining standing	Saw has been overloaded by the workpieceSaw blade is worn outChippings have blocked the exhaust flue	Opt for higher revolutions; do not apply too much pressure on the saw bladeReplace the saw bladeRemove any chippings from the cover. Connect the exhaust equipment or increase the exhaust equipment output
Dust accumulating in the appliance	Produced as a result of standard work	Clean the appliance at regular intervals
Laser or LED lamp not working	Laser or LED lamp are defective	Replace the laser or LED lamp

Introduction

DÉCLARATION DE CONFORMITÉ CE

Nous,

Güde GmbH & Co. KG

Birkichstraße 6

D-74549 Wolpertshausen

Allemagne

2006/42/ES 2004/108/ES

Maks. snaga: 120 W/P1 (S2/5 min)

Obrtaji: 400-1600 ^-1 (podesivo) min

Dužina lista pile: 128/133 mm

Snaga sječenja 90°: 50 mm

Maks. snaga: 120 W/P1 (S2/5 min)

Okretaji: 400-1600 ^-1 (podesivo) min

Dužina lista pile: 128/133 mm

Snaga sječenja 90°: 50 mm
