TA6119 isw - Toaster Exquisit - Free user manual and instructions

Product type	Toaster
Brand	Exquisit
Model	TA6119 isw
Power supply	230 V ~ 50 Hz
Maximum power	Approx. 800 W
Browning control	7 levels (1-7)
Defrost function	Yes, for frozen bread
Reheat function	Yes, for already toasted bread
Emergency stop	Yes, stop button
Roll adapter	Yes, above the slots
Removable crumb tray	Yes, for easy cleaning
Automatic shut-off	Yes
Power cord length	Approx. 1 m
Manufacturer warranty	2 years
Intended use	Household only
Safety	Protection against electric shock, automatic shut-off
Maintenance	Soft cloth, washable crumb tray
Country of manufacture	Not specified

Frequently Asked Questions - TA6119 isw Exquisit

How to clean the Exquisit TA6119 isw toaster?

Unplug the appliance and let it cool down. Remove the crumb tray, empty it and clean it. Wipe the housing with a slightly damp soft cloth. Never immerse the appliance in water and do not use steam cleaners.

What to do if the lever of my toaster does not stay down?

Make sure the appliance is plugged in and the outlet works. If the lever still does not latch, a crumb may be blocking the mechanism. Unplug, let it cool down and carefully clean the crumb tray and slots.

How to use the defrost function?

Place the frozen bread in the slots, lower the toaster lever, then press the Defrost button (snowflake symbol) during operation. The toaster manages the toasting time suitable for frozen bread.

Can you toast rolls with this appliance?

Yes, the toaster has a removable adapter on top. Place one roll on the adapter and set the power level to 3 maximum. Do not spread grease or butter on the bread to avoid any fire hazard.

Why does my bread burn even though I set a low level?

Check the selected power level. Start with level 2 or 3. If the bread burns despite a low setting, the appliance may be dirty: clean the crumb tray and slots. If the problem persists, contact the after-sales service.

How to stop the toaster during operation?

Press the Stop button (stop symbol) during operation to immediately interrupt toasting. The lever will raise automatically.

Can I use an extension cord with this toaster?

Yes, if necessary, use an extension cord with a minimum cross-section of 1.5 mm². Make sure the socket is protected by a 16 A circuit breaker.

What to do if a slice of bread gets stuck in the slot?

Immediately unplug the appliance and let it cool down. Turn the toaster over to let the bread fall out. Use a non-conductive object (e.g., a wooden rod) to dislodge the slice. Never use metal objects.

What is the warranty of this Exquisit toaster?

The manufacturer warranty is 2 years from the date of purchase. For the first 6 months, defects are repaired free of charge. After that, the buyer must prove that the defect existed at the time of delivery. Keep your proof of purchase.

Can I use this toaster outdoors or in a humid environment?

No, the appliance is designed for indoor household use only. Do not install it in a hot, humid environment or near flammable materials. Avoid any contact with water.

USER MANUAL TA6119 isw Exquisit

Labeled diagram of a toaster with numbered parts for identification

Technische Daten ; Technical information ; Caractéristiques techniques Technische gegevens; Especificaciones Técnicas Especificações técnicas

Modell	TA6119isw
Elektrischer Anschluss Volt / Hz	220-240 V~
Electrical connection Voltage - frequency	50-60 Hz
Raccordement électrique (tension - fréquence)
Elektrische aansluiting (Spanning - frequentie)
Ligação eléctrica Volt / Hz
Leistung; Power	800 W
Puissance; Vermogen
EAN	4016572025316

CE-Kennzeichnung

At the time of its introduction on the market the product fulfills the requirements, which were specified in the directive for the standardization of the laws of the Member States concerning the electromagnetic compatibility (2014/30/EU) of electrical equipment within certain voltage limits (2014/35/EU). This product is identified by the CE marking and delivered with a declaration of conformity for inspection by the market monitoring authority.

Marquage CE

7.1 Intended use ....14
7.2 Safety for specific groups of people 14
7.3 Improper use....14
7.4 Residual risks 15

8 Putting into operation ....15

8.1 Using for the first time....15
8.2 Operating the appliance ....16

9 Cleaning and maintenance....17

10 Troubleshooting ....18
11 Disposal of old equipment ....18
12 Warranty terms....19
13 Sécurité ....21

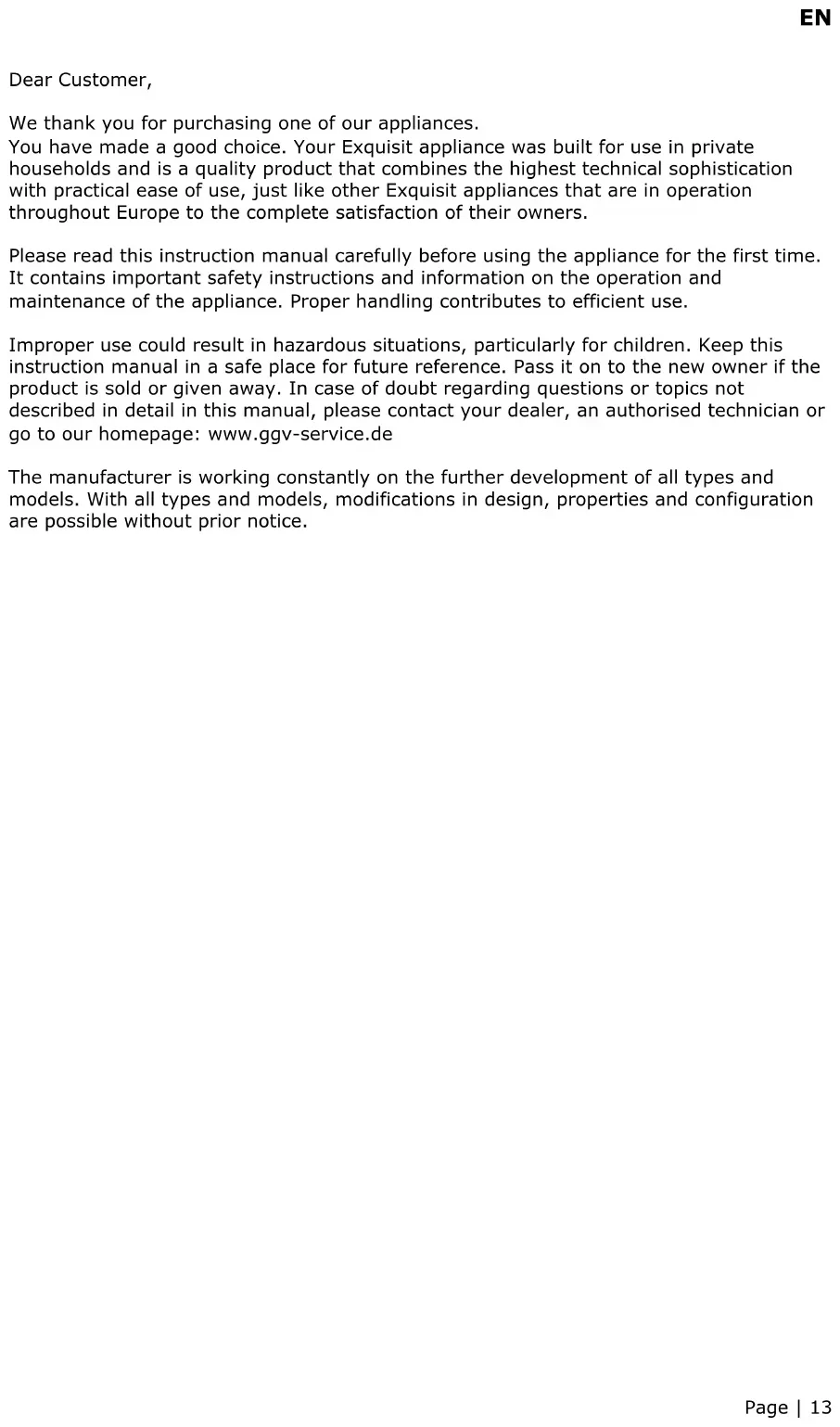

We thank you for purchasing one of our appliances.

You have made a good choice. Your Exquisit appliance was built for use in private households and is a quality product that combines the highest technical sophistication with practical ease of use, just like other Exquisit appliances that are in operation throughout Europe to the complete satisfaction of their owners.

Please read this instruction manual carefully before using the appliance for the first time. It contains important safety instructions and information on the operation and maintenance of the appliance. Proper handling contributes to efficient use.

Improper use could result in hazardous situations, particularly for children. Keep this instruction manual in a safe place for future reference. Pass it on to the new owner if the product is sold or given away. In case of doubt regarding questions or topics not described in detail in this manual, please contact your dealer, an authorised technician or go to our homepage: www.ggv-service.de

The manufacturer is working constantly on the further development of all types and models. With all types and models, modifications in design, properties and configuration are possible without prior notice.

7.1 Intended use

The appliance is only suitable for toasting slices of bread and rolls.

The appliance is intended exclusively for use in private households and is not suitable for commercial use.

• Do not use the appliance for purposes other than toasting bread slices and rolls. The manufacturer accepts no liability for any damage. For safety reasons, modifications or alterations to the appliance are not permitted.
• Any use outside these areas of application is not in accordance with the intended use and is therefore considered improper use.
• The use of multiple plugs or power strips is prohibited due to the associated fire hazard.

7.2 Safety for specific groups of people

The appliance may be operated by children over 8 years of age and persons whose physical, sensory or mental aptitude are impaired or who lack experience and/or knowledge. However, they must be supervised or instructed in the safe use of the appliance and understand the possible risks.

DANGER

DANGER OF SUFFOCATION DUE TO PACKAGING MATERIALS

Supervise children to ensure that they do not play with the appliance.

DANGER

DANGER OF STRANGULATION DUE TO MAINS POWER CABLE

Keep children under 8 years of age away from the mains power cable of the appliance.

7.3 Improper use

The following activities are considered improper use and are therefore prohibited:

• The appliance is not suitable for commercial use.
• Do not place the appliance in a hot, wet or very humid environment or near combustible material.
• Do not connect the appliance to the mains power supply using multiple socket strips.
• Do not route the mains power cable under voltage.
• Do not kink the mains power cable.
• Do not pull the mains plug out of the plug socket at the mains power cable.
  Do not place the appliance on the edge of a work surface.
• Never place the appliance on or near hot surfaces (e.g. cooker hotplates, etc.).
• Do not use the appliance if the plastic components of the appliance are cracked, split or deformed.

7.4 Residual risks

DANGER

ELECTRIC SHOCK!

• Never touch the mains plug on the mains power cable with wet or damp hands when plugging it in or unplugging it.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.

8 Putting into operation

• Remove the mains plug from the plug socket before starting cleaning or service work.
• In an emergency, pull the mains plug out of the plug socket immediately.
• Install and connect the appliance only in accordance with the description in the instruction manual.
• If the mains power cable or mains plug is damaged, do not use the appliance anymore.

Unpacking the appliance

Before opening, check the packaging for damage. The packaging materials must be undamaged.

Inspect the appliance for transport damage. On no account should a damaged appliance be used. In case of damage, contact the supplier/dealer.

√ Remove the appliance from the packaging.
√ Check delivery for completeness.
√ In case of incomplete or damaged delivery, contact customer service - see service address.

ATTENTION

APPLIANCE DAMAGE!

• Do not cut packaging material with a sharp object, e.g. carpet knife.
• Remove the transport protection.
• The appliance and set-up of the accessories are secured for transport. Remove all adhesive tapes and packaging parts from the appliance.
• There may be stickers with warnings on the appliance. These must be observed and not removed from the appliance.

8.1 Using for the first time

Cleaning the appliance

1. Remove the packaging material and all protective films.
2. Before using the appliance for the first time, clean all parts of the appliance as described in the "Cleaning" section.

Setting up the appliance

Mount the appliance according to the figure "Getting to know the appliance".

√ Place the appliance in the middle of a table out of reach of children.
√ Place the appliance on a solid table; do not use a soft base.

Electrical connection

To ensure safe and fault-free operation of the appliance, the following instructions must be observed when making the electrical connection:

√ Before connecting the appliance, compare the connection data (voltage and frequency) on the type plate with those of your electrical network. This data must match to prevent damage to the appliance. If in doubt, contact a qualified electrician.

√ The socket must be protected by a 16A circuit breaker.
√ If using an extension cable, it must have a cross-section of 1.5mm^2 .

8.2 Operating the appliance

WARNING

There is a risk of burns when removing smaller slices of bread!

Press Special functions to use the desired special functions. After pressing down the lever, please press the respective button.

Functions

Reheating or defrosting: the associated control light shows the function.

Defrosting (6)

For defrosting and subsequent toasting of frozen bread.

1. Press the button (6) during operation.

Reheating (5)

For reheating slices of bread that have already been toasted.

1. Press the button (5) during operation.

End (4)

For premature termination of the toasting process.

1. Press the button (4) during operation.

Toasting slices of bread/rolls

1. Set toasting as desired, from the lightest power level 1 to the darkest power level 7. If in doubt, start with a smaller setting.
2. Insert bread slice(s) into the bread slot and pull down the carriage with the bread ejector controller until it locks into place.
3. The appliance starts to toast. When the set toasting level is reached, the appliance switches off automatically.

IMPORTANT

• Do not overload the roll attachment! Place a maximum of one roll on the toasting attachment!
• Set the selector switch for the toasting level only to maximum level
• • Take a break of one minute between toasting.
• Never spread fat or butter on the roll. Fat can drip down and ignite!

9 Cleaning and maintenance

For hygienic reasons, clean the appliance including accessories regularly.

Before carrying out any maintenance and servicing work, disconnect the appliance from the mains power supply.

ATTENTION

APPLIANCE DAMAGE!

Improper use of the appliance can result in damage.

• Switch off the appliance and remove the plug from the plug socket before cleaning.
• Use a soft cloth for cleaning.
• The appliance is not dishwasher safe.
• Never immerse the appliance in water.
• Never clean the appliance with a steam cleaner. Moisture could get into electrical components.
• Do not use abrasive or aggressive cleaning agents. Do not use abrasive sponges. Essential oils and organic solvents, e.g. the juice of lemon or orange peel, butyric acid or cleaning agents containing acetic acid can attack plastic parts. Do not allow such substances to come into contact with parts of the appliance.

ATTENTION

SHORT CIRCUIT!

Water in the housing can cause a short circuit.

Never immerse the appliance in water.

Cleaning the appliance

1. Pull out the mains plug.
2. Allow the appliance to cool down before cleaning.
3. Pull out the crumb tray by the handle, then remove the bread scraps and replace the drawer.
4. Clean the housing with a soft cloth.

Storage

Clean the appliance again if necessary. Store the appliance and all accessories in a dry place away from direct sunlight and from access by children or animals.

10 Troubleshooting

Problem	Cause	Remedy
Appliance is not working.	The appliance has no power supply.	Check the plug socket with another appliance.
		Insert the mains plug correctly.
		Check the mains fuse.
	The appliance is defective.	Contact our service or a specialist.
The appliance is defective.		Contact our service or a specialist.
Bread is too dark.	Toasting level selected is too high.	Select a lower toasting level.
The toasting carriage no longer moves up.	A slice of bread is stuck in the shaft.	Pull the plug out of the plug socket! Allow the appliance to cool down! If necessary, turn the toaster over so that the bread slice falls out. Free the bread slice with an insulated object, e.g. a wooden stick.

11 Disposal of old equipment

This product is marked in accordance with the European Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU. This directive lays down the regulations for proper disposal of the product. Environmentally friendly disposal prevents possible negative impacts on health that could be caused by improper disposal. The symbol on the product or packaging indicates that this

product must not be disposed of with the normal domestic waste. The user must return the product to a collection point for the recycling of electrical and electronic waste. The prevailing local regulations must be observed for disposal. For further information, please contact your local authority.

12 Warranty terms

The following terms describing the preconditions for and scope of our warranty, do not infringe the warranty rights of the ultimate buyer.

Our warranty for this appliance is granted under the following terms:

As a buyer of an Exquisit appliance you have a manufacturer's warranty

(2 years from date of purchase).

During this warranty period, you can make your warranty claims directly on the manufacturer's Service platform at www.ggv-service.de.

If an additional warranty is concluded between you and your dealer, all claims against the manufacturer will become void after the end of the 24-month manufacturer's warranty. In this case, please contact your dealer directly.

Warranty period

The warranty period is 24 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge, on condition that the appliance is accessible for repairs without any great effort. During the following 18 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

In the case of commercial use (e.g. in hotels, canteens) or joint use by several households, the warranty period is 12 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge, on condition that the appliance is accessible for repairs without any great effort. During the following 6 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

The claim under warranty does not prolong the warranty period for either the appliance or for newly installed parts.

Scope of the defect remedy

Within the periods indicated, we will remedy all defects in the appliance that are demonstrably attributable to poor workmanship or material flaws. Replaced parts become our property.

The warranty does not cover:

Normal wear and tear, intentional or negligent damage, damage caused by non-compliance with the operating instructions, improper setup or installation or by connection to incorrect mains voltage, damage due to chemical or electrothermal effects or due to other abnormal environmental conditions, glass, paint or enamel damage and possible colour differences as well as defective bulbs. Defects in the appliance resulting from transport damage are also not covered. We also do not provide any services if - without our special written approval - work has been carried out on the appliance by unauthorised persons or parts of third-party origin have been used. This limitation shall not apply to faultless work carried out by a qualified person using our original parts to adapt the appliance to the technical safety regulations of another EU member state.

Scope

Our warranty applies to appliances purchased and in operation in the Federal Republic of Germany or Austria.

In the case of complaints about defective appliances, the sender's and recipient's addresses must be in the Federal Republic of Germany or Austria.

For appliances purchased and operated in other European countries, the warranty conditions of the seller apply.

For repairs outside the warranty period:

- If an appliance is repaired, the repair invoices are payable immediately without deduction.
