TA 6502 we - Toaster Exquisit - Free user manual and instructions
Find the device manual for free TA 6502 we Exquisit in PDF.
| Product type | Toaster |
| Brand | Exquisit |
| Model | TA 6502 we |
| Number of slots | 2 |
| Browning control | 7 levels (1 to 7) |
| Functions | Cancel (CANCEL), Reheat (REHEAT), Defrost (DEFROST) |
| Crumb tray | Yes, removable by sliding |
| Auto shut-off | Yes, the toaster turns off automatically after the cycle |
| Lever | Only stays in the down position if the appliance is plugged in |
| Power cord length | Approximately 0.8 m (estimate) |
| Power type | Mains, earthed plug |
| Voltage | 230 V (estimate for Europe) |
| Frequency | 50 Hz (estimate) |
| Power | Approximately 900 W (estimate) |
| Dimensions (W x D x H) | Approximately 280 x 180 x 200 mm (estimate) |
| Weight | Approximately 1.2 kg (estimate) |
| Housing material | Plastic (estimate) |
| Cord storage | Four feet under the appliance for winding the cord |
| Child safety | The appliance should not be used by children under 8 years of age without supervision |
| Care | Clean the exterior with a slightly damp cloth; regularly empty the crumb tray |
| Warranty | Statutory warranty of 2 years (estimate for the EU) |
Frequently Asked Questions - TA 6502 we Exquisit
User questions about TA 6502 we Exquisit
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Toaster in PDF format for free! Find your manual TA 6502 we - Exquisit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TA 6502 we by Exquisit.
USER MANUAL TA 6502 we Exquisit
Bedienungsanleitung
Toaster
Instruction manual
Grille-Pain
Mode d'emploi
Broodrooster
Gebruiksaanwijzing
CE
TA6502we


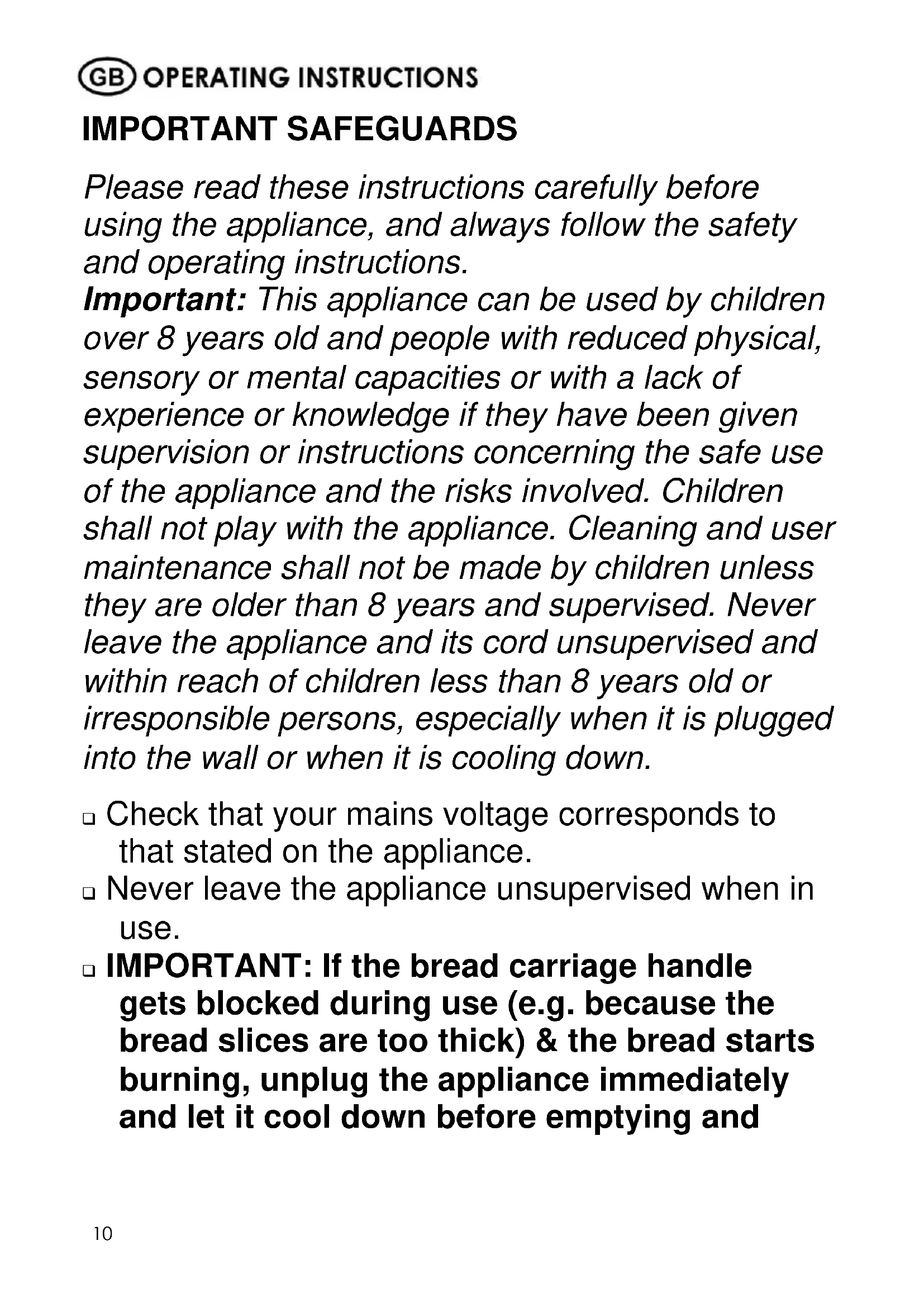

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.
Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, especially when it is plugged into the wall or when it is cooling down.
☐ Check that your mains voltage corresponds to that stated on the appliance.
□ Never leave the appliance unsupervised when in use.
- IMPORTANT: If the bread carriage handle gets blocked during use (e.g. because the bread slices are too thick) & the bread starts burning, unplug the appliance immediately and let it cool down before emptying and
cleaning it. Should the problem persist, contact a competent qualified electrician (\*).
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician(*). Should the cord be damaged, it must be replaced by a competent qualified electrician(*) in order to avoid all danger.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
□ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Otherwise the appliance may be damaged.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply to avoid electric shocks.
- Never use the appliance outside and always place it in a dry environment.
□ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
□ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
- Stand the appliance on a table or flat surface.
☐ Make sure the appliance has cooled down before cleaning and storing it.
☐ Make sure the cord never comes into contact with the hot parts of the appliance. Never touch the hot parts of the appliance.
☐ Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as the bread might burn and fire might occur. Keep a distance of at least 1 metre between the appliance and the curtains.
☐ Do not use the appliance for defrosting food (except bread) and only insert unbuttered slices of bread of which the thickness does not risk to prevent the bread from coming up. Be extremely strict about this as toasters are the cause of many fires when these elementary safety precautions are not observed.
☐ Empty the appliance frequently of breadcrumbs. Make sure the appliance is always unplugged before emptying it. Check the "Maintenance and Cleaning" section. - When cleaning the appliance, do not use metallic scourers in order to avoid any future risk of electric short-circuit.
- Your appliance must never be switched on through an external timer or any kind of separate remote control system.
☐ Please note: Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means:
CAUTION, this surface may get very hot during use.
The symbol △s always put on the surface with the highest temperature, however the other metallic or non-metallic surfaces can also become very hot during use and it is therefore advisable to always handle them with care and if possible with the help of isothermal gloves or other thermal protection. In case of doubt concerning the temperature of a certain surface it is always preferable to protect oneself.
(*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician (www.ggv-service.de).
CAUTION: the bread carriage handle will not stay down if the appliance is not plugged in!
BEFORE USING THE TOASTER FOR THE FIRST TIME
In order to eliminate any manufacturing residues, operate the toaster a couple of times without bread with the browning control selector on a medium power level. Some smoke might escape.
OPERATION
- Before using your appliance for the first time, check if it is clean (see "Maintenance and cleaning") as it comes into direct contact with bread. Check if any object has fallen into the slot.
- Connect the appliance only to a mains earthed wall socket.
- Place the bread slices in the slot (for French bread, cut a loaf shorter than the slot, then cut it in two pieces along its length). Your appliance is provided to receive French bread, but also pieces of toast or other bread slices if their thickness and their length are shorter than the one of the slot.
- Press down the bread carriage handle until it stops (in the same time, the grid inside the slot will tighten around the bread in order to keep it away from the heating wires). Then release the pressure and the handle will stay in the lower position, which means that the heating process has begun. If the handle comes up immediately, check if the appliance is plugged in as it blocks only when the unit is plugged in.
- You can adjust the browning intensity to obtain a more or less toasted bread by positioning the browning control selector to one of the degrees marked from 1 to 7. Therefore you only have to turn clockwise to increase the intensity, and anticlockwise to decrease it. The higher the number is, the more toasted the bread will be.
- During the functioning, if you think that the bread is toasted enough or for another reason, you can break the heating process simply by pressing the cancel button (CANCEL).
- The reheat button (REHEAT) allows you to reheat already toasted bread or to toast bread which is not toasted enough during a short time without modifying the browning degree.
• The defrost button (DEFROST) allows you to toast bread that has been frozen beforehand.
• Always unplug the appliance after use and let it cool down before handling or storing it. - A cord winder is foreseen on the bottom of the appliance: hooks. When you store your appliance, wind the cord around the hooks.
MAINTENANCE AND CLEANING
- Before attempting any cleaning operation, make sure the toaster is unplugged from the supply socket and fully cooled down.
• To remove bread crumbs, slide the crumb tray situated on the side of the appliance. - Caution! It is very important to empty the crumb tray regularly. Crumbs that have accumulated in the toaster might burn and the appliance might catch fire.
• Never use sharp objects to clean the toaster. Doing so could damage the appliance.
• To clean the exterior surfaces, simply wipe over with a soft damp cloth.
• ON NO ACCOUNT MUST THE TOASTER BE IMMERSED IN WATER OR ANY OTHER LIQUID. - All other maintenance and repair should be performed by a qualified technician. No guarantee claims will be accepted if the appliance has been opened or damaged previously.
PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2012/19/EU
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol ■ on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
ErP Declaration – Regulation 1275/2008/EC
We, GGV Handelsgesellschaft mbH & Co. KG, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Our product does not dispose of a standby mode as this product switches off completely immediately after the operation is finished and as a consequence does not consume electricity!
Specifications
Model: TA6502we
Rated voltage: 230V\~
Power: 900W
Safety class: I
Ambient conditions: Temperature: 0 to +40°C
TERMS OF GUARANTEE
For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.
If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.
Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service (www.ggv-service.de).
In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged.
Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!
AFTER THE LEGAL PERIOD OF GUARANTEE
Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
The user manual is by simple request also available in electronic format from the after-sales service.
