Product type	Epilator
Brand	Braun
Model	Silk-épil 5 625
Power supply	Safe extra low voltage power cord, usable only with Braun power supply type 492 D□H
Number of speeds	2: ultra gentle (I) and ultra efficient (II)
Integrated light	Yes, to illuminate the area to be epilated
Included accessories	High-frequency massage rollers, skin contact accessory
Shaving head with trimmer	Optional, not included with all models
Cleaning	Washable under running water; brush cleaning recommended for optimal hygiene
Recommended use	Hairs of 2 to 5 mm for comfortable epilation
Warranty	2 years from date of purchase
Safety	Use by children aged 8 and over under supervision; do not share for hygiene reasons
Maintenance of shaving parts	Lubrication every 3 months; replace foil and cutter block in case of performance drop
Replacement parts	Available at Braun retailers or authorized service centers
Recycling	Appliance, accessories, batteries and cords are recyclable; do not dispose of with household waste

Frequently Asked Questions - Silk-épil 5 625 BRAUN

How to use the Braun Silk-épil 5 625 epilator?

Stretch the skin, move the appliance slowly against the direction of hair growth without pressure. Use speed I (ultra gentle) for first times or sensitive areas, and speed II (ultra efficient) for fast epilation.

What is the difference between the two speeds?

Position I is the ultra gentle mode for more progressive epilation, ideal for beginners or sensitive areas. Position II is the ultra efficient mode for faster epilation.

How to clean the epilation head?

Unplug the device. You can clean the head under running water or with the brush dipped in alcohol. For water cleaning, remove the attachment, rinse the head under water, then press the release button to remove the head. Shake and let dry before reassembling.

Can I use the appliance in the shower?

The appliance can be cleaned under running water, but it is not designed for use in the shower. Always use it on dry skin without cream.

How to avoid ingrown hairs?

Regularly use a massage sponge or loofah to exfoliate the skin, which helps release fine hairs. Epilate against the direction of hair growth and avoid shaving between sessions.

How often should I lubricate the shaving head?

The shaving parts must be lubricated every three months to maintain optimal performance. Use a suitable light oil.

What if the shaving foil is damaged?

Do not use the appliance with a damaged foil. Replace the foil and cutter block as soon as you notice a drop in performance. Replacement parts are available at Braun retailers or authorized service centers.

Is the appliance under warranty?

Yes, Braun offers a 2-year warranty from the date of purchase, covering manufacturing defects. The warranty does not cover normal wear (foil, cutter block) or damage due to improper use.

Can I use it on underarms and bikini area?

Yes, but these areas are more sensitive. Start with speed I. Clean and dry the area before epilation. After epilation, avoid deodorants containing alcohol.

What if the skin remains irritated after 36 hours?

If signs of irritation persist beyond 36 hours, consult a doctor. Generally, irritation decreases with regular use of the appliance.

USER MANUAL Silk-épil 5 625 BRAUN

Line drawing of a Braun electric shaver with no text or symbols on the device itself

Braun Infolines

Deutsch 6

English 10

Français 14

Español 18

Português 22

Italiano 26

Nederlands 30

Dansk 34

Norsk 38

Svenska 42

Suomi 46

Polski 50

Český 55

Slovenský 59

Magyar 63

Hrvatski 67

Slovenščina 71

Türkçe 75

Română (RO/MD) 81

Ελληνικά 85

Български 90

Русский 94

Українська 99

DE/AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

PL 801 127 286

801 1 BRAUN

CZ 221 804 335

SK 02/5710 1135

HU (06-1) 451-1256

GR 800 801 3458

HR 091 66 01 777

SI 080 2822

TR 0850 220 0911

RO 021.224.30.35

RU 8 800 200 20 20

UA 0 800 505 000

Braun GmbH

* not with all models

A

1 2

Diagram showing three identical blade-like objects with arrows indicating movement or force direction (no text or symbols)

Illustration of a hand using a medical or surgical tool to interact with a finger, showing motion patterns and a magnified inset of the finger (no text or symbols present)

③ 90°

Diagram of a blender with open lid and internal circuitry, showing directional arrows (no text or symbols)

Cross-sectional diagram of a smart device showing internal components and a downward arrow indicating a process (no text or symbols present)

Illustration of a person receiving a medical or therapeutic device on a patient's arm (no text or symbols present)

Illustration of a medical procedure on a patient's abdomen, showing hands and a tool (no text or symbols)

5a

Illustration of hands using a handheld device to interact with a grid of buttons (no text or symbols visible)

Close-up of a hand using a tool to adjust internal gears into a mechanical housing (no text or symbols visible)

Diagram of a mechanical device with internal components and no visible text or symbols

5b !

Diagram of a mechanical press or valve mechanism with arrows indicating flow direction (no text or symbols present)

Bened

Illustration of a hand holding a tool with water droplets falling (no text or symbols)

B

I II III

Illustrated guide showing step-by-step instructions for using a hairdryer, with labeled steps (a, b, c) and arrows indicating movement.

Deutsch

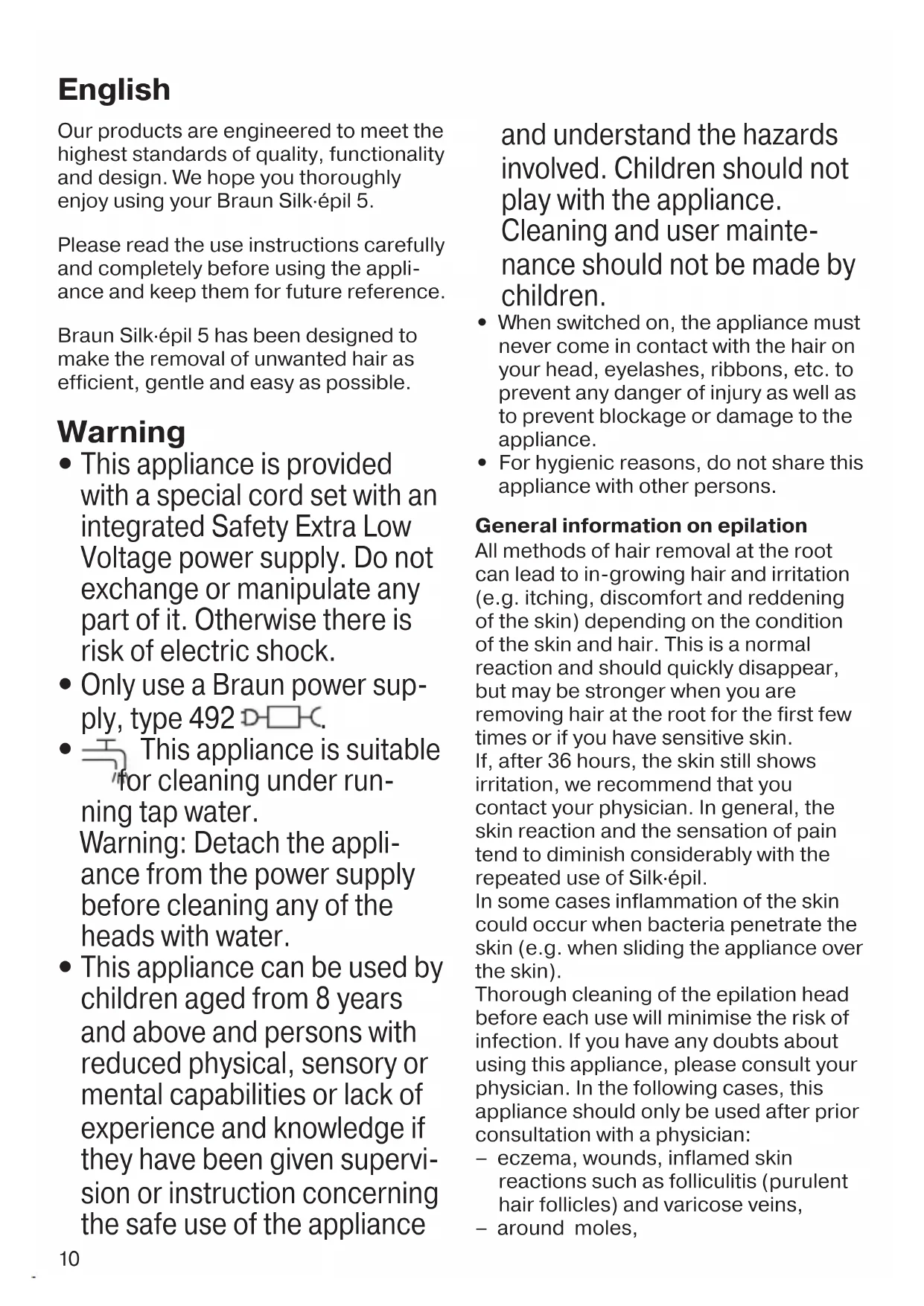

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk-épil 5.

Please read the use instructions carefully and completely before using the appliance and keep them for future reference.

Braun Silk·épil 5 has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible.

Warning

• This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock.
• Only use a Braun power supply, type 492 D-□-C.
  • This appliance is suitable for cleaning under running tap water.

Warning: Detach the appli- ance from the power supply before cleaning any of the heads with water.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance

and understand the hazards involved. Children should not play with the appliance.

Cleaning and user maintenance should not be made by children.

• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.
• For hygienic reasons, do not share this appliance with other persons.

General information on epilation

All methods of hair removal at the root can lead to in-growing hair and irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk-épil.

In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin).

Thorough cleaning of the epilation head before each use will minimise the risk of infection. If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician:

• eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins,
• around moles,

– reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, haemophilia, candida or immune deficiency.

Some useful tips

If you have not used an epilator before, or if you have not epilated for a longer period of time, it may take a short time for your skin to adapt to epilation. The discomfort experienced in the beginning will decrease considerably with repeated use as the skin adapts to the process. Epilation is easier and more comfortable when the hair is at the optimum length of 2-5 mm. If hairs are longer, we recommend that you first shave (see section B) and epilate the shorter, re-growing hairs a week later.

When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation.

Fine hair which re-grows might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent in-growing hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface.

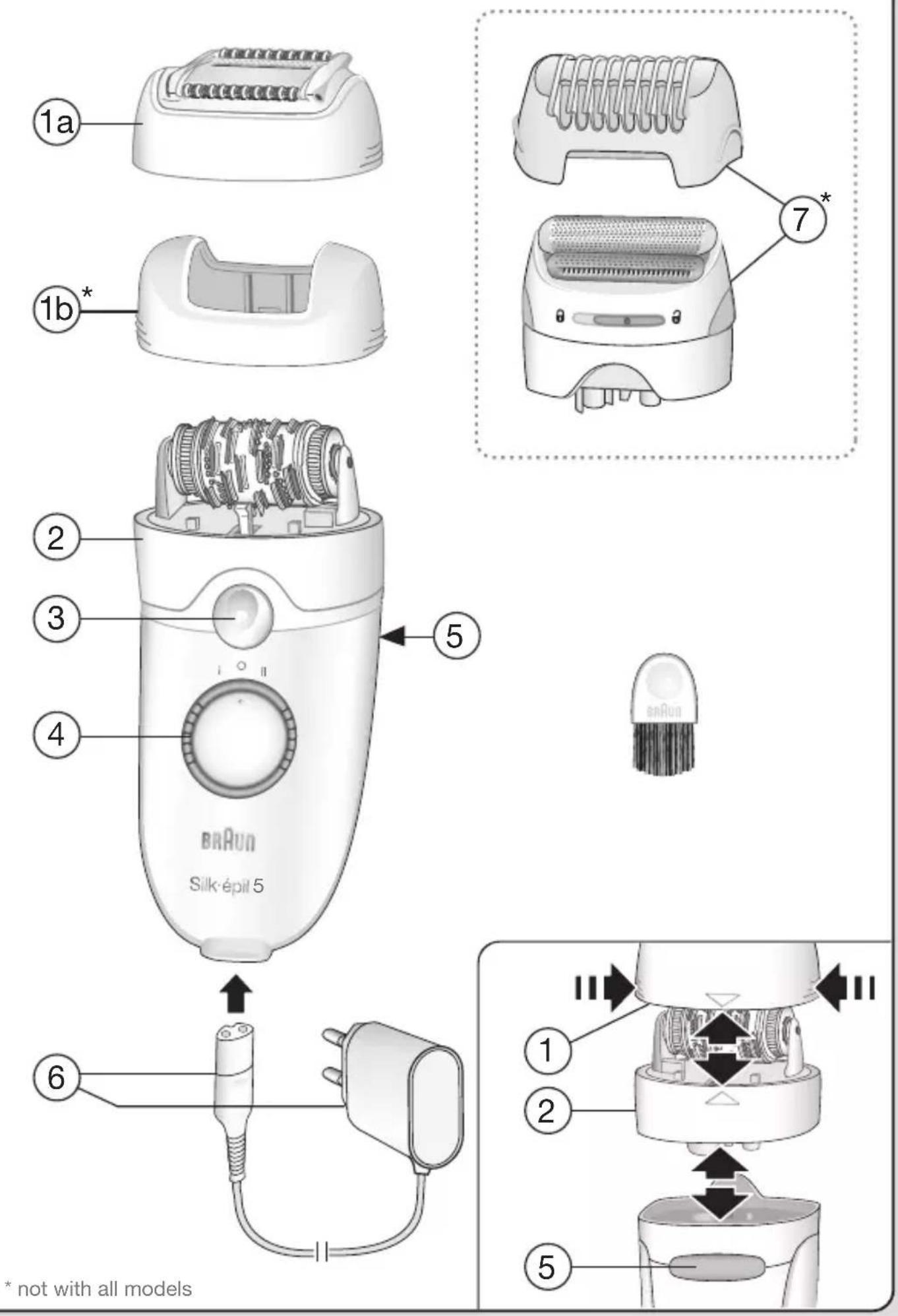

Description

1a High-frequency massage cap
1b Skin Contact cap*
2 Epilation head with tweezer element
3 Light
4 On/off switch
5 Release button
6 Special cord set
7 Shaver head attachment with trimmer cap*

* not with all models

Preparing for use

• Your skin must be dry and free from grease or cream.
• Before use, always make sure that the epilation head (2) is clean and provided with a cap (1).

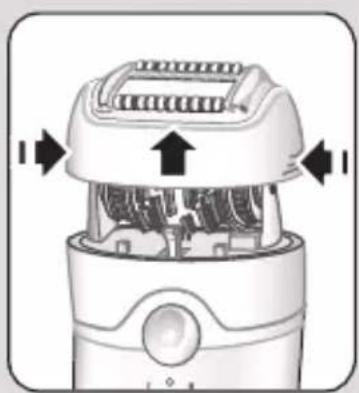

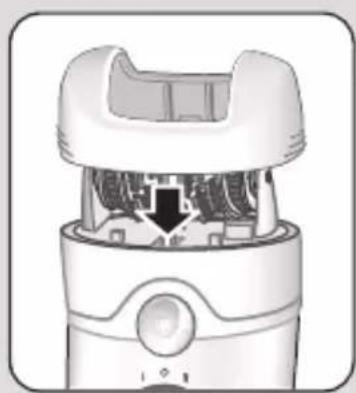

• To change caps, press their lateral ribs and pull off.

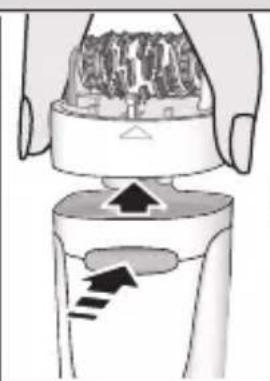

• To change heads, press the release button (5).

A How to epilate

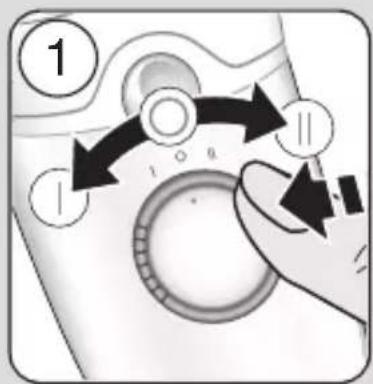

1 How to operate the appliance

Turn the on/off switch (4) to operate the appliance:

Turn to position «I» = extra gentle Turn to position «II» = extra efficient As long as the appliance is switched on, the light (3) illuminates the area to be epilated. This gives you a better control for improved epilation efficiency.

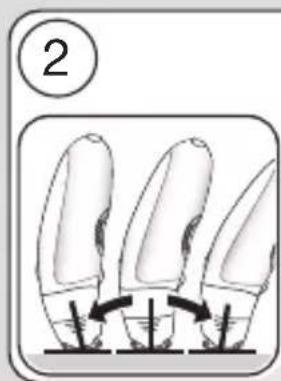

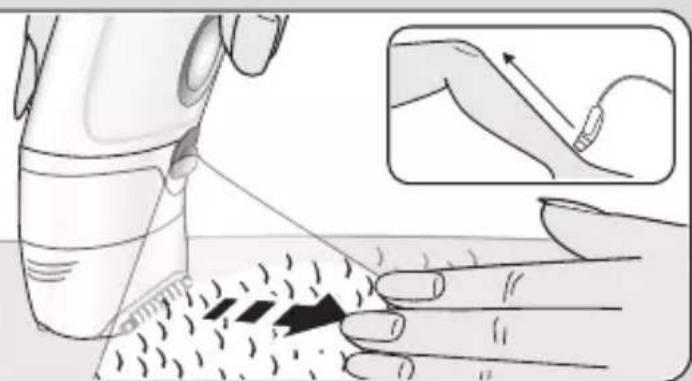

2 How to guide the appliance

• Always stretch your skin when epilating.
• Always make sure that the epilation area is in close contact with your skin.
• Guide the appliance in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the appliance in different directions to achieve optimal results. The pulsating movements of the massaging rollers stimulate and relax the skin for a gentler epilation.

- If you are used to the sensation of epilation, you may replace the massage cap (1a) with the skin contact cap (1b) which provides a closer skin contact and an improved adaptation to all body areas.

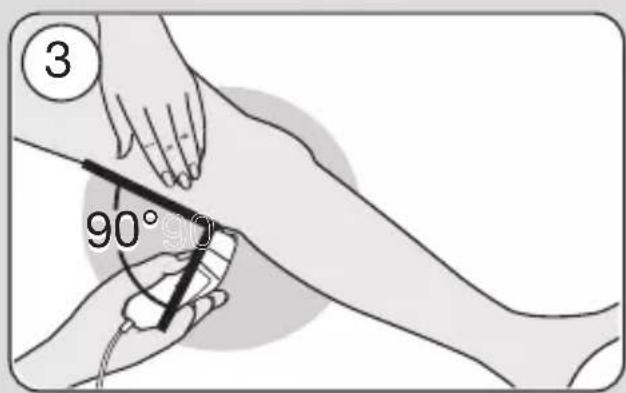

3 Leg epilation

Epilate your legs from the lower leg in an upward direction. When epilating

behind the knee, keep the leg stretched out straight.

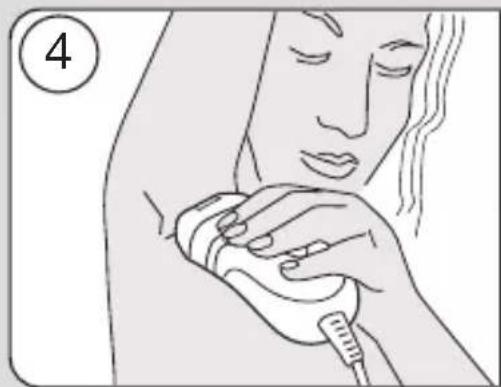

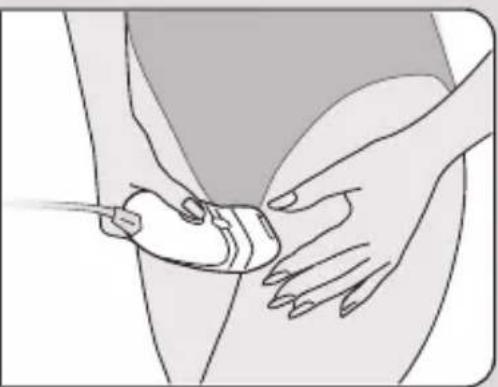

4 Underarm and bikini line epilation

Please be aware that especially at the beginning, these areas are particularly sensitive to pain. Therefore, we recommend you start with switch setting «I».

With repeated usage the pain sensation will diminish. Before epilating, thoroughly clean the respective area to remove residues (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol.

5 Cleaning the epilation head

Before cleaning, unplug the appliance. Regular cleaning ensures better performance.

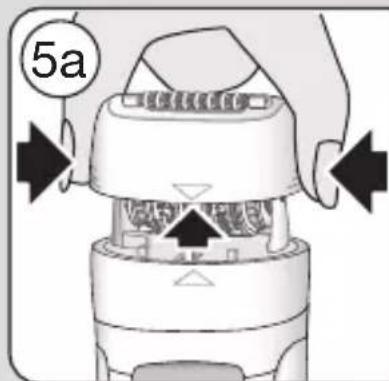

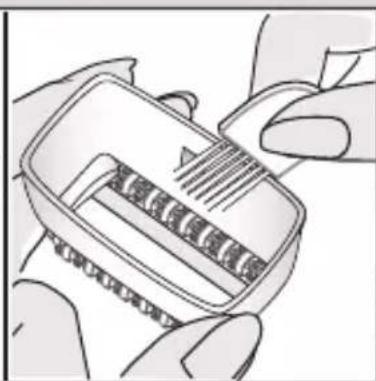

a Brush cleaning:

Remove the cap (1) and brush it out. Thoroughly clean the tweezers from the rear side of the epilator head with the brush dipped into alcohol. While doing so, turn the tweezer element manually. This cleaning method ensures best hygienic conditions for the epilation head.

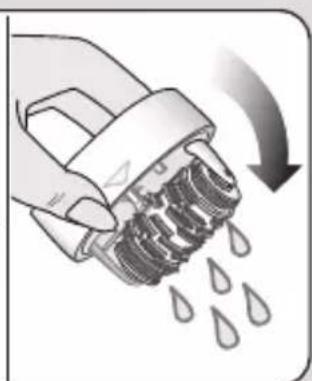

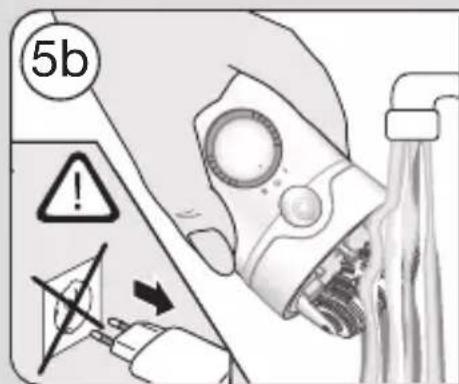

b Cleaning under running water:

Remove the cap. Hold the appliance with the epilation head under running water.

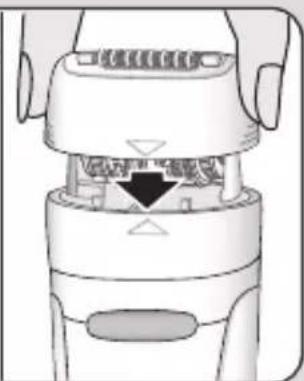

Then press the release button (5) to remove the epilation head (2).

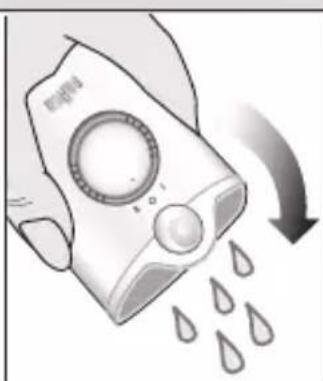

Thoroughly shake both, the epilation head and the appliance to make sure that remaining water can drip out. Leave both parts to dry. Before reattaching, make sure that they are completely dry.

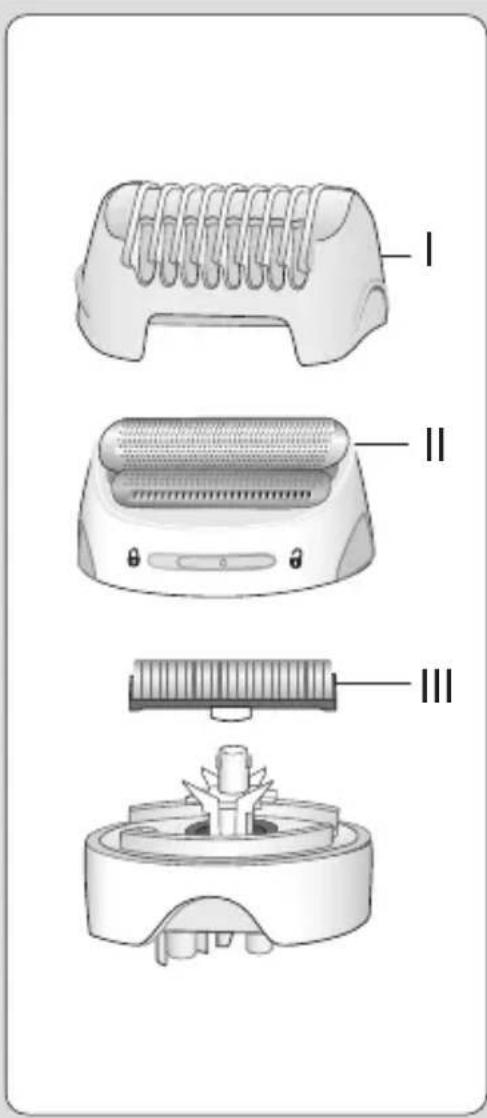

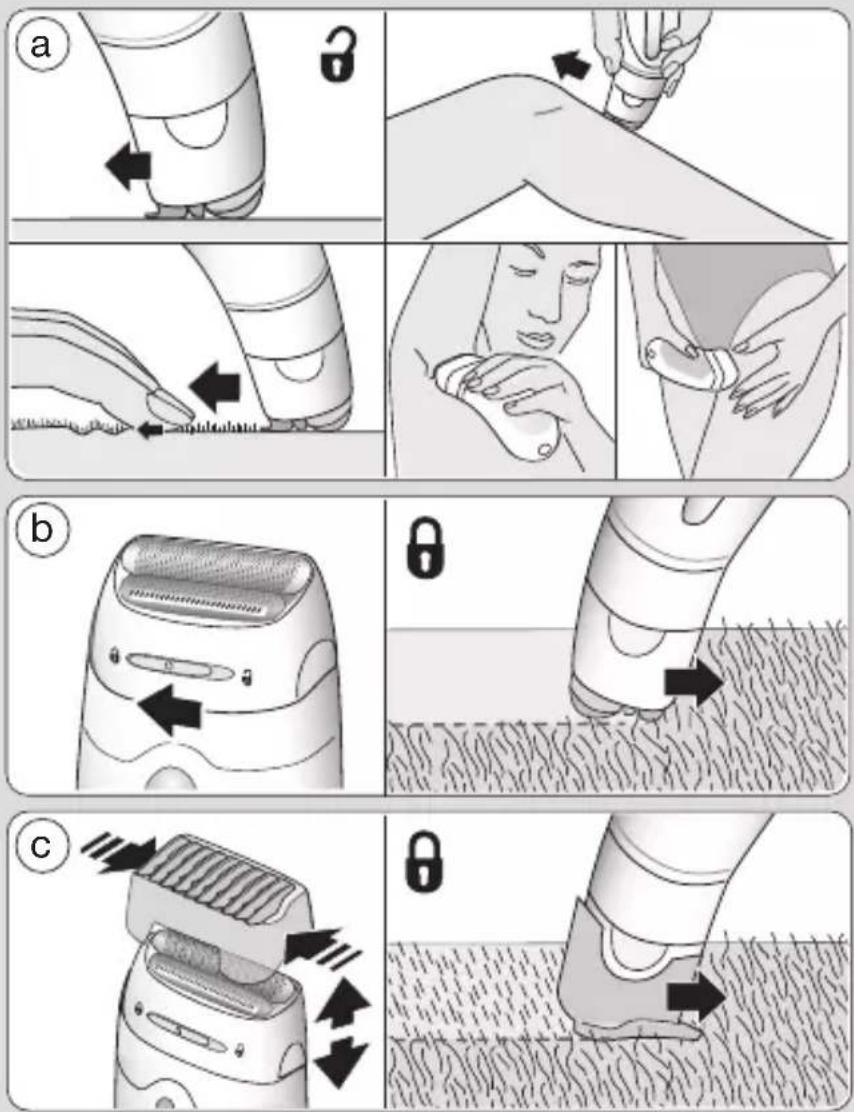

B How to use the shaver head

The shaver head (7) is designed for a fast and close shave of legs, underarms and bikini line, contour trimming and cutting hair to 5 mm length. With the shaver head attached, use the appliance only on dry skin and with speed setting «II».

a Shaving: select « ♂ ».
b Contour trimming: select « 0».
c Trimming hair to 5 mm length: select «θ» and put on the trimmer cap (I).

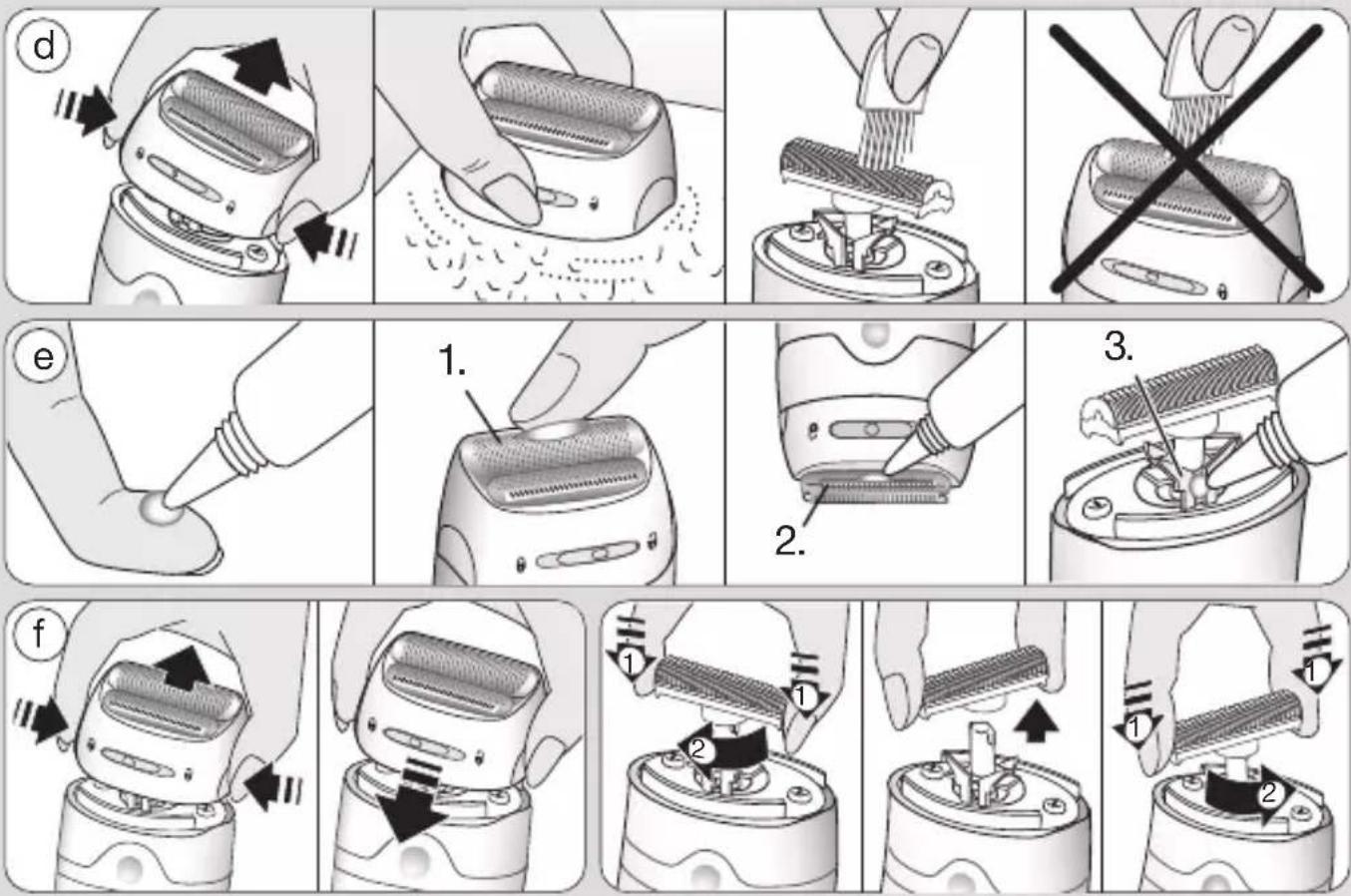

d Cleaning: Do not clean the shaver foil (II) with the brush as this may damage the foil.
e The shaving parts need to be lubricated regularly every 3 months.
f Replace the foil frame (II) and cutter block (III) when you notice a reduced shaving performance. Replacements parts can be obtained from your retailer or Braun Customer Service Centres or via www.service.braun.com. Do not shave with a damaged foil.

Please do not dispose of the product in the household waste at the end of its useful life.

Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.
