Product type	Built-in oven
Brand	Hotpoint
Model	FA2 841 JH BL HA
Installation type	Built-in
Number of levels	3 maximum
Maximum temperature	250 °C
Cooking functions	Conventional, Forced air, Maxi Cooking, Pizza, Grill, Turbo Grill, Rising, Eco forced air, Auto bread, Auto pastries
Cleaning	Diamond Clean (low-temperature steam cleaning)
Control panel	Selection knob, thermostat knob, adjustment knobs, light button, digital display
Timer	Yes, with duration programming, cooking end, delayed start
Interior lighting	Button-controlled lamp
Accessories supplied	Metal grid, dripping pan, sliding rails
Safety	Manual shut-off by setting selection knob to 0; read safety instructions
Energy compliance	Eco forced air function (reference according to EU Regulation No. 65/2014)

Frequently Asked Questions - FA2 841 JH BL HA HOTPOINT

How do I set the time on my Hotpoint FA2 841 JH BL HA oven?

Press the ⏱ button until the indicator and the two hour digits flash. Use + or - to set the hour, then press √ to confirm. Set the minutes in the same way. If the ⚙ indicator flashes (after a power cut), repeat the operation.

Why does my oven emit an odor during first use?

This is normal: manufacturing residues burn off. To eliminate odors, heat the empty oven at 250 °C for about one hour. Ventilate the room after use.

How do I use the Diamond Clean cleaning function?

Pour 200 ml of drinking water into the bottom of the cold oven. Turn the selection knob and the thermostat knob to the icon. The function starts automatically for 35 minutes. The display alternates between remaining time and "DC".

What should I do if the screen displays "F" followed by a number?

This indicates a software problem. Note the number after "F" and contact Hotpoint After-Sales Service.

Can I use delayed start with the Grill and Turbo Grill functions?

No, delayed start is not available for the Grill and Turbo Grill functions. You can program the cooking duration but not the delayed end time.

How do I program the cooking duration?

Select a function, press ⏱ until the indicator and "00:00" flash. Use + or - to set the duration, then confirm with √. Turn the thermostat knob to the desired temperature to start.

What is the recommended function for cooking pizzas?

Use the Pizza function. For best results, swap the position of the trays halfway through cooking. The temperature can vary between 190 and 250 °C depending on the recipe.

How do I install the sliding rails?

Hang the upper hooks of the grid supports, then press the lower part of the rail against the support until the lower hooks click into place. To remove, pull the lower part of the rail to unhook.

How do I turn off the oven after use?

Turn the selection knob to the 0 position. The residual heat indicator may stay on temporarily, but the oven is considered off.

What does the rising symbol on the oven mean?

The Rising symbol activates a special function to help sweet or savory doughs rise. Turn the thermostat knob to this symbol; if the oven is still hot, the function will not start.

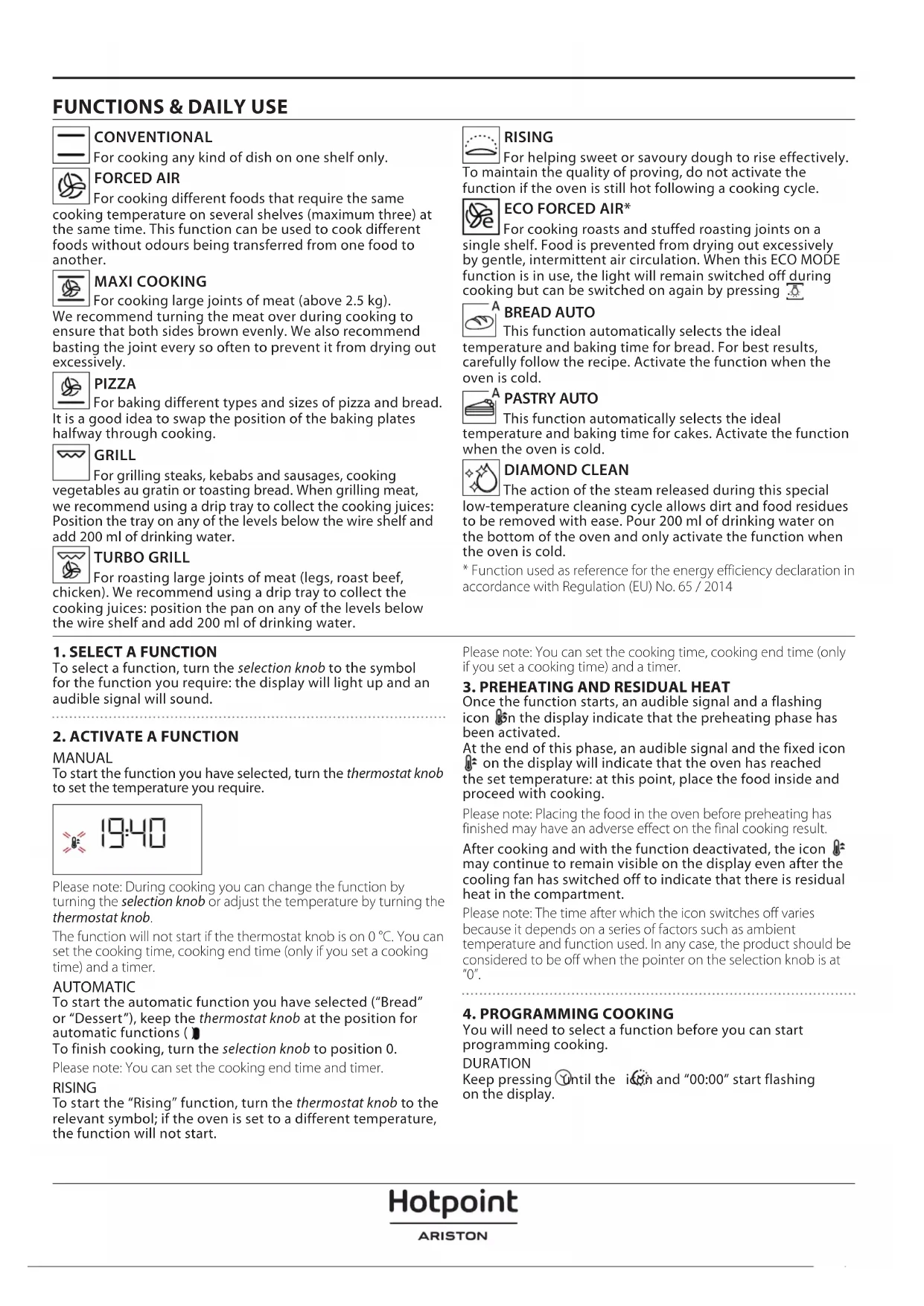

USER MANUAL FA2 841 JH BL HA HOTPOINT

For cooking any kind of dish on one shelf only.

FORCED AIR

For cooking different foods that require the same

cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another.

MAXI COOKING

For cooking large joints of meat (above 2.5 kg).

We recommend turning the meat over during cooking to ensure that both sides brown evenly. We also recommend basting the joint every so often to prevent it from drying out excessively.

PIZZA

For baking different types and sizes of pizza and bread.

It is a good idea to swap the position of the baking plates halfway through cooking.

GRILL

For grilling steaks, kebabs and sausages, cooking

vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the tray on any of the levels below the wire shelf and add 200 ml of drinking water.

TURBO GRILL

For roasting large joints of meat (legs, roast beef,

chicken). We recommend using a drip tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require: the display will light up and an audible signal will sound.

2. ACTIVATE A FUNCTION

MANUAL

To start the function you have selected, turn the thermostat knob to set the temperature you require.

Please note: During cooking you can change the function by turning the selection knob or adjust the temperature by turning the thermostat knob.

The function will not start if the thermostat knob is on 0 °C. You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

AUTOMATIC

To start the automatic function you have selected ("Bread" or "Dessert"), keep the thermostat knob at the position for automatic functions ( )

To finish cooking, turn the selection knob to position 0.

Please note: You can set the cooking end time and timer.

RISING

To start the "Rising" function, turn the thermostat knob to the relevant symbol; if the oven is set to a different temperature, the function will not start.

RISING

For helping sweet or savoury dough to rise effectively.

To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

ECO FORCED AIR\*

For cooking roasts and stuffed roasting joints on a

single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this ECO MODE function is in use, the light will remain switched off during cooking but can be switched on again by pressing

BREAD AUTO

This function automatically selects the ideal

temperature and baking time for bread. For best results, carefully follow the recipe. Activate the function when the oven is cold.

PASTRY AUTO

This function automatically selects the ideal

temperature and baking time for cakes. Activate the function when the oven is cold.

DIAMOND CLEAN

The action of the steam released during this special

low-temperature cleaning cycle allows dirt and food residues to be removed with ease. Pour 200 ml of drinking water on the bottom of the oven and only activate the function when the oven is cold.

* Function used as reference for the energy efficiency declaration in accordance with Regulation (EU) No. 65 / 2014

Please note: You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

3. PREHEATING AND RESIDUAL HEAT

Once the function starts, an audible signal and a flashing icon on the display indicate that the preheating phase has been activated.

At the end of this phase, an audible signal and the fixed icon on the display will indicate that the oven has reached the set temperature: at this point, place the food inside and proceed with cooking.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result.

After cooking and with the function deactivated, the icon may continue to remain visible on the display even after the cooling fan has switched off to indicate that there is residual heat in the compartment.

Please note: The time after which the icon switches off varies because it depends on a series of factors such as ambient temperature and function used. In any case, the product should be considered to be off when the pointer on the selection knob is at "0".

4. PROGRAMMING COOKING

You will need to select a function before you can start programming cooking.

DURATION

Keep pressing Ⓤ until the icon and "00:00" start flashing on the display.

Use ☑ to set the cooking time you require, then press ☑ to confirm.

Activate the function by turning the thermostat knob to the temperature you require: an audible signal will sound and the display will indicate that cooking is complete.

Notes: To cancel the cooking time you have set, keep pressing √ until the 📞on starts flashing on the display, then use to reset the cooking time to "00:00".

This cooking time includes a preheating phase.

PROGRAMMING THE END COOKING TIME/DELAYED START

After a cooking time has been set, starting the function can be delayed by programming its end time: press until the icon and the current time start flashing on the display.

Use or to set the time you want cooking to end and press to confirm.

Activate the function by turning the thermostat knob to the temperature you require: the function will remain paused until it starts automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Please note: To cancel the setting, switch the oven off by turning the selection knob to position "0".

Delay to start functionality is not available for Grill and Turbo Grill functions.

END OF COOKING

An audible signal will sound and the display will indicate that the function has finished.

Turn the selection knob to select a different function or to position "0" to switch the oven off.

Please note: If the timer is active, the display will show "END" alternately with the remaining time.

5. SETTING THE TIMER

This option does not interrupt or program cooking but allows you to use the display as a timer, either during while a function is active or when the oven is off.

Keep pressing ⏻ until the 📷on and "00:00" start flashing on the display.

Use or to set the time you require and press to confirm.

An audible signal will sound once the timer has finished counting down the selected time.

Notes: To cancel the timer, keep pressing ⏻ until the ☐on starts flashing, then use to reset the time to "00:00".

6. DIAMOND CLEAN FUNCTION

To activate the "Diamond Clean" cleaning function, pour 200 ml of drinking water into the bottom of the oven, then turn the selection knob and the thermostat knob to the 🎨 icon.

Please note: The position of the icon does not correspond to the temperature reached during the cleaning cycle.

The function will activate automatically: the display shows the time remaining to the end, alternating with "DC".

Please note: It is only possible to programme the end time of this function. The duration is automatically set to 35 minutes.

COOKING TABLE

RECIPE FUNCTION PREHEAT		TEMPERATURE(°C)	DURATION(MIN)	LEVEL AND ACCESSORIES
Leavened cakes		Yes 170 30 - 50		2
		Yes 160 30 - 50		2
		Yes 160 40 - 60		4 1
Biscuits/tartlets		Yes 160 25 - 35		3
		Yes 160 25 - 35		3
		Yes 150 35 - 45		4 2
Pizza / Focaccia		Yes 190 - 250	15 - 50	12
		Yes 190 - 250	20 - 50	4 2
Lasagne / baked pasta / cannelloni / flans		Yes 190 - 200 45 - 65		2
Lamb / veal / beef /pork 1 kg Yes 190 - 200 80 - 110				3
Chicken/rabbit/duck 1 kg Yes 200 - 230 50 - 100				2
Baked fish/en papillote 0,5 kg (fillets, whole)		Yes 170 - 190 30 - 45		2
Toasted bread 5' 250 2 - 6				5
Roast potatoes		Yes 200 - 210	35 - 55 **	3

ACCESSORIES
	Wire shelf	Baking dish or baking tray on the wire shelf	Drip tray/baking tray on the wire shelf	Drip tray	Drip tray with 200 ml of water	Baking tray

** Turn food two-thirds of the way through cooking (if necessary).

The level is indicated on the wall of the cooking compartment.

The time indicated does not include the preheating phase: we recommend placing the food in the oven and setting the cooking time only after the required temperature has been reached.

Download the Use and Care Guide from docs.hotpoint.eu for the table of tested recipes, compiled for the certification authorities in accordance with the standards IEC and IEC 60350-1.

TROUBLESHOOTING

Problem	Possible cause	Solution
The oven does not work	Power cutDisconnection from the mains	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists
The display shows the letter “F” followed by a number	Software problem	Contact you nearest After-sales Service Centre and state the letter or number that follows the letter “F”
The display shows unclear text and appears to be broken.	Another language set.	Contact you nearest Client After-sales Service Centre.

Download the complete Use and Care Guide from docs.hotpoint.eu for more informations about your product

Policies, standard documentation and additional product information can be found by: • Visiting our website docs.hotpoint.eu

• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

MERCI D'AVOIR ACHETÉ UN PRODUIT HOTPOINT-ARISTON

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols present)

Hand pressing a component on a rail track, showing a black arrow indicating direction (no text or symbols present)

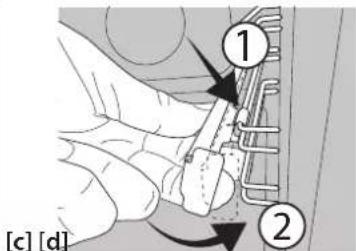

ENLÈVEMENT DES PATINS COULISSANTS [c]

Diagram showing hand positioning a component with numbered arrows indicating movement steps

① ② [c] [d]

ENLEVER ET REPLACER LES SUPPORTS DE GRILLE

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Hand pressing a button on a rail track component, showing a black arrow indicating direction (no text or symbols present)

Diagram showing two-step car door handle assembly with labeled parts and directional arrows

SMONTAGGIO E RIMONTAGGIO DELLE GRIGLIE LATERALI

Two technical diagrams showing hand positioning of a mechanical component, labeled (a) and (b), with no visible text or symbols.

EXTRAER LAS GUÍAS DESLIZANTES [c]

Diagram showing two-step car door handle assembly with labeled parts and directional arrows

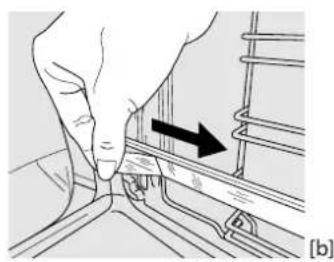

CÓMO EXTRAER Y VOLVER A COLOCAR LAS GUÍAS PARA ESTANTES

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram illustrating two steps of a mechanical or electrical component handling, labeled ① and ②, with arrows indicating direction.

RETIRAR E REPOR AS GUIAS DE NÍVEL
