Product Type	Tower Fan
Brand	Emerio
Model	TFN-212915.9
Operating Voltage	220-240 V ~ 50 Hz
Power Consumption	25.0 W
Maximum Airflow	20.6 m³/min
Sound Power Level	56 dB(A)
Service Value	0.8 (m³/min)/W
Standby Power Consumption	0.00 W
Maximum Air Speed	2.4 m/s
Number of Speeds	3 (low, medium, high)
Oscillation Angle	≤ 80°
Warranty	2 years
Maintenance and Cleaning	Unplug before cleaning. Use a damp cloth with mild soap. Do not immerse in water.
Safety	Do not insert objects into the grilles. Beware of long hair. Do not direct airflow for long at one person.
Recycling	Do not dispose with household waste. Recycle according to EU directive 2012/19/EU.

Frequently Asked Questions - TFN-212915.9 Emerio

How to assemble the TFN-212915.9 fan?

Unscrew the 3 screws from the swivel plate. Assemble the front and back base. Align the base with the swivel plate and retighten the 3 screws. Insert the power cord into the designated groove.

How to use the different speeds?

Turn the power knob to position 1 for low speed, 2 for medium speed, and 3 for high speed.

How to activate the oscillation?

On the control panel, turn the knob to the ROTATION position (oscillation symbol) after selecting a speed. The oscillation angle is approximately 80°.

How to clean the fan?

Always unplug the appliance before cleaning. Clean the plastic parts with a damp cloth and mild soap. Never immerse the appliance in water. Dry thoroughly after cleaning.

What to do if the fan does not work?

Check that the plug is properly connected and the cord is not damaged. Try another outlet. If the problem persists, contact after-sales service. Do not attempt to repair yourself.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not use it outdoors or in humid environments.

Is it safe for children?

Children under 8 years old must not use the appliance without supervision. Keep the appliance and its cord out of reach of children. Do not let children play with the fan.

What is the warranty of the fan?

The warranty is 2 years from the date of purchase. It covers manufacturing defects. Keep your receipt. Damages due to misuse or unauthorized repairs are not covered.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Follow EU directive 2012/19/EU: use local collection points or contact the retailer for recycling.

What is the power consumption of the fan?

The power consumption is 25.0 W in operation. In standby mode, consumption is 0.00 W. It is an energy-efficient appliance with a service value of 0.8 (m³/min)/W.

USER MANUAL TFN-212915.9 Emerio

White cylindrical industrial fan with grid-patterned ventilation grille (no visible text or symbols)

Tower Fan (EN)

Turmventilator (DE)

Instruction manual – English ...... - 2 -

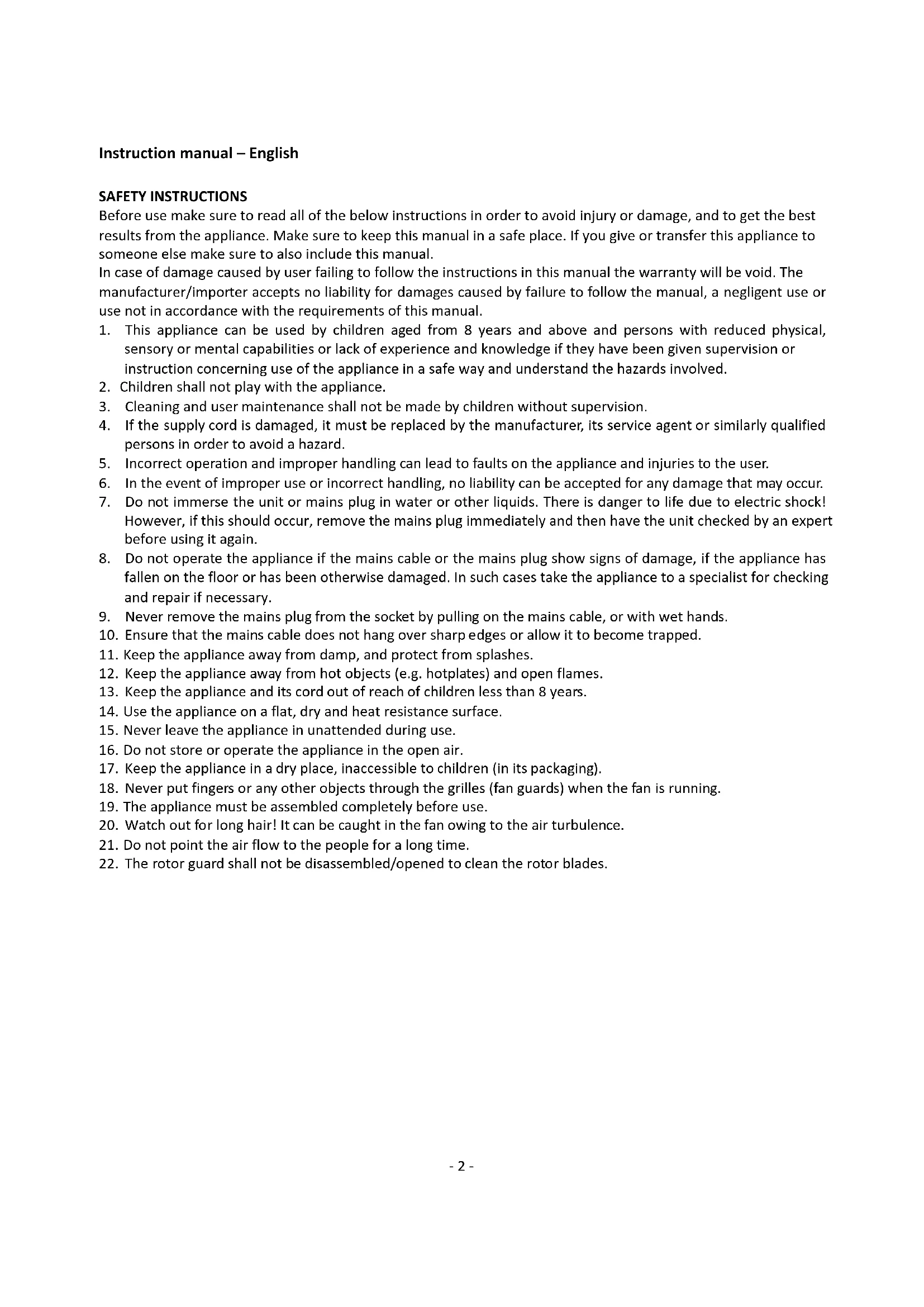

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the appliance if the mains cable or the mains plug show signs of damage, if the appliance has fallen on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.
9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
11. Keep the appliance away from damp, and protect from splashes.
12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistance surface.
15. Never leave the appliance in unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.
19. The appliance must be assembled completely before use.
20. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
21. Do not point the air flow to the people for a long time.
22. The rotor guard shall not be disassembled/opened to clean the rotor blades.

PARTS DESCRIPTION

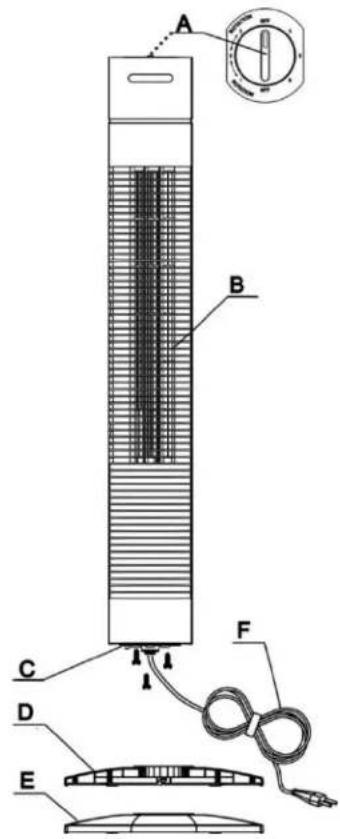

A. Control panel (Switch knob)
B. Body
C. Turnplate
D. Front base
E. Back base
F. Power cord

Technical diagram of a vertical cylindrical device with labeled components A through F, showing internal structure and wiring connections.

ASSEMBLY

Technical line drawing of a mechanical component with no visible text or symbols

1

Technical line drawing of a mechanical component with a coiled cable and pin (no text or symbols)

Technical line drawing of a mechanical component with internal structure and external housing (no text or symbols)

3

G

4

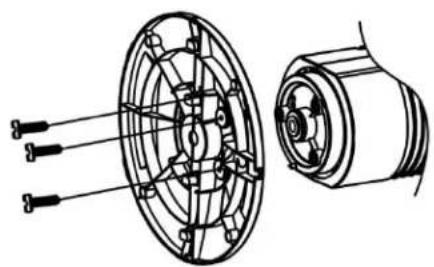

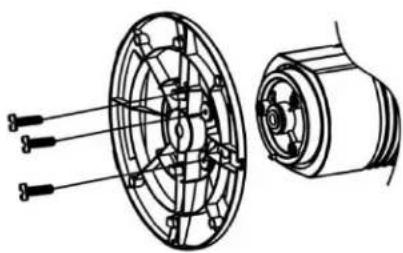

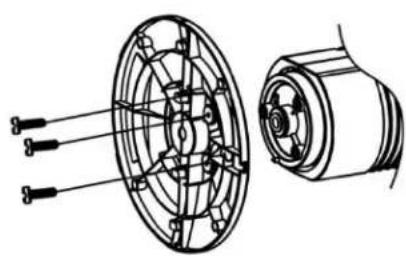

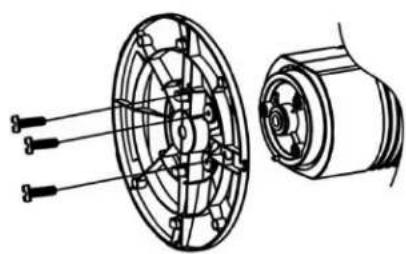

1. Spin 3 screws out from the turnplate.

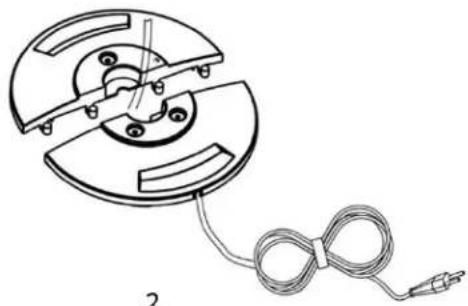

2. Fasten the back and front base together.
3. Align the base with turnplate and then spin into 3 screws.

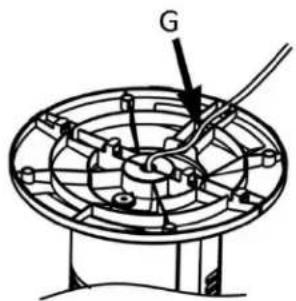

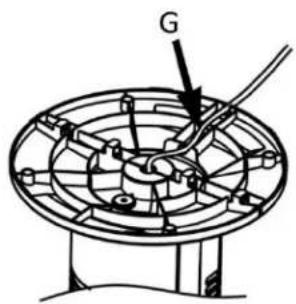

4. Press the power cord into the cable slot (G).

CONTROL PANEL

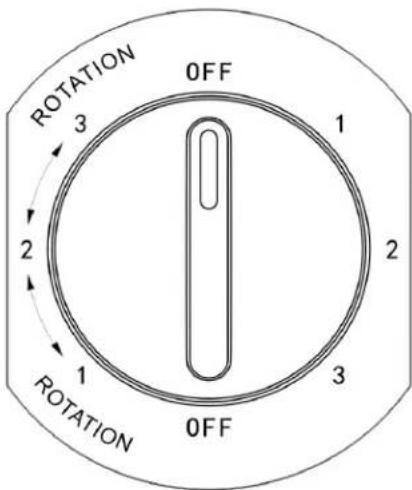

Switch knob

OFF: Stop

1: Fan with low speed

2: Fan with medium speed

3: Fan with high speed

1↔2↔3----Fan + Oscillation

Oscillation angle: ≦ 80°

CARE AND CLEANING

CAUTION: ALWAYS UNPLUG THE PRODUCT FROM THE ELECTRICAL OUTLET PRIOR TO CLEANING IT.

1. Do not use the product in oily or dirty areas, as the air vents may become blocked.

2. Clean the plastic parts with a mild soap and a damp cloth or sponge.

3. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.

4. Periodically check the screws on the product to ensure they are securely tightened.

5. Store the product in a cool, dry place.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 35W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Manufactured by: Emerio B.V.

Oudeweg 115, 2031 CC Haarlem, The Netherlands

ROTATION 3 OFF 1 2 2 1 3 0FF ROTATION

ERP information (EN)

Supplier: Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Declare that the product detailed below:

Information requirements

Information to identify the TFN-212915.9 to which the information relates to [Tower Fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	20.6	m^3/min
Fan power input	P	25.0	W
Service value	SV	0.8	(m^3/min)/W
Standby power consumption	P_SB	0.00	W
Fan sound power level	L_WA	56	dB(A)
Maximum air velocity	c	2.4	meters/sec
Measurement standard for service value	EN IEC 60879:2019
Contact details for obtaining more information	Emerio B.V.Oudeweg 1152031 CC HaarlemThe Netherlands

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
