TA01111-GS - Toaster AYA - Free user manual and instructions

Product type	Toaster
Brand	AYA
Model	TA01111-GS
Power supply	220-240 V ~ 50/60 Hz
Number of slots	2
Browning positions	6 (from 1 to 6)
Browning control	Electronic
Defrost function	Yes (dedicated button)
Reheat function	Yes (dedicated button)
Cancel function	Yes (stop button)
Automatic shut-off	Yes (lever releases automatically)
Minimum bread length	85 mm
Crumb tray	Removable
Power cord	Wrapable under the toaster
Dimensions (W x D x H)	Approximately 25 x 15 x 18 cm
Weight	Approximately 1.2 kg
Grounding plug	Yes (recommended)
Usage	Domestic
Legal warranty	2 years
After-sales service	BUT: 09 78 97 97 97

Frequently Asked Questions - TA01111-GS AYA

How to use the defrost function for frozen bread?

First set the browning control knob to the desired position. Lower the lift lever until it locks, then press the defrost button; the indicator light turns on. The toaster defrosts and toasts the bread automatically.

How to clean the toaster?

Unplug the appliance and let it cool completely. Never immerse the toaster in water. Wipe the exterior with a soft, dry cloth. Remove the crumb tray at the bottom, empty it, and put it back.

What to do if bread gets stuck in the toaster?

Immediately unplug the appliance from the outlet. Let it cool, then carefully remove the bread without damaging the heating elements. Never use metal utensils.

Can I toast pastries or foods with butter?

No, do not toast foods containing liquid ingredients like butter. Only use regular bread slices to avoid fire hazards.

How many browning positions are there?

The toaster offers 6 positions of electronic browning, from the lightest (1) to the darkest (6). Position 4 gives a standard golden color.

How to reheat cold toast?

Insert the cold bread into the slots, lower the lever and press the reheat button. The reheat time is preset; the lever releases automatically at the end.

What is the power supply voltage?

The appliance operates at a voltage of 220-240 V and a frequency of 50/60 Hz. Check that your outlet matches.

Is it safe to leave the toaster unattended?

No, close supervision is necessary, especially when children are present. Bread can burn and cause a fire.

How to wrap the power cord after use?

The power cord can be wrapped around the bottom of the toaster for convenient storage. Make sure the appliance is unplugged.

What to do if the toaster emits smoke?

Immediately press the cancel button to stop operation. Unplug the appliance and let it cool before checking the cause.

USER MANUAL TA01111-GS AYA

MANUEL D'UTILISATION TA01111-GS

FR

White Rody Q4A toaster with gray handle and brand logo (no visible text or symbols on body)

Grille-pain

Table des matières

CONSIGNES DE SECURITE IMPORTANTES - 2 -
DESCRIPTION DE VOTRE GRILLE-PAIN - 10 -
AVANT LA PREMIERE UTILISATION - 10 -
UTILISATION DE VOTRE GRILLE-PAIN - 11 -
ENTRETIEN ET NETTOYAGE - 12 -
SPECIFICATIONS TECHNIQUES - 13 -
ENLEVEMENT DES APPAREILS MENAGERS USAGES - 13 -

LE TRI + FACILE BAC DE TRI

Attention surface chaude.

White Qayu toaster with gray handle and front panel, no visible text or symbols on body

Toaster

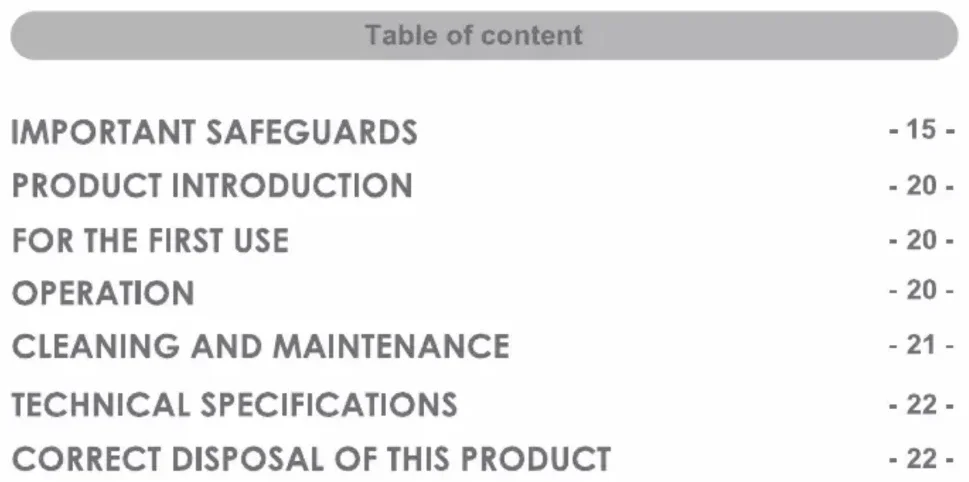

Table of content

IMPORTANT SAFEGUARDS - 15 -

PRODUCT INTRODUCTION - 20 -

FOR THE FIRST USE - 20 -

OPERATION - 20 -

CLEANING AND MAINTENANCE - 21 -

TECHNICAL SPECIFICATIONS - 22 -

CORRECT DISPOSAL OF THIS PRODUCT - 22 -

IMPORTANTSAFEGUARDS

When using electrical appliance. Basic safety precaution should always be followed including the following:

1. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the toaster.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children unless they are older than 8 and supervised.

1. Keep the appliance and its cord out of reach or children less than 8 years.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. Do not touch hot surface. Use handles or knobs only.

4. To protect against electrical shock, do not immerse cord, plug, or any part of the toaster in water or other liquid.

5. Close supervision is necessary when it is used by or near children.

6. Unplug unit from outlet when not in use and before cleaning.

7. Do not let the cord hang over

edge of table or counter, or touch hot surface.

1. Do not plac near or a gas or electric burner, or in a heated oven.

2. Do not use the appliance for other than its intended use.

3. Oversize food, metal foil packages or utensilsmus no t be inserted dh into a ste the mraas y y cause fi ele cr. tric shock

4. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.

5. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

6. Don't attempt to dislodge food when toaster is in operation

7. Be sure to take the bread out carefully after toasting so as to avoid injuries

8. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.
9. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
10. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

11. Warning: if toast of small bread slices less than 85mm length, you must pay attention to the potential risk of burning when taking out the slices.

12. Don't use the appliance outdoors.

13. Regarding the detailed instructions for cleaning the appliance and the method for removing the breadcrumbs, thanks to refer to below paragraphs of this manual.

Caution, hot surface.

1. The temperature of accessible surfaces may be high when the appliance is operating.

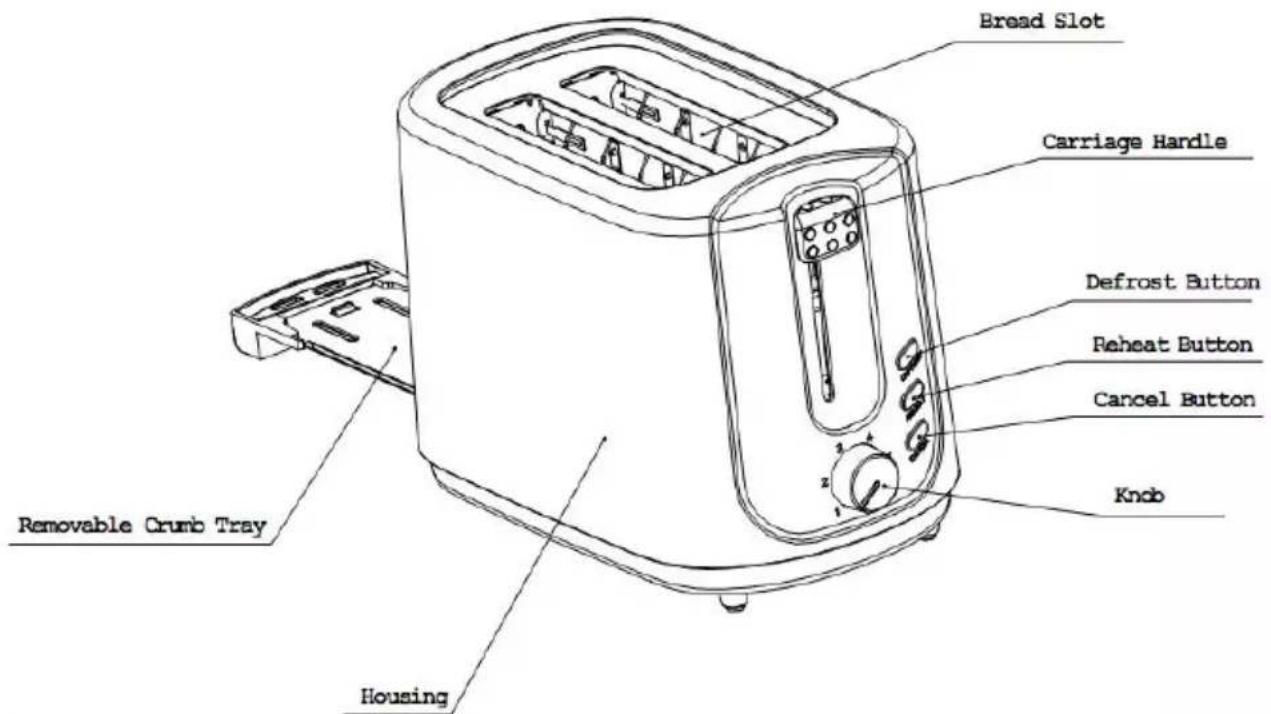

PRODUCTINTRODUCTION

Bread Slot Carriage Handle Defrost Button Reheat Button Cancel Button Knob Removable Crumb Tray Housing

FORTHEFIRSTUSE

Asthereismanufacturingresidueoroilremainedinthetoasterorheatelement,itusually emitstheodorforthefirstuse.Itisnormalandwillnotoccurafterseveraltimesuse. Beforetoastingthefirstsliceofbreaditisstronglysuggestedtooperatetheappliance followingbelowinstructions,exceptwithoutbread.

OPERATION:

1. Putbreadsliceintothebreadslot, itcanbeinsertedtwoslicesatmosteverytime. Note: 1. Makesurethecrumbtrayiscompletelypositionedinplacebeforeusing.
   2.Plugthepowercordintotheoutlet.
2. Setcolorcontrolknobtoyourdesiredcolor. Thereis6-positionlevel, the lowest is white and the highest dark. The breadslice can be toasted to golden color at the position of "4".

Note: 1) Toasting color for one slice is darker than that for double bread at the same level.

2) If toasted continuously, toasting color for the latter bread is darker than the color of previous cycle at the same level.

1. Presscarriage handled down vertically untilitis positioned in place, the indicator of

Cancel will be illuminated, and toasting begins. Once the bread has been toasted to the presetcolor, the carriage handle will be automatically popup.

Note: The carriage handle can only be latched when the appliance connects to the power supply.

1. During the toasted process, you may observethetoasting color. If it's satisfactory, you may interrupt the toasting process by pressing the Cancel button at any time.

2. If the bread has been taken out from refrigerator. Set color control knob to your desired color. Press carriage handled down vertically until it is positioned in place, then press

Defrost button and the indicator of Defrost will be illuminated. In this mode it will be toasted to your desired color.

1. If you want to eat the cold toasted bread. Press carriage handled down vertically until it is positioned in place, then press Reheat button and the indicator of Reheat will be illuminated. In this mode toasting time is fixed, so long as time is running over, the carriage handle will automatically spring up and end up there heating process.

CAUTION:

1. Remove all protective wrapping priorit to toasting.
2. If toaster starts to smoke, Press Cancel to stop toasting immediately.
3. Avoid toasting the food with extremely running ingredient such as butter.
4. Never attempt to remove bread adjammed in the slots without unplugging the toaster from the electrical outlet first, Besurenottodamagethe internal mechanism or heating elements when removing bread.
5. The bread slot is only applicable for toasting regular bread slice.

CLEANINGANDMAINTENANCE:

1. Disconnect the powers supply before cleaning.
2. Wipetheoutsidewithsoftdryclothaftertoastercoolsdown,neverusemetalpolish.
3. Pulloutcrumbtrayonbottomoftoasterandemptyit.Iftoasterisusedfrequently, accumulatedbreadcrumbsshouldremovedatleastonceawek.Makesurethecrumbtray iscompletelyclosedbeforeusingthetoasteragain.
4. Whennotuseorstorage, the powercord may bewound under the bottom of toaster.

TECHNICALSPECIFICATIONS

Voltage/Frequency: 220-240V\~50-60Hz

Power: 750W

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97,

From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).
