BO0110 - Kettle AYA - Free user manual and instructions

Product type	Cordless electric kettle
Brand	AYA
Model	BO0110
Capacity	0.5 L to 1.7 L
Rated voltage	220-240 V~ 50-60 Hz
Rated power	1850-2200 W
Automatic shut-off	Yes, after boiling
Dry boil protection	Yes, automatic shut-off and reset
Light indicator	Yes, lights up during operation
Lid	Push-button opening
Base	Rotating base with cord storage
Housing material	Plastic and stainless steel (estimated)
Filter	Removable filter, clean regularly
Care and cleaning	Exterior cleaning with damp cloth; descaling with white vinegar
Safety instructions	Do not immerse, do not open lid while boiling, use on stable surface, keep out of reach of children
Intended use	Household use only
Repairability	Power cord replaceable by a qualified professional
Warranty	2 years (statutory warranty)
After-sales service	Contact BUT at 09 78 97 97 97

Frequently Asked Questions - BO0110 AYA

How to use the AYA BO0110 kettle for the first time?

Before first use, boil drinking water twice, then discard to remove manufacturing residues. Then fill between 0.5 L and 1.7 L, close the lid, place on the base, plug in, and press the switch.

What is the minimum and maximum capacity of the kettle?

The minimum capacity is 0.5 L and the maximum is 1.7 L. Do not exceed the maximum level to prevent boiling water overflow.

What to do if the kettle heats without water (dry boiling)?

The kettle automatically stops thanks to dry boiling protection. Let it cool completely, then fill it with cold water before reusing.

How to descale the kettle?

Fill the kettle with 3 cups of white vinegar and water, let it sit overnight without boiling. Empty, rinse, then boil clean water and discard. Repeat if necessary.

Can I open the lid while the water is boiling?

No, never open the lid when water is hot or boiling to avoid serious burns. Wait for the water to cool.

How to clean the exterior of the kettle?

Wipe the exterior housing with a soft, damp cloth. Do not use chemical cleaners, abrasives, or metal sponges.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any hazard. Do not use the appliance with a damaged cord.

Can I use the kettle with a timer or remote control?

No, the appliance is not intended to be used with an external timer or remote control system.

How to store the kettle?

Unplug it and let it cool. Wind the power cord around the storage under the base. Store in a dry place out of reach of children.

Where can I find after-sales service for the AYA BO0110 kettle?

Contact BUT at 09 78 97 97 97 Monday to Friday from 9 a.m. to 7 p.m. and Saturday from 9 a.m. to 6 p.m. (local call price).

USER MANUAL BO0110 AYA

MANUEL D'UTILISATION BO0110

FR

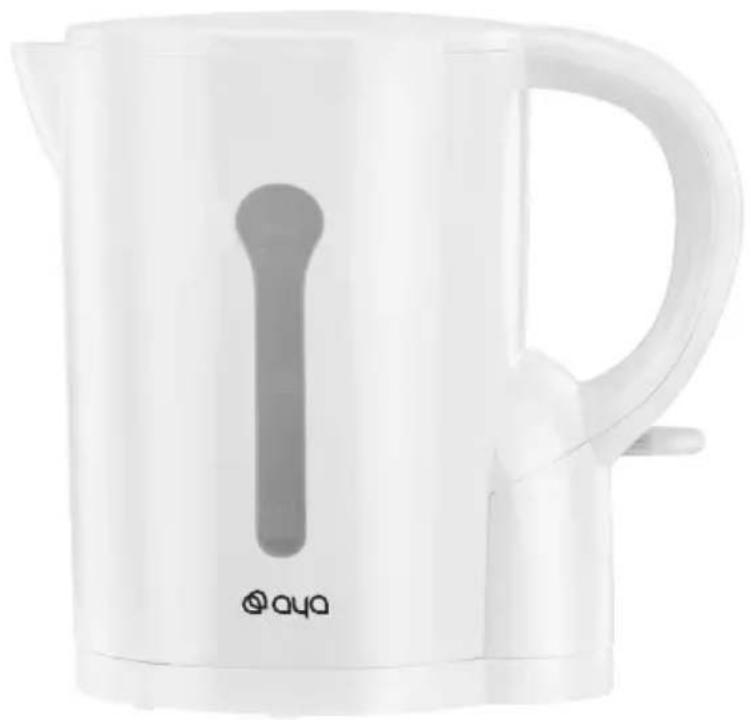

White ceramic water heater with a handle and spout, no visible text or symbols on the device itself.

Bouilloire

Table des matières

CONSIGNES DE SECURITE IMPORTANTES - 3 -

DESCRIPTION DE VOTRE BOUILLOIRE - 18-

UTILISATION DE VOTRE BOUILLOIRE - 18-

ENTRETIEN ET NETTOYAGE - 20-

SPECIFICATIONS TECHNIQUES - 22-

ENLEVEMENT DES APPAREILS MENAGERS USAGES - 22-

LE TRI + FACILE BAC DE TRI

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

White ceramic water heater with a handle and gray interior, no visible text or symbols on the device itself.

Kettle

Table of content

IMPORTANT SAFETY INSTRUCTIONS -25-

KNOW YOUR APPLIANCE -36-

USING YOUR APPLIANCE -36-

CARE AND CLEANING -37-

TECHNICAL SPECIFICATIONS -39-

LASOPSID TCERROC OF THIS PRODUCT -39-

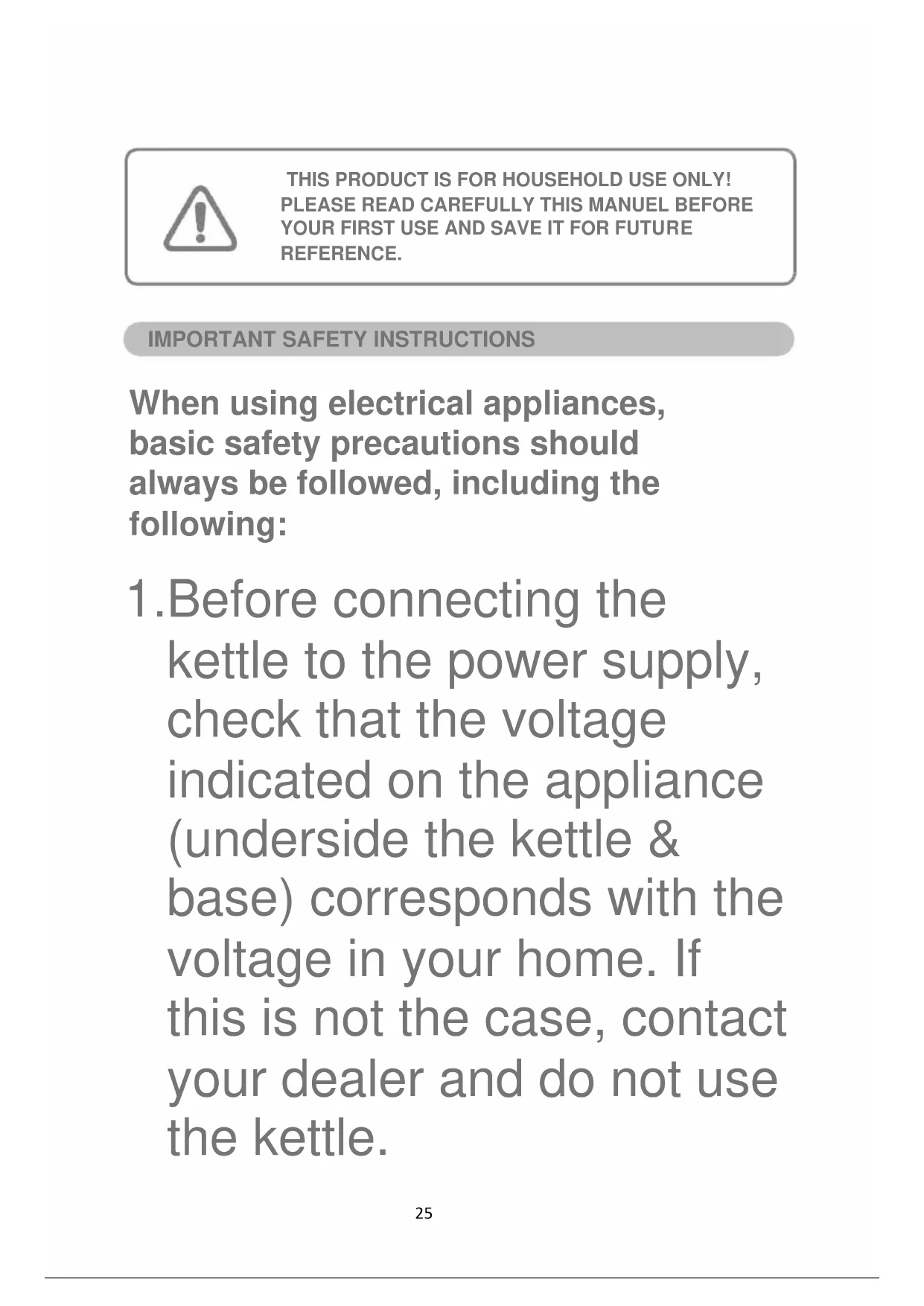

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! PLEASE READ CAREFULLY THIS MANUEL BEFORE YOUR FIRST USE AND SAVE IT FOR FUTURE REFERENCE.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Before connecting the kettle to the power supply, check that the voltage indicated on the appliance (underside the kettle & base) corresponds with the voltage in your home. If this is not the case, contact your dealer and do not use the kettle.

2. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

3. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

4. The attached base can not be used for other than intended use.

5. Make sure to have filled

in the kettle with clean water before use.

1. Do not let the cord hang over edge of table counter or touch hot surface.

2. Do not place on or near a gas or electrical burner, or a heat source.

3. If the kettle is operated without water, the dry boil protection will automatically reset to stop operation. If that were to happen, allow the appliance to cool completely before filling it with cold water.

4. Make sure that the appliance is used on a flat and stable surface, out of the reach of children.

5. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or kettle in water or other liquids.

6. The outside surface of the kettle may get hot during use, be careful not to touch it to avoid burns. Use only the handle or button.

7. Be especially careful when moving an appliance containing hot water.

8. The use of accessories that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.

9. Avoid touching the steam from the kettle spout when the water is boiling or just after the kettle stops.

10. WARNING: do not remove the lid while the water is boiling.

11. CAUTION: position the lid so that steam is directed away from the handle.

12. Unplug the apparatus from the wall outlet when not in use and before cleaning. Allow the appliance to cool before putting on or taking off parts, and before cleaning it.

13. When the water is boiling, do not lift the lid and make sure it is securely closed to avoid burns.

14. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

15. Do not use the kettle for any purpose other than that intended for it.

16. Do not move the kettle when it is switched on.

17. The kettle is only to be used with the stand provided.

18. If the kettle is overfilled, boiling water may be ejected.

19. Do not use the appliance outdoors.

20. This appliance is intended to be used in household and similar applications such as:

21. Staff kitchen areas in shops, offices and other working environments;

22. Farm houses;
23. By clients in hotels, motels and other residential type environments;

24. Bed and breakfast type environments.

25. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

26. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

27. Regarding the instructions for cleaning the appliance, thanks to refer to the below paragraph "cleaning" in manual.

28. The heating element surface is subject to residual heat after use. Do not touch these surfaces to avoid burning yourself.

29. CAUTION: insure that the appliance is switched off before removing it from its stand.

30. WARNING: potential injury from misuse.

31. The appliance must not be immersed.

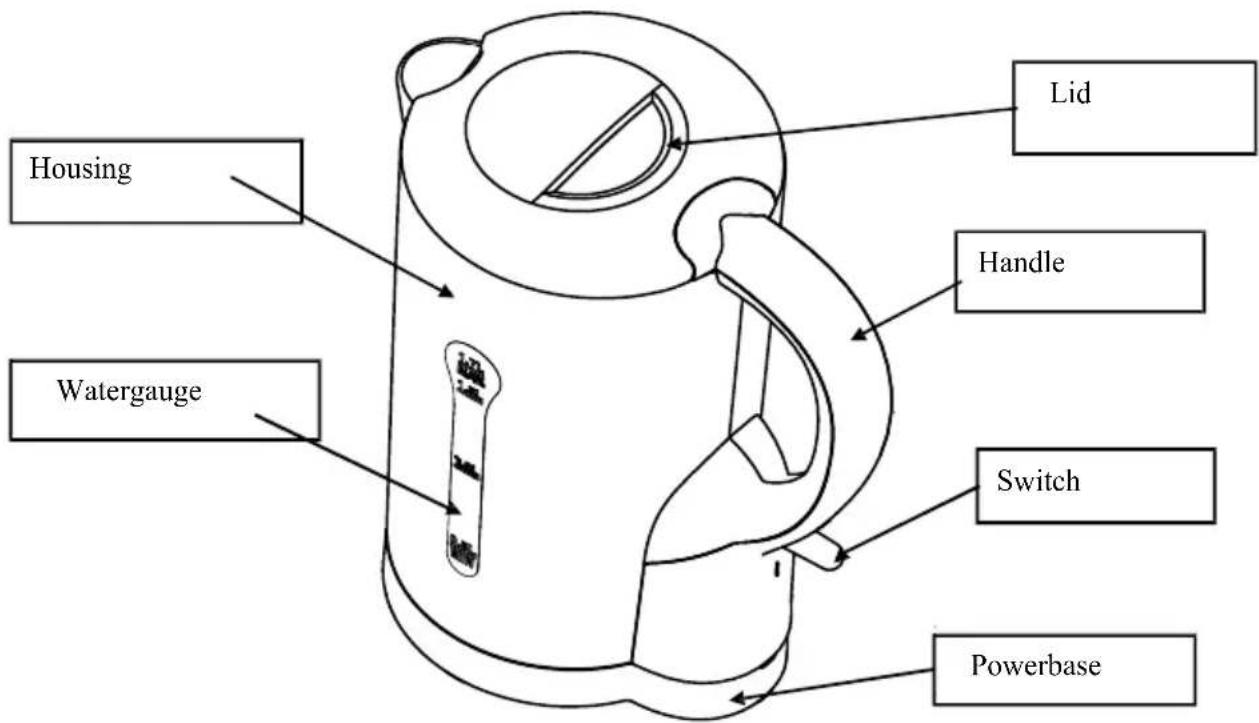

Housing Watergauge Lid Handle Switch Powerbase

USING YOUR APPLIANCE

Before initial use

If you are using the kettle for the first time, it is recommended that you clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

1. To fill water into the kettle, remove it from the power base and open the lid by lifting the lid handle, fill with the desired amount of water to the kettle. Always fill the kettle between the minimum (0.5L) and maximum (1.7L.) marks. Too little water will result in the kettle switching off before the water has boiled. NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling.

Ensure that the lid is firmly in place before connecting the power cord to the outlet.

1. Close the lid. Position the kettle on the power base in place. Make sure the kettle contact with the power base completely.
2. Connect the plug into a power outlet. Press down the switch to "I" position and the switch light illuminates. Then start to boil the water. The kettle will switch off automatically once the water has boiled and eg the switch light extinguishes. You can shut off the power by pressing the switch at any moment during boiling water. NOTE: Ensure that switch is clear of obstructions and the lid is firmly closed. The kettle will not turn off if the switch is constrained or if the lid is left open.
3. Lift the kettle from the power base and then pour the water. NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scald, besides, don't open the lid while the water in the kettle is hot.
4. The kettle will not re-boil until the switch is uplifted. Allow to cool for 15\~20 seconds before reopening to boil water. The kettle may be stored on the power base when not in use. NOTE: Ensure power supply is turned off when kettle is not in use.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. CAUTION: Insure that the appliance is switched off before removing it from its stand.

Boil-dry protection

Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

CARE AND CLEANING

Always disconnect the appliance from the power outlet and leave it to cool down completely before cleaning.

Never immerse the kettle or cord in water, or allow moisture to contact with these parts.

Removal of mineral deposits

Mineral deposits in tap water may cause the kettle interior to discolor. To remove this build-up, use non-toxic Liquid Descaler.

Alternatively:

1. Fill the kettle with 3 cups of white vinegar and the remainder of water and be allowed to stand overnight. Do not boil.
2. Empty the solution from the kettle. Any stains remaining inside the spout can be removed by rubbing with a damp cloth, fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will then be ready to use.

Cleaning external housing

Wipe the external housing with a wild and damp cloth or cleaner.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle.

Cleaning the filter

Remember to clean the filter with a wild and damp cloth at intervals.

Storage

When not in use or storage, the power cord may be wound around the cord storage under the base of kettle.

Voltage/Frequency: 220-240V\~ 50-60Hz

Power: 1850-2200W

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years. To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97, From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).
