AR4MK01 - Heating ARDES - Free user manual and instructions
Find the device manual for free AR4MK01 ARDES in PDF.
| Brand | Ardes |
| Model | AR4MK01 |
| Product type | Electric convection heater |
| Nominal thermal power | 1.5 kW |
| Minimum thermal power | 0.5 kW |
| Function selector | 3 positions: 0 (off), 1 (min heat), 2 (max heat) |
| Adjustable thermostat | Yes, mechanical |
| Operating indicator light | Yes |
| Anti-tip safety | Yes, automatic shut-off if tipped over |
| Overheating protection | Yes (do not cover) |
| Power supply | 220-240 V ~ 50/60 Hz |
| Included accessories | 2 supports, 4 casters |
| Usage | Indoor only |
| Cleaning | With a slightly damp cloth; do not immerse |
| Warranty | 24 months |
| Temperature control | Integrated mechanical thermostat |
Frequently Asked Questions - AR4MK01 ARDES
User questions about AR4MK01 ARDES
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual AR4MK01 - ARDES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AR4MK01 by ARDES.
USER MANUAL AR4MK01 ARDES
GB This product is only suitable for well insulated spaces or occasional use.


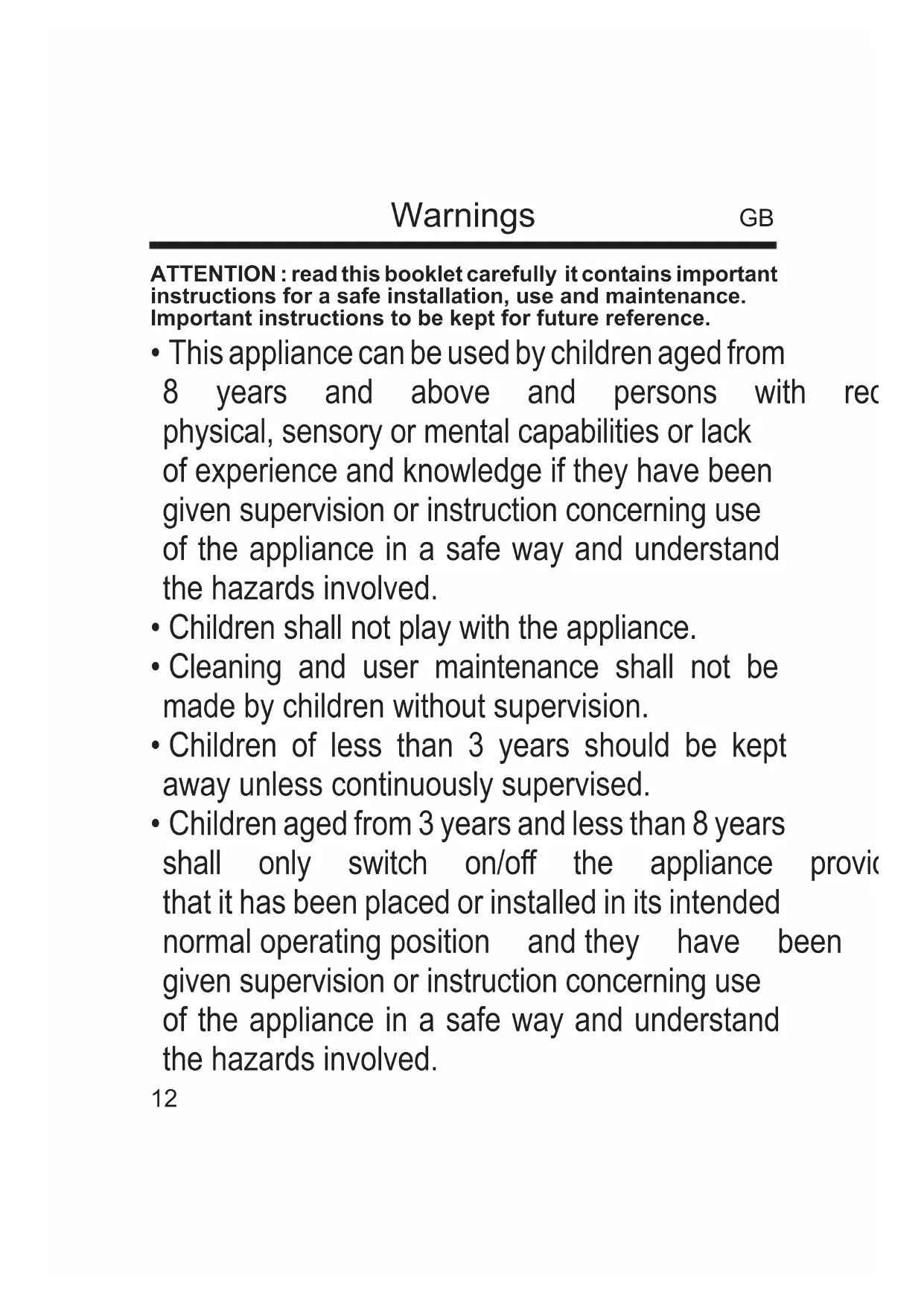

- This appliance can be used by children aged from 8 years and above and persons with recphysical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised. -
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provide that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
- If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.
DO NOT COVER
- WARNING: In order to avoid overheating, do not cover the heater.
- Do not place the appliance immediately below a socketoutlet.
- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage
to the heater.
- Use this heater on a horizontal and stable surface.
- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- WARNING: To reduce the risk of fire, d use this product near textiles, curtains or other combustible materials.
- Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
- Don’t connect the appliance to the power supply and don’t use it unless it is completely assembled (see mounting instructions).
Keep handy the guarantee, receipt of payment and these instructions for future use and reference.
After removing the packaging, check the appliance for any signs damage.
In case of visible damage, do not use it and contact a qualified technician.
Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.
Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.
If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.
Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.
When you don't use the appliance disconnect it from the power supply and assure that the interruptor is off.
Do not tug on the power cable or on the appliance itself to remove the plug from the socket.
The use of any electrical appliance requires that a number of basic rules are observed, namely:
- Never touch the appliance with wet or humid hands.
- Do not leave the appliance exposed to weathering (rain, sunlight).
- Do not subject it to rough handling.
In case of a breakdown or malfunctioning of the appliance, disconnect it at once.
Do not attempt to repair it, but take it to a service centre approved by the manufacturer.
If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.
The power cable should be extended to its full lenght to avoid heating.
For safety reasons, the appliance should never be opened.
The appliance has been designed and manufactured to operate in the home.
Any other use is considered inappropriate and dangerous.
Do not insert objects through the safety grill or the air inlets.
During use, rest the appliance on a flat surface.
Do not use this heating appliance with programmers, timers, separate remote control systems (different to the ones provided with the appliance) or any other device that automatically turns on the appliance, as there is a risk of fire in the event the appliance is covered or positioned incorrectly.
Do not use the heater in presence of flammable substances (paints, etc.).
Do not place the cord near sources of heat.
WARNING: DO NOT COVER THIS PRODUCT NEAR CURTAINS OR OTHER COMBUSTIBLE MATERIAL.
WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE AIR INLETS TO AVOID OVERHEATING.
1 - Function switch:
0 Off
1 minimum heating
2 maximum heating
2 - Adjustable thermostat
3 - Operating indicator light
4 - Supports (2 pieces)
5 - Wheels (4 pieces)
Technical data indicated on the appliance.
Instructions for use
GB
SUPPORTS ASSEMBLY.
Before performing any assembly operation, make certain that the appliance is switched off and disconnected from the power outlet.
Insert the wheels by pushing them inside the holes placed on the bottom of supports (fig. 1).
Turn the appliance over, unscrew the 4 screws placed on the bottom of the product and place the supports (with the fixed wheels) matching the holes with those on the appliance.
Fix the supports with screws (fig. 2).
USER INSTRUCTIONS.
To turn on the appliance, insert the plug into the power outlet, set the operation switch in the desired position and turn the adjustable thermostat clockwise to the maximum position.
Once the desired room temperature is reached, turn the handle slowly, in a counter clockwise direction, until the appliance is turned off.
At this point, the product will automatically restart when the temperature in the room goes below the set limit.
The indicator light indicates that the appliance is operating and will switch off when the adjustable thermostat is activated.
The appliance is equipped with an automatic turn-off system in case it falls over accidentally.
Before connecting or disconnecting the appliance, make certain that all the switches are in the off position.
Before replacing the appliance in its packaging, check that it has cooled sufficiently.
Disconnect the plug from the socket and let the appliance cool down well before cleaning it.
In order to clean the appliance, use a soft or slight damp cloth.
Never use abrasives or chemical solvents.
Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.
NEVER IMMERSE THE APPLIANCE INTO THE WATER.
USER INFORMATION
GB
PACKAGING
In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection.
Check local regulations.
USER INFORMATION
“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.
The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.
The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.
For more details, please contact the appropriate local authority.
Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.
Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
Terms and Conditions
The guarantee is valid for 24 months.
This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.
The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.
After the guarantee has expired, the appliance will be repaired against payment.
The manufacturer declines any responsibility for damage to personal animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.
Limits
All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:
- mishandled by unauthorized persons
- improperly used, stored or transported.
The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.
If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.
Information requirements for electric local space heaters
| Model identifier(s): AR4MK01 | |||||
| Item | Symbol | Value Unit | Item Unit | ||
| Heat output | Type of heat input, for electric storage local space heaters only (select one) | ||||
| Nominal heat output | P_nom | 1,5 kW | Manual heat charge control, with integrated thermostat | N.A. | |
| Minimum heat output (indicative) | P_min | 0,5 kW | Manual heat charge control with room and/or outdoor temperature feedback | N.A. | |
| Maximum continuous heat output | P_max,c | 1,5 kW | Electronic heat charge control with room and/or outdoor temperature feedback | N.A. | |
| Auxiliary electricity consumption | Fan assisted heat output N.A. | ||||
| At nominal heat output | el_max | N.A. kW | Type of heat output/room temperature control (select one) | ||
| At minimum heat output | el_min | N.A. kW | Single stage heat output and no room temperature control | No | |
| In standby mode | el_SB | N.A. kW | Two or more manual stages, no room temperature control | No | |
| With mechanic thermostat room temperature control | Yes | ||||
| With electronic room temperature control | No | ||||
| Electronic room temperature control plus day timer | No | ||||
| Electronic room temperature control plus week timer | No | ||||
| Other control options (multiple selections possible) | |||||
| Room temperature control, with presence detection | No | ||||
| Room temperature control, with open window detection | No | ||||
| With distance control option No | |||||
| With adaptive start control No | |||||
| With working time limitation No | |||||
| With black bulb sensor No | |||||
| Contact details POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy | |||||
