EGSX 321 210 - Freezer AMICA - Free user manual and instructions

Product Type	Freezer
Brand	AMICA
Model	EGSX 321 210
Power Supply	220-240 V ~ 50 Hz
Recommended Fuse	10 A
Climate Class	SN, N, ST, T (10°C to 43°C)
Refrigerant	R600a (isobutane)
Defrost System	Automatic No Frost
Freezer Temperature Range	-15°C to -24°C
Rapid Freeze	Yes (24h at -24°C)
Open Door Alarm	Yes (after 2 min)
High Temperature Alarm	Yes (if > -1°C)
Temperature Display	Digital (Celsius/Fahrenheit)
Shabbat Mode	Yes
Adjustable Feet	Yes (2 at front)
Number of Drawers	Not specified (removable)
Spare Parts	Available 7 to 10 years
Warranty	Contractual (see manual)

Frequently Asked Questions - EGSX 321 210 AMICA

How to set the freezer temperature?

Unlock the panel by pressing the lock button for 3 seconds, then use the adjustment button to choose the temperature between -15°C and -24°C. The panel automatically locks after 30 seconds of inactivity.

What to do in case of an audible alarm?

The audible alarm may indicate an open door (more than 2 minutes) or a temperature too high (> -1°C). Press any button to stop it. If the alarm persists, check the door closure or contact after-sales service if an error code (F4, F5, CE) appears.

How to defrost the freezer?

The freezer is No Frost type, so defrosting is automatic. However, for a complete cleaning, turn off the appliance, remove food, leave the door open and place a container to collect water. Do not use mechanical tools or sprays. Then wash with a mild detergent and dry.

How to clean the interior?

Unplug the appliance. Use a soft cloth and warm water with a mild detergent. Do not use solvents, abrasive powders or rough sponges. Rinse and dry thoroughly. Clean the door seals with warm water.

What is the ideal temperature for storage?

For the freezer, a temperature of -18°C is recommended. You can set it between -15°C and -24°C as needed. The refrigerator (if present) should be at +4°C.

Can I freeze fresh food?

Yes, but observe the maximum freezing capacity indicated in the specifications (not specified here). Pack the food in airtight bags or aluminum foil, and do not exceed the recommended quantity in 24 hours. Use the quick freeze function for best results.

What does the error code F4, F5 or CE on the display mean?

These codes indicate a malfunction. Contact AMICA after-sales service at 01.56.48.06.31. Do not attempt to repair yourself.

How to activate the quick freeze function?

Unlock the panel, then press the quick freeze button. The indicator lights up and the appliance cools to -24°C for 24 hours, then automatically returns to the previous temperature.

How to save energy with this freezer?

Place the appliance away from heat sources, leave at least 30 mm space at the back for ventilation, open the door only when necessary, and defrost (if needed) to avoid a frost layer of more than 10 mm. The temperature of -18°C is sufficient.

What to do if the door does not close properly?

Check that food is not blocking the closure, that the seal is clean and properly seated, and that the appliance is level (adjust the front feet). If the seal is damaged, replace it.

USER MANUAL EGSX 321 210 AMICA

Chladnička-mraznička / Chladnička s mrazničkou /

Simple icon of a document with a horizontal line and an asterisk, no text or symbols present.

EGSX 321 210

EN- Table of contents

GUIDELINES CONCERNING THE SAFETY OF USE 11

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE 16

INSTALLATION BEFORE USING THE APPLIANCE FOR THE FIRST TIME 16

MINIMUM DISTANCES FROM THE HEAT SOURCES 16

MAINS CONNECTION 17

DISCONNECTING THE MAINS 17

CLIMATE RANGE 17

UNPACKING 18

DISPOSAL OF OLD APPLIANCE 18

CONTROLS 19

APPLIANCE CONTROLS 19

OPERATION AND FUNCTIONS 20

STORAGE OF FOOD IN THE FRIDGE-FREEZER 20

FREEZING FOOD** 20

USING THE REFRIGERATOR EFFICIENTLY 22

PRACTICAL EVERYDAY TIPS 22

UNDERSTANDING THE STARS 22

PRACTICAL TIPS 23

FOOD THAT SHOULD NOT BE STORED IN A REFRIGERATOR 23

DEFROSTING, WASHING AND MAINTENANCE 24

DEFROSTING THE FRIDGE*** 24

DEFROSTING THE FREEZER** 24

DEFROST THE FREEZER CHAMBER FOLLOWING STEPS:** 25

AUTOMATIC FRIDGE DEFROSTING**** 25

AUTOMATIC FRIDGE DEFROSTING**** 25

WASHING THE FRIDGE AND FREEZER CHAMBERS MANUALLY**** 25

TAKING OUT AND PUTTING IN THE SHELVES***** 25

TAKING OUT AND PUTTING IN THE DOOR SHELF***** 25

TROUBLE-SHOOTING 26

WARRANTY AND AFTER SALES SERVICE 28

WARRANTY 28

GARANTIE, NACHVERKAUF-SERVICE 47

GARANTIE 47

FR- Sommaire

CONSIGNES DE SECURITÉ D'UTILISATION 49

INSTALLATION ET CONDITIONS DE FONCTIONNEMENT DE L'APPAREIL 56

INSTALLATION AVANT LA PREMIÈRE MISE EN MARCHE 56

LES DISTANCES MINIMUMS DES SOURCES DE CHAUFFAGE 56

RACCORDEMENT AU RÉSEAU ÉLECTRIQUE 57

MISE HORS CIRCUIT 57

CLASSE CLIMATIQUE 57

DÉBALLAGE

ÉLIMINATION DES APPAREILS USAGÉS 58

COMMANDE

COMMANDE DE L'APPAREIL 59

UTILISATION ET FONCTIONS 60

CONSERVATION DES DENRÉES DANS LE RÉFRIGÉRATEUR 60

CONGÉLATION DES PRODUITS** 60

COMMENT EXPLOITER LE REFRIGERATEUR DE FAÇON ECONOMIQUE?

CONSEILS PRATIQUES 62

QUE VEULENT DIRE LES ÉTOILES? 62

ZONES DE STOCKAGE DANS LE RÉFRIGÉRATEUR 63

PRODUITS QUI NE DEVRAIENT PAS ÊTRE STOCKÉS DANS LE RÉFRIGÉRATEUR 63

DÉGIVRAGE, NETTOYAGE ET CONSERVATION

DÉGIVRAGE DU RÉFRIGÉRATEUR*** 64

DÉGIVRAGE DU CONGÉLATEUR** 64

MODE OPÉRATOIRE POUR LE DÉGIVRAGE DU COFFRE DU CONGÉLATEUR:** 65

DÉGIVRAGE AUTOMATIQUE DU RÉFRIGÉRATEUR**** 65

DÉGIVRAGE AUTOMATIQUE DU CONGÉLATEUR**** 65

LAVAGE À MAIN DU COMPARTIMENT RÉFRIG ÉRATEUR ET CONGÉLATEUR**** 65

ENLÈVEMENT ET MISE EN PLACE DES CLAYETTES ***** 65

ENLÈVEMENT ET MISE EN PLACE DU BALCONNET ***** 65

DÔLEŽITÉ BEZPEČNOSTNÉ PQKYNY 108

INSTALÁCIA A PREVÁDZKOVÉ PODMIENKY SPOTREBIČA 113

INSTALÁCIA PRED PRVÝM SPUSTENÍM 113

MINIMÁLNE VZDIALENOSTI OD TEPELNÝCH ZDROJOV 113

PRIPOJENIE NAPÁJANIA 114

ODPOJENIE OD NAPÁJANIA 114

KLIMATICKÁ TRIEDA 114

ROZBALENIE

LIKVIDÁCIA ZARIADENÍ 115

OVLÁDANIE 116

OVLÁDANIE ZARIADENIA 116

OBSLUHA A FUNKCIE 117

UCHOVÁVANIE POTRAVÍN V CHLADNIČKE A MRAZNIČKE 117

ZMRAZOVANIE VÝROBKOV** 117

AKO EKONOMICKY POUŽIVAT CHLADNIČKU 119

PRAKTICKÉ RADY 119

ČO ZNAMENAJÚ HVIEZDIČKY? 119

ZÓNY V CHLADNIČKE 120

PRODUKTY, KTORÉ BY NEMALI BYŤ PRECHOVÁVANÉ V CHLADNIČKE 120

ODMRAZOVANIE, UMÝVANIE A ÚDRŽBA 121

ODMRAZOVANIE CHLADNICKY*** 121

ODMRAZOVANIE MRAZNIČKY** 121

PRE ODMRAZENIE MRAZIACEHO PRIESTORU MRAZNIČKY JE POTREBA** 122

AUTOMATICKÉ ODMRAZOVANIE CHLADNIČKY**** 122

AUTOMATICKÉ ODMRAZOVANIE MRAZNIČKY**** 122

RUČNĚ UMÝVANIE KOMORY CHLADNIČKY A MRAZNIČKY**** 122

VYTAHOVANIE A VKLADANIE POLÍC***** 122

VYTAHOVANIE A_VKLADANIE PRIEHRADKY***** 122

LQKALIZACIA ZAVAD 123

ZÁRUKA, POPREDAJNY SERVIS 125

ZÁRUKA 125

SL - Sadržaj

POMEMBNE VARNOSTNE NASTAVITVE 127

MONTAŽA IN POGOJI DELOVANJA NAPRAVE 132

INSTALACIJA PRED PRVIM VKLOPOM 132

MINIMALNE ODDALJENOSTI OD TOPLOTNIH VIROV 132

POVEZAVA NAPAJANJA 133

ODKLOP OD NAPAJANJA 133

KLIMATSKI RAZRED 133

RAZPAKIRANJE

ODSTRANJEVANJE IZRABLJENIH NAPRAV 134

UPRAVLJANJE

UPRAVLJANJE NAPRAVE 135

UPORABA IN FUNKCIJE 136

SHRANJEVANJE IZDELKOV V HLADILNIKU IN ZAMRZOVALNIKU 136

ZAMRZOVANJE IZDELKOV** 136

KAKO HLADILNIK UPORABLJAMO EKONOMIČNO 138

PRAKTIČNI NASVETI 138

KAJ POMENIJO ZVEZDICE? 138

TEMPERATURNE CONE V HLADILNIKU 139

IZDELKI, KI JIH NE SMETE SHRANJEVATI V HLADILNIKU 139

ODMRZOVANJE, CISĆENJE IN VZDRŽEVANJE

ODMRZOVANJE IN UMIVANJE HLADILNIKA *** 140

ODMRZOVANJE IN UMIVANJE ZAMRZOVALNIKA** 140

DA ODMRZNEMO KOMORO ZAMRZOVALNIKA, JE POTREBNO**: 141

AVTOMATIČNO ODMRZOVANJE HLADILNIKA**** 141

AVTOMATIČNO ODMRZOVANJE HLADILNIKA**** 141

ROČNO UMIVANJE NOTRANJOSTI HLADILNIKA IN ZAMRZOVALNIKA.**** 141

ODSTRANJEVANJE IN NAMEŠČANJE POLIC***** 141

ODSTRANJEVANJE IN NAMEŠCANJE BALKONOV***** 141

ZAZNAVA OKVARE

GARANCIJA, POPRODAJNE STORITVE

GARANCIJA 144

HR- Kazalo

VAŽNE SIGURNOSNE INFORMACIJE 146 INSTALACIJA I UVJETI RADA UREĐAJA 151

INSTALACIJA PRIJE PRVOG POKRETANJA 151

MINIMALNE UDALJENOSTI OD IZVORA TOPLINE 151

UKLJUČIVANJE U ELEKTRIČNU MREŽU 152

ISKLJUČIVANJE IZ ELEKTRIČNE MREŽE 152

KLIMATSKI RAZRED 152

UKLANJANJE PAKIRANJA 153

ZBRINJAVANJE POTROŠENIH UREĐAJA 153

UPRAVLJANJE

154

UPRAVLJANJE UREĐAJEM 154

UPORABA I FUNKCIJE 155

POHRANJIVANJE NAMIRNICA U HLADNJAKU I ZAMRZIVAČU 155

ZAMRZAVANJE NAMIRNICA** 155

EKONOMIČNA UPORABA HLADNJAKA

157

PRAKTIČNI SAVJETI 157

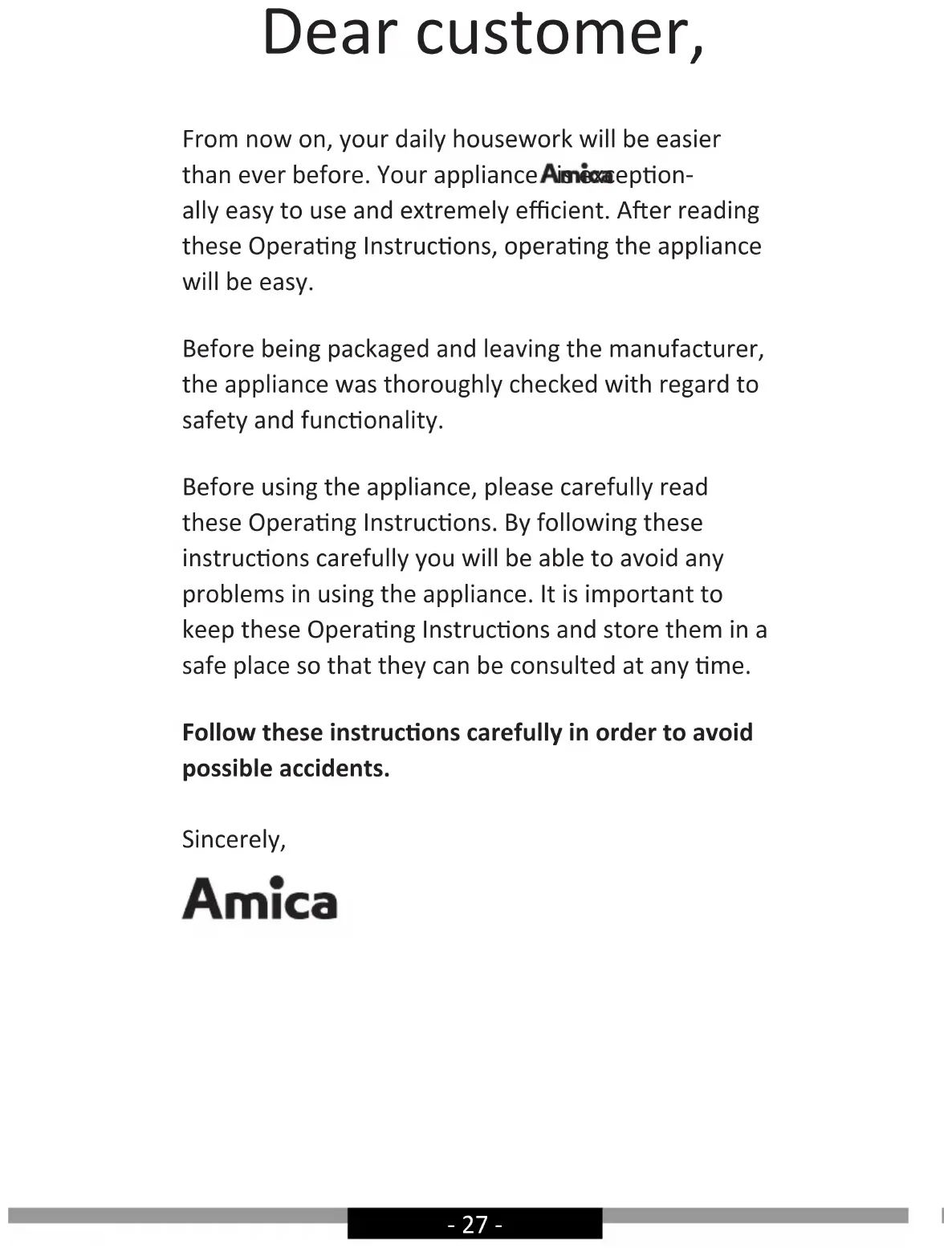

From now on, your daily housework will be easier than ever before. Your appliance Air exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

GUIDELINES CONCERNING THE SAFETY OF USE

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments

• Farm houses and by clients in hotels, motels and other residential type environments
• Bed and breakfast type environments

• Catering and similar non-retail applications

• The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

• Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer)
• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
• Keep this manual for future reference, or to pass it over to the next user.
• This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.
• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.
• The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter.

• When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

• When transporting, moving or positioning the fridge-freezer do not tilt it by more than 40° from the vertical position. Should such a situation occur, the appliance should be switched on after minimum 2 hours from its replacement in the right position (fig.2).

• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

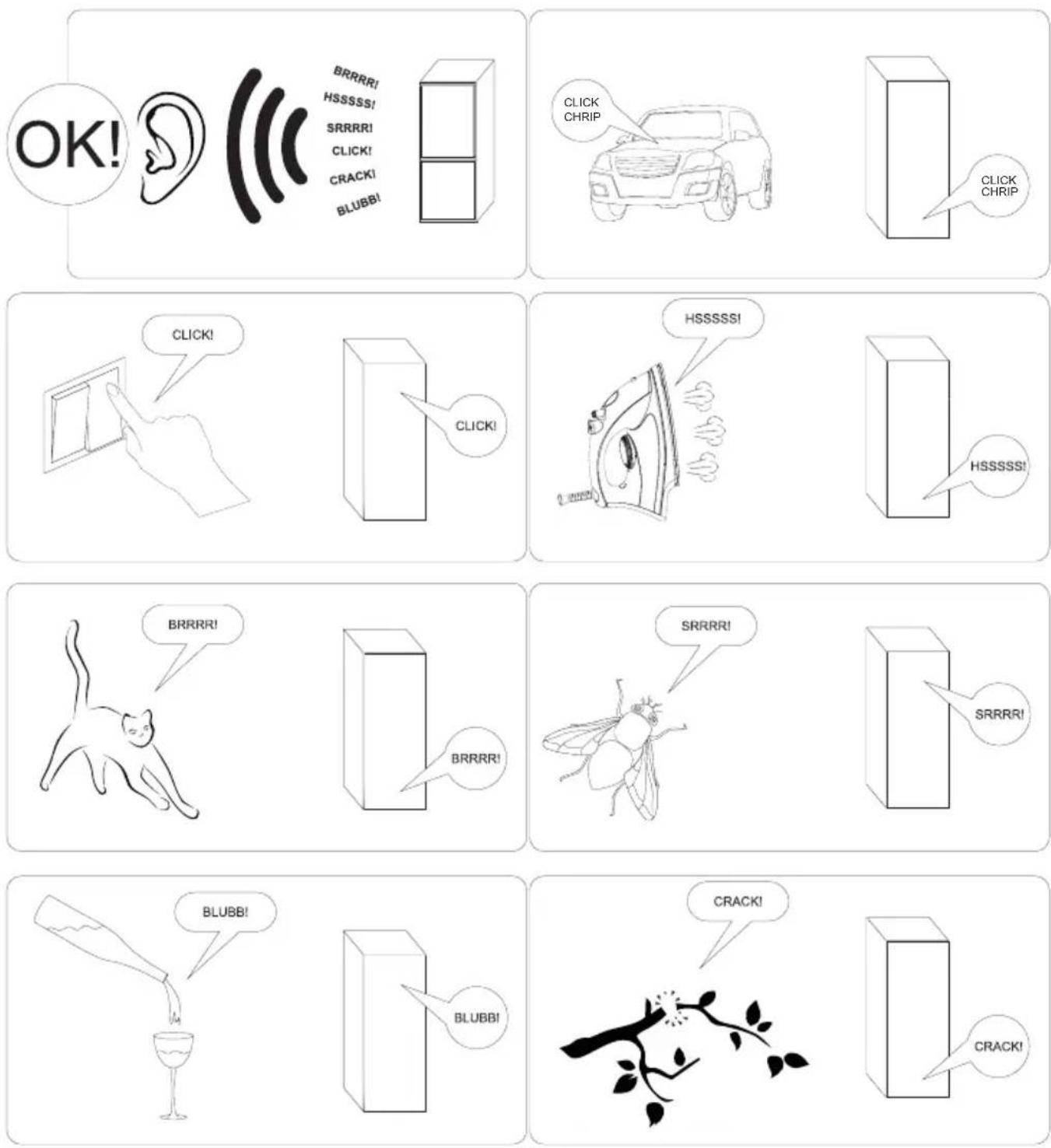

• The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.
• For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.
• Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4m^3 ) to avoid damage to the cooling system.
• Do not refreeze partly thawed products.
• Do not store beverages in bottles and cans, especially carbonated beverages, in the freezer chamber. The cans and the bottles may explode.
• Do not put frozen products, taken out directly from the freezer (lollies, ice cubes, etc.) into your mouth, their low temperature may cause severe frostbite.
• Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is intended for food storage, do not use it for other purposes.
• When performing activities, such as cleaning, maintenance or moving, the appliance must be completely

disconnected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

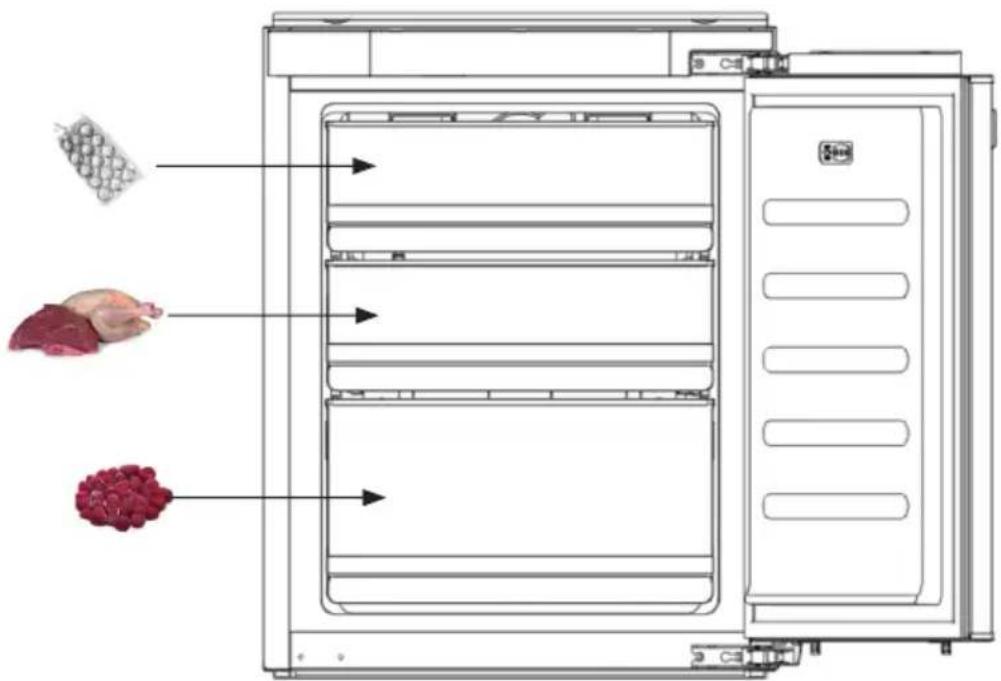

• In order to obtain more space in the freezer, you can remove the drawers and place the food directly on the shelves. This has no effect on the product mechanical properties and cooling performance. Declared freezer capacity was calculated with the drawers removed.
• WARNING: Do not damage the refrigerant circuit.
• This appliance is not intended for use at altitudes exceeding 2000 m.

Warning sign depicting a flame symbol in yellow and black on a white background

WARNING: Risk of fire / flammable materials

• Children aged from 3 to 8 years are allowed to load

and unload refrigerating appliances.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer

	Compartments TYPE	Target storage temp.[°C]	Appropriate food
1	Fridge +2≤+8		Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	Freezer **	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food
5	Freezer *	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star compartment	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7	Chill 2≤+3		Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C)
8	Fresh Food 0≤+4		Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9	Wine +5≤+20 red	wine,white wine,	sparkling wine etc.

• Note: please store different foods according to the compartments or target storage temperature of your purchased products.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Water dispenser cleaning (special for water dispenser products): Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.
• For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

INSTALLATION AND OPER- ATING CONDITIONS OF THE APPLIANCE

This refrigeration appliance is intended for use as a built-in appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction."

Installation before using the appliance for the first time

• Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Do not throw away the polystyrene elements of the packaging. If it is necessary to transport the fridge-freezer, pack it in the polystyrene elements and film as well as protecting it with scotch tape
• Clean the interior surface of the fridge-freezer and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the fridge-freezer on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.

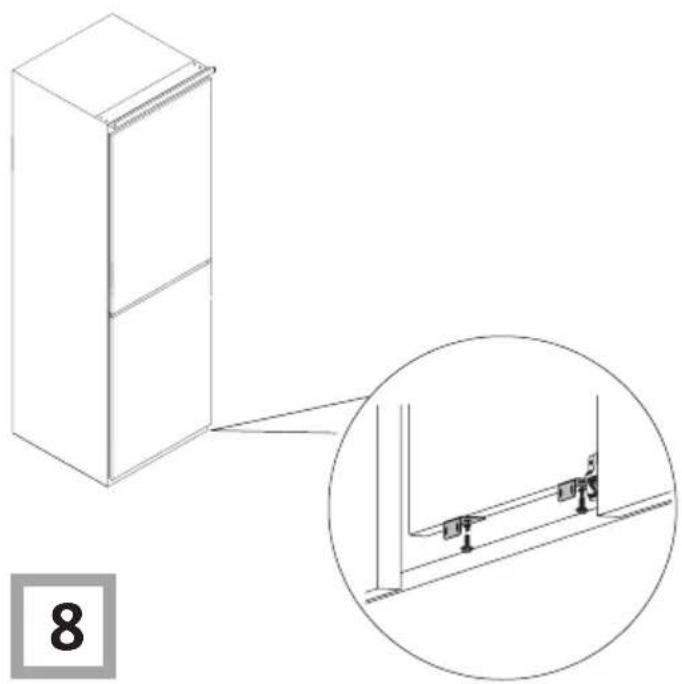

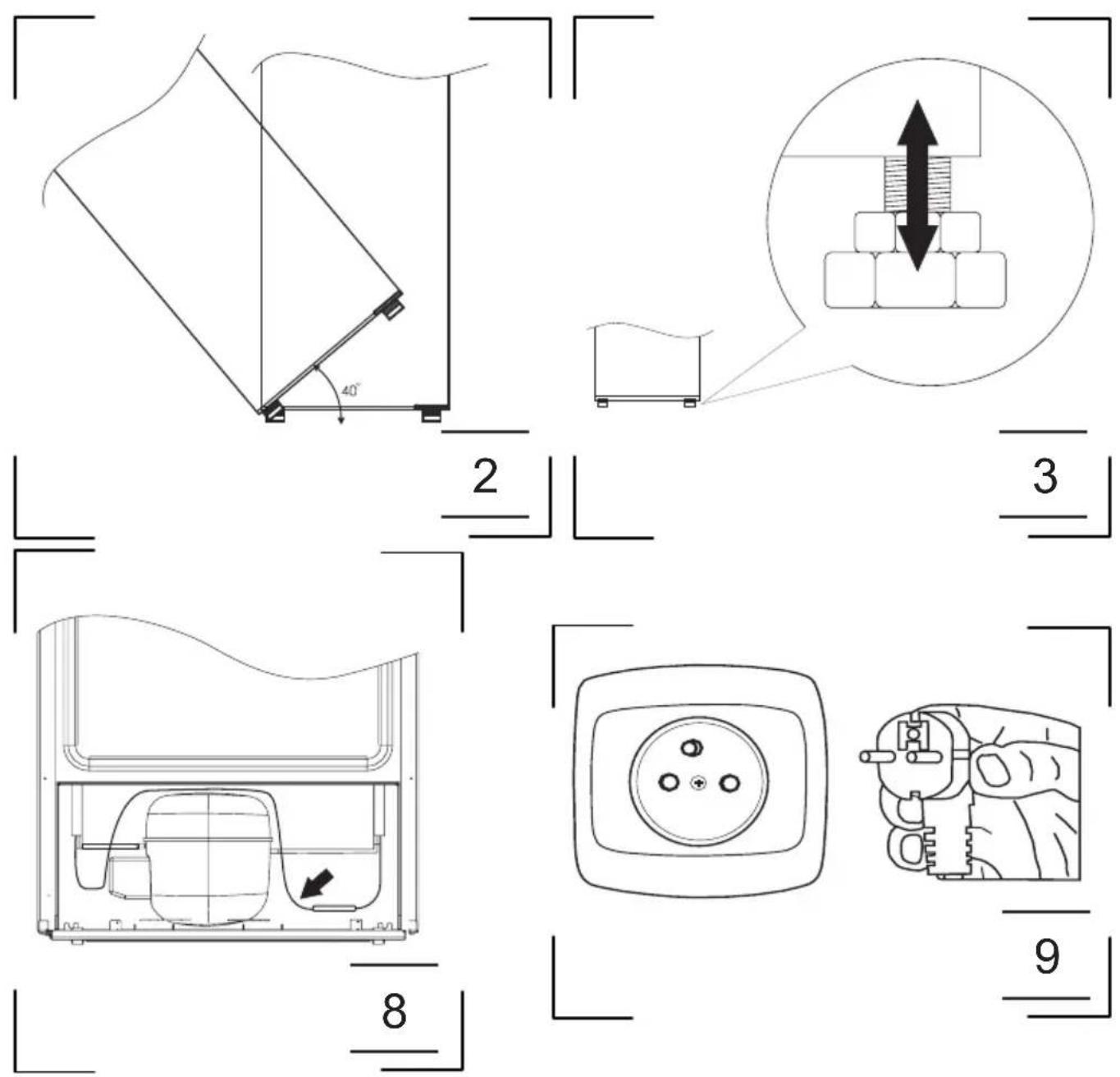

• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (fig. 3)
• To ensure that the door opens freely, the distance between the side of the appliance (on door hinges side) and the wall is shown on figure 5.*

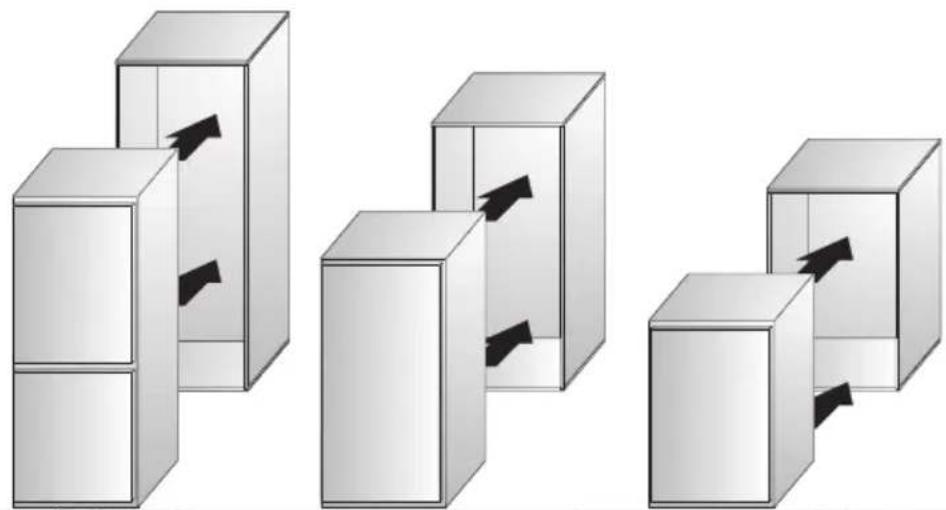

• Ensure adequate ventilation of the room and free air circulation from all sides of the appliance (fig. 6).*
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built - in structure, clear of obstruction

Minimum distances from the heat sources

• from the electric gas and other ovens - 30 mm,
• from oil or coal fired ovens - 300 mm,
• from built-in ovens - 50 mm

If there is no possibility of ensuring the above-mentioned distances, provide an appropriate insulation board.

Warning:

• The rear wall of the refrigerator, in particular, the condenser and other elements of the cooling system must not contact other elements, which may damage them, (e.g. central heating pipes and the water supply pipes).
• It is forbidden to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened or wound.
• If the capillary tube is damaged by the user the guarantee will be void (fig. 8).

- In some models the handle is put into the appliance, You should screw it with Your own screwdriver,

Mains connection

• Prior to connection, it is recommended to set the temperature control knob to an „OFF" or other position that disconnects the appliance from the power supply (See page with the control description).
• This appliance should be connected to AC 220-240V '50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• See the type plate at the lower part of the internal wall of the appliance for detailed specifications**.

Disconnecting the mains

Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off (fig. 9).

Climate range

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate class Allowable ambient temperature

SN Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C
ST Subtropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C
T Tropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for

packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it

over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROLS

Appliance controls

The control panel is shown in figure 10. For reference it is also shown below:

NO FROST

1. When the appliance is turned on for the first time, the freezer compartment will operate at -18^ . If you need to change temperature or function, press and hold for 3 seconds to unlock the control panel. The control panel will lock again after 30 seconds of inactivity. You can control freezer compartment temperature in the range -15^ to -24^ .
2. When the control panel is unlocked, press the ⚙button to set the desired temperature. When rapid cooling function is selected, the ⚙ indicator on the display panel is on). The freezer compartment will maintain a constant temperature of -24^ for a duration of 24 hours, and after this period, the rapid cooling function will deactivate, and the temperature will revert to the user's chosen setting.
3. On/Off switch: Press and hold ⏻ for 3 seconds to turn the appliance on/off.
4. To select temperature unit (Celsius/Fahrenheit) press once then immediately press twice. The selected temperature unit will be highlighted on the display: Celsius °C or Fahrenheit °F.
5. Activate/deactivate the Sabbath mode. Press the button once then immediately press twice.
6. This appliance is equipped with a door-open alarm function that activates when the door has been open for a duration of 2 minutes, triggering an alarm sound. The alarm will sound every minute while the door remains open. Press any button to mute the alarm.

Error display: Error codes may be shown on the display: F4, F5, CE. If error codes appear on the display, kindly get in touch with our after-sales department for assistance.

The appliance is equipped with a high temperature alarm feature. If, following a single refrigeration cycle, the temperature within the freezer compartment rises above -1^ , an alarm will be activated, and the digits on the display will start flashing. Press any button to mute the alarm. The flashing on the display will stop once the temperature falls below -1^ .

OPERATION AND FUNCTIONS

Storage of food in the fridge-freezer

• The products should be placed on plates, in containers or packed in food wrap. Distribute them evenly over the shelves.
• If the food contacts the rear wall, it may cause frosting or wetting of the products.
• Do not put dishes with hot food into the fridge
• Products which absorb flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
• The storage of vegetables containing significant quantities of water will cause the deposition of condensation on the vegetable containers, it does not impact on the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegetables.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before consumption.

• It is recommended to place the products in freezer drawers 1, 2, 3* up to natural loading capacity (Fig. 11a / 11b).**

• Packed products

• Shelf
• Natural loading capacity

• * * * *

• Stacking of products on the freezer shelves is acceptable.*

• It is acceptable to place products beyond the natural loading capacity by 20-30 mm.**
• In order to increase the loading capacity of the freezer chamber and allow the stacking of products on the freezer evaporator wire shelves up to maximum height it is possible to remove drawers 1 and 2.*

Freezing food\*\*

• Practically all the food products, except for vegetables consumed raw, such as lettuce can be frozen.
• Only food products of the highest quality, divided into small portions for single use, should be frozen.
• Products should be packed in materials that are odourless, resistant to air and moisture penetration, and not susceptible to fat. Plastic bags, polyethylene and aluminium sheets are the best wrapping materials.
• The packaging should be tight and should stick to the frozen products. Do not use glass containers.
• Keep fresh and warm foodstuff at ambient temperature away from the products, which have already been frozen.

• We advise you not to place more of fresh food at a time to the freezer per day (see table witch technical specification).

• In order to maintain optimum quality of the frozen food, reorganise the food that is in the middle of the freezer, so that it does not touch the products that are not yet frozen.

• It is recommended that you move the already frozen products to one side and place the fresh products that are to be frozen on the opposite side, as close to the rear and side walls as possible.
  • To freezing products, use space marked * * * *.
• Bear in mind that the temperature in the freezer is affected by several factors, including the ambient temperature and the quantity of food products in the chamber, the frequency of opening the door, the amount of frost in the freezer, and the thermostat setting.
• If you cannot open the freezer door immediately after closing it, allow 1-2 minutes for the negative pressure to compensate, and try again to open the door.

The storage time for frozen products depends on their quality before freezing when fresh, and on the storage temperature. The following storage periods are recommended when the temperature of -18^ or lower is maintained:

Products Months

Beef 6-8
Veal 3-6
Giblets 1-2
Pork 3-6
Poultry 6-8
Eggs 3-6
Fish 3-6
Vegetables	10-12
Fruit 10-12

Do not store frozen food in rapid cooling chamber. Ice cubes can be prepared and stored in this chamber.

Note: If the appliance does not have a freezer compartment ( ^*** ), it is not suitable for freezing foodstuffs.

USING THE REFRIGERATOR EFFICIENTLY

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or in direct sunlight.
• Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food each contains and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it does not warm up too much.
• Wipe the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Do not allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it will not shut properly. Always replace broken seals.

Understanding the stars

Temperature is at least -6^ ; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.

Food can be stored at -12^ C or below for 1-2 weeks without losing its taste. Not suitable for freezing food.

This rating is mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.

This appliance is suitable for storing foods at -18^ C or below and freezing larger quantities of fresh foods.

Practical tips

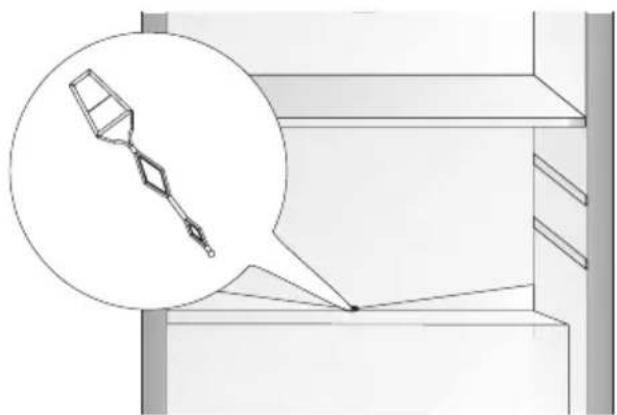

Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber.

• The coldest area is directly above the vegetables drawers. Use this area for all delicate and highly perishable food e.g.:
• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetable and other fresh food with a label stating it should be kept at a temperature of approx 4^ C.
• The warmest area is in the top section of the door. Use this for storing butter and cheese.

Food that should not be stored in a refrigerator

- Not all food is suitable for storing in the refrigerator, particularly:

- Fruit and vegetables which are sensitive to cold, such as bananas, avocado, papaya, passion fruit, aubergines, peppers, tomatoes and cucumbers.

- Fruit which is not yet ripe

- Potatoes

Warning:

Example of storing the food - see figure 12.

To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.

Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature range should be stated on the food product packaging.

DEFROSTING, WASHING AND MAINTENANCE

Never clean the product's casing or plastic parts using solvents or strong, abrasive detergents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges.

External surfaces made of plastic should be cleaned with a microfiber cloth, otherwise irreversible micro scratches will appear.

Defrosting the fridge\*\*\*

• Frost settles on the rear wall of the fridge chamber. It is removed automatically. During the defrosting, the condensate, which contains contaminants may clog the opening in the through. Should it occur, carefully unclog the opening with the cleaning plug (fig. 13).
• The appliance operates in cycles: it refrigerates (then the frost settles on the rear wall), and defrosts (water flows down the rear wall)
• Disconnect the appliance from the mains before cleaning by removing the plug from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.
• Do not use defrosting aerosols. They may cause the formation of an explosive mixture, or contain solvents which may damage the plastic components of the appliance and even be harmful to health.
• Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.
• The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than thode recommended by the manufacturer

Defrosting the freezer\*\*

• It is recommended to combine defrosting the appliance with washing it.
• Excessive accumulation of ice on the freezing areas impairs the appliance's freezing capacity and increases the energy consumption.
• Defrost the appliance at least once or twice a year. In case of a higher ice build-up, defrosting must be carried out more frequently.
• If there is food in the freezer, set the knob to the max. position about 4 hours before the planned defrosting. This will ensure the possibility of storing the food at the ambient temperature for a longer time.
• After taking the food out of the freezer, put it in a container, wrap it with several layers of paper, a blanket and store it at a cool place.
• The defrosting operation should last as short as possible. Long storage of food at the ambient temperature shortens their shelf life.

Defrost the freezer chamber following steps:\*\*

• Switch of the appliance using the control panel and pull the plug out from the socket..
• Open the door and remove the food from the freezer.
• Depending on the model, pull out the drainage tube located in the bottom of the freezer compartment and place a suitable vessel underneath.
• Leave the door open, this will speed up the defrost process. Additionally, a pot with hot water (not boiling) may be placed inside the freezer compartment.
• Wash the interior of the freezer and wipe it dry.
• Switch on the appliance as per the relevant point in the manual.

Automatic fridge defrosting\*\*\*\*

The fridge chamber has been equipped with an automatic defrosting function. However, frost may settle on the rear wall of the fridge chamber. This happens usually, when large quantities of fresh food products are stored in the fridge.

Automatic fridge defrosting\*\*\*\*

The freezer chamber has been equipped with an automatic defrosting function (no-frost). The food is frozen in the cooled circulation air, and the moisture from the freezer chamber is discharged outside. As a result, no ice and frost is produced in the freezer and the products do not freeze on each other.

Washing the fridge and freezer chambers manually\*\*\*\*

It is recommended to wash the fridge and freezer chambers at least once a year. This prevents the formation of bacteria and bad odours. Switch off the appliance, using button (1), remove the food from the chambers and wash them using water with a mild detergent. Then, wipe the chambers dry with a cloth.

Taking out and putting in the shelves\*\*\*\*\*

Slide the shelf out, then slide it in as much as possible so that its clamp could fit the guide groove (fig. 15).

Taking out and putting in the door shelf\*\*\*\*\*

Lift the door shelf, remove it and put it back from the top into its required position (fig. 16).

WARNING! You must not put an electric heater, a heating fan or a hair dryer into the freezer by any means.

TROUBLE-SHOOTING

Problems Possible causes Remedies

The appliance does not work	The electric circuit is disrupted	- check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
The lighting inside the chamber does not work	The bulb is loose or fused (only appliances with bulb lightning type)	- fit the bulb correctly or replace it (see section above "Replacing the interior light bulb)
The appliance works continuously	Incorrect setting of the adjustment knob	- reset the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged (depending on the model)	- clean the discharge opening (see the operating manual - chapter entitled "Defrosting the fridge")
	Internal air circulation obstructed	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance	- level the appliance properly
	The appliance is touching furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Problems Possible causes Remedies

	Incorrect setting of the adjustment knob	- reset the knob to a higher position
	The ambient temperature is higher or lower than the climate range from table with technical specification	- the appliance is adapted to operation in the climate range from table with technical specification.
	The appliance is located in a sunlit place or near heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool (freezes) and the required temperature is reached inside the chamber
	Internal air circulation obstructed	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is obstructed	- move the appliance min. 30 mm away from the wall
	The door of the fridge/freezer is opened too often and/or remains open for too long	- reduce the frequency of opening the door and/or shorten the time when door remains open
	The door does not close completely	- place the food and containers so that they would not interfere with door closed
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than climate class
	Door gasket inserted incorrectly	- press the gasket in

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
• sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

WARRANTY AND AFTER SALES SERVICE

Warranty

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Certifi cate of compliance CE and UKCA

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations 2016.
  • Electromagnetic Compatibility Directive 2014/30/EC / Electromagnetic Compatibility Regulations 2016.
• ErP Directive 2009/125/EC / The Ecodesign for Energy-related Products Regulations 2010 (as amended) for the applicable implementing measures which apply in Great Britain and Northern Ireland, respectively.

and therefore the product has been marked with C€ and UK symbols and the Declaration of Conformity, the Manufacturer has drawn up the declaration and is available to the competent authorities regulating the market.

Warning sign depicting a flame symbol in yellow and black on a white background

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Warning sign depicting a flame symbol in a yellow triangle with black border

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Warning sign depicting a flame symbol in yellow and black on a white background

WAARSCHUWING: Brandgevaar / brandbare materialen

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

Warning sign depicting a flame symbol in yellow and black on a white background

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Warning sign depicting a flame symbol in yellow and black on a white background

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with diagonal lines and a horizontal bar below (no text or labels)

Warning sign depicting a flame symbol in yellow and black on a white background

OPOZORILO: Nevarnost požara / vnetlji- vi materiali

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

VAŽNE SIGURNOSNE INFOR- MACIJE

Warning sign depicting a flame symbol in yellow and black on white background

UPOZORENJE: Opasnost od požara / za-paljivi materijali

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

EKONOMIČNA UPORABA HLADNJAKA

Praktični savjeti

Technical diagram showing a mechanical assembly with labeled components and dimension lines, including a cross-sectional view and reference markers.

Technical line drawing of a rectangular frame with two small components and mounting holes, no text or symbols present.

Technical diagram of a metal bracket assembly with mounting holes and mounting fasteners (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and control panel (no text or symbols)

Technical line drawing of two mechanical components mounted on a U-shaped base, with no visible text or symbols.

Technical line drawing of a cabinet with an inset close-up showing a structural detail (no text or symbols)

Technical diagram of a mechanical assembly with a bracket and mounting base, showing a downward force arrow (no text or symbols present)

Technical line drawing of a mechanical bracket assembly with mounting holes and wires (no text or symbols)

Technical diagram showing a cabinet with a close-up of a structural beam and a magnified inset (no text or symbols)

Three 3D block diagrams showing different arrangements of blocks with arrows indicating movement (no text or symbols)

20[mm]

Technical line drawing of a door frame structure with two views (top and side), showing internal components and mounting base (no text or symbols)

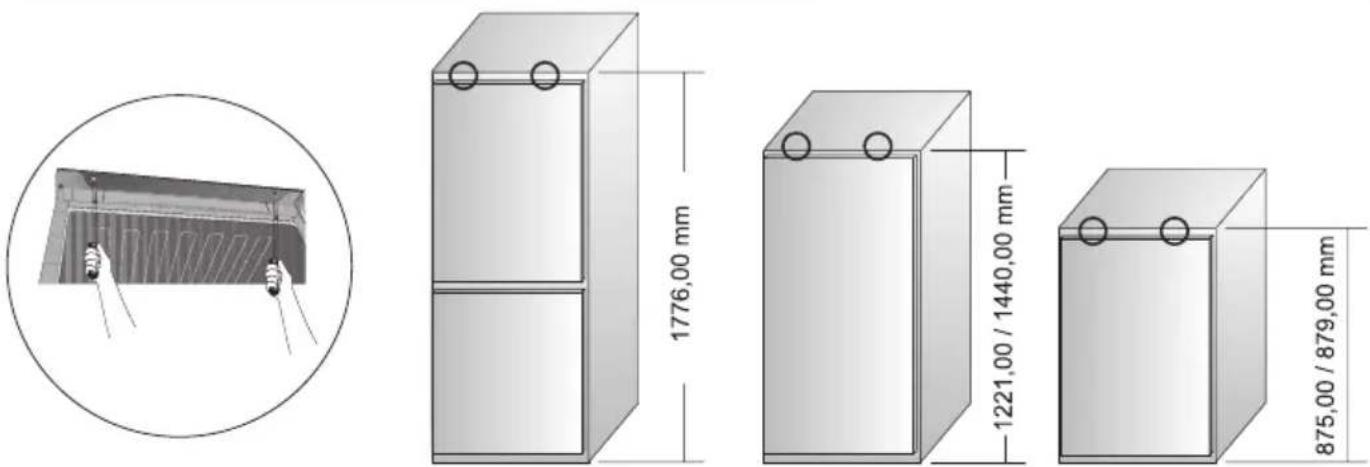

1776,00 mm 1221,00 / 1440,00 mm 875,00 / 879,00 mm

Three technical line drawings: a 3D box, a 2D box with circular ends, and a magnified view of a door with a hand holding a tool (no text or symbols)

Technical line drawing showing three views of a cabinet and a hand holding a spring (no text or symbols)

NO FROST

10

Technical diagram of a refrigerator with labeled components including meat, grain, and bread, showing internal compartments and directional arrows.

12

Diagram of a mechanical device with a magnified inset showing a tool interacting with a base (no text or symbols present)

13

Diagram of a storage cabinet with two upward arrows and two downward arrows indicating flow or movement (no text or symbols)

15

Diagram of a cylindrical container with two upward arrows indicating flow or movement (no text or symbols)

16

Pure technical diagram showing two views of a mechanical component with directional arrows, no text or symbols present.

20

1

Technical diagram showing exploded view of a refrigerator with component illustrations and assembly steps

43mm 2

3

Simple line drawing of a container with boxes and a person inside, no text or symbols present

Technical line drawing of a rectangular frame with vertical supports and directional arrows indicating force or movement (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of a rectangular enclosure with hatched walls and internal components, no text or symbols present.

4

5

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

6

6

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki

tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
