Product type	Tumble dryer
Brand	Whirlpool
Model	FFT M11 72B EE
Maximum load capacity	7 kg (for cotton)
Drying type	Heat pump
Programs	Eco, Cotton, Mixed, Bed linen, Duvet, Shirts, Jeans, Easy ironing, Refresh, Quick 30', Sport, Silk, Wool, Delicate, Synthetics
Options	Drying level (Ironing, On hanger, Ready to store, Ready to wear), Drying time, Delay start, Quick, FreshCare+, Lock, End of cycle, Silence
Energy consumption (Eco program 7 kg)	1.66 kWh
Energy class	A++ (estimated)
Dimensions (H × W × D)	Approximately 850 × 595 × 600 mm (standard)
Approximate weight	45 kg
Power supply	220-240 V ~ 50 Hz
Drying system	Heat pump with R134a gas (0.18 kg)
Main functions	Delay start, Child lock, FreshCare+ (antibacterial and anti-crease)
Maintenance and cleaning	Clean door filter after each cycle, clean lower filter, empty water tank after each cycle, clean air intake grille every 6 months
Water tank capacity	Not specified (to be emptied after each cycle)

Frequently Asked Questions - FFT M11 72B EE WHIRLPOOL

How to clean the door filter of the Whirlpool FFT M11 72B EE tumble dryer?

Open the door and pull the filter upwards. Open the filter and remove all lint. Rinse it under tap water or use a vacuum cleaner. Dry it before putting it back. Make sure to align it correctly with the seal. Never use the tumble dryer without the filter.

What to do if the tumble dryer does not dry properly?

Check that the filters (door and lower) are clean and the water tank is not full. Make sure the program and options are suitable for the load. For very wet laundry, increase the spin speed of your washing machine. If the problem persists, see the troubleshooting section in the manual.

How to use the FreshCare+ option?

Press the FreshCare+ (or SH) button before starting the cycle. This option keeps the laundry at a controlled temperature with gentle rotations for up to 6 hours after the cycle ends, preventing bacterial growth and creases.

How to set a delayed start?

Press the Delay start button several times until the desired delay (e.g., 3h, 6h) is shown. Then press Start/Pause. The machine displays the remaining time before start. If you open the door, close it and press Start/Pause again.

Which program to use for delicate laundry?

Use the Delicate program (max load 2 kg) or Silk for fragile fabrics. For wool, select the Wool program (max 1 kg) and turn clothing inside out before drying.

How to empty the water tank?

After each cycle, remove the water tank located at the bottom right (or front depending on model). Pour the water into a sink, then put the tank back until it clicks. Do not operate the tumble dryer without the tank.

What do the symbols on the control panel mean?

The indicators show the drying level (ready to iron, on hanger, ready to store, ready to wear), phases (drying, cooling, end), and alerts (empty tank, clean door filter, clean lower filter). A wrench symbol indicates an anomaly.

How to activate child lock?

Hold down the Quick button (or the button designated by the padlock icon) until the light comes on. To deactivate, repeat the same operation. This locks all buttons except On/Off.

What to do in case of an error code (e.g., F3 E2)?

Turn off the tumble dryer and unplug it. Open the door to let the heat dissipate for 15 minutes. Plug back in, load laundry, and restart the cycle. If the code reappears, contact after-sales service, specifying the flashing letters and numbers.

What is the energy consumption of the Eco program?

For a 7 kg cotton load, the Eco program consumes approximately 1.66 kWh and lasts 180 minutes. It is the most efficient program for cottons. At half load (3.5 kg), consumption is 1.03 kWh for 126 minutes.

USER MANUAL FFT M11 72B EE WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register

Before using the appliance carefully read the Safety Instruction.

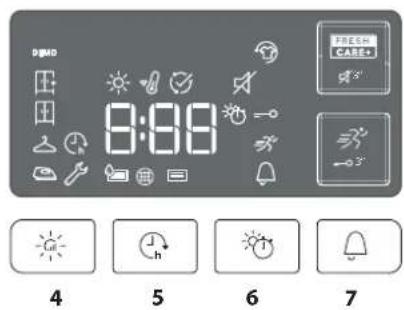

CONTROL PANEL

1 ON/OFF button (hold for Reset)
2 Programme selection Knob
3 Start/Pause

Options buttons\*

4 Dryness level
5 Start delay
6 Timed drying
7 Cycle end
8 Rapid (hold for Key lock)
9 FreshCare+ (hold for Mute)

Cross-sectional diagram of a circular ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

DBMO 8:68 9 CABO - - - 8 1 45 6 7 3

*Note: some models may have the wording in full instead of the icons.

INDICATORS

Dryness level: dry - Hanger dry - Cupboard dry - Extra dry

Cycle phase: Drying - Cool down - End of cycle.

Empty water tank - Clean door filter - Clean bottom filter -

Refer to troubleshooting section: 📋 Failure: Call after sales service - DEMO Demo mode

FIRST TIME USE

Make sure that the water tank is correctly inserted. Make sure that the drain hose on the back of the dryer is fixed correctly, either to the dryer's water tank, or to your domestic drainage system.

The dryer must be installed in a room with a temperature ranging between 5°C and 35°C to ensure proper operation. Before you use your dryer ensure that it has been in a upright position for at least 6 hours.

DAILY USE

Doing this will keep your machine working at its BEST:

- remember to empty your water tank after each drying cycle.

- remember to clean your filters after each drying cycle.

Refer to the Care & Maintenance section.

1. Plug the dryer into the power supply socket.

2. Open the door and load garments; always refer to instructions on clothing labels and the max loads indicated in the programme section. Empty pockets. Make sure garments do not get caught between the door and/or the door filter. Do not load items that are dripping wet. Do not tumble dry large, very bulky items.

3. Close the door.

4. Press the "On/Off" button.

5. Select the most suitable programme for the type of fabric in that load.

6. Select the options, if necessary.

7. Press the "Start/Pause" button to begin drying.

8. At the end of the drying cycle, a buzzer will beep. An indicator on the control panel signals the end of the cycle. Pull the load out immediately to prevent the formation of creases on laundry.

9. Turn the machine off by pressing the "On/Off" button, open the door and pull the clothing out. If the machine is not switched off manually, after about a quarter of an hour from the end of the cycle, the appliance turns off automatically to save energy. Note that some programme/option accords with "Crease Care" system. This means that for some hours, after the end of the drying cycle, the drum rotates at regular intervals to prevent the formation of creases.

In case of power failure, it is necessary to press the "Start/Pause" button to restart the cycle.

OPENING OF THE DOOR DURING THE CYCLE

Laundry can be checked while the drying cycle runs and any garments already dry can be removed, while drying continues for the remaining items. After closing the door, press the "Start/Pause" button to resume machine operation.

Keep the door closed until the cycle end to save time and energy.

CARE LABEL

Always check the care labels, especially when placing garments in the tumble dryer for the first time. Below are the most commonly used symbols:

☐ May be tumble dried.
Do not tumble dry.
Tumble dry – high heat.
Tumble dry – low heat.

PROGRAMS

The duration of these programs will depend on the size of the load, types of textiles, the spin speed used in your washer and any extra options selected. In machines equipped with display, the duration of the cycles is shown on the control panel. The remaining time is constantly checked and adjusted during the drying cycle to show the best possible estimate. Option to use - If all your loads on Automatic Cycles are consistently less dry or more dry than you would like, you may increase or decrease the dryness level using the specific option.

Eco kg Max\*

This is the most efficient programme in terms of energy consumption and is suitable for drying normal wet cotton laundry. The values on the Energy Label are based on this programme.

NOTE: For optimal energy efficiency this cycle by default is set up to "Cupboard Dry" level. For a higher dryness level we suggest using the Cotton cycle.

Cotton kg Max\*

Cycle suitable for drying all types of cotton, ready to be placed in the cupboard.

Mixed kg 4

This programme is ideal for drying cotton and synthetic fabrics together.

Bed linen kg Max\*

This programme is intended for drying cotton sheets.

Duvet

Programme intended to dry bulky items, such as a single duvet.

Shirts kg 3

This is a programme for Shirts made from cotton or cotton blend/synthetics.

Jeans kg 3

For drying sturdy cotton including denim trousers and jackets.

Easy ironing

This cycle relaxes fibres, thus making ironing and folding easier. Suitable for small load of damp or dry cotton and cotton blend fabrics. Not for wet items.

Refresh

A short programme suitable for refreshing fibres and garments through the emission of fresh air. Do not use on wet items. It can be used on with any load size but is more effective with small loads. It lasts about 20 minutes.

Rapid 30' kg 0.5

Ideal for drying cotton garments spun at high speed in the washing machine.

Sport kg 4

For drying synthetics or cotton sports garments.

Silk kg 0.5

Gentle drying of silk garments.

Wool kg 1

Programme for drying wool clothes. It is advisable to turn the items inside out before drying. If heavy edges remain damp, leave them to dry naturally.

Delicates kg 2

For drying delicate laundry requiring gentle treatment.

Synthetics kg 4

For drying synthetic fabrics.

*MAX LOAD 7 Kg (Dry load)

OPTIONS

These buttons allow you to personalise the selected programme according to personal requirements. Not all options are available for all programmes. Some options may be incompatible with ones you have previously set; if so, you will be alerted by the buzzer and/or blinking indicators. If the option is available, the option indicator will stay on. The programme may retain some options selected in previous drying cycles.

Dryness level

Press the related button several times to obtain a different level of residual moisture on garments. An indicator signals the level being selected.

Iron dry: very delicate drying. Items will be more easily oned immediately after the cycle.

Hanger dry: a level intended for delicate garments ready to be hanged.

Cupboard dry: the laundry is ready to be folded and put away.

Extra dry: for laundry intended to be worn at the end of the cycle.

Timed drying

This option is to manually set the drying time. Press the corresponding button to set the required time for drying. An indicator on the control panel signals the time being selected.

Start delay

This option is for delaying the start of the cycle. Press the corresponding button several times to find the required delay. Once the max time is reached, the option is reset by pressing the button again. An indicator on the control panel signals the time being selected. After pressing the "Start/Pause" button, the machine signals the time remaining to the start of the cycle. If the door is opened, press the "Start/Pause" button once the door has been closed.

Rapid

Enables quicker drying.

FreshCare+

CARE+ If laundry is left inside of the drum once the cycle has ended, it can be subjected to bacterial proliferation. This option helps to prevent this from happening by controlling the temperature and gently rotating the drum. This will continue for up to 6 hours after the end of the cycle. This setting will remain in the memory of the previous cycle. If this is used alongside Start Delay, a crease treatment will be performed during this phase by periodic rotations of the drum.

Key lock

This option makes all machine controls inaccessible, except the "On/Off" button. When the machine is on:

• to activate the option, keep the button pressed until the machines signals that the option has been enabled.
• to disable the option, keep the button pressed until the machine signals that the option has been disabled.
  This option remains in memory if selected in previous drying.

Cycle end

This option activates a prolonged buzzer at the end of the cycle. Enable it if you are not sure to hear the normal sound at the end of the cycle. This option remains in memory if selected in the previous drying.

Mute

This option turns off all sounds of control panel. Only warnings remain active.

• to activate the option, keep the button pressed until the indicator goes on.
• to disable the option, keep the button pressed until the indicator goes off.

CARE AND MAINTENANCE

WARNING: unplug the dryer during the cleaning and maintenance procedures.

Emptying the water tank after each cycle (see Fig. A).

Pull the container out of the dryer and empty it into a sink or other suitable drain, then place it back properly. Do not use the dryer without having inserted the container back in place.

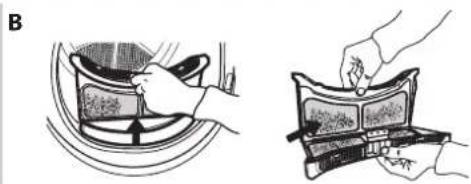

Cleaning the door filter after each cycle (see Fig. B).

Pull the filter out and clean it by removing the lint from the filter surface under running water or using a vacuum cleaner. For optimal performance, dry up the filter before inserting it back in place.

Do not use the dryer without having reinserted the filter in place.

Remove the door filter as described below:

1. Open the door and pull the filter upwards.

2. Open the filter and remove the lint from all its parts. Replace the filter correctly making sure it is fully seated.

Cleaning the bottom filter when the relevant indicator turns on (see Fig. C).

Pull the filter out and remove the lint from its surface by washing it under running water or by using a vacuum cleaner. However, it is advisable to clean this filter after each cycle to optimise drying performance.

Do not use the dryer without having reinserted the filter in place.

Remove the bottom filter as described below:

1. Open the bottom cover;

2. Take the handle and pull the filter out.

3. Open the rear side of the filter and remove the lint from the inner surface of the mesh.

4. Clean the filter chamber avoiding the direct contact with the fins.

5. Close the rear side of the filter and place it back by checking it is perfectly integrated into its seat.

6. Lower the filter handle and close the bottom cover.

7. Make sure the air intake is free.

The filters are essential parts for drying. They are intended to collect the lint formed during the drying process. In case of clogged filters, the air flow inside the dryer would be seriously affected: the drying times would be longer, the energy consumption would increase and the dryer could be damaged. If these procedures are not carried out properly, the dryer may not start.

Cleaning the tumble dryer

• The external metal, plastic and rubber parts can be cleaned with a damp cloth.
• Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, fluff or dust deposits. Furthermore, remove any lint deposits from the filters area, using a vacuum cleaner every so often.
• Do not use solvents or abrasives.

TRANSPORT AND HANDLING

Never lift the dryer by holding it at the worktop.

1. Unplug the dryer.
2. Remove the water from the water tank completely.
3. Make sure that door and water tank are properly closed.
4. If the drain hose is connected to your drainage system, re-connect it to the back of the dryer (see "Installation" section in the Safety Instruction guide).

Power consumption
off-mode (Po) - Watts 0.33
left-on mode (PI) - Watts 2.00
Programs Kg kWh Minutes
Eco *	7 1.66 180
Eco	3.5 1.03 126
Synthetics 4 0.73 95
*This is the reference programme for the energy label and suitable to dry normal wet cotton laundry. This is the most efficient programme in terms of energy consumption for drying wet cotton laundry.(Standard/Default starting configuration).

Heat Pump System

The heat pump contains fluorinated greenhouse gases, contained in a hermetically sealed unit. This sealed unit contains 0.18 kg of the R134a gas. GWP = 604 (1 t CO₂).

PRODUCT DESCRIPTION

1. Water Tank
2. Air Intake
3. Bottom filter
4. Door filter

Technical diagram of a washing machine with numbered components and labeled parts

B

TROUBLESHOOTING

EN

Before contacting the After-sales Service, refer to the table below. Often the malfunctions are minor and can be solved in few minutes.

Malfunction	Possible cause	Solution
The tumble dryer does not turn on.	The plug is not inserted into the socket.	Insert the plug into the socket.
	The plug is faulty.	Try to plug another appliance in the same socket. Do not use connecting electrical devices to the socket, such as adapters or extensions.
	A power failure occurred.	Wait for the power supply to be restored and switch the fuse on again if necessary.
The tumble dryer does not start.	The door has not been closed properly.	Close the door.
	A time delay was set to the start of the cycle.	For machines equipped with this function: wait for the set delay to end or switch the machine off to reset it. Refer to the Options section.
	The "Start/Pause" button was not pressed in order to start the programme.	Press the "Start/Pause" button.
	The Key Lock function was enabled (for machines equipped with this option).	Refer to the Options section. If Key Lock was selected, disable it. Switching the machine off will not disable this option.
Garments are wet at cycle completion.	Small load.	The automatic programme has not sensed the required final moisture so that the dryer completes the programme and stops. If this happens simply select an additional short period of drying or select Extra Dry option if available.
	Large loads or heavier fabrics.	Dryness levels can be modified to the specific dryness desired. Extra Dry is recommended for ready to wear items.
The drying times are very long.	An appropriate maintenance was not carried out.	Refer to the Care & Maintenance section and perform the operations described.
	The programme, the time and/or the drying level set are not suitable for the type and the amount of load inserted into the dryer.	Refer to Programmes and Options sections to find the programme and options most suitable for the type of load.
	The garments are too wet.	Carry out a washing cycle with higher spin speed to remove as much water as possible.
	The dryer may be overloaded.	Refer to the Programmes section to check the max load for each programme.
	Room temperature.	The drying time may be longer if the room temperature falls outside the 14-30°C range.
The programme did not end.	A power failure occurred might have occurred.	In case of power failure, it is necessary to press the "Start/Pause" button to restart the cycle.
Lights on or fl ashing
Water tank	The water tank is full.	Empty the water tank. Refer to the Care & Maintenance section.
Door filter	Failure of the air flow necessary for machine operation.	Clean the door filter and check whether air intake is free. Carrying out these operations improperly may cause damages. Refer to Care & Maintenance section.
Bottom filter*	The bottom filter requires cleaning.	Clean the bottom filter. Refer to Care & Maintenance section.
DEMO The cycle lasts few minutes.	The dryer is in DEMO mode. The DEMO indicator is on.	Disable the DEMO mode. The following actions must be carried out in sequence, without breaks. Switch the machine on and then switch it off again. Press the Start/Pause button until the buzzer is heard. Switch the machine on again. The "DEMO" indicator fl ashes and then turns off .
The presence of wrench symbol signals a malfunction.	The machine sensors detected a failure.	Switch the dryer off and unplug it. Open the door immediately and pull laundry out, to allow the heat to dissipate. Wait for about 15 minutes. Reconnect the dryer to the power supply, load the laundry and restart the drying cycle. If the problem still occurs, contact the After-Sales Service Centre and communicate the letters and digits fl ashing on the display. For instance: F3 and E2.

*Note: some models are auto-cleaning and not equipped with bottom filter. Please refer to the Care & Maintenance section.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

БЛАГОДАРИМ ВИ, ЧЕ ЗАКУПИХТЕ ПРОДУКТ НА WHIRLPOOL.

Cross-sectional diagram of a circular ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

8:00 FRESH CARE+ 4 5 6 7

9

8

Technical diagram of a washing machine with numbered components and labeled parts

B

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

BG

Cross-sectional diagram of a circular mechanical component with shaded outer ring and centerlines (no text or symbols)

8:00 4 5 6 7

9

Technical diagram of a washing machine with numbered components and labeled parts

Illustration of a hand holding a smartphone with a black arrow pointing to the screen (no text or symbols present)

B

PROBLÉMY A JEJICH ŘEŠENÍ

CS

Circular diagram with a shaded ring and crosshatched fill, no text or symbols present

DBMO 8:08 4 5 6 7

9

Technical diagram of a washing machine with numbered parts for identification

Diagram of a hand holding a device with a black arrow indicating direction (no text or symbols present)

B

Technical line drawing of a mechanical or architectural component with grid-like panels and a bracket (no text or symbols)

Cross-sectional diagram of a circular ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

DBMO 8:68 9 1 8 45 6 7 3

Technical diagram of a washing machine with numbered parts for identification

Illustration of a hand holding a smartphone with a black arrow pointing to the screen (no text or symbols present)

Illustration showing hand positioning a car wheel and inspecting a car seat (no text or symbols)

Line drawing of a mechanical device with internal compartments and a handle, labeled C2 (no text or symbols on the diagram itself)

Cross-sectional diagram of a circular ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

DIMO 9:88 FRESH CARE 4 5 6 7

9

8

Technical diagram of a washing machine with numbered parts labeled 1 to 4

Illustration of a hand holding a smartphone with a black arrow pointing to the screen (no text or symbols present)

B

Line drawing of a mechanical device with internal compartments and a labeled section C2 (no text or symbols on the diagram itself)

REMEDIEREA DEFECTIUNILOR

RO

Cross-sectional diagram of a ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

8:00 4 5 6 7

9

Technical diagram of a washing machine with numbered parts for identification

Illustration of a hand holding a smartphone with a black arrow pointing to the screen (no text or symbols)

B

PROBLÉMY A ICH RIEŠENIA

SK
