TVB420 - TV wall mount Duronic - Free user manual and instructions

Product Type	TV Wall Mount
Brand	Duronic
Model	TVB420
VESA Compatibility	Up to 400 x 400 mm (with included adapters)
Tilt	-15° to 9°
Rotation	360°
Swivel	180°
Material	Steel
Maximum Supported Weight	Up to 50 kg
Wall Plate Dimensions	Approximately 400 x 400 mm
Mount Weight	Approximately 2 kg
Screws Provided	M4 x 12, M5 x 15, M6 x 15, M8 x 15, washers and bolts
Recommended Wall Type	Concrete or solid brick
Maintenance	Soft dry cloth
Warranty	1 year
Use	Indoor only

Frequently Asked Questions - TVB420 Duronic

What is the maximum weight this mount can support?

The mount can support up to 50 kg, which is suitable for most large TVs.

Is this mount compatible with a Samsung 55-inch TV?

Yes, provided the TV complies with VESA standard (max 400x400 mm) and weighs less than 50 kg.

What is the maximum tilt of the mount?

The tilt is adjustable from -15° to 9° for optimal viewing angle.

What tools are needed to install this mount?

You will need a drill with a 10 mm bit, a screwdriver, and a spirit level.

How to clean the wall mount?

Use a soft dry cloth. Never use abrasive products or solvents.

Can I install this mount on a plasterboard wall?

No, the mount is designed for solid walls (concrete or brick). For plasterboard, use special wall plugs (not included).

Is the mount guaranteed?

Yes, the warranty is 1 year against manufacturing defects, provided the product is used in accordance with the manual.

How to adjust the TV angle after installation?

Loosen the adjustment screws slightly, tilt the screen to the desired angle, then retighten the screws.

Are the provided screws suitable for all TVs?

The kit includes multiple sizes (M4, M5, M6, M8) and washers to fit most TVs.

Does the mount allow 360° rotation?

Yes, the mount offers full 360° rotation to orient the screen in all directions.

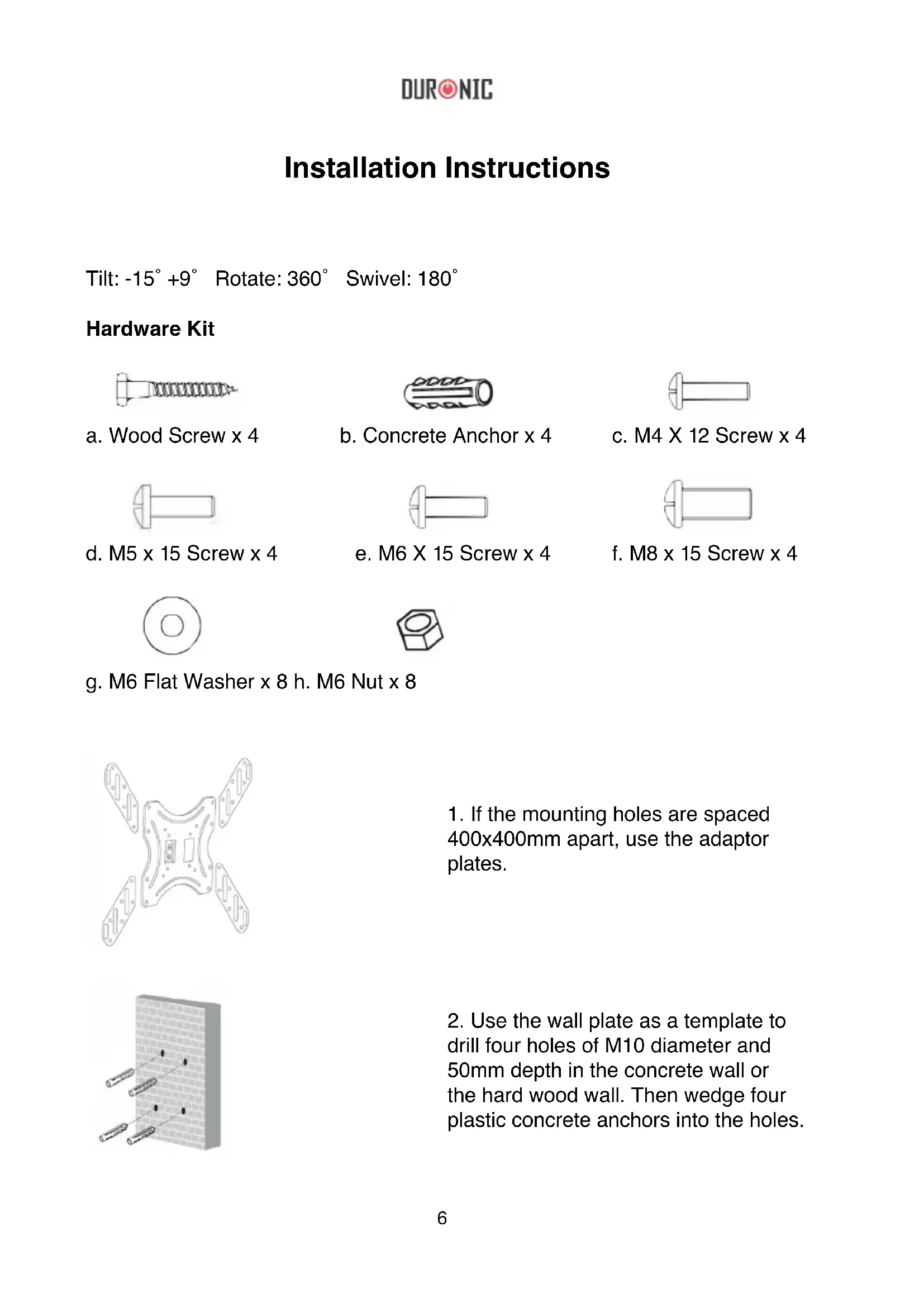

USER MANUAL TVB420 Duronic

Installation Instructions

Tilt: -15^ + 9^ Rotate: 360^ Swivel: 180^

Hardware Kit

a. Wood Screw x 4

b. Concrete Anchor x 4

c. M4 X 12 Screw x 4

d. M5 x 15 Screw x 4

e. M6 X 15 Screw x 4

f. M8 x 15 Screw x 4

g. M6 Flat Washer x 8 h. M6 Nut x 8

1. If the mounting holes are spaced 400 × 400 ~mm apart, use the adaptor plates.

1. Use the wall plate as a template to drill four holes of M10 diameter and 50mm depth in the concrete wall or the hard wood wall. Then wedge four plastic concrete anchors into the holes.

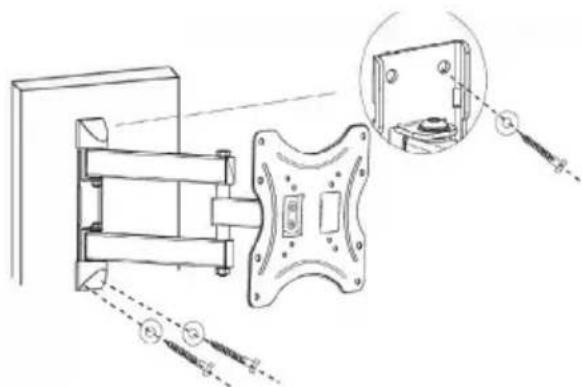

1. Put the wall panel on the wall, and then screw the four wood screws into the plastic concrete anchors.

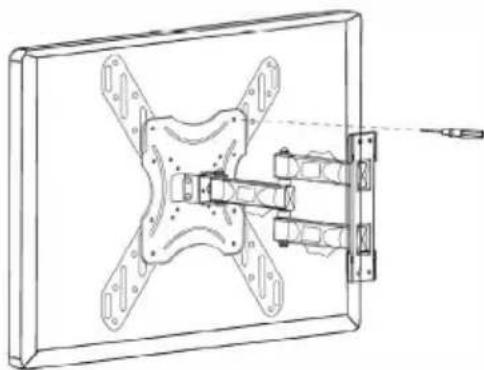

1. Install TV fixed plate on the TV back. Screw four bolts into the holes in the back of the TV, and the bolts should be selected as the dimension of the bolt-hole.

Note:

1. Choose the right place to install wall plate. The bracket must be installed on solid concrete wall. Make sure the wall can support 300kg weights up.

2. Users should check and maintain the product frequently according to the use status to ensure the flat panel TV works normally, safely and securely. Please wipe joining parts with a dry cloth frequently. Don't use it in rain or in moist environment.

Please check once two months if all bolts are secure or not.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB

Follow Us

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Installation Instructions

Neigbar: -15^ + 9^ Schwenkbar: 360^ Rotierbar: 180^

Bauteile

a. Holzschaube x 4

b. Betonanker x 4

c. M4 X 12 Schraube x 4
