LUGA60 - Grill plate Wëasy - Free user manual and instructions

Brand	Wëasy
Model	LUGA60
Category	Grill plate (raclette appliance)
Rated voltage	230 V ~ 50-60 Hz
Rated power	900 W
Protection class	I
Cooking type	Grill and raclette (mini pans included)
Recommended preheating	5 minutes
Switch	On/Off (position I/0) with indicator light
Maintenance of the plate and pans	Clean pans with soapy water; clean plate with damp cloth
Maintenance of the base	Do not immerse, clean with damp cloth
Prohibited cleaning materials	Hard brushes, abrasive products, alcohol, gasoline
Safety	Hot surface, do not use near water, unplug before cleaning, do not leave unattended
Use	Domestic, indoor only
Minimum user age	8 years (with supervision)
Warranty	2 years from date of purchase
Repairability	Repairs by an approved professional; damaged cord replaced by manufacturer or qualified person
Online after-sales service	https://sav.hkoenig.com
Included accessories	Cooking plate, mini pans, base

Frequently Asked Questions - LUGA60 Wëasy

How to use the LUGA60 grill plate for the first time?

Before first use, disassemble the plate and clean it with the pans using a soft damp cloth. Plug the appliance into a 230 V socket, ensure the switch is on 0. Turn the switch to I to preheat for 5 minutes. A slight smoke smell may occur, this is normal.

How to clean the plate and pans?

Always unplug the appliance and let it cool completely. The pans can be washed with soapy water. The cooking plate and base are cleaned with a clean damp cloth. Never use abrasive cleaners, hard brushes, alcohol or gasoline. Never immerse the appliance in water.

The appliance emits an odor or smoke during first use, is this normal?

Yes, it is normal. This is due to the protective oily coating applied at the factory. The odor disappears after a few uses.

What is the power and voltage of the appliance?

The appliance operates at a voltage of 230 V ~ 50-60 Hz with a rated power of 900 W. It is protection class I.

Can I use an extension cord with this appliance?

Using an extension cord is not recommended as it may overheat and cause a fire. If an extension cord is absolutely necessary, it must have a diameter of at least 1 mm.

What to do if the power cord is damaged?

Never attempt to repair the cord yourself. It must be replaced by the manufacturer, its service department or a qualified person to avoid any accident. Contact after-sales service via https://sav.hkoenig.com.

Can I clean the appliance while it is still hot?

No, wait until the appliance has completely cooled before cleaning. Always unplug it before any maintenance.

Can the appliance be used by children?

This appliance can be used by children aged 8 years and above if they are supervised or have received instructions on safe use. Children must not play with the appliance. Cleaning and maintenance must not be performed by children under 8 without supervision.

How long is the warranty?

The warranty is 2 years from the date of purchase or delivery. It covers failures occurring under normal use. Wear parts and accessories are not covered.

Where to find spare parts and accessories?

Accessories and spare parts can be purchased on the after-sales website: https://sav.hkoenig.com. Type the appliance reference in the search bar to find compatible parts.

USER MANUAL LUGA60 Wëasy

Black weasy electric stove with a circular top and side handles, no visible text or symbols on the device itself.

raclette grill

appareil à raclette

raclette

raclettegrill

parrilla y Raclette

ENGLISH

SAFETY PRECAUTION

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Important warning:

• DO NOT OPERATE this raclette set near water sources or flammable liquids.
• DO NOT OPEARTE this raclette set on or near any hot surface. (Hot plate, electric stoves etc).
• Ensure the raclette set is placed on a stable, secure surface to eliminate the possibility of tipping over or avoid any water in the set.
• Closed supervision is necessary when this raclette set is used by children. Never operate this appliance unattended.
  ● Always operate this raclette set from an earthed domestic 220V-240V power socket.
• Use of an extension cord is not recommended as it may overheat and cause risk of fire. However, if an extension cord must be used, the cord should be at least 1.0mm^2 in diameter.
• Never try to touch the hot surface of this raclette set before it is cool down.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory. or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children

shall not play with the appliance. Clearing and user maintenance shall not be made by children unless they are older than 8 and supervised.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

● The surfaces are liable to get hot during use. Caution, hot surface
● Children should be supervised to ensure that they do not play with the appliance.
- Only use this appliance for its intended use. The appliance is not suitable for commercial use. This appliance is only suitable for household use. Do not use the appliance outdoors.
- Keep the appliance and its cord out of reach of children less than 8 years.
- Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
- Make sure the plug is removed from the power supply socket. After the raclette grill set is completely cooled down, clean it with the mild cleaner or gel-like cleaner by using soft cloth.

PLEASED DO NOT CLEAN THE SET WHEN IT IS STILL HOT.

- DO NOT USE hard brushes, scratchy materials and/or alcohol, petrol or any organic cleaner for the cleaning purpose.

- Except the removable small pans, grill plate, do not immerse the main body in water to clean.

- Put the raclette grill set on the cool place right after the cleaning.

- To prevent the risk of electric shock, DO NOT USE the set with broken power supply wires or broken plug. All repair works must be made by a professional (authorized distributor). NEVER TRY TO REPAIR the cable or plug by yourself. Please take the damaged set to your local authorized maintenance center.

- To prevent overloading and blowing fuses, ensure that no other high power appliance is plugged into the same socket, or another socket which is connected in the same circuit.

- DO NOT PUT the cord under the carpet, blankets. Always keep the power cable away from walkway in room.

- DO NOT TRY TO REPAIR the broken fuse by yourself, the user should take the set to your local authorized maintenance center to replace it with the new one.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
  ● Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit
  ● The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
• Please keep this document at hand and give it to the future owner in case of transfer of your device
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it
• must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• The device is not intended to be operated by external timer means or a remote control system.
• Never immerse the appliance, its power cord or plug in water or any other liquid.
• Do not place the unit on a work surface flexible or on a desk covered with a tablecloth, make sure it works on a hard surface.

This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

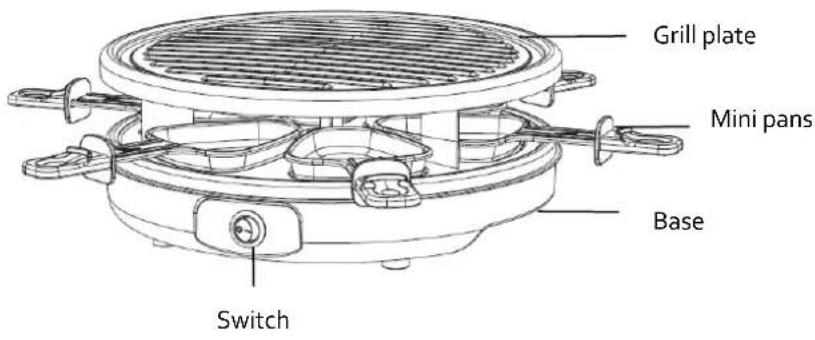

Grill plate Mini pans Base Switch

TECHNICAL SPECIFICATION

- Rated voltage 230V\~50-60Hz

- Rated power 900W

- Protection class I

INSTALLATION AND MAINTENANCE

PREPARATION BEFORE USE

● Take apart the grill plate, pans clean with a soft damp cloth. Place your appliance on the level and stable surface. Then put the crepe plate on the top of the unit.
- Check that the voltage marked on the product corresponds with your supply voltage. Ensure the controller is in the "0" position before plug in.
- When using this raclette grill for the first time, there may be a smell of smoke coming from the surface of the heating element. This is normal because of the oily protective coating in production.

OPERATION

• Connect the raclette to the power supply. Turn the switch from "0" TO "I" position and the indicator light is on for working, then pre-heat the raclette set for 5 minutes.
• For slow cooking, put the food on the small pans then place them on the bottom plate. Or place your food directly on the grill plate for the purpose of grilling.
• When you have finished using the raclette, turn the switch to "0" position and unplug it from the socket. Wait until the appliance is completely cool down before moving or cleaning.

MAINTENANCE AND CLEANING

1. Always unplug the appliance and allow cooling before cleaning.
2. Do not immerse the appliance in water.
3. All surfaces can be cleaned with a clean damp cloth.
4. All the pans can be washed in water. If stains still appear, it is recommended to use soap.
5. Do not use abrasive cleaners or sharp utensils to clean the raclette.
6. Clean inside with a clean damp cloth.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?". This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (*).
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.

- The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]
