FK8420 - Insect repellent Duronic - Free user manual and instructions

Product type	Electric UV insect killer
Brand	Duronic
Model	FK8420
Power supply	220-240 V ~ 50/60 Hz
Power	20 W
Lamp type	UV tube FK8420-10WT5
Lamp lifespan	8000 hours
Capture method	UV light attraction and electrocution on live metal grid
Installation	Wall-mounted (with hooks and chain) or on a stable flat surface
Maintenance	Empty the tray every week; clean the grid and plastic with a dry cloth; unplug before cleaning
Lamp replacement	Unplug, unscrew the 4 top screws, remove the grid, replace the bulb, reassemble
Safety	High voltage – do not touch the grids; do not insert metal objects; keep out of reach of children; do not use near flammable liquids or gases
Usage	Household use only
Warranty	1 year (Shine-Mart Ltd)
Certifications	CE, WEEE compliant
Package contents	Device, user manual

Frequently Asked Questions - FK8420 Duronic

How to install the FK8420?

You can mount it on the wall using the two hooks and chain provided, or simply place it on a flat and stable surface. Make sure it is out of reach of children.

How to clean the device?

Unplug the device before any cleaning. Empty the tray every week or when full. Clean the plastic surface and the grid with a dry cloth.

What type of bulb to use for the FK8420?

The FK8420 model uses the reference bulb FK8420-10WT5. Other models in the range use FK8412-6WT5 or FK8416-8WT5.

How to replace the bulb?

Unplug the device, unscrew the 4 screws on the top of the product to separate the grid, unscrew the faulty bulb, replace it, then screw the grid back on.

What is the lifespan of the bulb?

The lifespan of a bulb is approximately 8000 hours. Beyond that, it is advisable to replace it to ensure optimal efficiency.

Is the device safe for children and pets?

The device operates under high voltage. It should not be used by children or near them without supervision. Keep it out of reach. The internal grids are electrified and dangerous.

Can I use the FK8420 outdoors?

No, this device is designed for indoor household use only. It should not be exposed to humidity or bad weather.

How to know if the device is working?

When powered on, the UV light attracts insects. You will hear a slight crackling sound when an insect is electrocuted on the grid.

What to do if the power cord is damaged?

The cord must be replaced by Duronic or a qualified technician to avoid any risk of injury. Do not use the device with a damaged cord.

What is the warranty of the FK8420?

This product comes with a one-year warranty from the date of purchase, covering electrical or manufacturing defects, subject to proper use and presentation of proof of purchase.

USER MANUAL FK8420 Duronic

FK8412/16/20 Electronic Insect Killer

Contents

English Manual 5

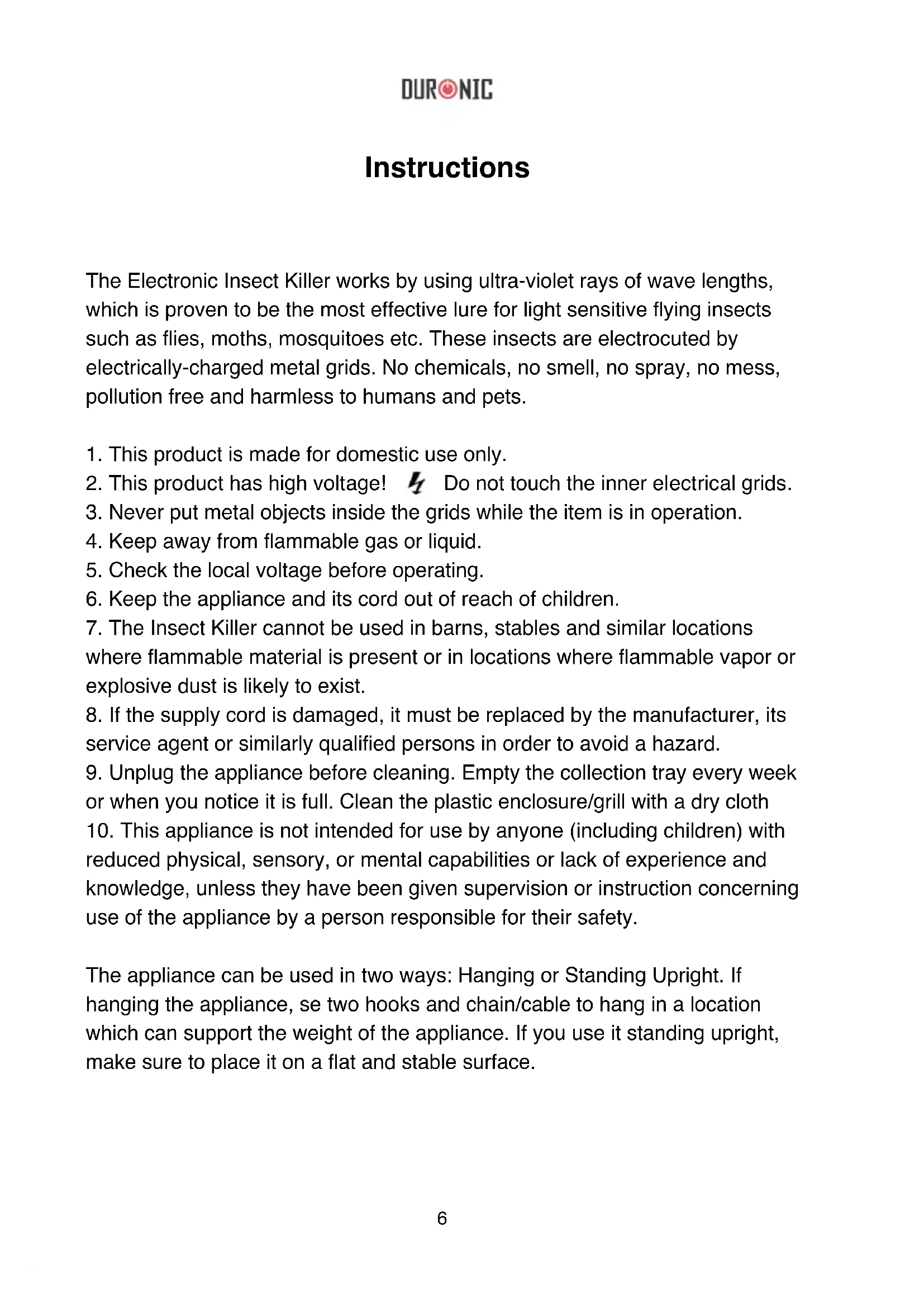

The Electronic Insect Killer works by using ultra-violet rays of wave lengths, which is proven to be the most effective lure for light sensitive flying insects such as flies, moths, mosquitoes etc. These insects are electrocuted by electrically-charged metal grids. No chemicals, no smell, no spray, no mess, pollution free and harmless to humans and pets.

1. This product is made for domestic use only.
2. This product has high voltage! Do not touch the inner electrical grids.
3. Never put metal objects inside the grids while the item is in operation.
4. Keep away from flammable gas or liquid.
5. Check the local voltage before operating.
6. Keep the appliance and its cord out of reach of children.
7. The Insect Killer cannot be used in barns, stables and similar locations where flammable material is present or in locations where flammable vapor or explosive dust is likely to exist.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. Unplug the appliance before cleaning. Empty the collection tray every week or when you notice it is full. Clean the plastic enclosure/grill with a dry cloth
10. This appliance is not intended for use by anyone (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

The appliance can be used in two ways: Hanging or Standing Upright. If hanging the appliance, se two hooks and chain/cable to hang in a location which can support the weight of the appliance. If you use it standing upright, make sure to place it on a flat and stable surface.

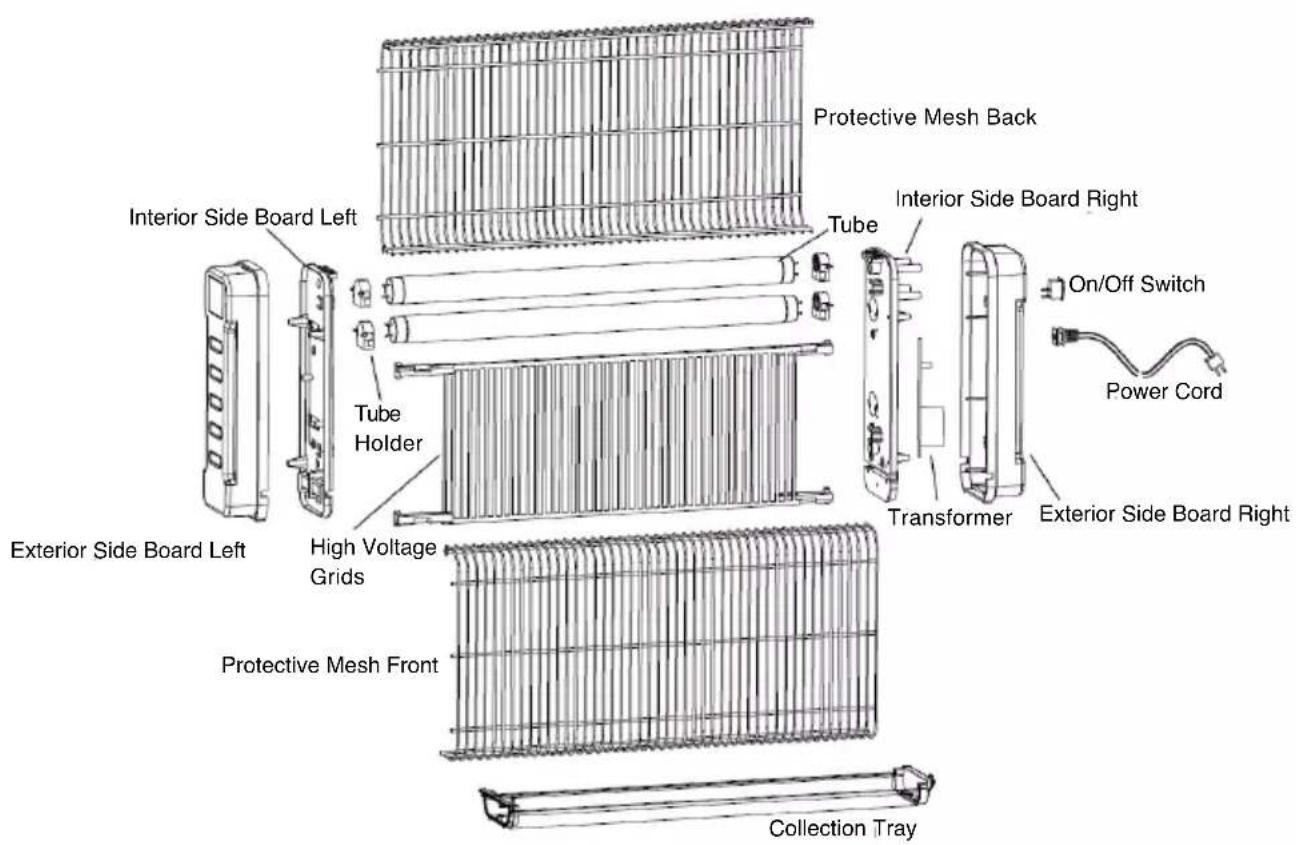

Replacing The Bulbs

The average working life of each bulb is 8000 hours. After this length of time the bulb will need replacing. The bulb model numbers are as follows:

FK8412-6WT5

FK8416-8WT5

FK8420-10WT5

To replace the bulb, follow these simple instructions:

• Switch the appliance off
• Unscrew the 4 screws at the top the product to separate the mesh grill
• Unplug the faulty bulb
• Replace with the new bulb and reattach the mesh grill

Technical Details: Input AC: 220-240V 50/60Hz. Wattage: FK4812 - 12W, FK4816 - 16W, FK4820 - 20W

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it

is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site.

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
