HM3 - Mixer Duronic - Free user manual and instructions

Product type	Stand mixer
Brand	Duronic
Model	HM3
Housing material	Stainless steel
Adjustable speeds	5 speeds
Rated power	300 W
Rated voltage	220-240 V
Rated frequency	50/60 Hz
Bowl capacity	Not applicable (standalone model)
Main functions	Mixing, kneading, whisking; locking for hands-free use; quick ejection of accessories
Safety	Stop and unplug before handling; do not immerse the motor body; do not use with wet hands; keep out of reach of children
Maintenance and cleaning	Clean the motor with a soft dry cloth; accessories, bowl and stand are washable with water; do not use metal brushes or abrasive products
Spare parts and repairability	Repairs by qualified technician only; use of non-supplied accessories not recommended
Warranty	1 year (Shine-Mart Ltd)
Usage	Household use only

Frequently Asked Questions - HM3 Duronic

What is the maximum flour capacity for the bowl?

For the SM3 model (with bowl), the maximum flour capacity is 800 g. The HM3 model does not have an integrated bowl.

How to install the accessories (beaters, hooks)?

Insert the beater with the ring into the left opening (larger) and the beater without ring into the right opening (smaller). The kneading hooks are installed in the same way.

What to do if the appliance does not work while plugged in?

Check that the plug is correctly inserted into the wall outlet and that the power supply is active. Make sure speed 0 is selected before plugging in.

Why does flour get into the machine during mixing?

This may be due to incorrect installation of accessories or excess flour (more than 800 g in the SM3 bowl). Check the installation and reduce the quantity.

How to clean the mixer?

Always unplug the appliance. Clean the motor body with a soft dry cloth. Accessories, bowl and stand can be washed with water. Do not use abrasive products or metal brushes.

Can I immerse the mixer body in water?

No, never immerse the motor body or power cord in water or any other liquid. Only accessories, bowl and stand can be immersed.

What is the recommended continuous use time?

Use the mixer for a maximum of 3 minutes, then let it cool for 15 minutes to ensure durability and performance.

Can I use accessories from other brands with this mixer?

The use of accessories not supplied by Duronic for this model is not recommended and could damage the appliance.

How to eject the accessories?

Press the ejection button on the mixer to release the beaters or hooks.

How to remove the mixer from the stand (for SM3 model)?

Press the unlock button on the mixer to detach it from the stand.

USER MANUAL HM3 Duronic

Line drawing of a kitchen mixer with handle and side panel (no text or symbols)

HM3 & SM3 - Mixer

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

DURONIC

Contents

English Manual 5

A. Mixing Bowl
B. Hand Mixer Body
C. Eject button
D. Speed Button
E. Unlock button

F. Stand Mixer Body
G. Beaters
H. Dough Hook

HM3 - Parts & Assembly

Technical line drawing of a mechanical component labeled A, showing internal structure without any text or symbols.

Simple line drawing of a solenoid with a force gauge (no text or symbols)

Simple line drawing of a coiled spring or wire with a labeled 'G' (no text or symbols on the diagram itself)

A. Base
B. Hand Mixer Body
C. Eject Button
D. Speed Button

E. Beaters
F. Left Dough Hook
G. Right Dough Hook

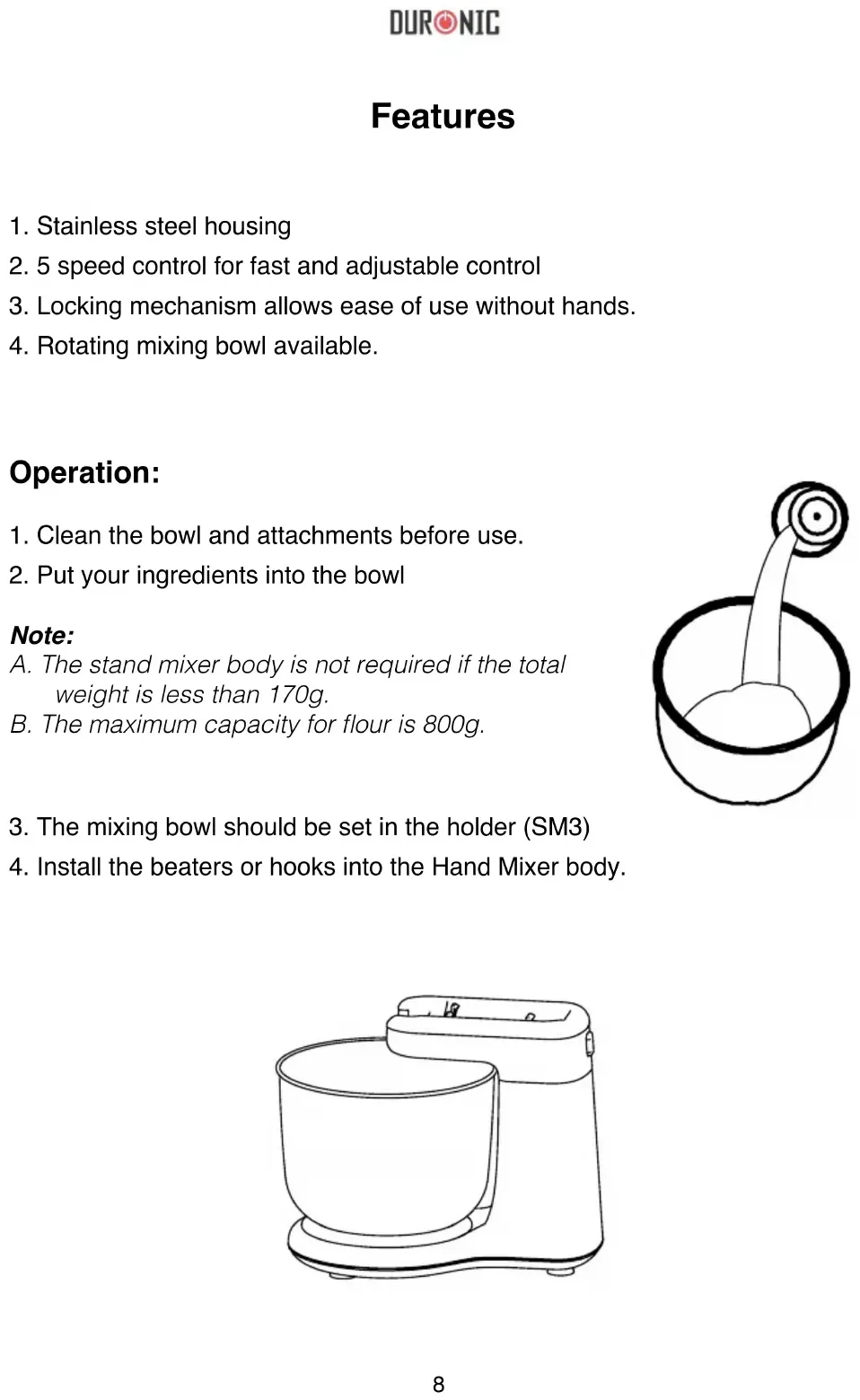

Features

1. Stainless steel housing
2. 5 speed control for fast and adjustable control
3. Locking mechanism allows ease of use without hands.
4. Rotating mixing bowl available.

Operation:

1. Clean the bowl and attachments before use.

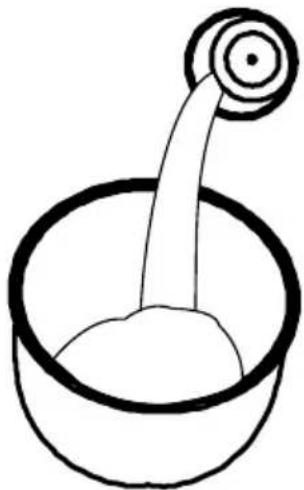

2. Put your ingredients into the bowl

Note:

A. The stand mixer body is not required if the total weight is less than 170g.
B. The maximum capacity for flour is 800g.

1. The mixing bowl should be set in the holder (SM3)
2. Install the beaters or hooks into the Hand Mixer body.

Simple line drawing of a mortar or pestle with a handle and circular head (no text or symbols)

Line drawing of a kitchen mixer with a side bowl and handle (no text or symbols)

Parts & Assembly

Note: Make sure the hooks are installed in the correct holes.

Big hole for hook with ring.

Diagram of a handheld device with two vertical wires attached, no text or symbols present

Small hole for hook without ring.

1. Lock the Hand Mixer (HM3) into the Stand (SM3)
2. Make sure the speed button is on "0" before plugging into mains.
3. There are 5 speeds for choosing. The details are as follows (flour is used as an example).

Line drawing of a kitchen mixer with a side view showing height measurement (no text or symbols)

• Speed 1 will work 30-50 seconds to mix water and flour

Diagram of a device with a lock and connector, showing internal components and a magnified view (no text or symbols)

• Speed 2 will work 30-50 seconds mix water and flour
• Speed 3 will work 1-2 minutes to make dough
• Speed 4 will work 2 minutes to make soft dough
• Speed 5 will work 3-4 minutes to make smooth dough
8. Once it has finished working, please press the unlock button and remove the hand mixer.
9. Press the eject button to remove the attachments.

Precaution

	Make sure the household voltage corresponds with the voltage on the rating label (220V - 240V).		Please use 6a socket single alone. sharing the socket with other appliance may lead to heating or fire.
Make sure the plug pins align with the socket when inserting as incorrect alignment may damage the pins.		Switch off the socket and gently remove the plug from the wall outlet.
	Do not pull the power cord. Always hold the plug firmly and pull out of the socket.		Do not use any metal objects or harsh materials near the mixer as it may scratch the surface.
Always disconnect the appliance from the socket if it is not in use, left unattended or being assembled/disassembled.		Hooks should be installed in the correct holes.
Please stop the mixer after every 3 minutes of operation and allow it to cool down for 15 mins before using again. This will ensure the long lifespan of the product.		The beater and dough hook must not be used at the same time.
Please make sure the mixer is switched off before attaching the beater/dough hooks.		Any accessories not supplied by Duronic specifically for this model are not recommended for use.

Warning
Any appliance repairs must be made by a qualified technician only.	The appliance must be kept out of reach of children.
Do not operate the appliance with wet hands.	Never submerge the appliance under water.
Please keep hands, clothes, or any materials away from the rotating parts while the appliance is in operation.	Do not operate the appliance if the adapter or cord is damaged. Please send in to a qualified technician or repairs centre.
This appliance is made for household use only.	The appliance must not be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a responsible person in a safe way and they understand the hazards involved.

Cleaning and maintenance
Always make sure the appliance is switched off and plugged out before any cleaning or maintenance.	Always clean the motor and housing of the appliance with a soft dry cloth.
The attachments, tray and mixing bowl can be immersed in water for cleaning.	Do not use a metal or nylon brush to clean the product surface. Also avoid using harsh chemical cleaners so it does not damage the material of the product.

Analysis and trouble shooting

Fault Analysis Solution
Flour goes into the machine when mixing.	The attachments are installed incorrectly.There is more than 800g flour which exceeds the capacity.No Power	Install the attachments correctly.Switch the appliance off and remove some flour.
The appliance does not work even when plugged in.	No Power Check to see	if the appliance is correctly installed and the household voltage corresponds with the rating label.

Specifications

Product Stand Mixer Hand Mixer
Model SM3 HM3
Rated Voltage 220v-240v 220v-240v
Rated Frequency 50/60Hz 50/60Hz
Mixing Bowl 4.0L N/A
Rated Power 300W 300W

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instruction's contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked

waste to your Local Authority Civic waste site,

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
