USER MANUAL HHT-013-HD HONEYWELL

AIR PURIFIER When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before operating the air

2. Place air purifier where it is not easily knocked

over by persons in the household.

3. Always turn the air purifier controls to the OFF

position and unplug from the wall outlet when not in use.

4. To disconnect the air purifier, first turn the

control to the OFF position, grip the plug and pull it from the wall outlet when not in use. Never pull by the cord.

5. Do not use any product with a damaged cord

or plug or if product malfunctions, is dropped or damaged in any manner. Keep the cord

way from hea ted surfaces.

6. Do not use air purifier outdoors.

7. Never use air purifier unless it is fully

8. Do not run power cord under carpets, and do

not cover with throw rugs. Arrange cord such that it will not be tripped over.

9. Do not use air purifier where combustible

gases or vapors are present.

10. Do not expose the air purifier to rain, or use

near water in a bathroom, laundry area or other damp location.

11. The air purifier must be used in its upright or

horizontal position only.

12. Do not allow foreign objects to enter ventilation

or exhaust opening as this may cause electric shock or damage to the air purifier. Do not block air outlets or intakes.

13. Locate air purifier near the outlet and avoid

using an extension cord.

14. This appliance has a polarized plug (one blade

is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

15. A loose fit between the AC outlet (receptacle)

and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

16. Do not sit, stand or place heavy objects on the

17. Disconnect power supply before servicing.

18. SAVE THESE INSTRUCTIONS

WARNING: To Reduce The Risk of Fire or

Electric Shock, Do Not Use This Air Purifier With Any Solid-State Speed Control Device.

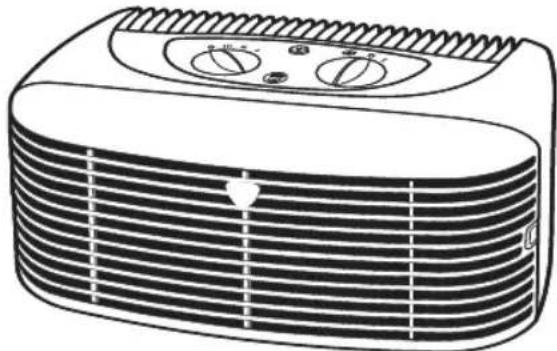

AIR PURIFIER Air Purifier for Pet Owners Model HHT-013-HD The Honeywell trademark is used by Kaz, Inc. under license from Honeywell International Inc.Honeywell International Inc. makes no representation or warranties with respect to this product.HHT-013-HD_OM 020810.qxd 2/8/10 2:54 PM Page 1INSTALL MAIN HEPA-TYPE FILTER The HEPA-Type Filter is supplied within the air purifier. It is wrapped to ensure purity.

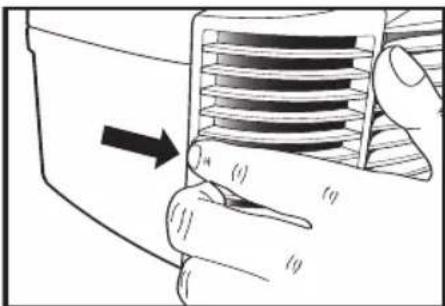

• Unplug the air purifier.While pressing on the two notches along the front grille, pull the grille towards you and remove it (see Fig. 2). Gently push down on the top of the filter frame and pull forward.

• Remove the protective wrap from the HEPA-type filter.

• Place HEPA-type filter back into the air purifier housing, following the directions of the arrows on the filter cartridge. Snap front filter grille back into place.

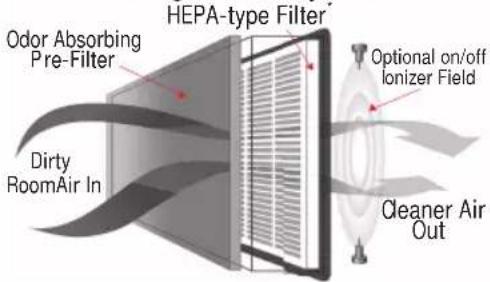

This model air purifier incorporates a 3-stage cleaning system to help clean the air that passes through the filter in the unit (Fig. 1). Stage 1: Odor Absorbing Pre-Filter Stage 2: 95% HEPA-Type Filter Stage 3: Electronic Ionizer (optional on/off) DirtyRoomAir In HEPA-type Filter

• Select a firm, level and flat location. For best airflow, locate the unit at least 3 feet (1 M) from any wall.

• When operating, large volumes of air are drawn toward the air purifier. Surrounding areas should be cleaned and/or vacuumed frequently to prevent build-up of dust and other contaminates. This may help prolong the life of the filter. If the unit is placed on a light colored carpet, a small mat or rug should be used underneath to prevent permanent staining. This is especially important in homes with contamination from smoking or fireplaces. HHT-013-HD_OM 020810.qxd 2/8/10 2:54 PM Page 2OPERATION

• Ensure the air purifier is plugged into a working electrical outlet and the Power Knob and Ionizer Knob are OFF (pointed to location marked (O).

• Turn the Power Knob to the High (III) position for several minutes and then rotate the Power Knob to the desired cleaning level ( I = Low, II = Medium, III = High). It is recommended you run your air purifier 24 hours a day to ensure continuous cleaning. Portable air purifiers are more effective in rooms where all doors and windows are closed. IONIZER FEATURE The Ionizer helps boost the performance of the air purifier.

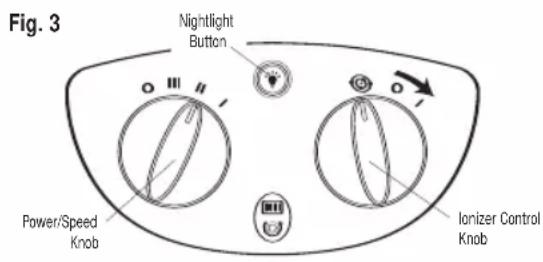

• Turn the Ionizer Control Knob to the ON ( I ) (see Fig. 3) position.This will power the Ionizer on. To turn the Ionizer feature off, simply turn the knob to the OFF (O) position. NOTE: If you have asthma symptoms or other breathing disorders that can be triggered by the presence of an ionizer, we recommend that you do not activate the ionization feature. NIGHTLIGHT FEATURE The nightlight provides soft illumination.

• To turn the night light on, press the nightlight button (see Fig. 3).

• To turn it off, press the nightlight button again.

ELECTRONIC FILTER CLEAN REMINDER

This model air purifier has an electronic filter check to remind you when to replace the HEPA-Type filter based on the air purifier’s hours of use. A red LED light will illuminate when it is time to check the filter. You should periodically check the filter. Depending on operating conditions, the Filter should be replaced every 6 months for best performance.

REPLACE WITH HEPA-TYPE FILTER P

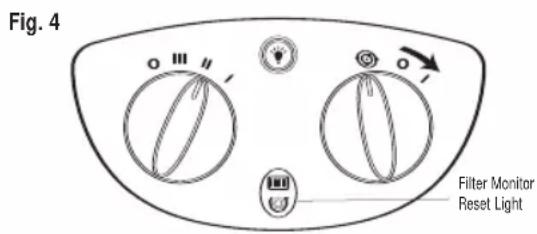

TO RESET THE ELECTRONIC FILTER CHECK: When the filter monitor light remains on, it is time to check the HEP A-Type filter and reset the filter monitor, if needed. With the unit powered on, insert the tip of a ball-point pen or paperclip next to the LED filter check light and hold for approximately 5 seconds until the light turns off (see Fig. 4). Depending upon your individual usage (environment and hours used), you may need to replace the filter more or less frequently

Each time you replace your filter, you should re-set the filter monitor reset button. Fig. 3 Ionizer Control Knob

ower/Speed Knob Nightlight Button Fig. 4 Filter Monitor Reset Light HHT-013-HD_OM 020810.qxd 2/8/10 2:54 PM Page 3The stage 1 odor absorbing particle pre-filter helps pick up large airborne particles that enter the front grille and helps reduce airborne pet odors faster. The odor absorbing pre-filter P should be replaced every 3 months for optimum performance. Purchase PetCleanAir™ replacement filter pack P at The Home Depot where you purchased your air purifier or directly from www.homedepot.com. If you have any questions, call 1-800-477-0457. MAINTAINING YOUR STAGE 1 ODOR ABSORBING PARTICLE PRE-FILTER Recommended Replacement Intervals: HEPA-Type filter-6 months, Odor absorbing pre-filter-3 months These replacement intervals are intended as guidelines only. Useful life expectancy of any filter media is dependent upon the concentration of contaminates going through the system. High concentrations of contaminates such as dust, pet dander and smoke will reduce the useful life of the filter. NOTE: Filters for this air purifier are not washable. Do not immerse in water.

WHEN TO CHANGE HEPA-TYPE REPLACEMENT FILTER

For Pet CleanAir™ Filter Pet CleanAir™ replacement filters are not cleanable, and should be replaced every 6 months to ensure optimum performance of your air purifier.

• Air purifier should be turned OFF, and unplugged prior to replacing filters (Fig 5).

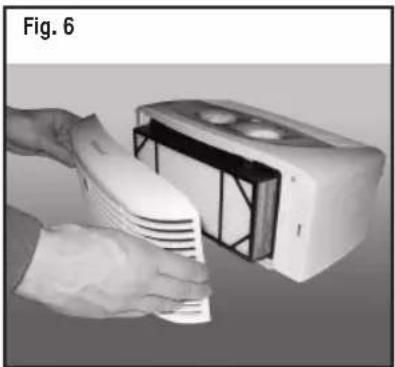

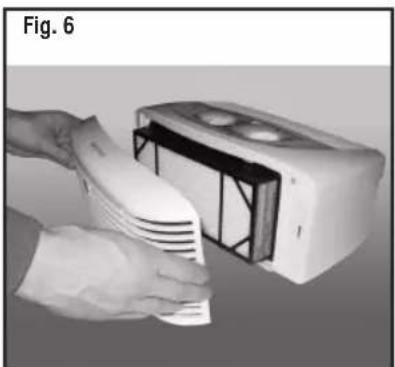

• Remove the front grille from the air purifier by squeezing in on the side of the grille and pulling the grille away from the unit (Fig 6).

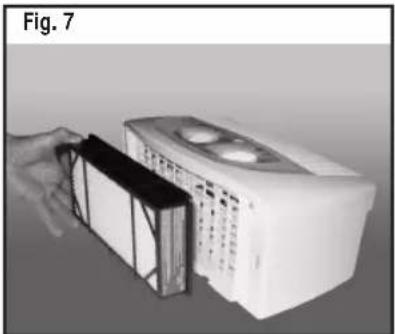

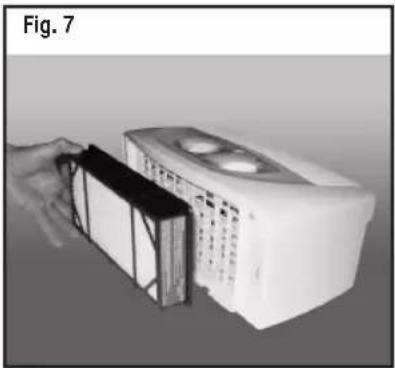

• Remove the filter by gently pushing along the edge of the filter frame and pulling away from the unit (Fig 7).

• Remove protective wrap from new filter.

• Note the arrows on the filter frame – snap new filter into place with the arrows facing toward the unit. Filters must snap in place in order for the unit to operate properly.

• Re-install the front grille by squeezing the tabs on the side of the grille and placing back into the set location on the front of the unit. The grille will snap in place.

• Plug unit back in. Unit is ready for use. HOW TO INSERT OR REPLACE YOUR FILTERS Fig. 5 Fig. 6 Fig. 7 HHT-013-HD_OM 020810.qxd 2/8/10 2:54 PM Page 4For Pet CleanAir™ Odor Absorbing Pre-Filter Be sure keep the additional filter that was shipped with your unit in the sealed plastic bag to maintain freshness until ready for use. Pet CleanAir™ Pre-Filters are not cleanable, and should be replaced every 3 months to ensure optimum performance of your air purifier.

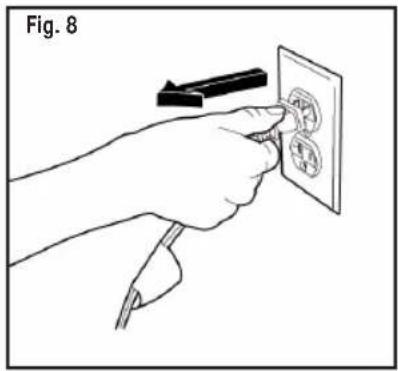

• Air purifier should be turned OFF, and unplugged prior to replacing filters (Fig 8).

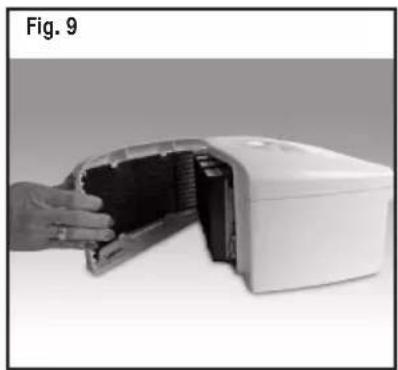

• Remove the rear grille from the air purifier by squeezing in on the side of the grille and pulling the grille away from the unit (Fig 9).

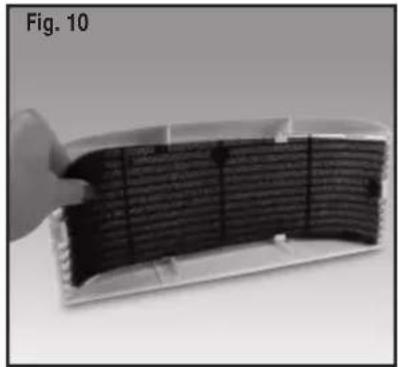

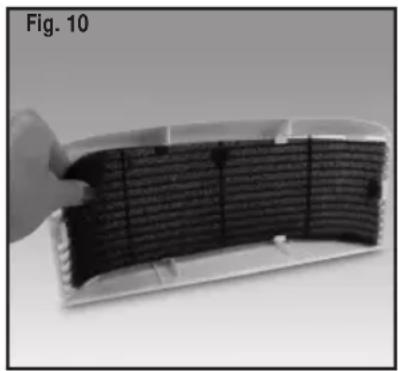

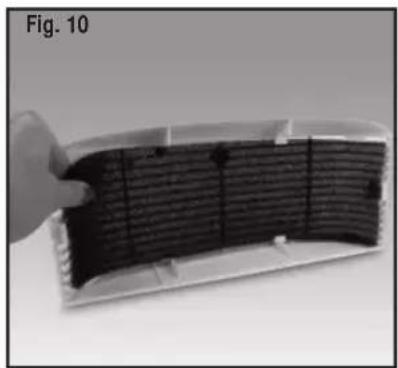

• Center the pre-filter on the inside of the grille, and push edges under retention tabs so that filter is secured in place (Fig 10).

• Re-install the front grille by squeezing the tabs on the side of the grille and placing back into the set location on the front of the unit. The grille will snap in place.

• Plug unit back in. Unit is ready for use. replacement filters (Model Number HRF-CP2) may be available from the Home Depot store where you purchased your air purifier, or can be ordered directly from Home Depot at www.homedepot.com. If you have any questions, contact Kaz Consumer Services at 1-800-477-0457. HOW TO INSERT OR REPLACE YOUR FILTERS (continued)

e recommend that you clean the air purifier at least once every 3 months and before extended storage. Use only a dry cloth to wipe the external surfaces of the air purifier. DO NOT USE WATER, WAX POLISH, OR ANY CHEMICAL SOLUTION. If your Air Purifier will not be used for more than 30 days, we recommend:

• Remove the HEP A-T ype Filters from the unit.

• Place the HEPA-Type Filters in a plastic bag, seal the bag and store with the unit.

CLEANING AND STORAGE

Fig. 8 Fig. 9 Fig. 10 HHT-013-HD_OM 020810.qxd 2/8/10 2:54 PM Page 5To order replacement filters, visit Home Depot’s website at: www.homedepot.com or visit the Home Depot store near you. The replacement filter pack for this unit is PetCleanAir™ filter pack P or model HRF-CP2. One filter pack will last approximately 6 months.

ACCESSORIES AND REPLACEMENT FILTER

T ATTEMPT TO PRY OPEN THE AREA OF THE AIR PURIFIER WHERE THE MOTOR IS LOCATED, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE AIR PURIFIER OR PERSONAL INJURY. PLEASE FOLLOW THE OPERATING INSTRUCTIONS CLOSELY. My unit will not turn on. The air purifier has safety features to ensure that the unit is ready for operation. Check to make sure both HEPA-type filters are installed flush to the air purifier. Check to make sure the rear cover is installed flush with the unit and is locked. My Air Purifier is making noise and the air output is less. What’s wrong? The HEPA-type filter in your air purifier was shipped with a plastic bag over it to ensure purity. Make sure the plastic bag has been removed before use. The filters may be dirty. High amounts of contaminates can block the pores in the filter and stop the air from moving through it. Replace the filter with the PetClean Air replacement filter P. How long should I run my Air Purifier? For best results, you should operate your Air Purifier 24 hours a day. This unit will be more effective when doors and windows are closed. Can I wash my HEPA-Type filter? No. Washing the HEPA-Type filter will destroy it. How does the electronic filter check work? The filter check LED will change from green to red when it is time to clean the filters after 3 months of continuous operation of the air purifier. For more troubleshooting tips, visit our website at: www.kaz.com or call 1-800-477-0457.

FREQUENTLY ASKED QUESTIONS

HHT-013-HD_OM 020810.qxd 2/8/10 2:54 PM Page 6You should first read all instructions before attempting to use this product.

. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

OF ANY NATURE. ANY IMPLIED WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE ON THIS PRODUCT IS

LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY . Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase. B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual. D. This warranty DOES NOT cover the washable pre-filter or the HEPA-Type filters, except for material or workmanship defects. E. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a $10 US/$15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. We suggest having tracking or delivery confirmation. Send to: In U.S.A.: Kaz, Incorporated Attn: Returns Department 4755 Southpoint Drive Memphis, TN 38118 USA In Canada: Kaz Canada, Inc. Attn: Returns Department 510 Bronte Street South Milton, ON L9T 2X6 Canada

5 YEAR LIMITED WARRANTY

© 2010 Kaz, Inc. All Rights Reserved. PN: 31IMT013190 The ionizing process used by the air purifier (when the optional ionizer is activated) produces small amount of ozone as a byproduct. The air purifier complies with the U.S. Government limits for acceptable levels of ozone (less that 50 parts per billion by volume of air circulating through the product). People with a history of respiratory problems or heart/lung disease should consult a physician prior to using the ionizing feature of this product.
